SV189 is a very cost-effective digital microscope camera. With a 1.3 million pixel CMOS, SV189 allows you to see more—capture still and video images of every details of micro world with your microscope.
Note: For Mac systems, you can connect the SV189 camera using the photo booth software that comes with the system.
|
Model |
SV189 |
| Sensor |
1/4" 1.3 million pixel CMOS |
|
Static image resolution |
1280*1024, 640*480, 320*240 |
|
Dynamic image resolution |
1280*1024Pixels/24fps |
|
Sensitivity |
|
|
Pixel size |
2.8×2.8um |
|
Spectrum response |
400nm---1000nm |
|
Shutter type |
ERS (electronic rolling shutter) |
|
Frame rate |
16 f/s @ 1280*1024 |
|
Image format |
JPG/BMP |
|
White balance |
automatic/manual |
|
USB Interface |
USB2.0 |
|
Applicable models |
SV601/SV605 |
|
Net Weight |
90g / 0.2lbs |
|
Item Size |
16CM (Total length) |
|
System compatibility |
MAC, Windows |
SV189 is a very cost-effective digital microscope camera. With a 1.3 million pixel CMOS, SV189 allows you to see more—capture still and video images of every details of micro world with your microscope.
USB 2.0 cable is included, compatible with MAC OS10.5 and above, Windows Vista/7/8/10 (32/64 bit) operating systems. The easy-to-use software allows users to post-processing, providing multiple advanced functions like measurement, calibration, data export and others, perfect for home, co-op, or classroom use. It works well with SV601 and SV605 also.

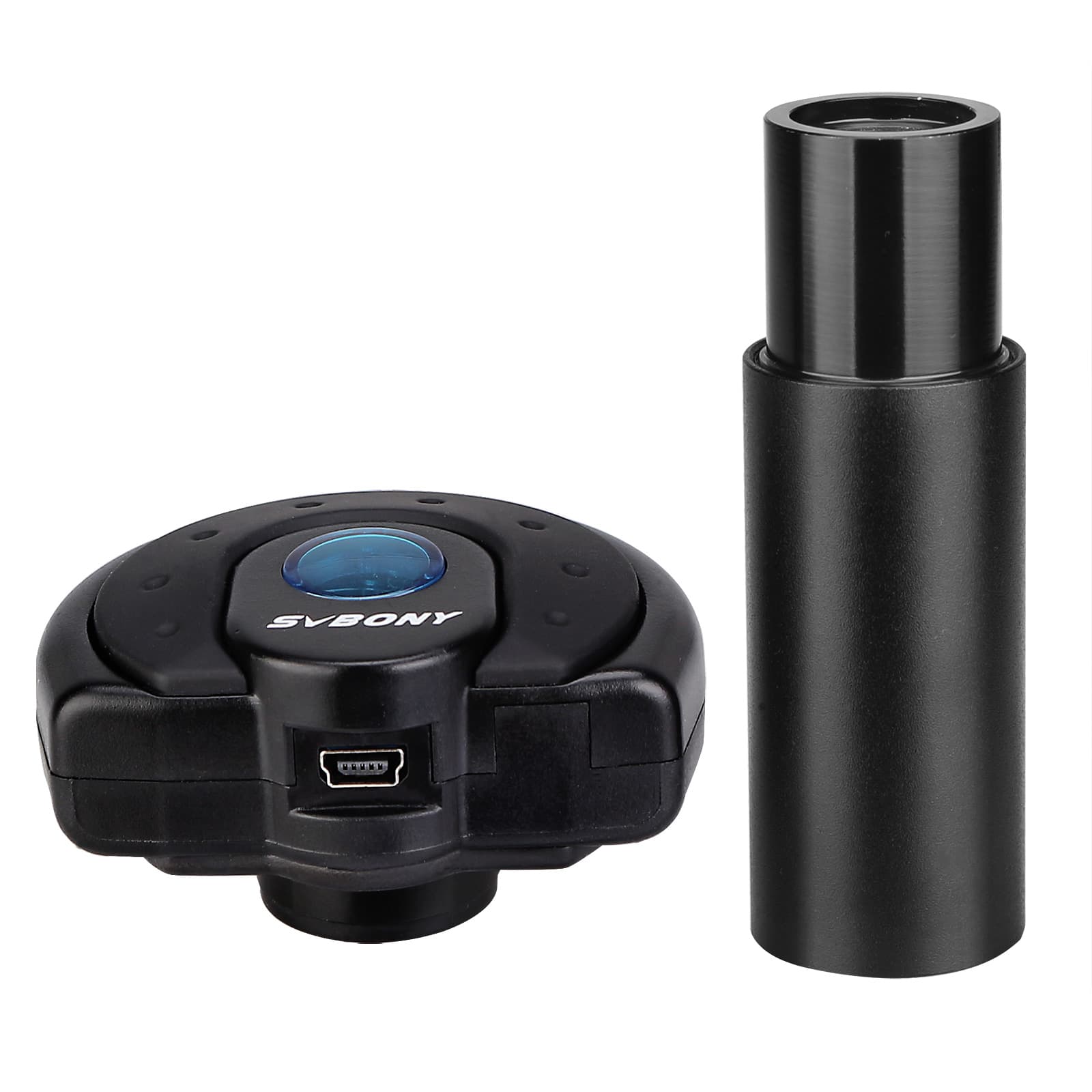

Package includes a digital microscope camera , a microscope adapter, 1.5m USB 2.0 cable and software.
