SVBONY SV905C guiding camera
SVBONY SV905C guiding camera
Finally, we have our first guide camera-SV905C, so follow me, I will give a clear picture of this camera so you don't have to hesitate to buy this SV905C camera or not.
1. Background
Deep-sky photography needs a long exposure time, while the long exposure time will need precise guiding to make sure the image quality. The long time tracking of the Astro-objects will cause the object to leave the monitor view slowly because of the systematical error, including the mechanical system and the temperature change as well as the atmosphere reflection. The guiding camera is to improve the tracking.
2. Introduction
We choose the SONY IMX225 sensor for the SV905C guiding camera, this keeps the strengthen that high speed and very sensitive, and low the cost to make the price more acceptable. In the meantime, the high dynamic range, 1/3'' CMOS sensor makes SV905C very suitable for DSO( deep-sky object) and planet photography guiding. The CS adapter allows multiple usages.
Specification:
| Model | SV905C |
| Sensor | SONY IMX225 |
| USB Type | Type-C USB 2.0 |
| Total pixels | 1.2M pixel |
| Diagonal | 6mm |
| Maximum resolution | 1280*960 |
| Pixel size | 3.75μm* 3.75μm |
| Image area | 5.6mm*3.2mm |
| Maximum frame rate | 39FPS |
| Shutter type | Rolling Shutter |
| Time of exposure | 64us-2000s |
| Read noise | 4.0e |
| QE peak | 75% |
| Full well charge | 13ke |
| ADC | 12bit |
| Gain | 0-500 |
| ROI function | Yes |
| Bin | 1x1 2x2 |
| Digital noise reduction | HCG mode |
| Video format | AVI |
| Communication interface | DirectShow interface |
| Application software | Windows OS: Sharpcap, Firecapture,PHD2, ASCOM platform Linux OS: AstroDMx capture for Linux Raspberry Pi: AstroDMx Capture Mac OS: AstroDMx Capture |
| Compatible system | Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS |
| Working temperature | - 5℃～45℃ |
| Storage temperature | - 20℃～60℃ |
| Working humidity | 20% RH-80% RH |
| Storage humidity | 20% RH-95% RH |
| Power consumption | <0.5W |
| Back intercept | 7.5mm/12.5mm |
| Protective glass | AR Coating |
| Package size | 162*132*70 mm |
| Net weight | 230g |

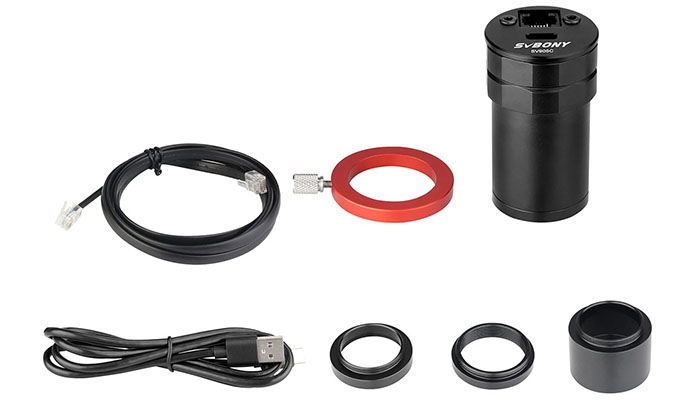

Package Includes:
* Svbony SV905C Guide Camera
* Type-c Cable
* ST4 6PIN Guiding Cable
* 1.25” Extension Tube
* CS-C Adapter Ring
* 1.25” Dust Cover
* Cleaning Cloth
* User Manual
* CD
The product link:
SV905C Camera 1.2MP USB2.0 Guiding Camera
Thanks for your time, more information will be released in the following days.
Stay tuned!
