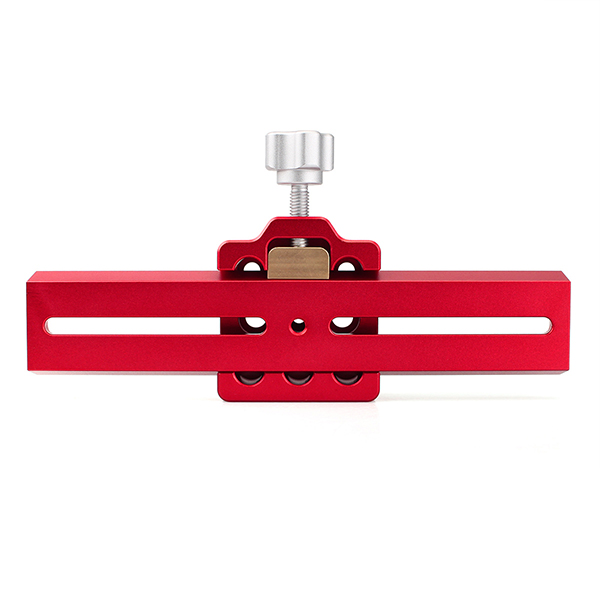

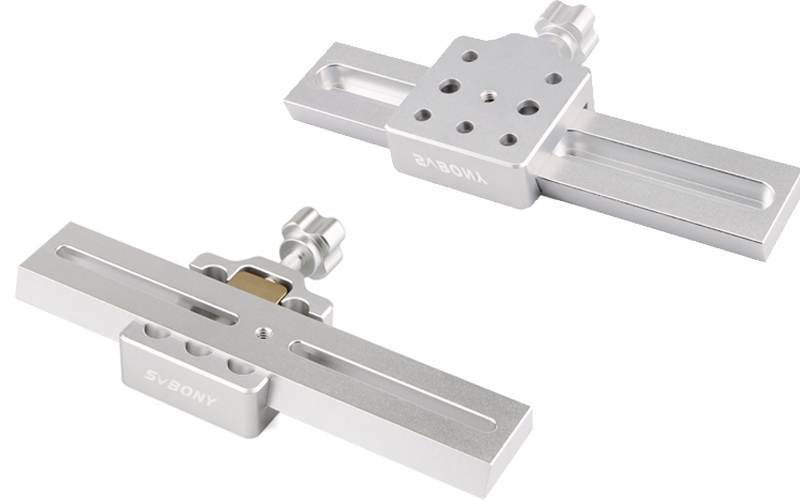

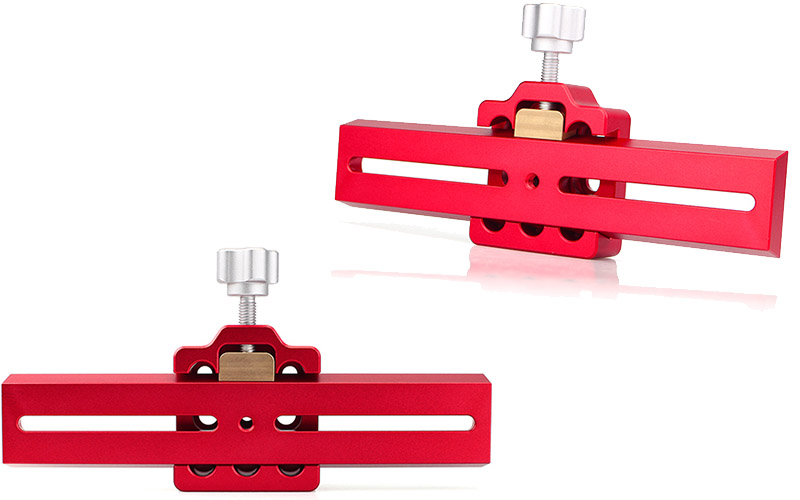

1. 210mm dovetail plate and adapter(clamp) set easily to do balance work;
2. Dovetail clamp: two M8, four M6, and one 1/4'' hole;

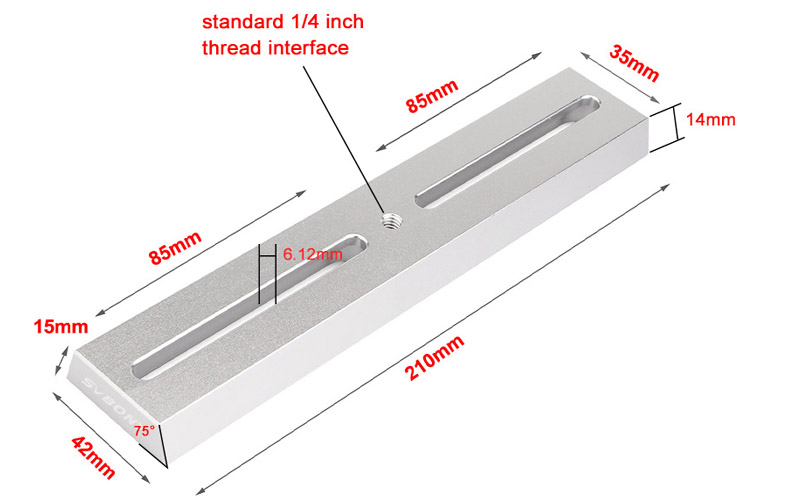

3. Dovetail plate: standard 1/4'' hole, The space at both ends can be passed by M6 screws to connect your telescope.
Style & stabilité.
Model | F9143C/D |
Material | Precision Aluminum |
Color | Red/Silver |
Length | 210mm |
Width (bottom) | 42mm |
Width (top) | 35mm |
Height | 9mm |
Net Weight | 224g/7.91oz |
Model | F9144C/D |
Material | Aluminum alloy |
Color | Red/Silver |
Loading Weight | 10kg |
Dovetail Upside | 39.5mm |
Dovetail Downside | 45mm |
Dovetail Depth | 12mm |
Net Weight | 193g/6.83oz |
1. 210mm dovetail plate and adapter(clamp) set can do load and remove your finder system more quickly with the hand knob, and this dovetail system easily to do balance work;

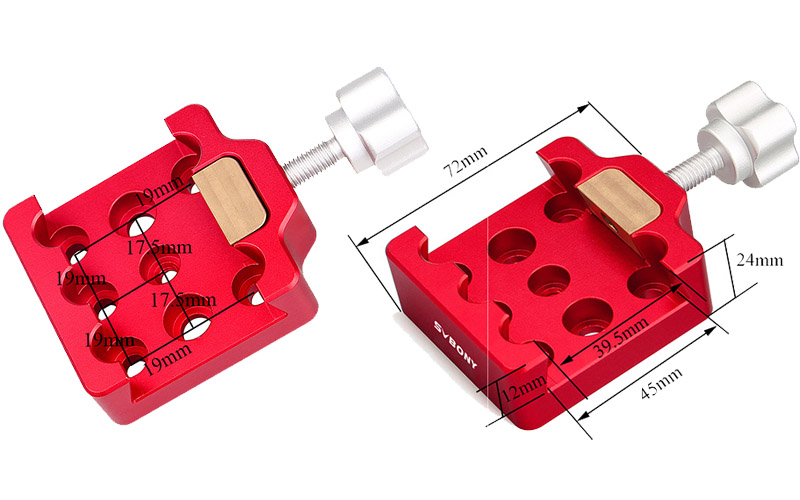

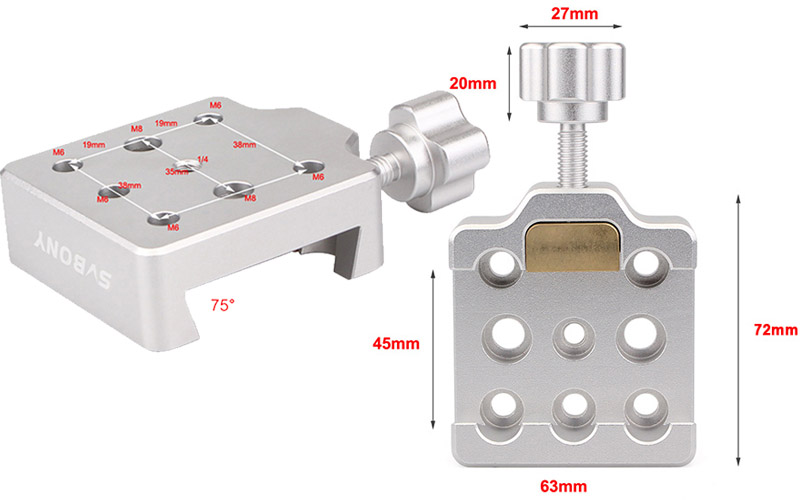

2. Dovetail clamp: two M8, four M6, and one 1/4'' hole, 8 holes allow connecting to almost all surfaces, The center distance of the two holes for M8 screws is 35mm;

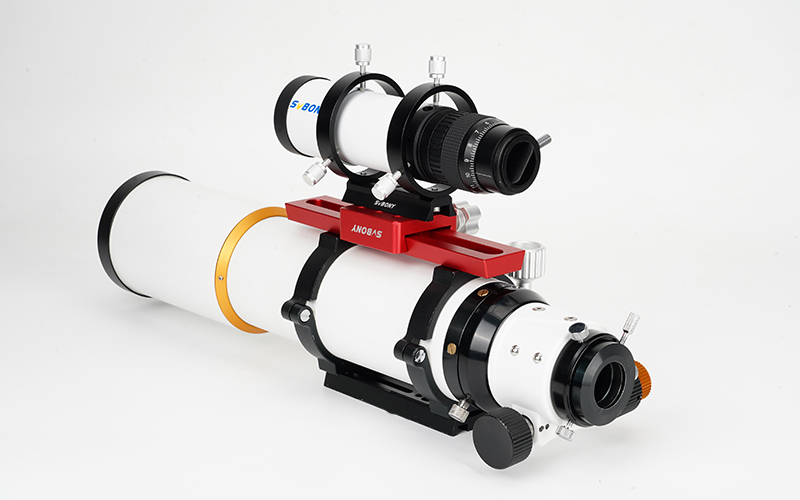

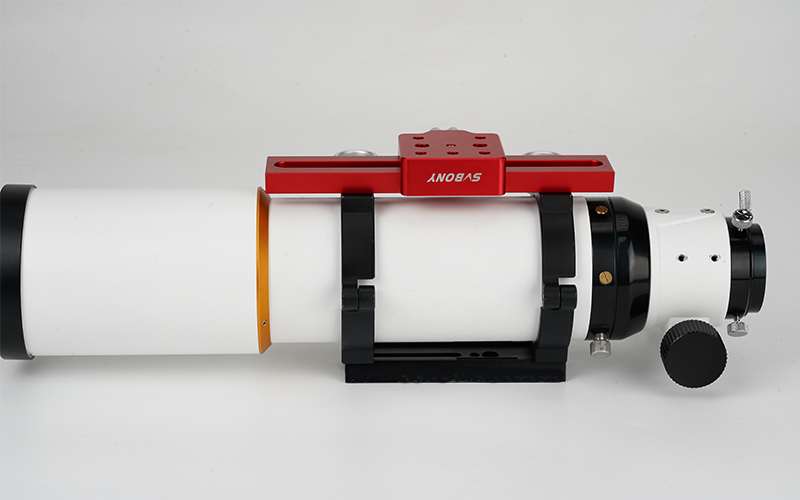

3. Dovetail plate: standard 1/4'' hole, The space at both ends can be passed by M6 screws to connect your telescope like SV503 series refractors;
4. Material: Aluminum Alloy Brass Knob.
