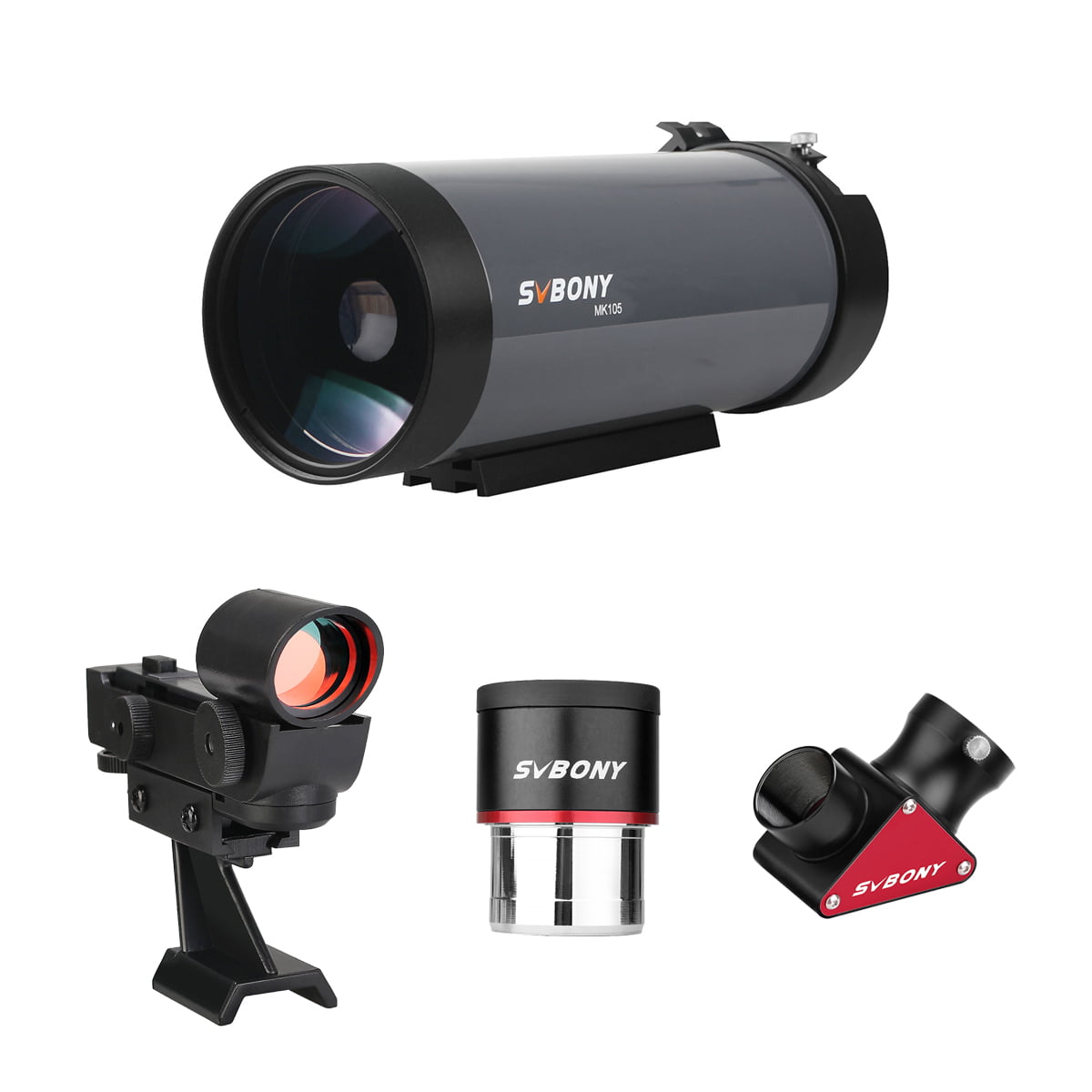

MK105 is a perfect mobile, ready-to-use telescope. Its solid metal structure ensures that it can withstand several bumps and impacts during the journey. This set of visual/photographic effects will leave a deep impression on you.
| Model | MK105-F9382A |
| Type | Maksutov-Cassegrain |
| Aperture | 105mm / 4.13 inch |
| Focal length | 1365mm / 53.74 inch |
| Focal Ratio | f/13 |
| Type of Focuser | Internal |
| Tube weight | 2193g / 4.83lb |
| Tube outer diameter | 119mm / 4.68 inch |
| Limit magnitude | 12.1 |
| Light-gathering Power | 210x |
| Resolution | 1.1arc seconds |
| Primary mirror | Multi-coated Precision Aluminum Coating |
| Secondary Mirror | 99% Reflectivity Dielectric Coatings and Multi Coating |
| Optical Tube Length | 377mm / 14.84inch |
| Adapter Thread | M42x0.75 For T-Ring |
| Model | SV182-W9141B |
| Lens Diameter | 30mm |
| Focal Length | 120mm |
| Magnification | 6x |
| Eye Relief | 15mm |
| Exit Pupil | 5mm |
| Field of View | 7.5° |
| Lens coating | FMC |
| Image Orientation | Correct-image |
| Reticle | Single crosshair |
| Adjustment System | Spring-loaded X-Y |
| Objective | Achromatic 2-Element |
| Net Weight | 295g / 0.651b / 10.41oz |
| Model | W9139B |
| Type | Dovetail Base Type |
| Material | Plastic |
| Net Weight | 70.0g / 2.47oz |
| Model | SV188-F9171A |
| Connection eyepiece | 1.25" |
| Connecting telescopic | 1.25" & 2" (2" need adapter) |
| Clamp | 1 screw |
| Reflectivity | 0.9 |
| Housing material | Metal |
| Suitable for | Refractors |
| Not suitable for | Newtonians |
| Model | SV305M Pro-F9198D |
| Sensor | 1/2.8” COMS monochrome Sensor SONY IMX290 |
| Pixel Size | 2.9um X 2.9um |
| Resolution | 2M Pixels (1944*1096) |
| Shutter | Electronic Rolling Shutter |
| ADC | 12bit |
| ROI support | Any resolution |
| On camera image buffer | 128M |
| Supported OS | Windows8.1& win 10 & Linux &Raspberry Pi & Mac OS |
| USB Type | USB 3.0 |
| Exposure Time | 0.03ms-2000s |
| Gain | 1~30 |
| Maximum Frame Rate | 130FPS (1920*1080) / 500FPS(320X240) |
| Weight | 135g |
| Diagonal Line | 6.5mm |
| Protective Window | AR coated window |
| Model | SV207-W9158B |
| Eyepiece Type | Super Plossl |
| Focal Length | 15mm |
| Field of View | 50 degrees |
| Eye Relief | 11mm |
| Field stop Diameter | 12mm |
| Net Weight | 100g/3.53oz |
| Dimension | Ø37.5×52.2mm |
| Material | Metal |
| Thread Size | M28.5×0.6 |
| Lens group | 2 gruop/4 PCS |
| Lens Coating | FMC |
| Side of the lens coating | Extinction Ink |
| Model | W9142A |
| Size | 1.25-Inch |
| Thread | M28.5*0.6 |
| Clear Aperture | 26mm |
| Net Weight | 8g / 0.3oz /0.02lb |
| Lens Material | SCHOTT B260 |
| Frame Material | Aviation Aluminum 6061T6 |
| Substrate Thickness | 1.1mm |
| Surface Quality | 60/40 |
Visual matching of MK105
1，F9382A+W9141B+F9171A+W9158B
Photography matching of MK105
1，F9382A+W9139B+F9198D+W9142A
2，F9382A+W9141B+F9198D+W9142A
