MK105 Portable Telescope for Visual Observation of the Sky Star

SKU: F9382A-
US$ 559.99

These Mk105 telescope bundle are suitable for visual observation of the sky star.

In Stock Out Of Stock

MK105 is a perfect mobile, ready-to-use telescope. Its solid metal structure ensures that it can withstand several bumps and impacts during the journey. This set of visual/photographic effects will leave a deep impression on you.








0 reviews

Write a review

Model ​ MK105​-F9382A​
Type​ Maksutov-Cassegrain​
Aperture​ 105mm / 4.13 inch​
Focal length​ 1365mm / 53.74 inch​
Focal Ratio f/13​
Type of Focuser​ Internal​
Tube weight​ 2193g / 4.83lb​
Tube outer diameter​ 119mm / 4.68 inch​
Limit magnitude​ 12.1​
Light-gathering Power 210x​
Resolution​ 1.1arc seconds​
Primary mirror Multi-coated Precision Aluminum Coating​
Secondary Mirror 99% Reflectivity Dielectric Coatings and Multi Coating
Optical Tube Length 377mm / 14.84inch
Adapter Thread M42x0.75 For T-Ring
Model​ SV182-W9141B​
Lens Diameter 30mm
Focal Length 120mm
Magnification 6x
Eye Relief 15mm
Exit Pupil  5mm
Field of View 7.5°
Lens coating FMC
Image Orientation Correct-image
Reticle Single crosshair
Adjustment System Spring-loaded X-Y
Objective  Achromatic 2-Element
Net Weight 295g / 0.651b / 10.41oz
Model​ W9139B​
Type Dovetail Base Type
Material Plastic
Net Weight 70.0g / 2.47oz
Model​ SV188-F9171A​
Connection eyepiece 1.25"
Connecting telescopic 1.25" & 2" (2" need adapter)
Clamp 1 screw
Reflectivity 0.9
Housing material Metal
Suitable for Refractors
Not suitable for Newtonians
Model SV305M Pro​-F9198D​
Sensor 1/2.8” COMS monochrome Sensor SONY IMX290
Pixel Size 2.9um X 2.9um​
Resolution 2M Pixels (1944*1096)
Shutter Electronic Rolling Shutter
ADC 12bit
ROI support Any resolution
On camera image buffer 128M
Supported OS Windows8.1& win 10 & Linux &Raspberry Pi & Mac OS
USB Type USB 3.0
Exposure Time 0.03ms-2000s
Gain 1~30
Maximum Frame Rate 130FPS (1920*1080) / 500FPS(320X240)
Weight 135g
Diagonal Line 6.5mm
Protective Window AR coated window
Model​ SV207-W9158B
Eyepiece Type Super Plossl
Focal Length 15mm
Field of View 50 degrees
Eye Relief 11mm
Field stop Diameter 12mm
Net Weight 100g/3.53oz
Dimension Ø​37.5​×52.2mm
Material Metal
Thread Size M28.5×0.6
Lens group  2 gruop/4 PCS
Lens Coating FMC
Side of the lens coating Extinction Ink
Model  W9142A​
Size 1.25-Inch
Thread M28.5*0.6
Clear Aperture 26mm
Net Weight 8g / 0.3oz /0.02lb
Lens Material SCHOTT B260
Frame Material Aviation Aluminum 6061T6
Substrate Thickness 1.1mm
Surface Quality 60/40

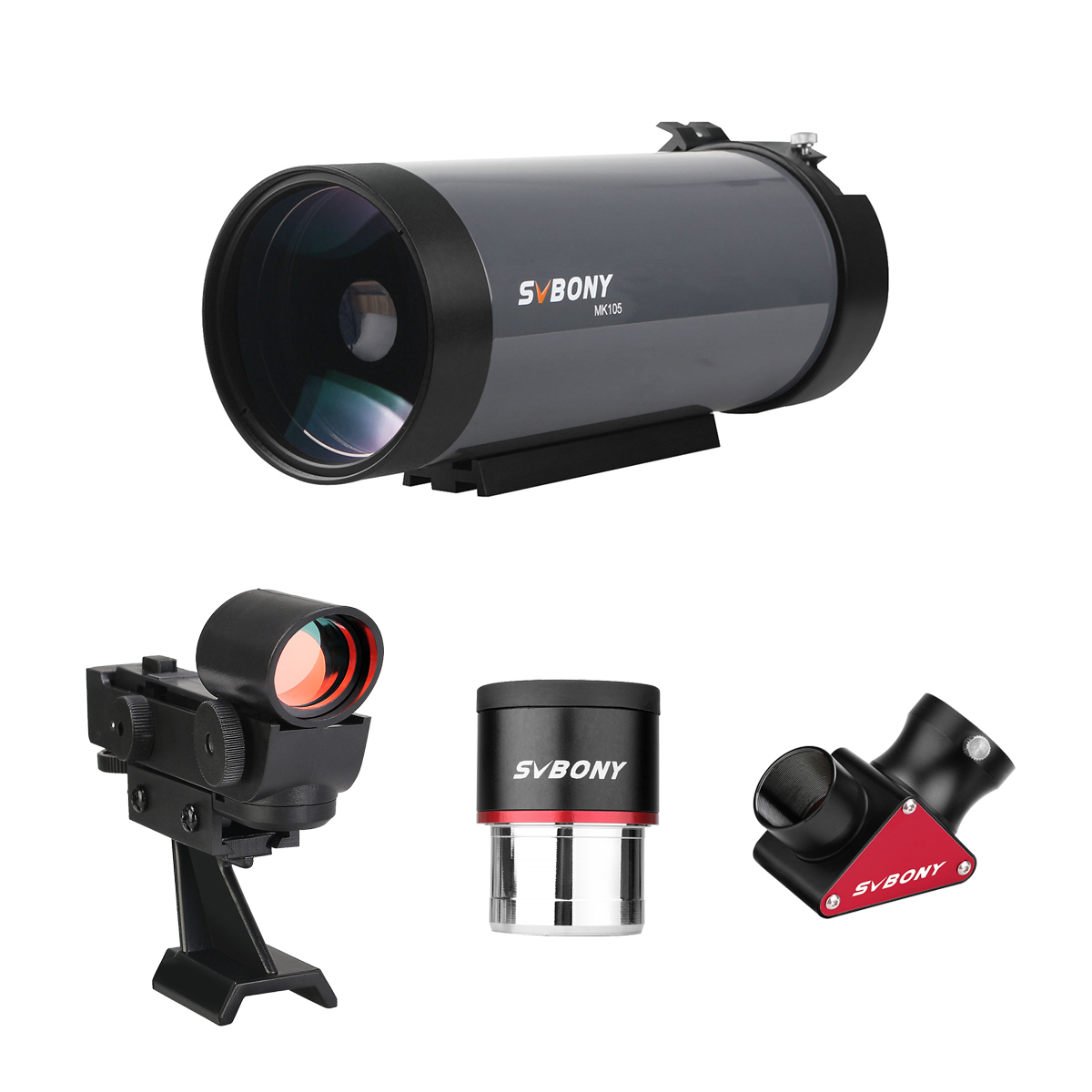

Visual matching of MK105
1,F9382A+W9141B+F9171A+W9158B
Photography matching of MK105
1,F9382A+W9139B+F9198D+W9142A
2,F9382A+W9141B+F9198D+W9142A
