This dovetail base is suitable for most kind of telescopes and has strong compatibility. Precision machined dovetail base, made of high strength aluminum with anodizing aluminium process, durable for long time use. The aluminum material makes the product lighter and easier to carry. Two thumbscrews are included in package which are fit into the recessed slotted mounting holes. The dovetail base is compatible with most finderscopes, like SV182,SV106.
Check the videos for the details about how to connect the SV198 guide scope to the SV503 telescope with W2370A dovetial slot. https://youtu.be/_qTjtDaJgfY
SVBONY Universal Dovetail Base For Optical Astronomical telescope Finder Scope
High-quality built; the dovetail base made of high-strength aluminum with anodizing aluminium process; is designed to accept finder scope.

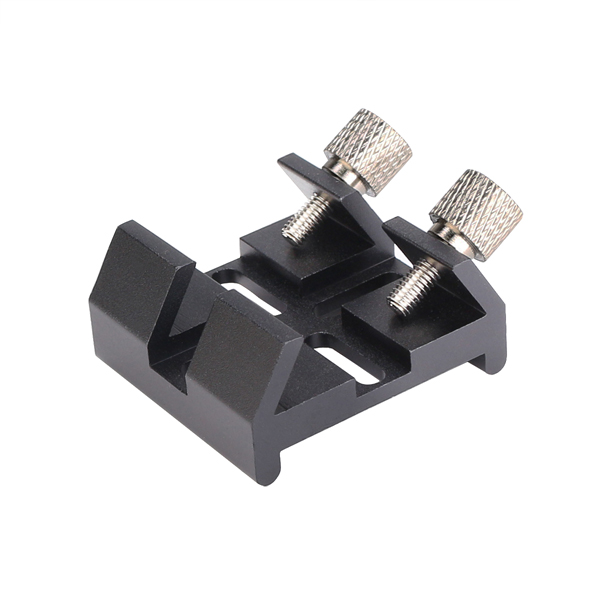

Dovetail Base
The dovetail base fits most bracket designs; compliable with finder scope on telescopes, so you can securely attach an aiming device to any telescope.
The dovetail is easy to use; you can use thread screws to assemble it to your optical tube; the use is easy; just put it on the optical tube and tighten the screws.
The dovetail slots are available in two styles, which is different in the width of the internal slot. The width of the W2370A is 4.2 mm and the W2370B is 5 mm.

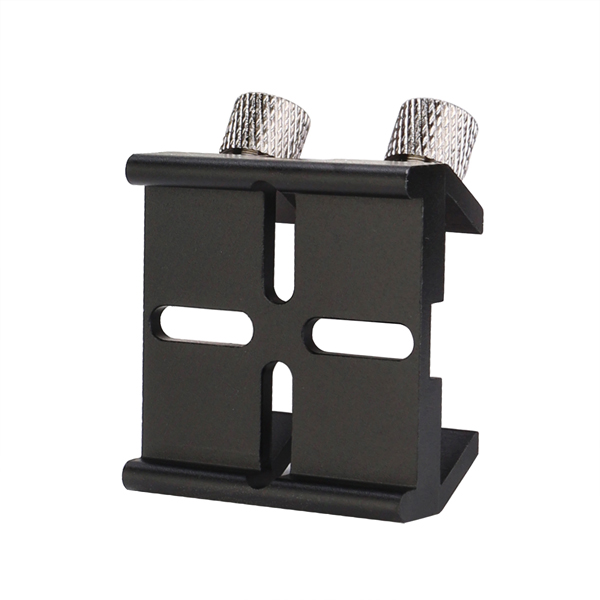

W2370A
W2370B
Model | W2370A | W2370B |
Length | along the 34mm | 39mm |
Width of internal slot | 4.2mm | 5mm |
Horizontal length of internal slot | 36.5mm | 46mm |
Vertical length of internal slot | 36.5mm | 46mm |
Can be fixed | M3-M4 screw | M5 screw |
Color | Black | Black |
Weight | 41g | / |
L*W*H | 45*40*25mm | / |
1. W2370A is multi-funtion dovetail slot, the width of the internal slot is 5.1mm, it can be fixed with M3-M5 screw
2. It can be installed to: SVBONY SV48, SV48P, SV503 70/80/102ED, Celestron C8, C8HD, C925, C11HD, SKYRVER: 80ED, 102ED, 130APO, SKYRVER 100ED binoculars, and other primary mirror
