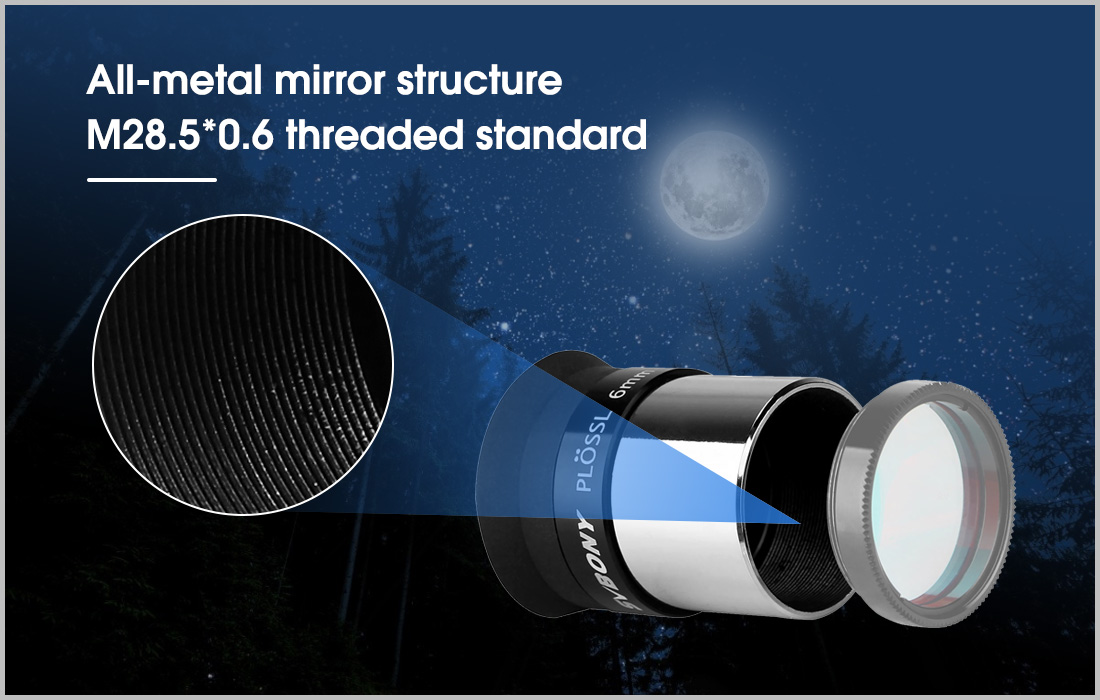

All-metal mirror structure
48-degree wide field of view

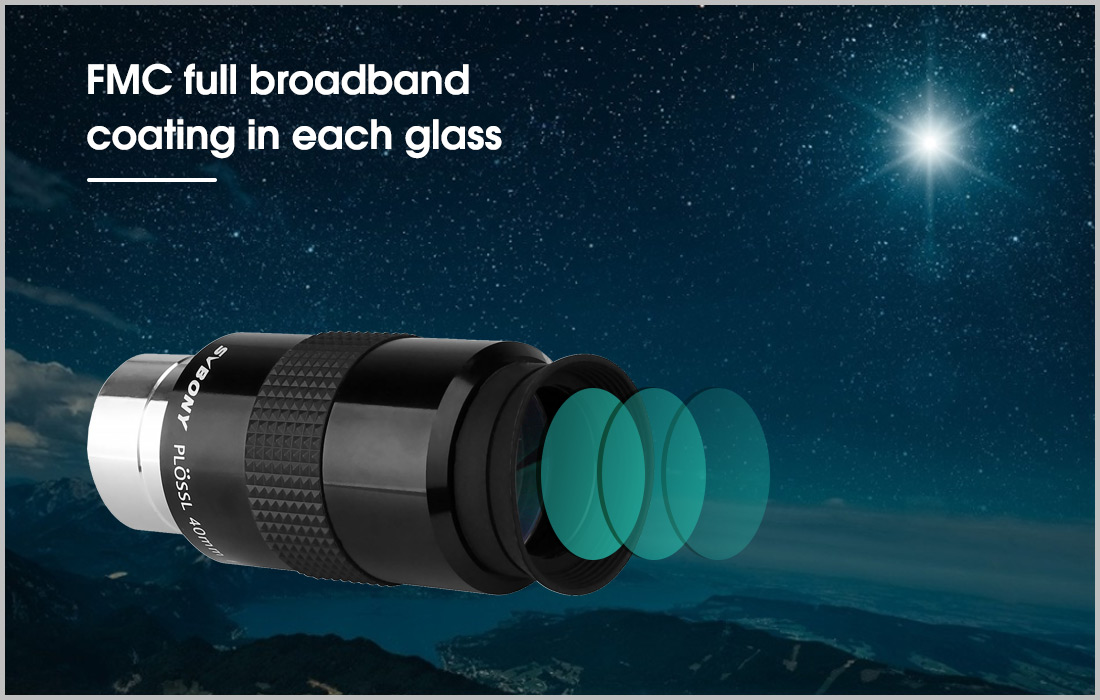

FMC full broadband multilayer coating

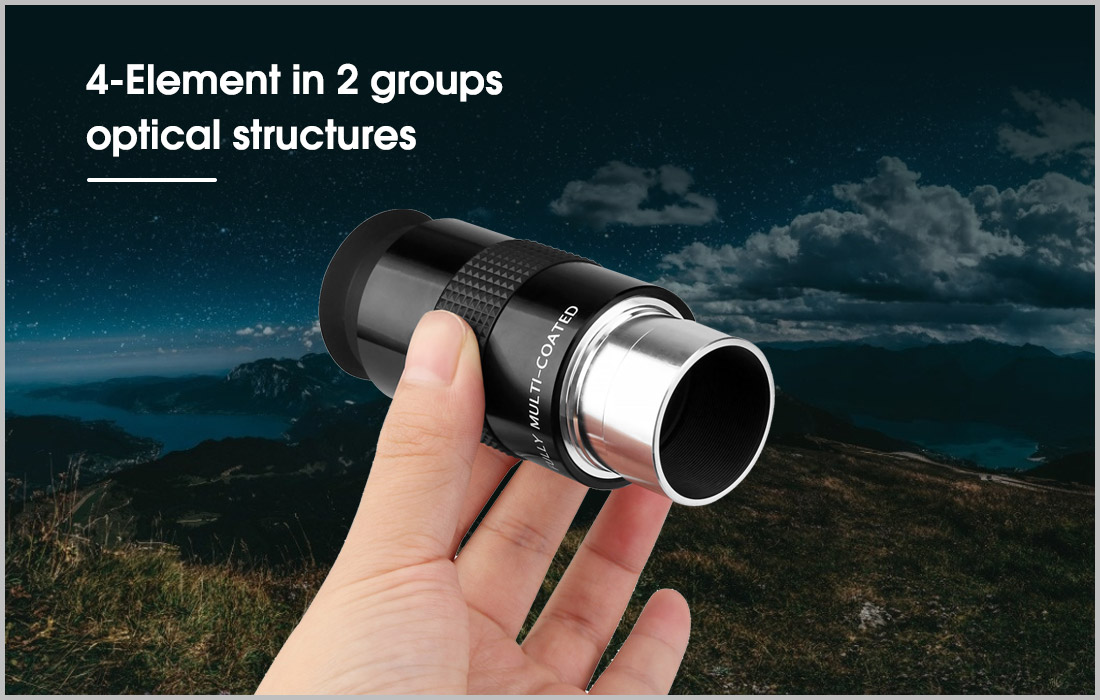

4-Element in 2 groups optical structures
M28.5*0.6 threaded standard for 1.25-inch interface

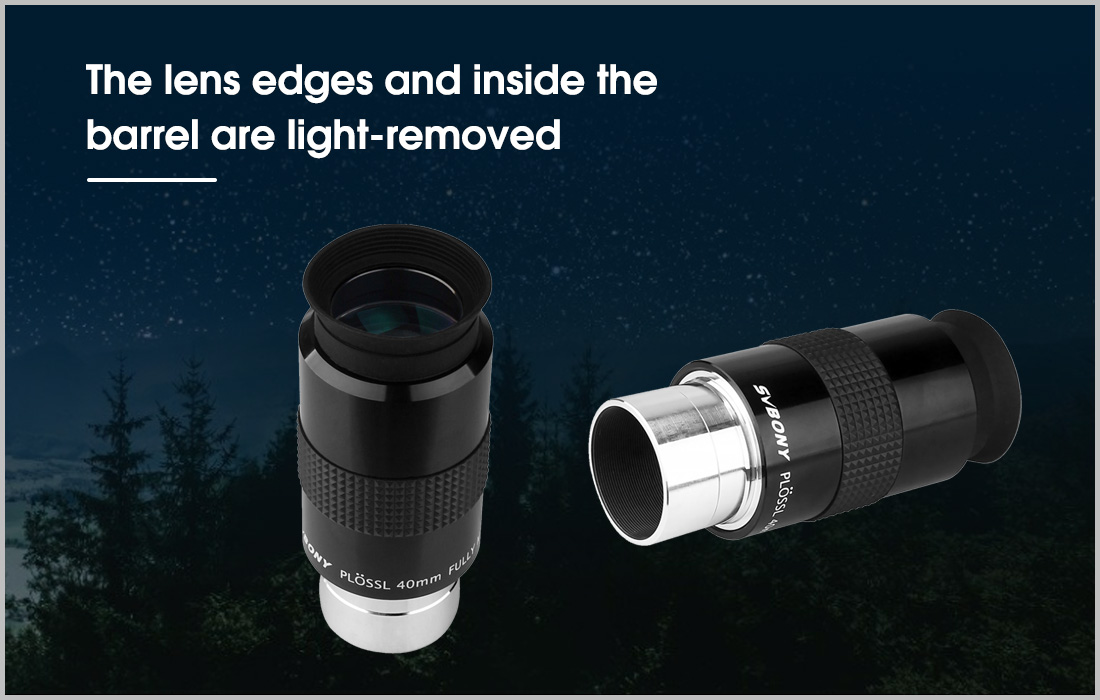

The lens edges and inside the barrel are light-removed.
In Stock
Great Quality/price for F4 Newtonian
Got the 17mm. Very sharp and contrast eyepiece tested on the moon and DSO. Great quality for low price. No distorsion apart the coma that fast newtonians produce. A very great alternative to the eyepieces that come with new scope. Offer great TFoV with short ratio scope.
noticeable upgrade compared to simple eyepieces
I own the 6mm, 12mm, 17mm and 25mm Svbony Plössl.
They feel good and the picturequality is pretty good. they also convince with their coated lens and the black thread which leads to non-reflective images. they are not completely free of distortion (that is hardly any eyepiece) but for the price they are a huge step up compared to simple set eyepieces.
Its a a purchase recommendation without a doubt!

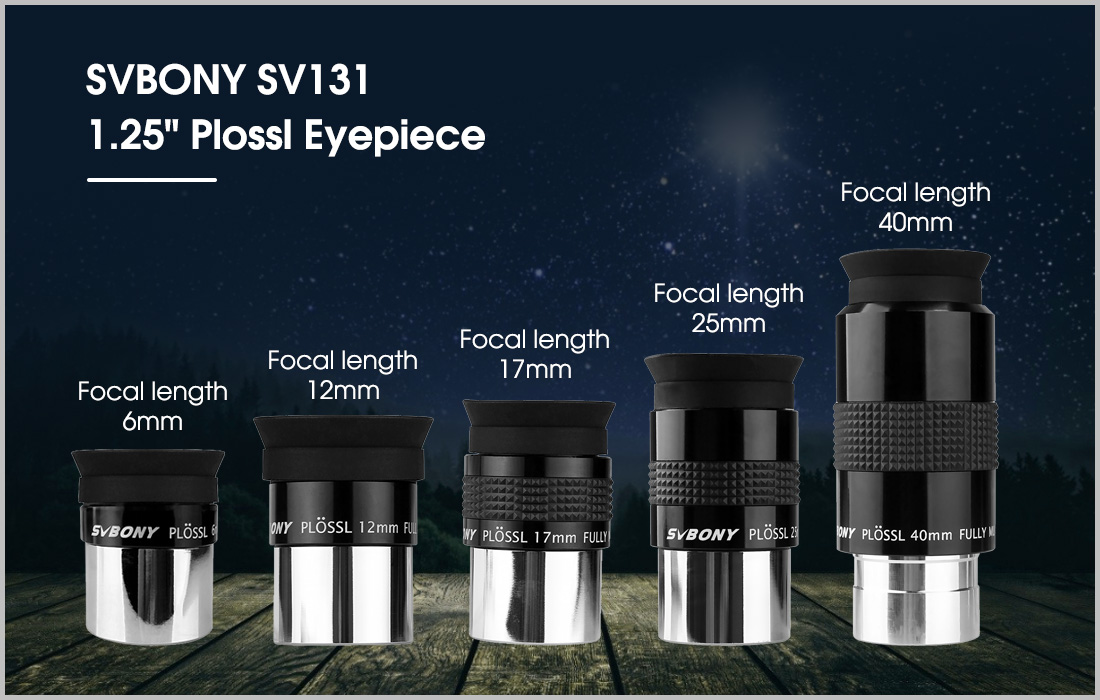

| Model | SV131 | SV131 | SV131 | SV131 | SV131 |
| Eyepiece Type | Plossl | Plossl | Plossl | Plossl | Plossl |
| Focal length | 6mm | 12mm | 17mm | 25mm | 40mm |
| Field of View | 48-Degrees | 48-Degrees | 48-Degrees | 48-Degrees | 48-Degrees |
| Exit Pupil | 3.5mm | 9mm | 11mm | 16mm | 22mm |
| Field Stop Diameter | 5mm | 12mm | 16mm | 24mm | 25.6mm |
| Lens group | 2 Group / 4PCS | 2 Group / 4PCS | 2 Group / 4PCS | 2 Group / 4PCS | 2 Group / 4PCS |
| Lens coated | FMC | FMC | FMC | FMC | FMC |
| Side of the lenscoate | Extinction Ink | Extinction Ink | Extinction Ink | Extinction Ink | Extinction Ink |
| Material | Metal | Metal | Metal | Metal | Metal |
| Thread size | M28.5*0.6 | M28.5*0.6 | M28.5*0.6 | M28.5*0.6 | M28.5*0.6 |
| Non-slip Cover | Yes | Yes | Yes | Yes | Yes |
| Eyecup type | Rubber | Rubber | Rubber | Rubber | Rubber |
| Net Weight | 48g/1.69oz | 56.8 g/2.00oz | 71.7 g/2.53oz | 83.6 g/2.95oz | 142.8g/5.04oz |
| Dimension | Ø33.5x40mm | Ø33.5x43.7mm | Ø35.5x50mm | Ø35.5x61.5mm | Ø41x88.5mm |
- SV131 Eyepiece has five focal length sizes, meeting different needs. It has a high-quality image for its fully coating in each glass. Besides, the 48-degree field of view allows you to see more bright images. The all-metal mirror structure will give you comfortable touching. M28.5*0.6 threaded supports 1.25-inch filter adapter installation. The lens edges and inside the barrel are light-removed, which can prevent stray light. The 4-element in 2 groups optical structure brings the great clear images. This eyepiece will show you a brilliant viewing.
