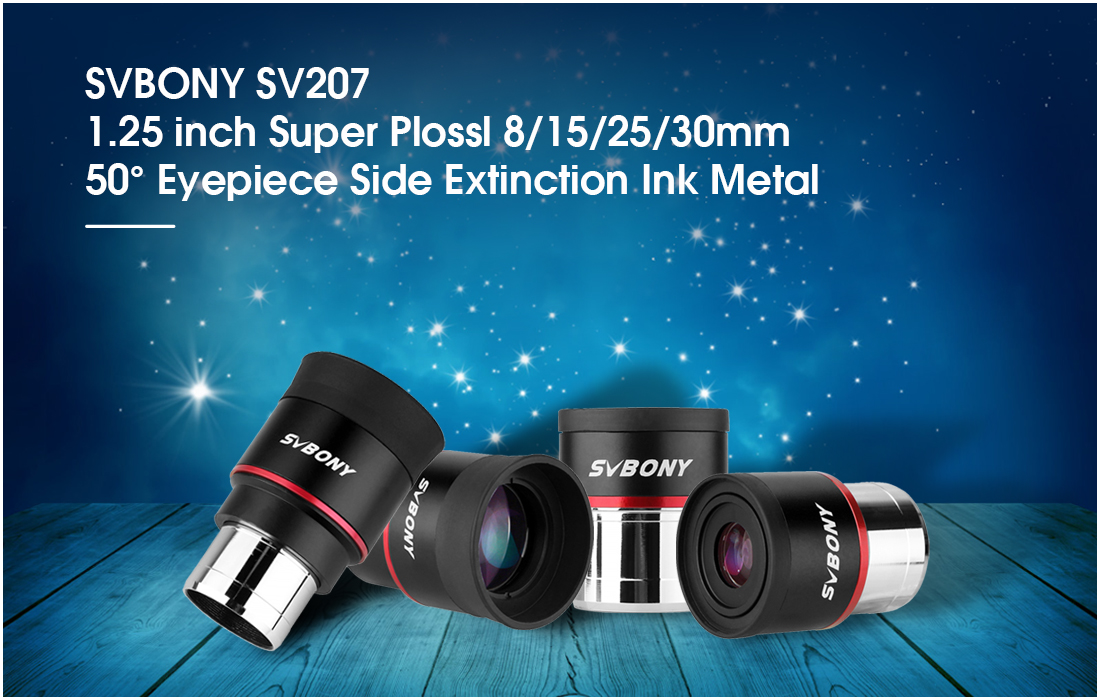

SV207 1.25 inch Super Plossl 8/15/25/30 mm 50-Degree Eyepiece

SKU: W9158
Regular price US$ 30.99

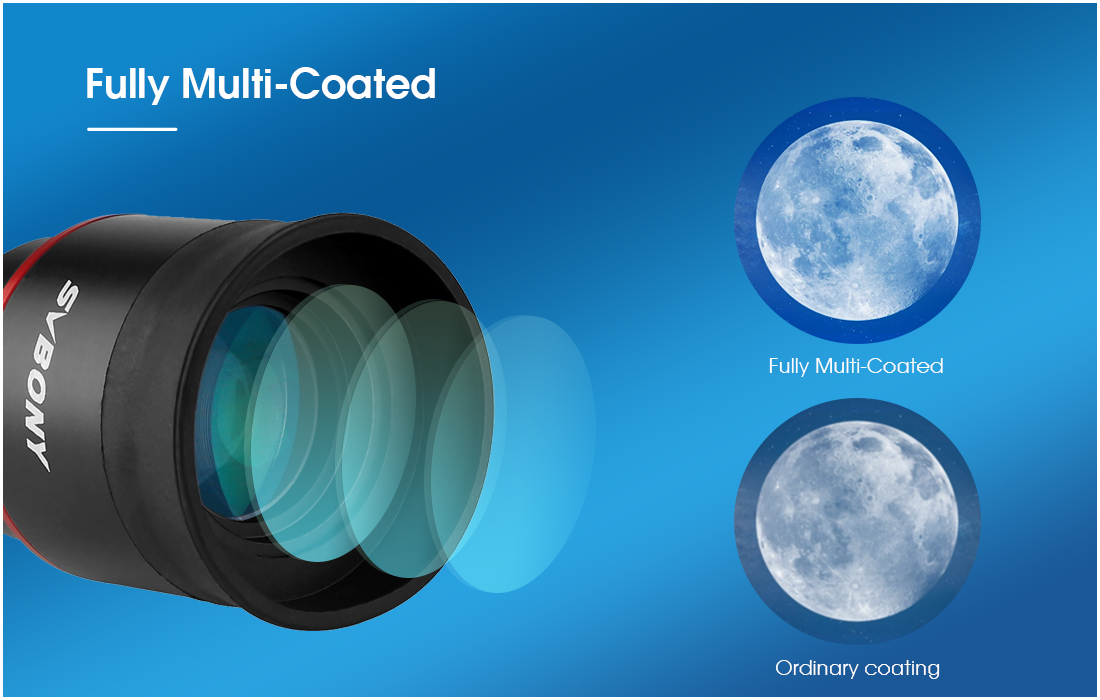

Fully multi-coated optics; the eyepiece ensures that each glass surface has multiple layers of coating to obtain a better image quality

All-metal structure; the eyepiece has fine workmanship and fine materials

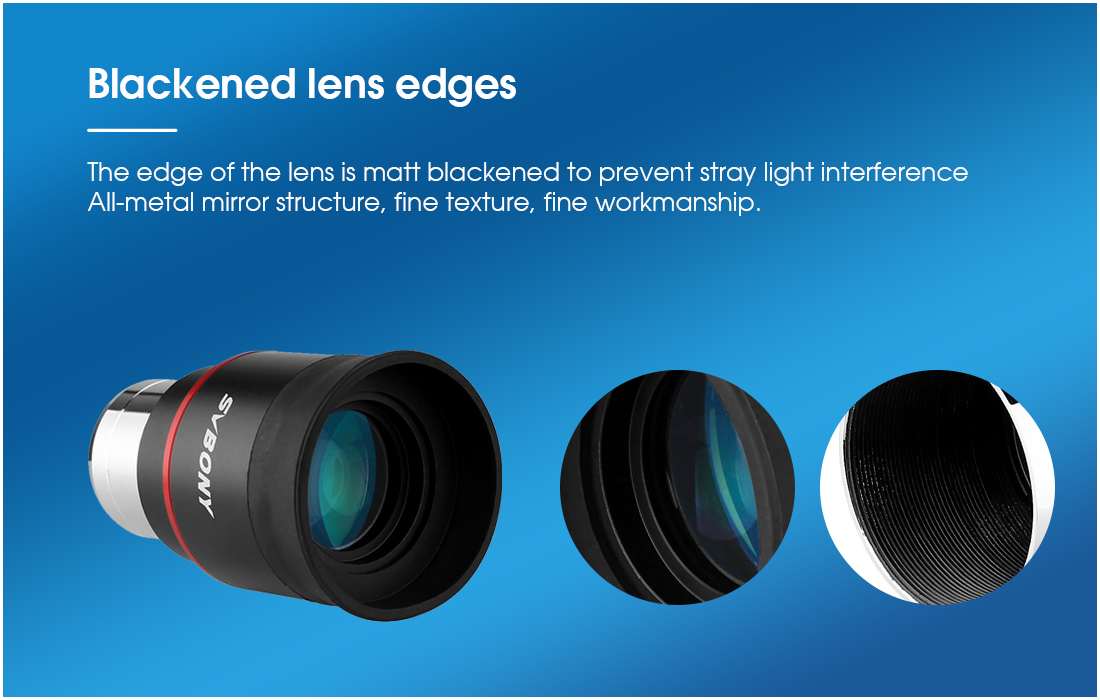

Matt blackened; the edge of the lens is matt blackened to prevent stray light interference

25mm large eyepiece; plossl eyepieces with 25mm and longer focal lengths are good choices for spectacle wearers; can better protect the eyesight of the observer

2 sets of 4-piece optical structures; the super plossl eyepiece structure has good compatibility

The SV207 series are classic Plossl eyepieces that offer higher performance than the majority of eyepieces supplied with telescopes.

The introduction blog link: What can we know about the new Super Plossl 50° SV207 eyepiece set?

In Stock Out Of Stock

SV207-1SV207-2SV207-3SV207-4SV207-5SV207-6SV207-7SV207-8

1 reviews

Write a review

GREAT PRODUCT

I received this 30mm eyepiece like 1 week ago, I haven't had the opportunity to properly test it because of the clouds, but I have to say that the images produced by this huge eyepiece are very sharp and clean. I used it to see Orion and Pléiades and the stars shine bright. The eyepiece is bigger than others from Svbony that I already own and it is heavier. In general the quality of this eyepiece is very good.
Model SV207
Eyepiece Type Super Plossl

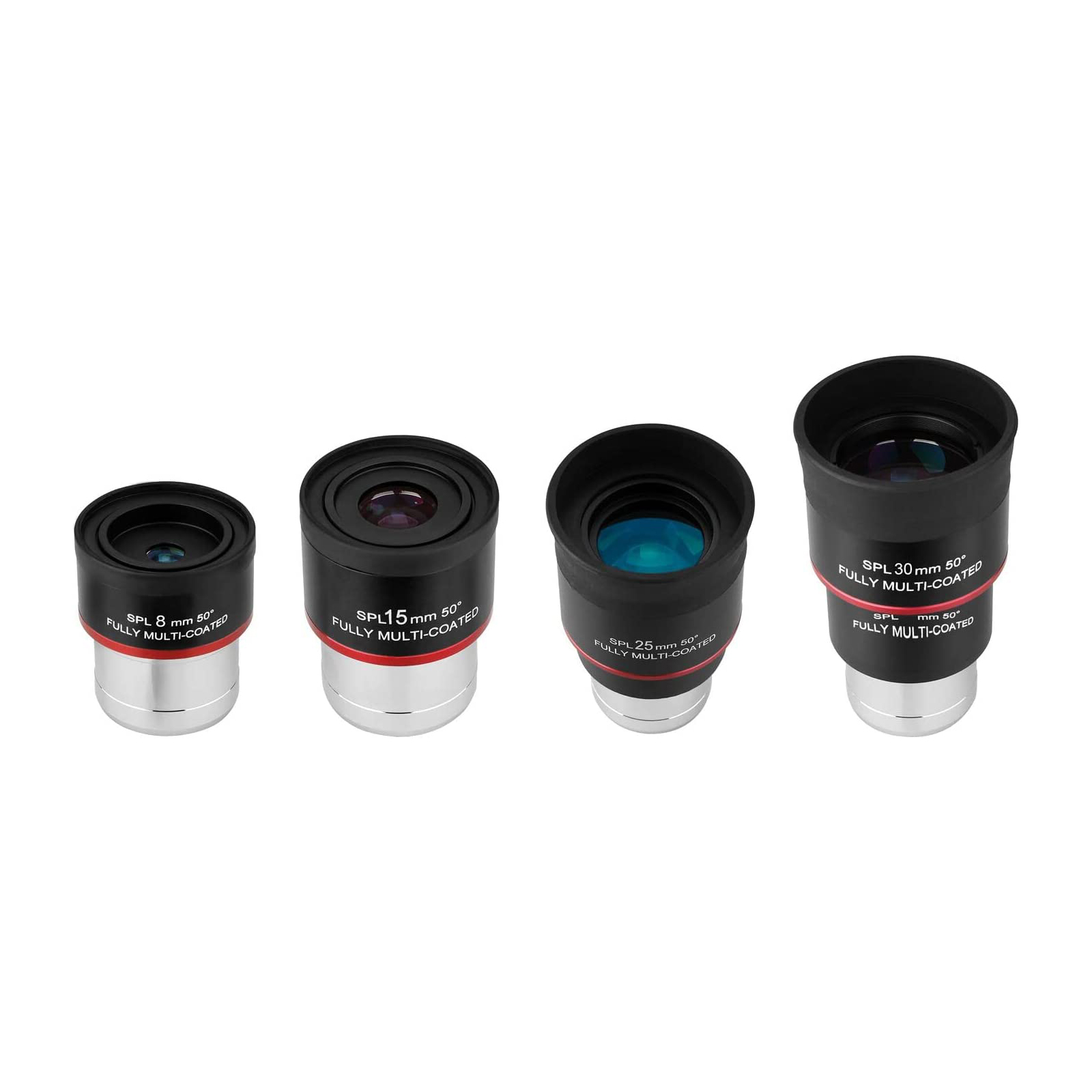

Focal Length 8mm 15mm 25mm 30mm

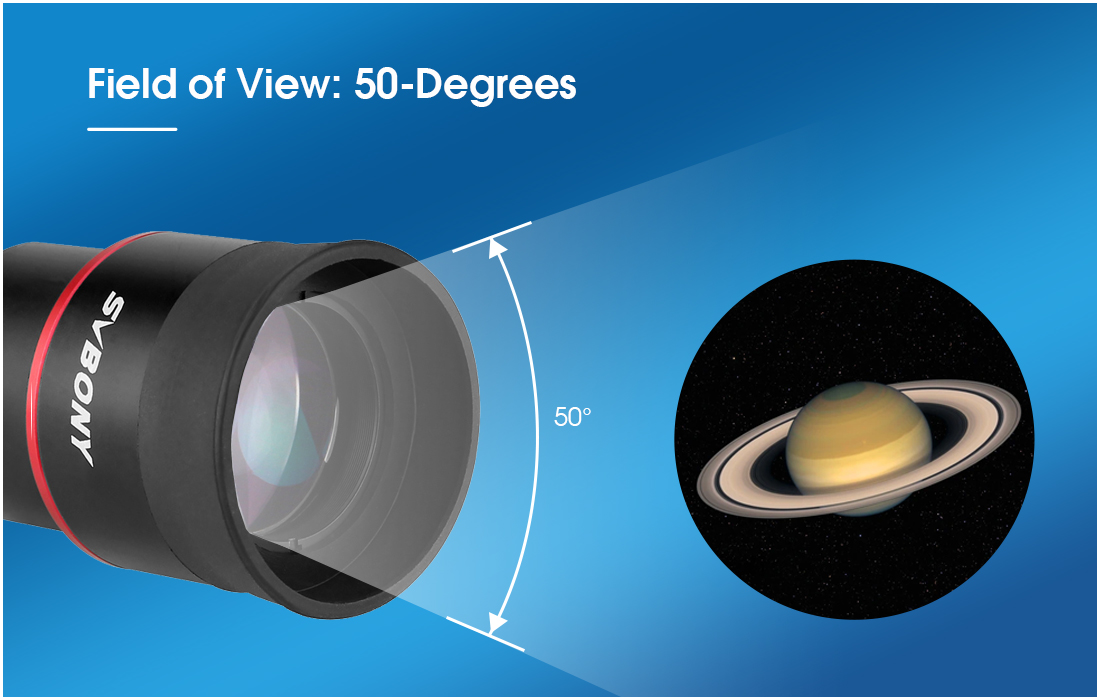

Field of View 50 degrees
Eye Relief 4.5mm 11mm 19.5mm 24mm
Field stop Diameter 6.8mm 12mm 20.4mm 24.5mm
Net Weight 78g/2.75oz 100g/3.53oz 130g/4.59oz 120g/4.23oz
Dimension Ø​37.5x43.5mm​ Ø​37.5​×52.2mm Ø​48.0×57mm Ø​48.0×78.2mm
Material Metal

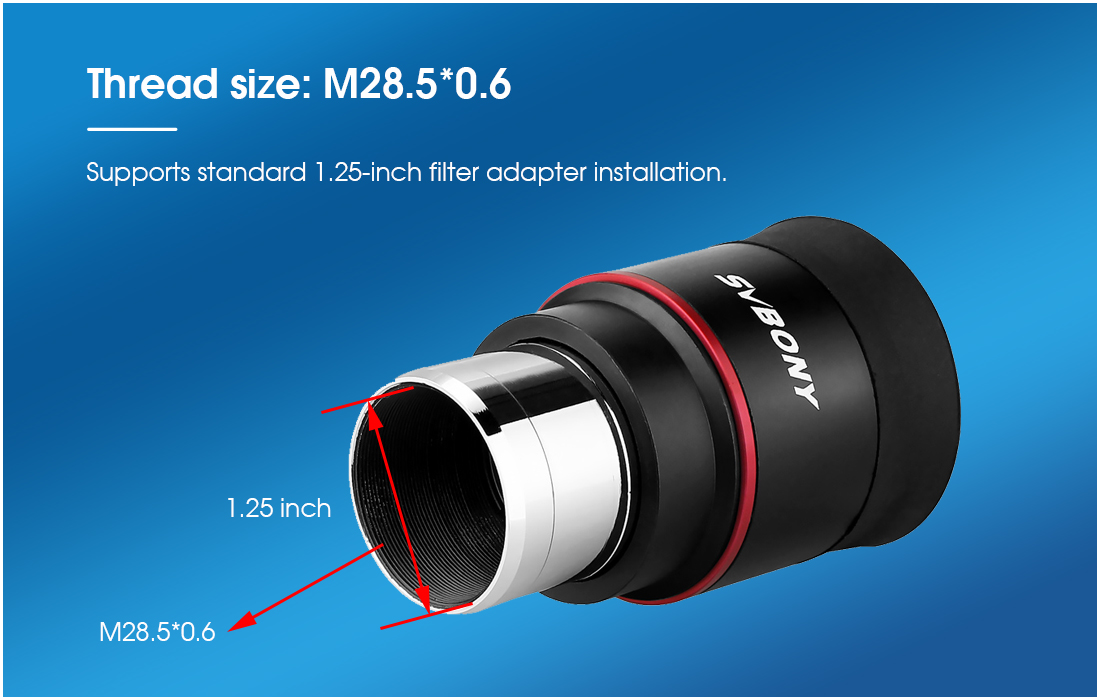

Thread Size M28.5×0.6
Lens group  2 gruop/4 PCS
Lens Coating FMC
Side of the lens coating Extinction Ink
Non-slip cover YES

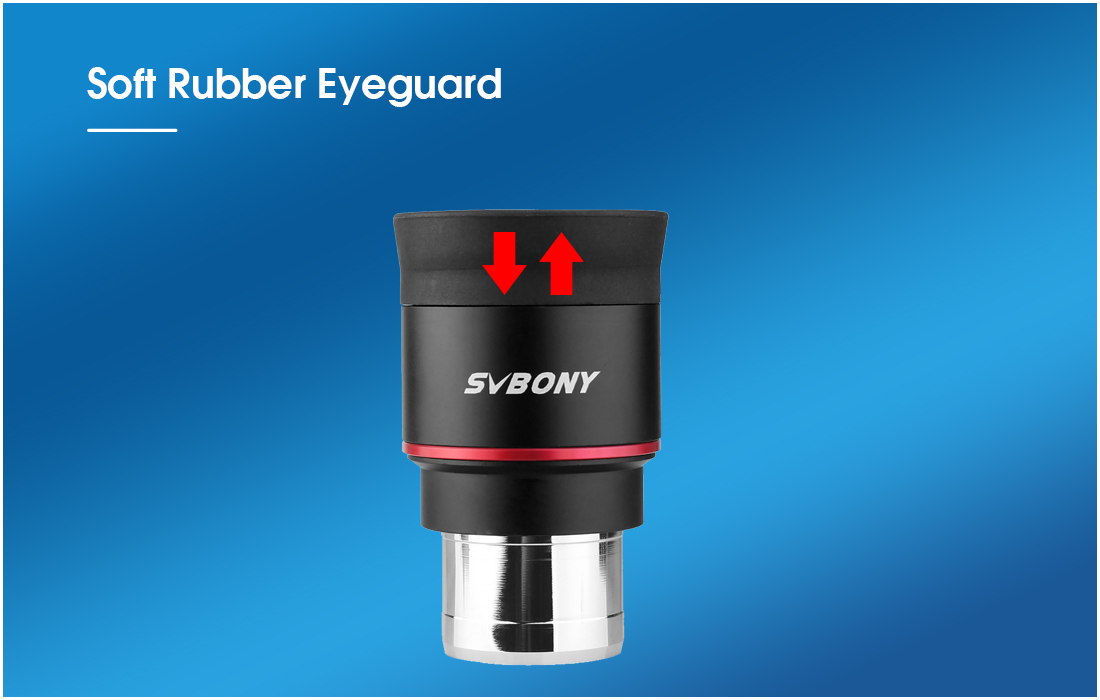

Eyecup Type Rubber

1. 50 degrees field of viewing, bigger than the normal Plossl eyepiece.

2.  Each glass surface has multiple layers of coating for better Astro-image quality.

3. The edge of the lens is matt blackened to prevent stray light interference.

4. All-metal mirror structure, fine texture, superlative workmanship.

5. Safety undercut milled into the nosepiece to prevent the eyepiece from falling out of the scope focuser.

6. Plossl eyepieces with 15mm and longer focal lengths are good choices for glass wearers but for shorter focal lengths the SV190 Ultra Flat Field Eyepiece has greater eye-relief, which are better suited.
