SVBONY SV222 1.25-inch high-quality 45-degree erecting prism with phase coatings allows for good contrast and bright images. Designed with entirely aluminum, black anodized eyepiece holder, large, chromed thumbscrews, and internally blackened & baffled to prevent internal stray light reflections. 1.25" eyepiece holder comes with anti-marring brass compression ring. SV222 accepts 1.25" eyepieces, fits in 1.25" focusers. Suitable for terrestrial or astronomical use, this diagonal produces a right-side-up, non-reversed image with correct daytime orientation.

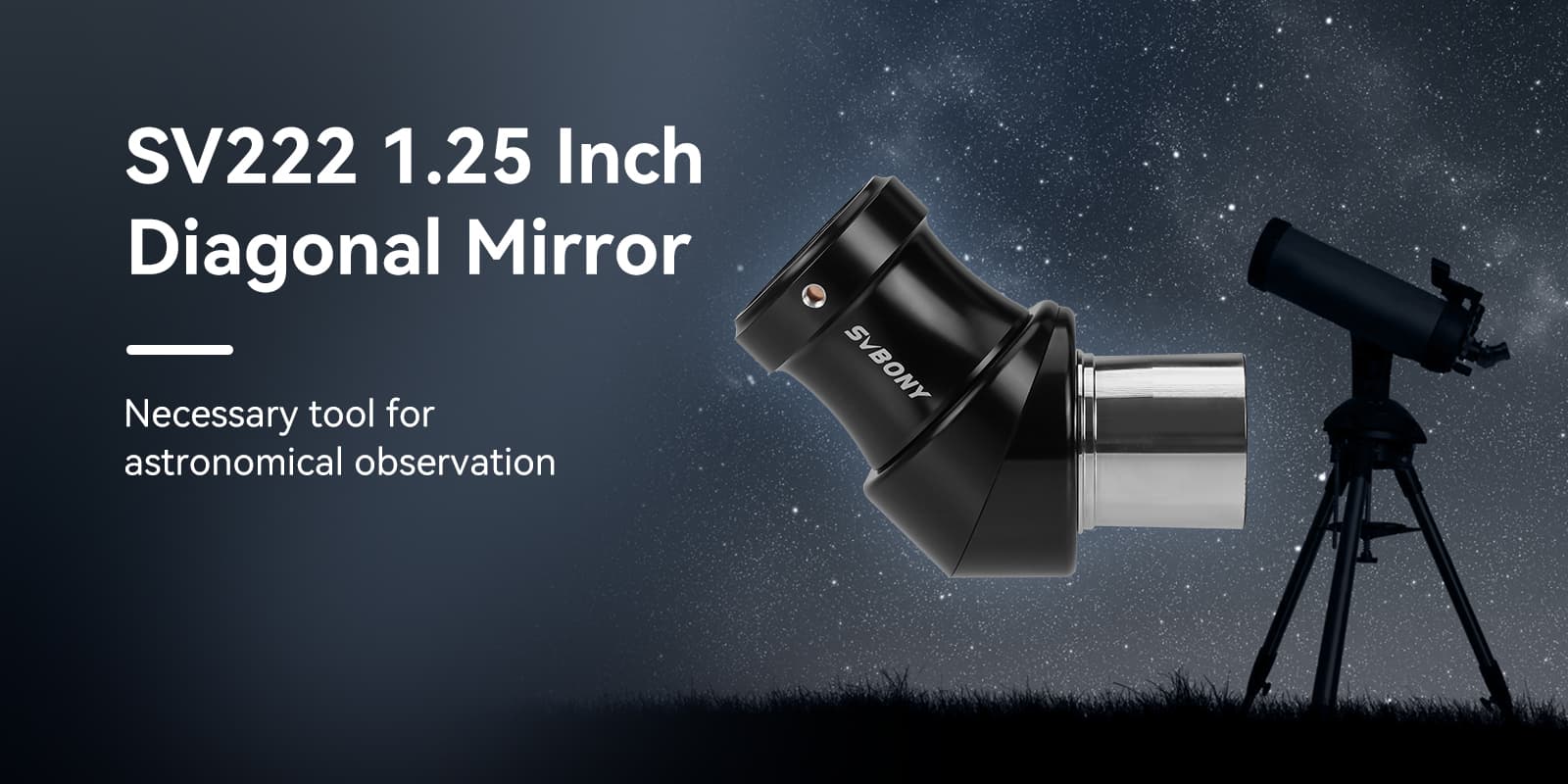

SV222 Correct Image Prism Diagonal 45 Degree 1.25-inch Fully Multi-Coated Metal for Refractor Telescope
The Necessary Tool for Astronomical Observaton
SV222 correct image prism diagonal is 1.25-inch aperture; strong versatility; can be applied to 1.25-inch eyepieces and 1.25-inch astronomical accessories

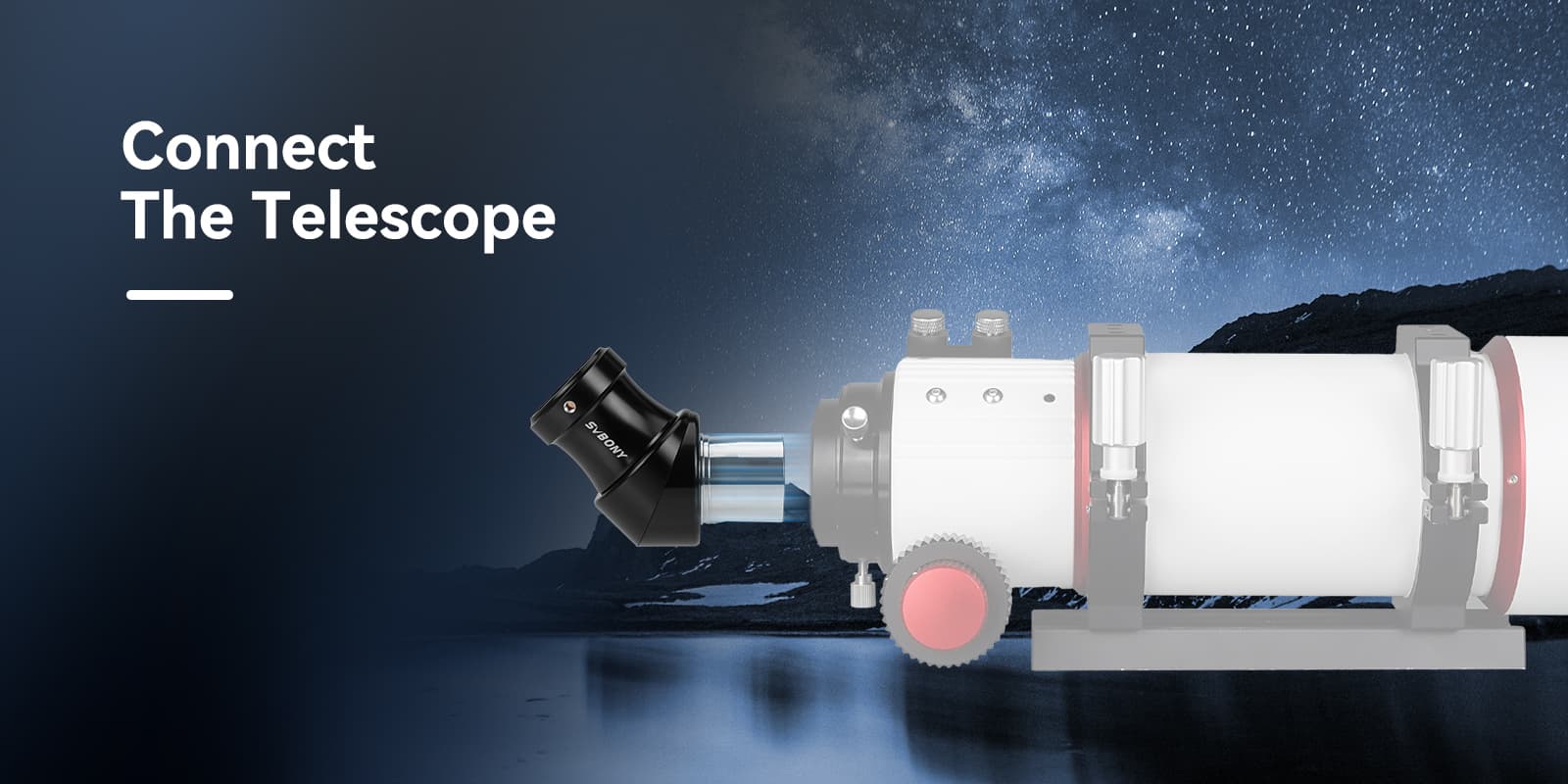

Conntect The Telescope
SV222 1.25 inch diagonal mirror can be applied to planets; visual observation of astronomical scenes such as deep space; suitable for refracting telescopes

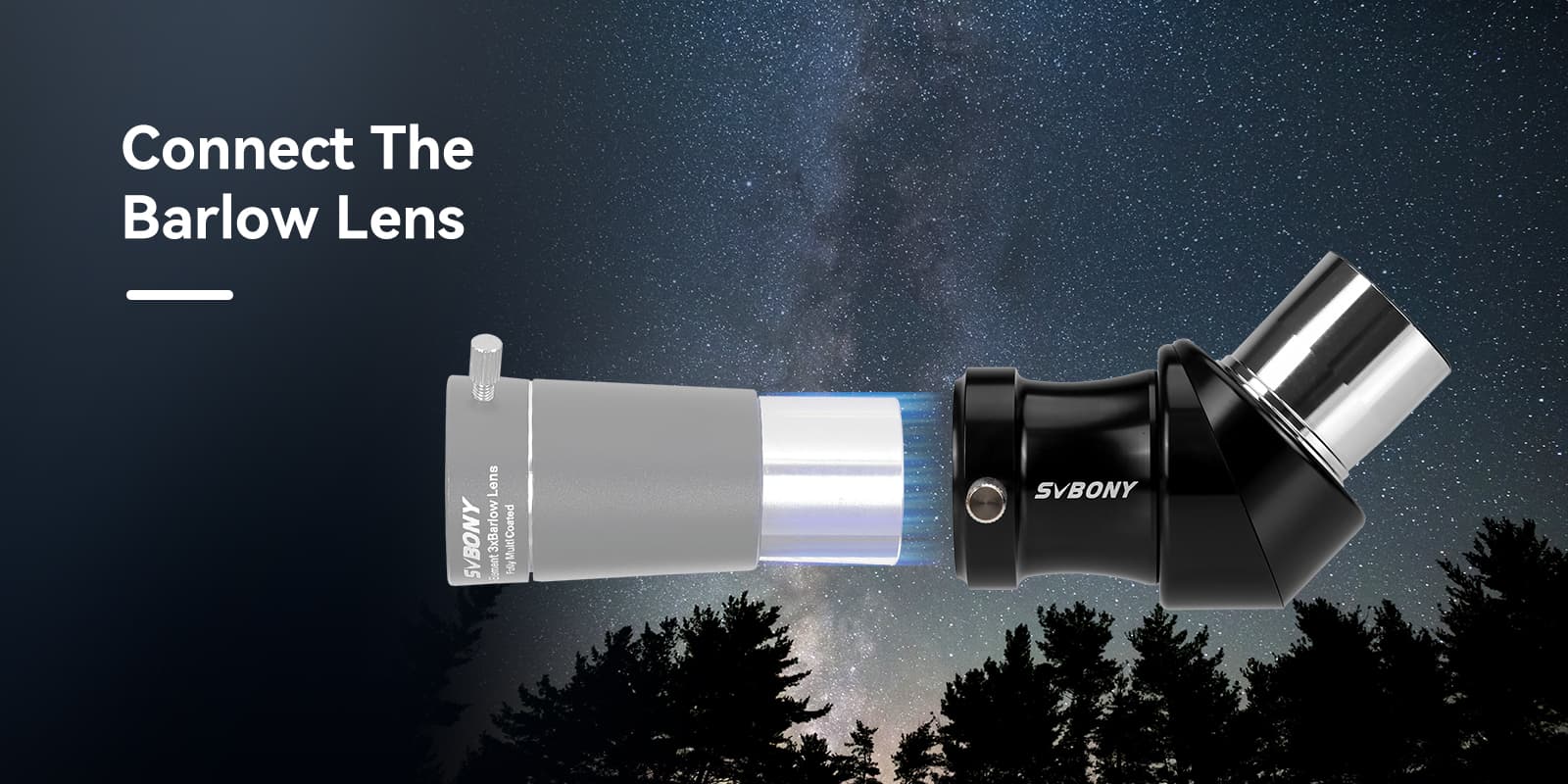

Conntect The Barlow Lens

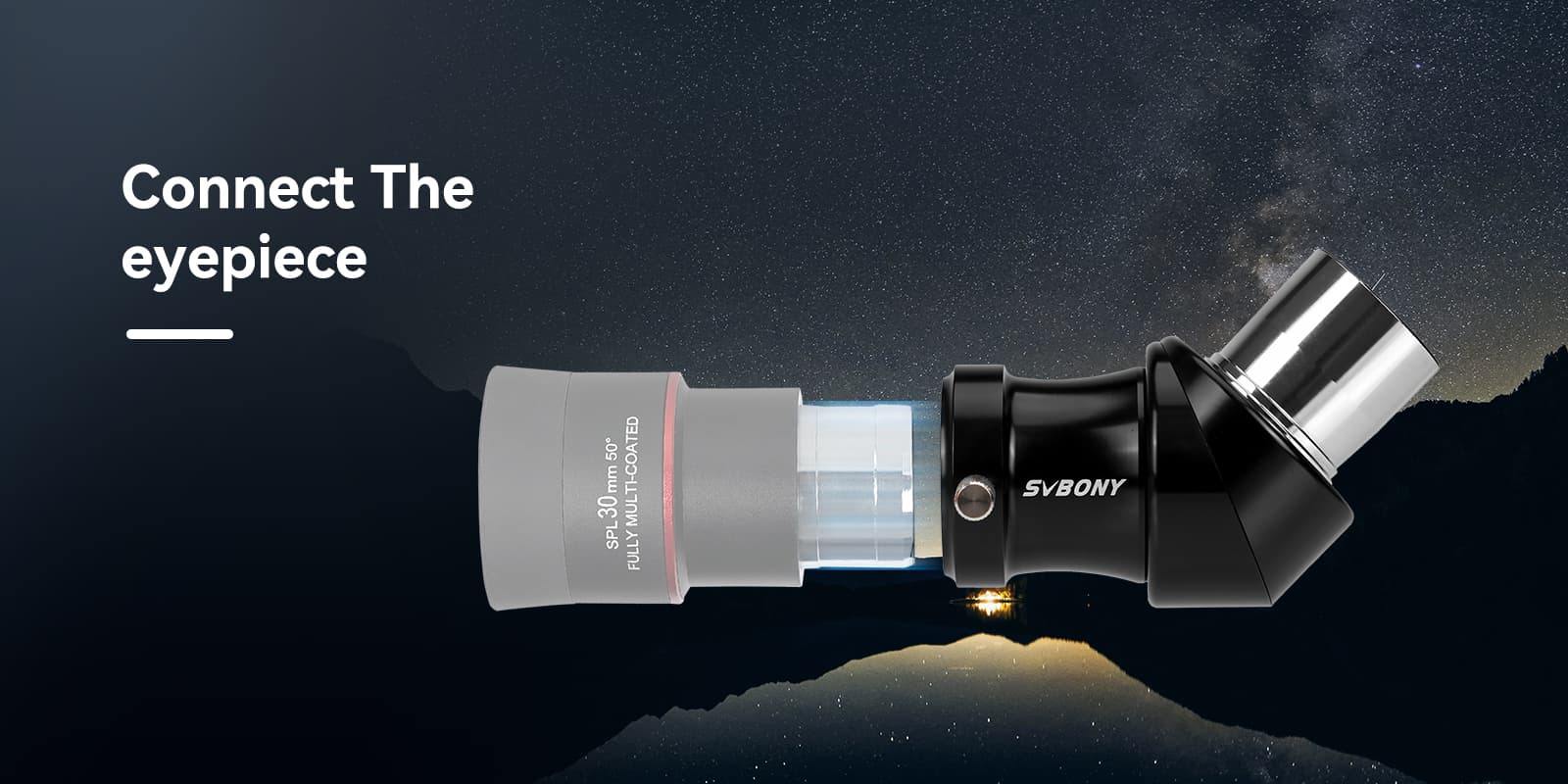

Conntect The Eyepiece

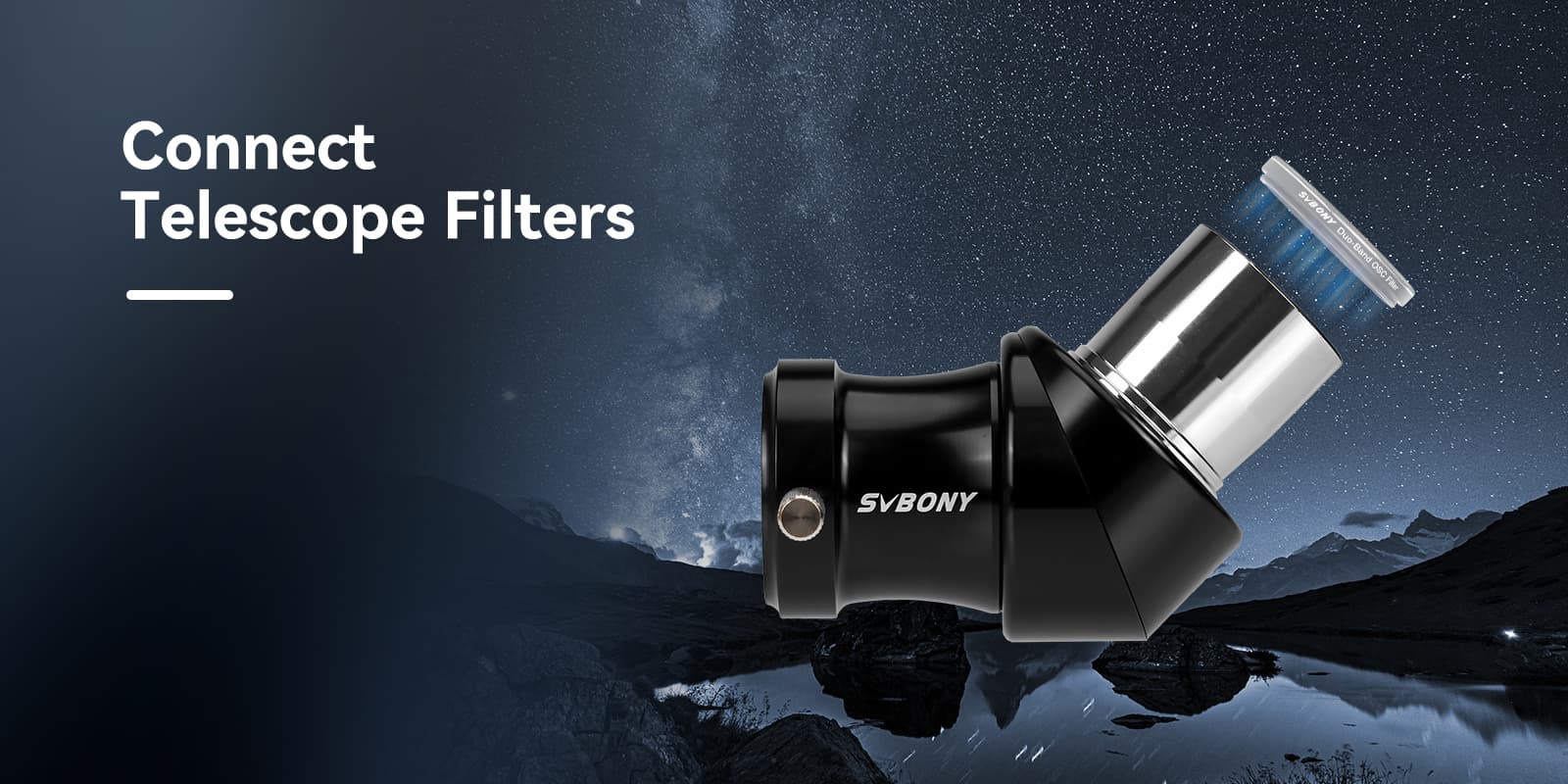

Conntect Telescope Filters

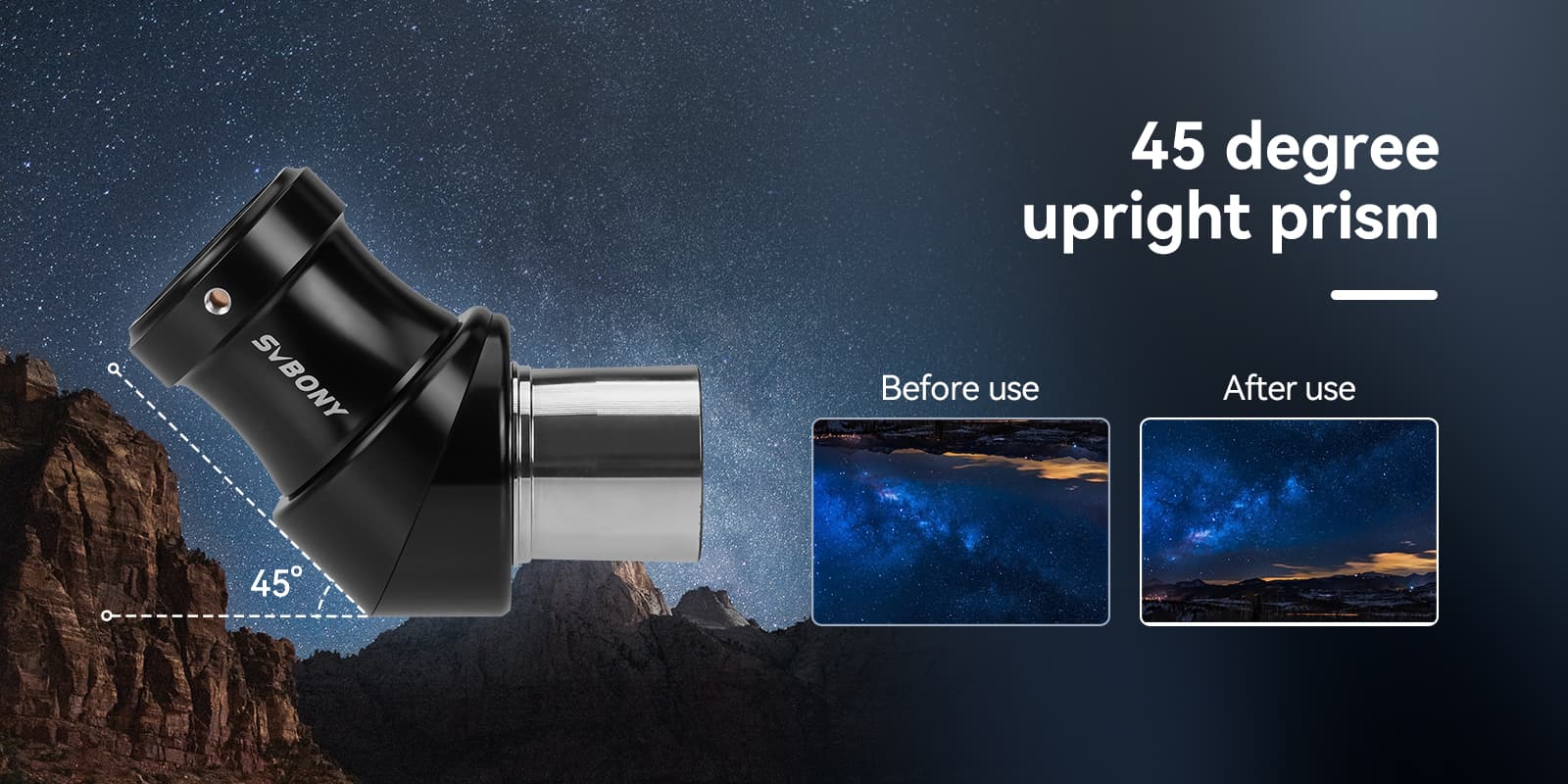

45 Degree Upright Prism
SV222 correct image prism diagonal adopts a 45-degree upright prism; with full multi-layer coating and phase coating; the image contrast is high; the picture is clear and bright.

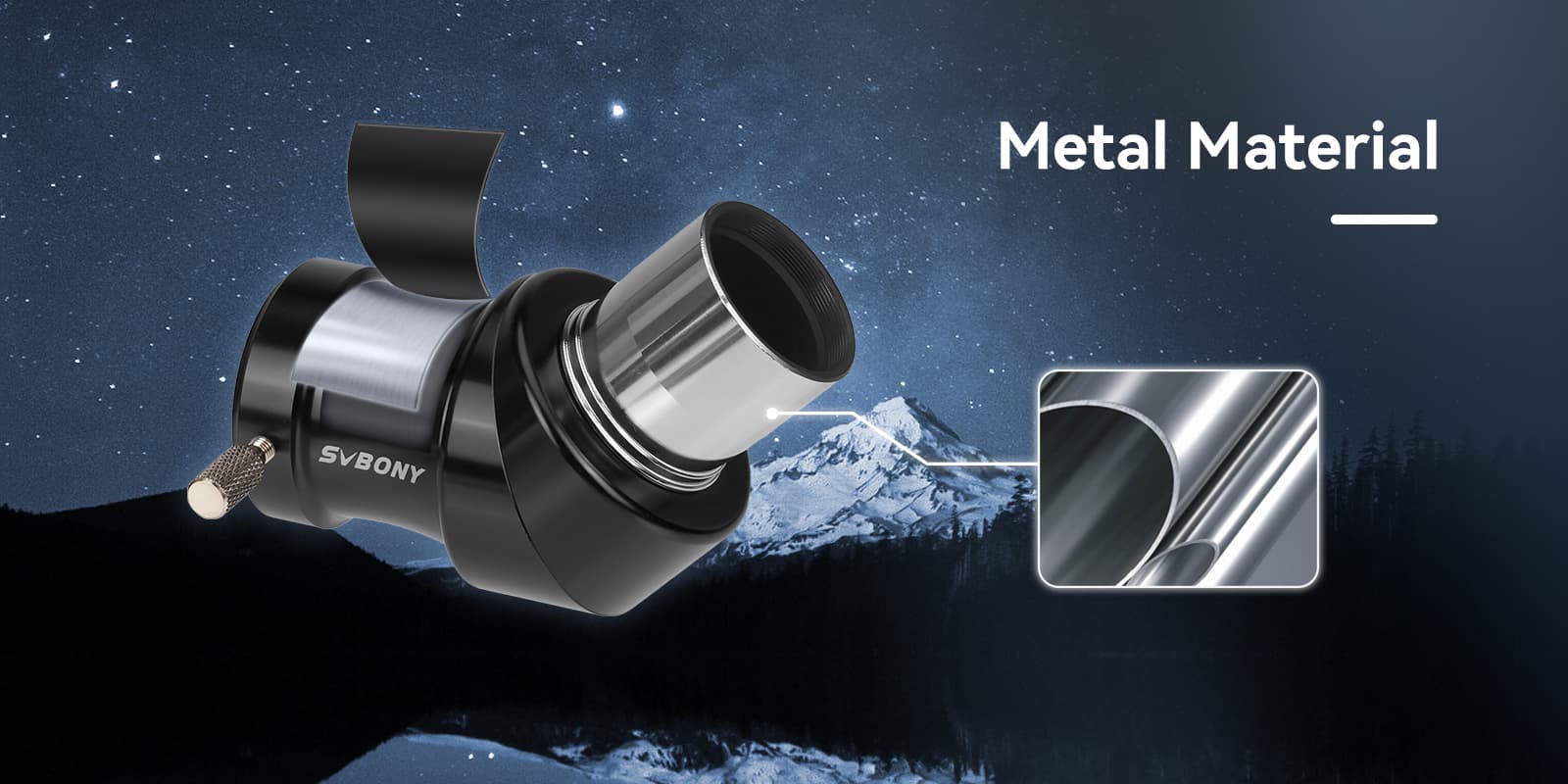

SV222 zenith mirror is made of aluminum alloy metal material; with black anodizing; sturdy and durable.

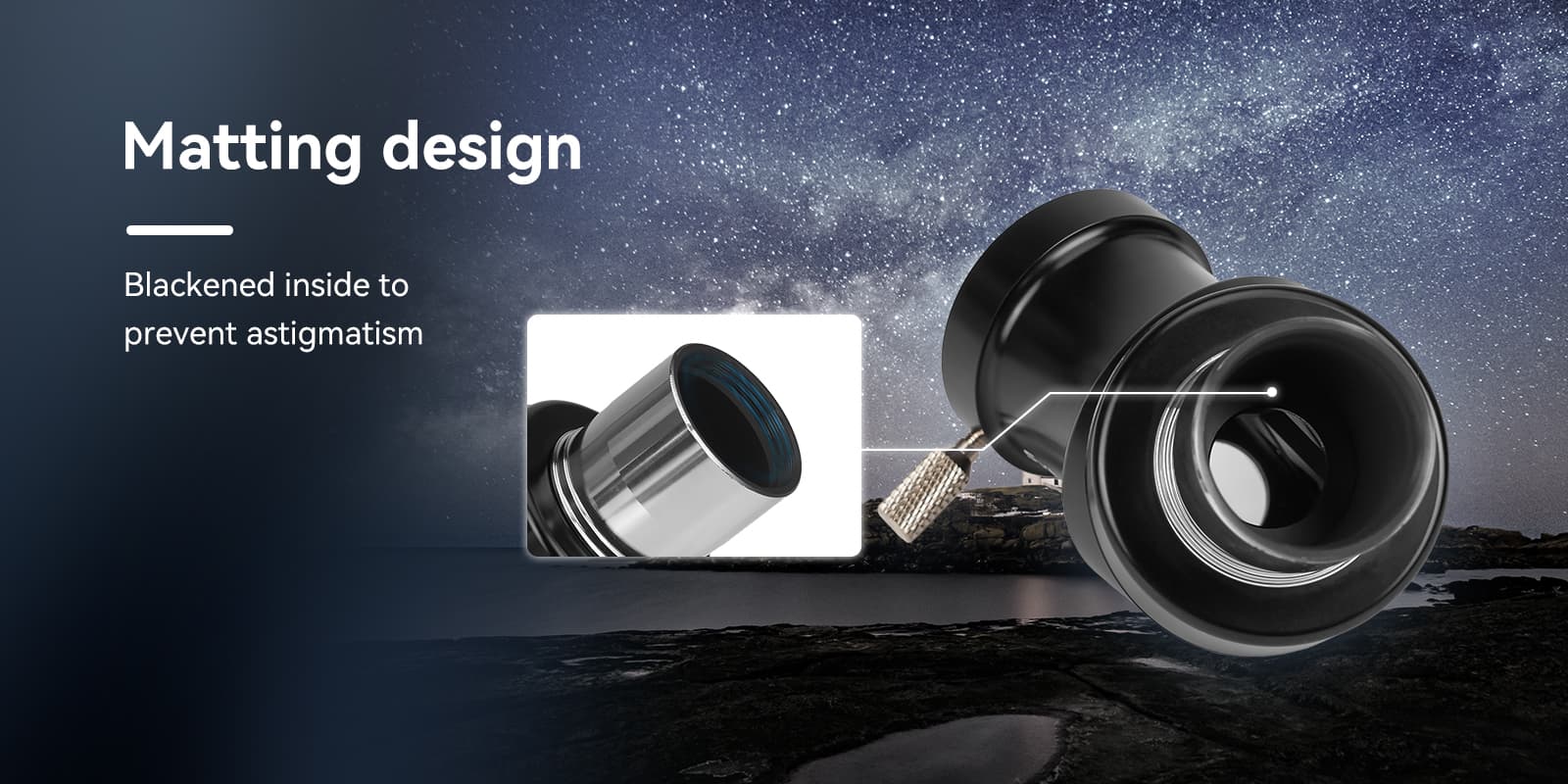

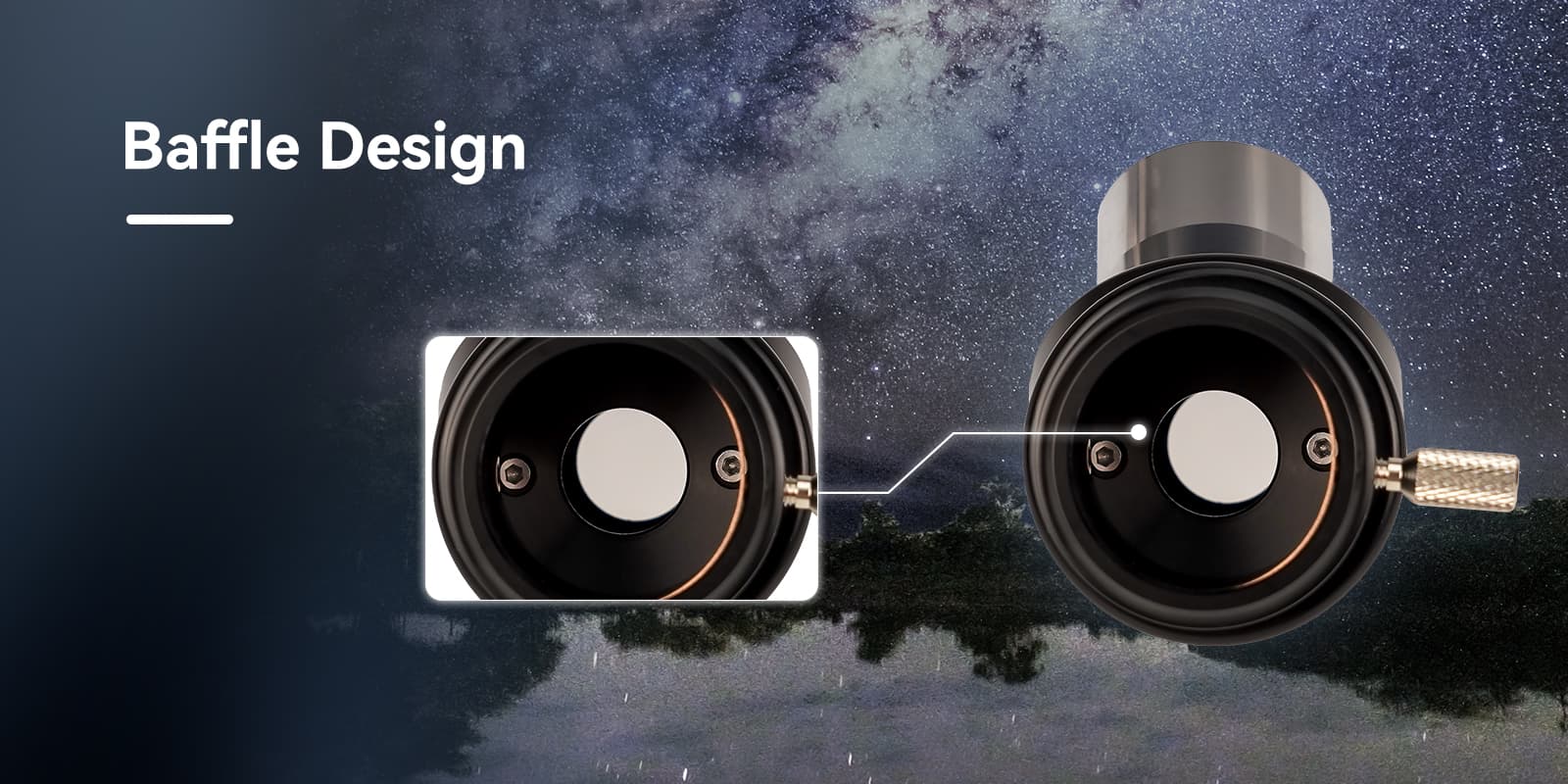

SVBONY SV222 correct image prism diagonal 45 degree is blackened and baffled inside; it can prevent internal stray light reflection.

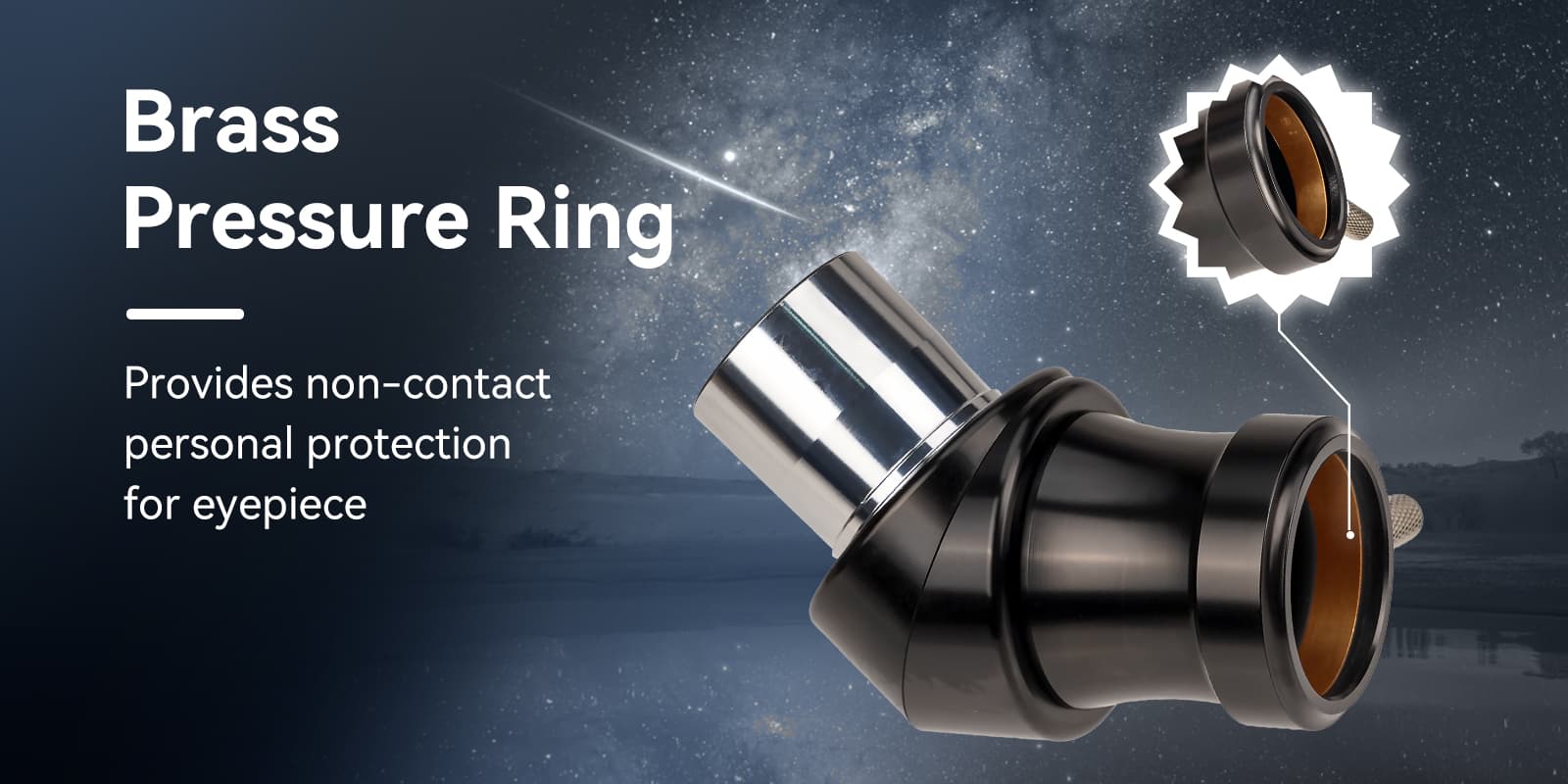

Brass Pressure Ring
SV222 has a brass pressure ring design; it is firmly connected with the eyepiece and does not shake; it will not scratch the eyepiece.

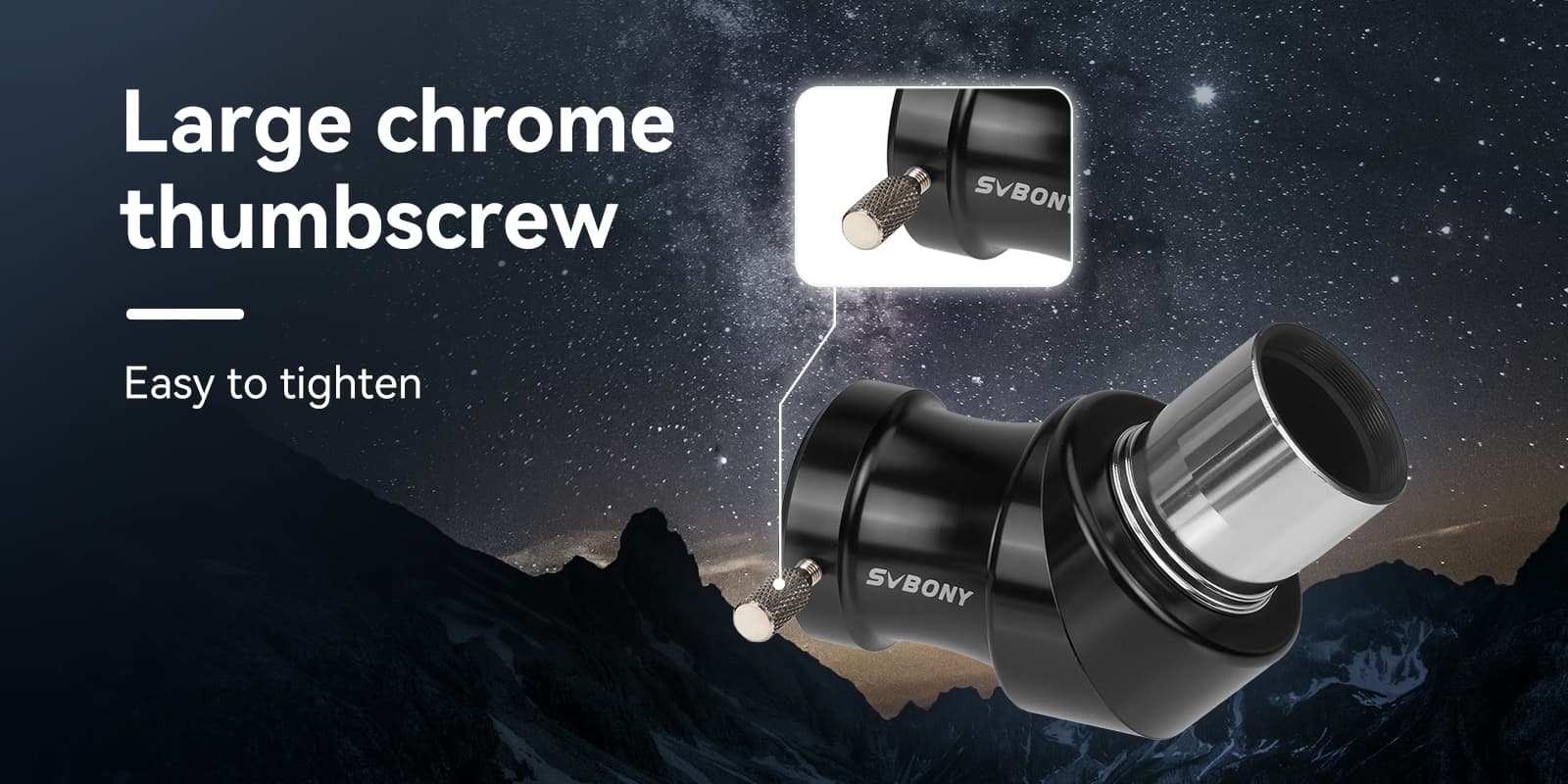

Large Chrome Thumbscrew
SV222 diagonal 45 degree is designed with large chrome thumbscrew; easy to hold; easy to install.
|Optical Design||Prism Diagonal|
|Inner Connection (Lens Sided)||Thread M28.5x0.6|
|Outer Connection (Lens Sided)||Barrel 1.25inch|
|Inner Connection (Eyepiece Sided)||Clamp 1.25inch|
|Coating||Fully Multi-Coated + Phase Coatings|
|Image Orientation||Erect image, non-reversed|
|Optical Length||appr. 93mm|
|Clamping System||Screw clamps|
|Body Material||CNC Metal Aluminum|
1.High-quality 45-degree erecting prism with Phase Coatings allows for good contrast and bright images.
2.Entirely aluminum, black anodized eyepiece holder, large, chromed thumbscrews.
3.Internally blackened and baffled to prevent internal stray light reflections.
4.1.25" eyepiece holder comes with anti-marring brass compression ring.
5.Accepts 1.25" eyepieces, fits in 1.25" focusers.
6.For terrestrial or astronomical use, this diagonal produces a right-side-up, non-reversed image with correct daytime orientation
7.Not recommended for use in Newtonian reflector or DOB reflector telescopes
8.Tips：But all Prism Diagonal – no matter how good they are – suffer from one design feature: There is a line going through the center of the image, where both sides of the prism surfaces come together. This may cause reflections or spikes. To some extent, this will always happen when a bright object like a star is viewed in front of a dark background like the night sky. This should be obvious only with very bright stars or planets.

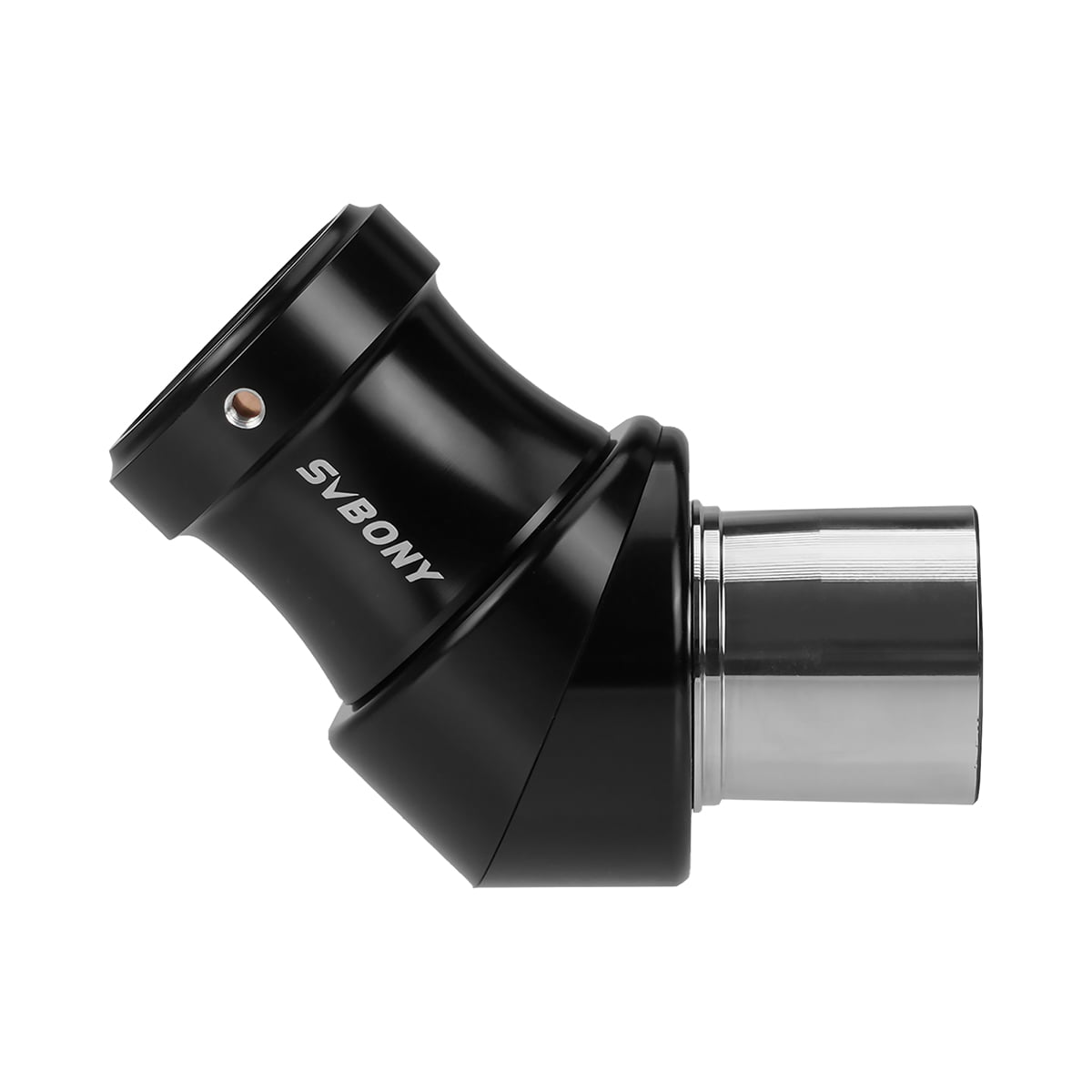

SV222 1.25" 45 Degree Metal Correct Image Prism Diagonal
1PCS M4 Screws
1PCS Dust Cap
1PCS Dust Plug
