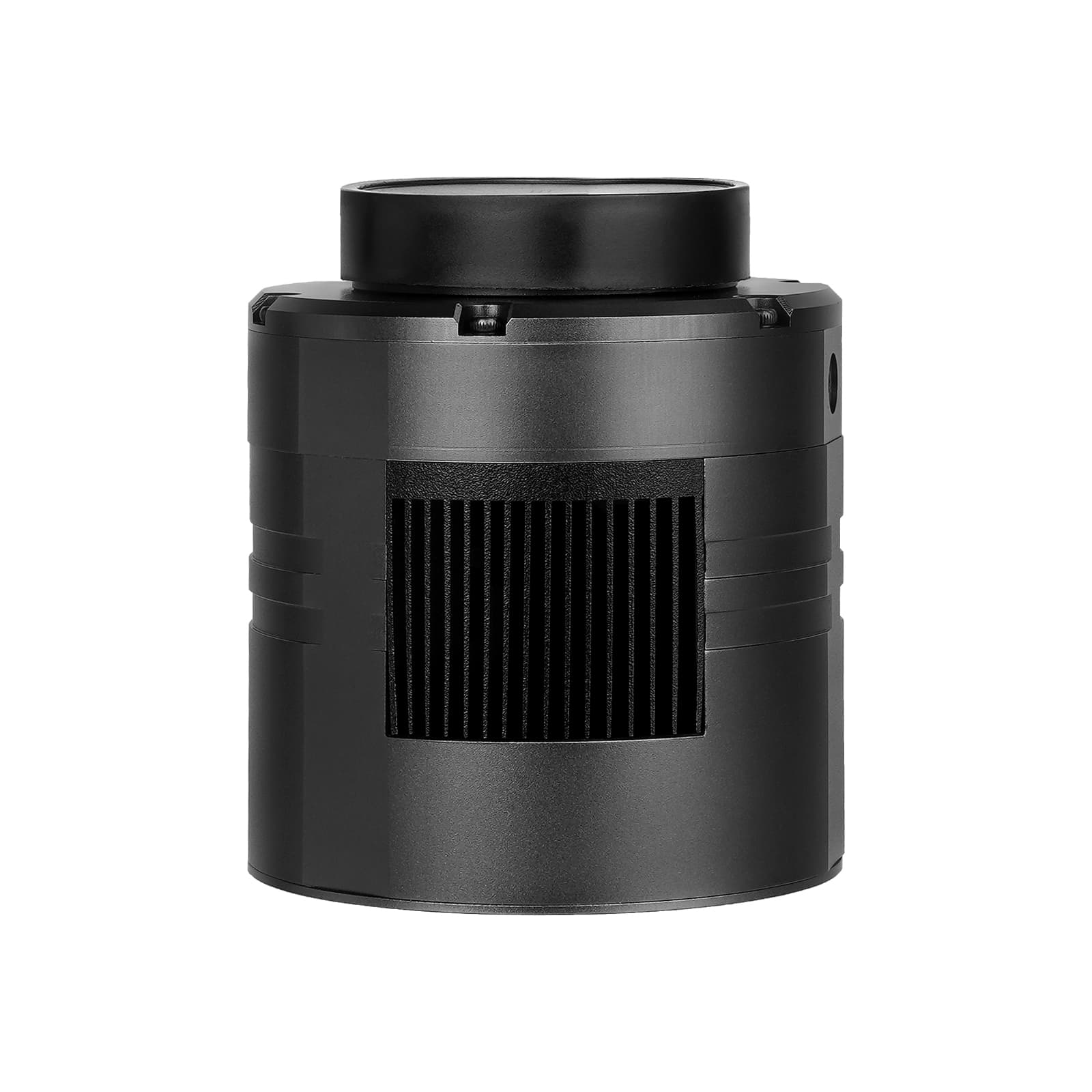

SV405CC Cooled Color Camera for Deep Space Astrophotography IMX294

SKU: -F9198F
US$ 799.99

The Style Stand by:

F9198F-F9127A: sv405cc+1.25'' UV IR Cut Filter

F9198F-F9127B: sv405cc+ 2'' UV IR Cut Filter

F9198F-F9131A:sv405cc+ 1.25'' UHC  Filter

F9198F-F9131B:sv405cc+ 2'' UHC  Filter

F9198F-F9155A:sv405cc+  1.25'' CLS  Filter

F9198F-F9155B: sv405cc+  2'' CLS  Filter

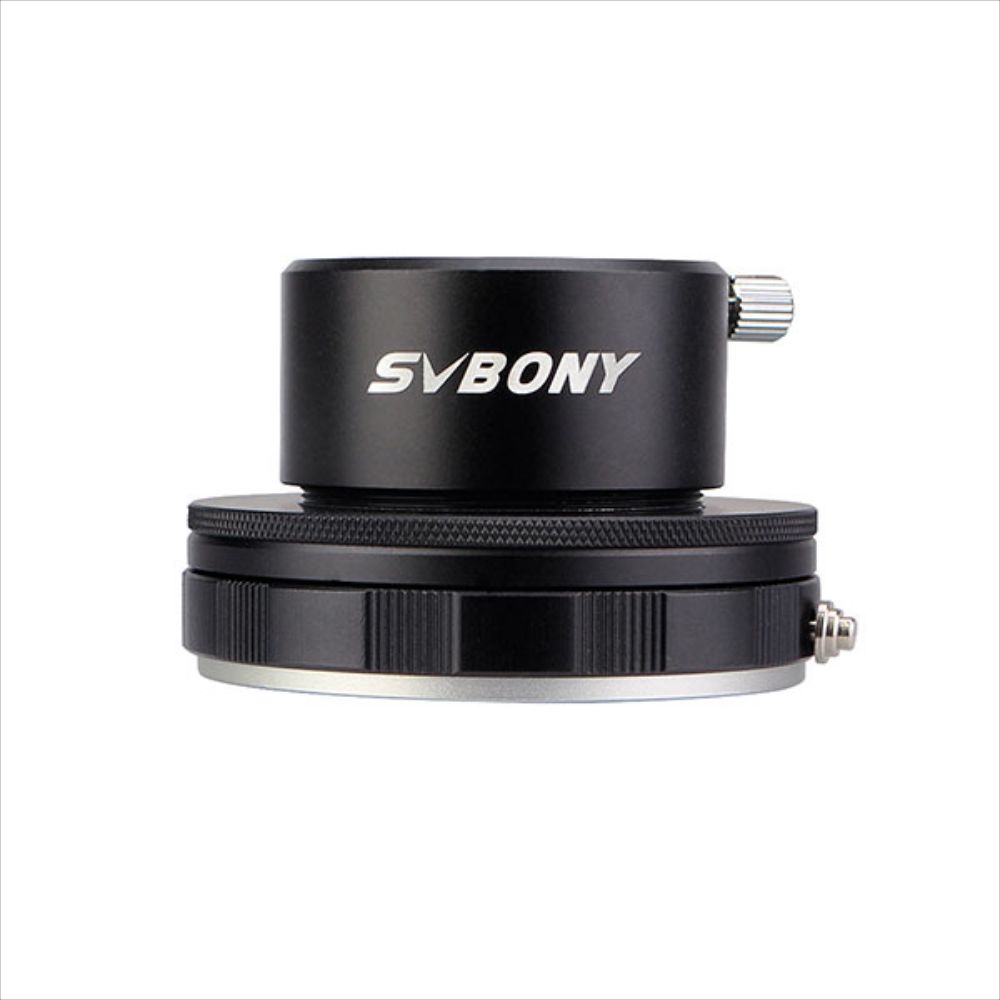

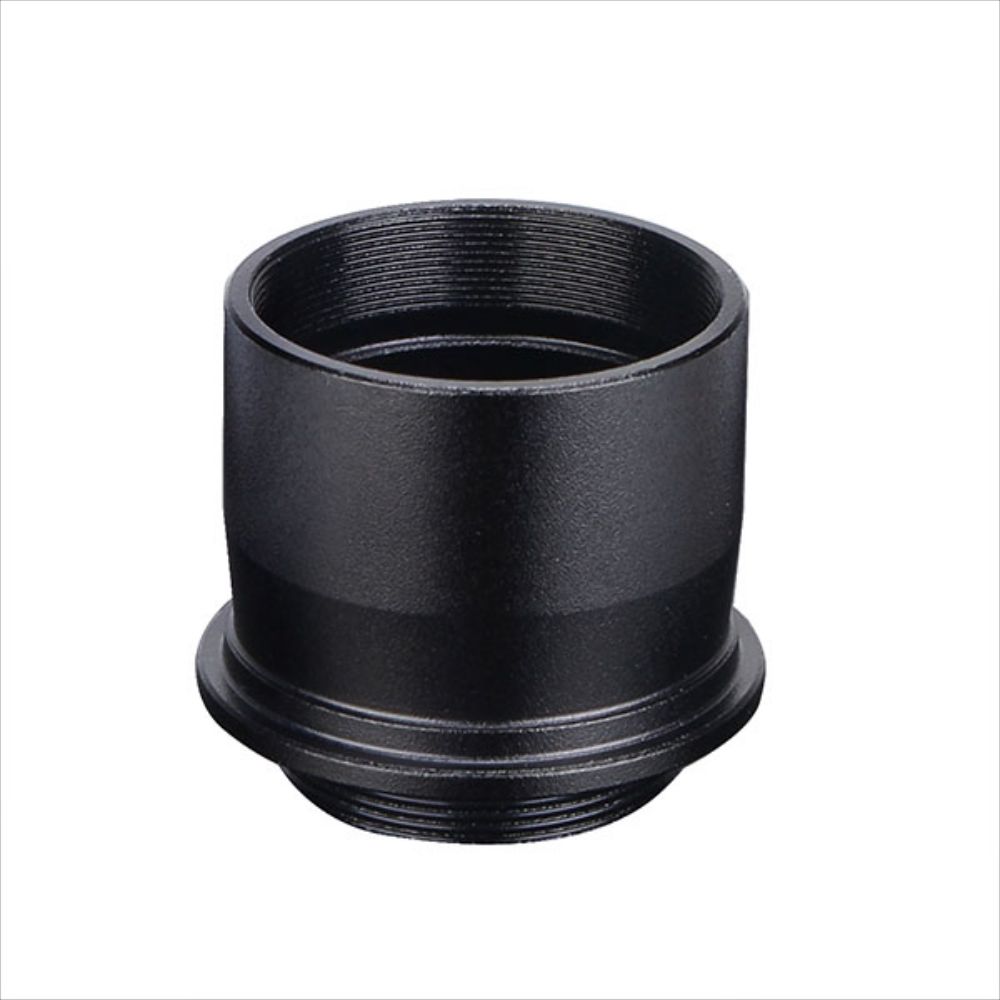

what's the function of the adapter in package:

https://www.svbony.com/blog/what-accessories-does-sv405cc-have-/

https://www.svbony.com/blog/how-to-connect-a-telescope-and-camera/

INDIGO has been updated
Free shipping!!!
In Stock Out Of Stock

Special offers and product promotions

SV405CC Cooled Color OSC Camera

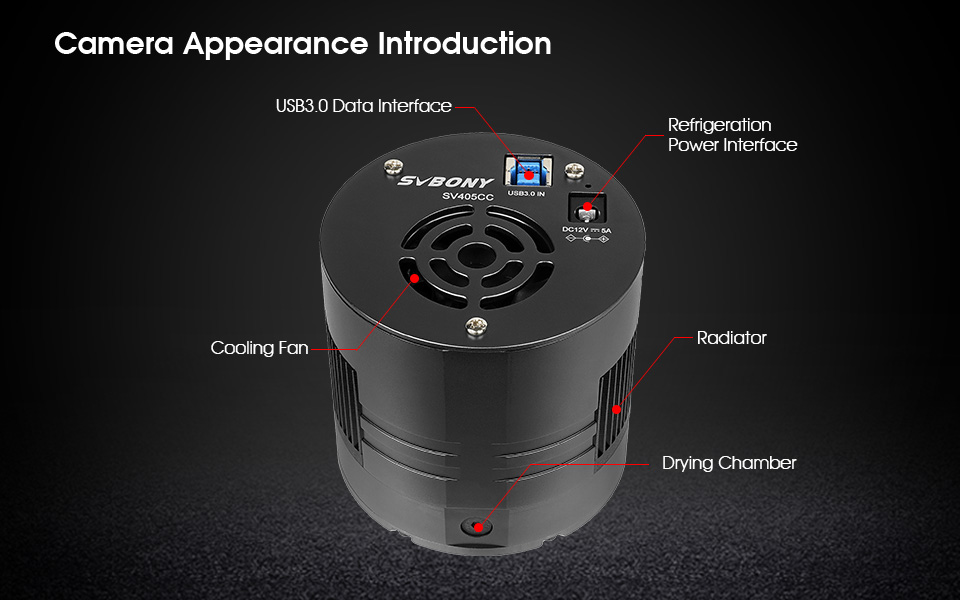

SPEC of SV405CC Cooled Color OSC CameraSensor of SV405CC Cooled Color OSC CameraQuantum Efficiency of SV405CC Cooled Color OSC CameraSV405CC is Low Readout Noise at HCG ModeStructure of SV405CC Cooled Color OSC CameraOperating System of SV405CC Cooled Color OSC CameraSV405CC Cooled Color OSC Camera Appearance IntroductionSV405CC Cooled Color OSC CameraMeasurement of SV405CC Cooled Color OSC CameraAdapters of SV405CC Cooled Color OSC CameraRelated collocation of SV405CC Cooled Color OSC CameraRecommendations of SV405CC Cooled Color OSC Camera

SV405CC Package Includes

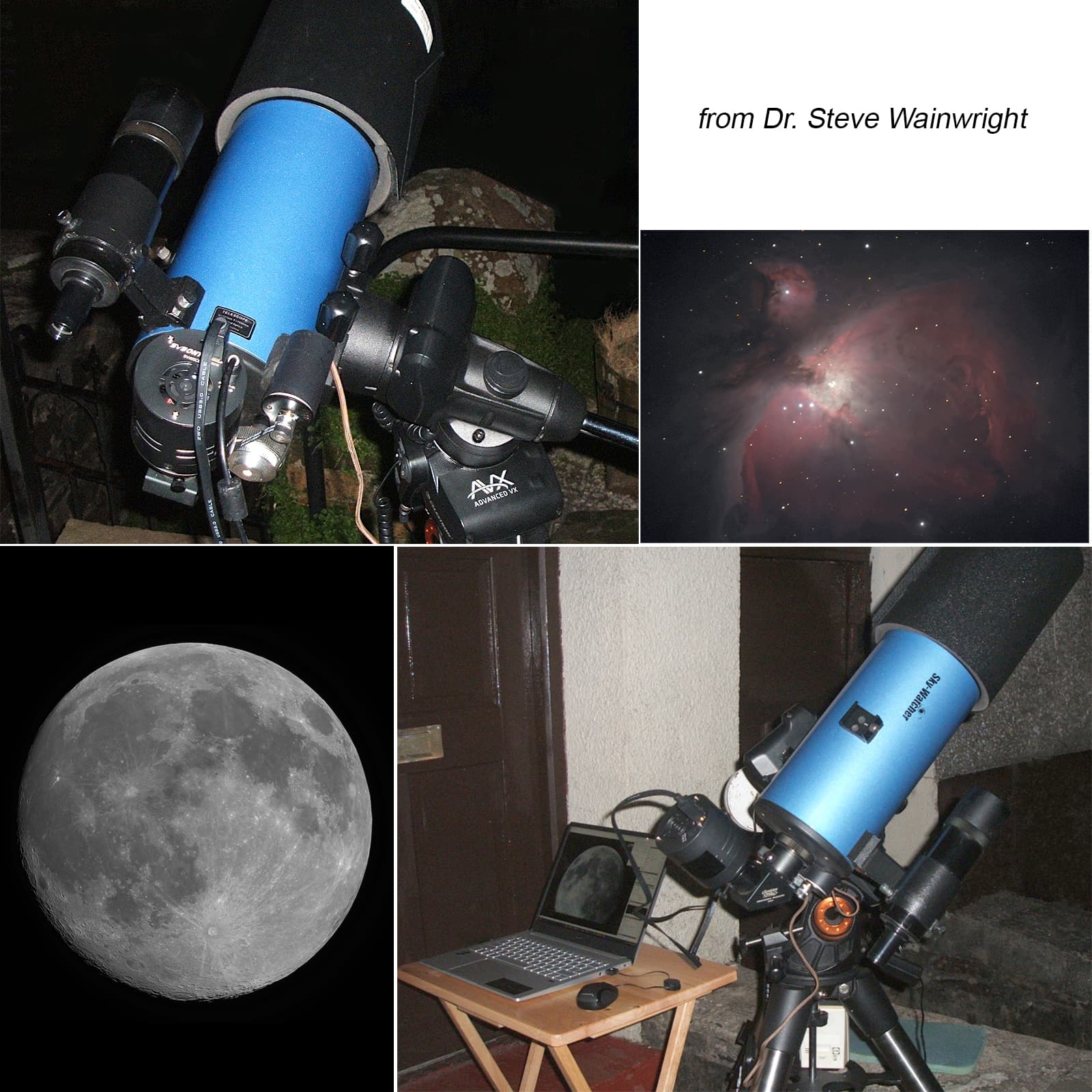

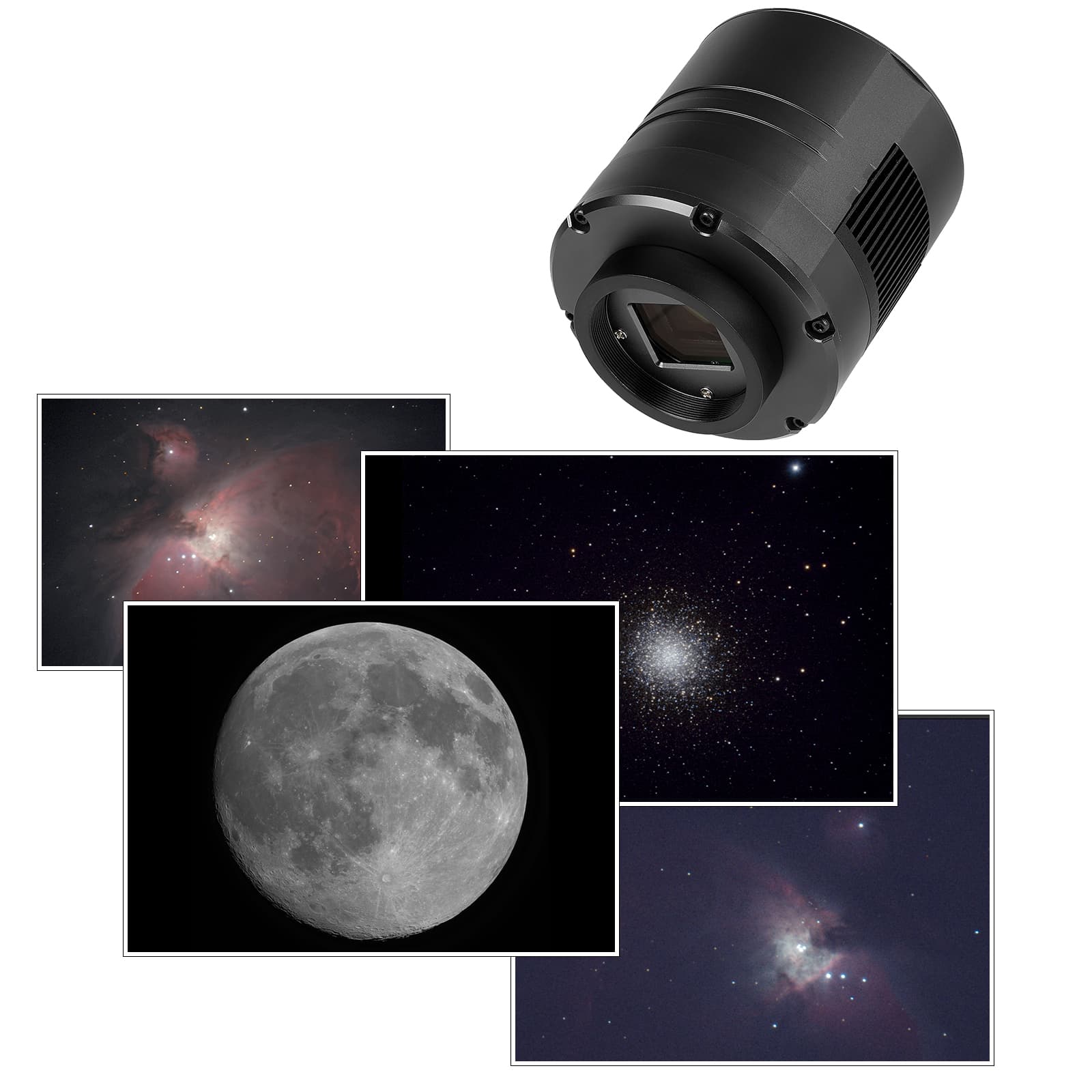

SV405CC camera imaging effect

SV405CC camera imaging effect

SV405CC camera imaging effect

4 reviews

Write a review

Value for money

This camera is real good and has nothing to envy compare to cameras from premium brands. Would totally recommend it especially for any amateur astrophotographer that wants to take it to the next step.Real value for money.

AMAZING CAMERA!!!

Compré esta cámara hace 2 meses y la he estado probando. Es mi primera experiencia con una cámara astrográfica dedicada. Desafortunadamente el clima empeoró y solo pude capturar alguna imágenes con ella. Usé un telescopio newton 8" f3.9 y la sv405cc y el filtro SvBony UHC de 2" para capturar la nebulosa del Aguila, la nebulosa de la laguna, la nebulosa trífida y la nebulosa omega y la galaxia de Andrómeda. Un tiempo aproximado de 50 minutos por cada imagen. Usé la montura motorizada exos2goto sin autoguiado. La cámara la controlé usando SharpCap. Los resultados me sorprendieron bastante porque nunca había podido lograr tantos detalles con mi DSLR. Pueden ver ejemplos de las imágenes logradas aqui youtu.be/qPTmcdIXNTM Definitivamente esta cámara es muy buena y puede ser usada por cualquier persona incluso si no tiene experiencia con cámaras para espacio profundo. El único inconveniente que he tenido es que llega a desconectarse de SharpCap pero si se desconecta el cable USB y conecta nuevamente se soluciona el problema.

Excellent !

J'ai débuté en astrophotographie en début d'année avec sa petite soeur SV305, que j'utilise désormais en planétaire et autoguidage avec mon nouveau setup. J'ai commandé la nouvelle SV405CC en mai, reçue début juin. Un peu inquiet avant la livraison, quand le service client m'envoie un mail signalant des problèmes chez quelques utilisateurs (drivers?), rapportés également sur quelques forums. Mais au moins le service client a pris les devant en me contactant en avance. Les premiers essais sont rassurant: la caméra avec le driver natif Svbony 1.6.5 est bien reconnue sous Sharpcap (Pro) v4 x64, puis sous N.I.N.A. v2, sur 2 ordinateurs Windows 10 x64 et Windows 11 x64. La première prise de vues est plus que satisfaisante, surtout à mon petit niveau et venant de la petite soeur planétaire : champ plus grand, résolution plus élevée et beaucoup, beaucoup moins de bruit. Je recommande fortement SV405CC pour la photographie longue pose en ciel profond. Et le rapport qualité/prix Svbony toujours imbattable. Un client très satisfait, de sa nouvelle caméra SV405CC, et des autres produits Svbony en général. Merci Svbony

Info

guten Tag würde diese Kamera in Verbindung mit der Asiair Pro auch funktionieren????? Ich habe ja bereits einige Ihrer Produkte und bin super zufrieden, besonders der Apo 102/714 macht mir richtig Freude besten Dank für Ihre Information lg Herbert

Model SV405CC

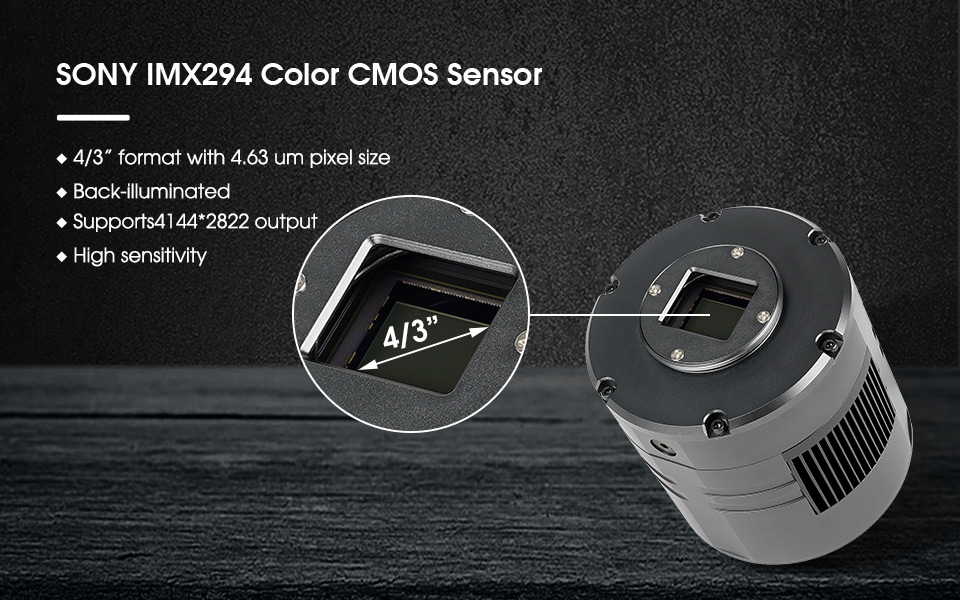

Sensor 4/3'' SONY IMX294 CMOS​
Sensor size 19.2mm*​13mm
Pixel Size 4.63*4.63μm​
Diagonal 23.2mm
Resolution 11.7 megapixel​s 4144*2822
Exposure time 0.05ms-2000s

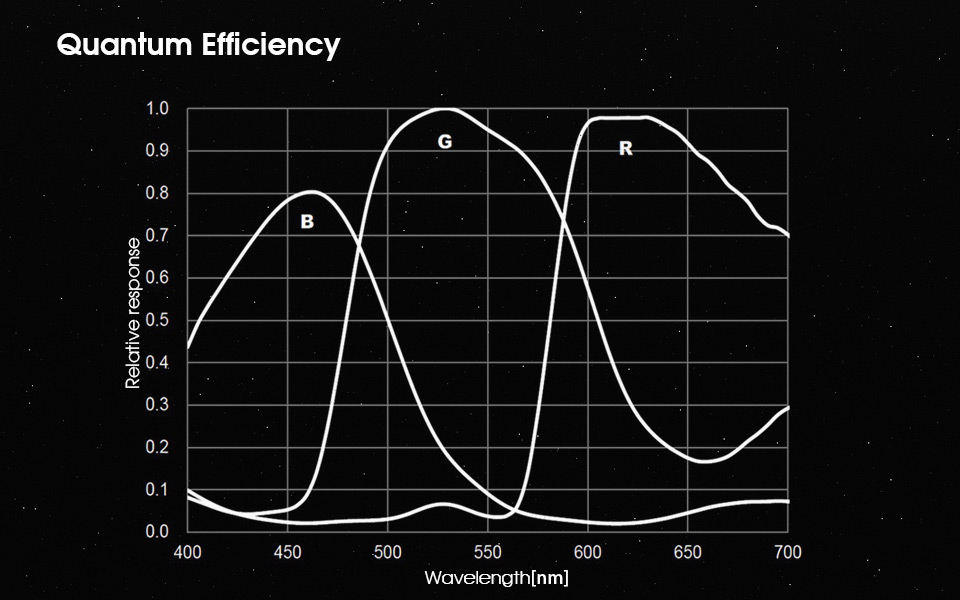

QE peak 75%

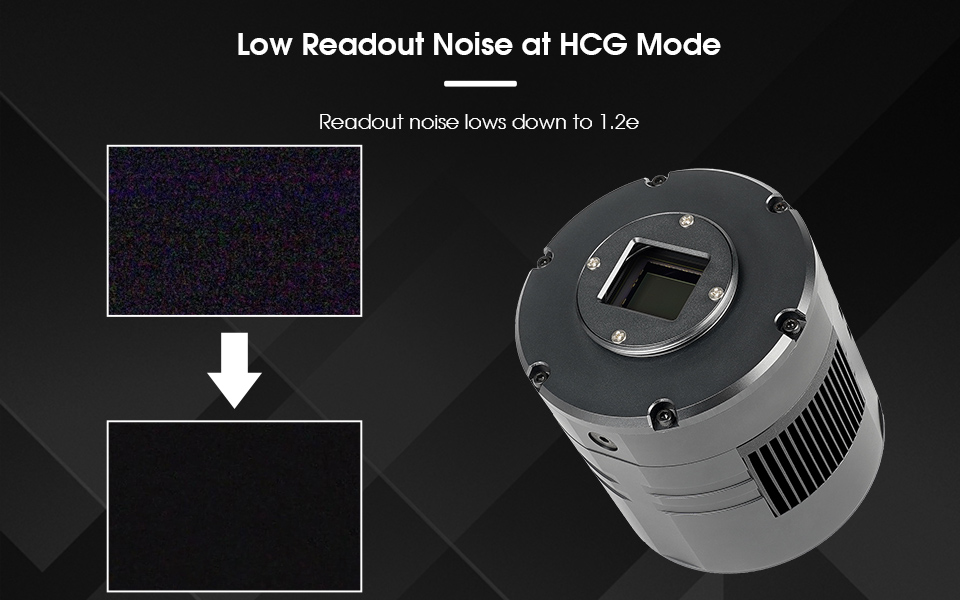

Readout noise 1.2e
Full well 63ke
ADC 14 bit
Maximum Frame Rate​ 19 FPS

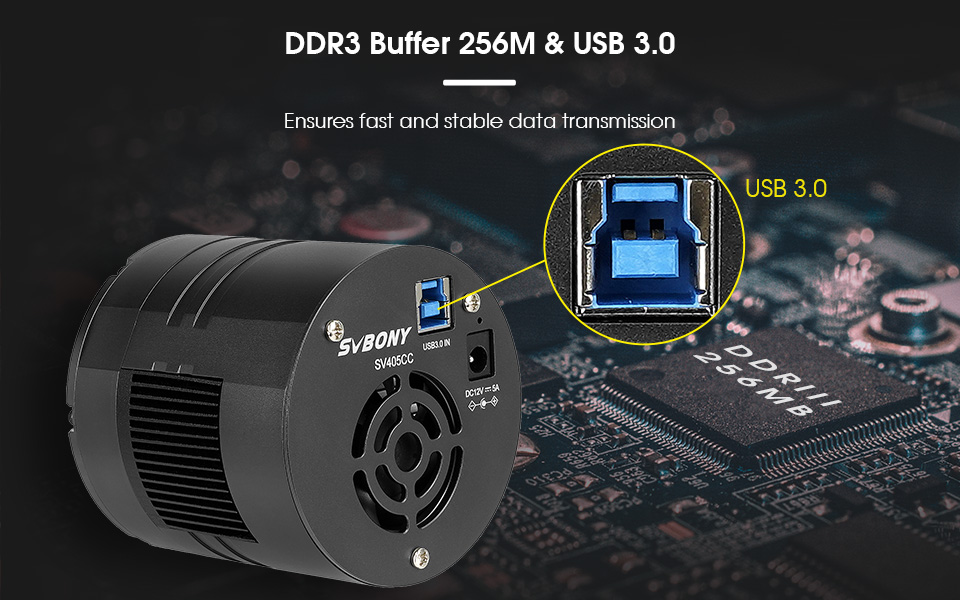

Interface USB 3.0

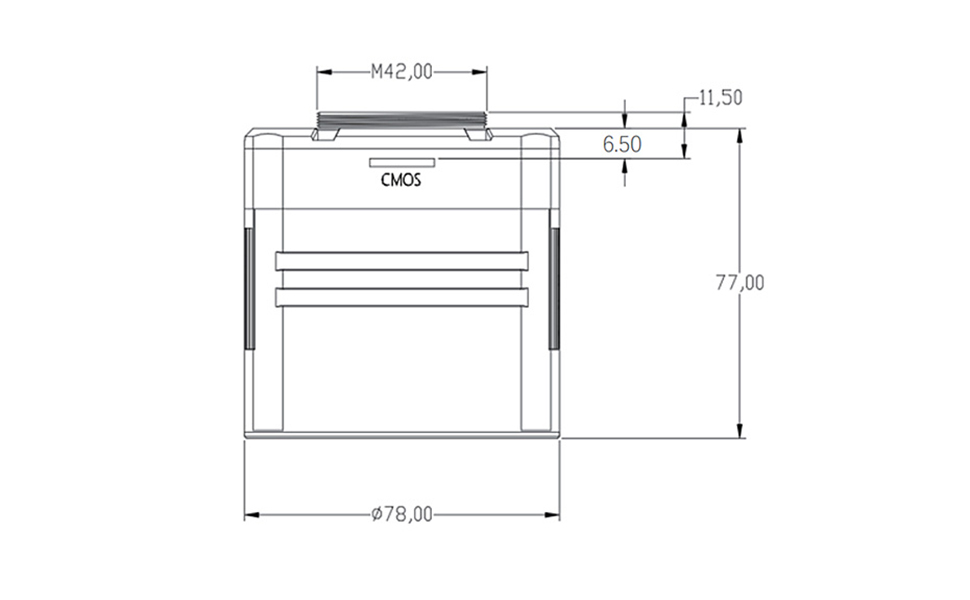

Back Focus 6.5mm
ROI​  Support
Protective window AR coating
Digital Noise Reduction​ Support
Binning​ BIN1,BIN2,BIN3,BIN4​
Interface Type​ M42
Supported OS Windows, Linux, Raspberry Pi & Mac OS
Power Consumpton 200mA 5V
Working Temperature -10℃-50℃​
Storage Temperature​ -20℃-60℃​​
Working Relative Humidity 20%-80%
Storage ​ Relative Humidity​ 20%-95%​

1.Sv405cc with UV/IR Cut filter can achieve pure color shooting effect of deep space objects. It can photograph nebulae, galaxies and other deep space objects and the moon.

2.Sv405cc with UHC filter can effectively reduce urban light damage, or get better shooting effect of deep space celestial bodies, severely suppress light damage, and is suitable for places with strong urban light damage. It can photograph nebulae, galaxies and other deep space objects.

3.Sv405cc combined with CLS filter can effectively reduce urban light damage, obtain better deep space celestial photography effect, and slightly suppress light damage. It is suitable for places with light damage in villages and towns, and can obtain more details while suppressing light damage. It can photograph nebulae, galaxies and other deep space objects.

Filter for Camera​​​ Connection Mode​​​ Connection Mode​​​

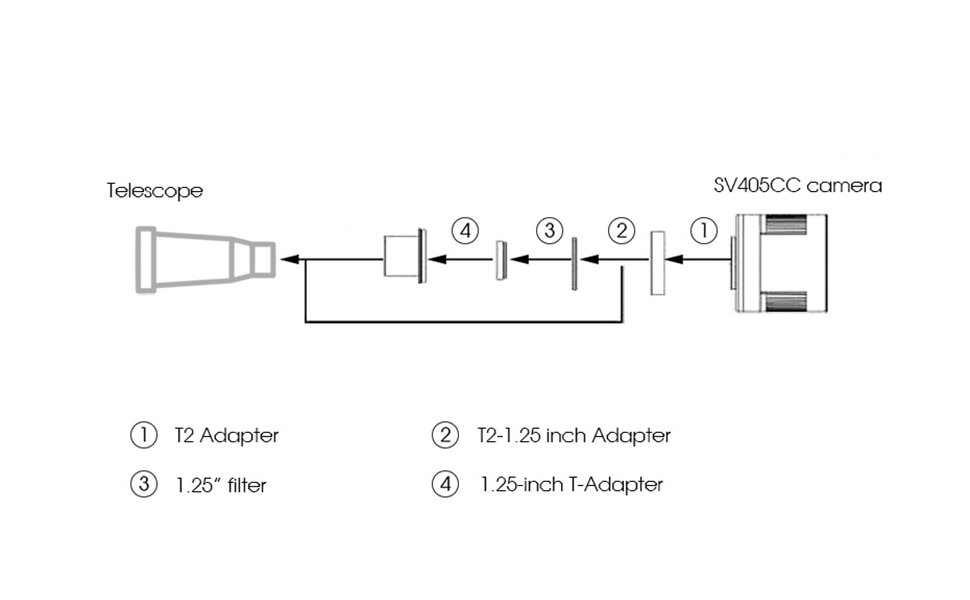

F9127A/B-svbony 2 inch /1.25 inch UV/IR Cut astronomical photography filter​​ 2-inch assembly scheme: F9127B+M42M-M48F-16.5+F9198F​ 1.25 inch assembly scheme: F9127A+1.25 inch T-shaped tube +F9198F​​​
F9131A/B- svbony1.25 inch /2 inch UHC filter​​ 2-inch assembly scheme:​F9131B+M42M-M48F-16.5+F9198F​​ 1.25 inch assembly scheme:​F9131A+1.25 inch T-shaped tube​+F9198F​​
F9155A/B- svbony 1.25 inch /2 inch CLS filter​​ 2-inch assembly scheme:​F9155B+M42M-M48F-16.5+F9198F​ 1.25 inch assembly scheme:​​F9155A+1.25 inch T-shaped tube​+F9198F​
