SV503 OTA Set for Eyepiece Projection Astrophotography-Connected to M42 Camera Ring

SKU: F9359 -F9183A
US$ 2,500.00

This sv503 set connected for Eyepiece Projection astrophotography, Not include eyepiece,you can choose eyepiece from svbony website.

In Stock Out Of Stock

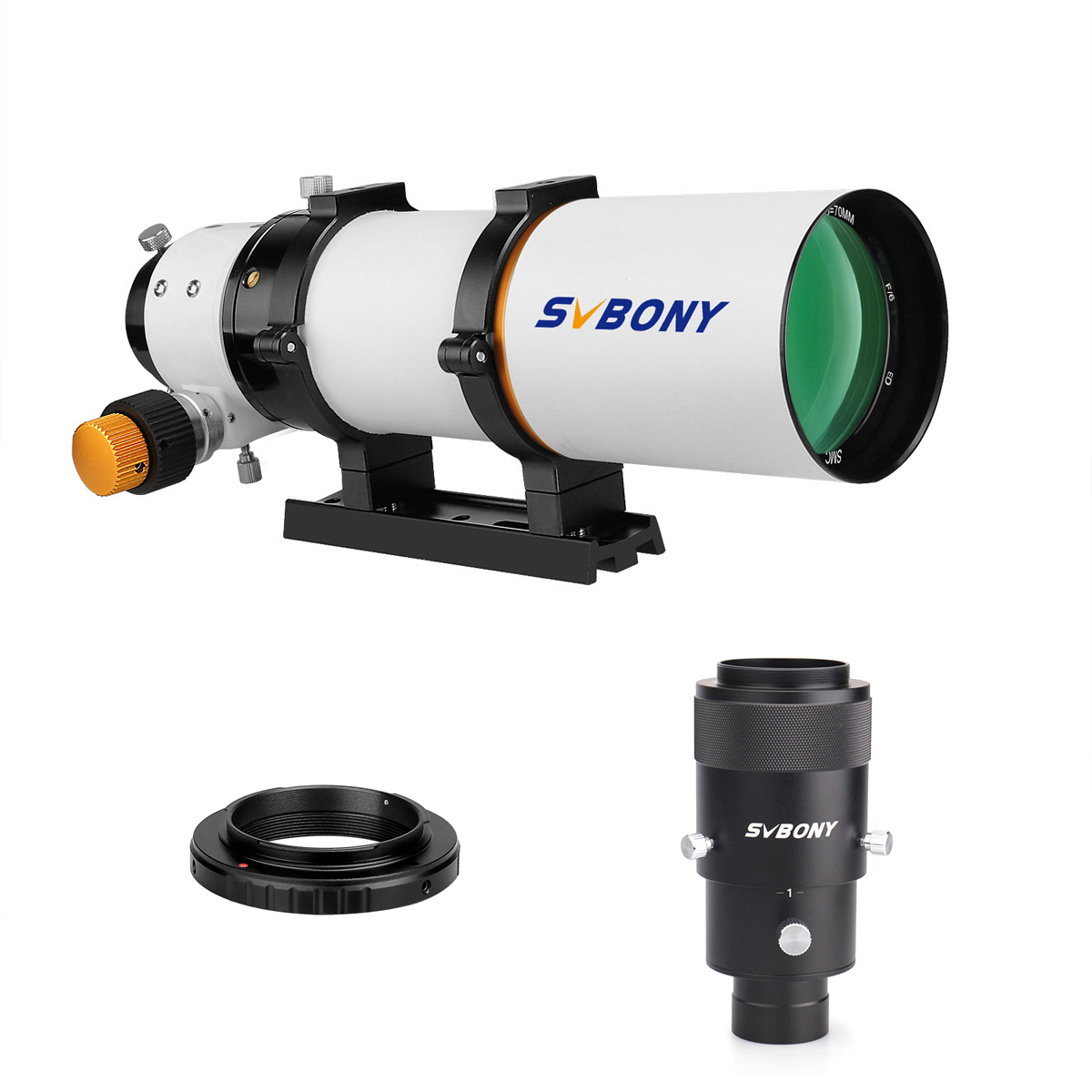

SV503 OTA Set for Eyepiece Projection Astrophotography

Eyepiece projection is a great way to take detailed shoots of moon and planets. Photographed objects in these images are considerably larger and show more detail than such taken with prime focus shots.SV503 OTA set can realize eyepiece projection.

sv503 with eyepiece kit.jpg

0 reviews

Write a review

Model  SV503-F9359A​ SV503-F9359B SV503-F9359D
Type Refractor Refractor​ Refractor​​
ED Glass S-FPL51 S-FPL51​ S-FPL51​​
Coating SMC Ultra-wideband coating(SMC) SMC
Aperture 70mm / 2.75-Inch 80mm 102mm / 4.01-Inch
Focal length 420mm 560 mm 714mm
Focal Ratio f/6 F7 f/7
Type of Focuser RAP (Rack and Pinion) 2 inch Dual speed focuser RAP (Rack and Pinion)
Gear Reduction 1:10 Fine movement 1:10 1:10 Fine movement
Model SV305
Sensor 1/2.8" CMOS SONY IMX290
Pixel Size 2.9X2.9μm
Resolution 2 Mega Pixels 1920X1080
Shutter Electronic Shutter
Max FPS 130fps(320*240)
Video encoding format RAW
ADC 12 bit
ROI support Any area ROI
On camera image buffer 128M DDR buffer
Optic window IR650 glass
Interface USB 2.0
Material Aluminum alloy
Supported OS Windows, Linux, Raspberry Pi & Mac OS
Power Consumption 200mA@5V
Working Temperature -0°C~45°C
Storage Temperature -10°C~60°C
Working Relative Humidity 20%~80%
Storage Relative Humidity 20%~95%
Model  SV194
Size  M42*0.75
Male thread Nikon F-mount Male
Color Black
Material Metal Aluminum
Net weight 31g / 1.05oz
Model  SV195
Size  M42*0.75
Male thread Canon EF-Mount
Color Black
Material Metal Aluminum
Net weight 44.7g
Model SV196
Material Metal Aluminum
Color Black
Thread M42*0.75 Female---SONY A-mount Male
Thickness 10mm
Net Weight 35.7g / 1.26oz
Note No electrical connection and diaphragm & focusing are required to be set manually
Model SV196
Material Metal Aluminum
Color Black
Thread M42*0.75 Female---Sony E-mount Male
Thickness 36.5mm
Net Weight 68.3g / 2.4oz
