This SV550 122 APO telescope set comes with a SV550 Triplet APO, SV211 203mm handle, SV223 90-degree 2" diagonal, zoom eyepiece, and a customized backpack for telescope. Get this great travel telescope suits for your astronomical visual observation.
In Stock

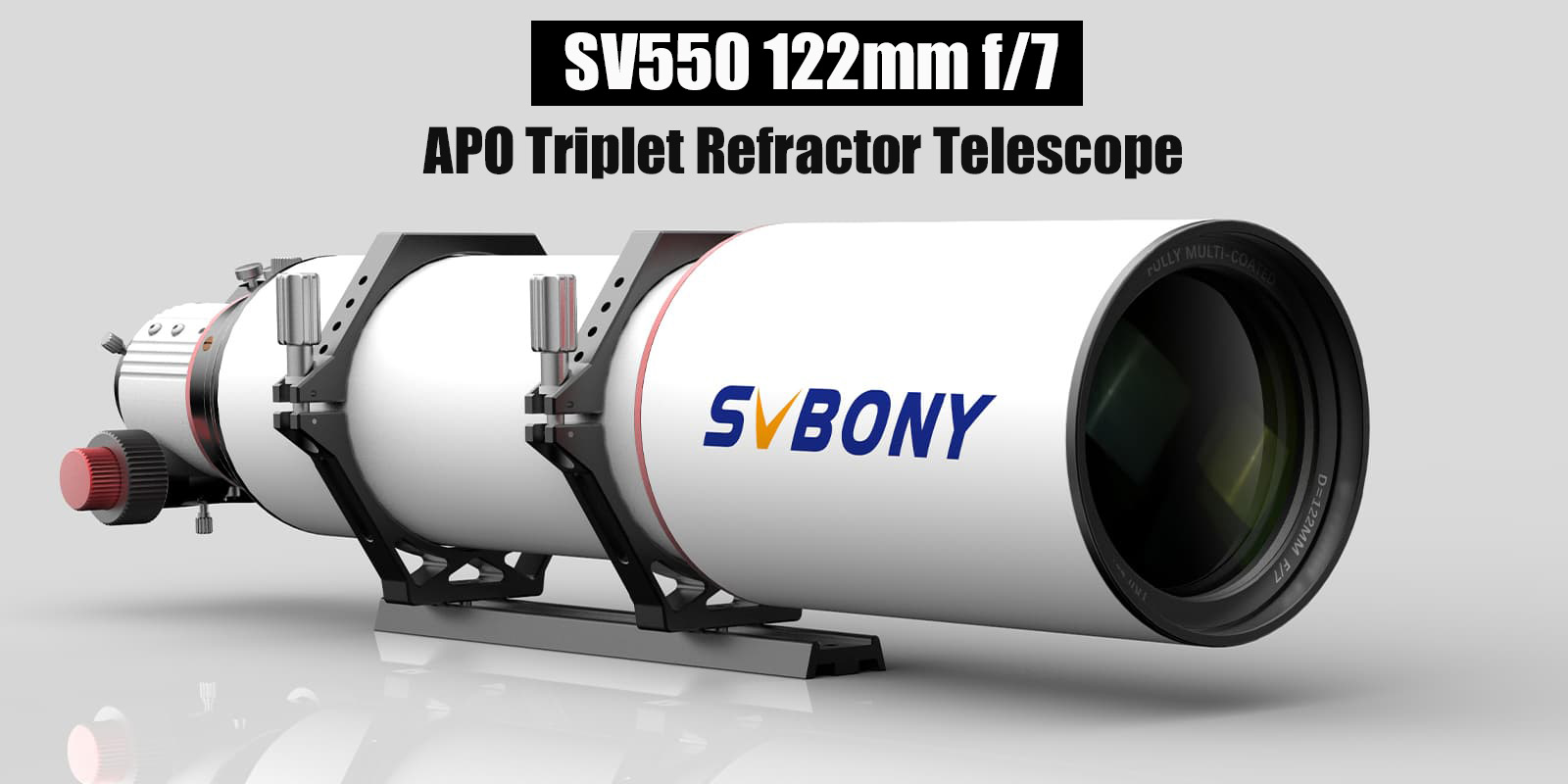

SV550 122MM Triplet APO Telescope Set For Astronomical Observation
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 122mm |
| Focal Length | 854mm |
| Focal Ratio | f/7 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.15 arc seconds |
| Coatings | Fully Multi-coated |
| Tube Material | Aluminum |
| Focuser | 2.5" rack-and-pinion, dual speed (1/10) |
| Tube Outer Diameter | 154mm |
| Tube Travel | 87mm |
| Visual Limiting Magnitude | 12.3 |
| Lens Design | Apochromatic |
| Dovetail Plate Length | 300mm |
| Highest Useful Magnification | 244x |

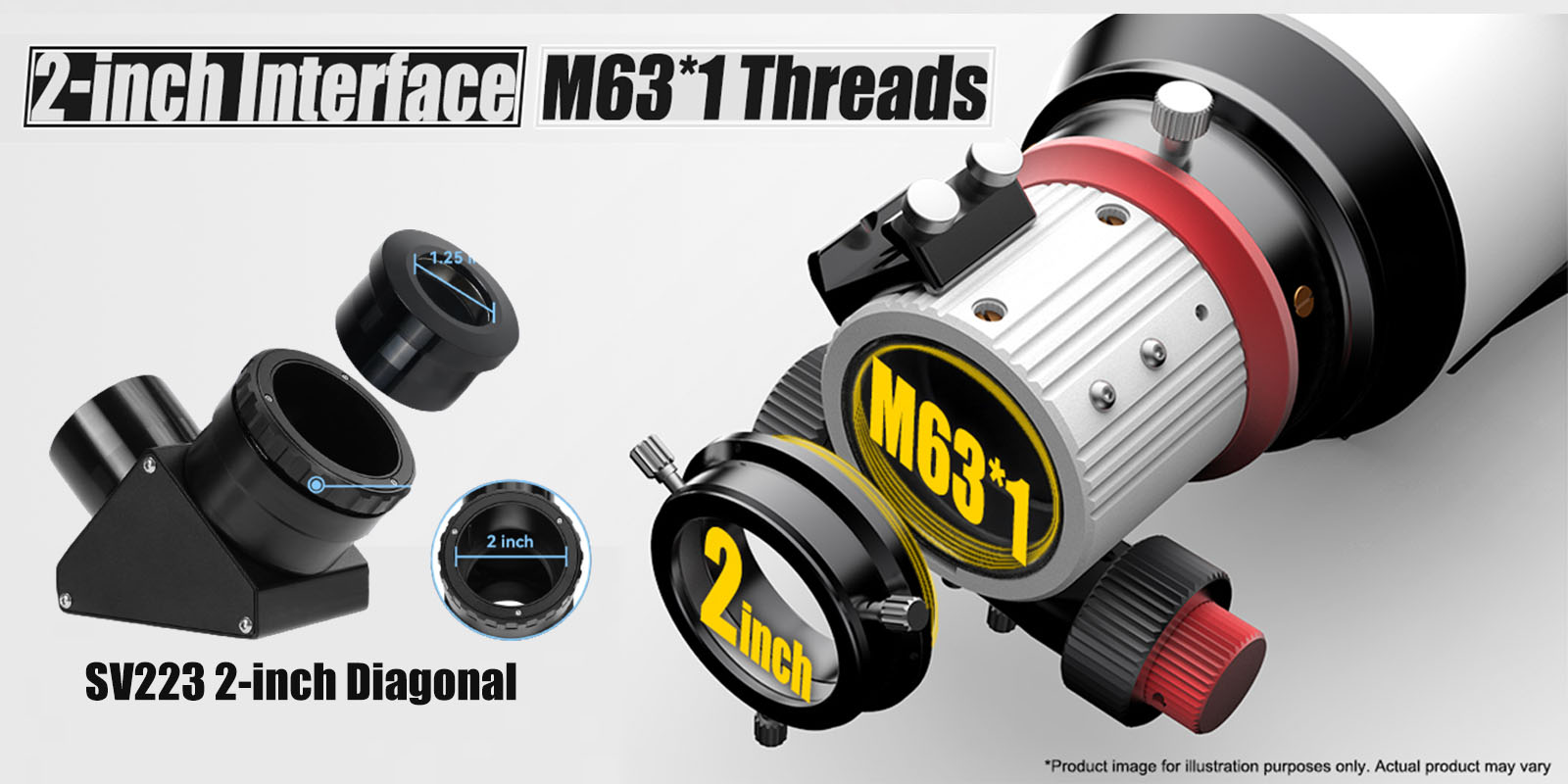

| Additional Thread | M63x1 female thread for adaptions |
| Dew Shield Type | Retractable |
| Net Weight | 6440g/14.18lb |
| Gross Weight | 10000g |
| Brand | SVBONY | Brand | SVBONY | |

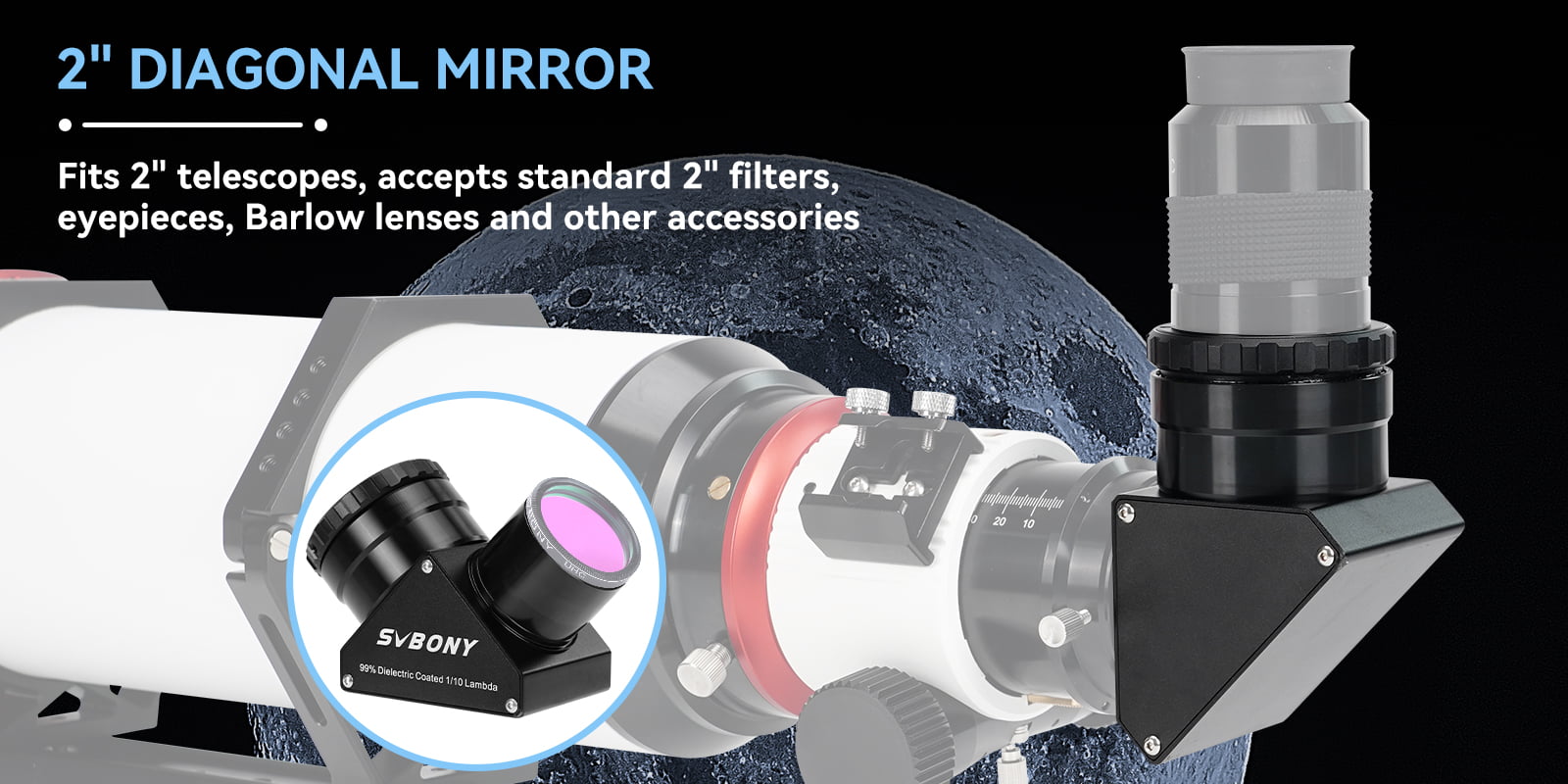

| Model | SV182 | Model | SV223 | |
| Lens Diameter | 30mm | Size | 2inch | |
| Focal Length | 120mm | Optical Design | Mirror Diagonal | |
| Magnification | 6x | Inner Connection (Lens Sided) | Thread M48x0.75 | |
| Eye Relief | 15mm | Outer Connection (Lens Sided) | Barrel 2inch | |
| Exit Pupil | 5mm | Inner Connection (Eyepiece Sided) | Clamp 2inch | |
| Field of View | 7.5° | Reflection Surface | Dielectrically Coated | |
| Lens coating | FMC | Reflectivity | >99% | |
| Image Orientation | Correct-image | Image Orientation | Erect image, Mirror Inverted | |
| Reticle | Single crosshair | Optical Length | appr. 109.1mm | |
| Adjustment System | Spring-loaded X-Y | Clamping System | Clicklock | |
| Objective | Achromatic 2-Element | Deflection Angle | 90° | |
| IIIuminated | No | Clear Aperture | 43mm | |
| Adjustable focus | Yes | Material | Metal | |
| Viewing angle | 90 Degree | Thickness of Mirror | 11.5mm | |
| Net Weight | 295g / 0.651b / 10.41oz | Net Weight | 573.7g/20.24oz |
| Brand | SVBONY | Brand | SVBONY | |
| Model | SV215 | Model | SV211 | |
| name | Zoom eyepiece | Color | Red | |
| Apparent Field of View | 56° | Material | 6061T Aluminums | |
| Coatings | Fully Multi-Coated | Length | 203mm | |
| Blackened Lens Edges | Yes | Width | 42mm | |
| Eye Relief | 10mm | High | 39mm | |
| Focal Length | 3-8mm | Net Weight | 161.5g/5.7oz | |
| Filter Threads | M28.5x0.6 | Fit For OTA | SV503 102mm f/7、SV550 122mm f/7 | |
| Barrel Size | 1.25" | Distance Between Two M6 Screws | 187mm | |
| Lens Elements | 6 | |||
| Lens Groups | 4 | |||
| Barrel Type | With safety undercut | |||
| Rubber Eye Guard | Yes |

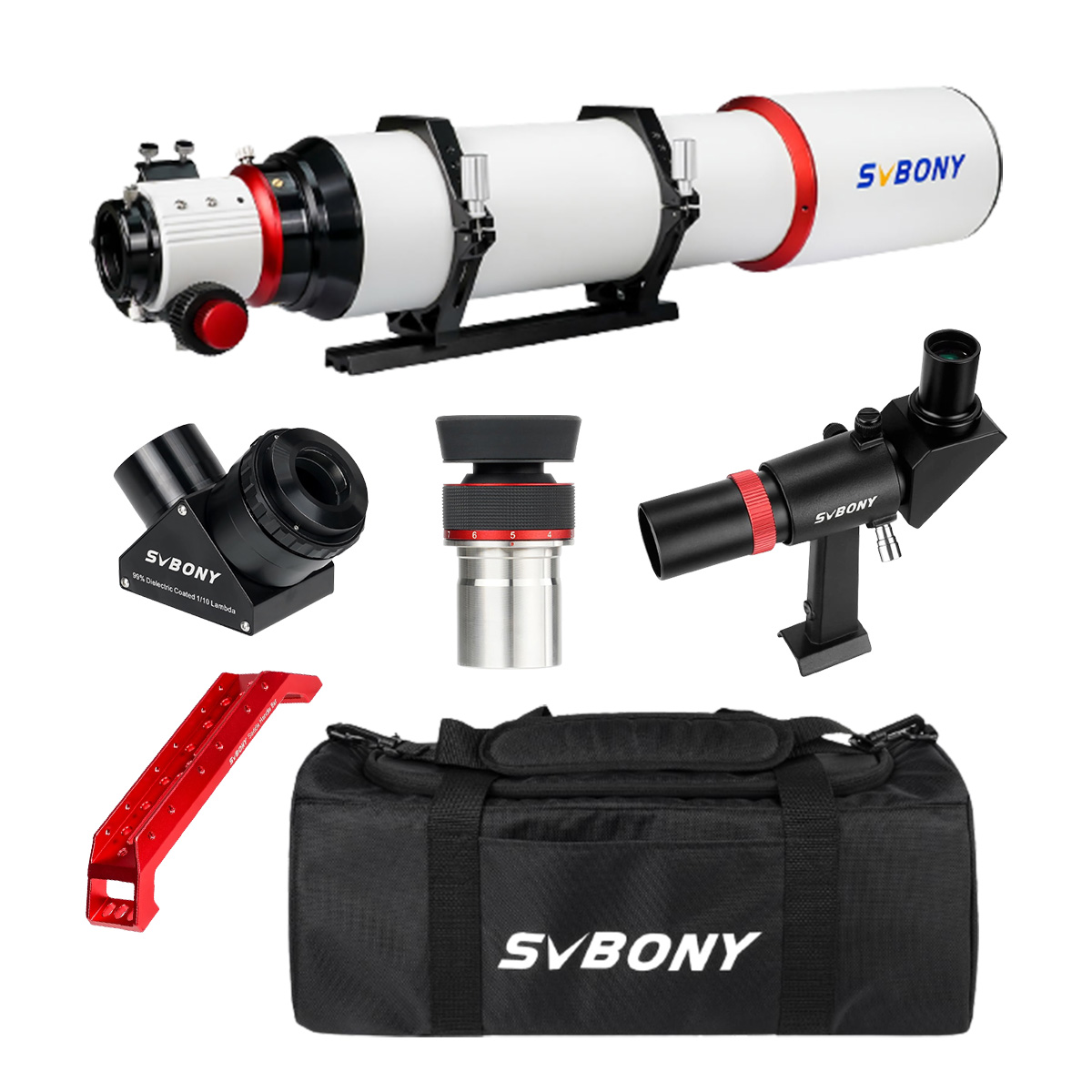

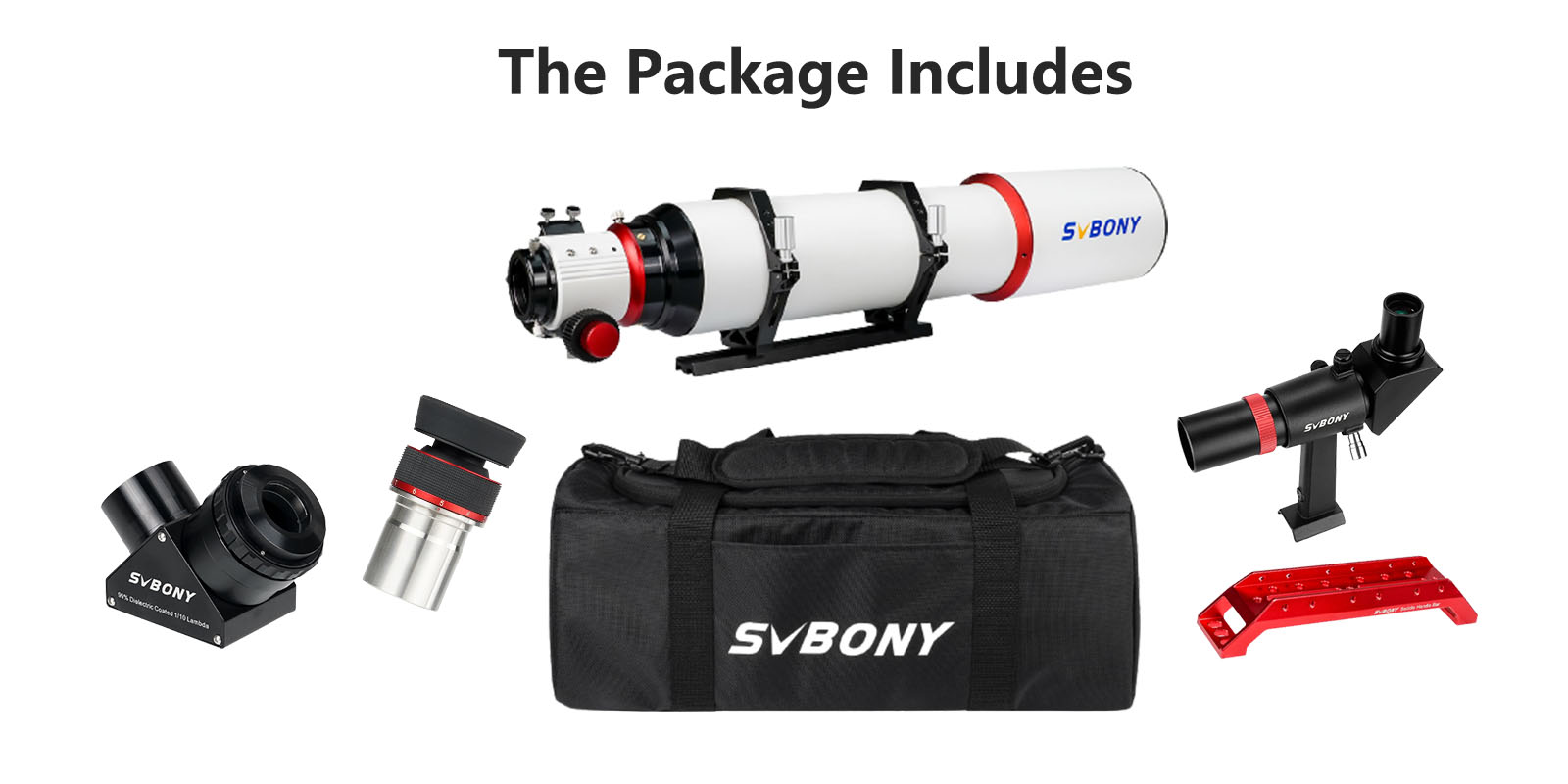

Package Includes
1. 1*SV550 122 APO OTA
2. 1*backpack for telescope

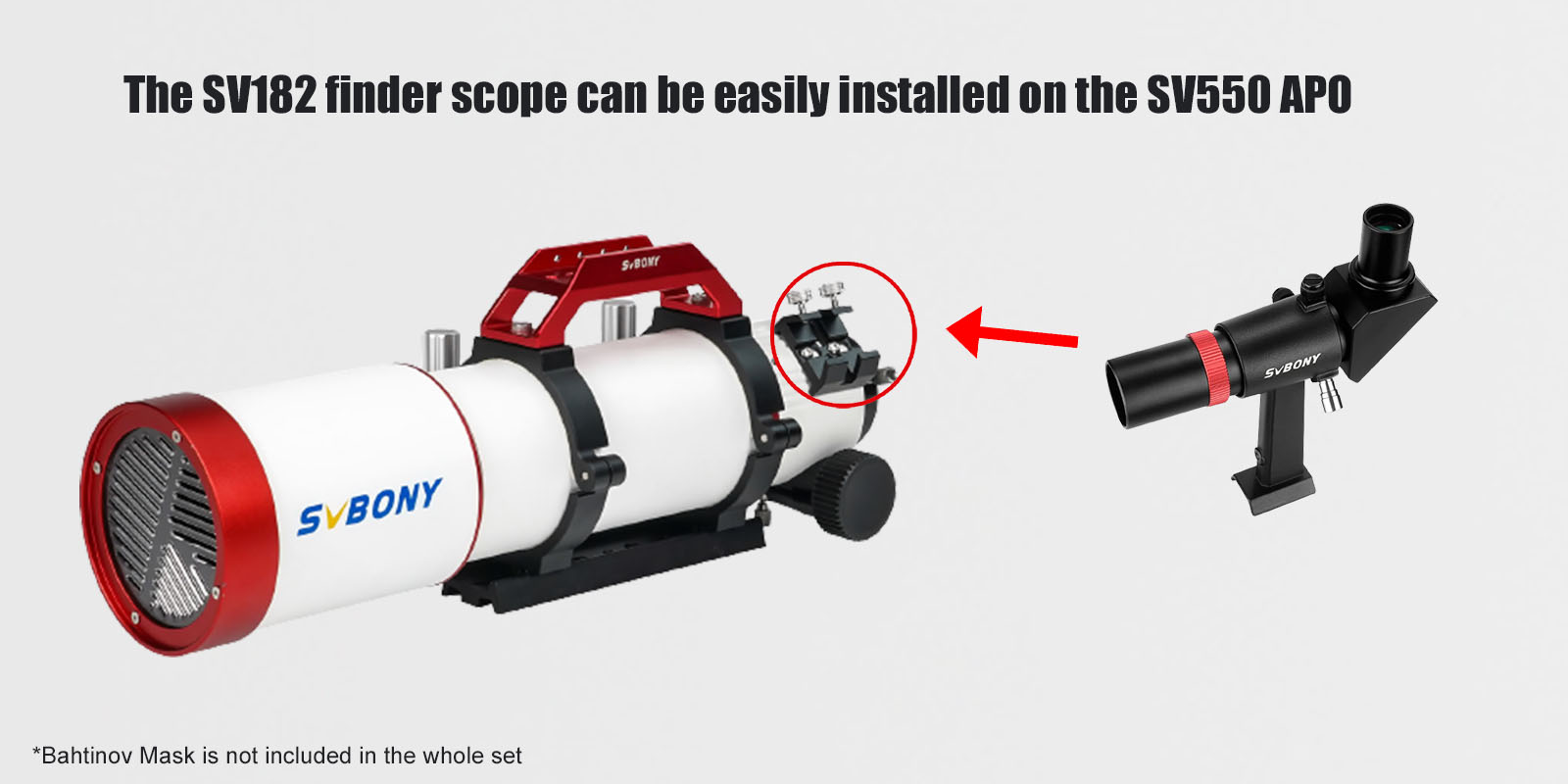

3. 1*SV182 finder scope
4. 1*SV215 zoom eyepiece
5. 1*SV211 203mm handle
6. 1*SV223 diagonal
