SVBONY SV550 80MM APO Triplet Refractor Telescope Kits for Deep Sky Astrophotography

SKU: F9381A-F9198F-W9163A-W9155A-W9164A
US$ 1,831.99

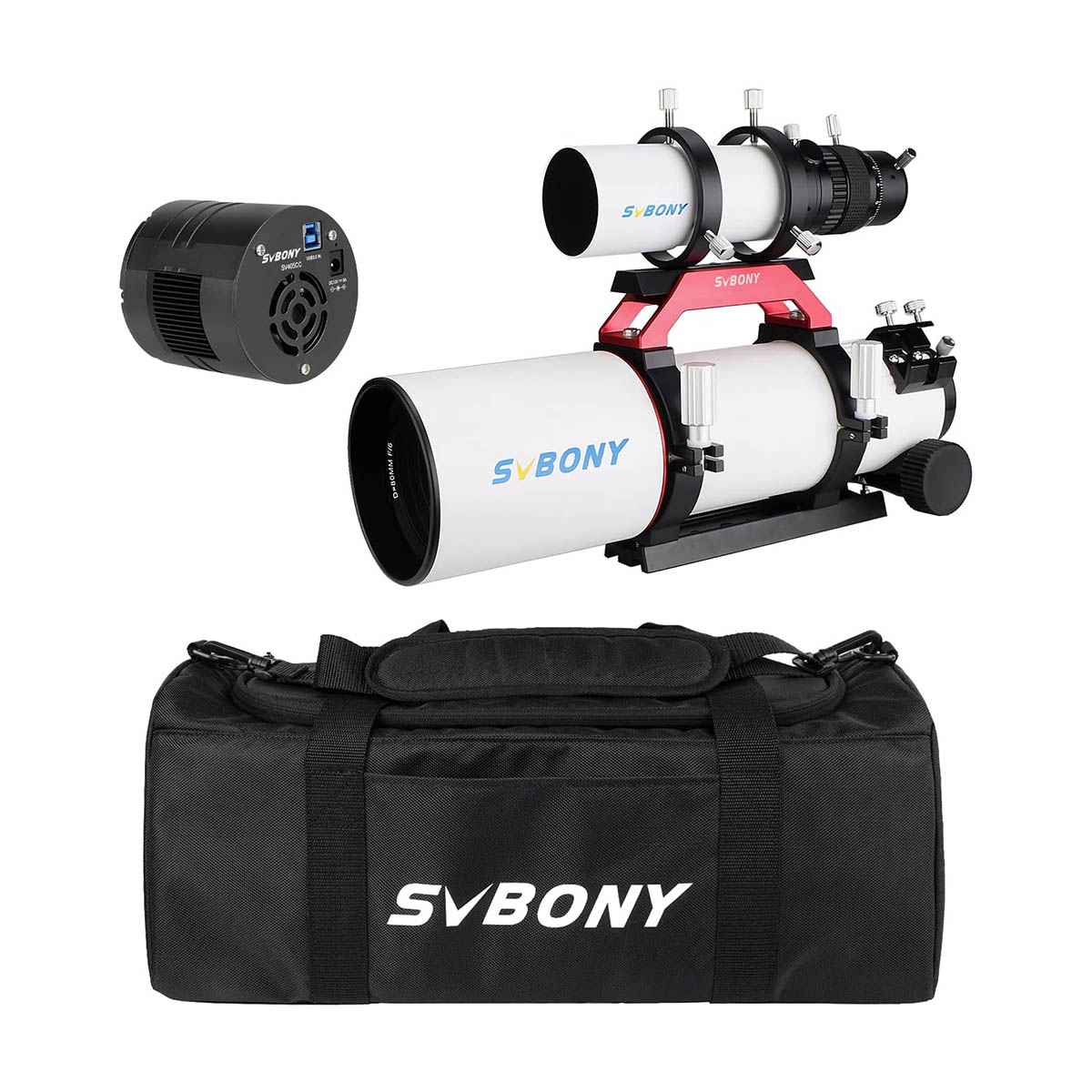

This SV550 telescope kits bundle with a 80mm APO triplet refractor, a SV211 dovetail base, a SV198 guide scope, a SV405CC telescope camera, and a SV212 multipurpose telescope bag. It is definitely an ideal suits for Deep Sky Astrophotography.

In Stock Out Of Stock

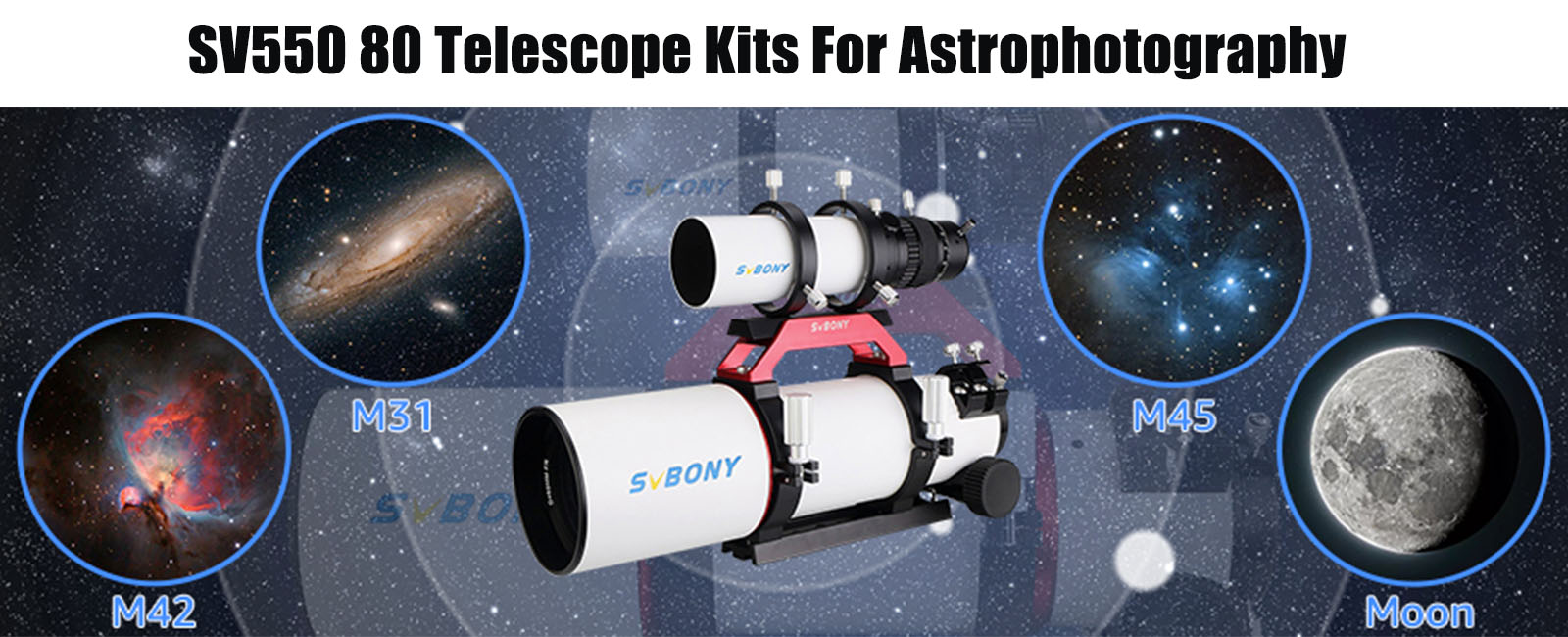

SV550 80 APO Triplet Refractor Telescope Kits for Deep Sky Astrophotography




sv550 kits-1.jpg

0 reviews

Write a review


Brand SVBONY Model SV198
Model SV550 Type of Optics Achromat Refractor
Aperture 80mm Lens Structure 2-Elements/ 1Groups
Focal Length 480mm Tube Material Aluminum
Focal Ratio f/6 Aperture 50mm / 1.97in
ED Glass​ FPL51​ Focal Ratio f/4.1
Telescope Type Refractor Focal Length 206.6mm / 8.13in
Resolution 1.45 arc seconds Coating Fully multi-coated
Coatings  SMC Blackened Lens Edges Yes
Limiting stellar magnitude 11.6 Focuser Dual Helical + Telescopic Design
Lens design  Apochromatic​ Dual Helical Focuser Focusing Stroke 11mm
dovetail plate length 150-175mm Focusing Seat Accuracy (Dual Helical Focusing) 0.1mm
barrel weight 2900g Rough Focusing Stroke 38mm
mirror Brief Size  377.8mm Focusing Seat Accuracy (Rough Focusing) 1mm
Net weight​ 3750g Connection Thread to Eyepiece 1.25" and T2
Gross weight​ 3850g Base Installation Type Vixen standard interface
Package size​ 440x220x210mm​ Tube Diameter 55.5mm
Dew Cap Diameter 58mm
Total Length 223mm
Net Weight 770g / 28.1oz
Model SV405CC
Sensor IMX294
CMOS Image Resolution 4144*2822
Total Pixels 11.7 megapixel
Pixel Size 4.63渭m
Target Size 19.2mm*13mm
Diagonal 23.2mm
Maximum Frame Rate 19FPS
Shutter Type Rolling Shutter
USB Type Type-B USB 3.0
DDRIII Buffer DDR3 256M
Exposure 0.05ms-2000s
Readout Noise 1.2e
QE Peak 0.75
Full Well 63ke
ADC 14bit
Model  SV211 Model SV212
Color  Red Main Material Oxford Cloth 1680D +PVC
Material 6061T Aluminums Velcro Padded 4PCS
Length  135mm Padded Straps 1PCS
Width  42mm PVC Protect Dividers 1PCS
High  39mm Inner Dimension 520x265x215mm
Net Weight  136g / 4.8oz Color Black
Fit for OTA  SV503 (70F6 80F7) SV550 (80F6) Net ​Weight​ 1250g
Fit for SVBONY SV503 (70F6 80F7) SV550 80F6


1. Lens Design: Triple APO Achromatic Optics

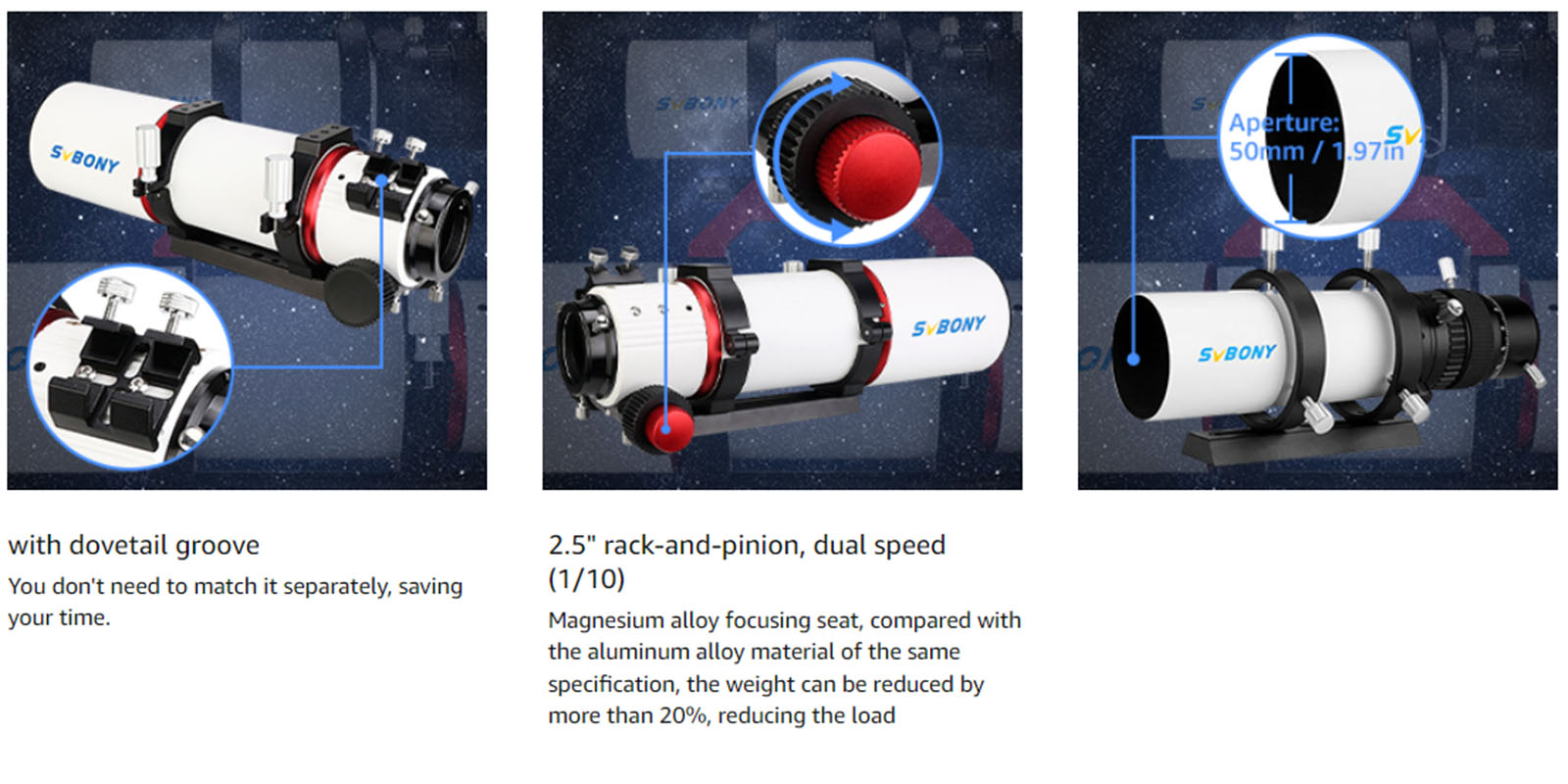

2. 2.5" rack-and-pinion, dual speed (1/10)
3. Aperature 80mm

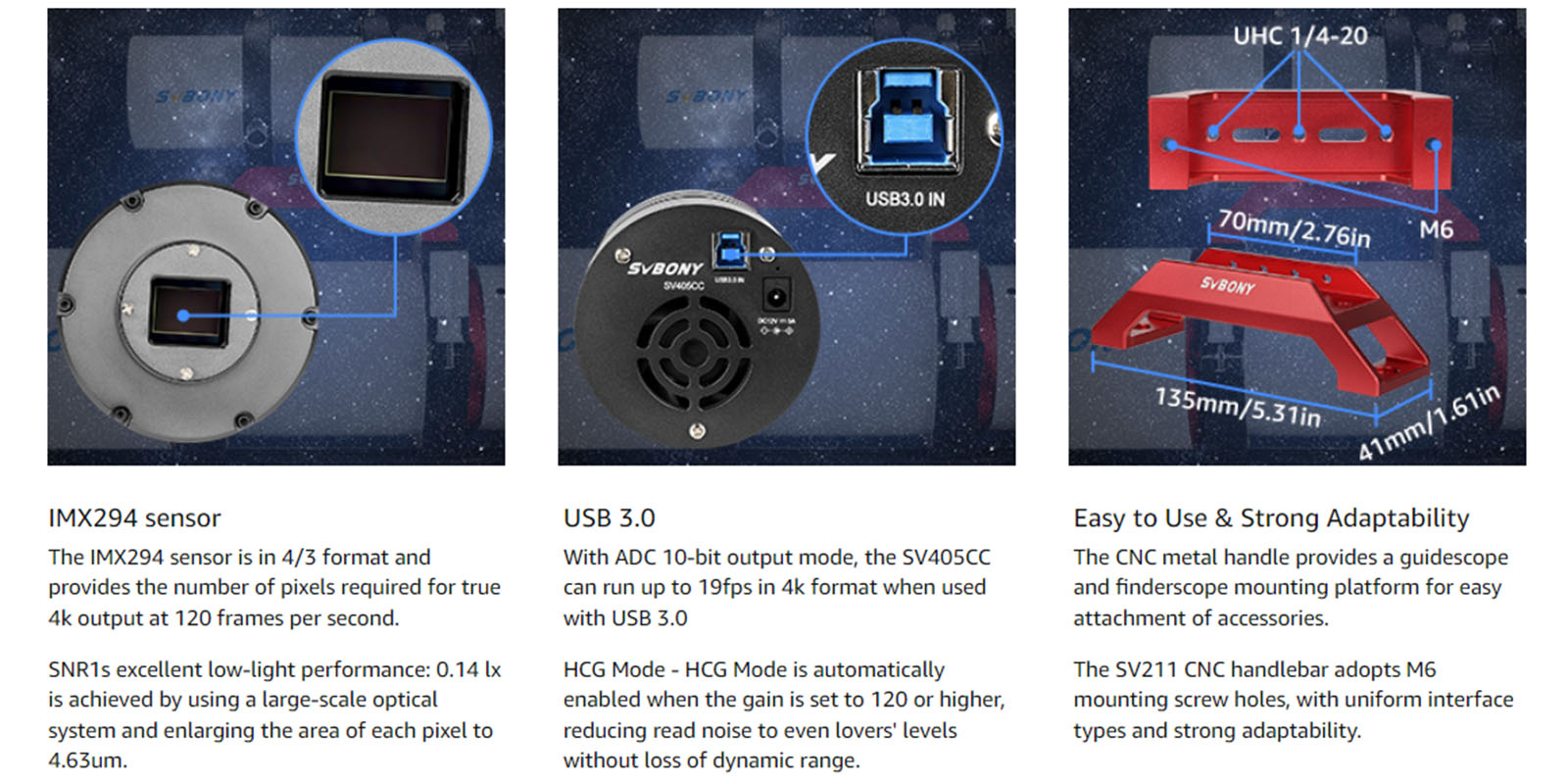

4. SV405CC With IMX294 sensor & USB 3.0
5. CNC handlebar With Strong Adaptability

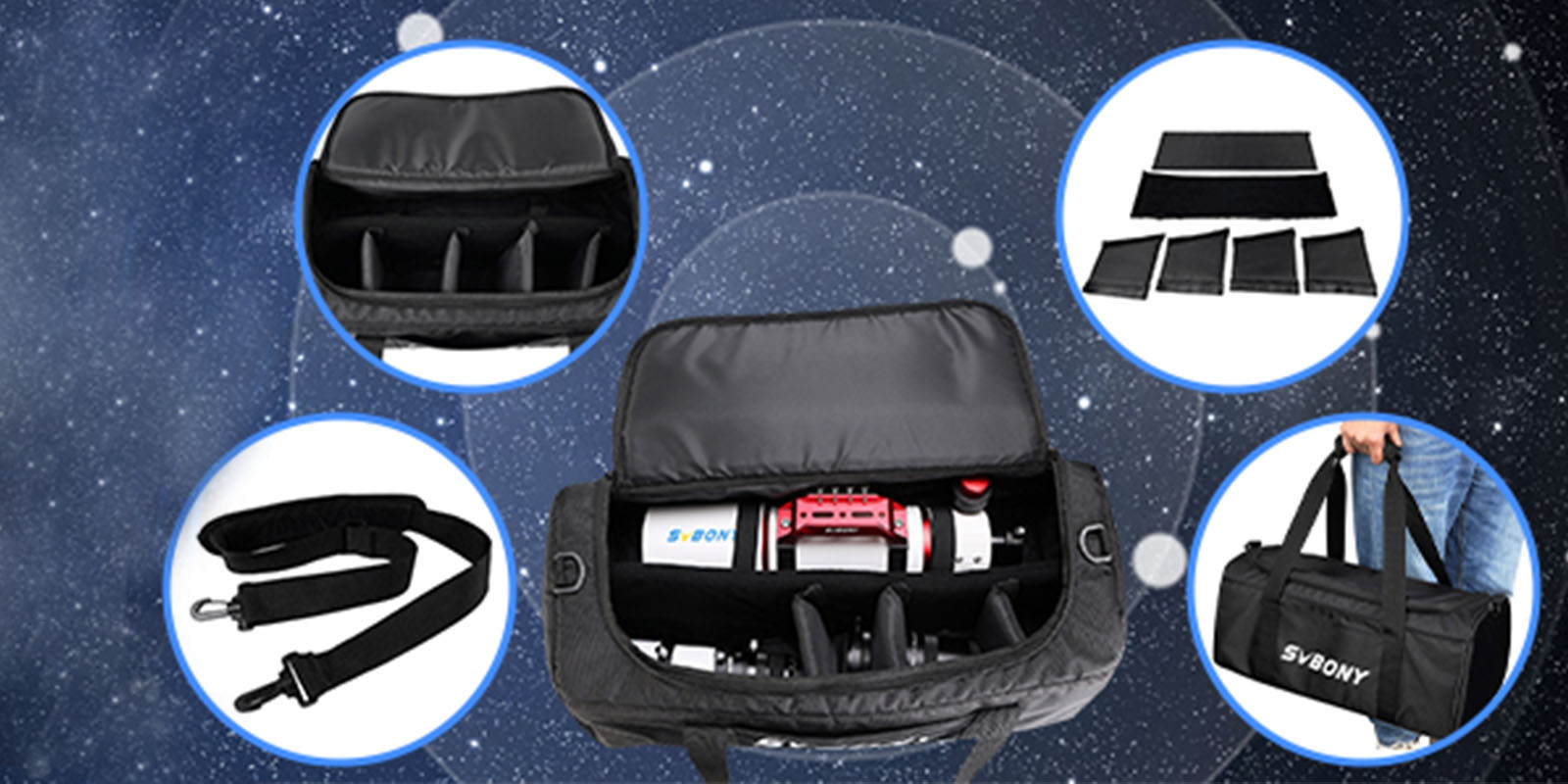

6. SV212 Telescope Case Bag
