SV550 122 F7 APO Refractor Telescope for Deep Sky Astrophotography

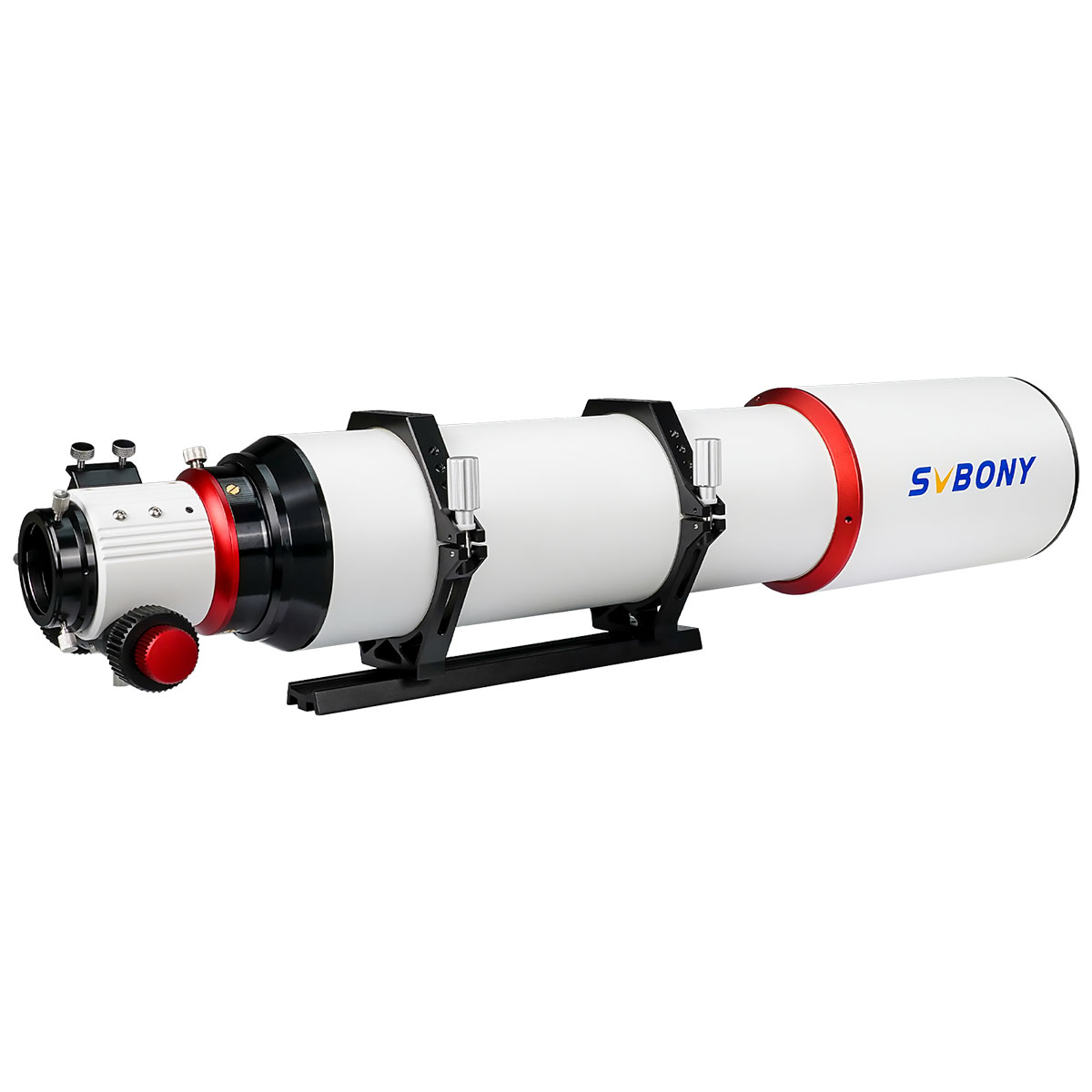

The SV550 APO Triplet refractor is a compact refractor with 122mm aperture, f/7 focal ratio and 854mm focal length. It is a great travel telescope for astrophotography and observation. The OTA weighs only 6.44kg/ 14.18lb, easy to carry out when fitting into the carrying case.

Superior Performance

1. The APO triplet refractor features a 122mm aperture and 854mm focal length,which is an absolutely upgraded version of the SV550 80mm. The refractor gathers more light, and offers more clear and detailed images, suitable for deep sky photography and observation, for galaxies, nebulae, star clusters and even some fainter deep sky objects, due to the higher limiting magnitude.

2. The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing.

3. The length of the dovetail is  as high as 300mm, longer than the length of most dovetails. It can maintain the balance to the greatest extent, and it will be more convenient in the adjustment process.

4. The entire tube rings have 26 screw holes + a mounting screw handle. Such tube rings with so many screw holes can be compatible with more equipment installations, like Smart WIFI device, guide scope, astronomy camera etc., meeting various needs of installations.

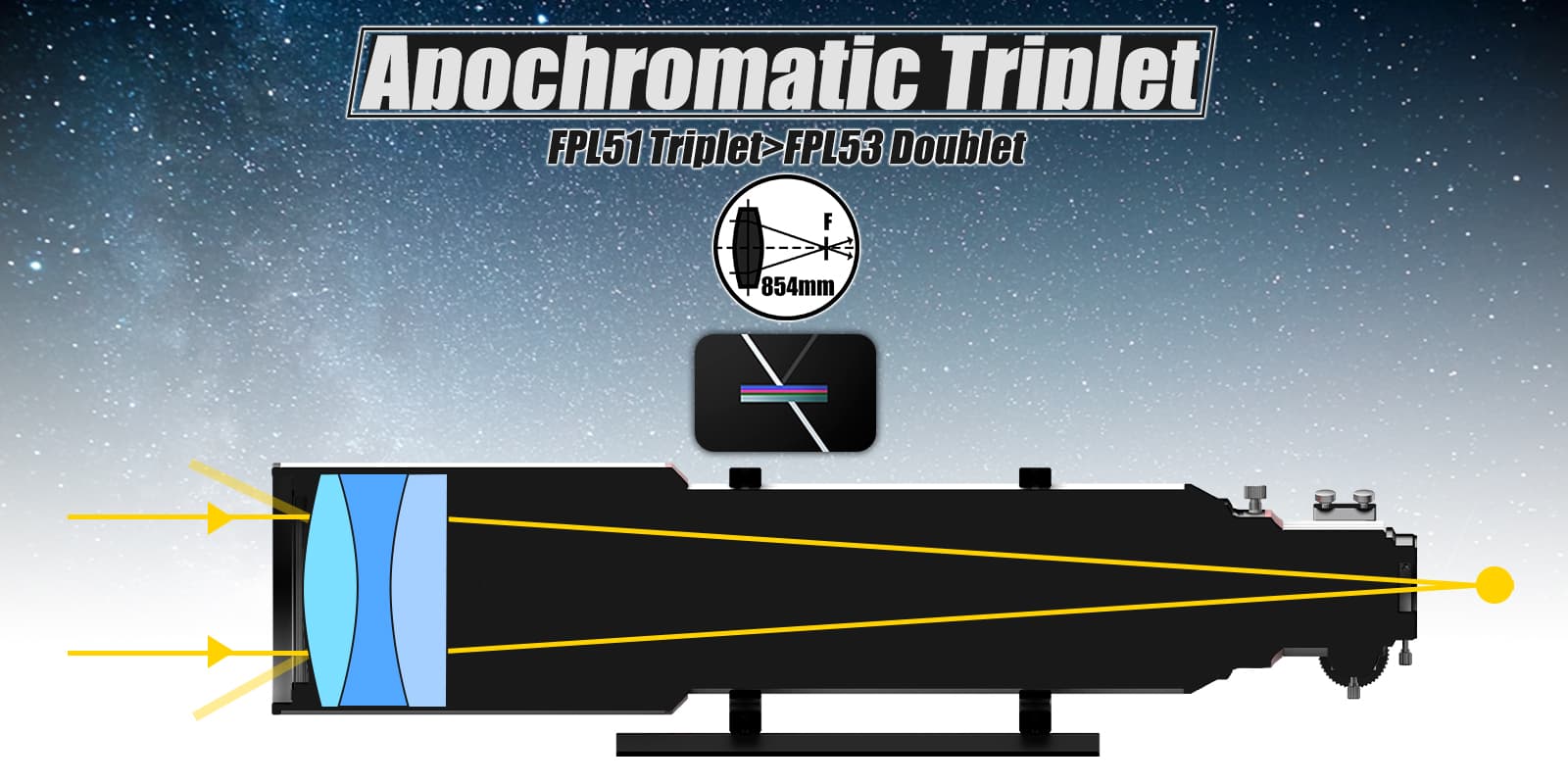

FPL-51 Triplet Apochromatic Lens Structure

• FPL51 Triplet > FPL53 Doublet -- Just For Better Clarity

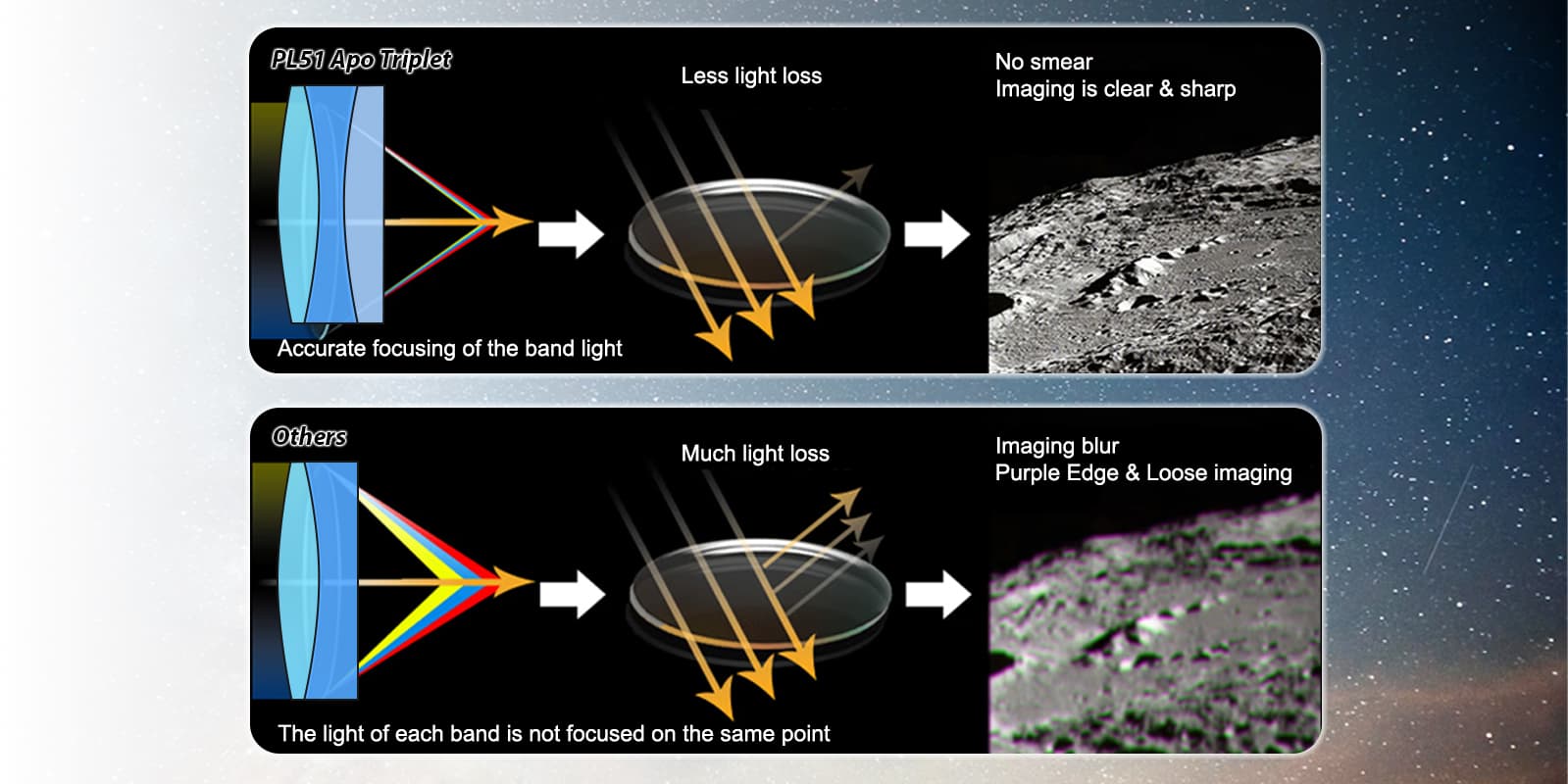

The SV550 122mm adopts a FPL-51 triplet apochromatic lens structure which contains one piece of ED glass. The triplet lens provides better correction of aberration and significantly reduces chromatic aberration and enhance the clarity and sharpness.

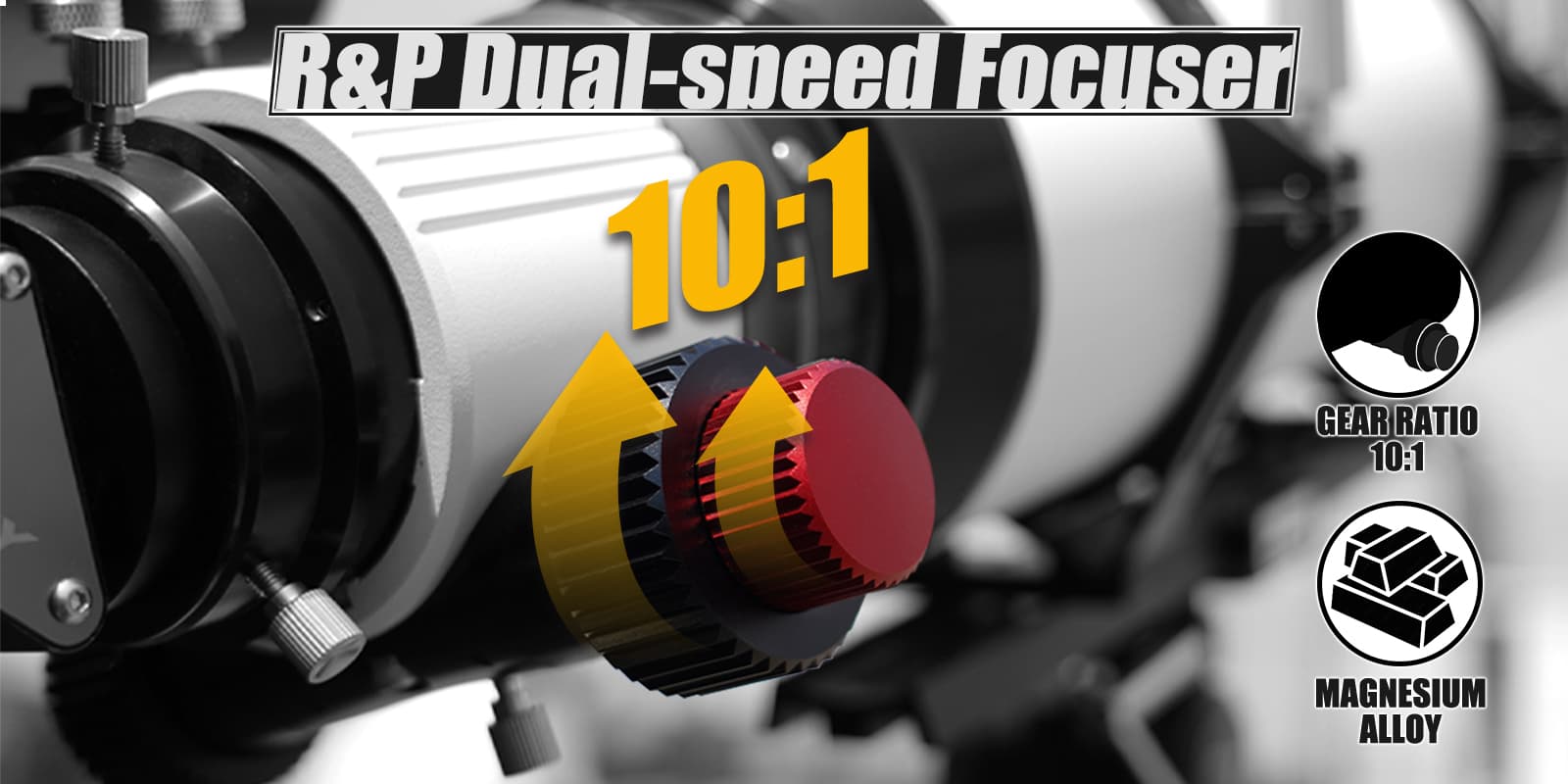

R&P Dual Speed Focuser

The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing.

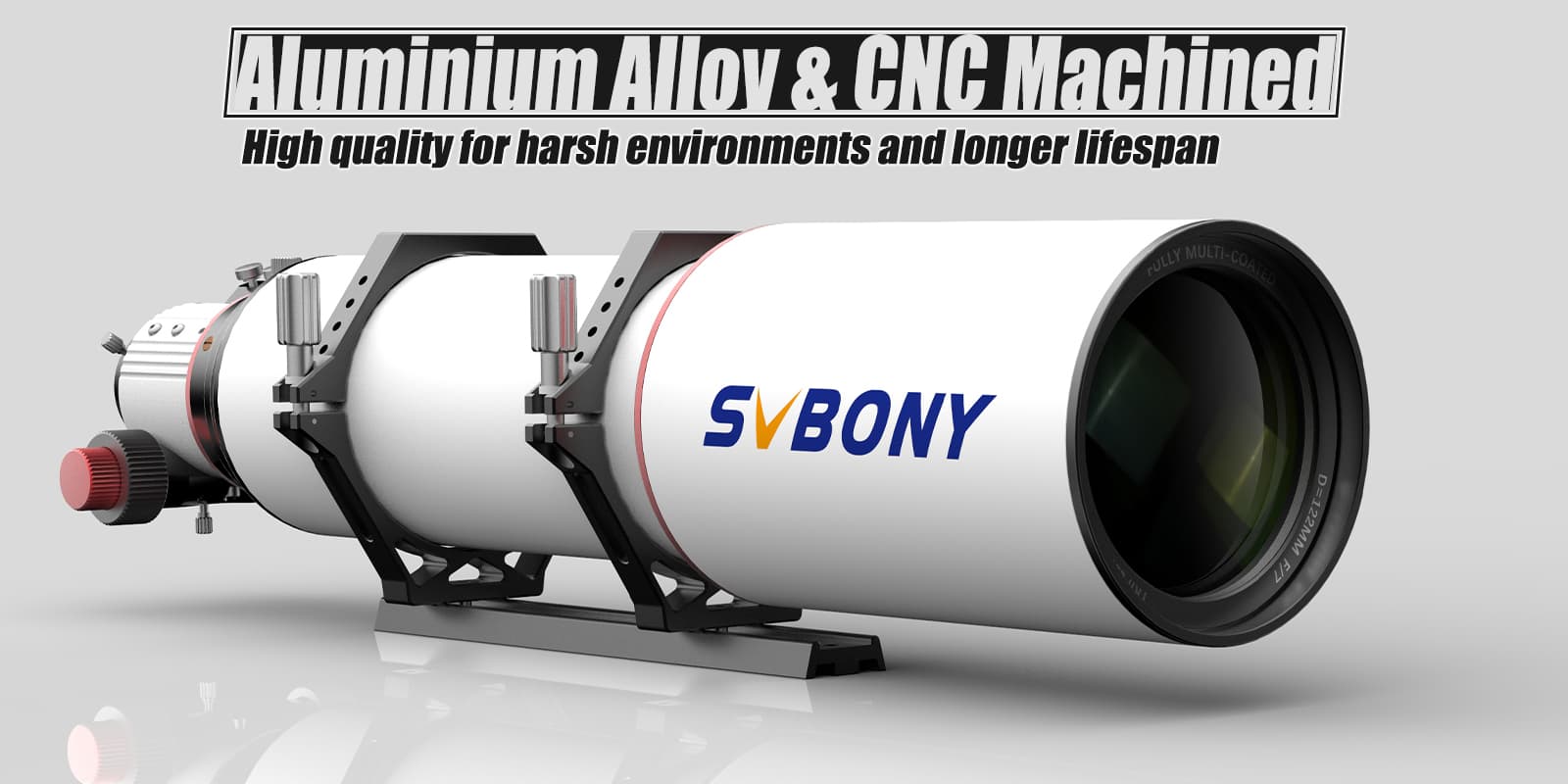

Aluminium Alloy & CNC Machined

The SV550 refractor is designed with Aluminium Alloy & CNC Machined, which makes it have high quality for harsh environments and longer lifespan.

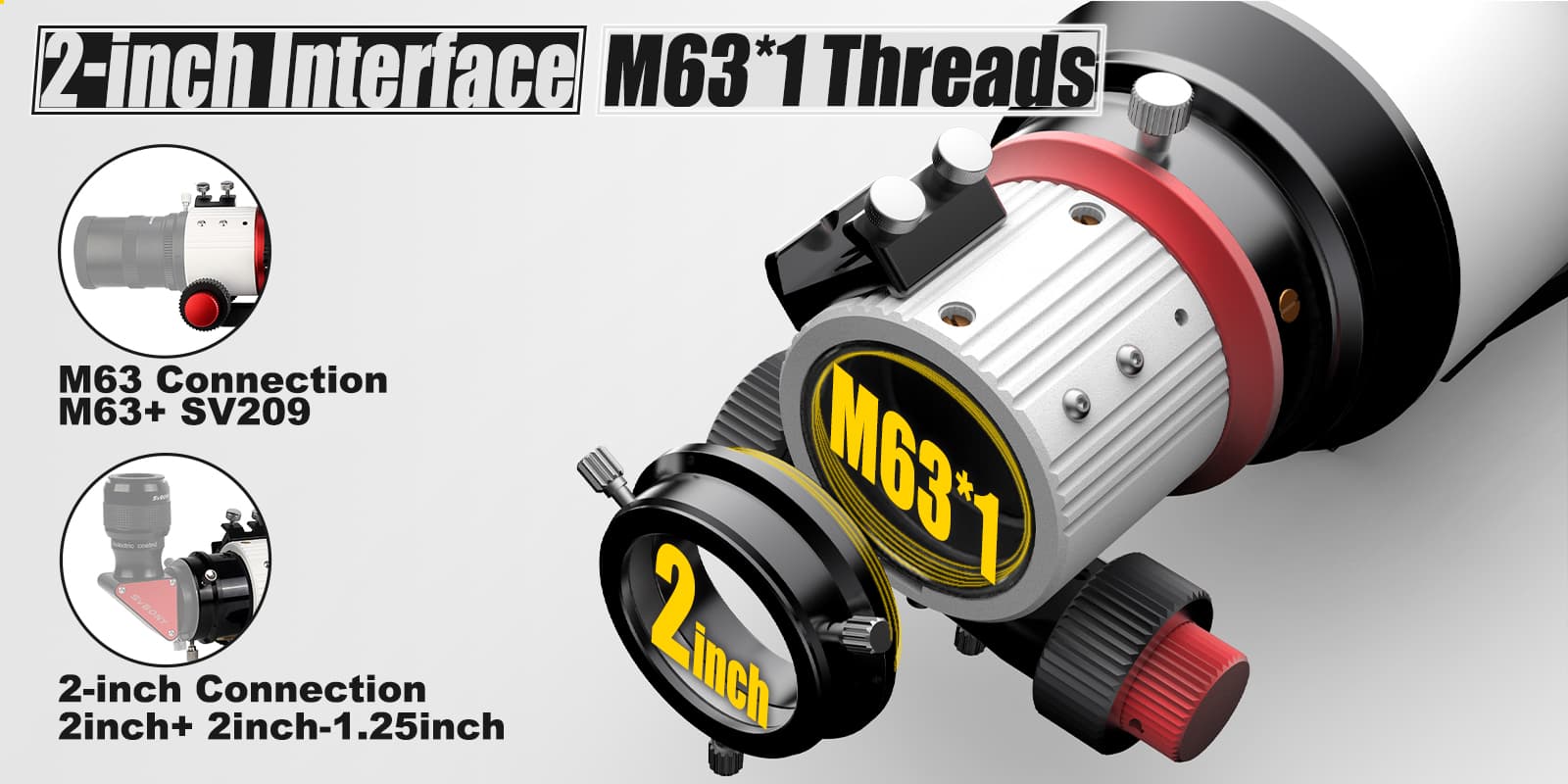

Compatible With 2-inch Interface & M63*1 Threads

The SV550 refractor is compatible with 2-inch and M63*1 accessories. The front is a 2-inch adapter for connecting a camera or 2-inch accessories; Rotating off the adapter, here threaded the M63*1 threads, for connecting the SV209 field flattener or other M63*1 accessories.

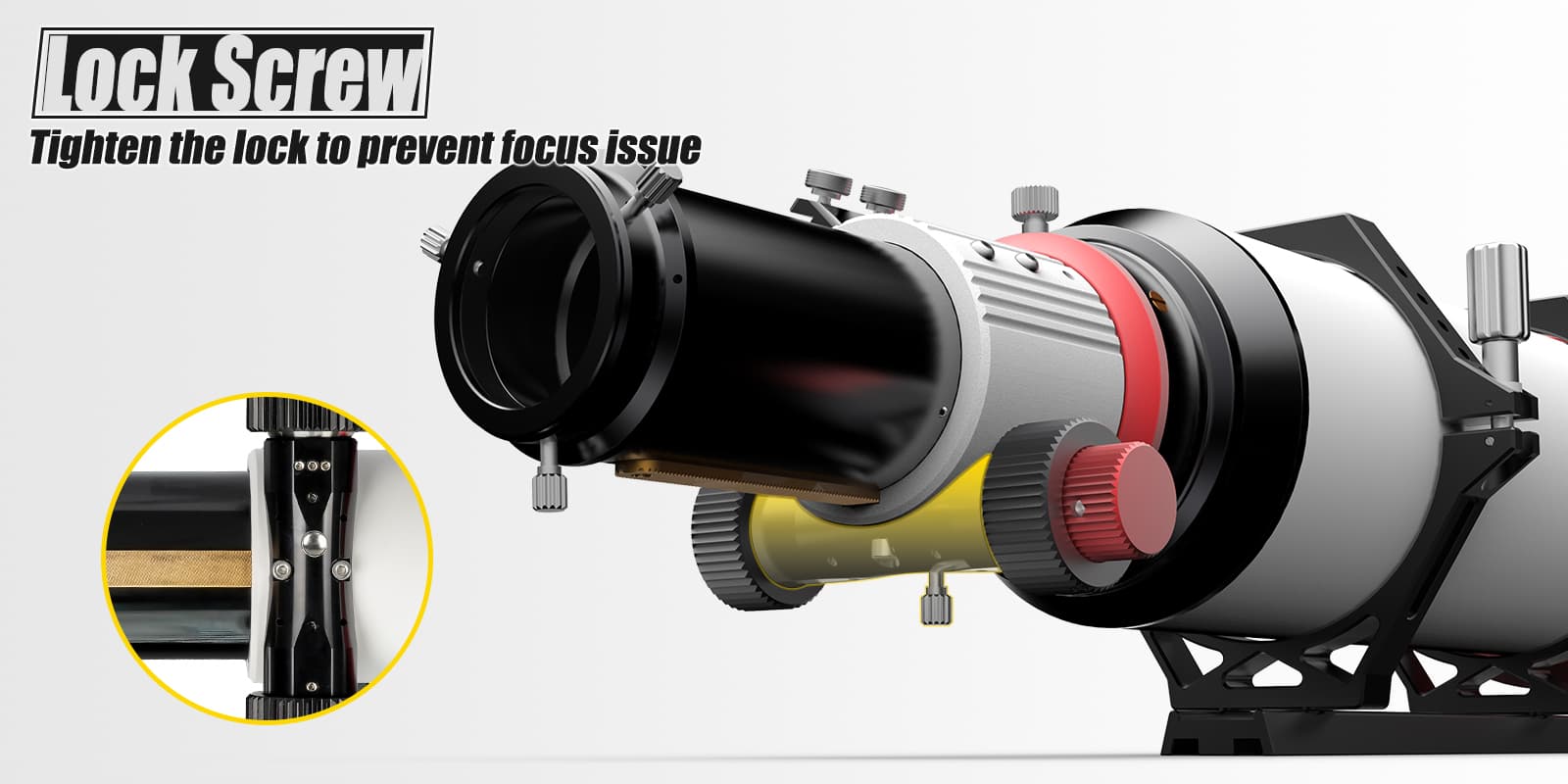

Lock Screw--Tighten The Lock To Prevent Focus Issue

The entire tube rings have 26 screw holes + a mounting screw handle. Such tube rings with so many screw holes can be compatible with more equipment installations, like Smart WIFI device, guide scope, astronomy camera etc., meeting various needs of installations.

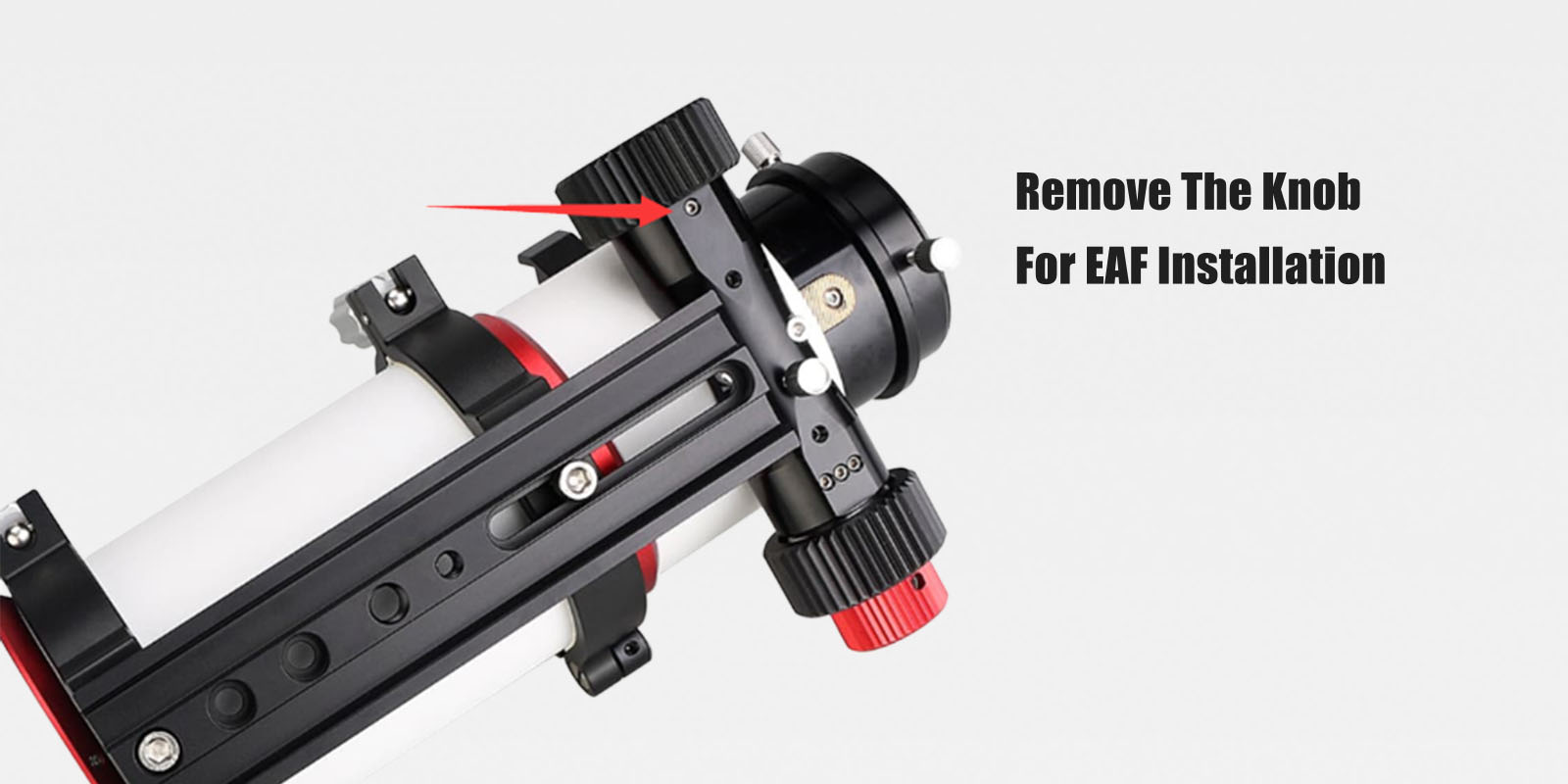

  For EAF Installation

This SV550 122 APO is compatible with EAF focuser. To install the EAF, first you should remove the screw completely as shown. Then look inside the hole and slowly rotate the focuser until you see another set screw inside the hole. This screw actually secures the focusing knob to the shaft. Insert a wrench and loosen this screw. Note that there may be two of these screws, so rotate the focusing shaft one turn to be sure. The focus knob will slide off after that.

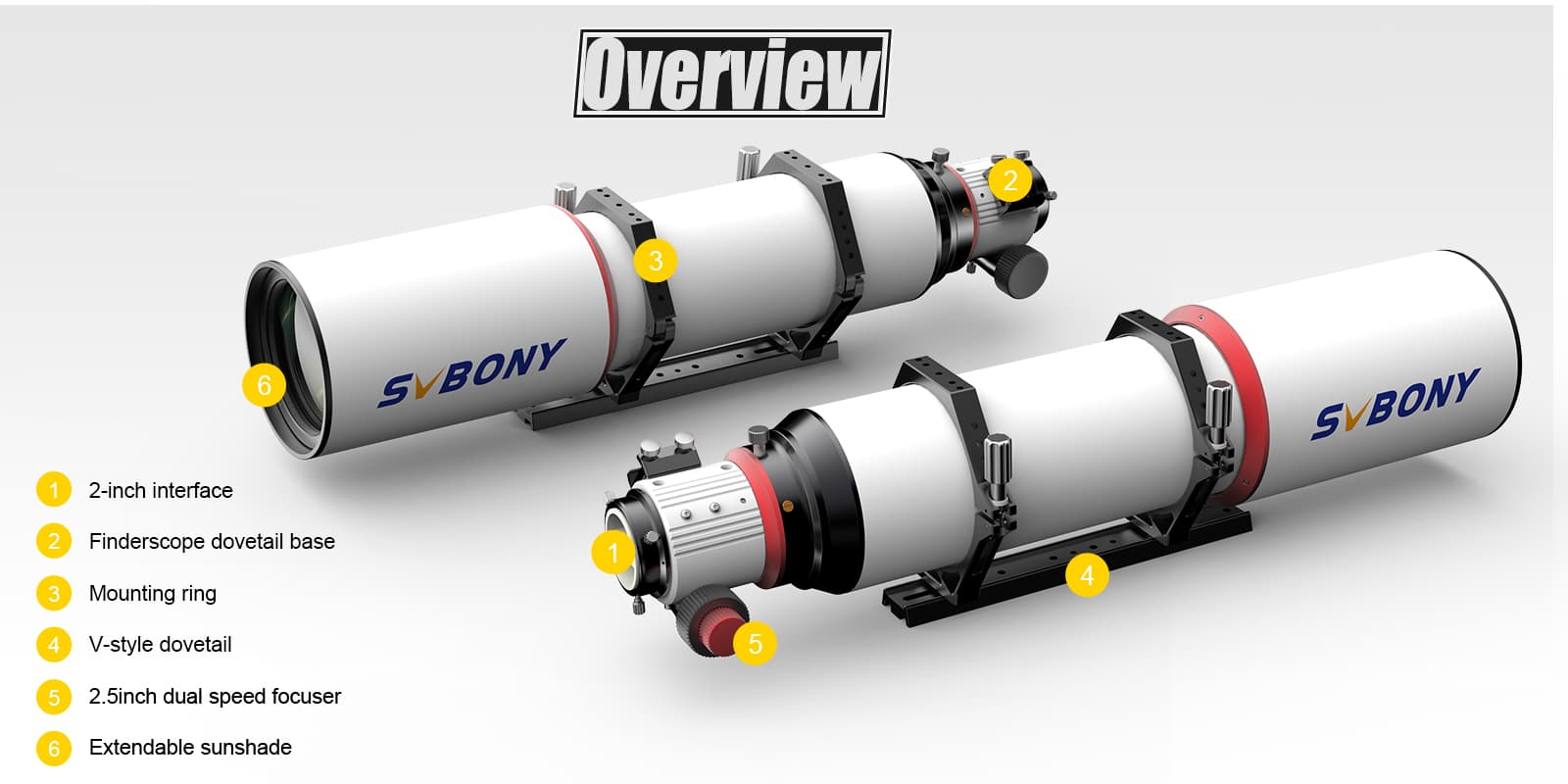

The Overview of The APO SV550

•
• 1. A 122mm aperture upgraded-An aperture upgrade, a big step stride
• 2. FPL51 Triplet>FPL53 Doublet-Just for better clarity
• 3. Multifunctional ring tube-Unlock more measures, experience diverse pleasures

For Visual Observation & Astrophotography

The f/7 SV550 APO OTA Refratcor 122mm is a great travel telescope for both visual observation and astrophotography.

Learn more Collocation Schemes for SV550 122MM, Click    https://www.svbony.com/blog/sets-for-sv550-122mm-visual-or-photography-svbony/

Specifications

Features

1. The SV550 APO Triplet refractor with 122mm aperture and f/7 focal ratio, a great travel telescope for observation and astrophotography
   2. Fully multi-coated triplet apochromatic optics using an ED center element
   3. 2.5" dual-speed rack-and-pinion focuser 10:1 ratio fine focusing with M63x1 female thread for adaptions
   4. Retractable lens shade/dew shield-the APO even fits into the hand luggage
   5. CNC multi-function Dual hinged split tube rings with a 300mm versatile V-style dovetail, support mounting of various accessories
   6. Finder shoe on the focuser is included
   7. Multipurpose shock-absorbing telescope protective bagrunning AstroDMx Capture

The Real Shot Image by SV550 122mm APO

Stars look so good in this scope. They are supper tinny and perfect right out to the edge. Sincere thanks to our friend Benjamin for sharing the photography.

View more new deepspace photos captured by SV550, click   https://www.svbony.com/blog/some-new-deep-space-photos-captured-by-sv550/

We admire everyone's spirit of exploration very much, and hope you have more attempts on SV550 122mm APO. Looking forward to your sharing.
