SV601 Microscope with SV189 Microscope Camera - Back to School Guide

SKU: F9365A-W9148A
-20% US$ 85.58
List Price: US$ 106.98

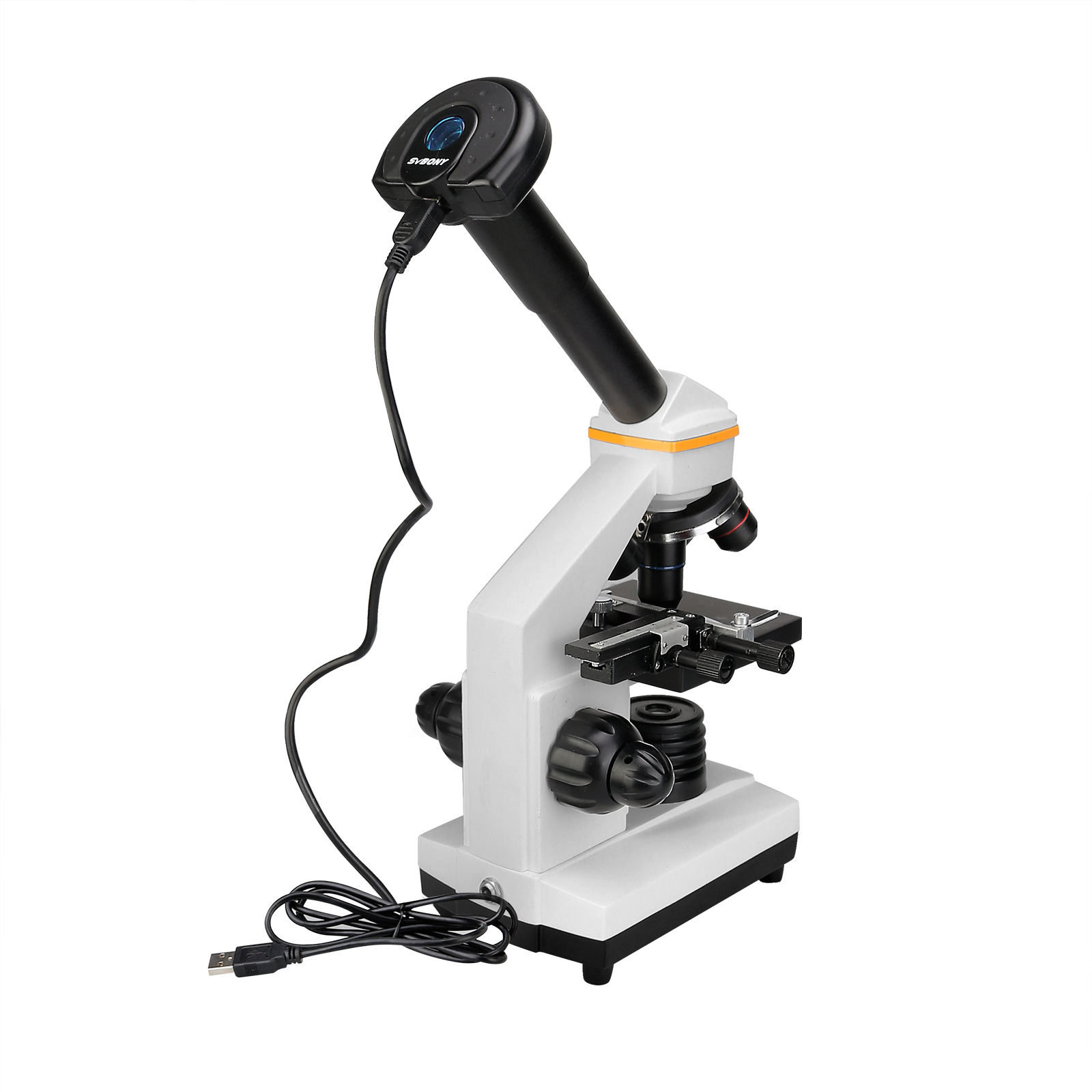

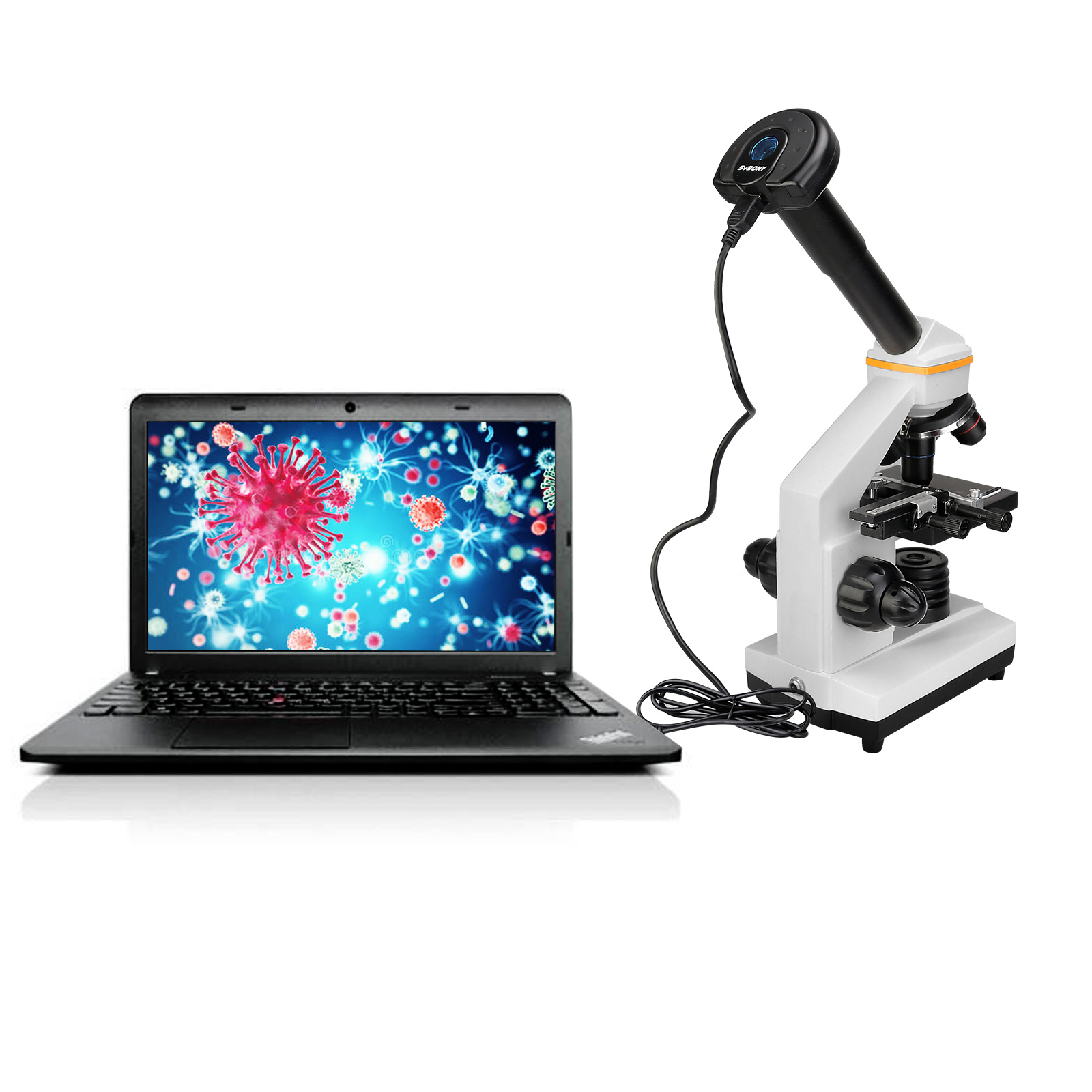

The SV189 camera and the SV601 set can do higher magnification compared to the supplied eyepiece. And the combination can let the microworld be shown on the computer screen, it is easier to share and save these precious memories.

In Stock Out Of Stock


0 reviews

Write a review

Model SV601
Optical System Finite Biological Microscope
Eyepiece WF10X WF20X
Objective 4X 10X  S40X
Extender 2.0X
Magnification 40X-1600X
Working Stage 90mmX90mm Square
Adjustment Coarse Focuser & Fine Focuser
Illuminator Top  /Bottom LED Lights
Net Weight 1200g / 2.65lb
Model SV189
Sensor 1/4" 1.3 million pixel CMOS
Static image resolution 1280*1024, 640*480, 320*240
Dynamic image resolution 1280*1024Pixels/24fps
Sensitivity 1.0V/lux-sec@550nm
Pixel size 2.8×2.8um
Spectrum response 400nm---1000nm
Shutter type ERS (electronic rolling shutter)
Frame rate 16 f/s @ 1280*1024
Image format JPG/BMP
White balance automatic/manual
USB Interface USB2.0
Applicable models SV601/SV605
Net Weight 90g / 0.2lbs
Item Size 16CM (Total length)
System compatibility MAC, Windows


1. The main components are made of metal materials and are precisely processed. It is a very cost-effective microscope

2. Using 18MM wide-angle eyepieces to observe a wider range, high-magnification achromatic objective lenses 4X, 10X, 40x, can be switched with multiple magnifications, the image is clearer and sharper

3. Use mechanical moving platform, with scale, X-axis and Y-axis move coaxially, the movement is more accurate, the surface of the metal platform is wear-resistant and corrosion-resistant, and the upper and lower thickness coaxial focusing wheel structure

4. 5-color filter disc, suitable color filters can be used according to different specimens to obtain better observation results

5. Transmission and epi-illumination dual illumination system, the upper and lower light sources can be independently controlled

6. Support dual power supply system of power and battery, easy to carry

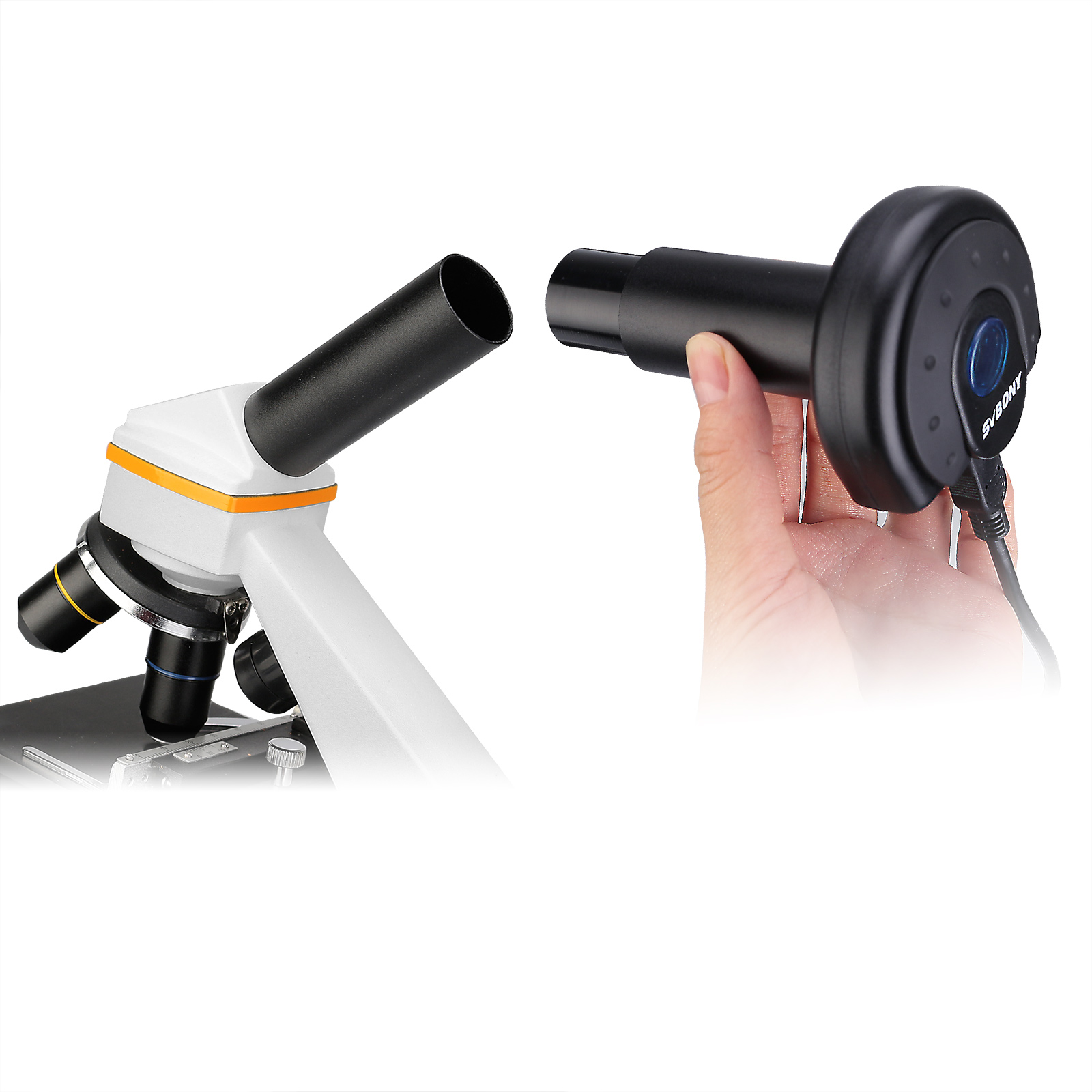

SV189 is a very cost-effective digital microscope camera. With a 1.3 million pixel CMOS, SV189 allows you to see more—capture still and video images of every details of micro world with your microscope.

USB 2.0 cable is included, compatible with MAC OS10.5 and above, Windows Vista/7/8/10 (32/64 bit) operating systems. The easy-to-use software allows users to post-processing, providing multiple advanced functions like measurement, calibration, data export and others, perfect for home, co-op, or classroom use. It works well with SV601 and SV605 also.

Package includes a digital microscope camera , a microscope adapter, 1.5m USB 2.0 cable and software.
