- Compliable with finder scope;reflex sight bracket on telescopes;great for adding a second or third aiming device to your telescope;
- dovetail base fit for most bracket designs from Celestron;Orion;Sky-watcher;Vixen etc; compliable with finder scope;laser Pointer bracket on telescopes;
- SVBONY fully metal dovetail bracket base and dovetail mounting plate for finderscope. It can fit and protect the tube very well;

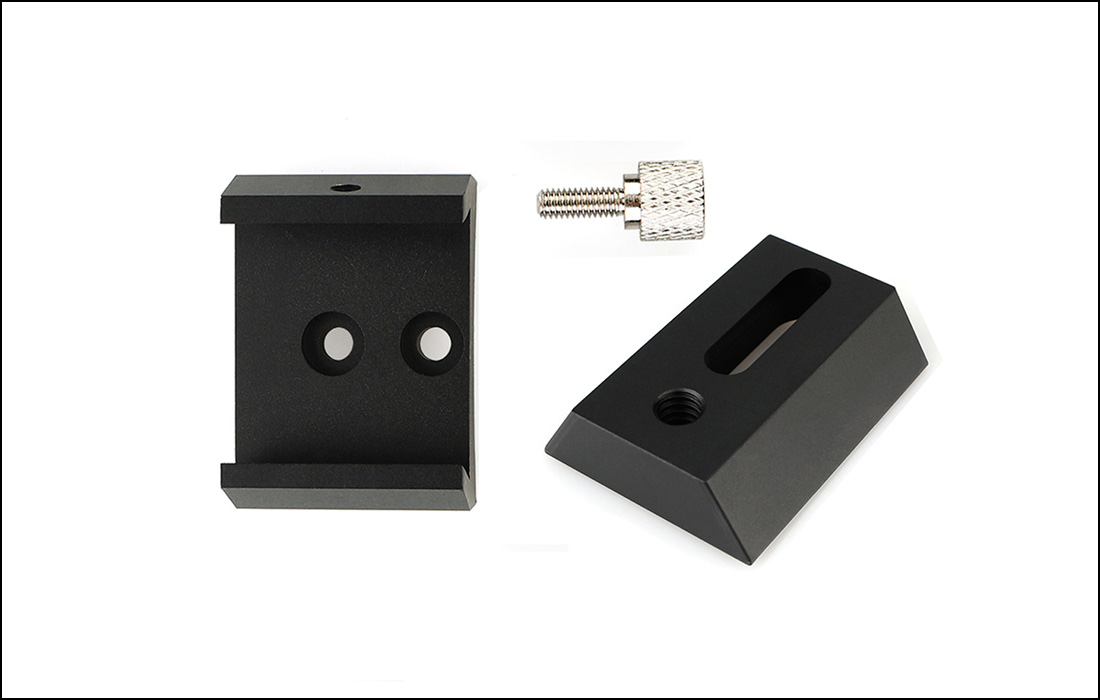

- All metal finderscope bracket base for your optical finderscope that comes with the standard quick release dovetail board
- It is cambered on the bottom of base;so it can fit and protect the tube very well;
Suitable for SV48 and SV48P, not applicable for SV503 series telescope.
In Stock
Perfect fit on AstroPhyics Focusers
High end scopes like AstroPhysics focusers do not have a finderscope shoe. However this shoe has nearly the exact same diameter as AP focsers, so a bit of silicone will affix it to the focuser body, and you can then use any Orion or Vixen or Synta style finderscope available. It’s also black and matches the AP focuser body. So if you use black silicone, on a black focuser on a black quick release shoe it looks very good and almost factory when done.

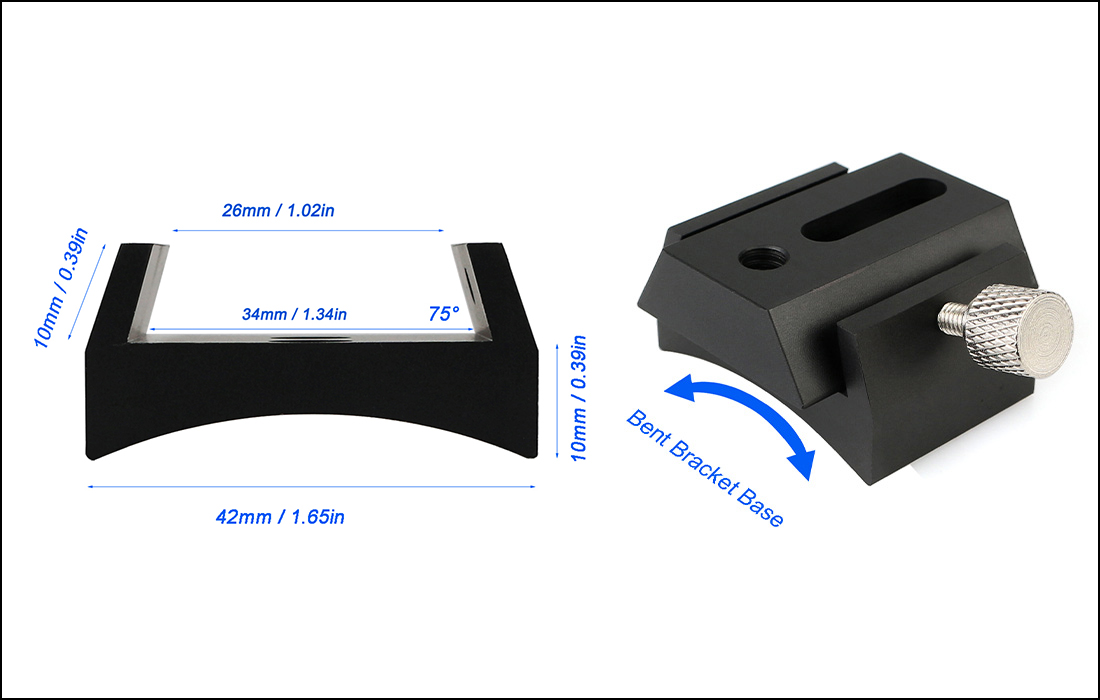

| Model | F9176A |
| Base Width | 42mm |
| Base Length | 29.5mm |
| Base Width of internal trapezoid (bottom) | 33.4mm |
| Base Width of internal trapezoid (top) | 28.7mm |
| Base Height of inner part | appr. 9mm |

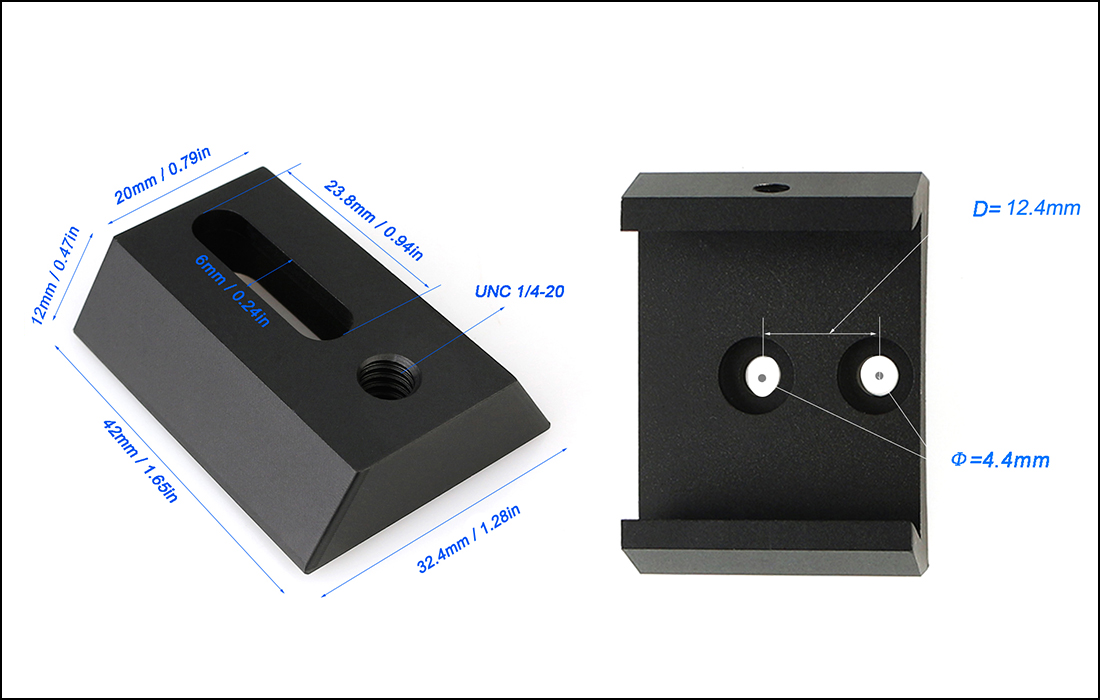

| Dovetail Board Length | 42mm |
| Dovetail Board Width (bottom) | 32mm |
| Dovetail Board Width (top) | 20mm |
| Dovetail Board Height | 11mm |
1.Black small-sized design suitable for finder scopes
2.Fully metal construction can connect the finder scopes with your telescopes firmly and stable
3.All metal finder scope bracket base for your telescope that comes with the standard quick release dovetail board. It can fit and protect the tube very well
