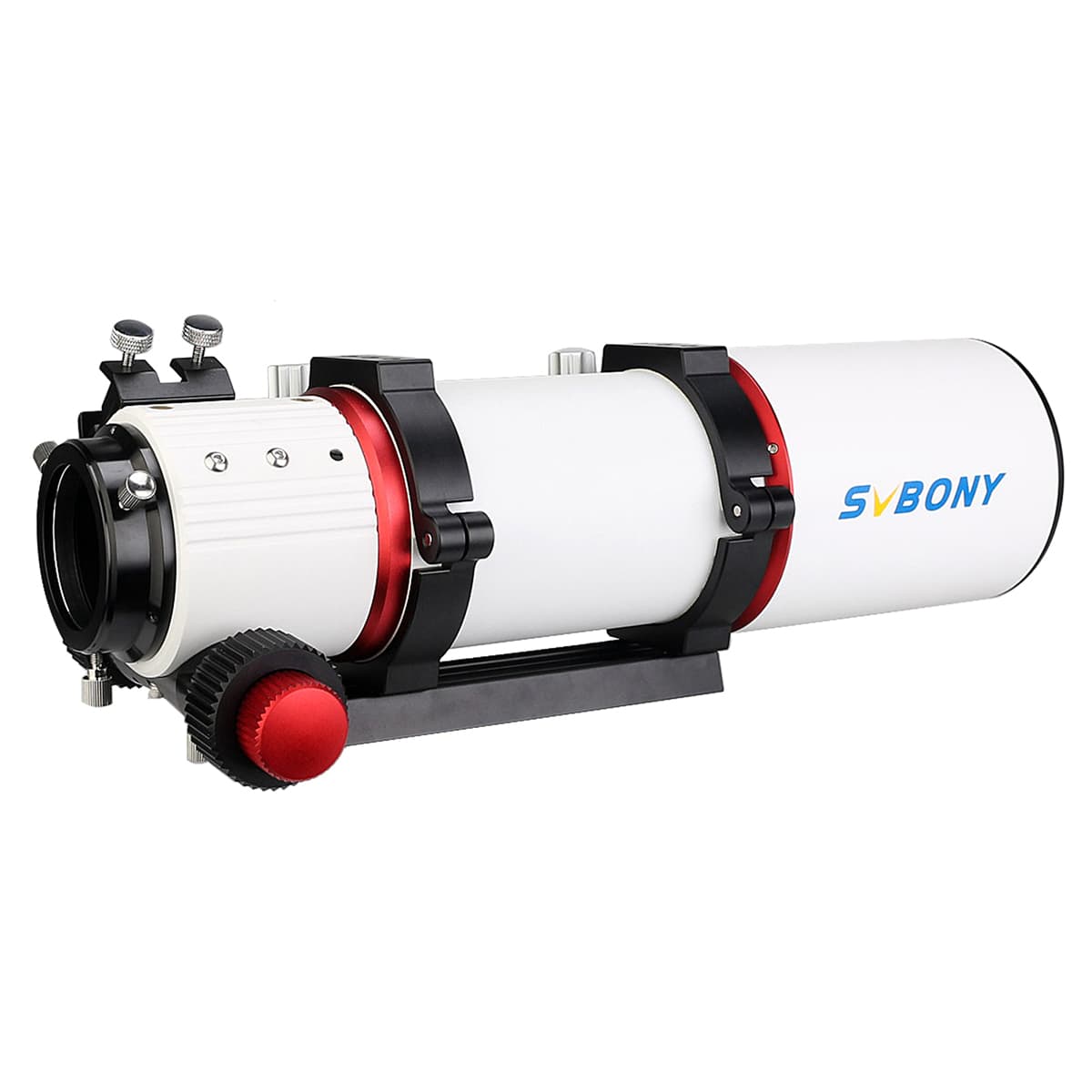

SV550 Telescope 80mm Triplet APO OTA Refractor for Astronomy

SKU: F9381A-1
US$ 859.99

SV550 80mm f/6 fully multicoated triplet apochromatic optics using an ED center element;

A dual-speed 2.5" rack-and-pinion focuser with 10:1 ratio fine focusing,realizes reliable zero offset image focusing;

Retractable lens shade/dew shield;

Dual hinged split tube rings with a 180mm Vixen-style dovetail

In Stock Out Of Stock

Special offers and product promotions

SVBONY SV550 80F6 APO Triplet Refractor OTASVBONY SV550 80F6 APO Triplet Refractor OTASVBONY SV550 Apochromatic 3-element ObjectiveSVBONY SV550 OTA & SV209 Field FlattenerFocal Length of SVBONY SV550 OTASV550 OTA 2.5'' 1:10 Dual-speed FocuserElimination of Stray Light in sv503Sv550 Eyepiece Port SizeSV550 With Vixen-style DovetailThe back intercept of SVBONY SV550 80mm TelescopeSVBONY SV550 80F6 APO Triplet Refractor OTASVBONY SV550 80F6 APO Triplet Refractor OTADimensions of Sv550 TelescopeRelevant accessories on sv550 TelescopeCollocation example of sv550 TelescopeSV550 Telescope and Designed AccessoriesSpecifications of SV550 TelescopePackage Includes of SV550 TelescopeImages Captured with SV550 Telescope

1 reviews

Write a review

Great little telescope

I'm not 100% sure why I bought this telescope. I was going to buy the SV503 80mm F7, but when I came to this website, I saw the SV550 and something told me to get it instead. It's F6, which is pretty fast for such an inexpensive telescope. It arrived a few days after ordering- again, surprising since it came from China. The box was heavy- much heavier than expected. I've owned "cheap" 80mm ED refractors in the past. Let me first say, this telescope might be inexpensive, but it certainly isn't cheap. It is very solid, very rigid, very well made. I got the optional rotator and field flattener as I am using it for imaging. Stars have been spectacular edge to edge. My stars are coming in at 1.2 FWMH during electronic focus! Pretty amazing. I would highly recommend this telescope to anyone, beginner or experienced user. I don't even own an EP, so how it does visually, I don't know. But as an astrograph, it works amazingly well. I look forward to many years with this scope.
Model SV550
Aperture 80mm
Focal Length 480mm
Focal Ratio f/6
ED Glass​ FPL51​
Telescope Type Refractor
Resolution 1.45 arc seconds
Coatings  SMC
Limiting stellar magnitude 11.6
Lens design  Apochromatic​
dovetail plate length 150-175mm
barrel weight 2900g
mirror Brief Size  377.8mm
Net weight​ 3750g
Gross weight​ 3850g
Package size​ 440x220x210mm​

  • Functional parameters overall part specification 5 political serial number specification parameters objective lens aperture 80mu;

Lens face type 1 / 8 wavelength;

The three piece APO compound achromatic objective lens structure is adopted to significantly improve the image quality of the captured image (increased by 15.8% according to the calculation of the spectrometer);

The 2.5-inch magnesium alloy double speed toothed focusing seat is adopted to reduce the vignetting of connecting the full frame camera and reduce the load weight of the support platform;

Multi process extreme extinction: multi-channel light bar extinction inside the focusing seat + inner wall of the lens barrel;

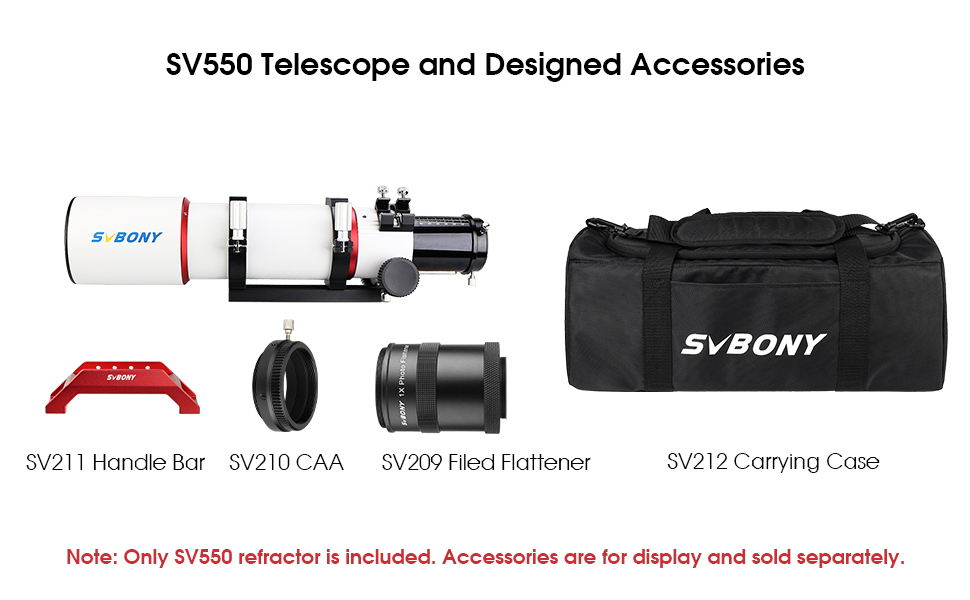

Special flat field mirror synchronous listing (optional accessories sold separately);

Obviously reduce the edge dispersion of the captured image and improve the image quality;

Improve the efficiency and compatibility, and reduce the vignetting phenomenon of connecting the full frame camera;

(2 "to 1.25" adapter ring-W2811C can be selected if 1.25 "eyepiece is connected.)

Package Includes:

1.2-inch focal length connector for connection

2. compatible accessories

3. selector fixed platform

4. fastening ring

5. Vixen fixing plate

6. two speed focus

7. lens cover
