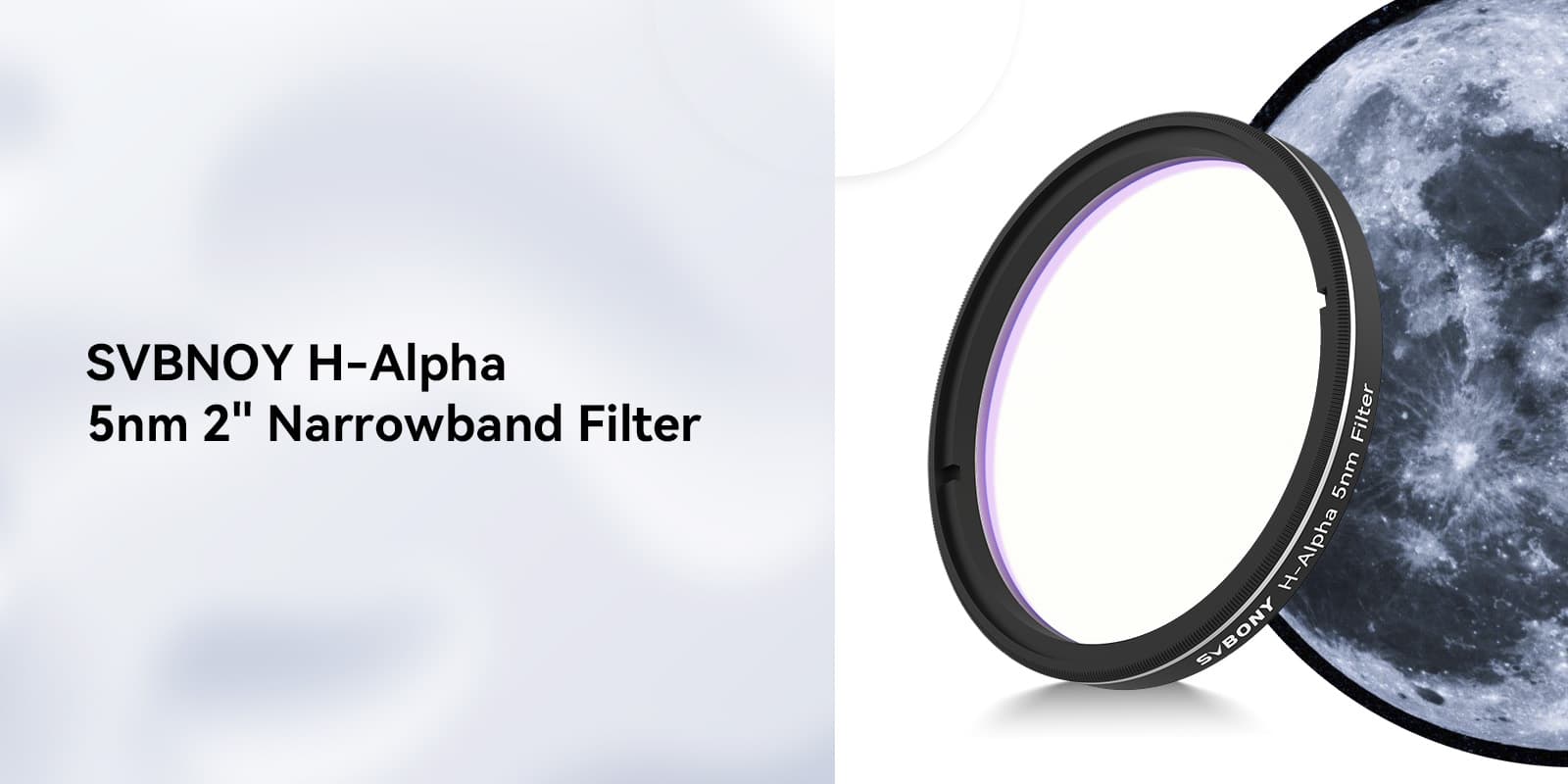

The SVBONY H-Alpha is an extremely narrow emission-line filter that works by allowing a 5nm bandwidth of light, centered on the 656.3nm wavelength through, and blocking the transmission of contrast-killing light pollution wavelengths. Wavelengths that are responsible for natural light pollution, or skyglow, are drastically reduced, as is artificial light pollution caused by high- and low-pressure sodium vapor and mercury vapor lights. This H-Alpha filter also blocks infrared wavelengths from 700nm to 1000nm so you don't need a separate IR-Cut filter.
Please Note: This OIII filter is NOT for use on the Sun, and also unsuitable for telescopes with a focal ratio below F/5.
In Stock
Specifications
Model | SV227 |
Type | H-Alpha Filter |

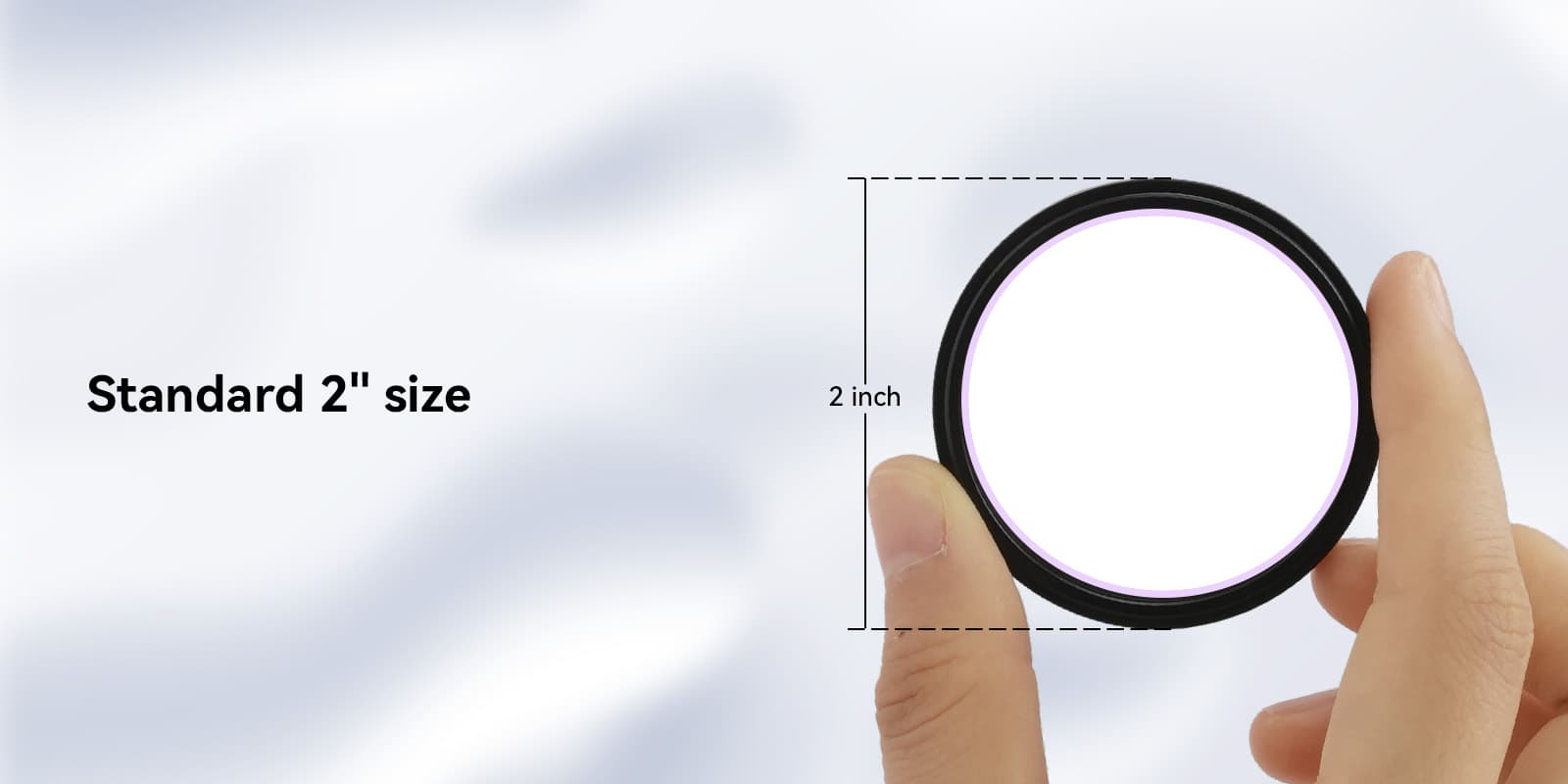

Size | 2-Inch |
Wavelength Range | 300-1000nm |

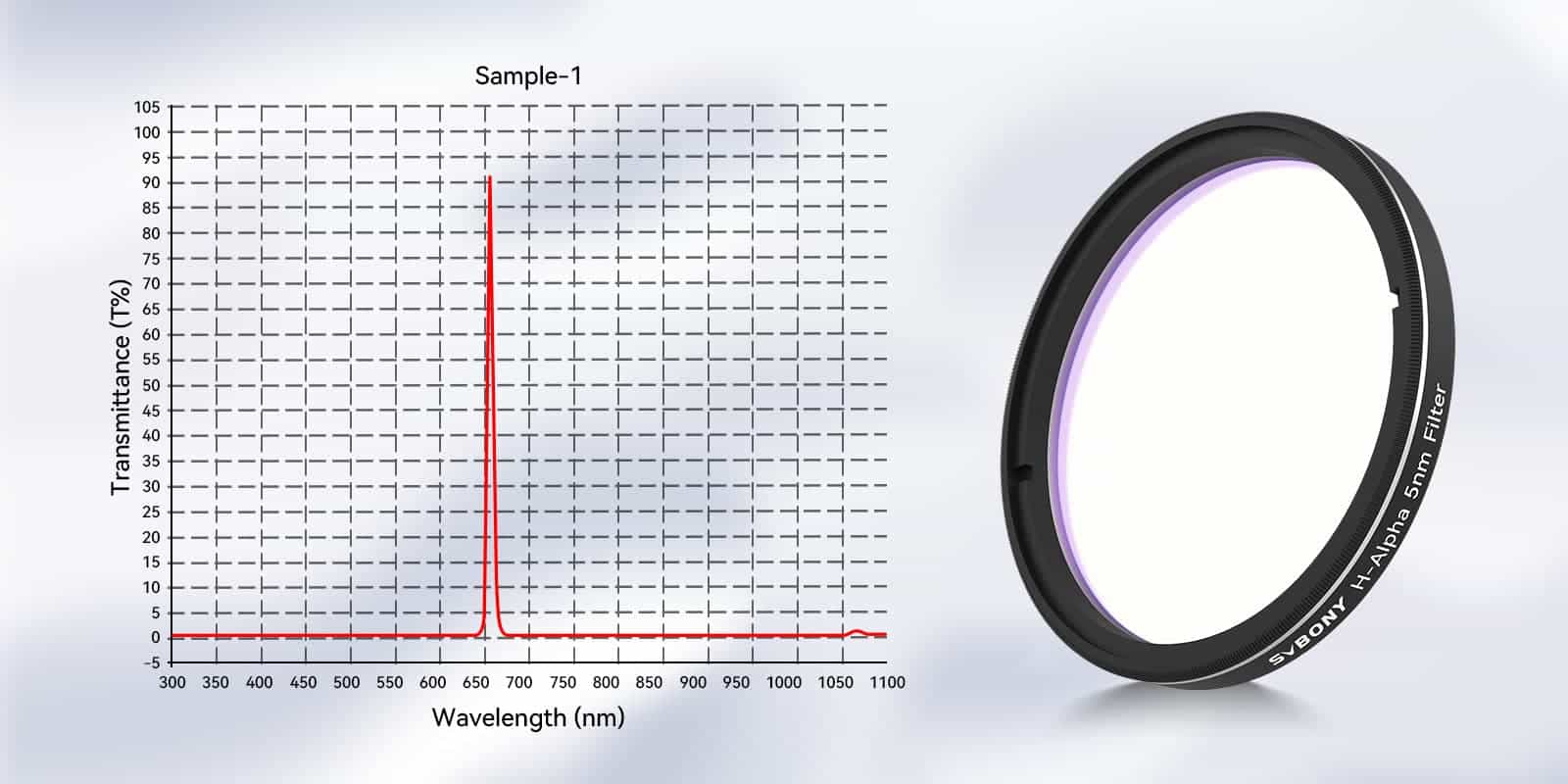

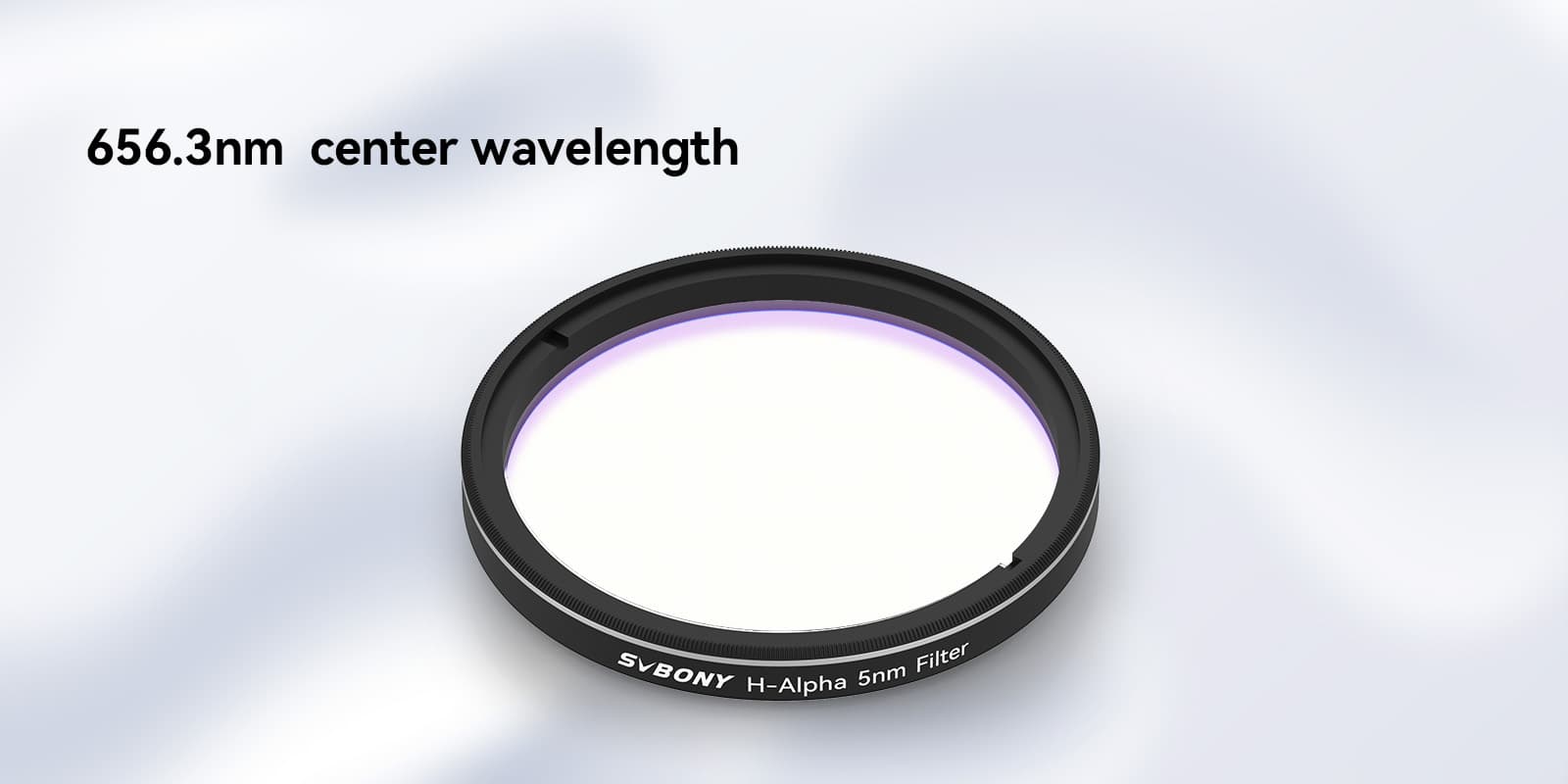

CWL | 656.3nm |
FWHM | 5nm |

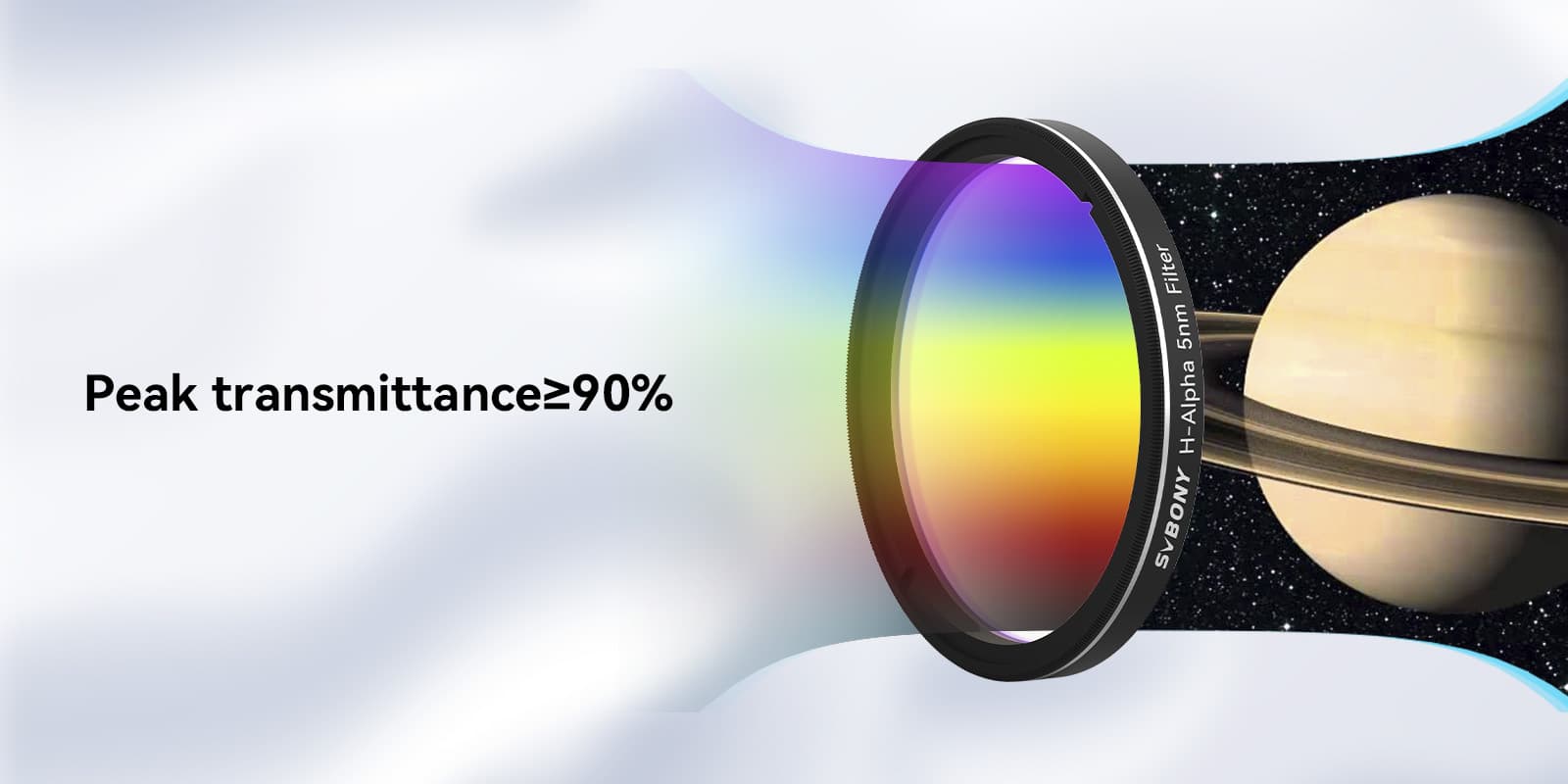

Peak Transmittance | ≥90% |

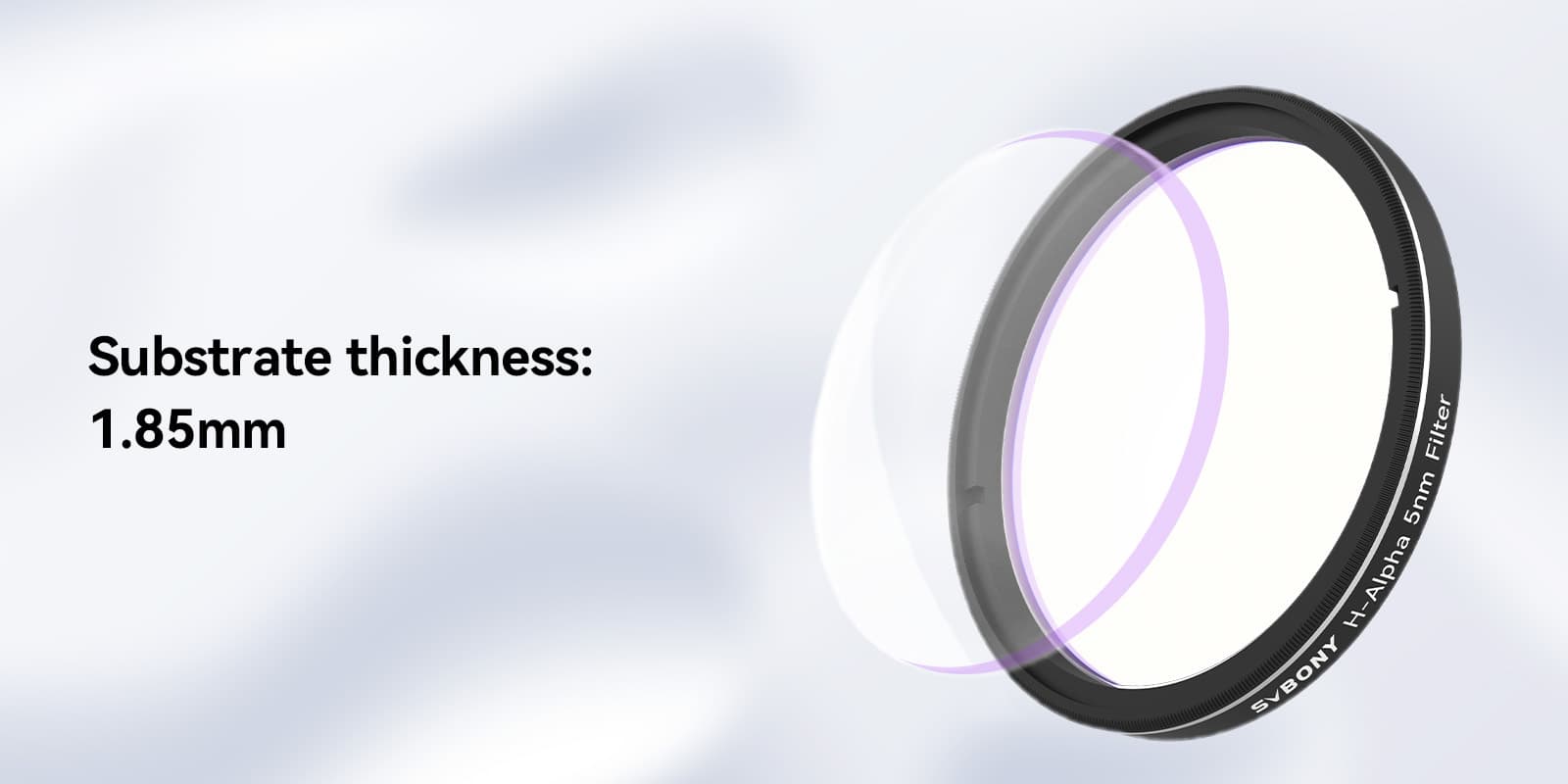

Substrate Thickness | 1.85mm |
Wavelength Range | 300-1000nm |

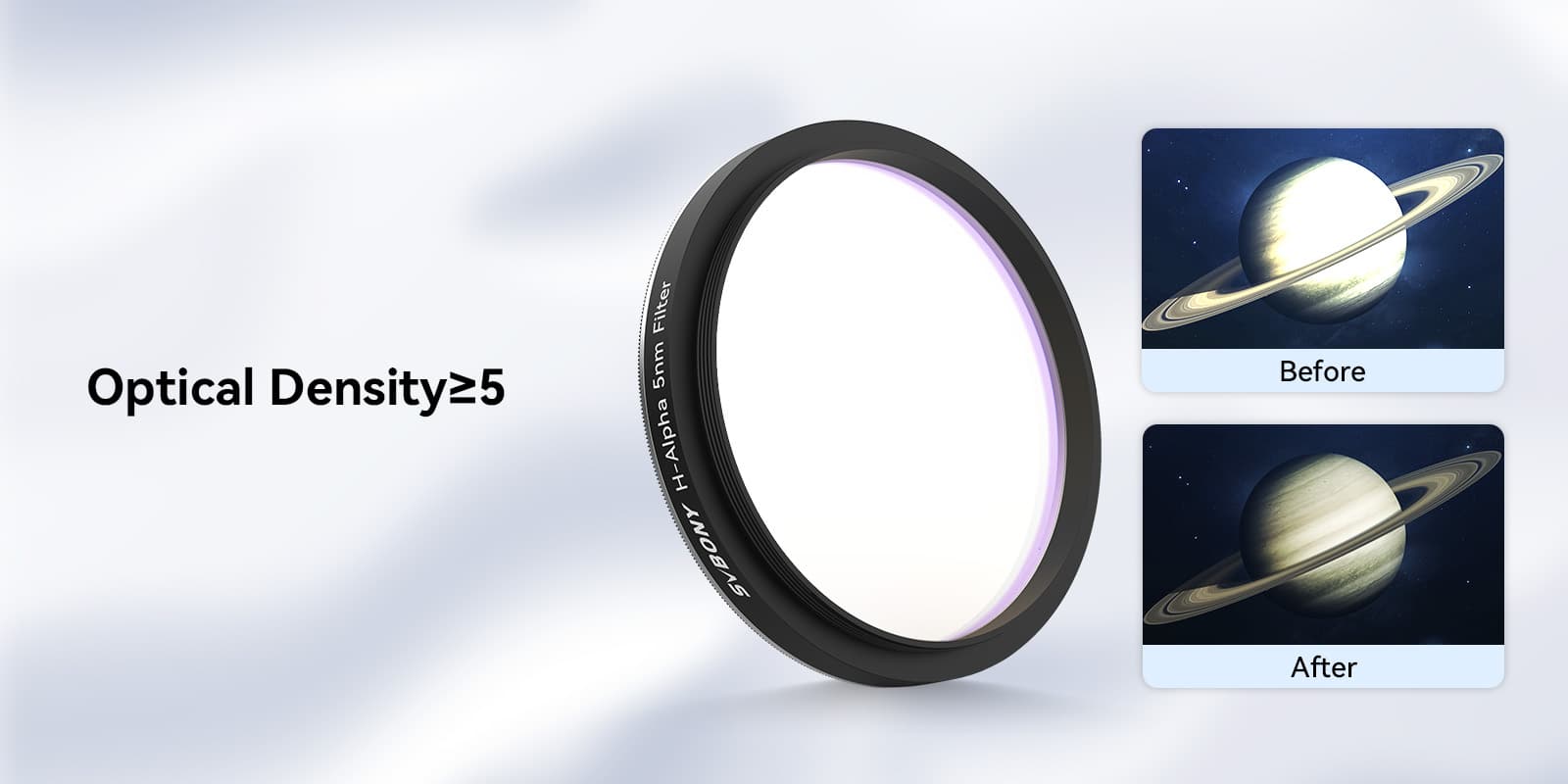

Blocking | ≥OD5 |
Clear Aperture | 44mm |
Surface Quality | 60/40 |
Surface Pparallelism | 1/4λ |
Parallelism | 30" |

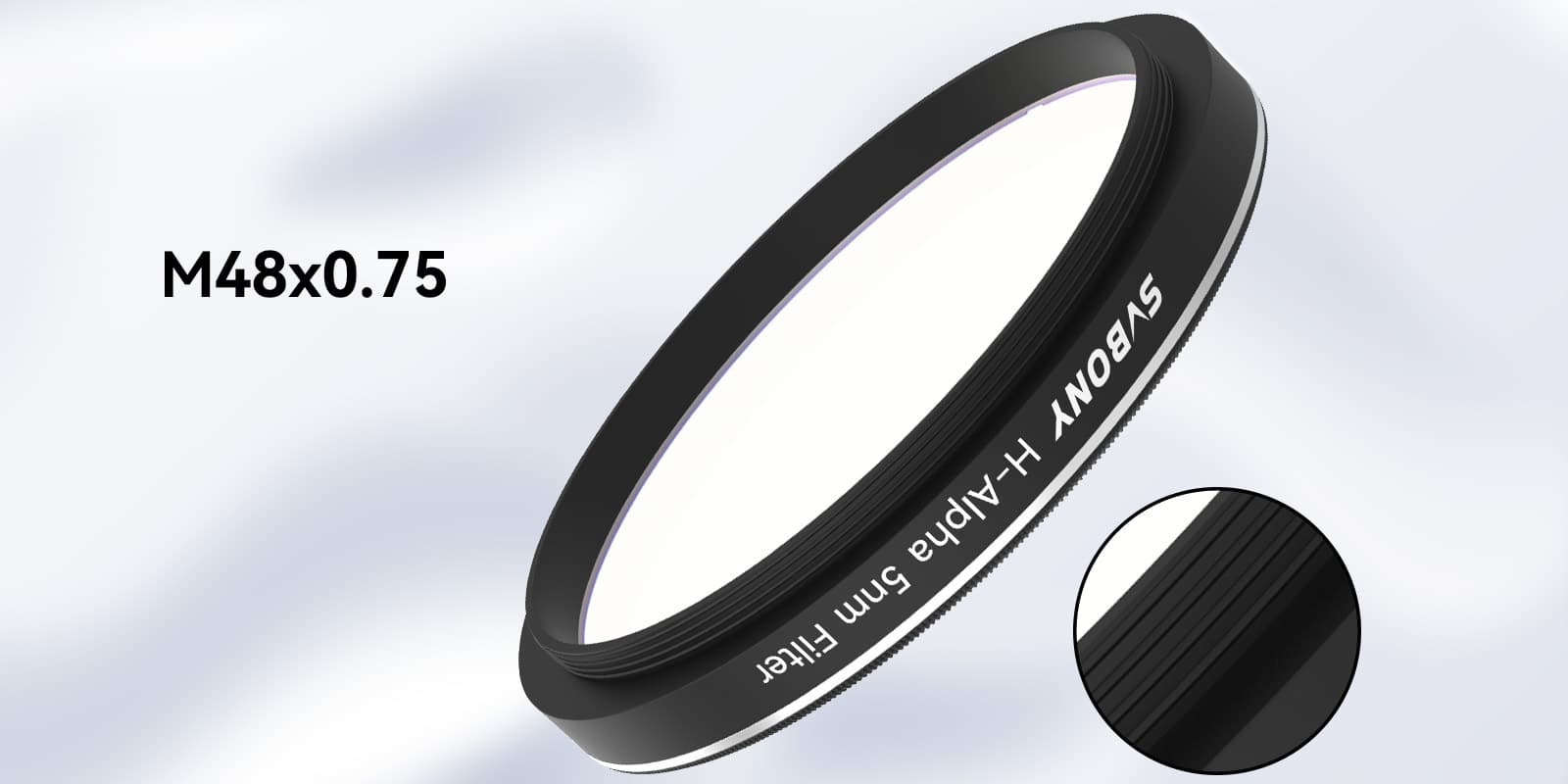

Thread | M48x0.75 |
Single Thread | Yes |
Net Weight | 12.5g / 0.44oz/0.027lb |
Features
- 1. H-Alpha CCD narrow band filter reduces other transmissions, including wavelengths of light that are responsible for light pollution (both artificial and natural)
- 2. 300-1000nm Wavelength Range; the SVBONY Sulfur II 5nm Extra Narrowband Filter transmits a 5nm bandwidth of light that is centered at 656.3nm
- 3. German imported glass; multiple layers of anti-reflection non-cementing coatings applied via electron-beam gun evaporation with Ion-assisted deposition
- 4. CNC machined and black anodized aero-metal filter cell that is ultra-thin to provide largest clear aperture; Laser-engraved to prevent fading
- 5. 2 inch mounted; metal filter cell threads directly into the 2 inch barrel of your telescope eyepiece
