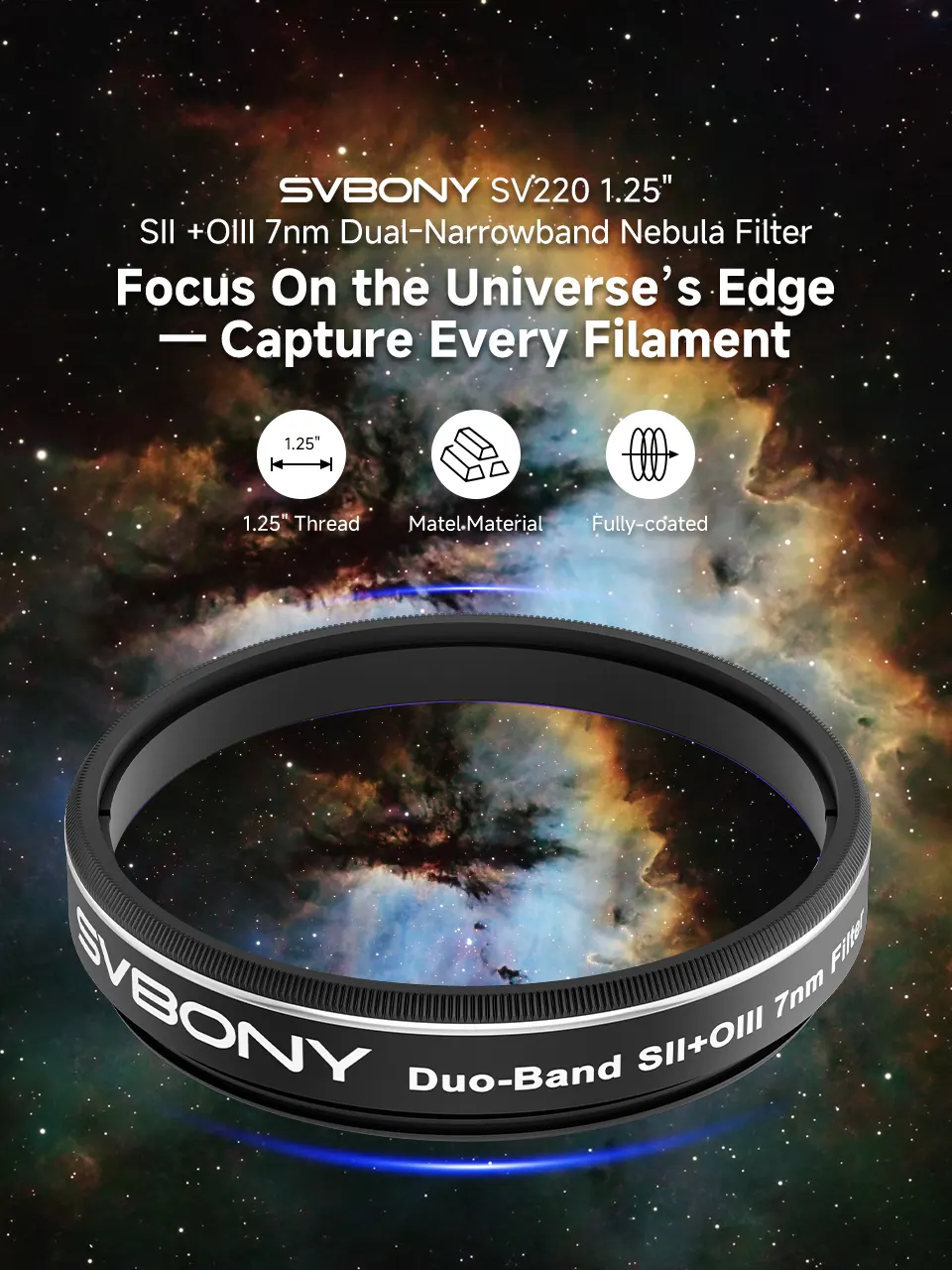

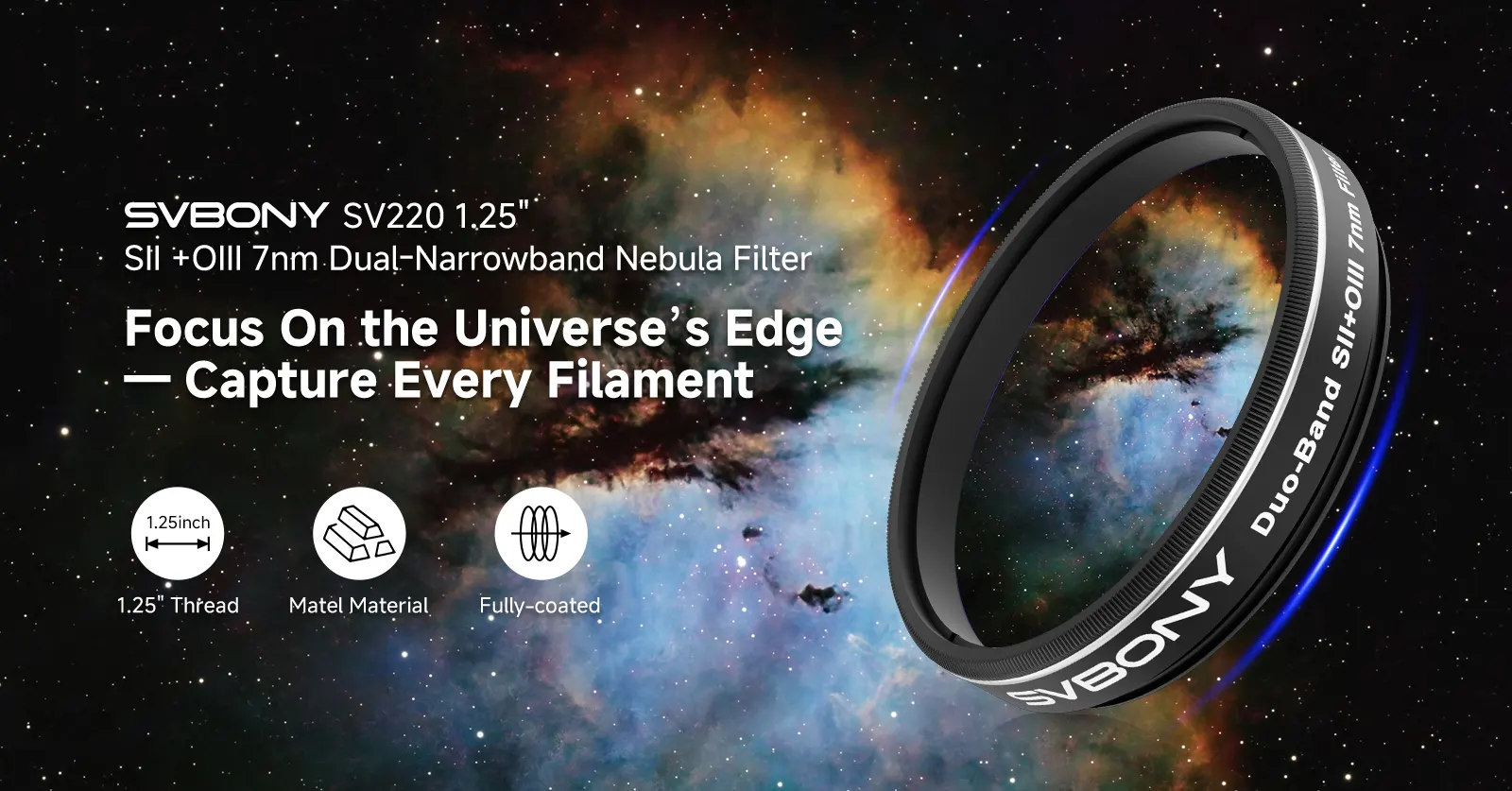

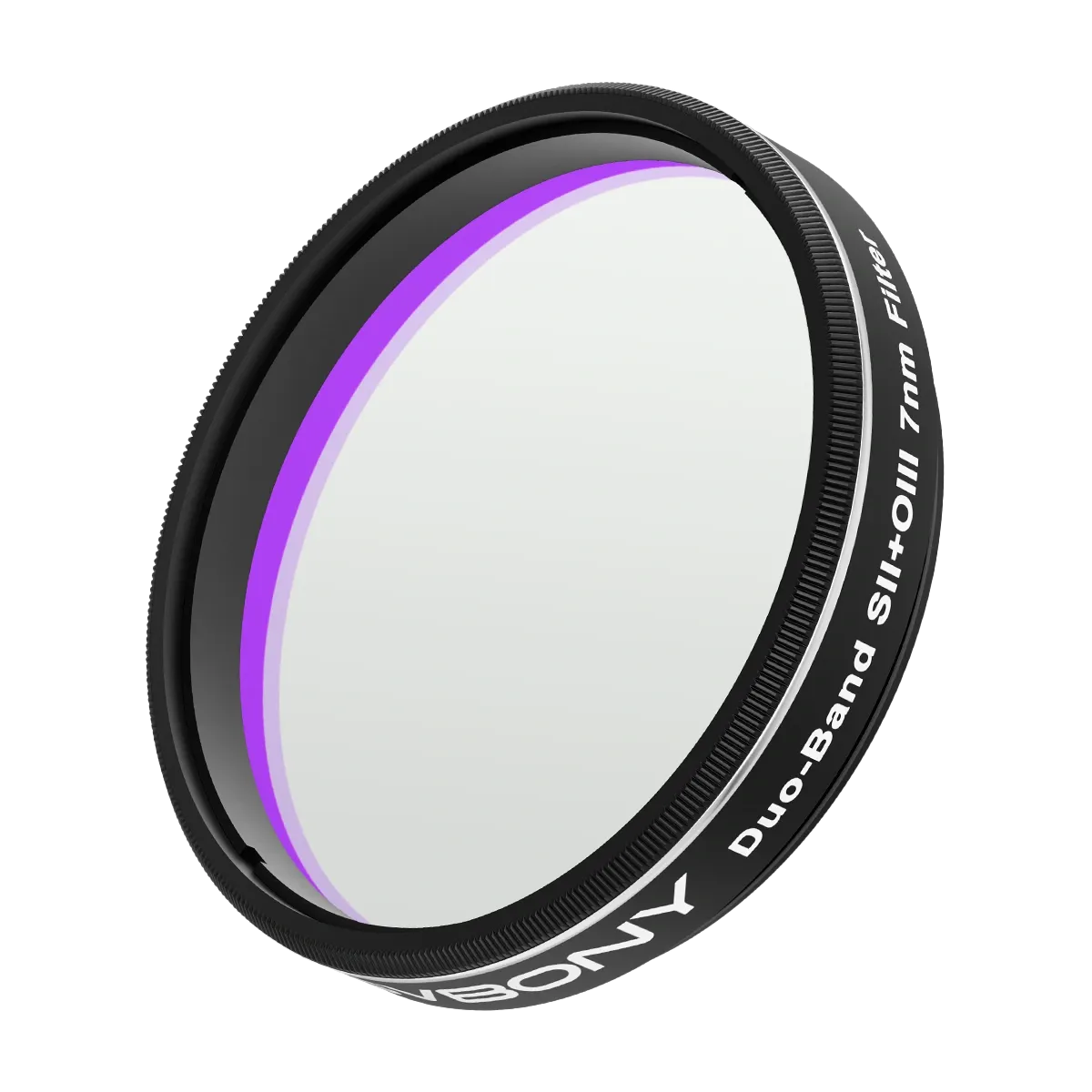

Narrowband Filter 7nm SII & OIII for astrophotography SV220 1.25inch SVBONY
Write a reviewKey Features
- Dual‑Band SII & OIII Capture
- 7 nm Narrowband Precision
- Enhanced Contrast Imaging

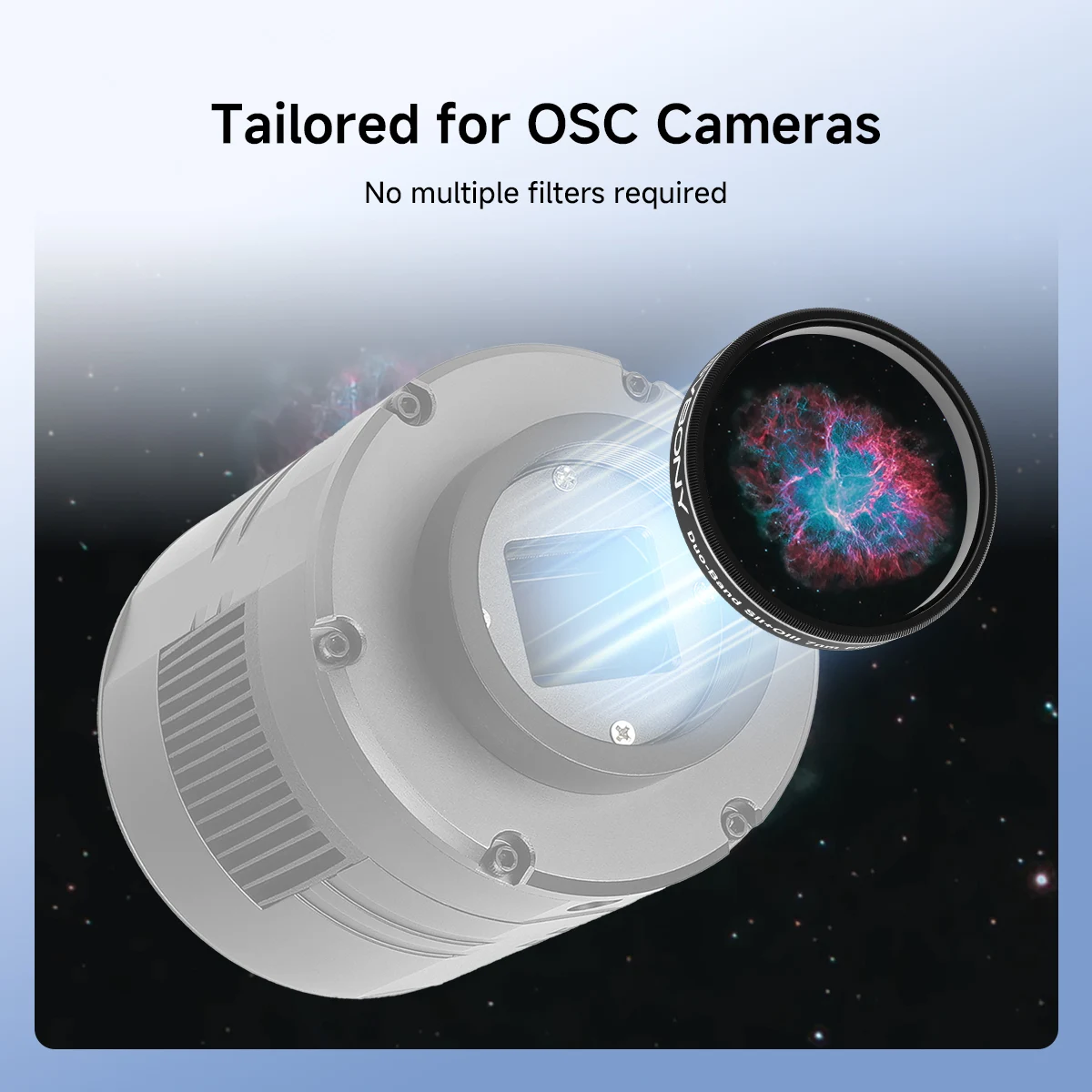

- Ideal for OSC Cameras
- Light Pollution Suppression
SV220 2inch 7nm SII+OIII Dual-Band Filter

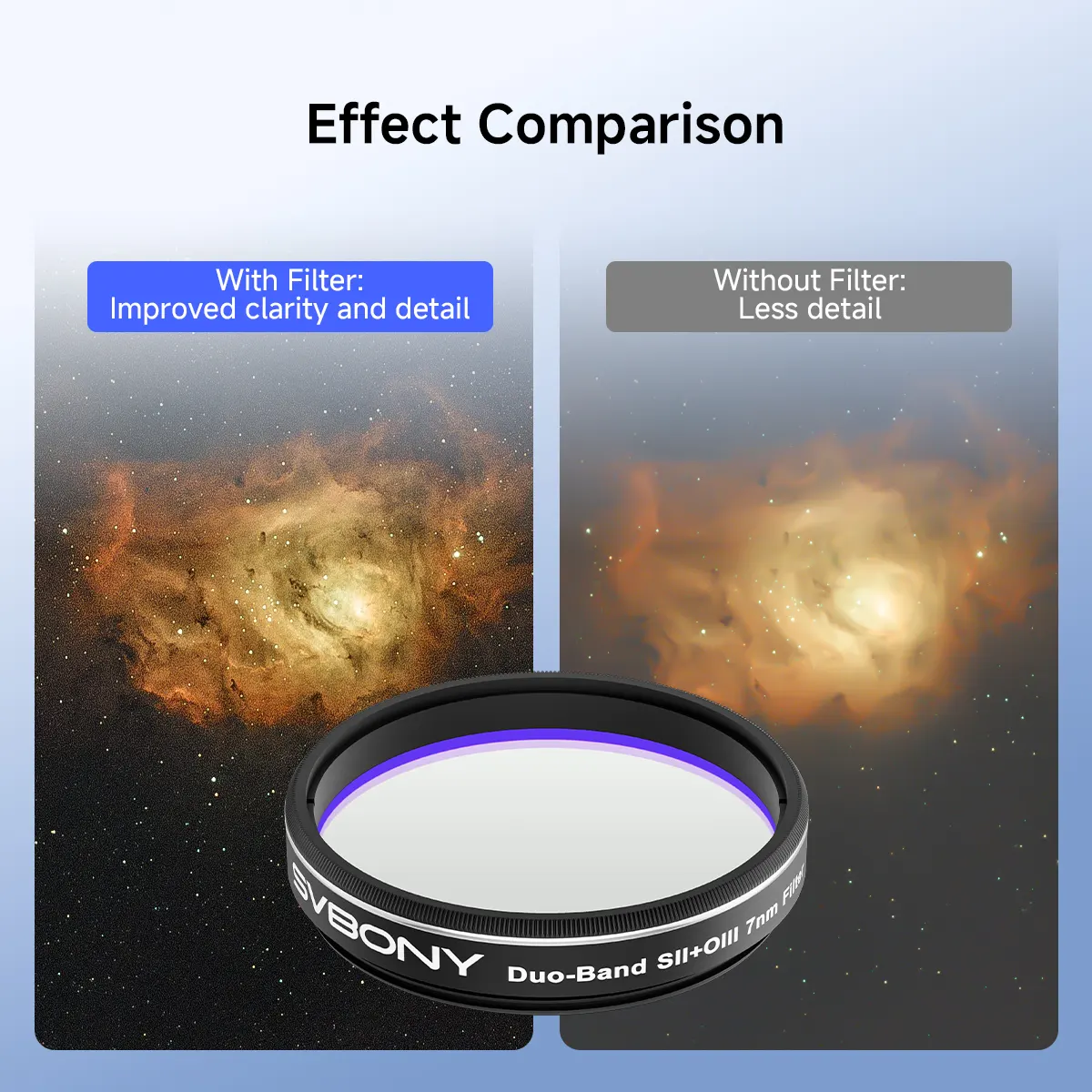

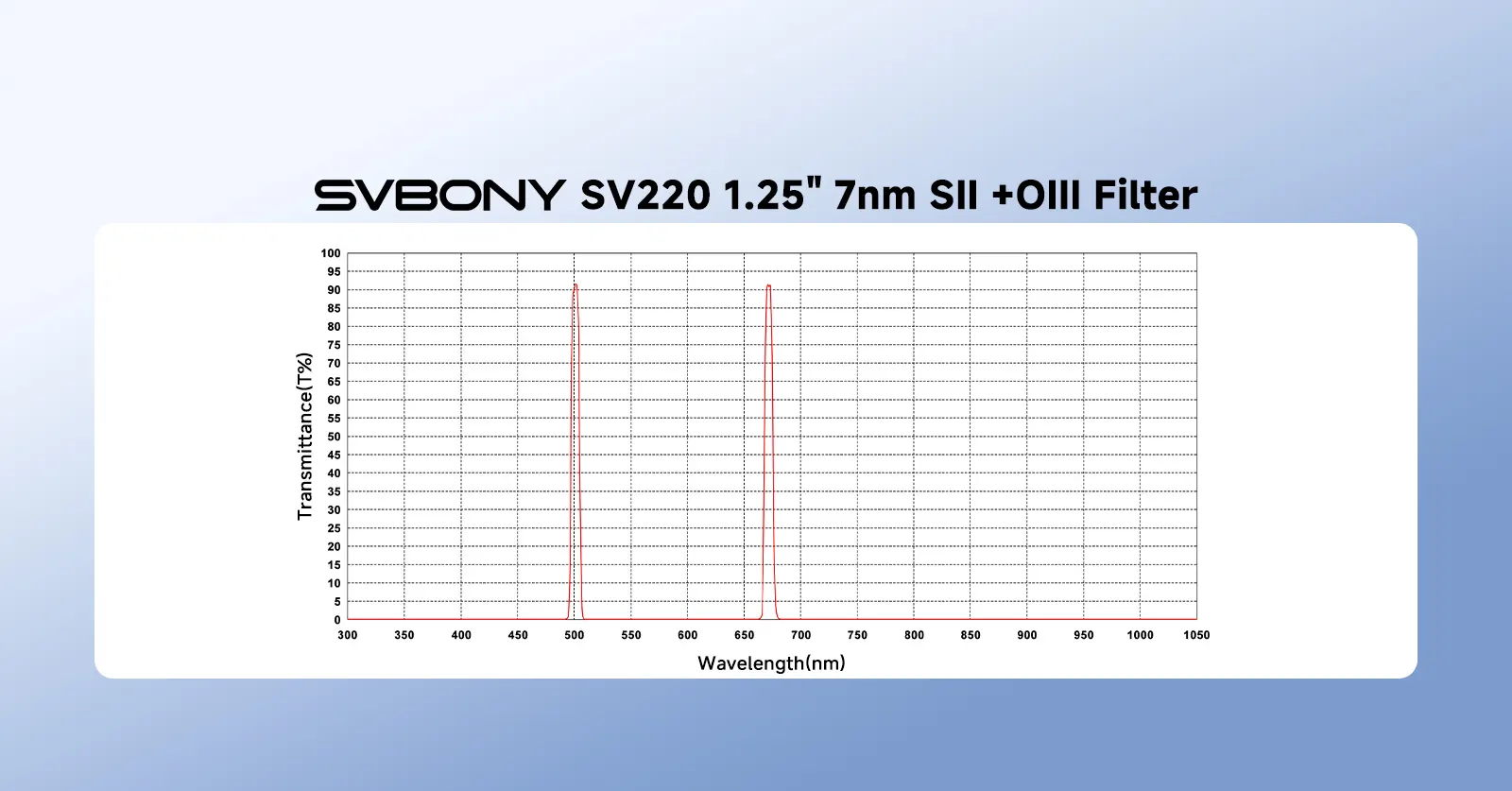

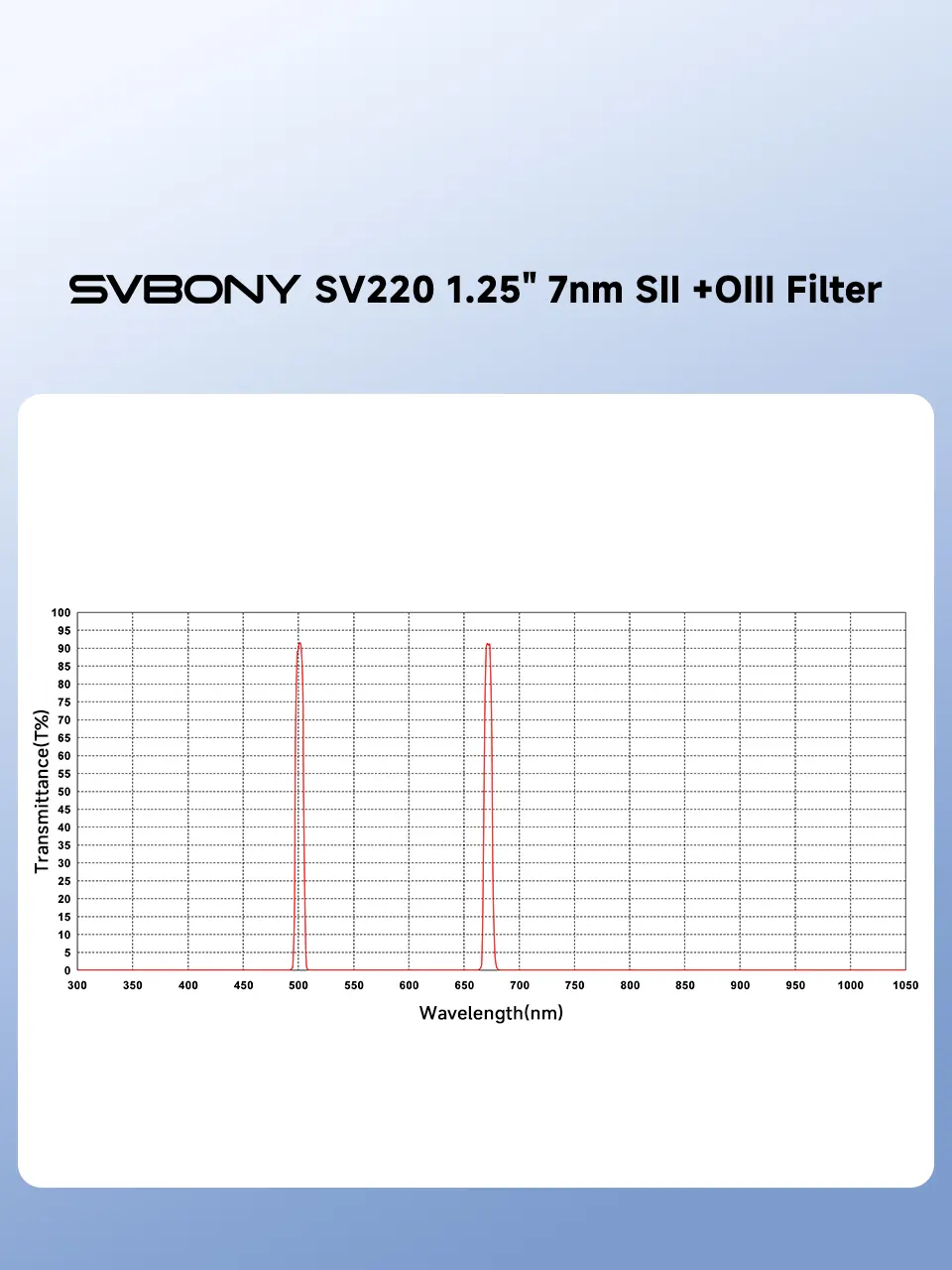

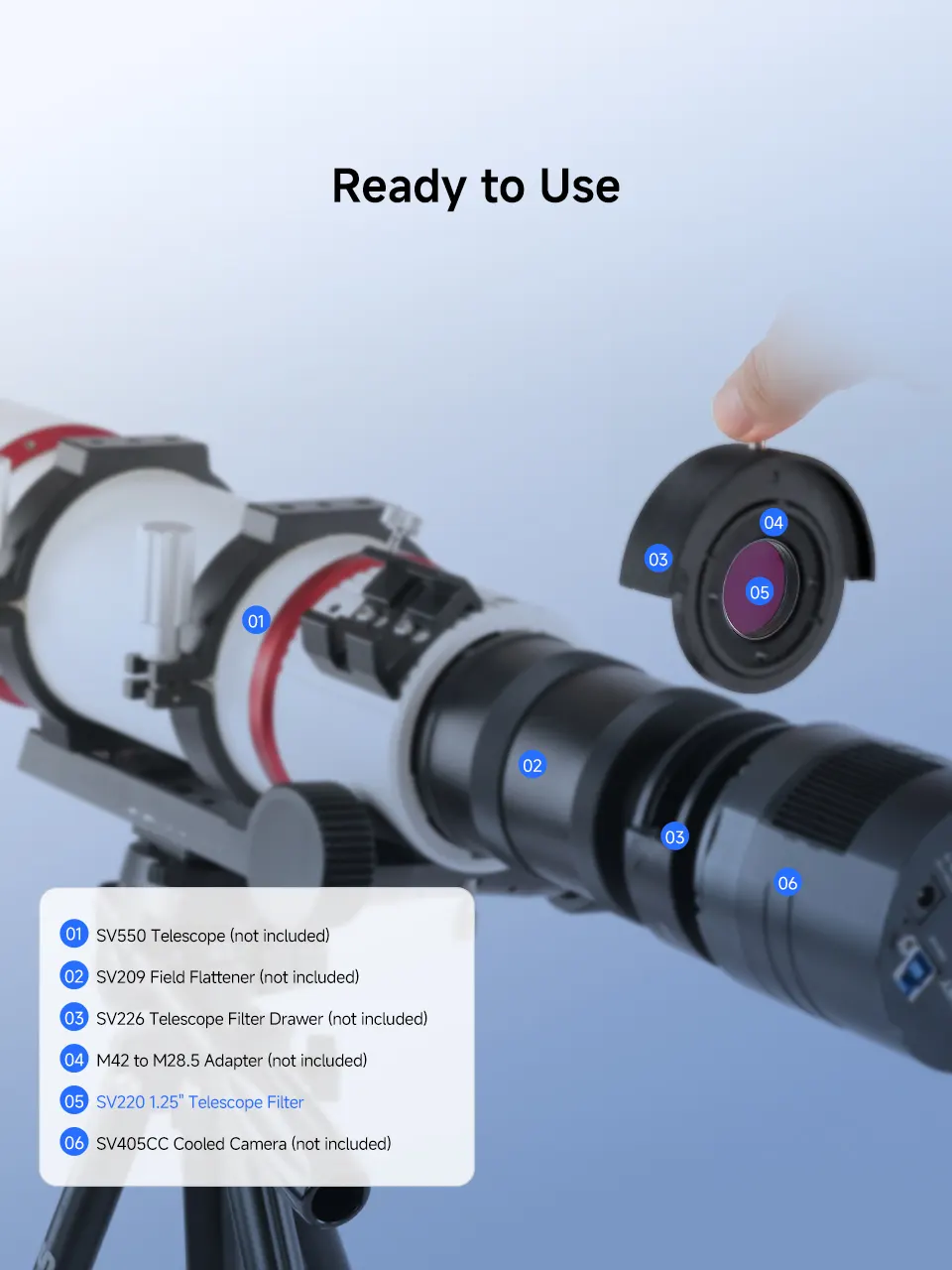

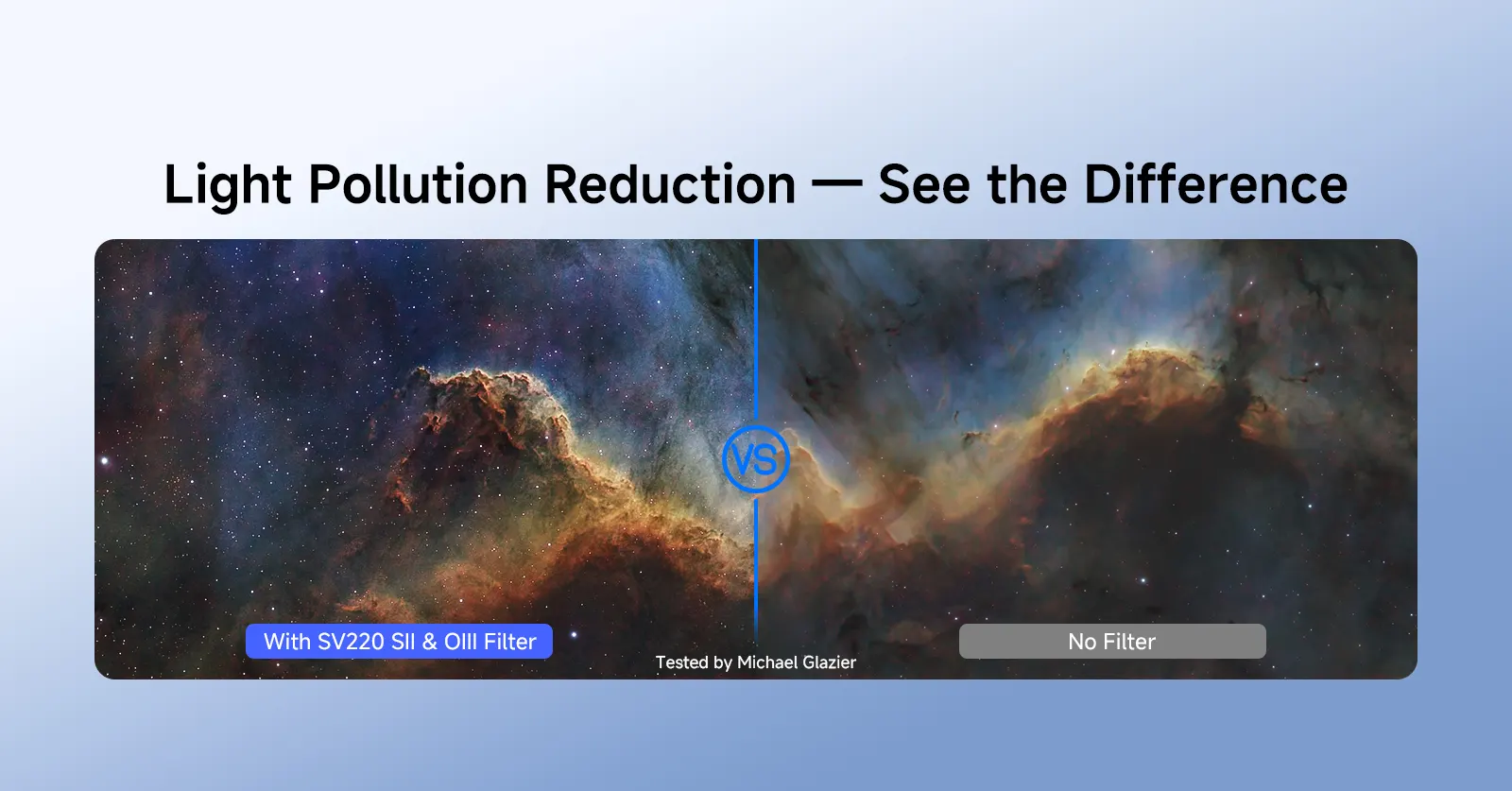

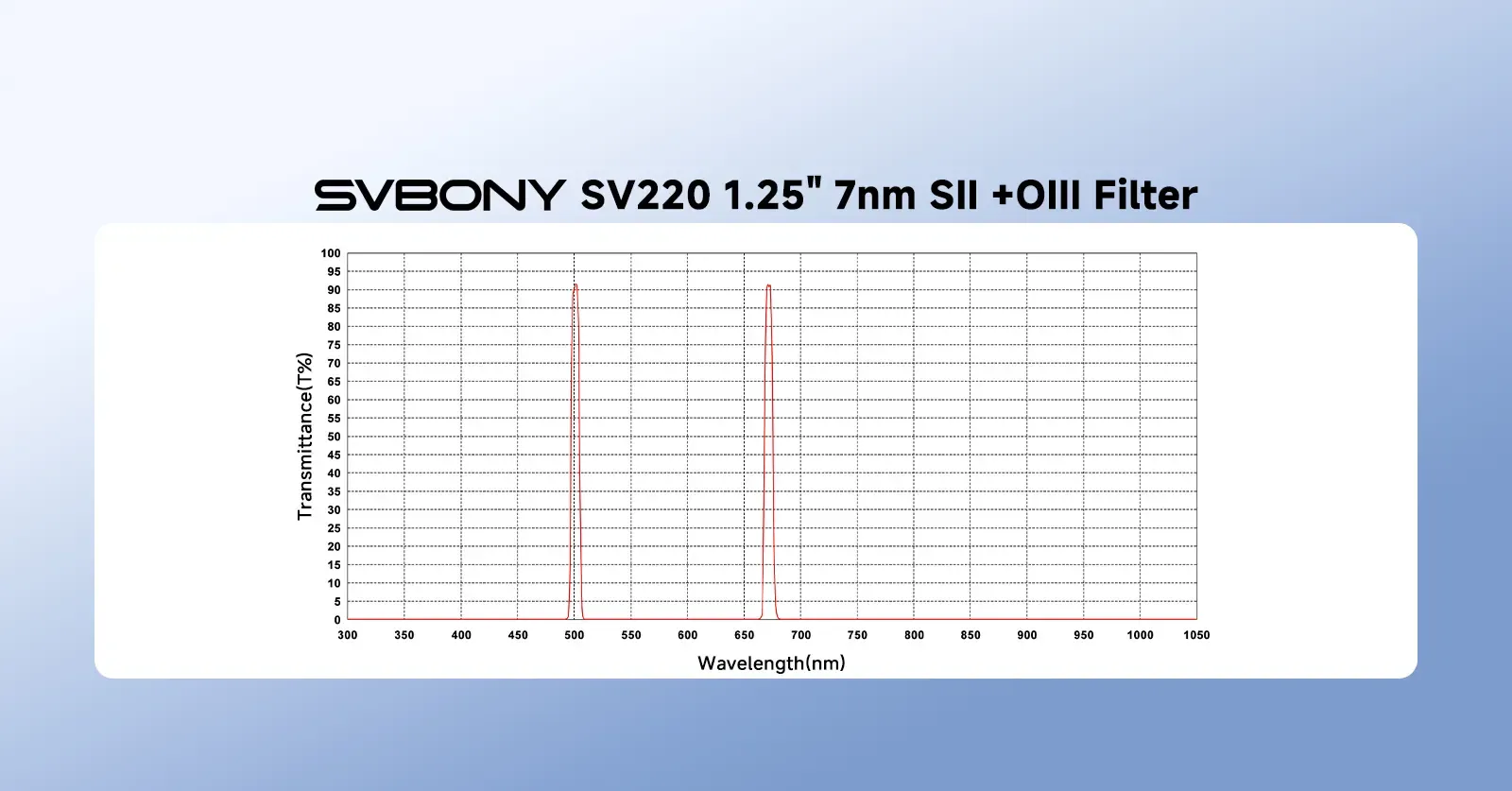

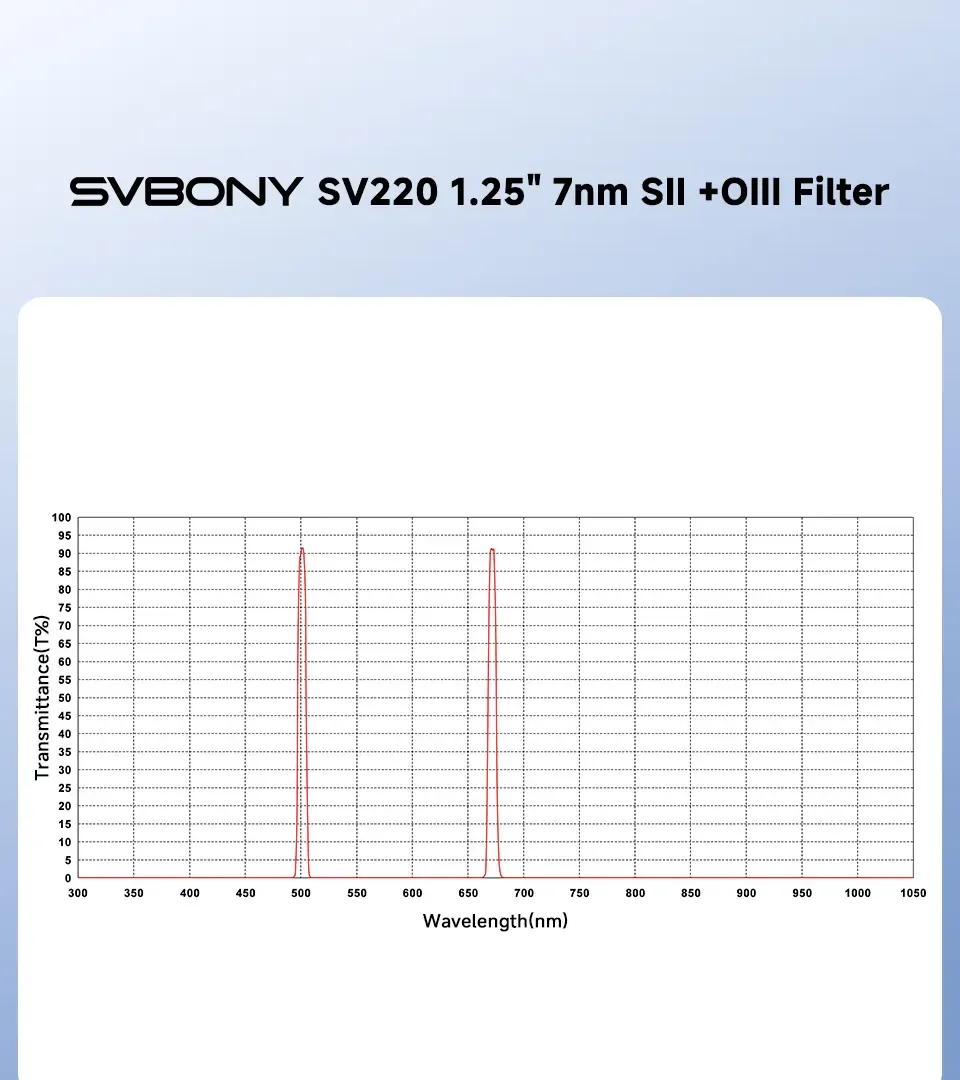

The SV220 SII & OIII 7nm is a Duo Band Filter. It is designed to be used in combination with the SV220 H-Alpha & OIII Duo Band Filter to provide a superior method for achieving the SHO (Hubble Pallet) narrow band colour balance with colour imaging cameras. The SII and OIII Filter provides the missing band data so that owners of colour cameras can achieve the SHO colour balance in their narrow band images. The Duo-band filter (SII+OIII) has a high transmission of over 85% at its center wavelength (500.7nm and 672nm). It can effectively improve the quality of the image by making the sky background of the image darker while maximizing contrast throughout the image and enhancing the contrast of your pictures, thus making it easier to display the details of the stars. In areas with very serious light pollution, this filter can also selectively filter light pollution.
Customer Reviews
There are no customer reviews yet
| Model | SV220 |
| Name | SII & OIII Duo-Band OSC Filter |
| Size | 1.25-Inch |
| Substrate Thickness | 1.80mm |

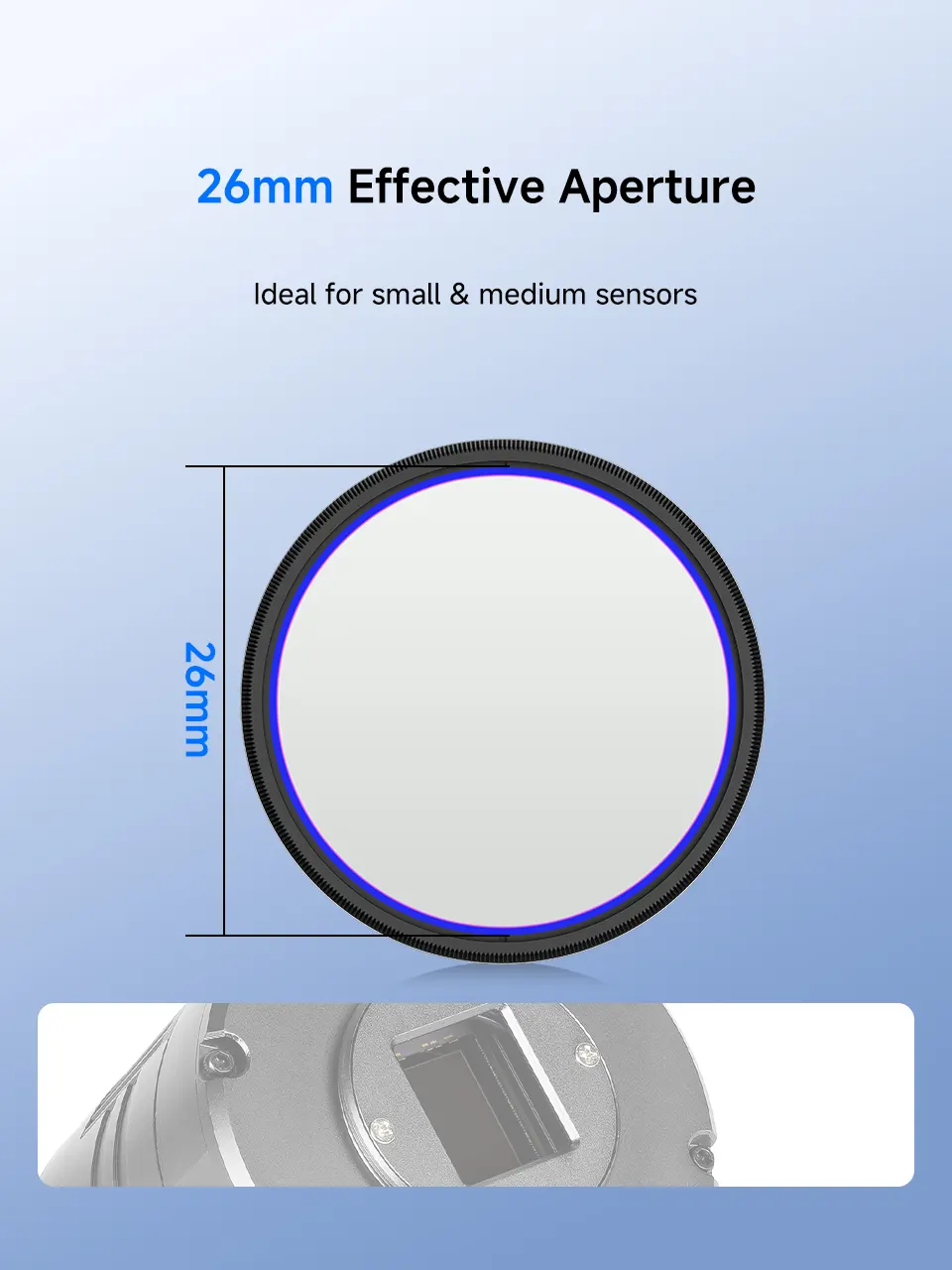

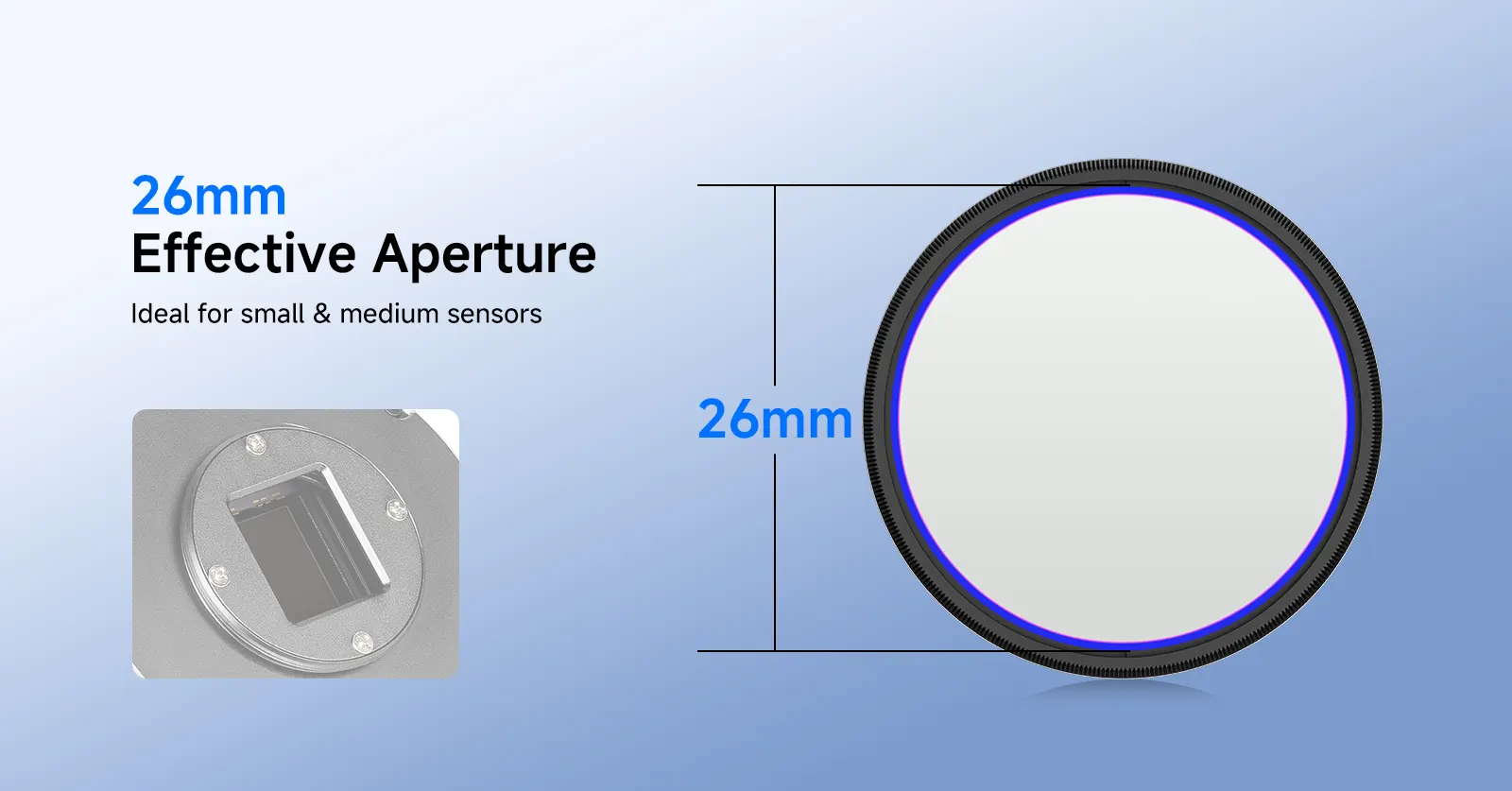

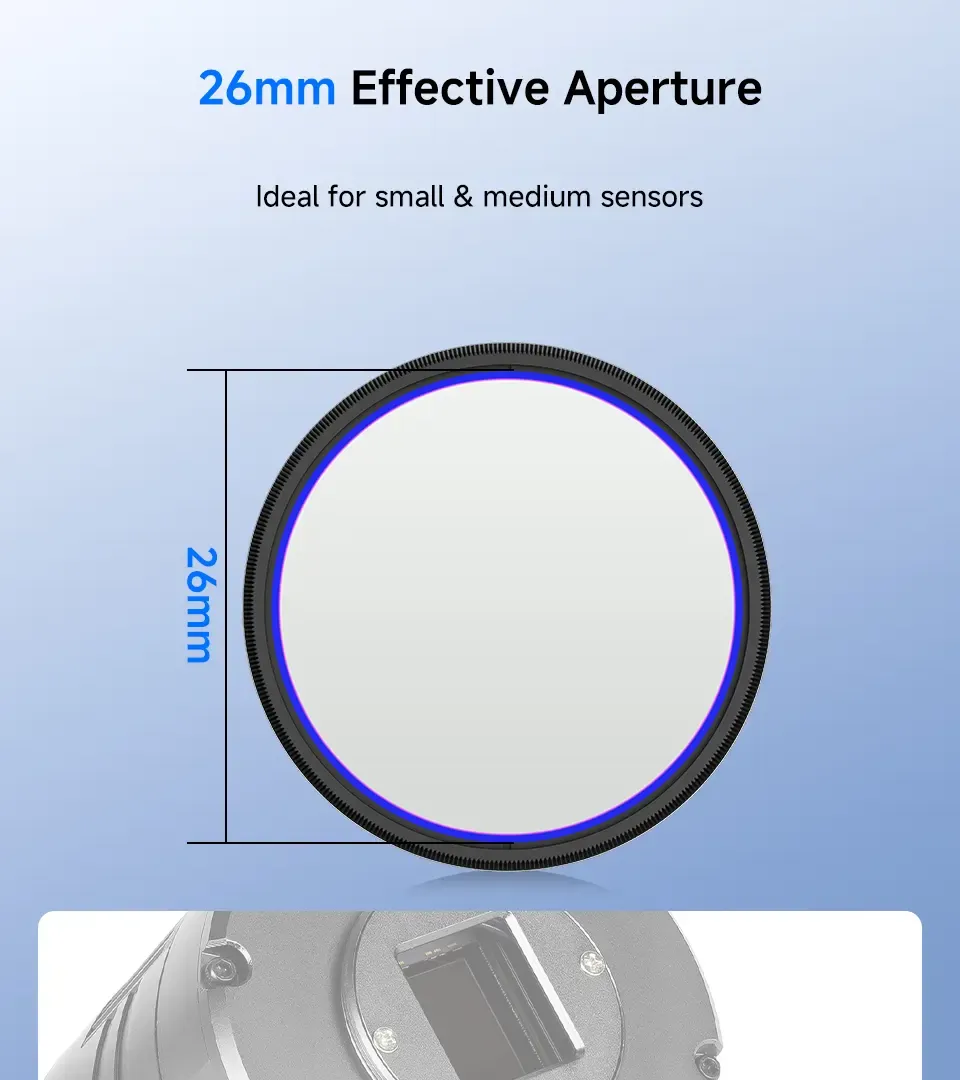

| Clear Aperture | 26mm |

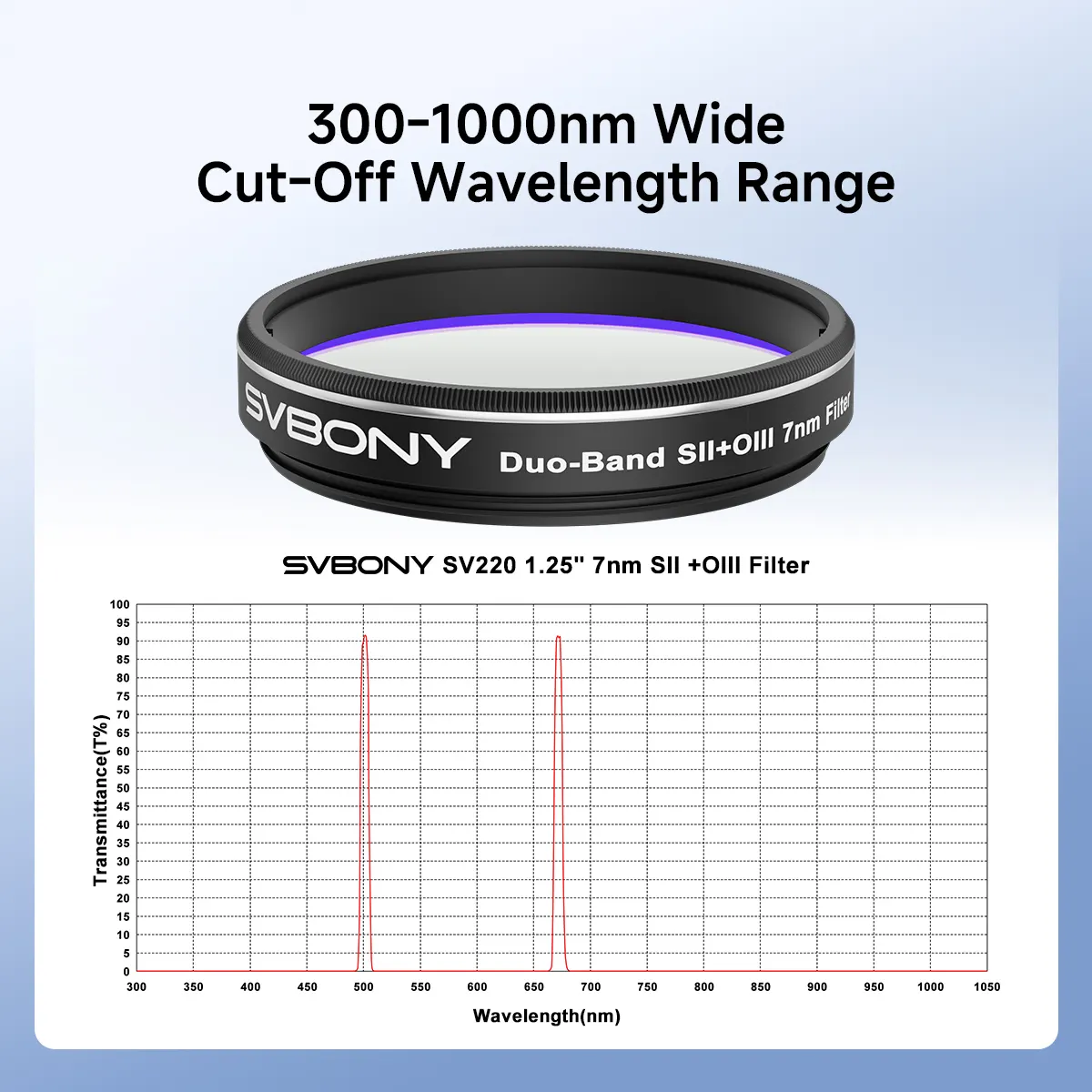

| Wavelength Range | 300-1000nm |

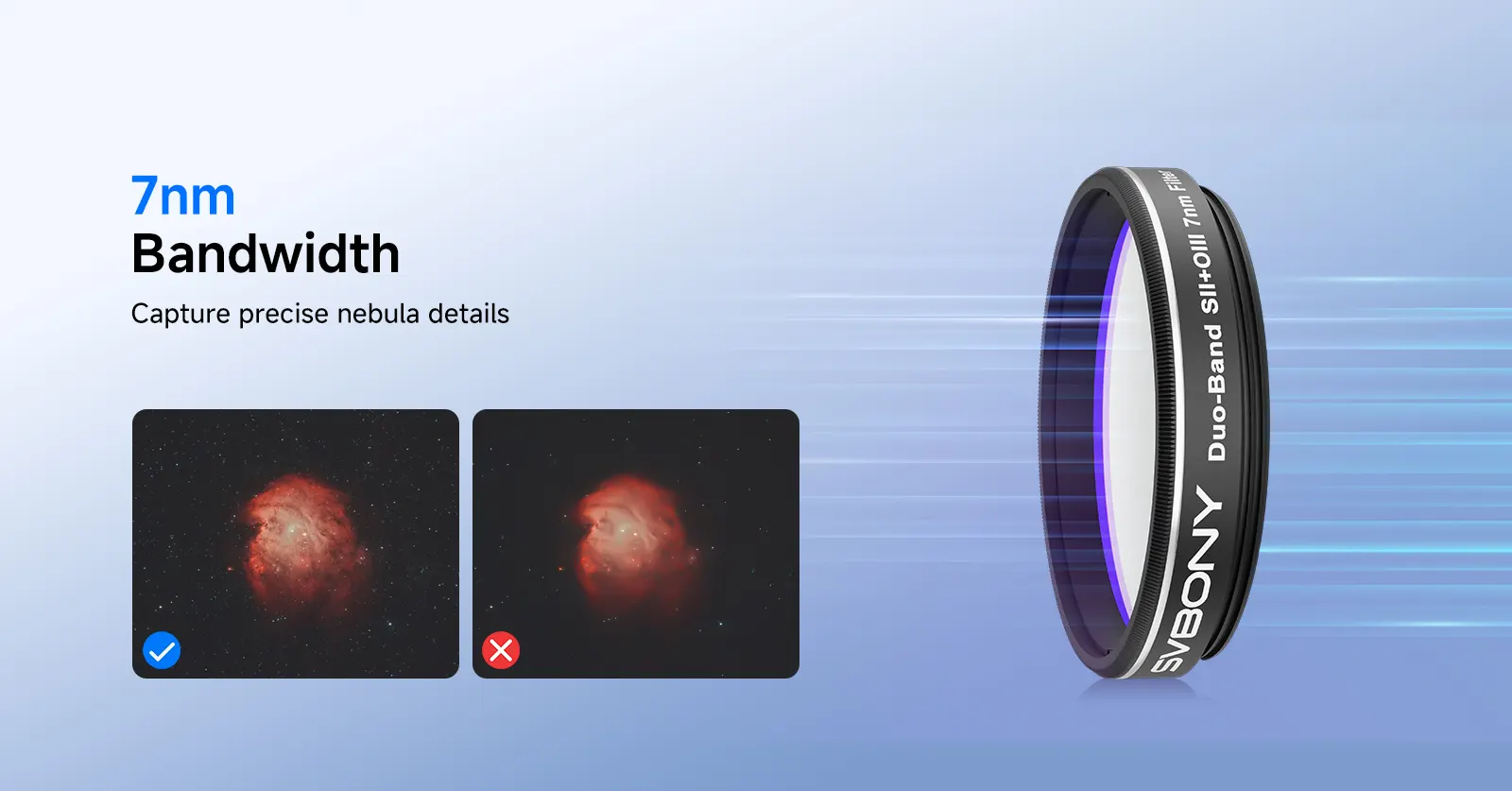

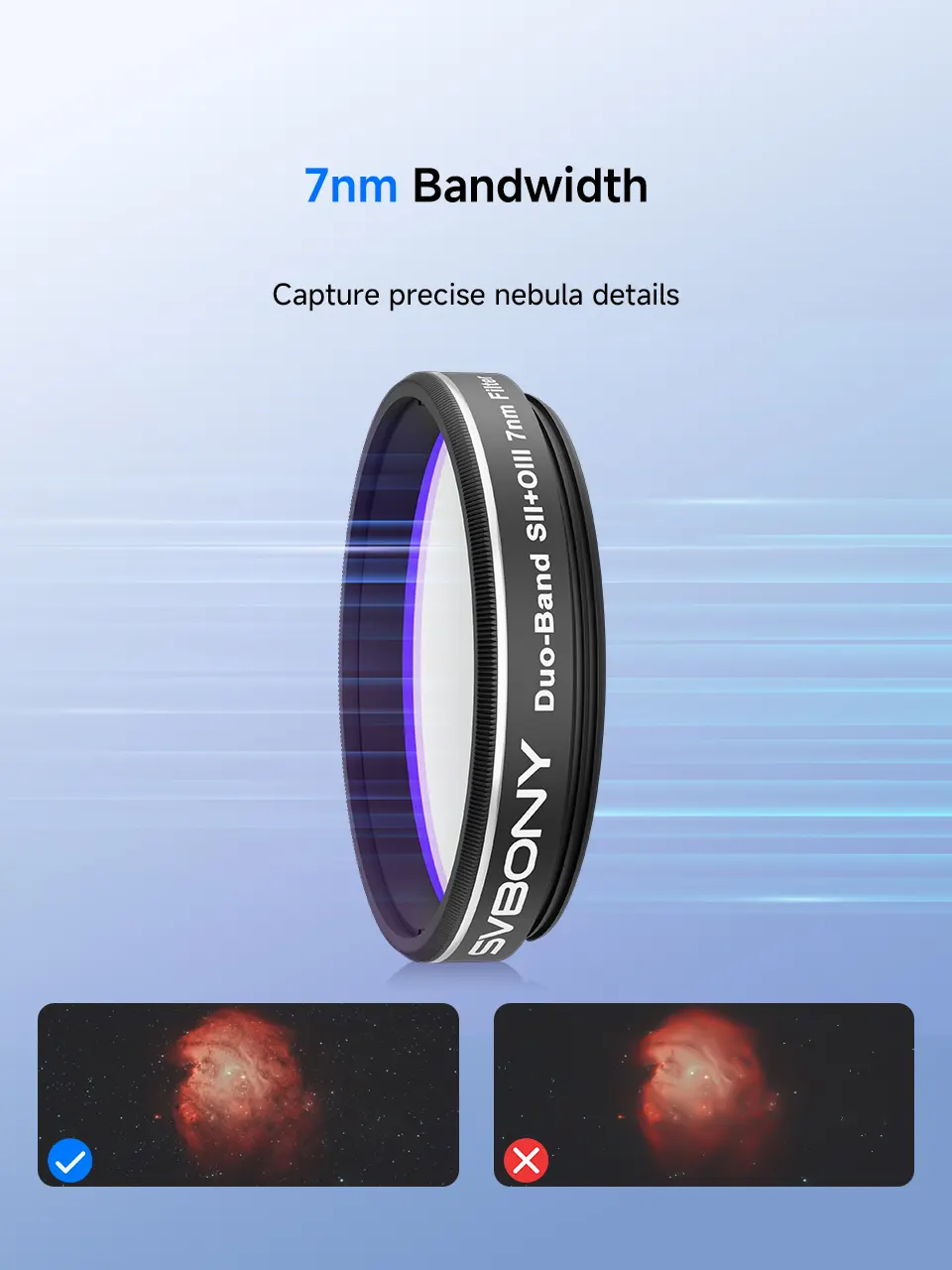

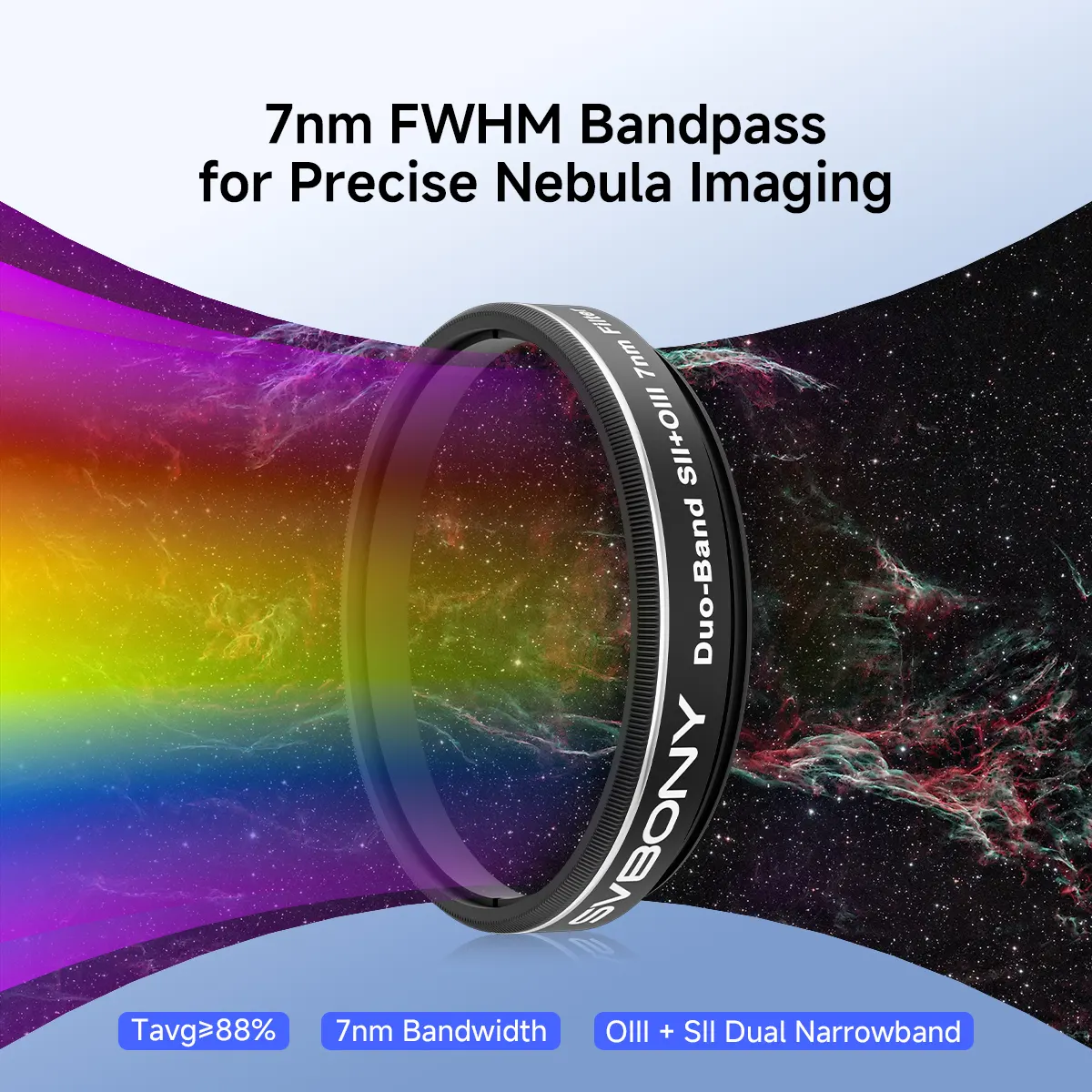

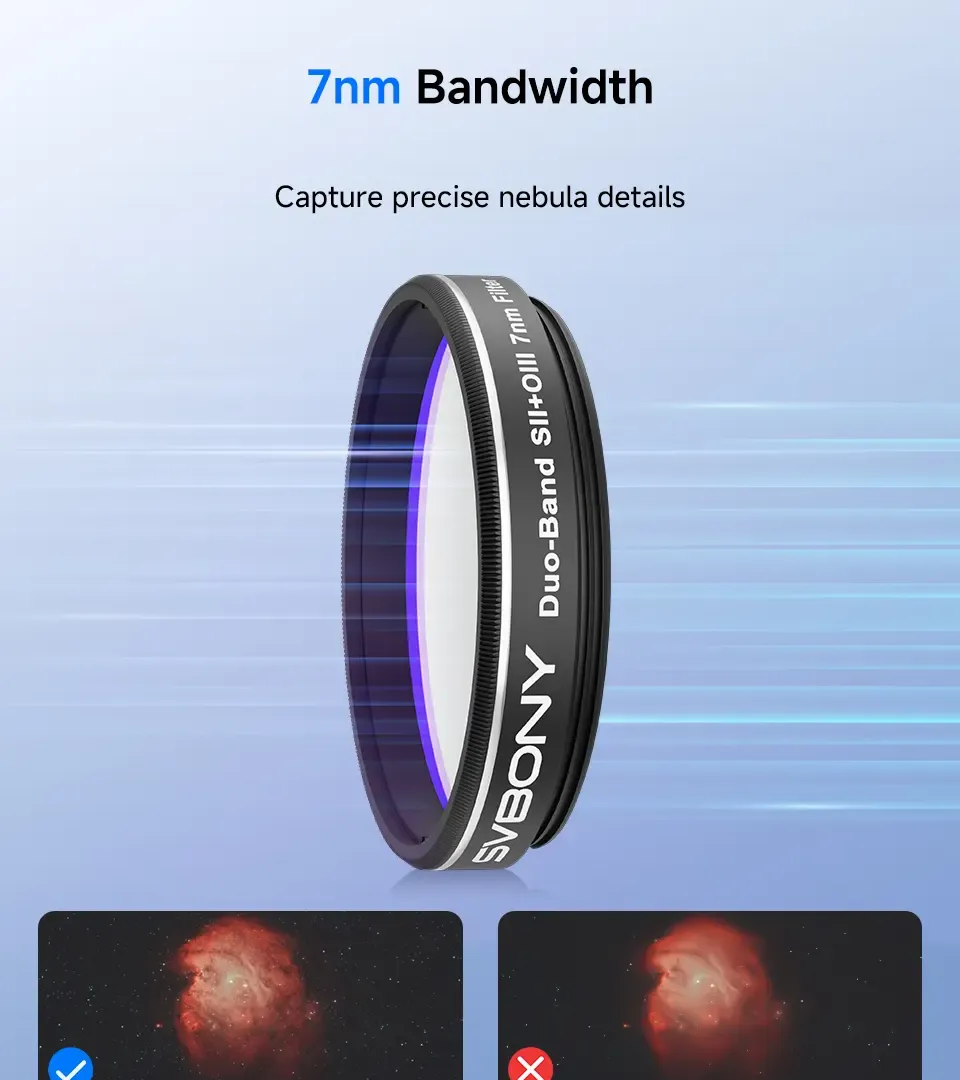

| FWHM | 7nm |

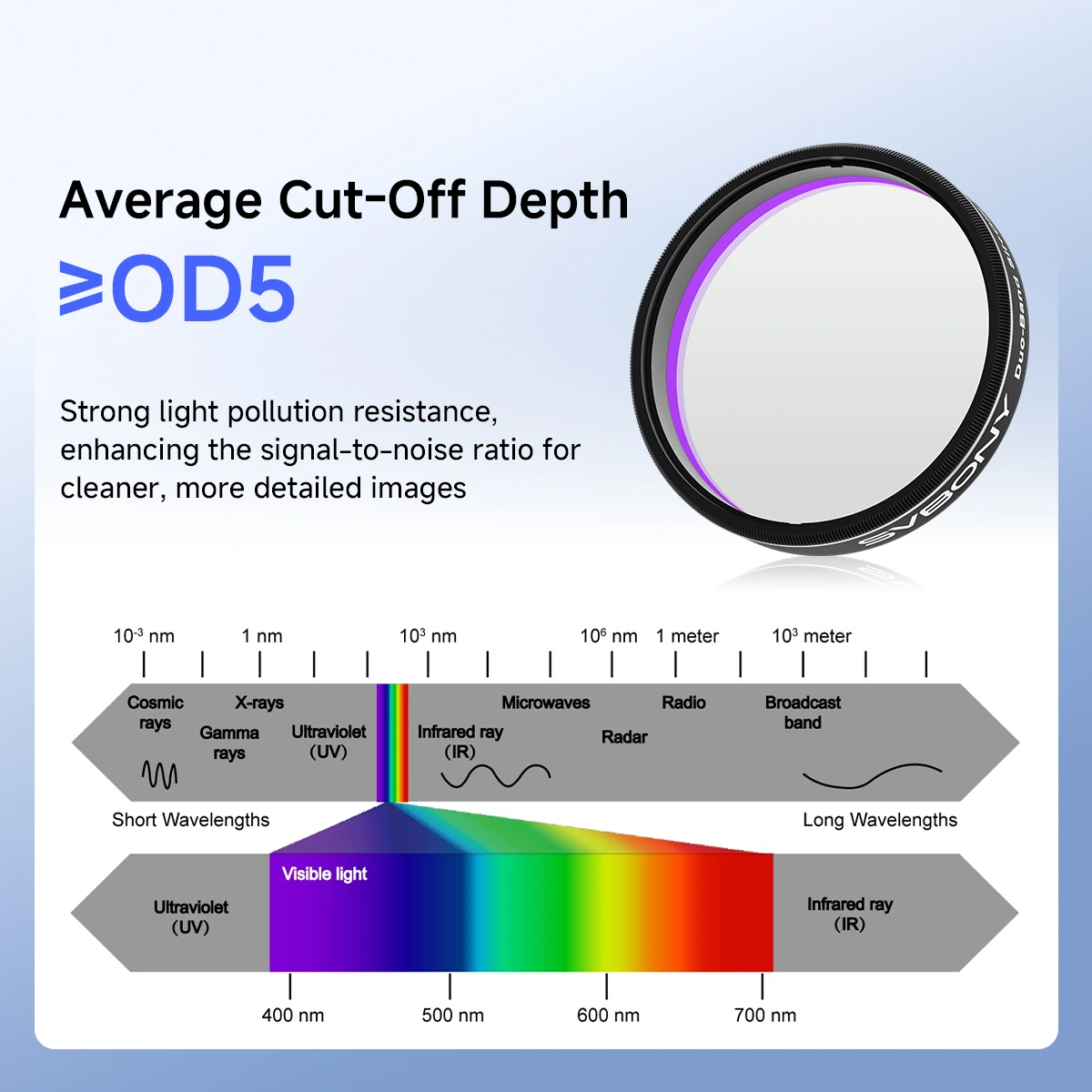

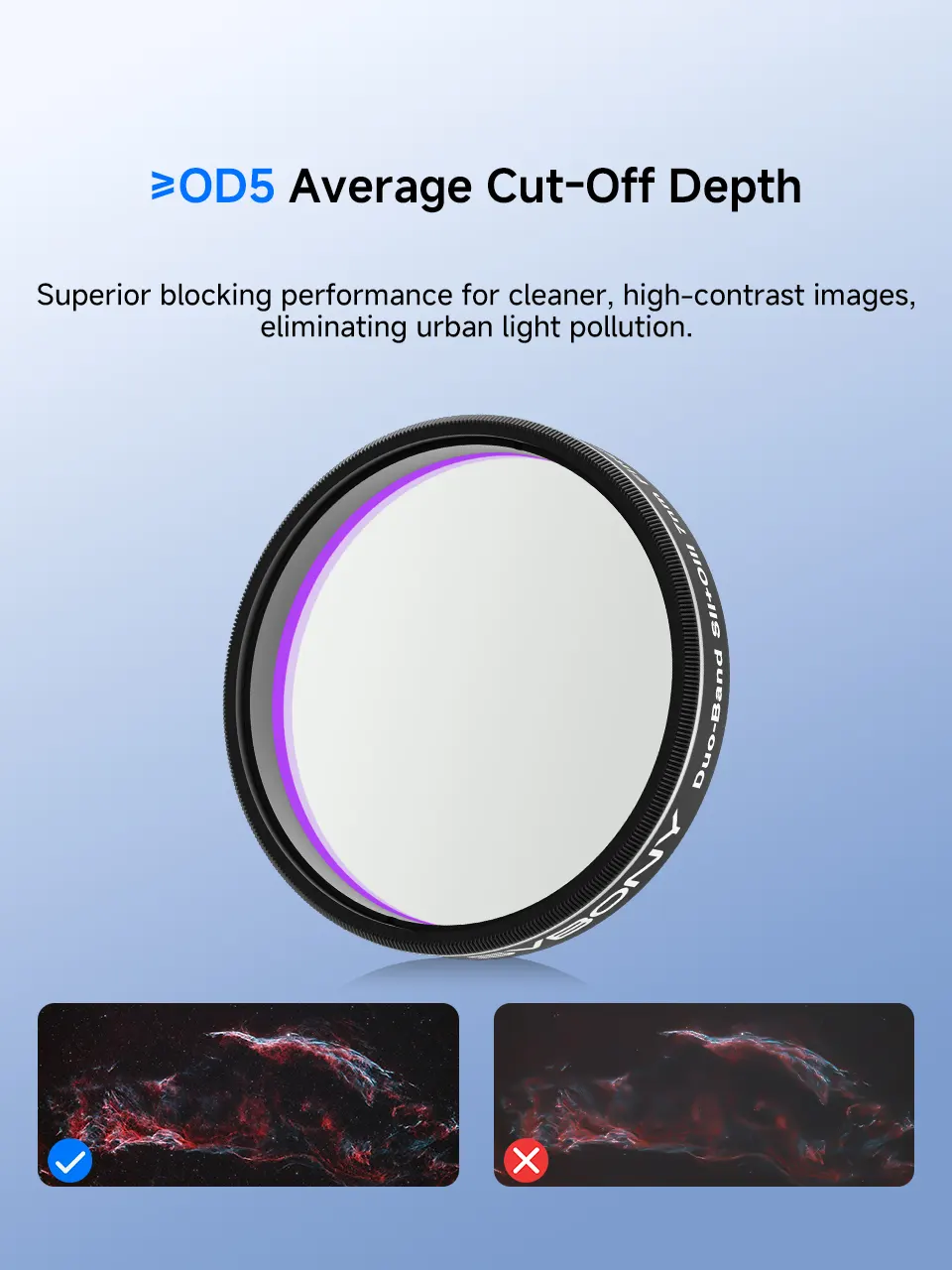

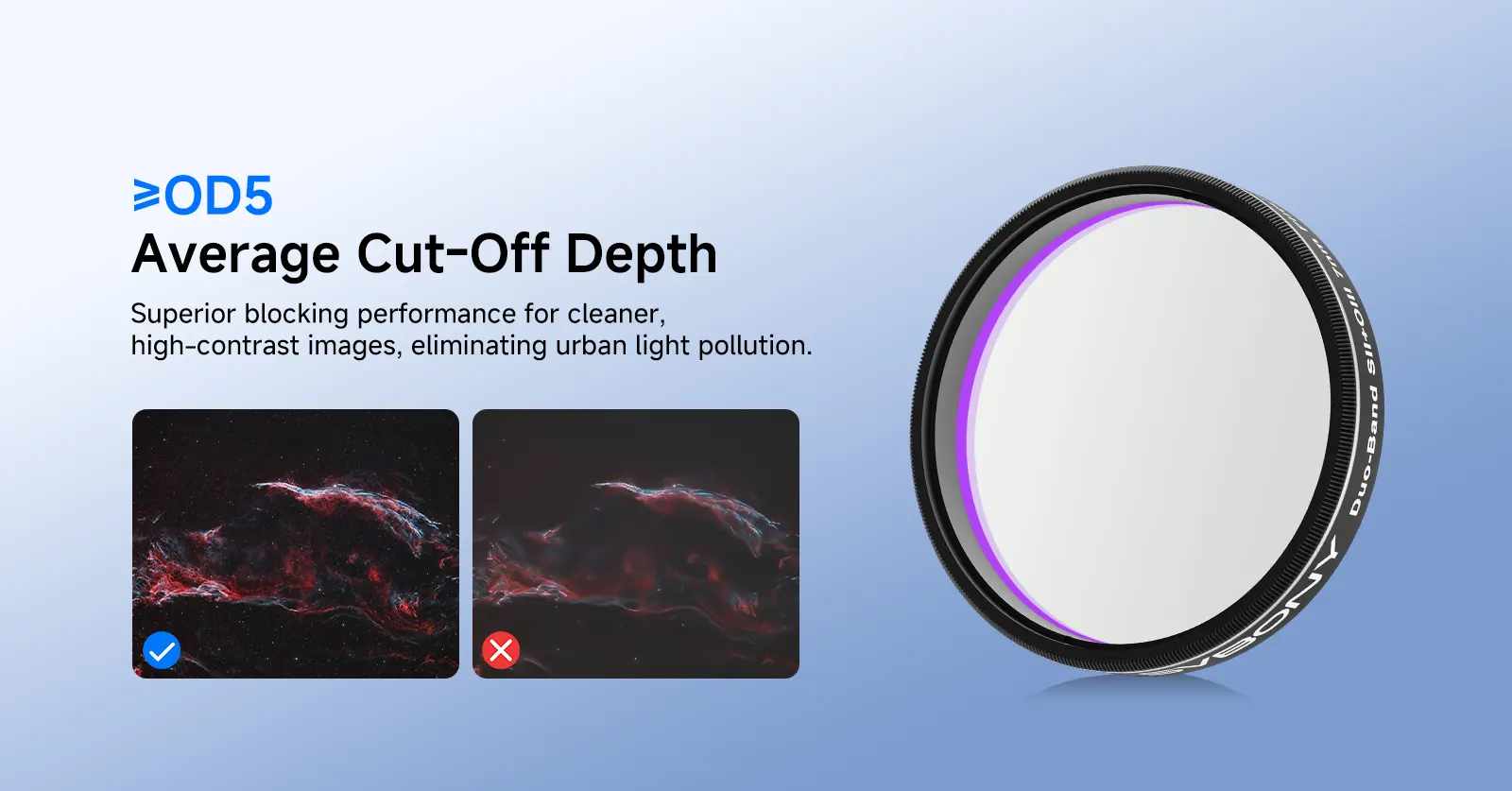

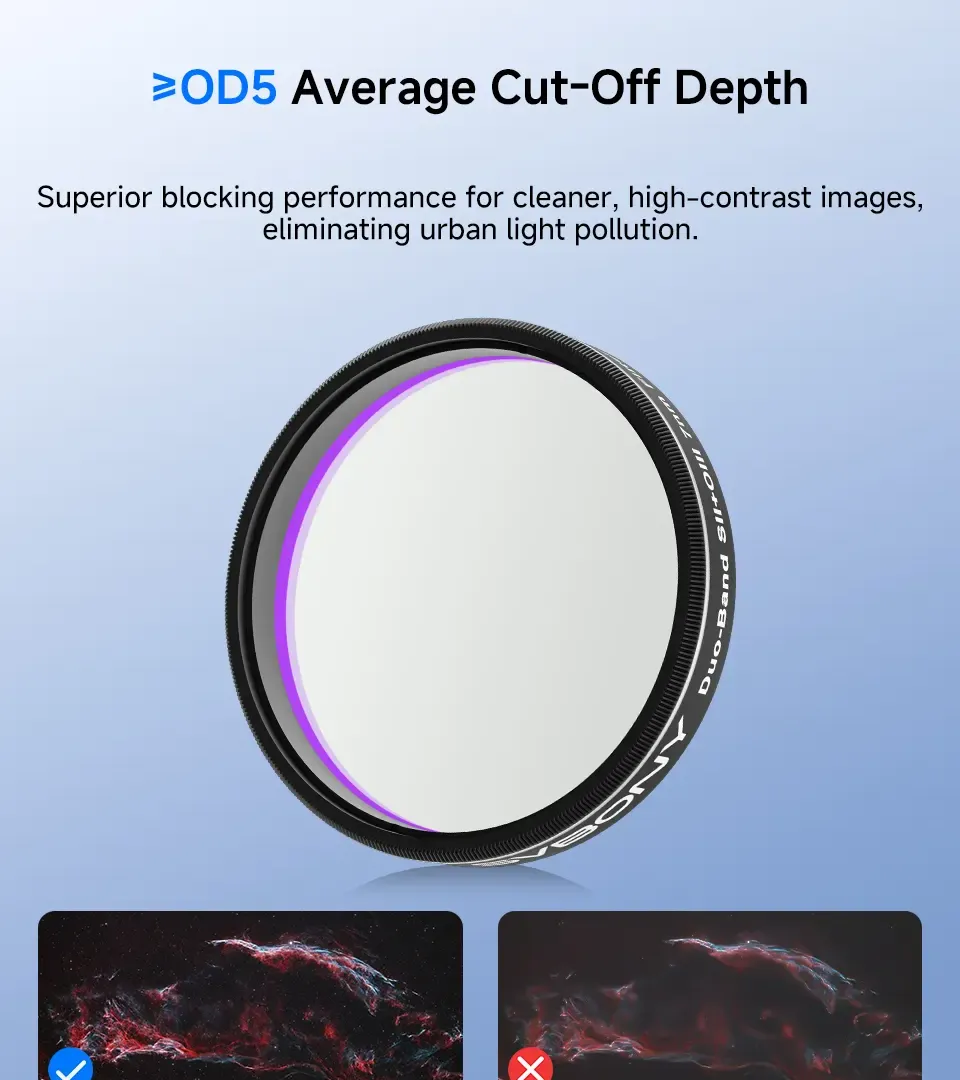

| Blocking | ≥OD5 |

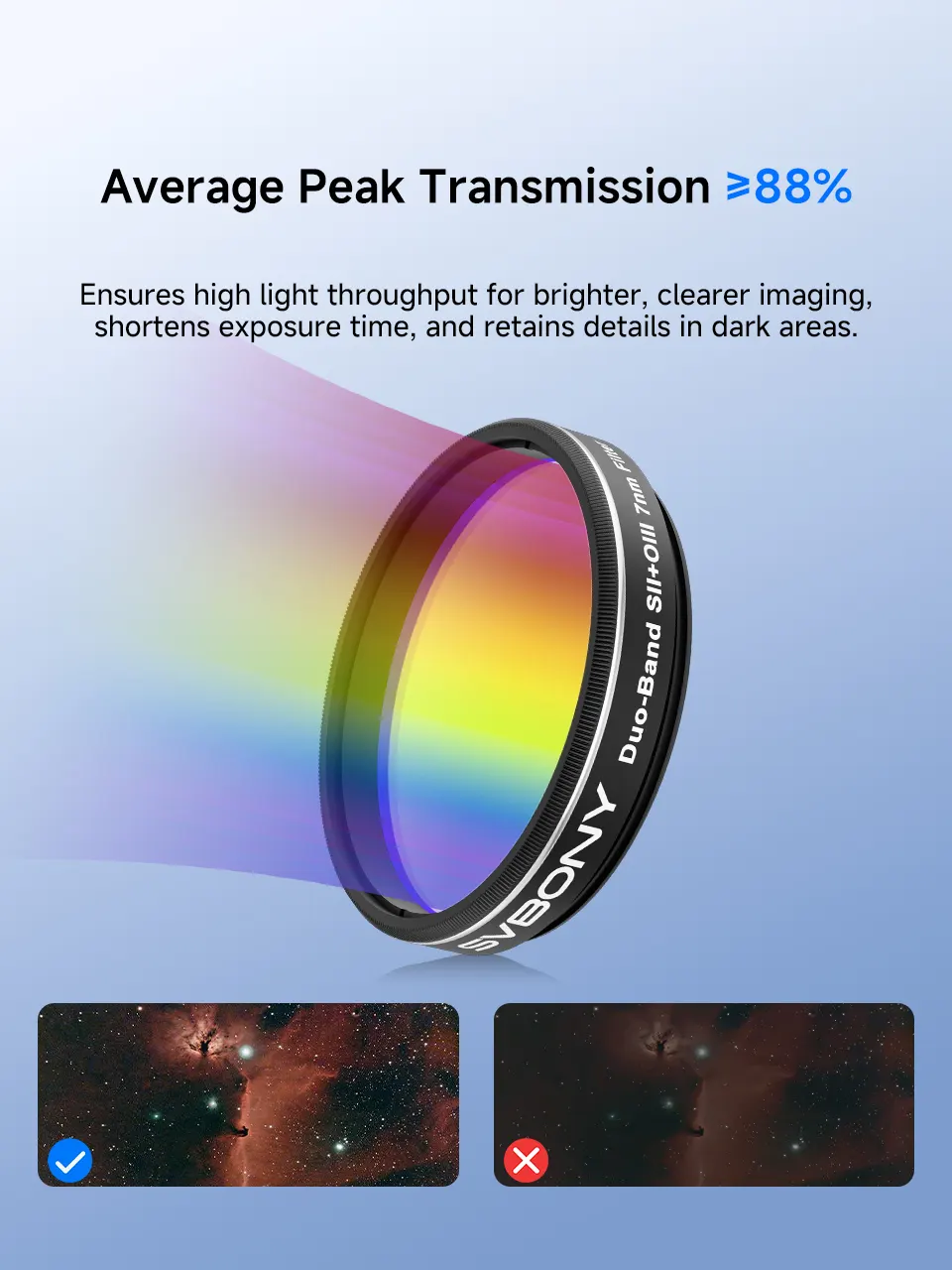

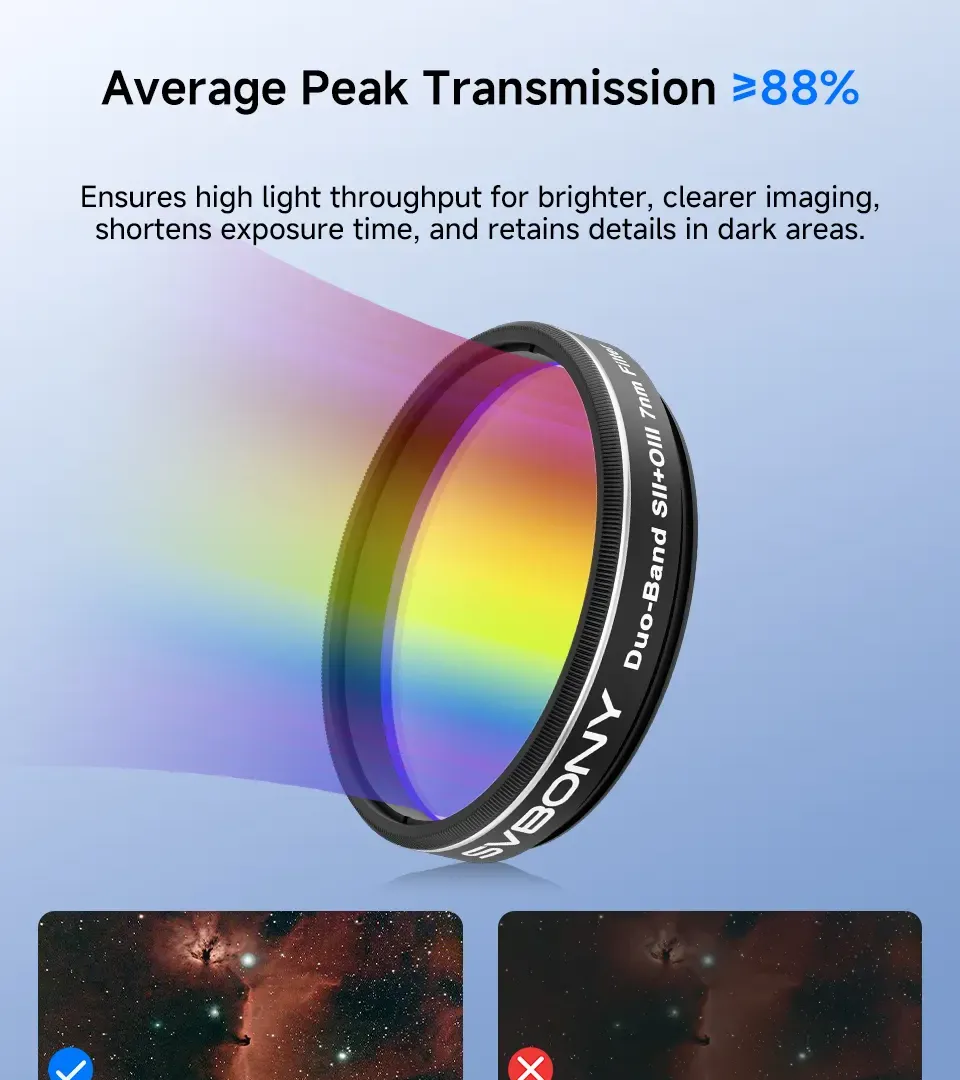

| Peak transmittance | ≥88% |
| Surface Quality | 60/40 |
| Surface Parallelism | 1/2λ |

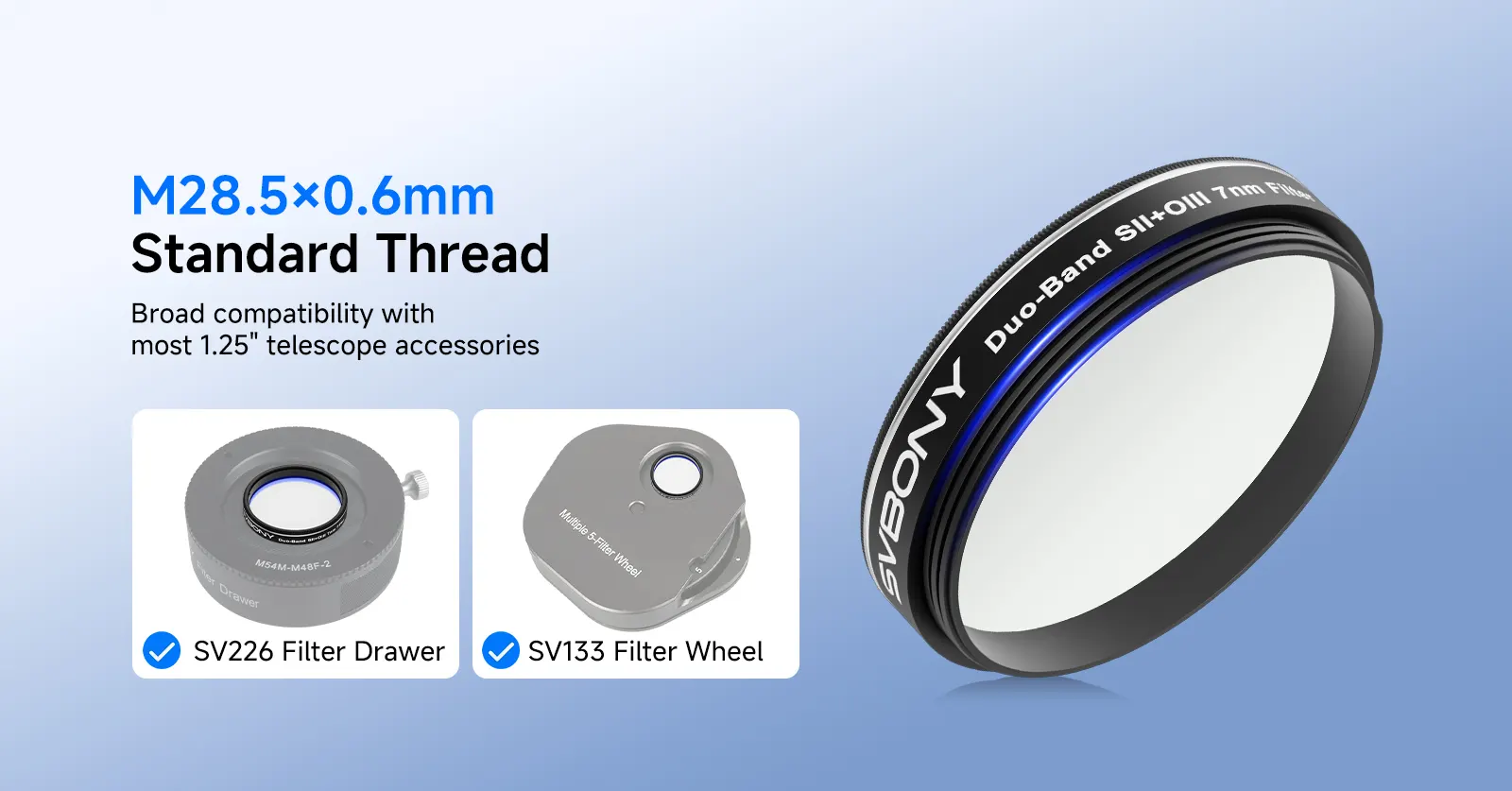

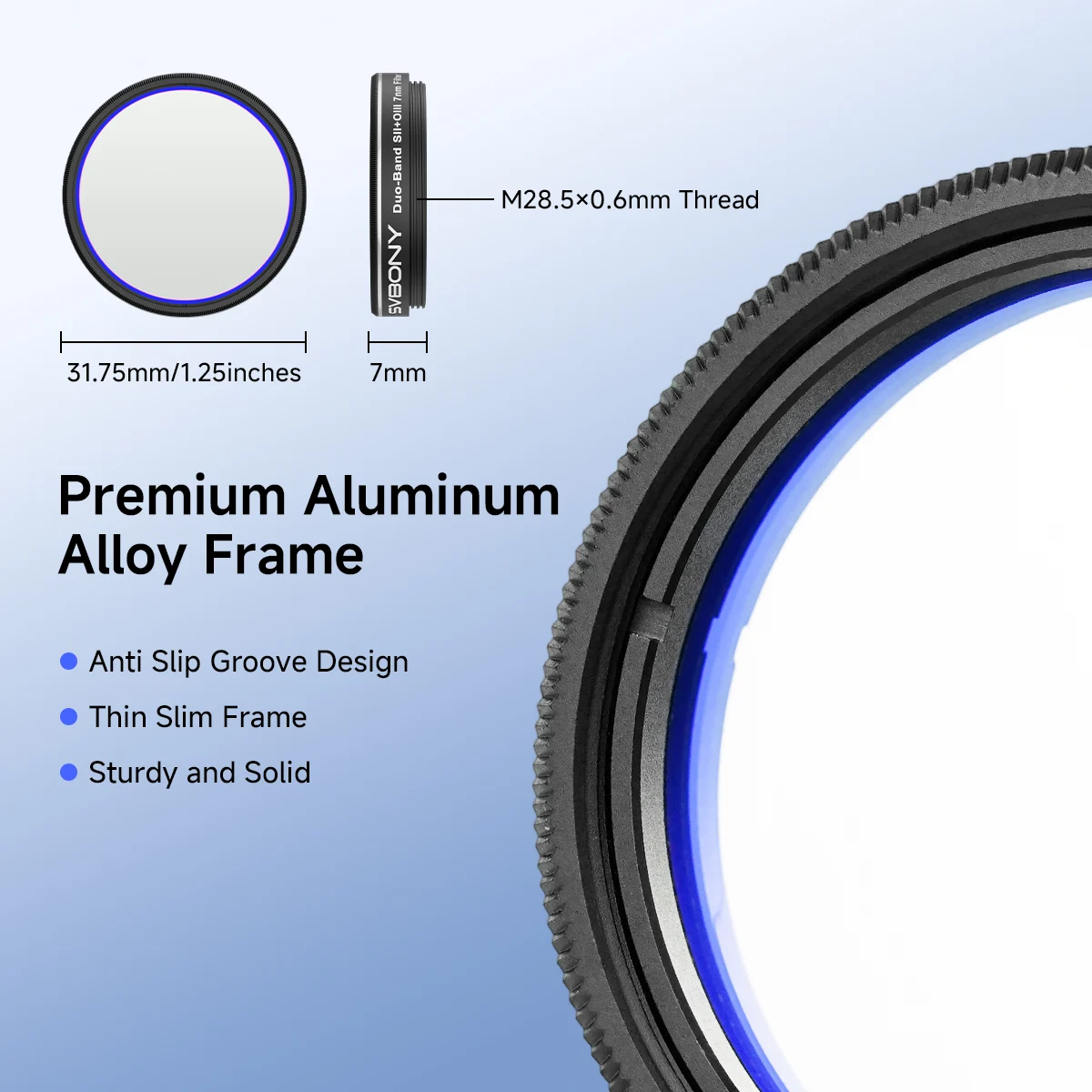

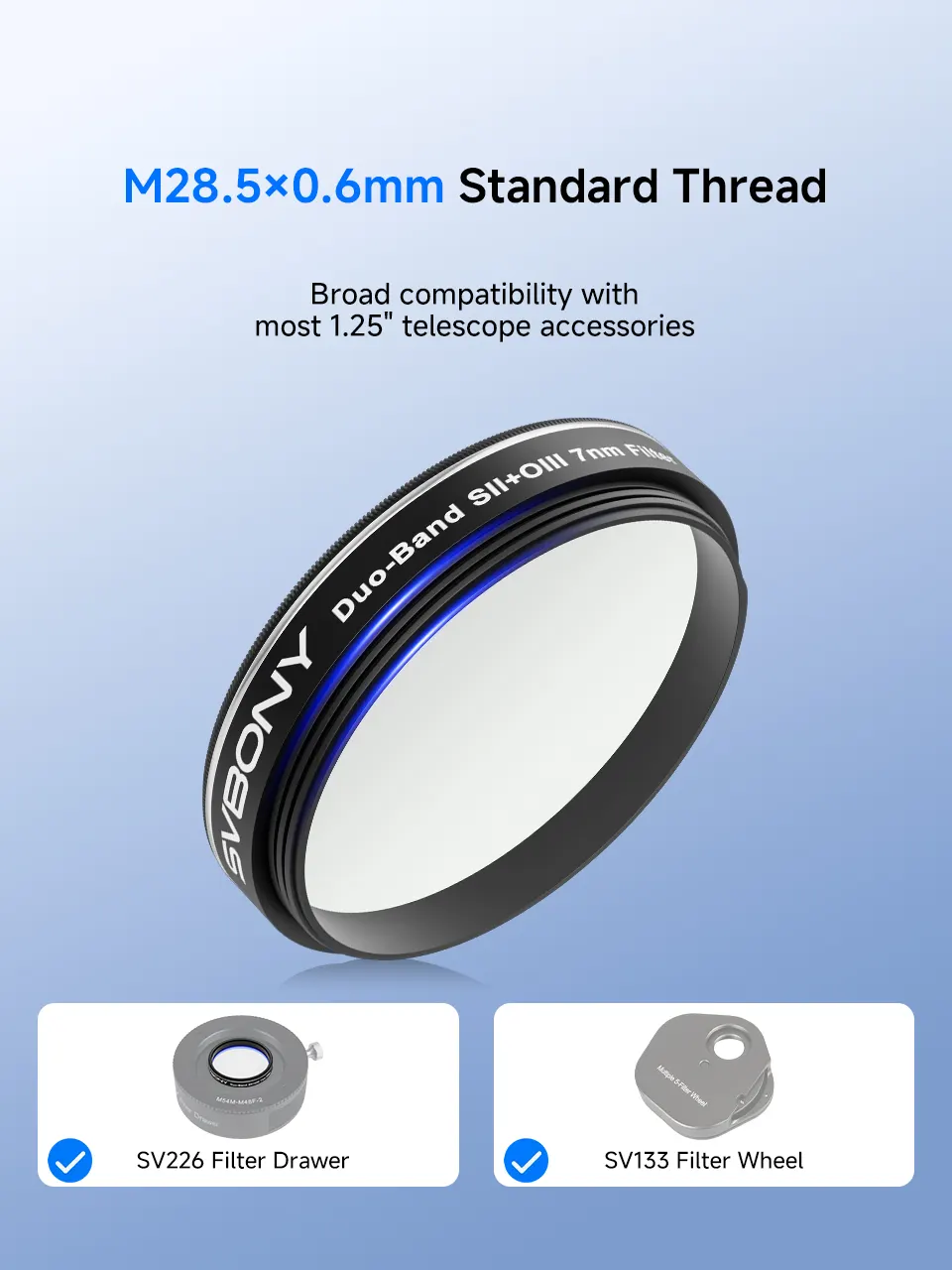

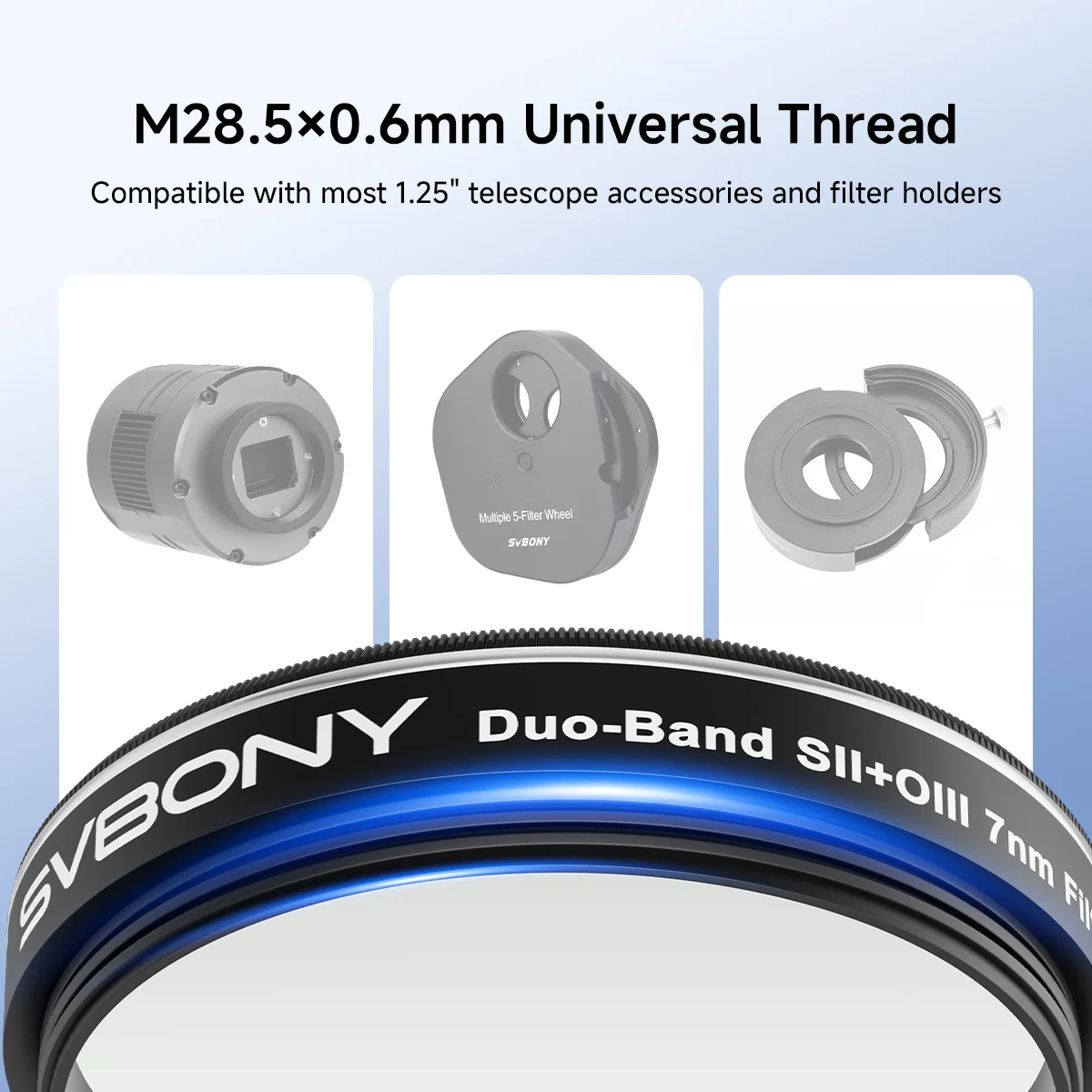

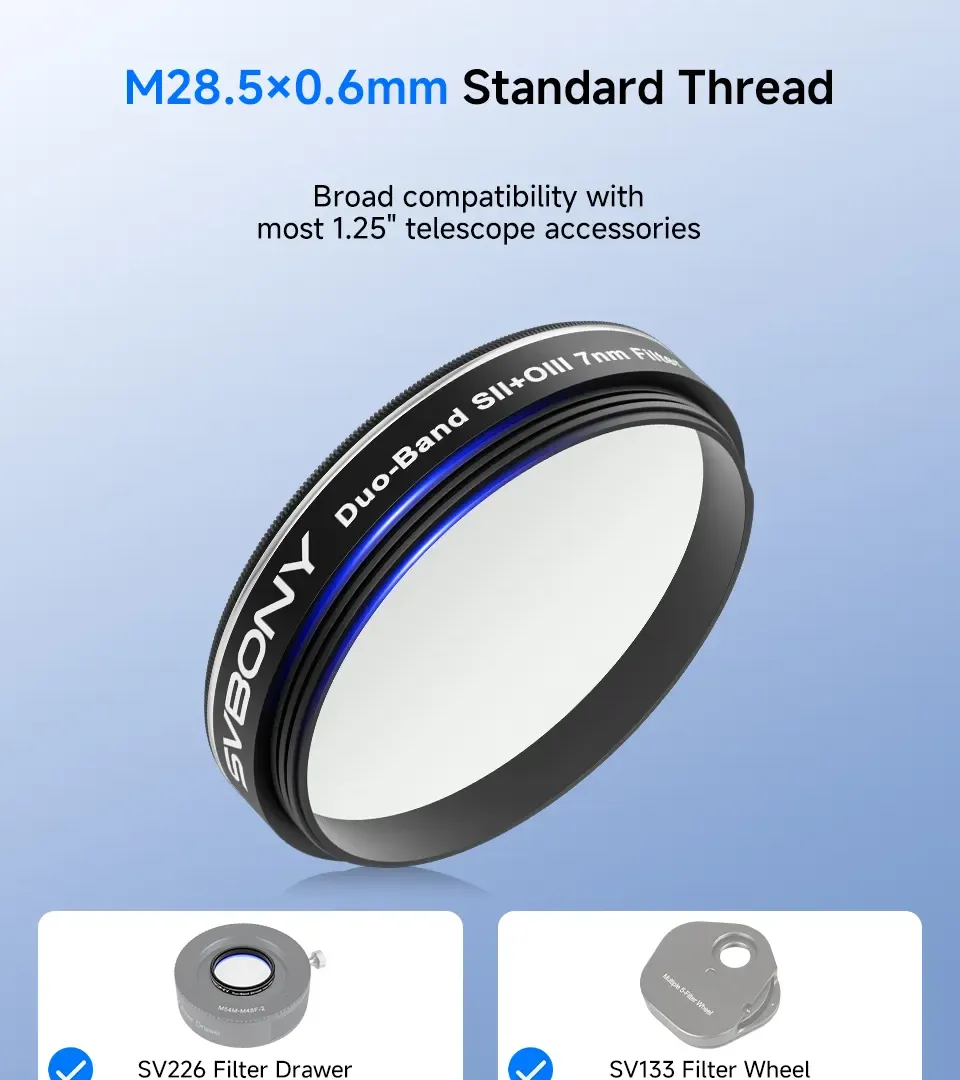

| Thread | M28.5x06 |
| Single Thread | Yes |
| Net Weight | 7g |
