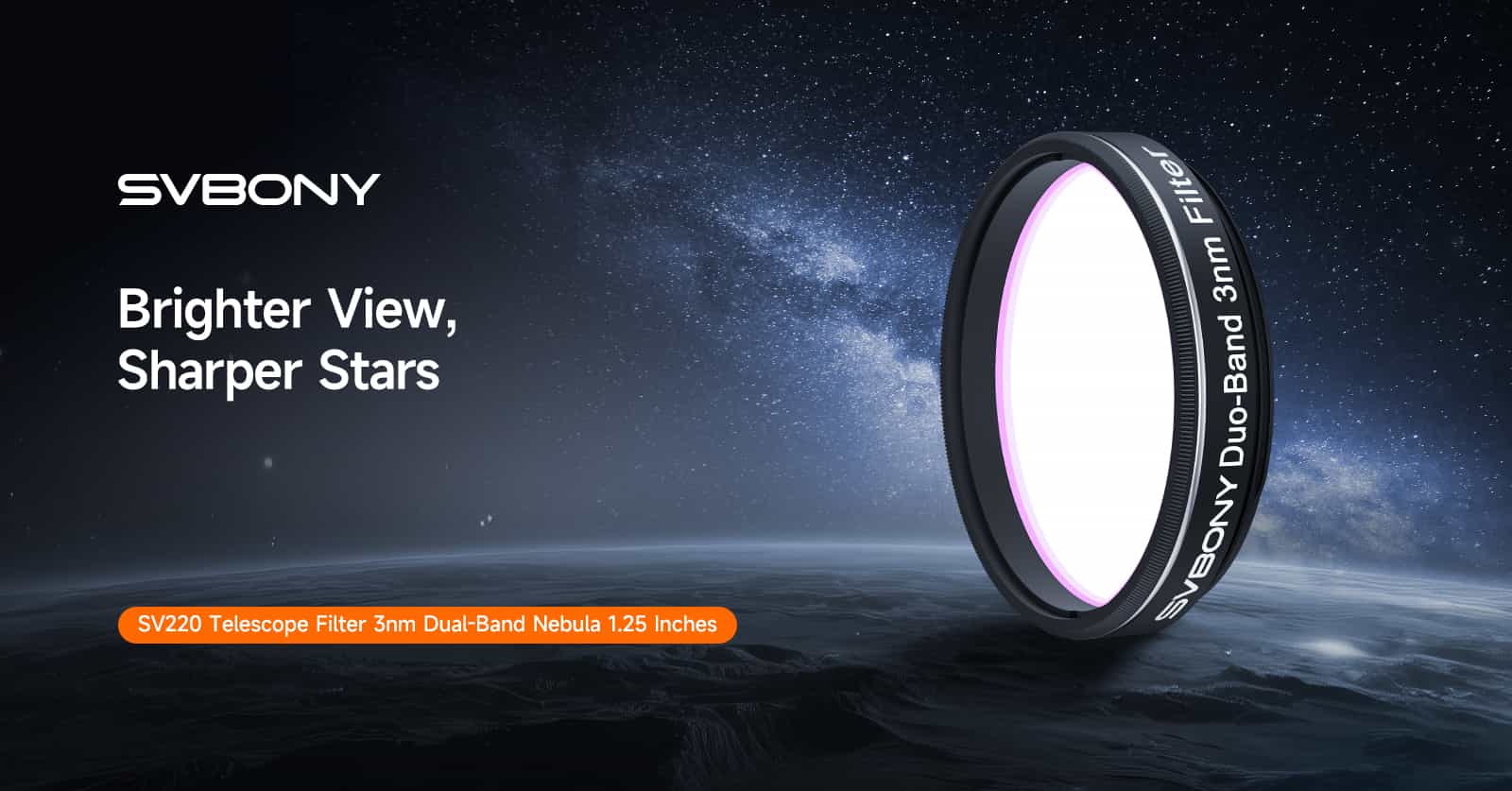

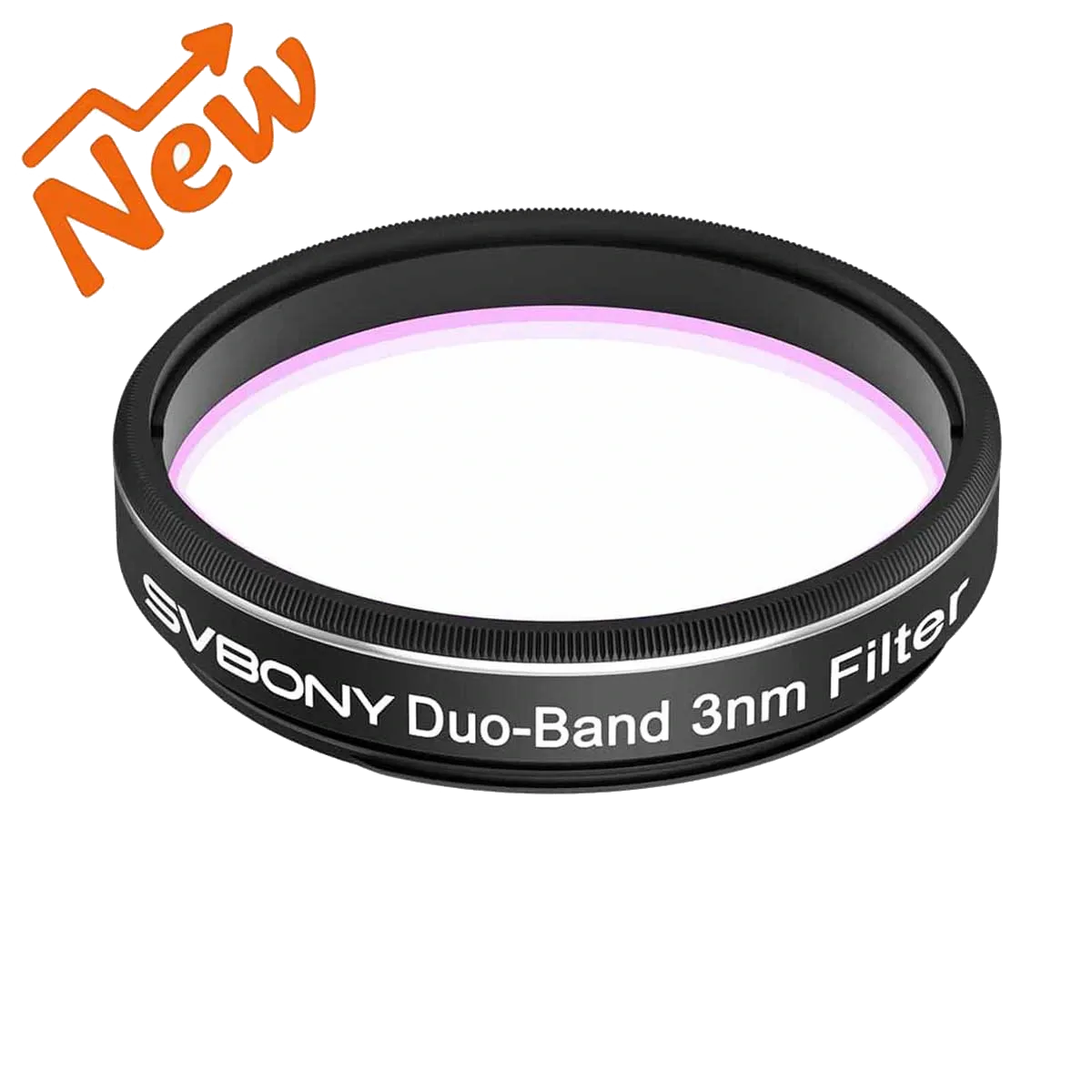

Narrowband Filter 3nm H-Alpha & OIII for astrophotography SV220 1.25inch SVBONY

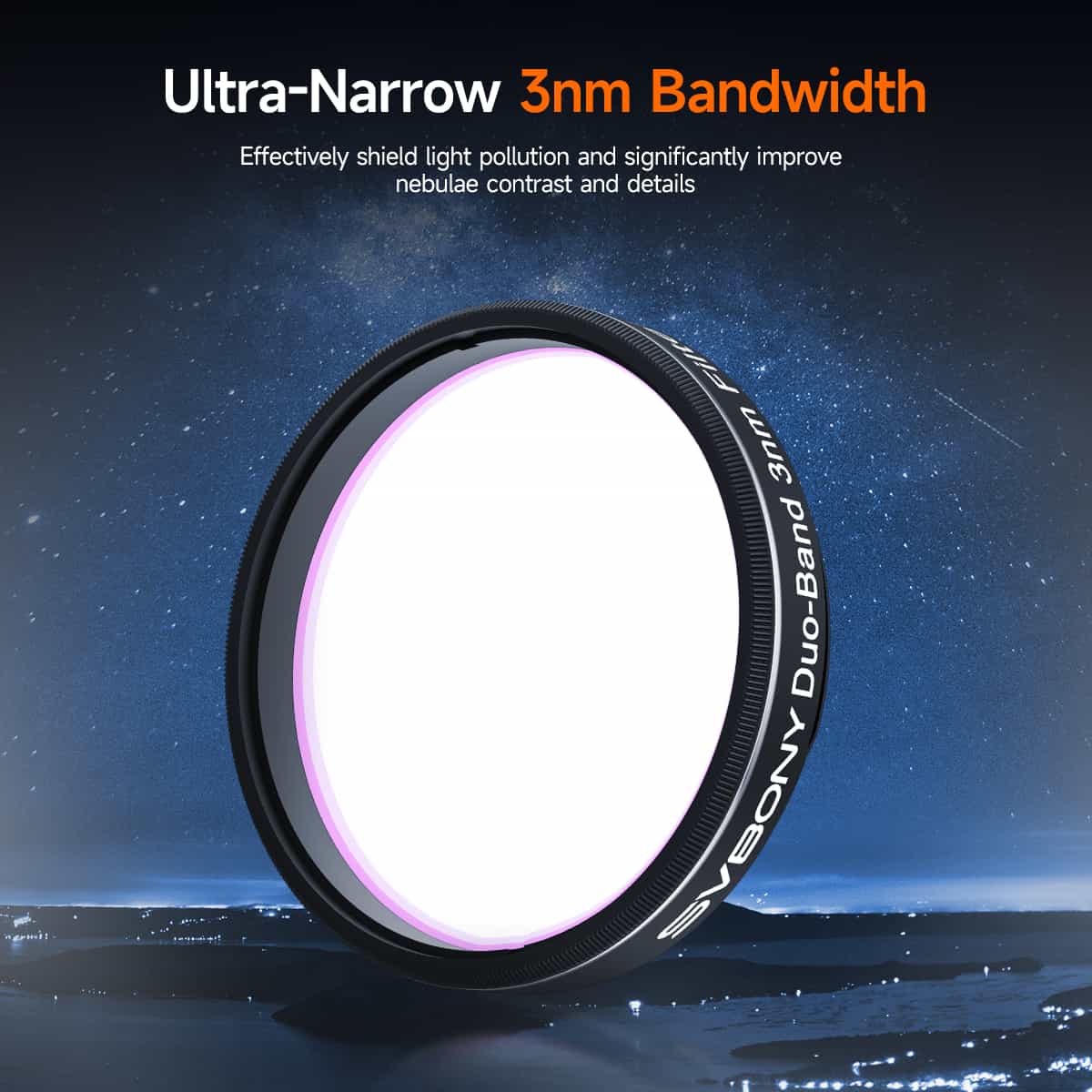

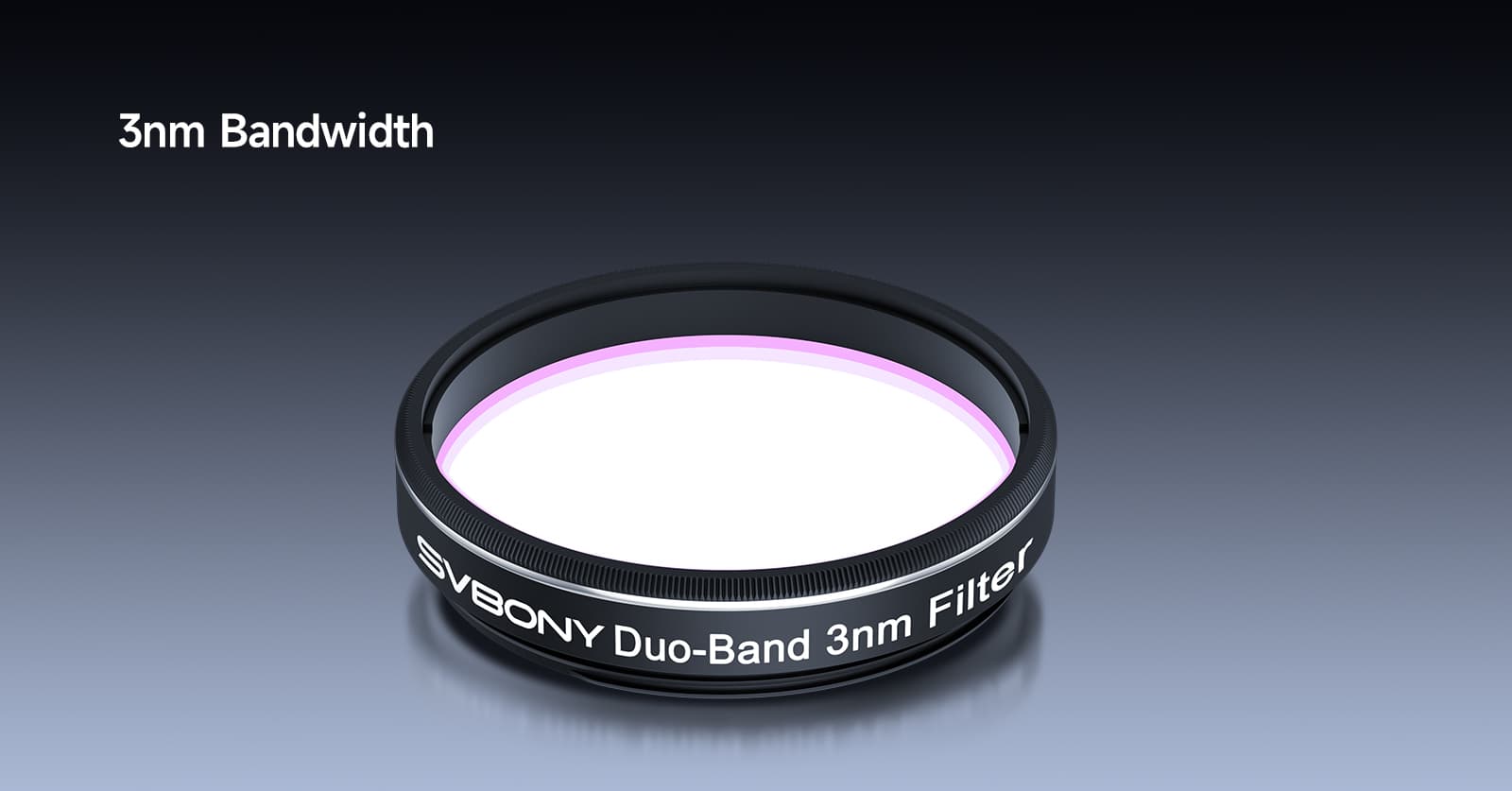

- Ultra-narrow 3nm (H-Alpha & OIII) bandwidth, ideal for photographing emission and planetary nebulae;

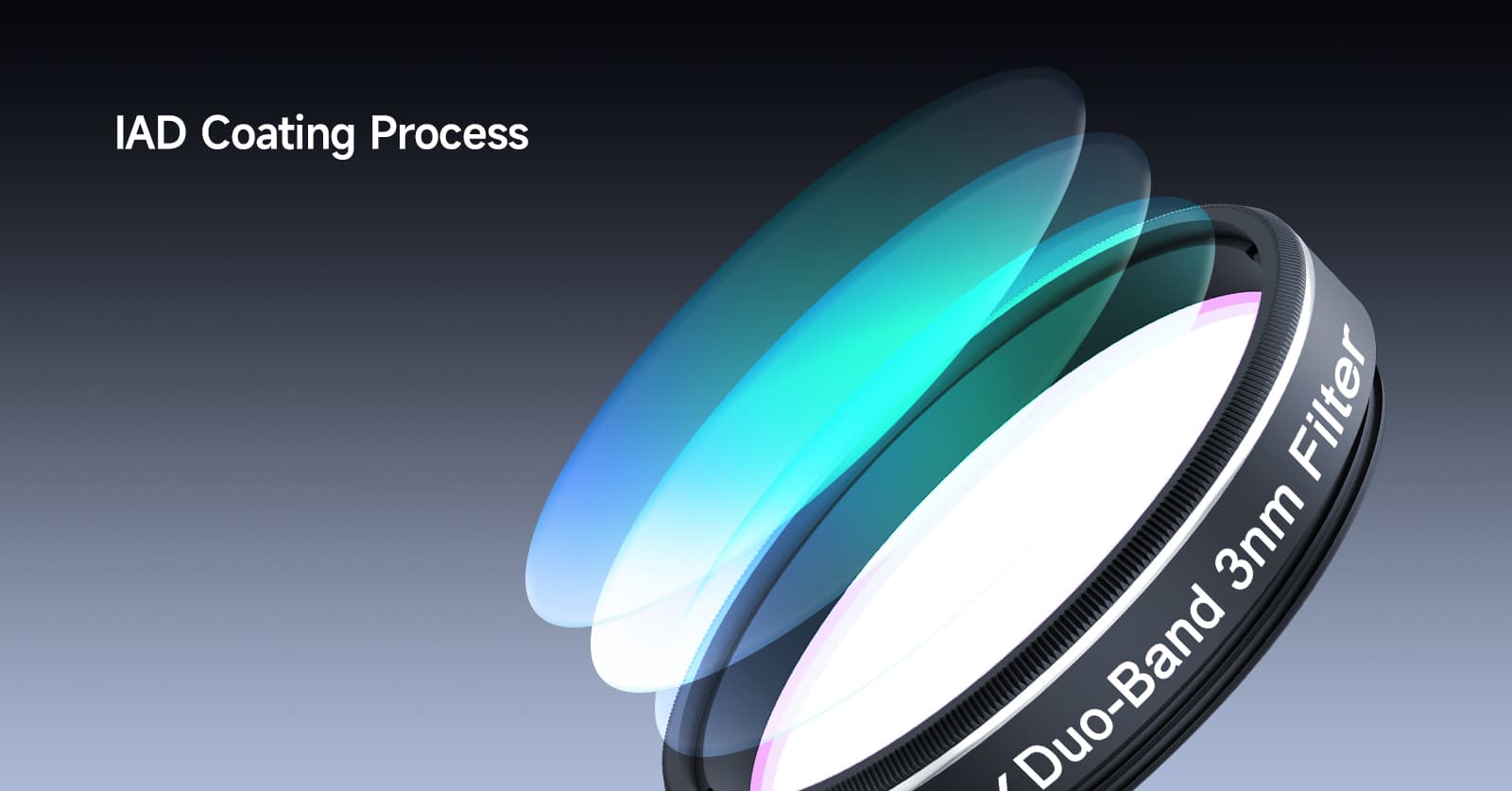

- Minimal halo coating design, effectively blocking excess light and reducing halos;

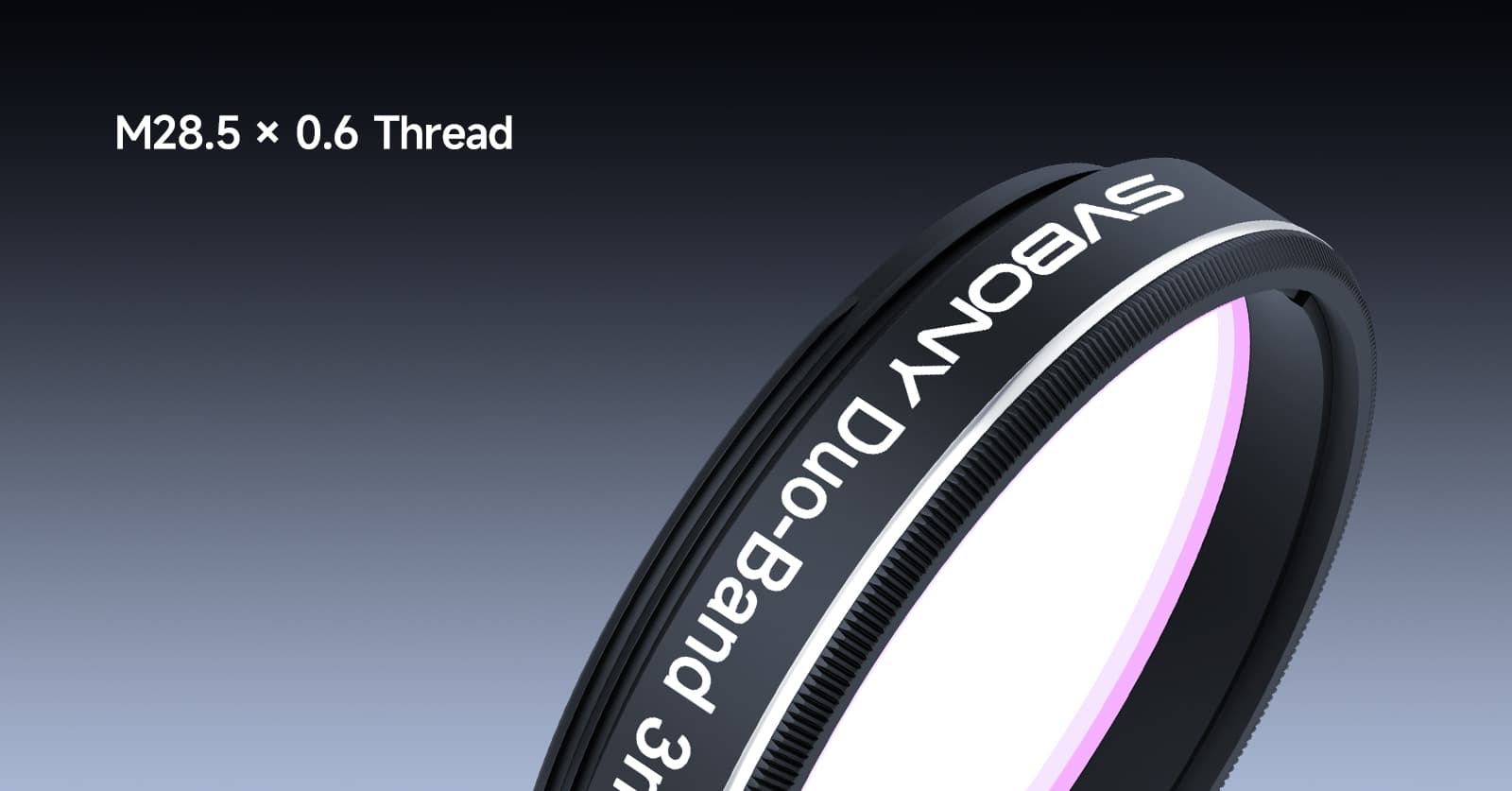

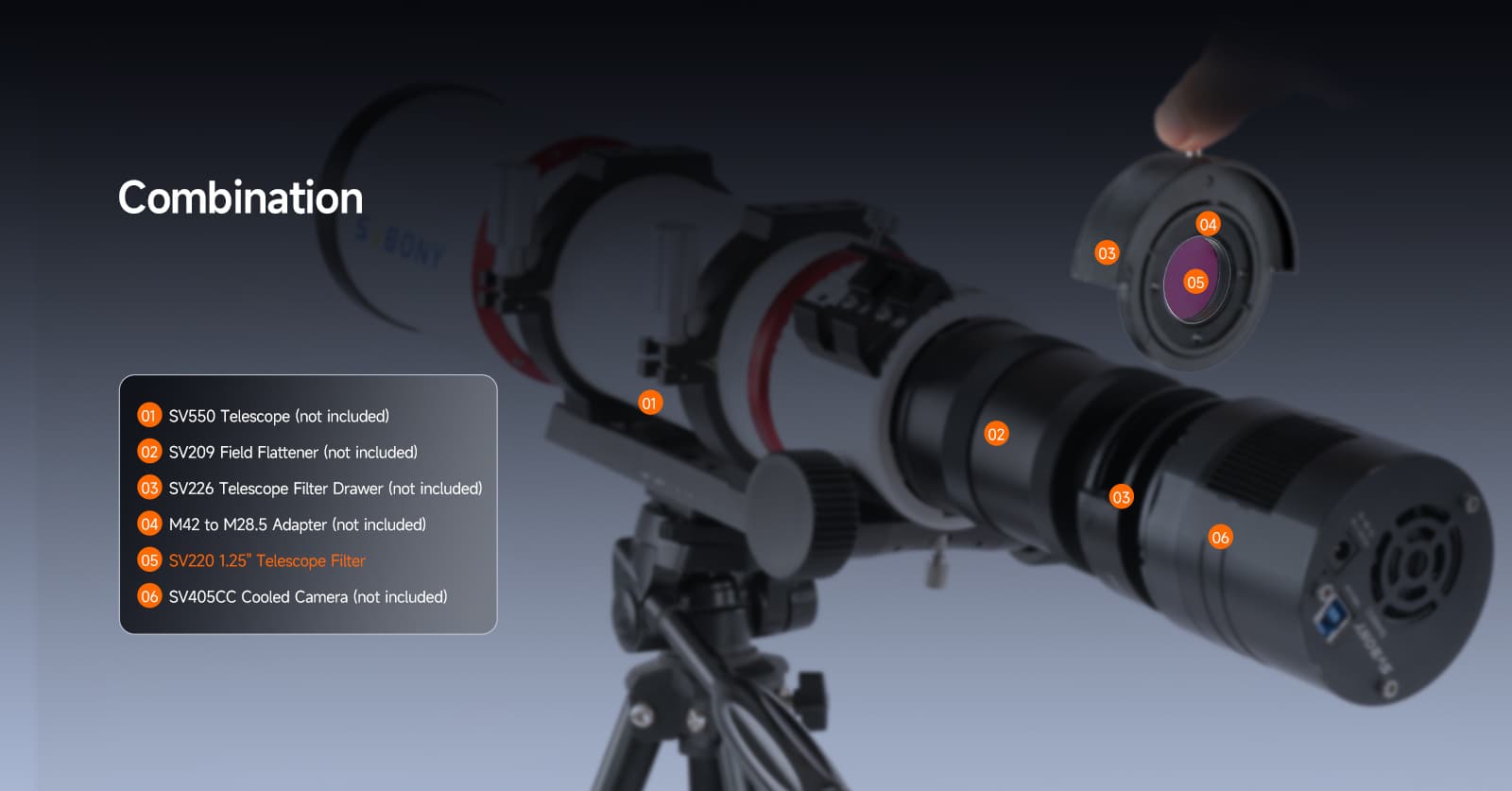

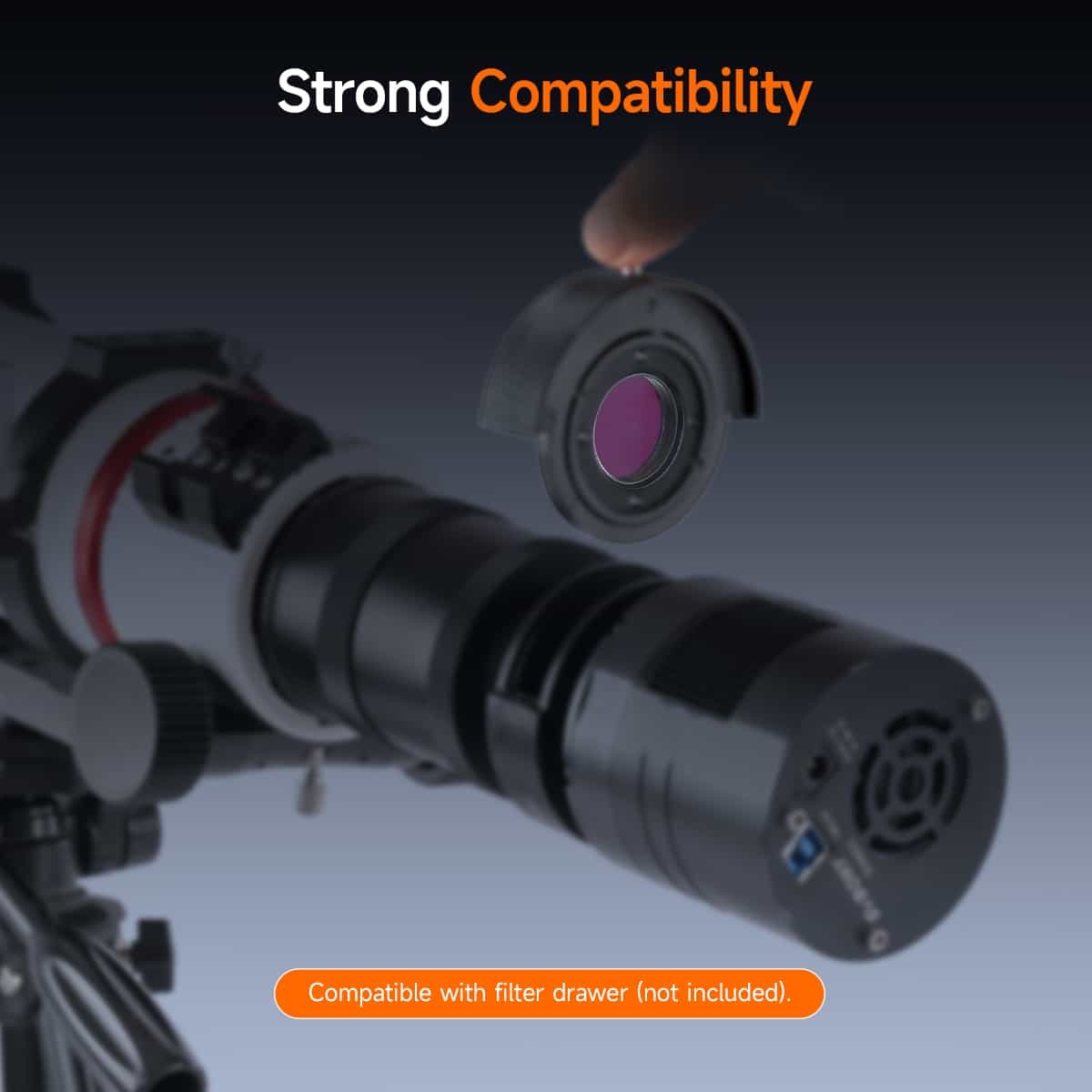

- Features an M28.5×0.6 thread and a lens barrel size of Φ31.75×7mm. Compatible with mainstream photographic equipment;

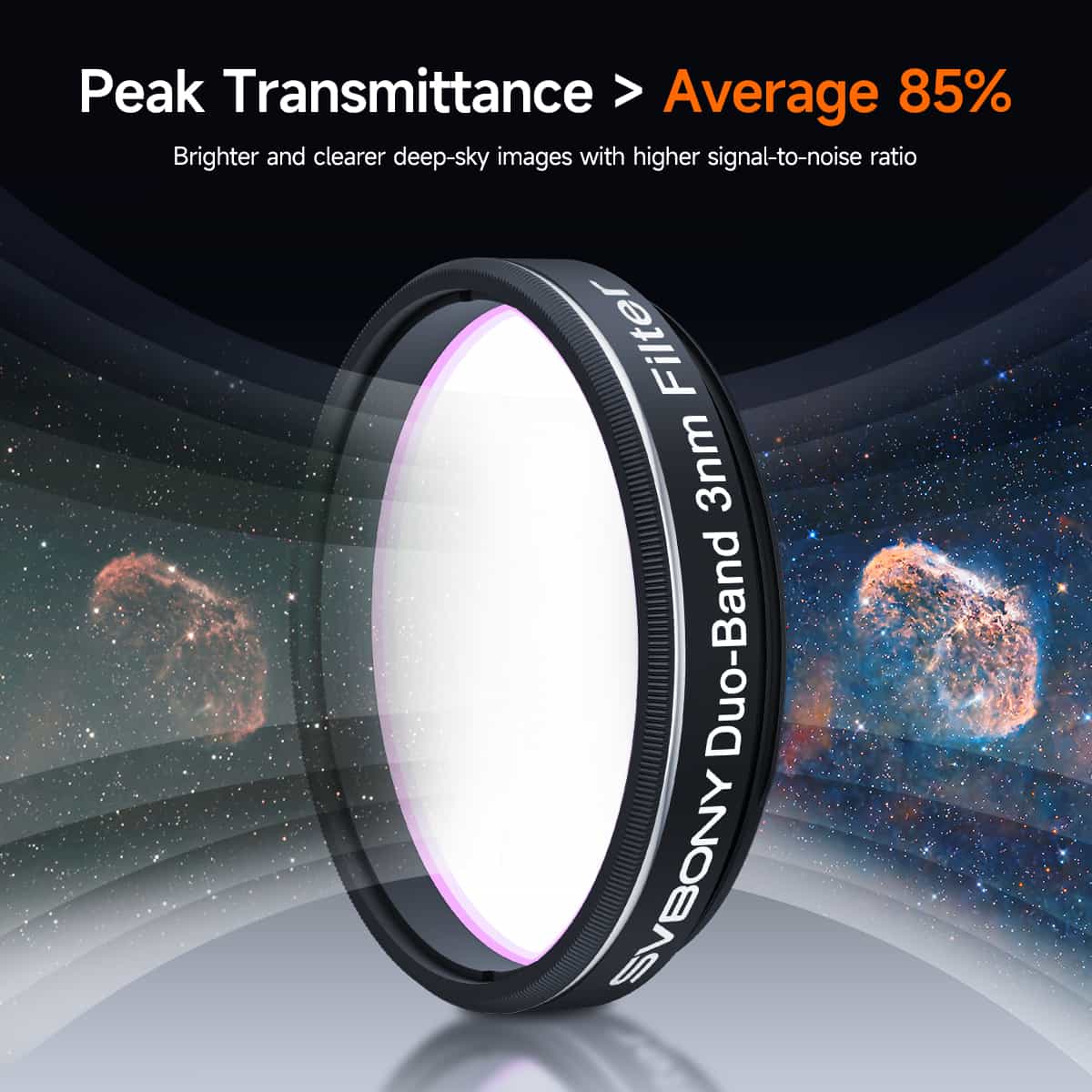

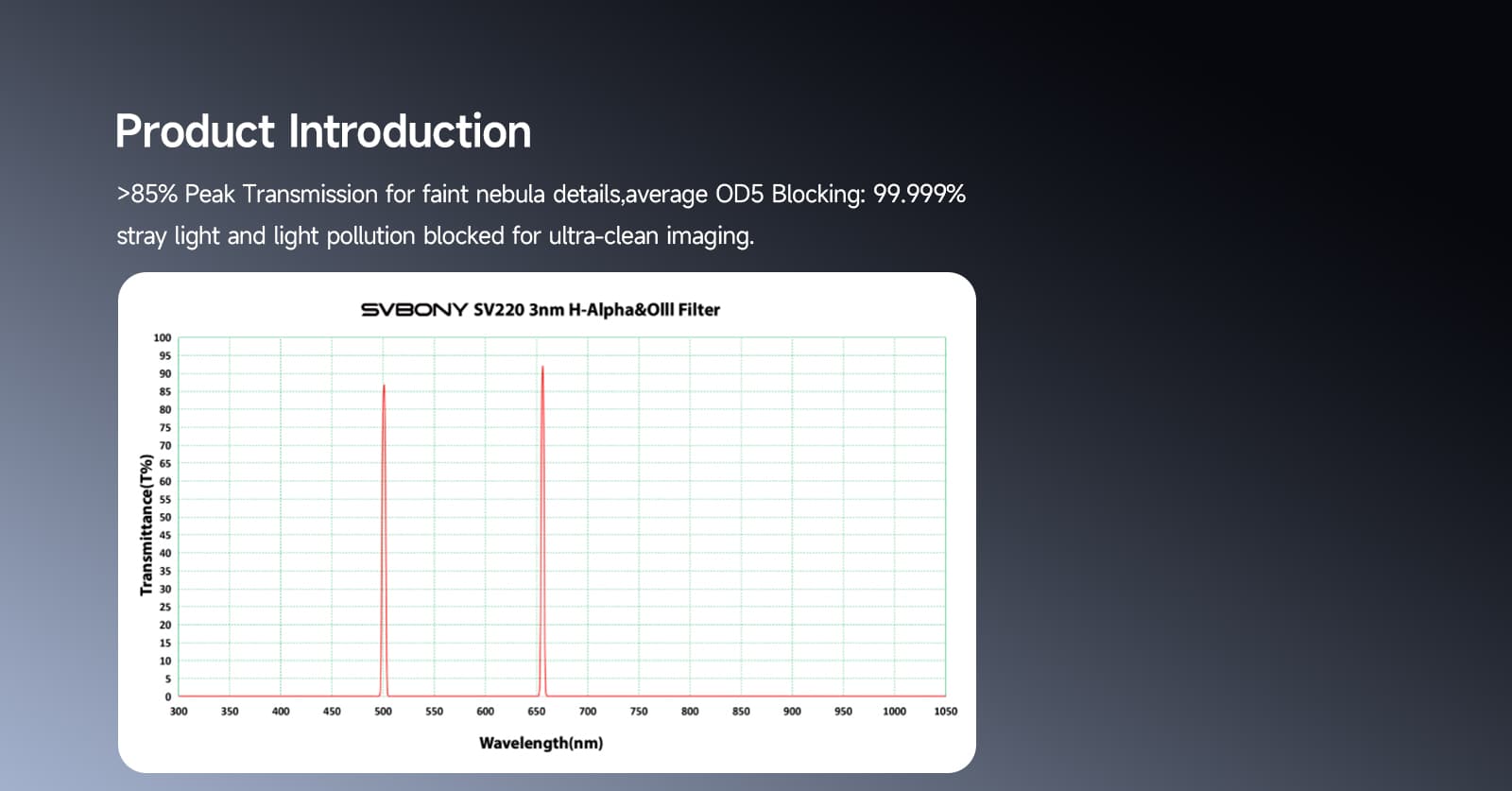

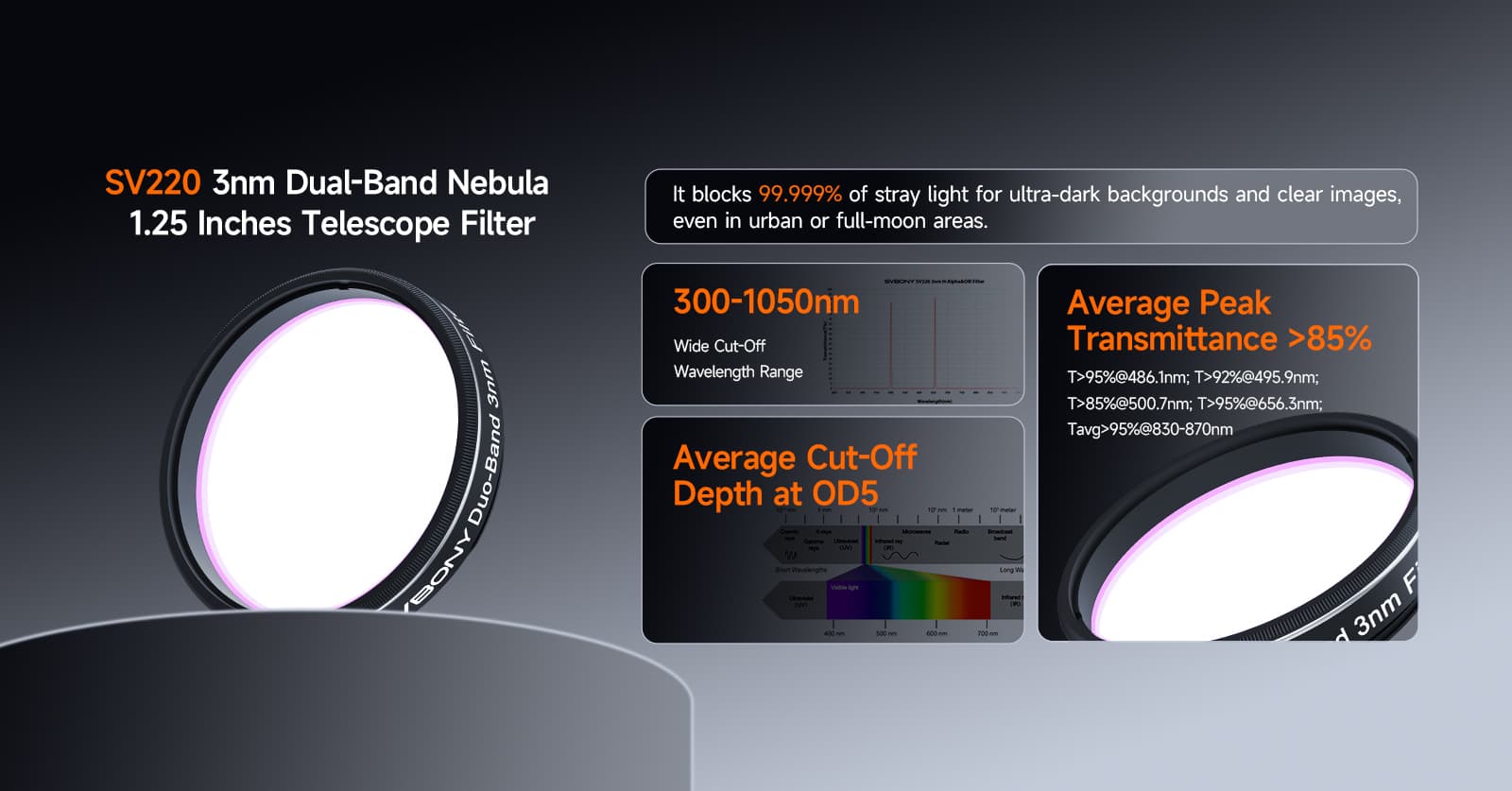

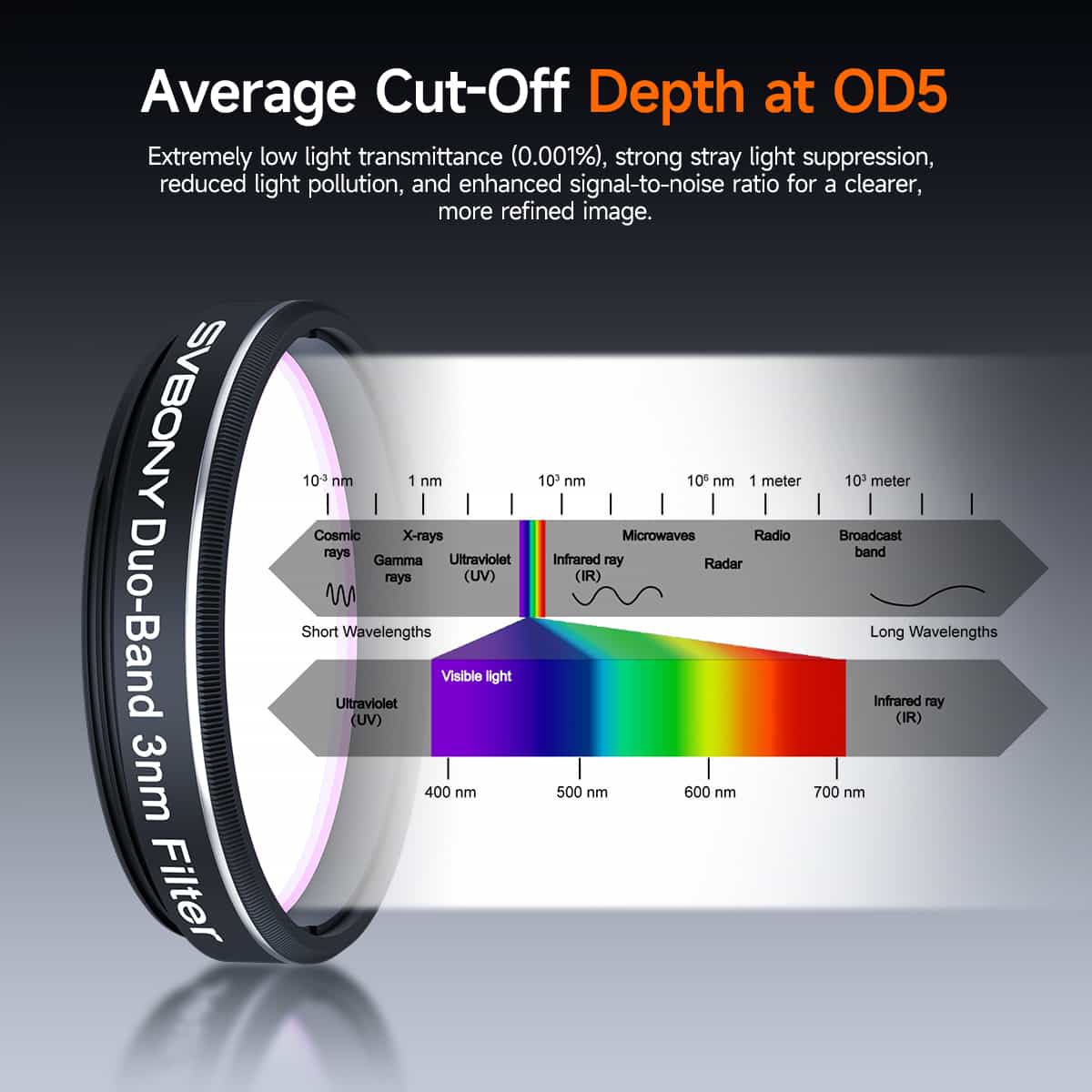

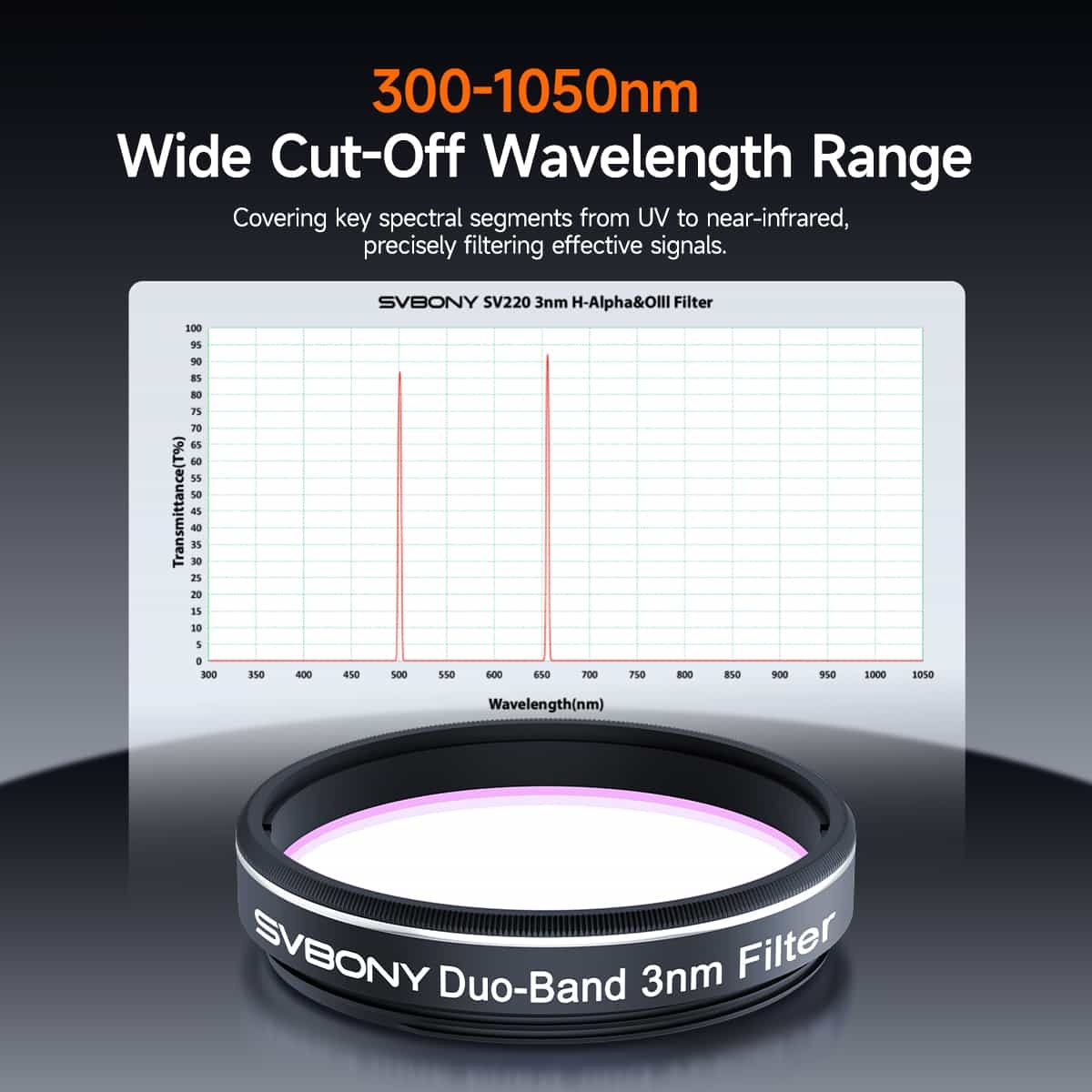

This 3nm dual narrowband (H-Alpha + OIII) filter features an ultra-narrow FWHM bandwidth of only 3±1nm, which efficiently filters out background stray light. Combined with a wide cutoff wavelength range of 300-1050nm (covering ultraviolet to near-infrared spectra) and an average OD5 transmittance as low as 0.001%, it strongly suppresses light pollution and stray light, significantly improving the signal-to-noise ratio (SNR). Meanwhile, its high transmittance performance of over 85% greatly reduces exposure requirements.Even in heavily light-polluted urban environments, it enables fast capture of deep-sky objects. In addition, it adopts multi-layer minimal halo coating design, which effectively reduces glare and halo interference, enhances image contrast and color accuracy, improves the purity of deep-sky photography images.
Customer Reviews
There are no customer reviews yet
|
Product specification
|
1.25 inches
|
|

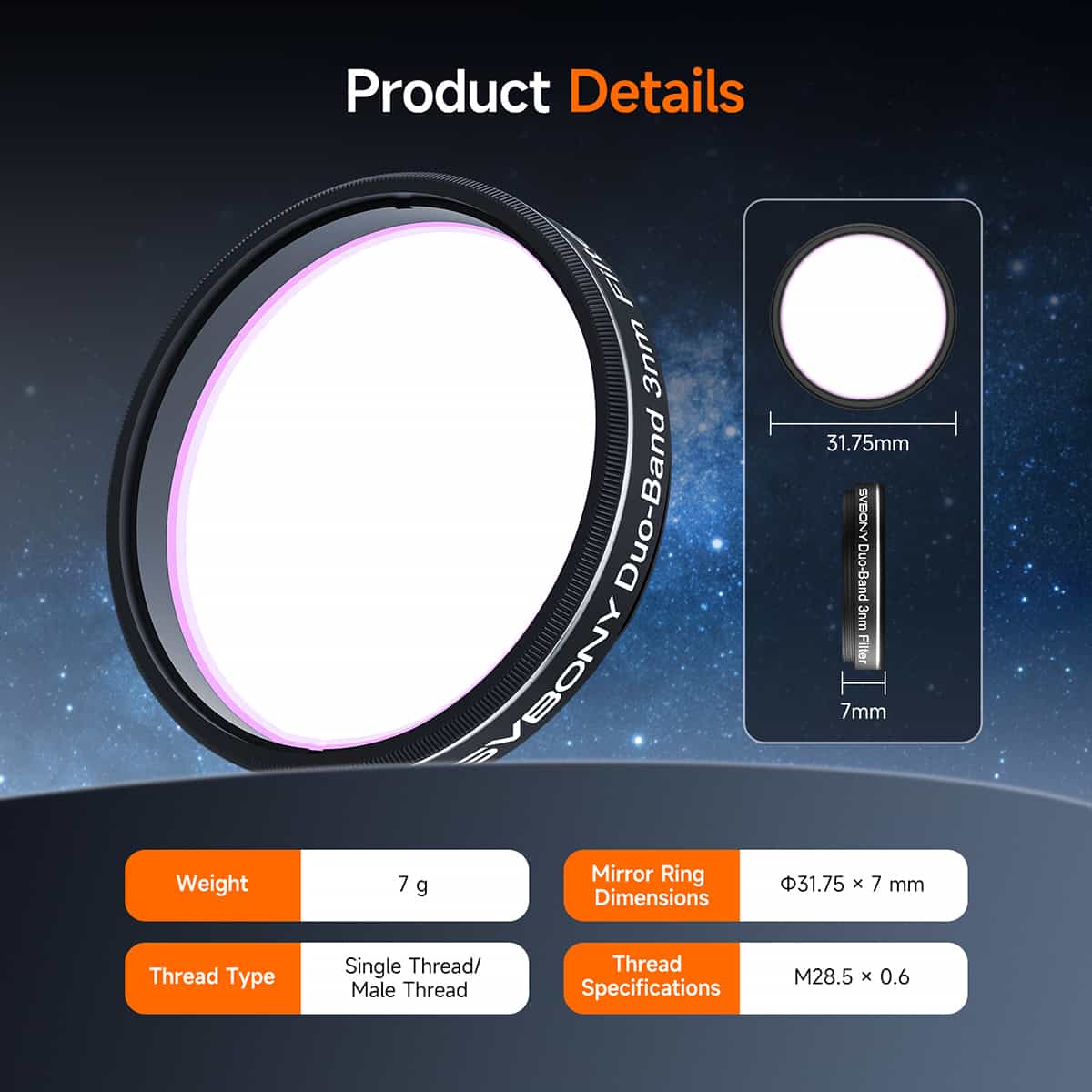

Mirror ring size
|
Φ31.75x7mm
|
|
Thread Type
|
Single Thread/Male Thread
|
|
Thread Specifications
|
M28.5*0.6
|
|
Material
|
6061T aluminum profile
|
|
Substrate Thickness
|
2.0 mm
|
|
Aperture of light transmission
|
26mm
|
|
Center Wavelength
|
500.7/656.3 nm
|
|
Bandwidth/FWHM
|
3±1nm
|
|
Cutoff wavelength
|
300-1050nm
|
|
Cut-off depth
|
average OD5
|
|
Surface quality
|
60/40
|
|
Surface flatness
|
transmitted wave front PV≤λ/4a
|
|
Parallelism
|
30″
|
|
Net weight
|
7g
|
