SV224 Universal Dovetail Slots for Installation of Finder Scope for Optical Telescope
2 | ReviewsKey Features
- Stable Equipment Installation
- Multi-Function Dovetail Slot
- Telescope Adaptation
- SVBONY Metal Structure Assuranc
- Official Telescope Mounting Access

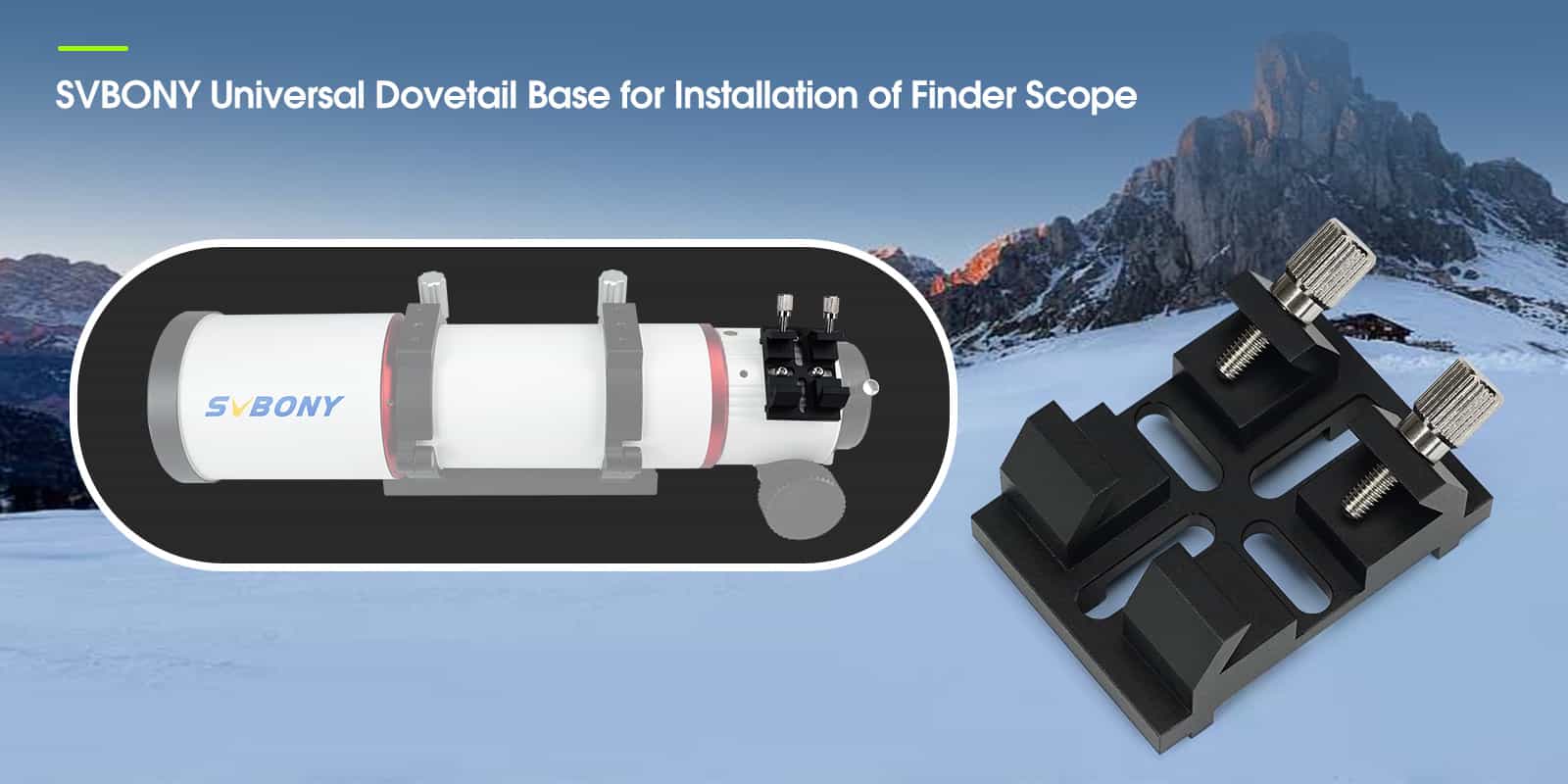

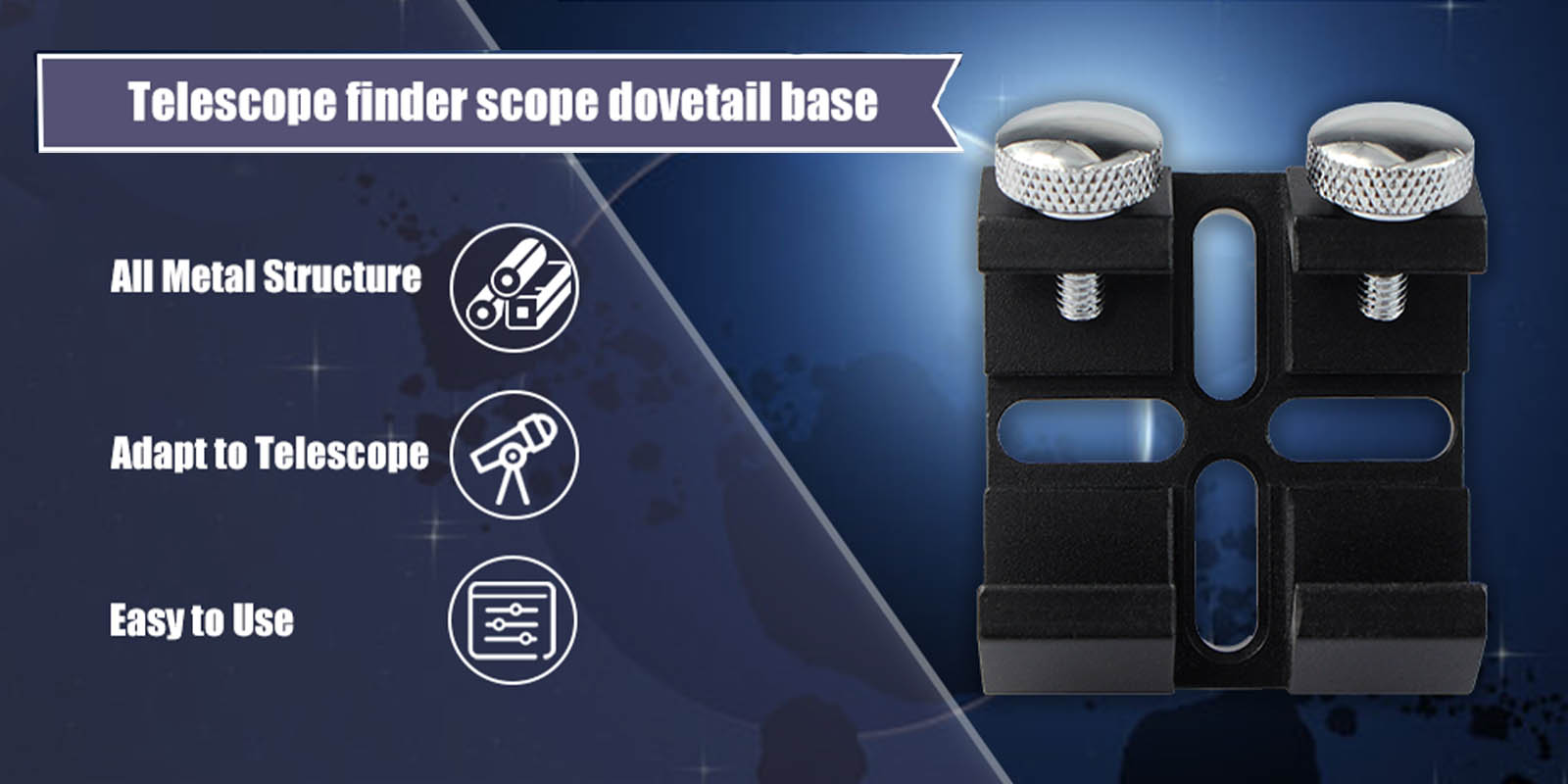

SVBONY Universal Dovetail Base For Optical Astronomical telescope Finder Scope
High-quality Built

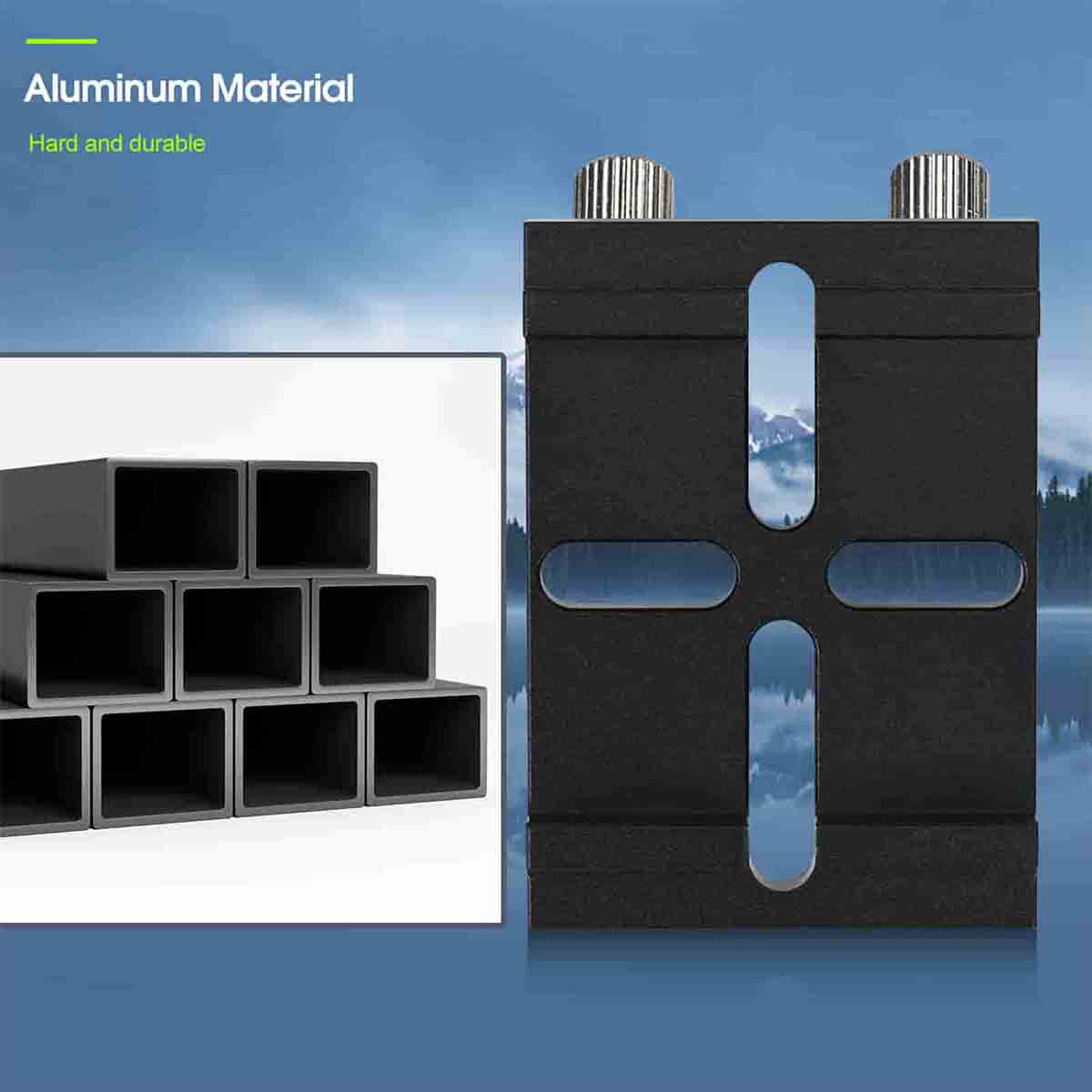

The dovetail base made of high-strength aluminum with anodizing aluminium process; is designed to accept finder scope.
Dovetail Base

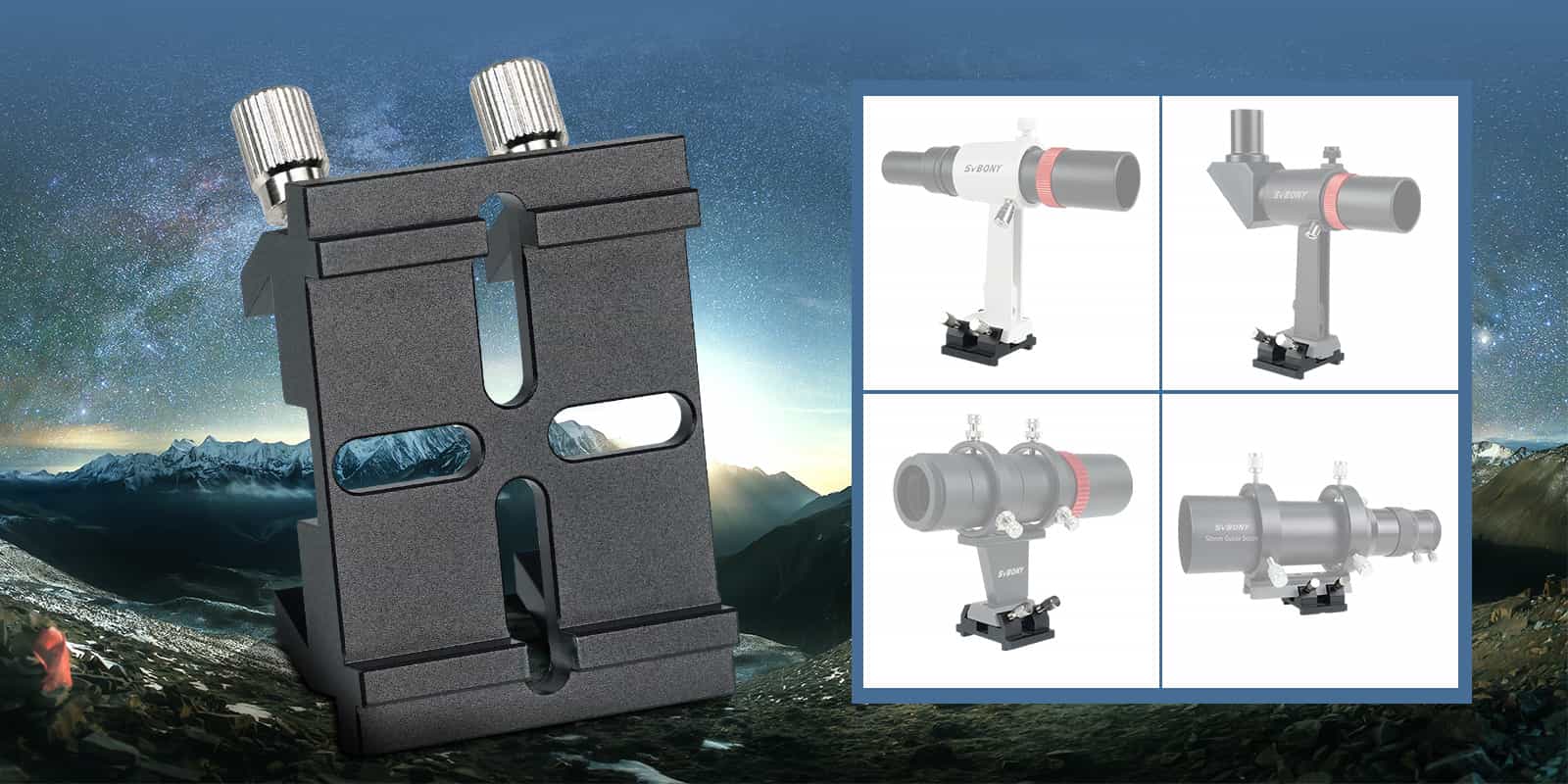

The dovetail base fits most bracket designs; compliable with finder scope on telescopes, so you can securely attach an aiming device to any telescope.

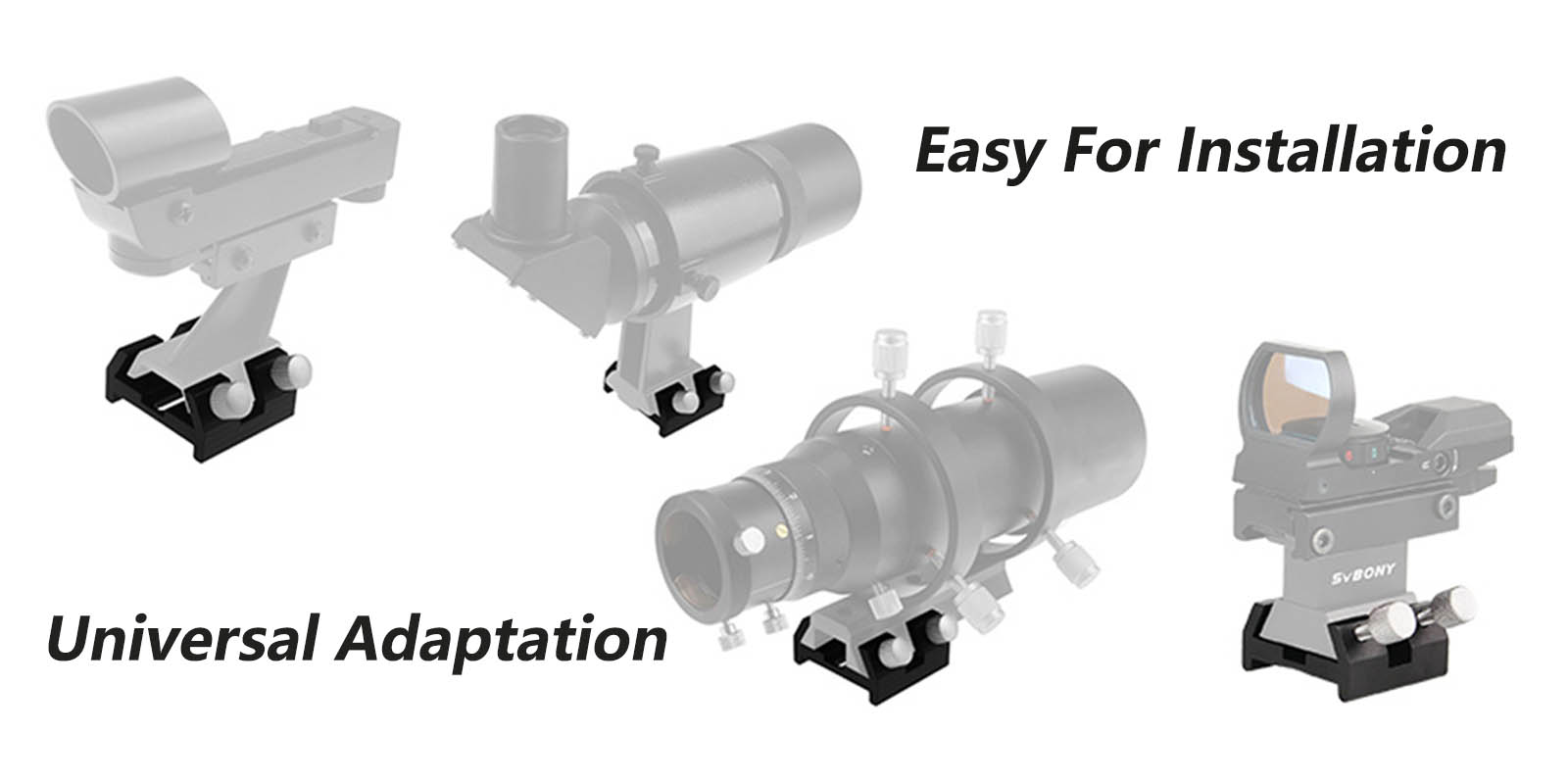

Easy for Installation
The dovetail is easy to use; you can use thread screws to assemble it to your optical tube; the use is easy; just put it on the optical tube and tighten the screws.
SVBONY Universal Dovetail Base For Optical Astronomical telescope Finder Scope
High-quality Built
The dovetail base made of high-strength aluminum with anodizing aluminium process; is designed to accept finder scope.
Dovetail Base
The dovetail base fits most bracket designs; compliable with finder scope on telescopes, so you can securely attach an aiming device to any telescope.
Easy for Installation
The dovetail is easy to use; you can use thread screws to assemble it to your optical tube; the use is easy; just put it on the optical tube and tighten the screws.
Customer Reviews
Hubert Elsner
Oct 29, 2024
Preiswert und ok...
Phyllis Dugger
Sep 04, 2024
Arrived on time; well made universal dovetail base and easy to use.

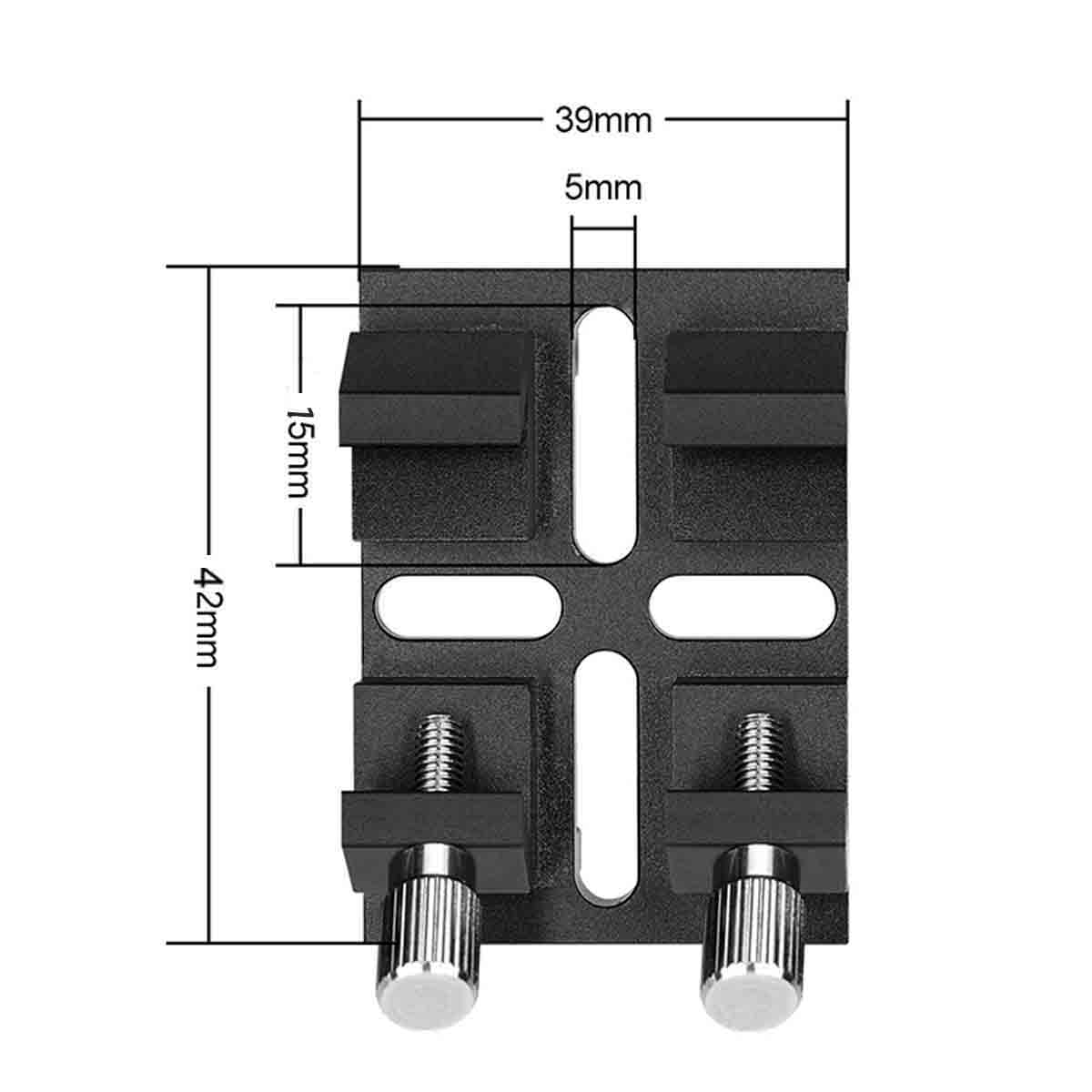

| Model | W2370A | W2370B |
| Length | 39mm | 39mm |
| Width | 42mm | 54mm |
| Height | 20mm | 22.6mm |
| Width of internal slot | 5mm | 5mm |
| Horizontal length of internal slot | 15*5mm | 20*5mm |
| Vertical length of internal slot | 15*5mm | 15*5mm |
| Height of bottom | 4.5mm | 3.8mm |
| inner diameter of the cross slot | 5mm | 5mm |
| outter diameter of the cross slot | 9mm | 11mm |
| Can be fixed | M3-M4 screw | M5 screw |
| Color | Black | Black |
| Weight | 41g | 45g |
Features
- 1. SV224 dovetail slot is multi-funtion dovetail slot, the width of the internal slot is 5mm, it can be fixed with M3-M5 screw

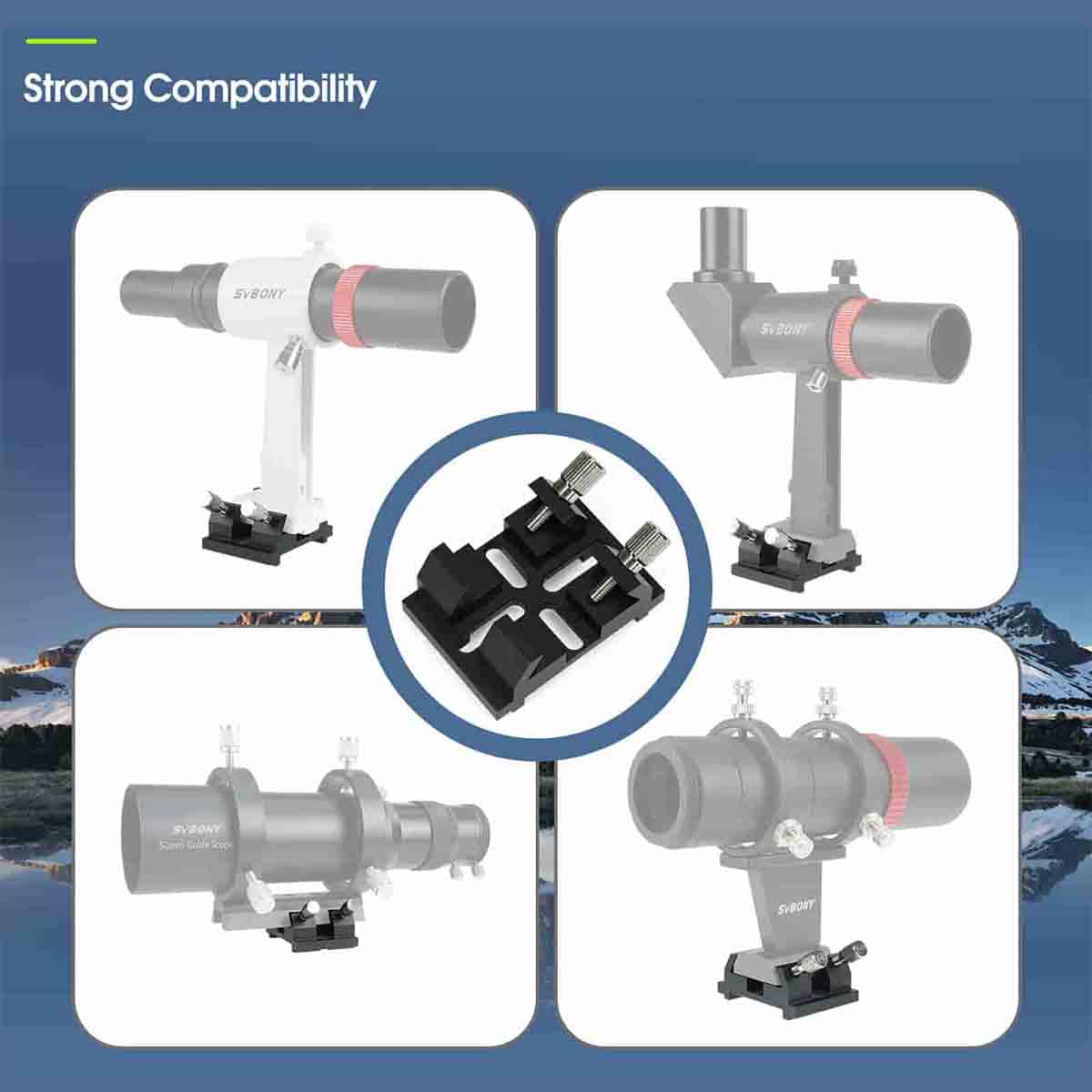

- 2. It can be installed to: SVBONY SV48, SV48P, SV503 70/80/102ED, Celestron C8, C8HD, C925, C11HD, SKYRVER: 80ED, 102ED, 130APO, SKYRVER 100ED binoculars, and other primary mirror

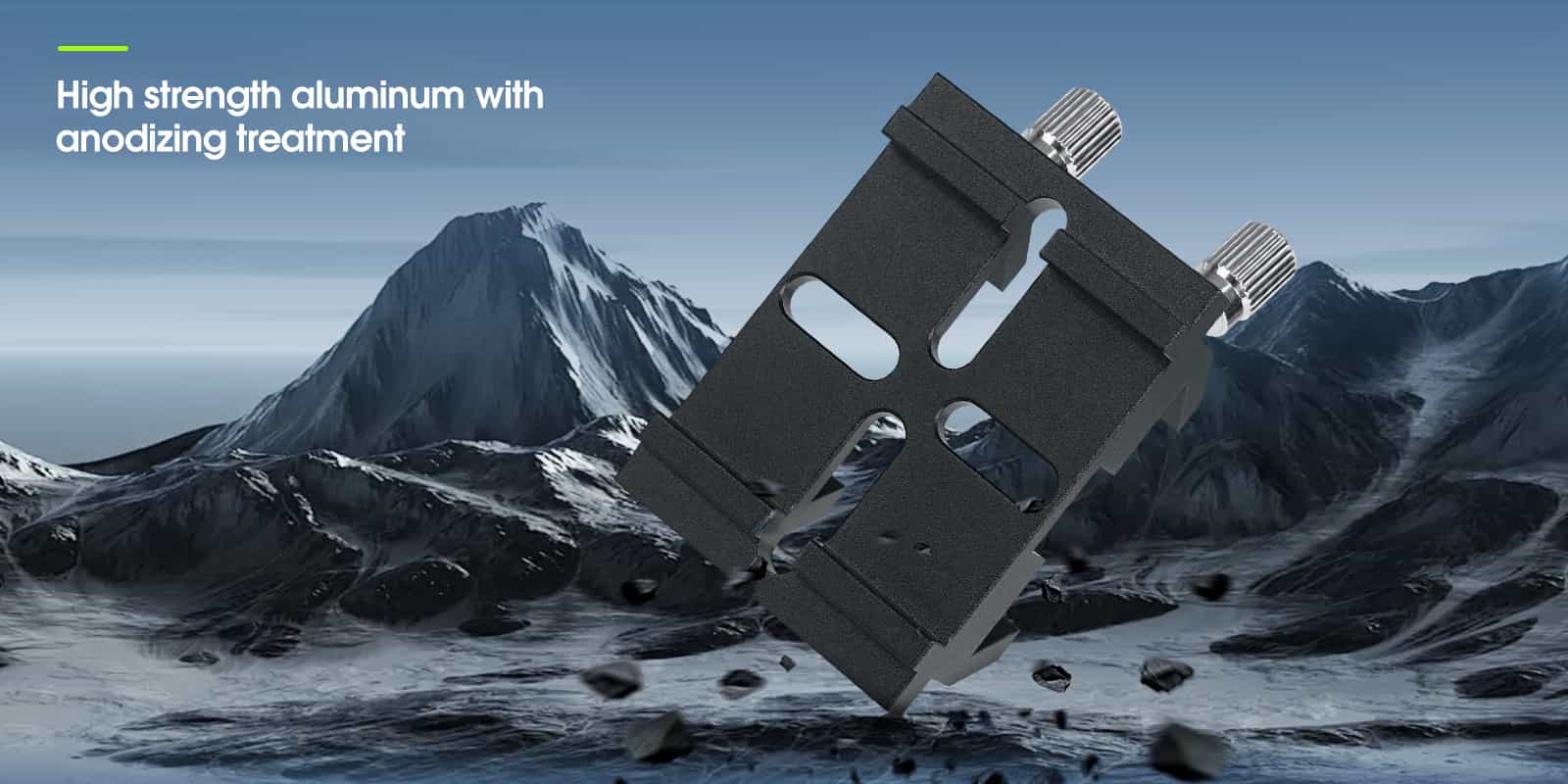

- 3. High strength aluminum with anodizing treatment. CNC machining ensures smooth surface and precise cutting of rail, it fits your telescope perfect. Made of premium aluminium alloy, solid construction is wearable and durbale for years of use

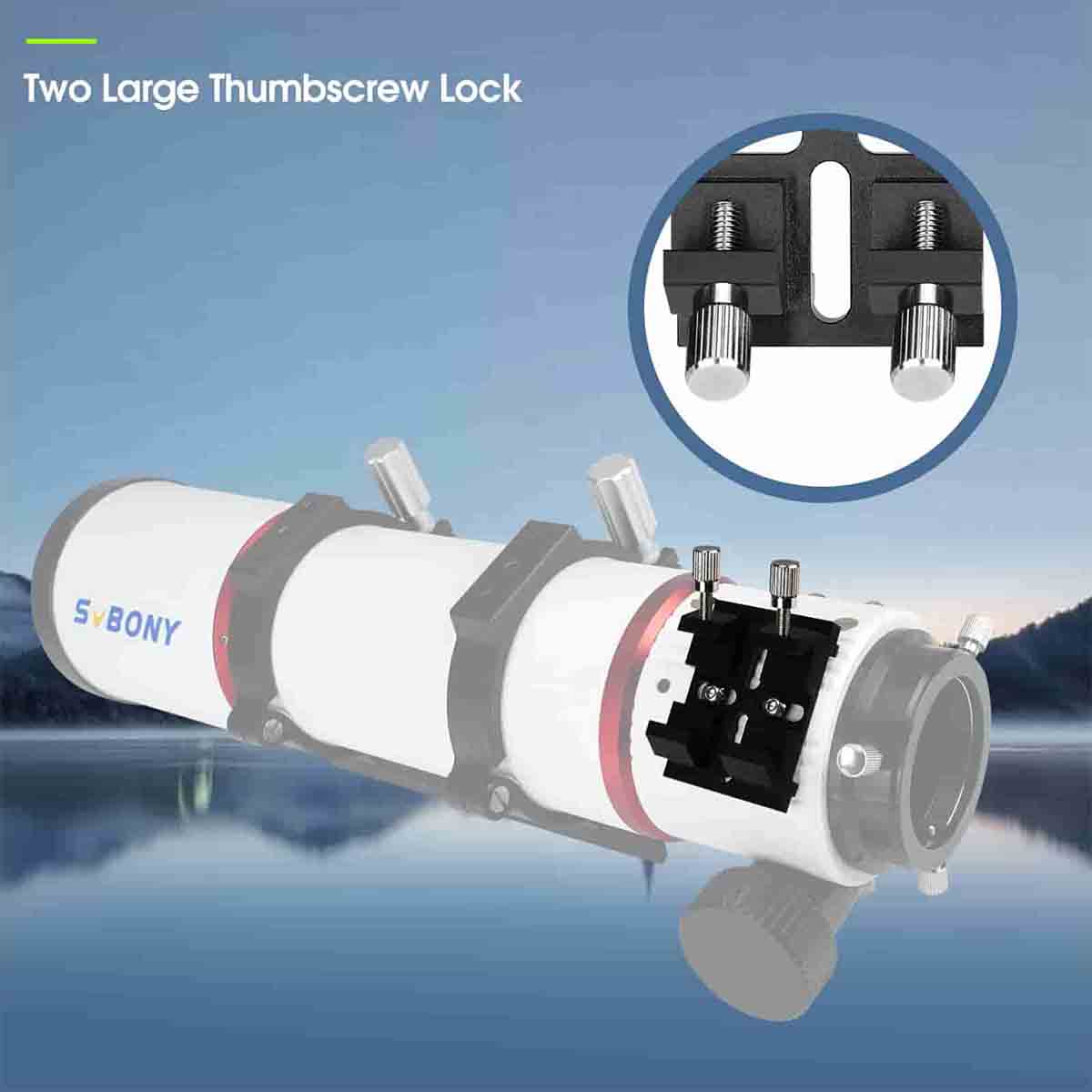

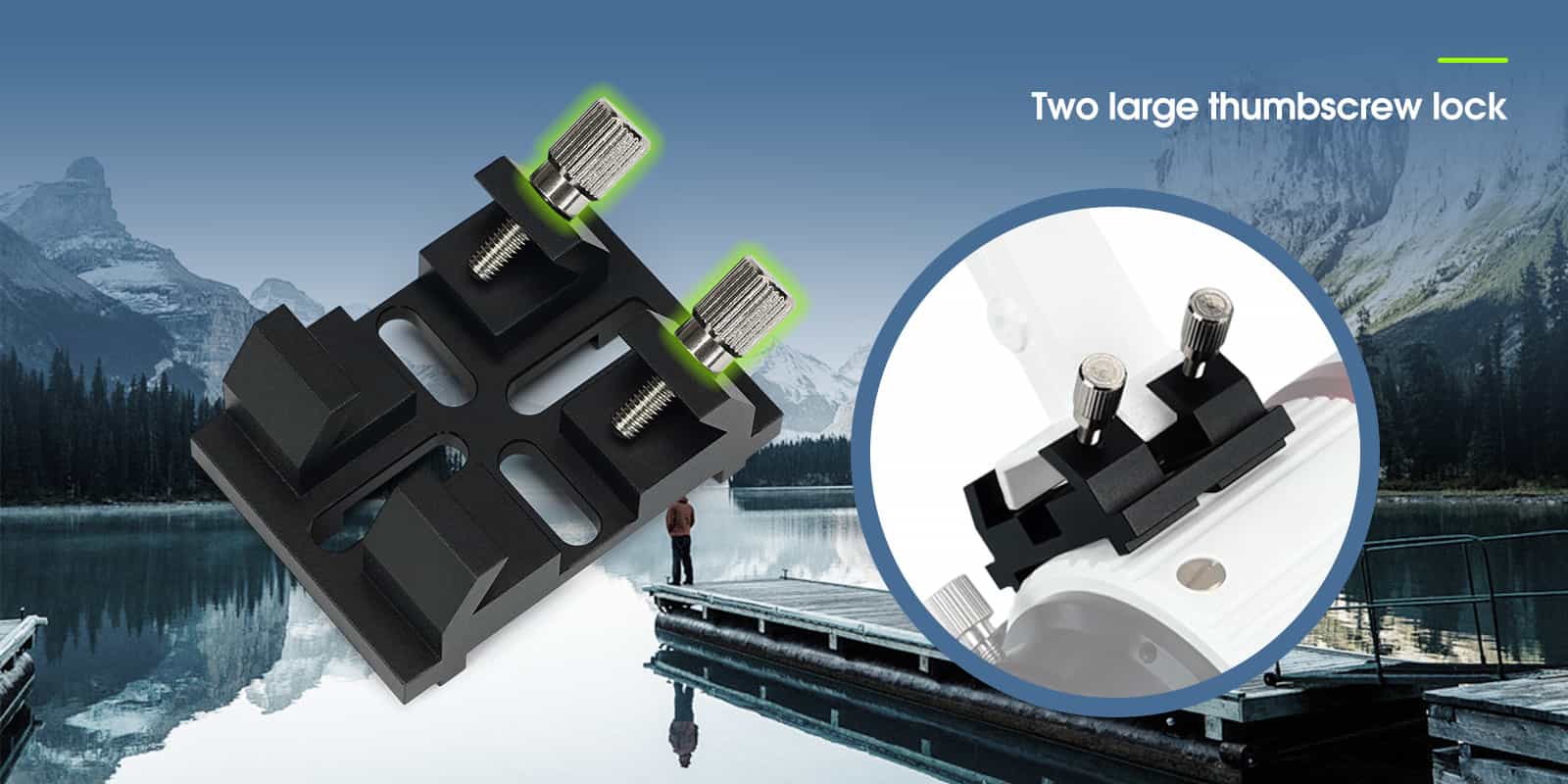

- 4. Bases feature two large thumbscrew locks to secure the finder scope bracket in place; and very easy to install and detach your finder scope or reflex sight; even though wearing gloves

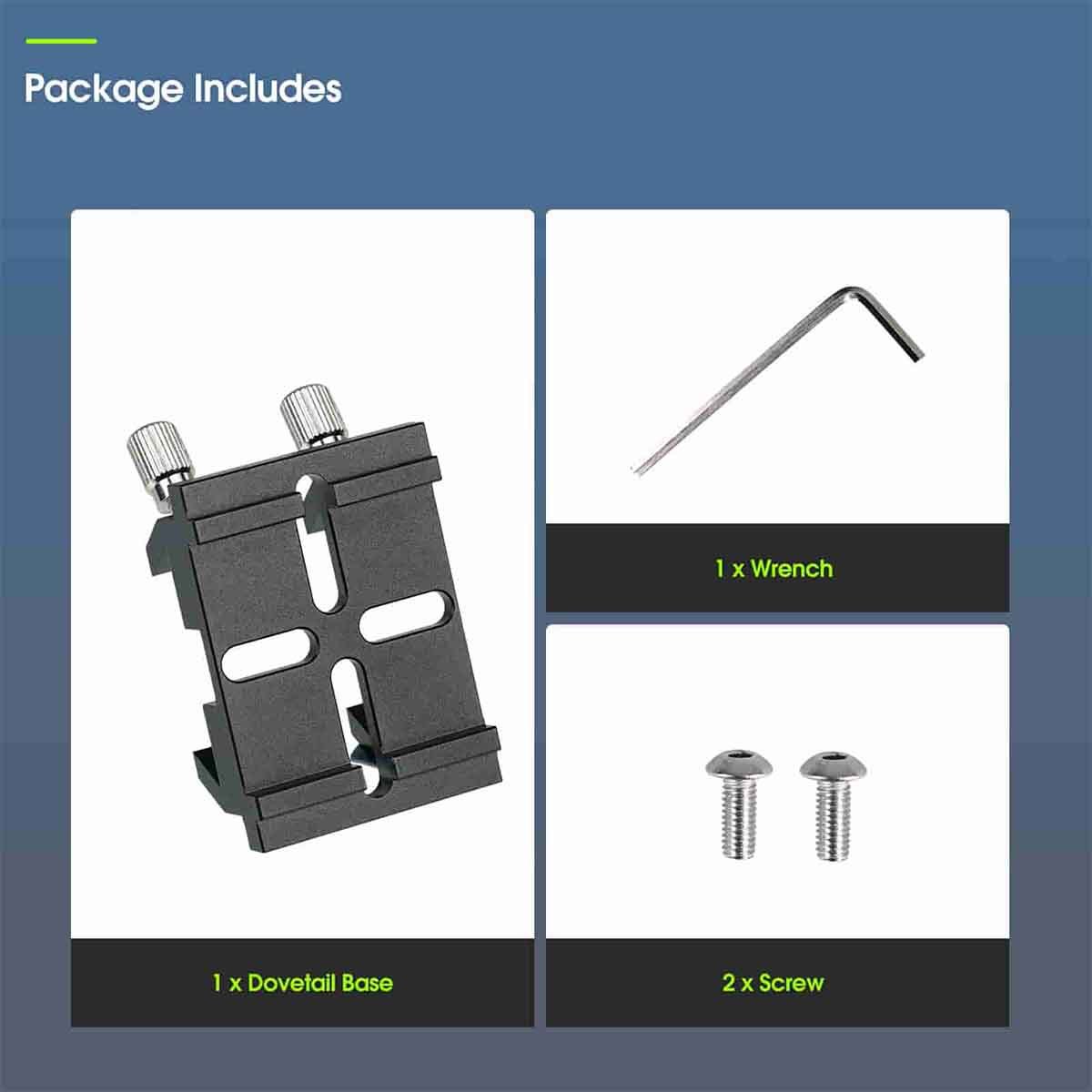

- Package Includes
- 1 x black finder scope dovetail base
- 2 x screw
