SVBONY SV193 2 Inch 0.8X Focal Reducer / Filed Flattener Telescope Accessory for SV503 80mm F7 ED Telescope
3 | ReviewsKey Features
- Enhanced Field Flattening
- Increased Light Gathering
- Optimized for SV503 80ED
- High-Quality Optics
- Easy Installation

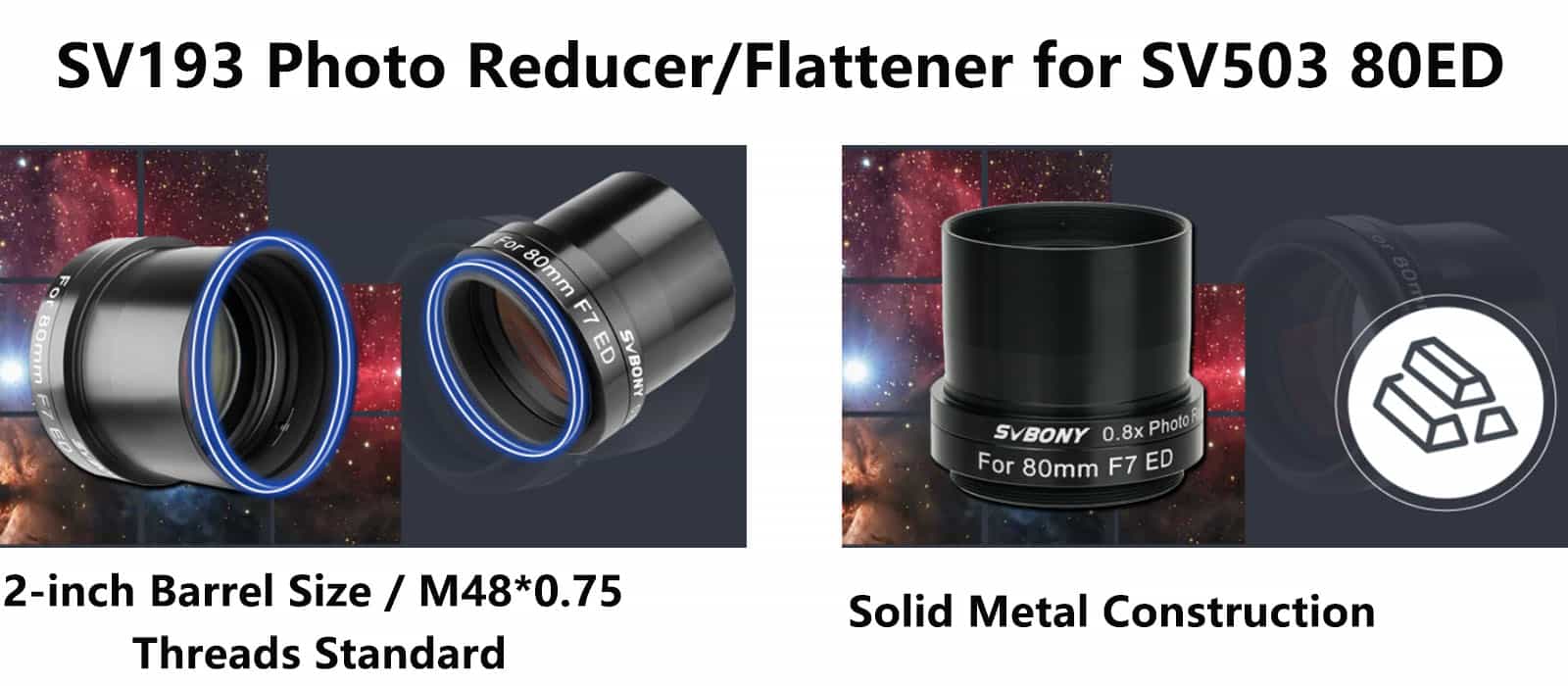

SV193 2-Inch 0.8x Photo Reducer / Flattener for SV503 80 ED Refractors
=

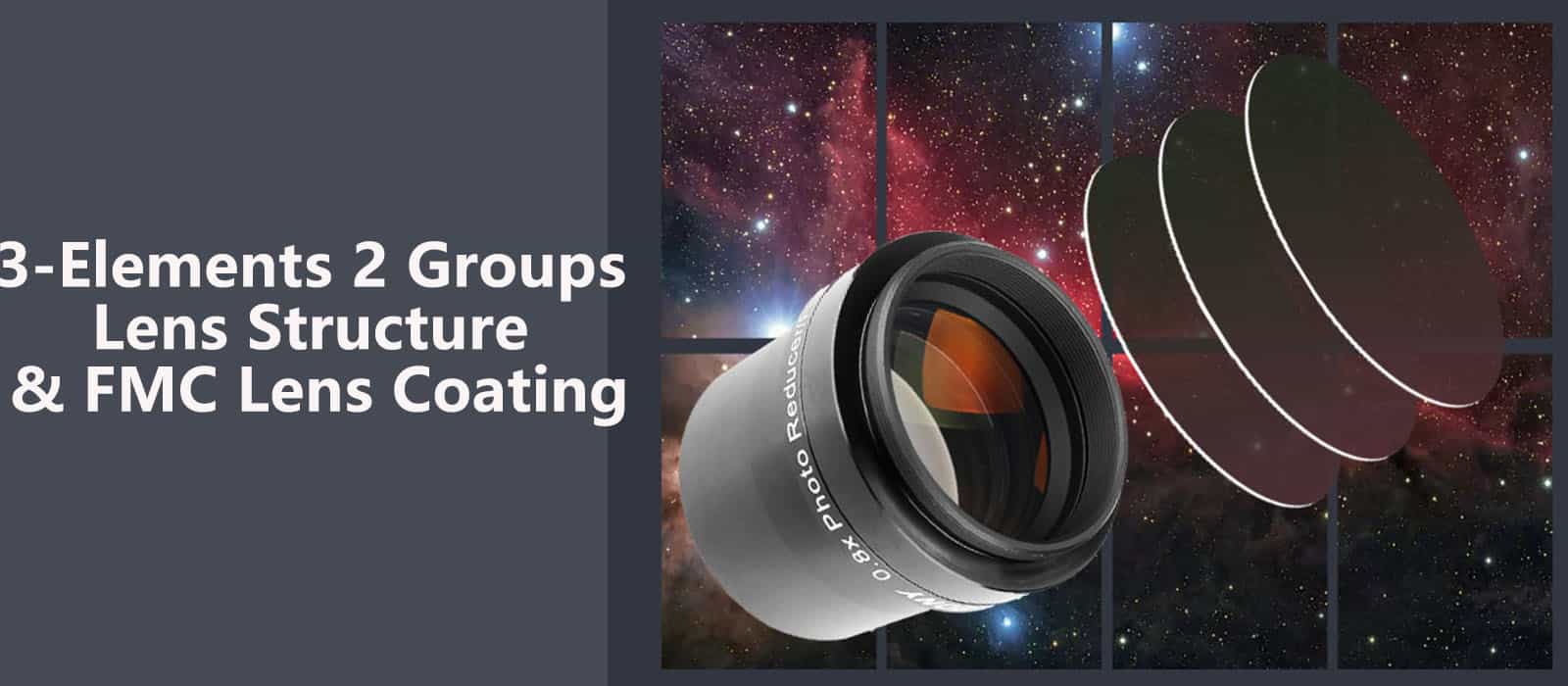

3-Elements 2-Groups Lens Structure

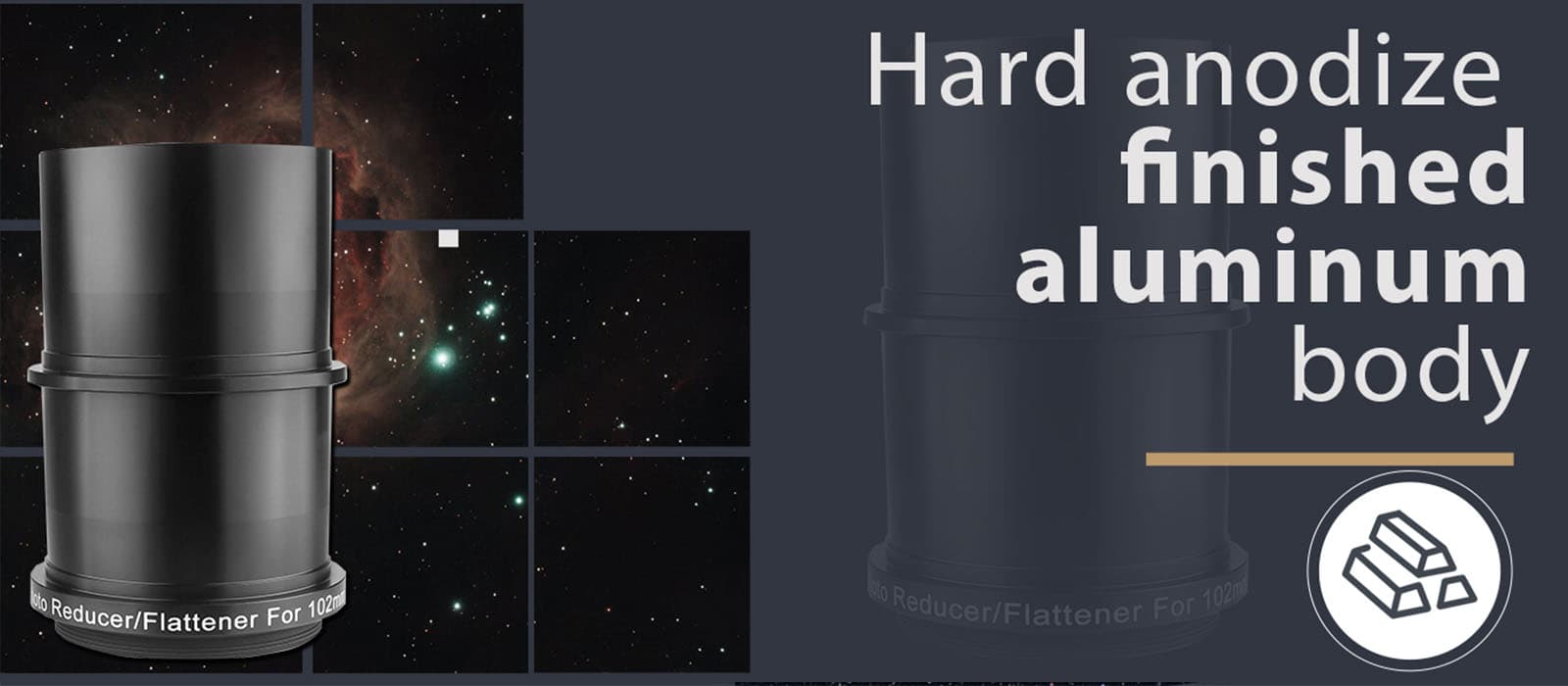

Hard Anodize Finished Aluminum Body

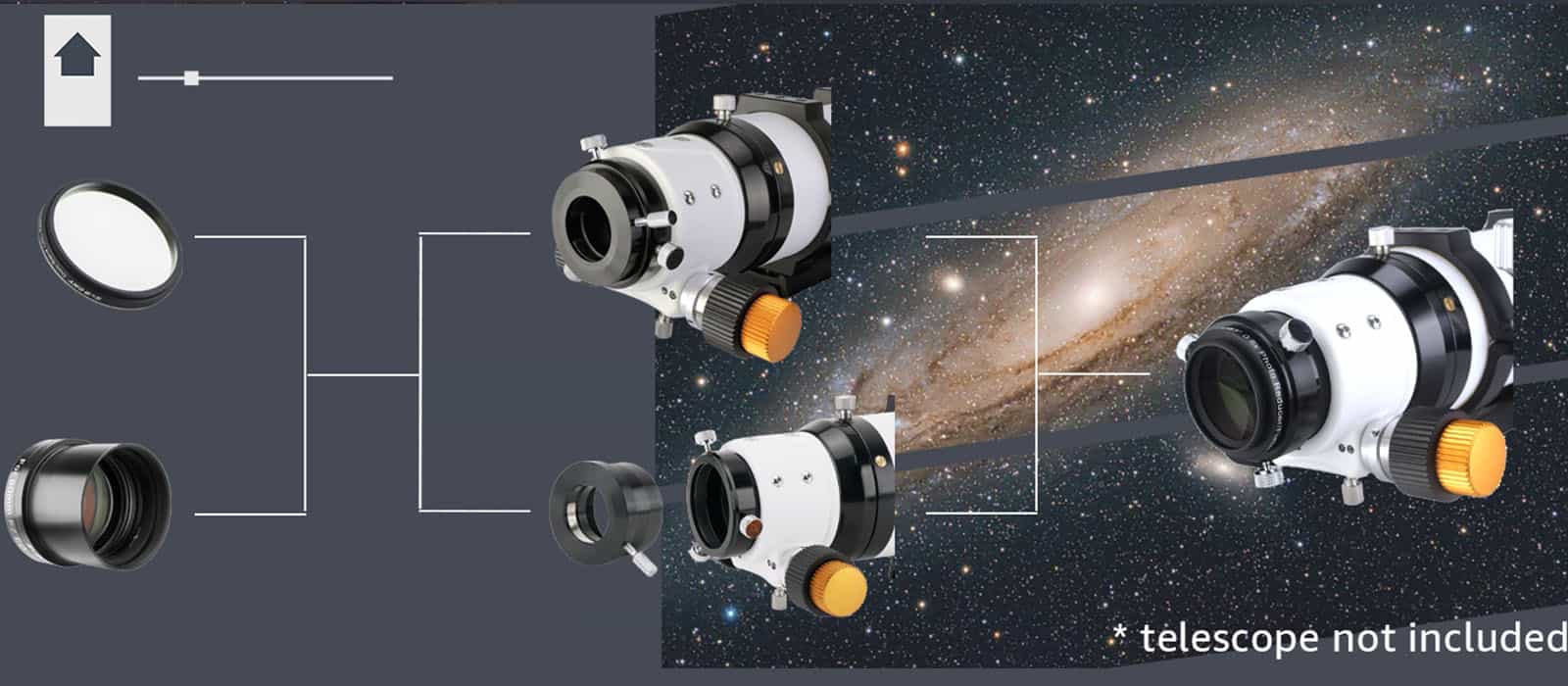

SV193 For SV503 80ED -- Connect With Filters

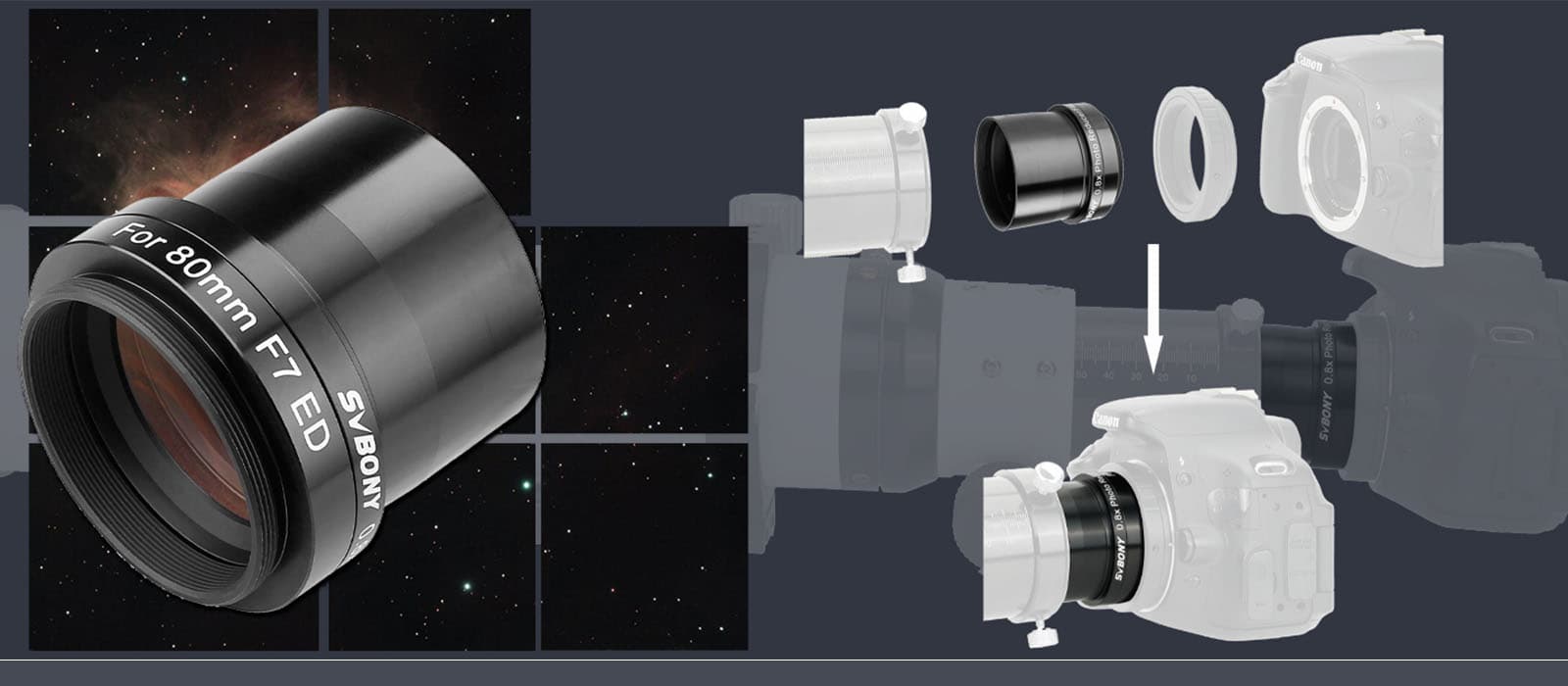

SV193 For SV503 80ED -- Connect With Cameras

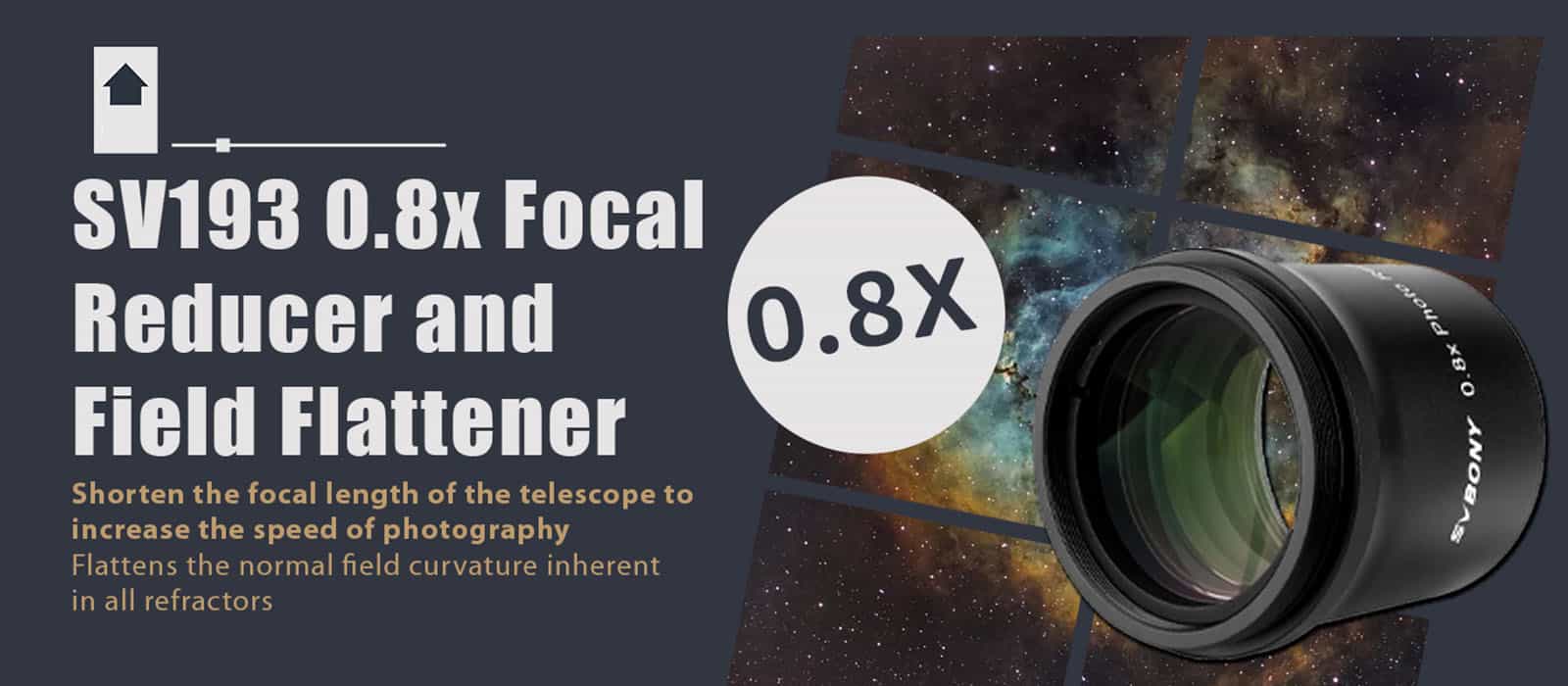

SV193 Photo Reducer / Flattener For Astrophotography
SV193 2-Inch 0.8x Photo Reducer / Flattener for SV503 80 ED Refractors
=
3-Elements 2-Groups Lens Structure
Hard Anodize Finished Aluminum Body
SV193 For SV503 80ED -- Connect With Filters
SV193 For SV503 80ED -- Connect With Cameras
SV193 Photo Reducer / Flattener For Astrophotography
Customer Reviews
Süleyman-Hasan Kocak
Oct 29, 2024
Works With no issues on a 80/500 apo. GREAT Price Performance!
Xavier
Jun 17, 2024
The flatner works well when not adding anything between the flatner and the dslr camera. On a CCD you will need a 55mm space between the camera sensor and the flatner. DSLR camera already measure 55mm so just the flatner is the only thing needed. The flatner was made for small sensor like the one that comes with the ccd cameras so a little bit of egg shape stars might still form. You might need to process the stars with a lens distortion tool in adobe.
Jim Howard
May 25, 2024
purchased to speed up my telescope from F/7 to F/5.6. It does that and flattens the field. I am only using a 1" (16mm diag sensor) but star images appear sharp to the edge. It is well made.
Specifications:
| Model | SV193 | |
| Fit For | SV503 80ED F7 | SV503 102ED F7 |
| SKU | W9152B | W9152D |
| Back Focus | 55mm | 55mm |
| Barrel Size | 2-inch | 2-inch |
| Threads Standard | M48*0.75 | M48*0.75 |
| Lens Structure | 3-Elements/2Groups | |
| Lens Coating | FMC | |
| Blackened Lens Edges | Yes | |
| Net Weight | 164g / 5.78oz / 0.36lb | 177g / 6.24oz / 0.39lb |
Features:
1. Designed for fixed field astrophotography with the SV503 refractor. While it will also thread through and work with other makes and models of f/6~f/7 refractors that use 2" focusers, its performance with other ranges cannot be well.
2. For faster and wider astro and terrestrial photography. After the focal is reduced, the starry sky can be captured wider, the star points are finer, and the signal-to-noise ratio is better under the same exposure.
3. In addition to shortening the focal length of the telescope for faster photography, the SV193 0.8X focal reducer/field flattener the normal field curvature inherent in all refractors.
4. The 0.8 times defocusing system shortens the exposure. It can meet the needs of astrophotographers who need sufficient exposure in a short time.
5. With SV503 refractor, it can take dazzling celestial photos without worrying about the distortion of the star points on the edge of the photo.
6. The default back-intercept is 55mm. Using the 360° field rotator at the end of the focusing tube (not included), you can meet your composition requirements without turning the main lens, and it can also meet the use of filter wheel/OAG/astronomical camera at the same time.
