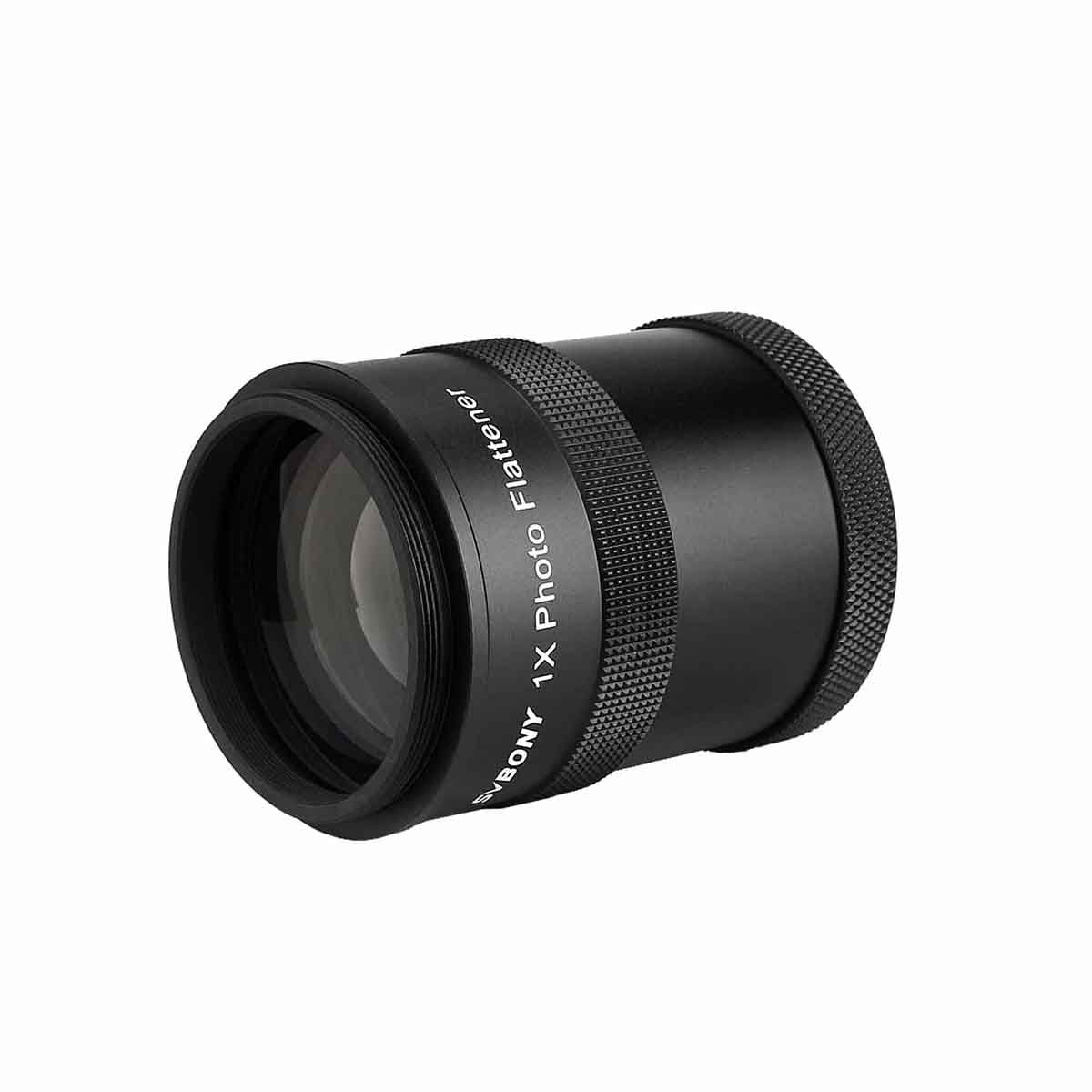

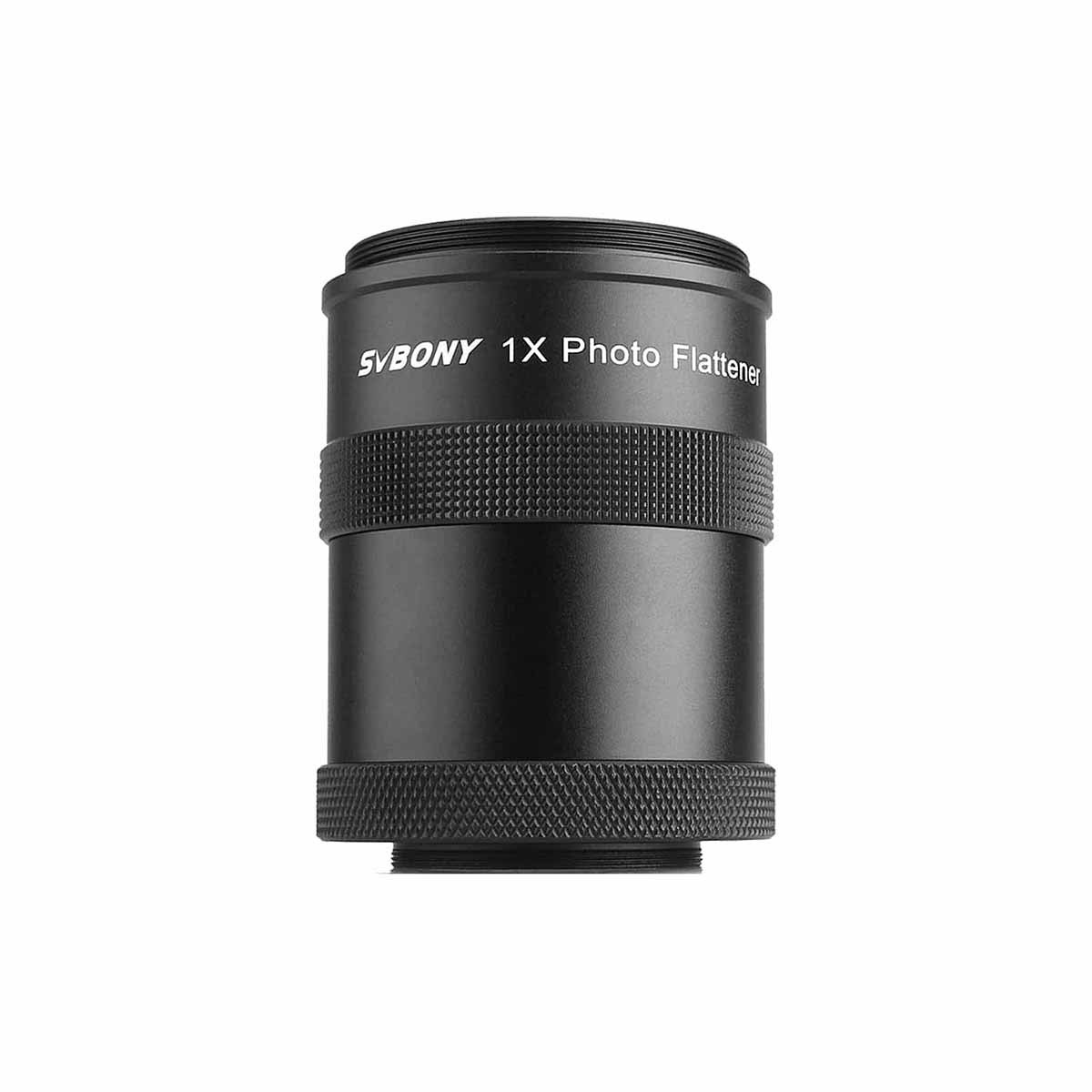

SVBONY SV209 Field Flattener 1.0x for SV550 80F6 Astrophotography M63x1 Connection Black
3 | ReviewsKey Features
- Improves Image Quality
- Optimized for Wide-Field Imaging
- High-Quality Multi-Coated Optics
- Easy to Use and Install
- Durable Construction
SV209 1.0x Flattener Corrects the Field for SV550 80F6 Astrophotography
The Calculation Method of 55mm Back Intercept

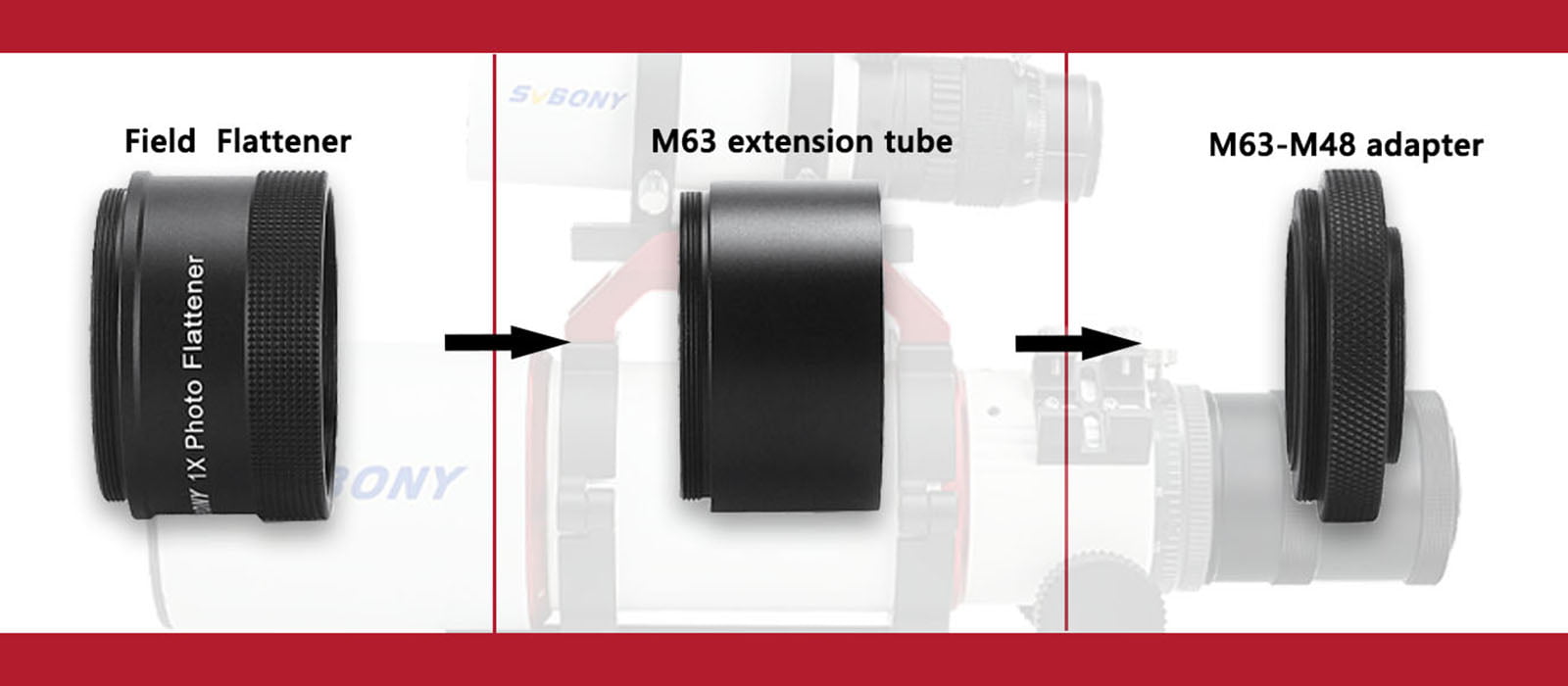

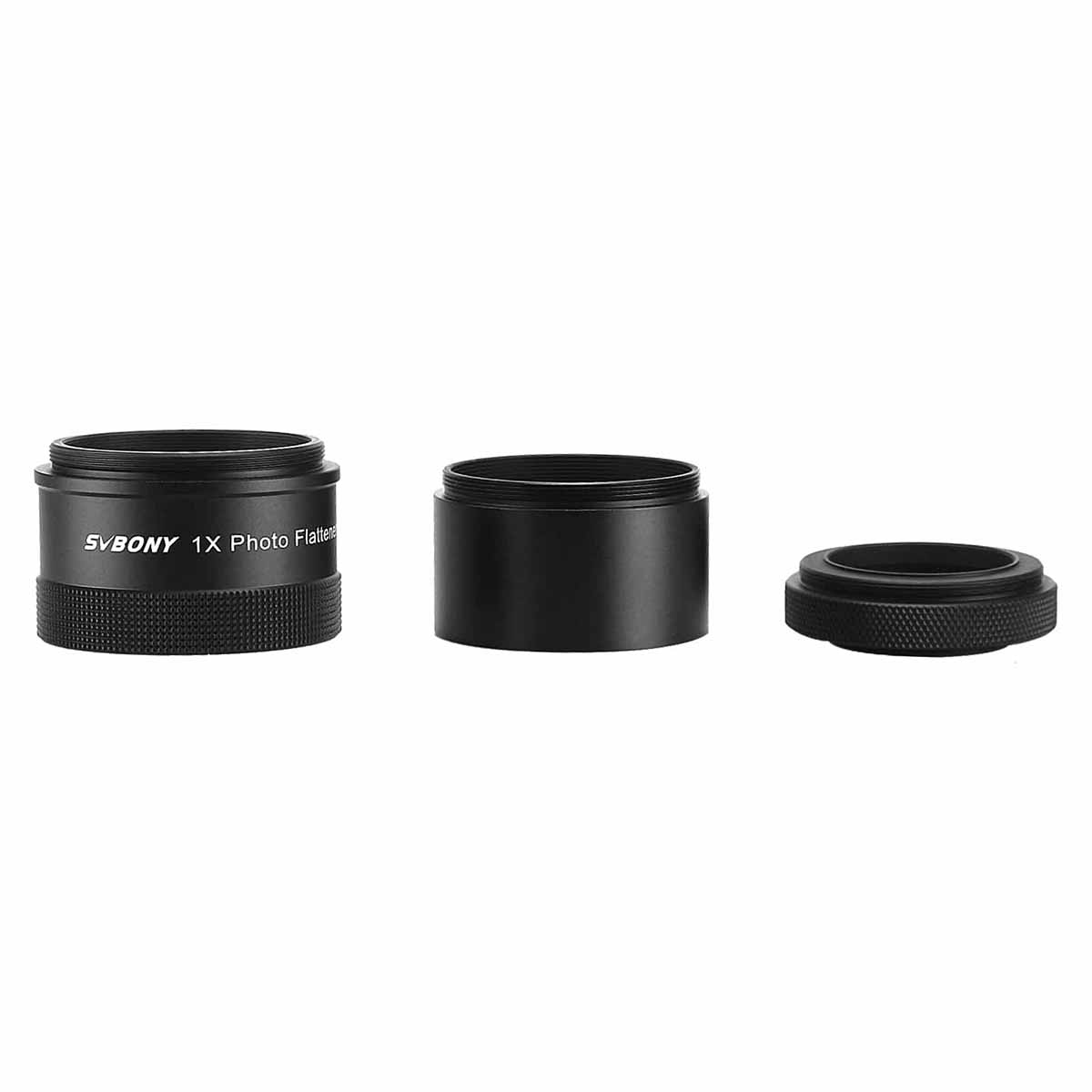

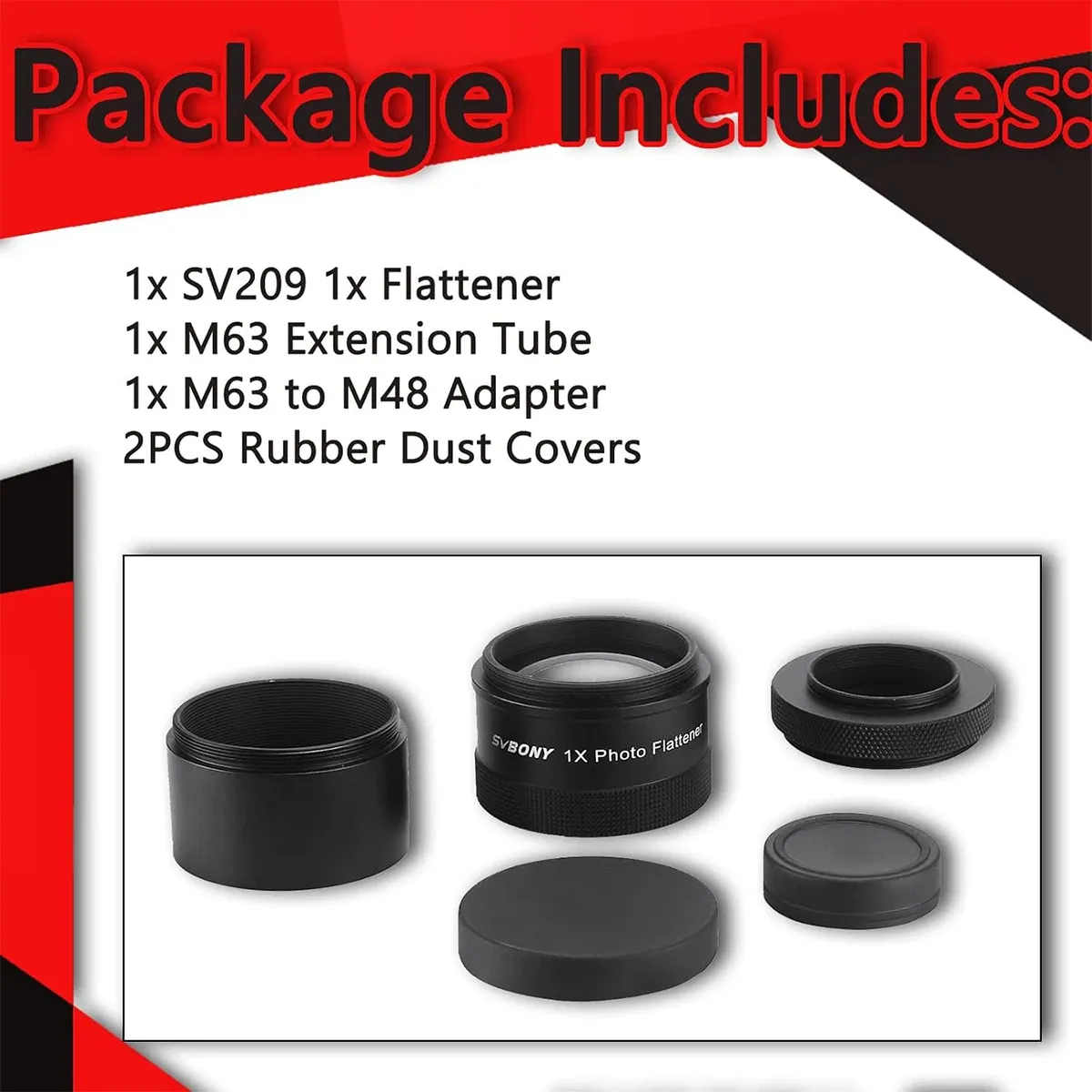

First unscrew the 2-inch adapter ring of the SV550 80mm APO, and then connect the three parts of the field flattener. The installation sequence of the three parts is shown in the figure above(don't confuse the order) . Then connect the mount (not included) and camera compatible with Canon to shoot.

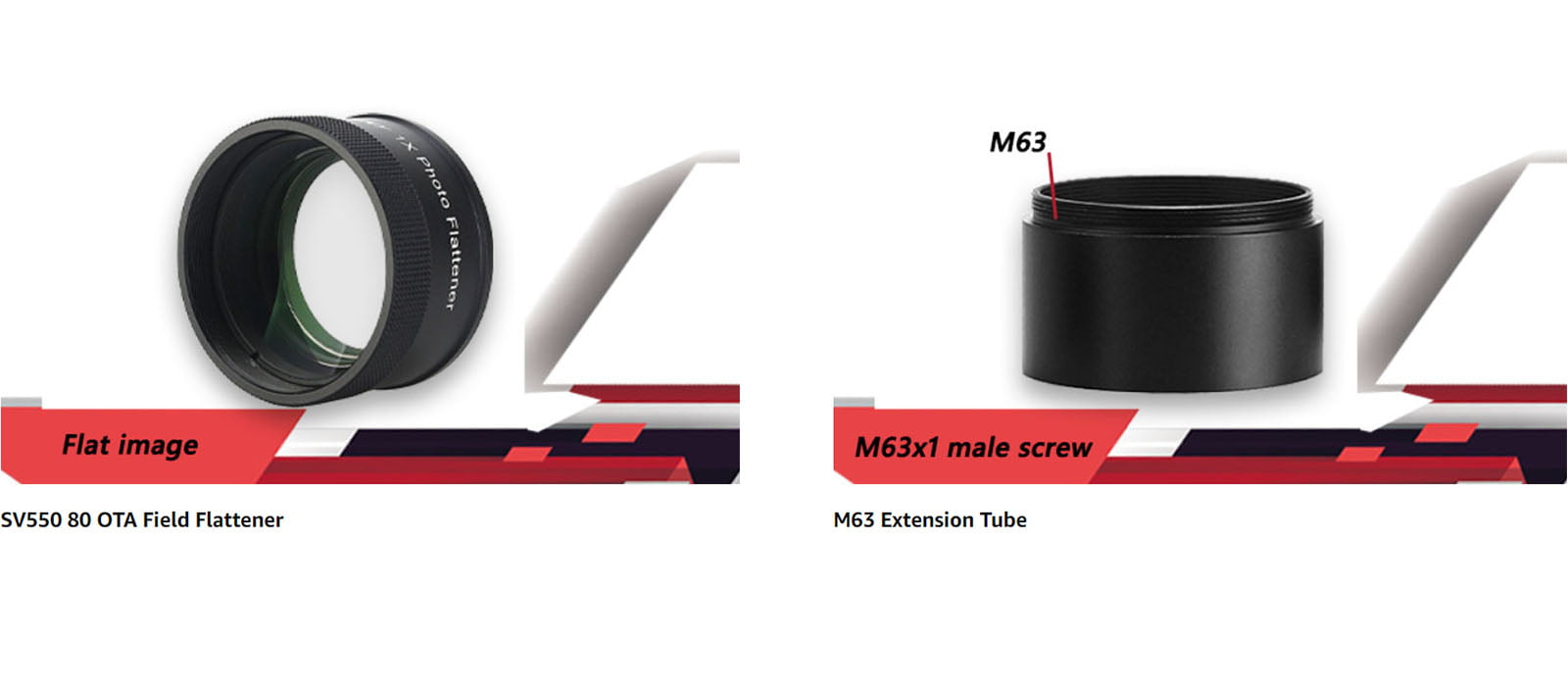

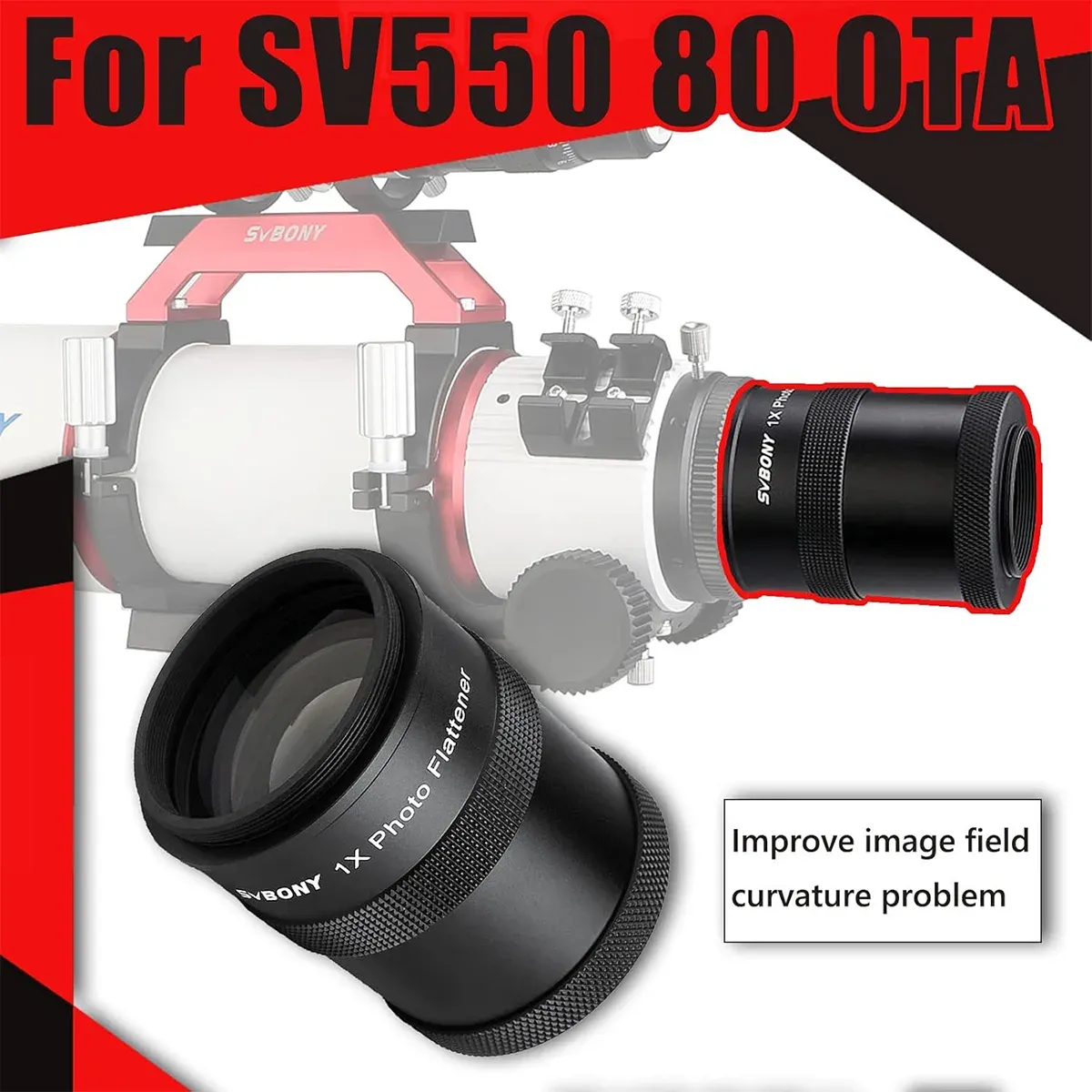

SV550 80 OTA Field Flattener
Most astronomical telescopes have a certain field curvature problem, which can be improved with SV209. The SV209 is a special field flattener for SV550 80F6 OTA, which can effectively improve the field curvature of fringe field images. Great for astrophotography.

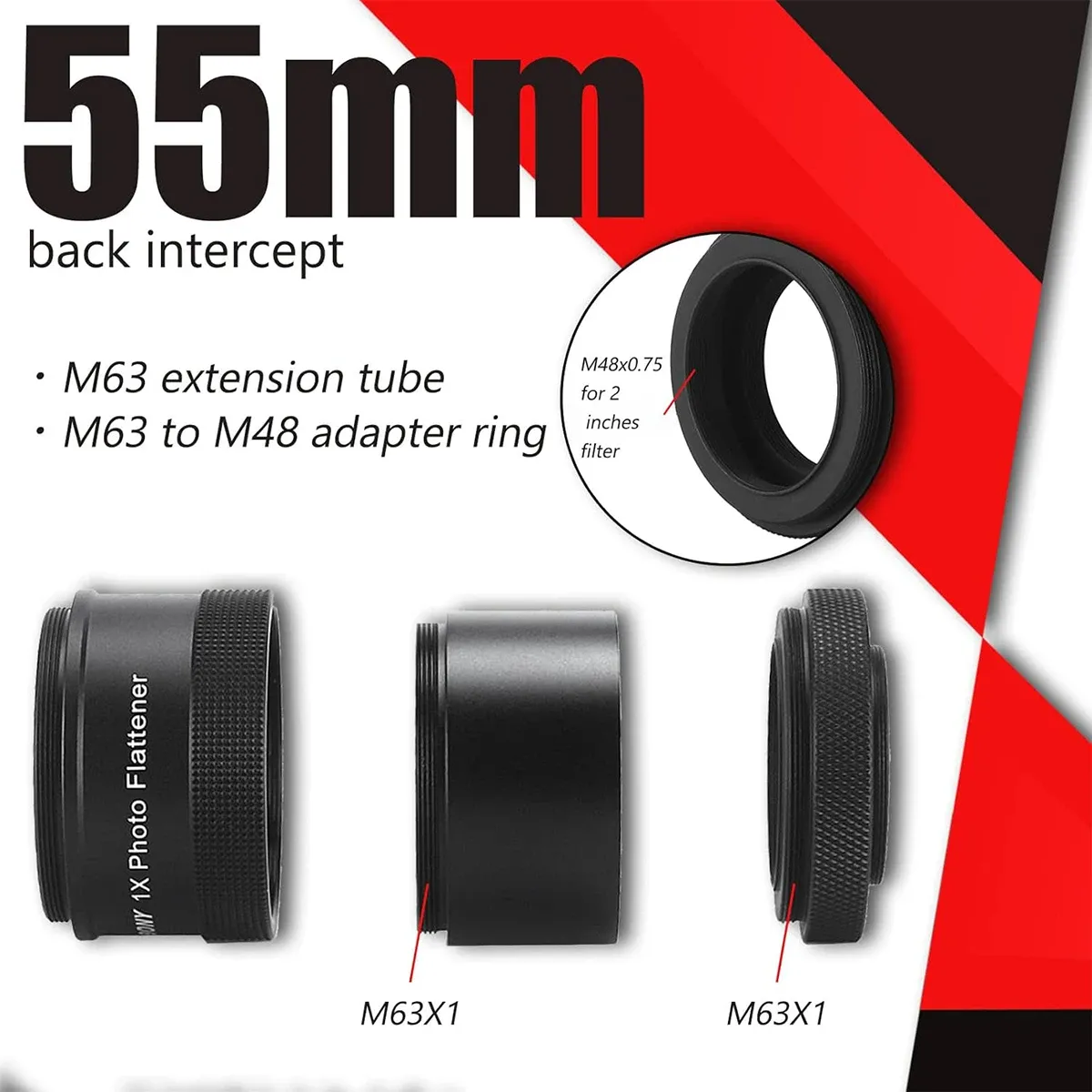

M63 Extension Tube
Equipped with M63 extension tube and M48 adapter ring to ensure that the back focal length of the field flattener is 55mm in astronomical tradition.
Thread size: M63x1 male thread

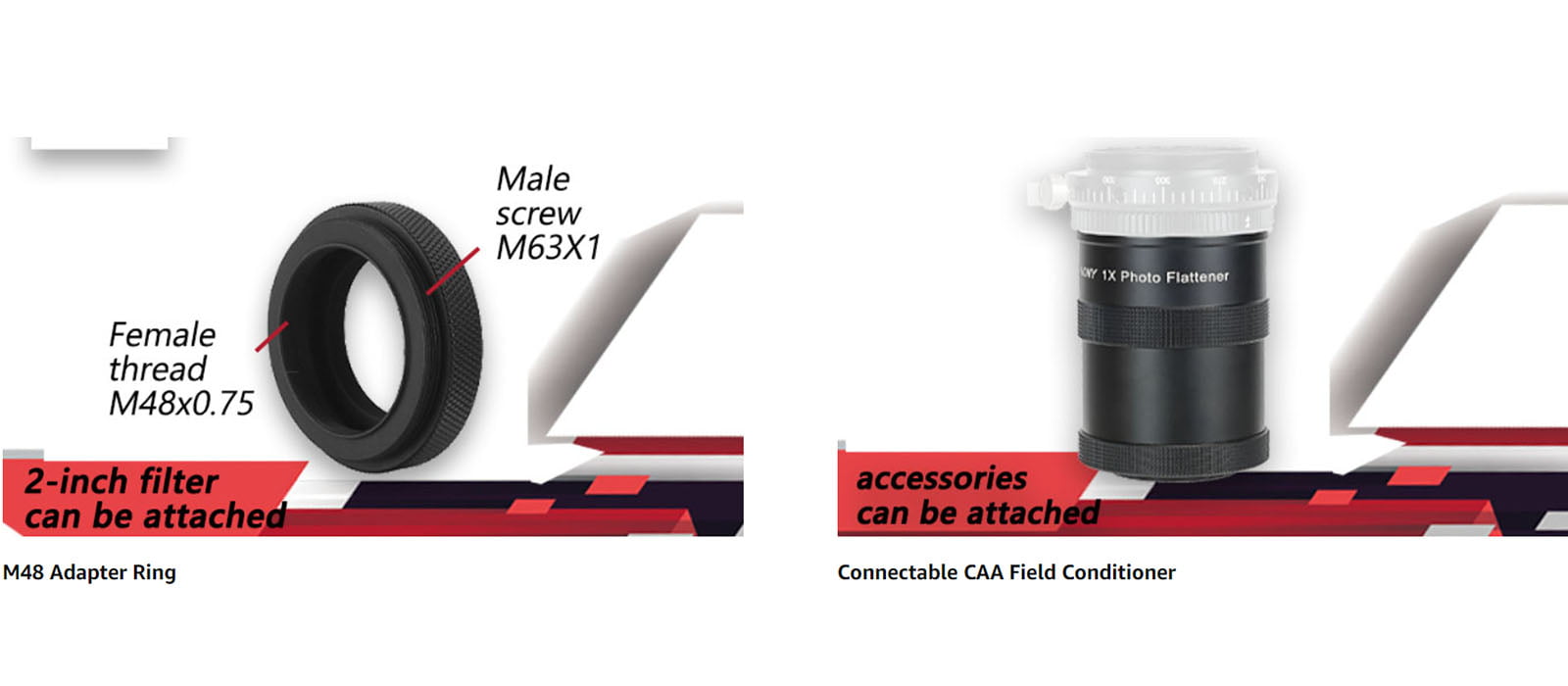

M48 Adapter Ring
Built-in 2-inch filter mounting threads support 2-inch filter mounting.
By connecting the adapter ring, you can match any 2-inch filter you need to meet your different shooting needs.

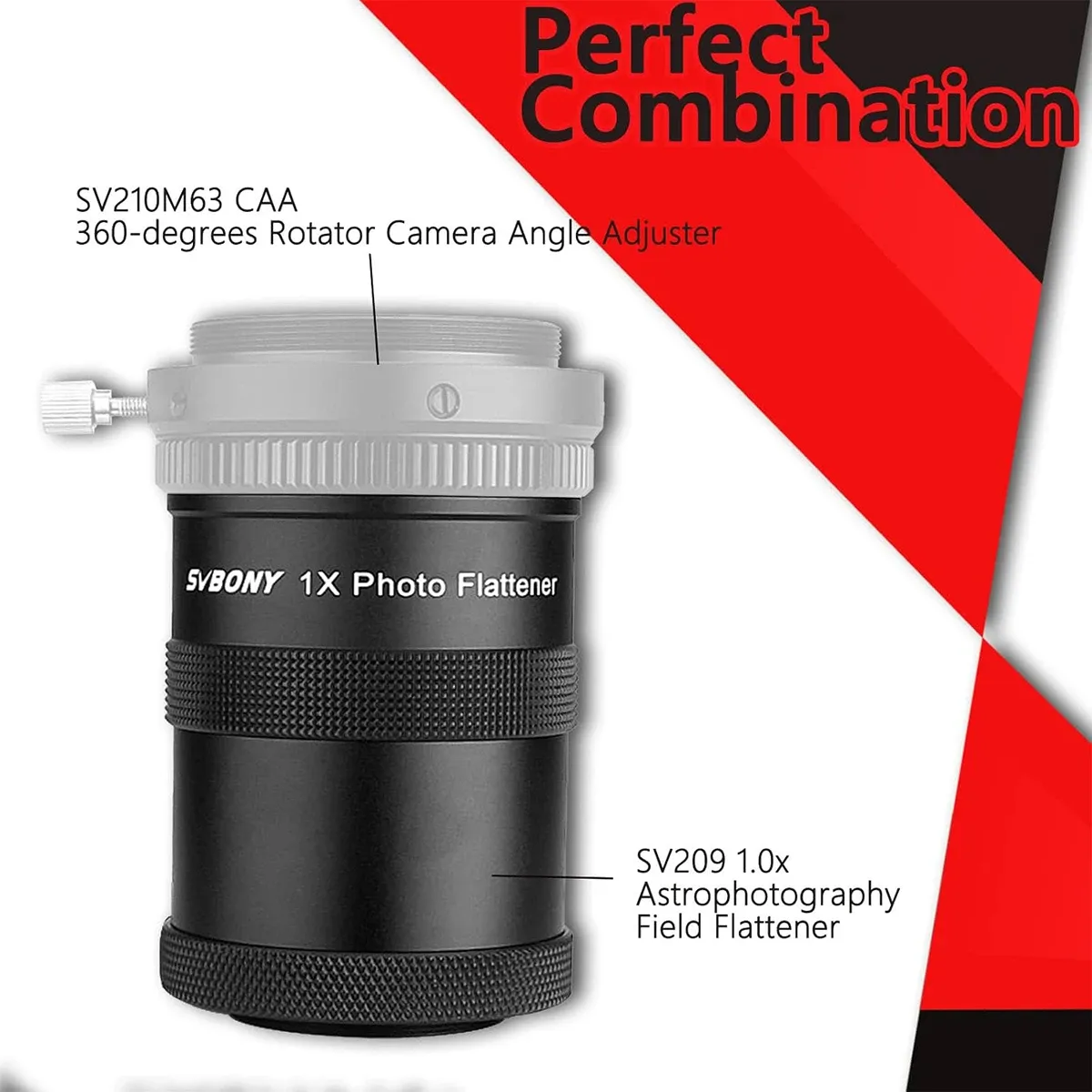

Connectable CAA Field Conditioner
SV209 can be installed to create flat images. At the same time, it can be installed in combination with the SV210 (sold separately) to adjust the field of view of the image.
SV209 1.0x Flattener Corrects the Field for SV550 80F6 Astrophotography
The Calculation Method of 55mm Back Intercept
First unscrew the 2-inch adapter ring of the SV550 80mm APO, and then connect the three parts of the field flattener. The installation sequence of the three parts is shown in the figure above(don't confuse the order) . Then connect the mount (not included) and camera compatible with Canon to shoot.
SV550 80 OTA Field Flattener
Most astronomical telescopes have a certain field curvature problem, which can be improved with SV209. The SV209 is a special field flattener for SV550 80F6 OTA, which can effectively improve the field curvature of fringe field images. Great for astrophotography.
M63 Extension Tube
Equipped with M63 extension tube and M48 adapter ring to ensure that the back focal length of the field flattener is 55mm in astronomical tradition.
Thread size: M63x1 male thread
M48 Adapter Ring
Built-in 2-inch filter mounting threads support 2-inch filter mounting.
By connecting the adapter ring, you can match any 2-inch filter you need to meet your different shooting needs.
Connectable CAA Field Conditioner
SV209 can be installed to create flat images. At the same time, it can be installed in combination with the SV210 (sold separately) to adjust the field of view of the image.
Customer Reviews
Keith Bond
Jul 29, 2024
I am probably one of the harshest reviewers when it comes to Chinese made goods usually. I have to say that I have been pleasantly surprised by ALL of the SVBONY hardware that I have acquired. Telescope, finder scopes, field flattener, Camera angle adapter and planetary and guide cameras. ALL have been exceptional when rating fit, finish and function and when coupled with unbeatable price for all by comparison you cannot lose. SVBONY has captured me as a forever customer with my experiences to date!
Herb H
Jun 27, 2024
Well made reducer, works exceedingly well on my SVbony refractors. I have both the 80ED and the 122 APO, each with it's own SVbony 0.8x reducer.
Aubrey
May 23, 2024
If you want to delve into Astro photography, this is a must have. It gives you a flat field for round stars across the frame without sacrificing focal length. If you want to use the scope for visual only, this is still a must have. It’s hard to describe the difference it makes to have the full image flat but it’s like the difference between looking at fish in an aquarium and on a 4K TV. The quality of what you’re seeing isn’t better, it’s just different on how it gets to your eyes. Great product!!
| Brand | SVBONY |
| Model | SV209 |
| Additional Thread | M63x1 female thread for photo adaptions |
| Connection at Telescope Side | M63x1 male thread |
| Connection 1 at Camera Side | M63x1 thread female - working distance 103 mm |
| Connection 2 at Camera Side | M48x0.75 male thread - working distance 55 mm or 91.5 mm |

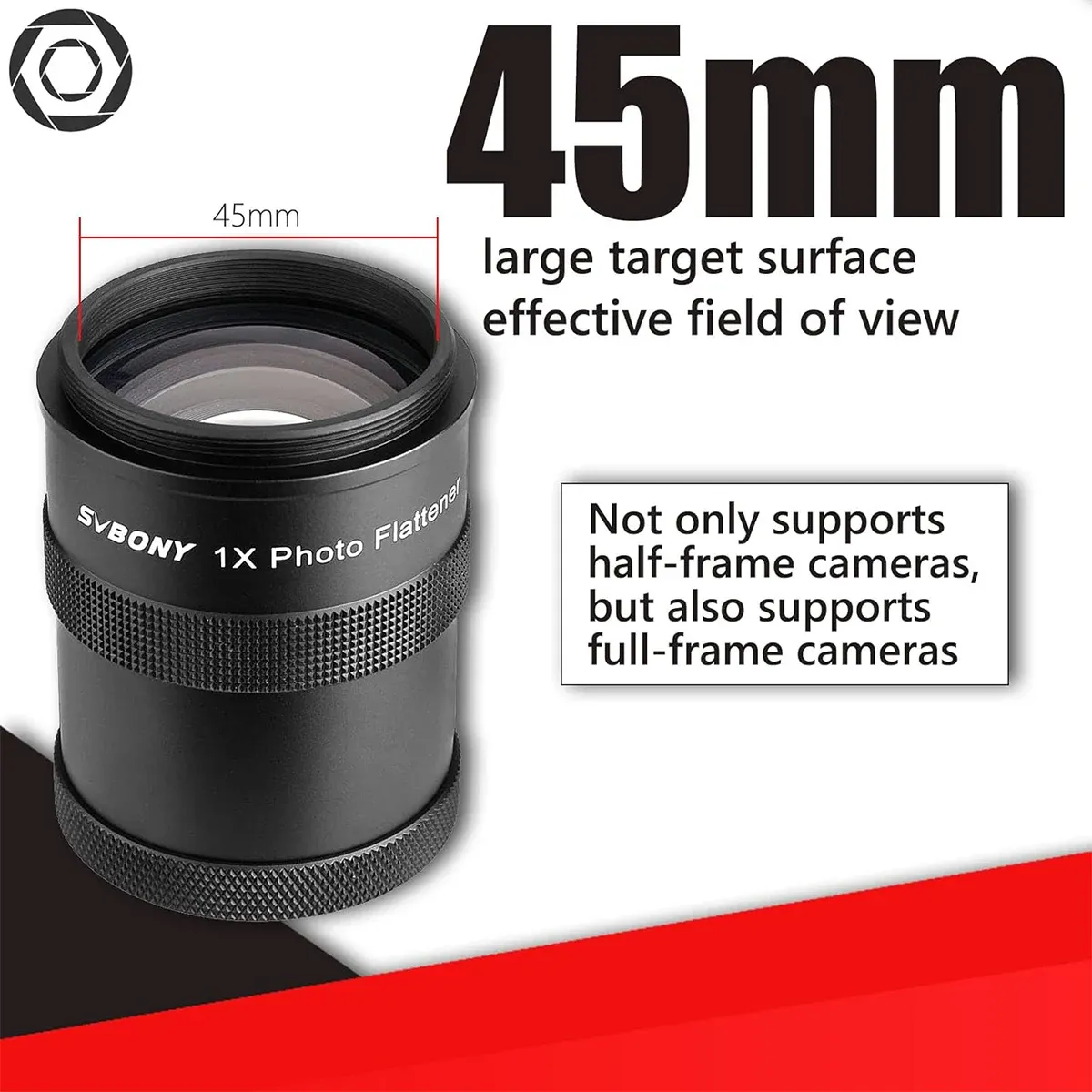

| Fully Illuminated Field | 45 mm（Support Full Frame Sensors） |

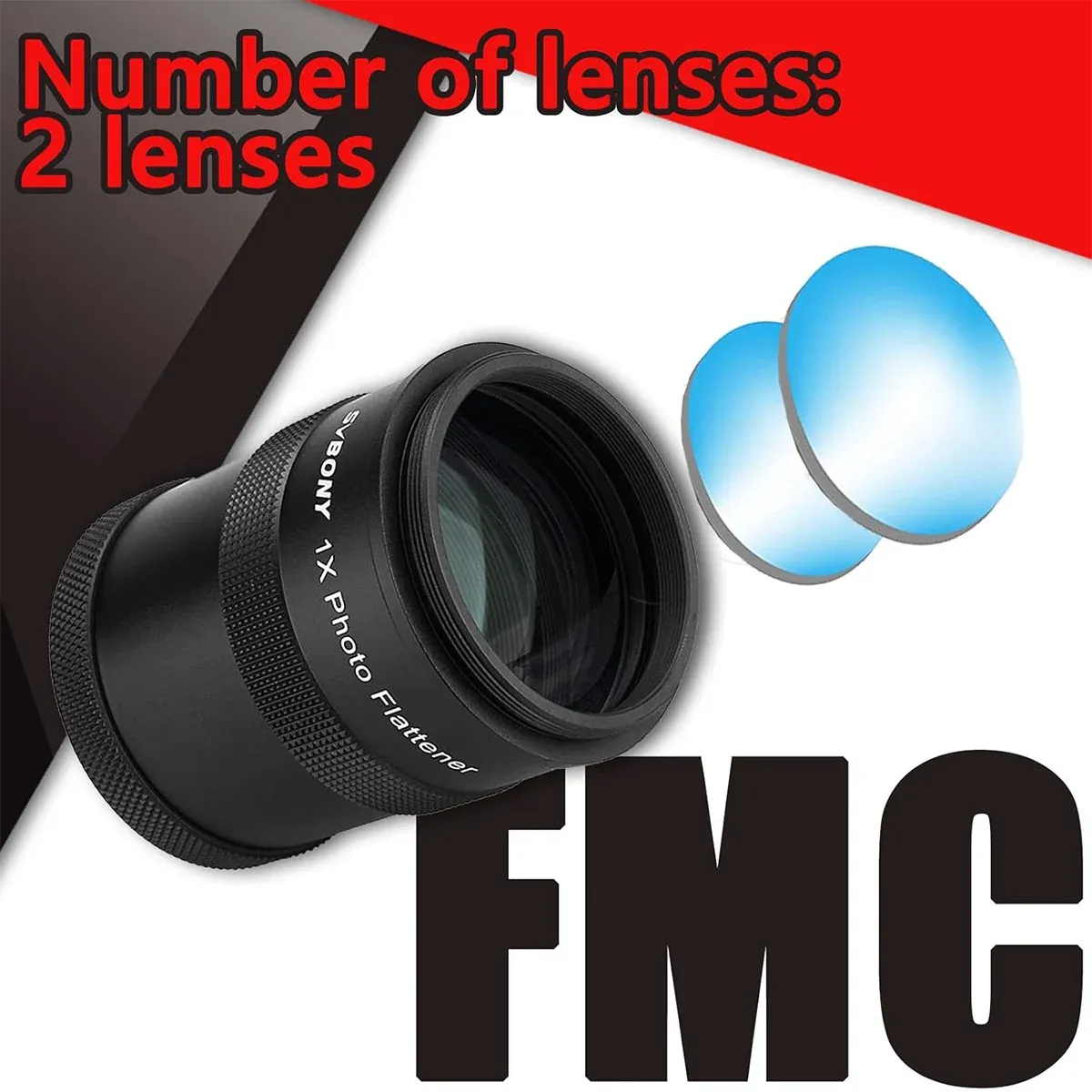

| Number of Elements | 2 lenses |

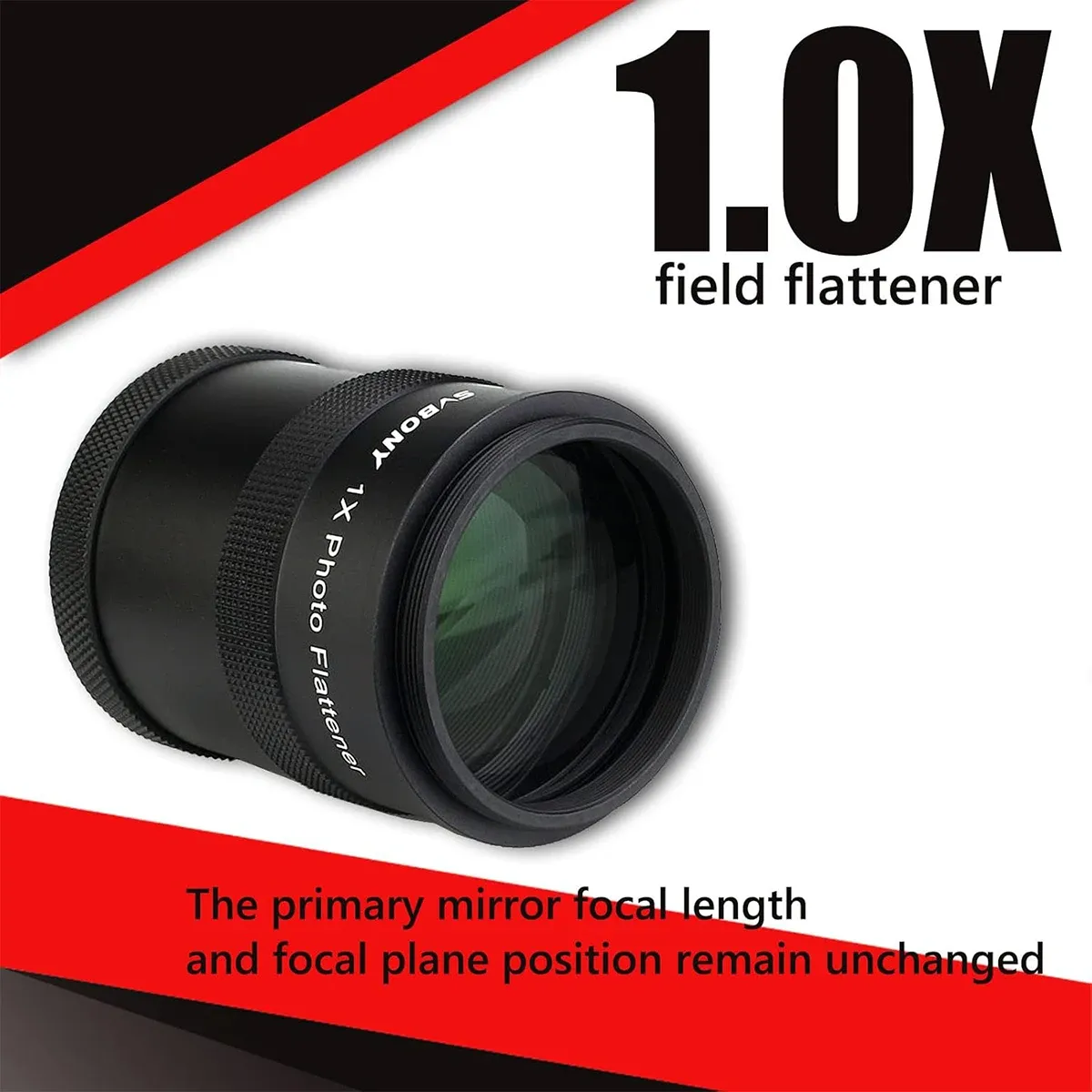

| Factor | 1.0 - no change of focal length to the focal plane |
| Coating | FMC |

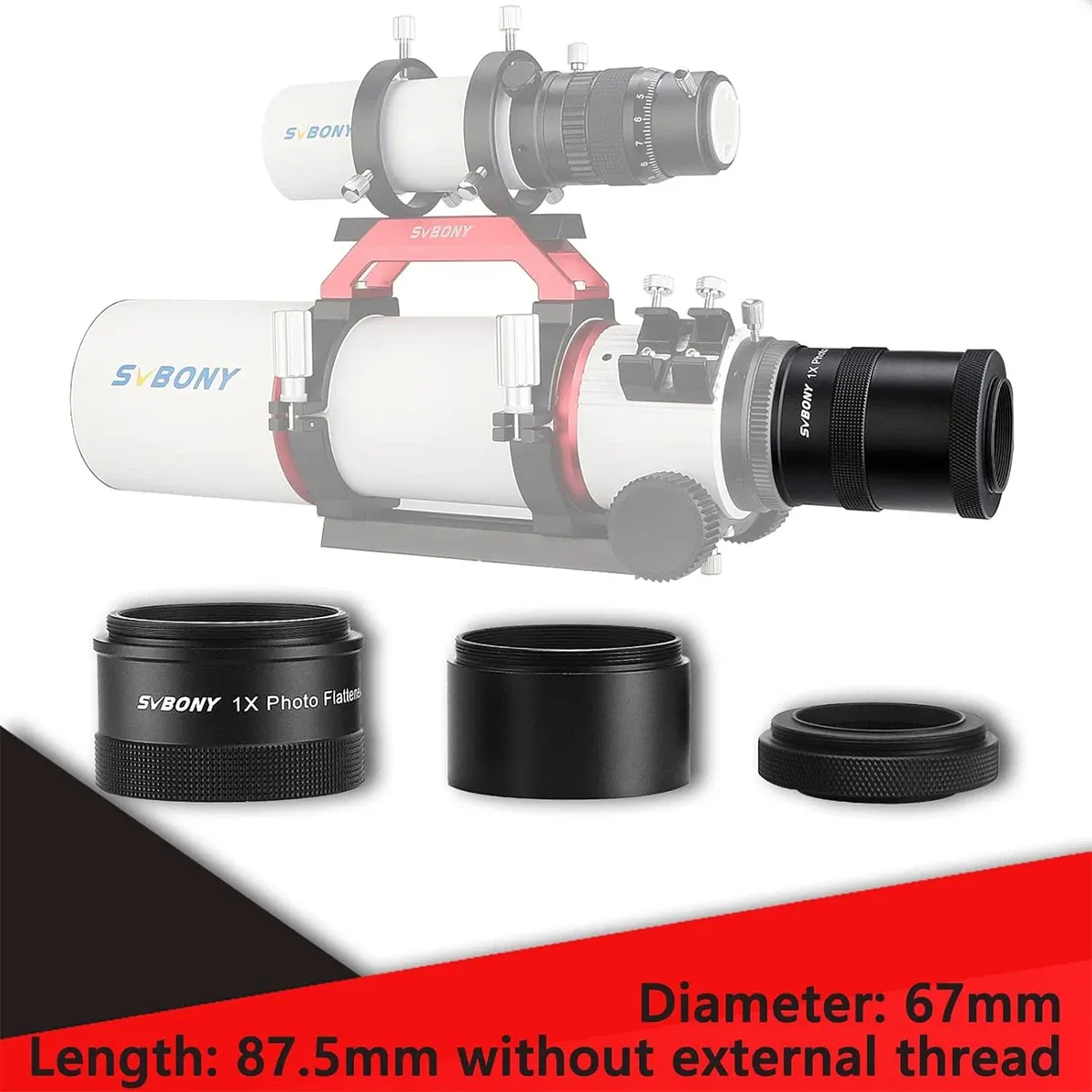

| Diameter of the Housing | 67mm |
| Length | 87.5 mm without the male thread |
Features
1. SV550 80 OTA Field Flattener
2. M63 Extension Tube
3. M48 Adapter Ring
4. Connectable CAA Field Conditioner
5. FMC Coating
6. 2-inch Interface
7. Effectively Improving the Field Curvature Problem at the Edge of the Image
