Product Detail

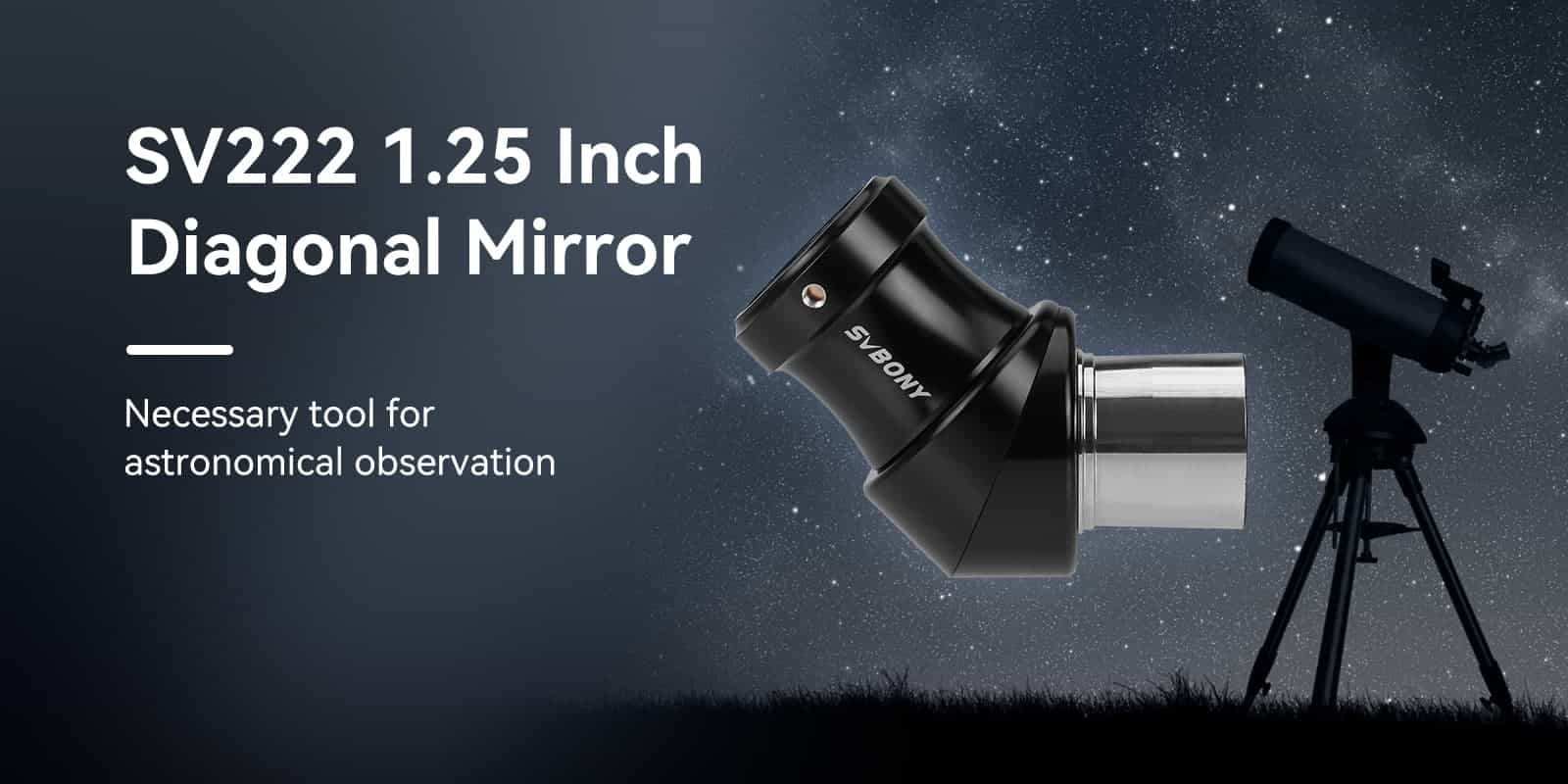

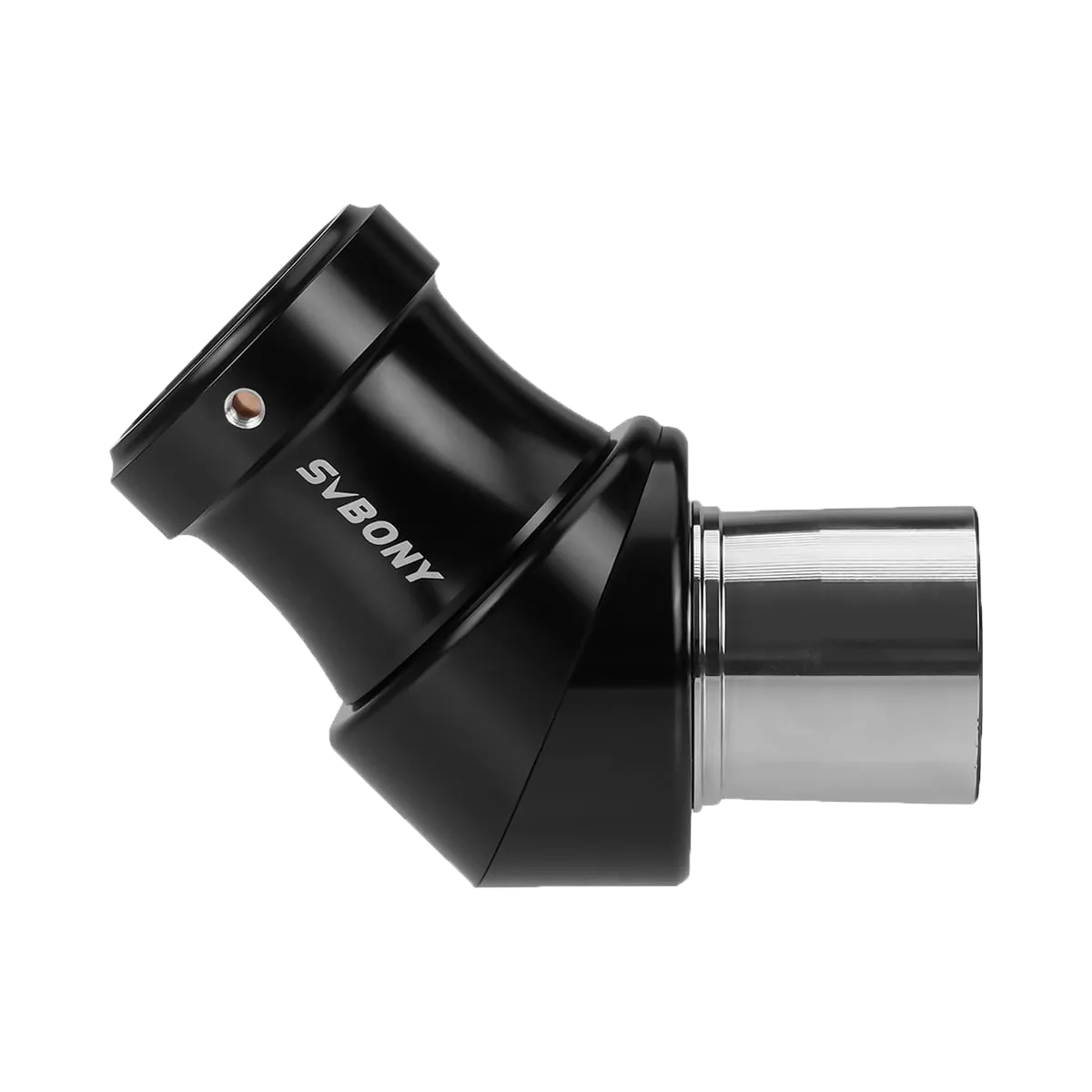

SV222 1.25-inch 45 Degree Correct Image Diagonal Mirror with FMC and Phase Coating for Refractor Telescope

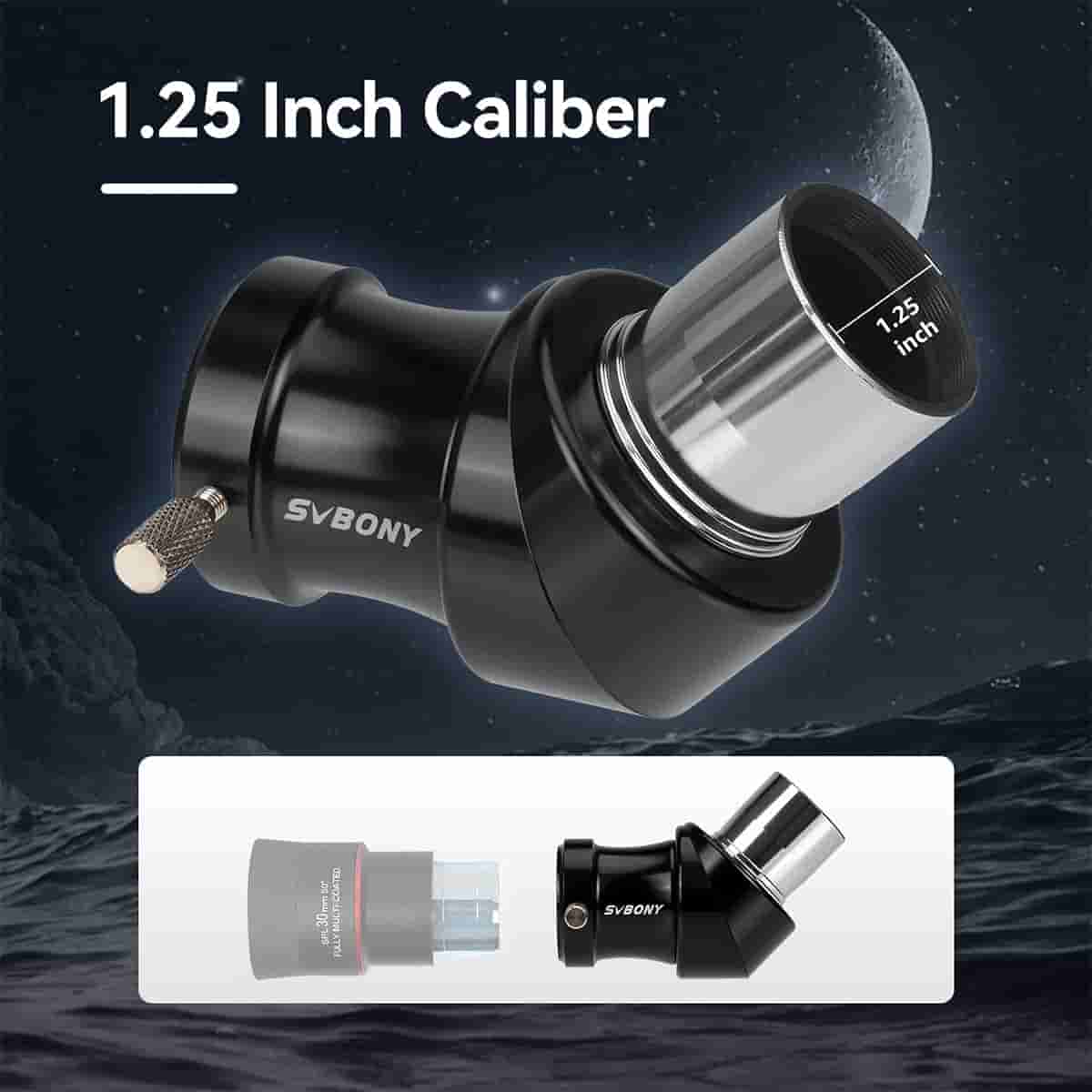

- 1.25-inch aperture; SV222 45 degree diagonal is 1.25-inch aperture; strong versatility; can be applied to 1.25-inch eyepieces and astronomical accessories
- The image is clear and bright; correct image diagonal adopts a 45-degree upright prism; with full multi-layer coating and phase coating; the image contrast is high; the picture is clear and bright
- Delustering design; blackened and baffled inside; it can prevent internal stray light reflection
- Metal material; 1.25 inch SV222 telescope diagonal is made of aluminum alloy metal material; with black anodizing; sturdy and durable
- The installation is stable; brass pressure ring design; SV222 45 degree diagonal is firmly connected with the eyepiece and does not shake; it will not scratch the eyepiece
SV222 Correct Image Prism Diagonal 45 Degree 1.25-inch Fully Multi-Coated Metal for Refractor Telescope
SV222 correct image prism diagonal is 1.25-inch aperture; strong versatility; can be applied to 1.25-inch eyepieces and 1.25-inch astronomical accessories. Suitable for terrestrial or astronomical use, this diagonal produces a right-side-up, non-reversed image with correct daytime orientation.

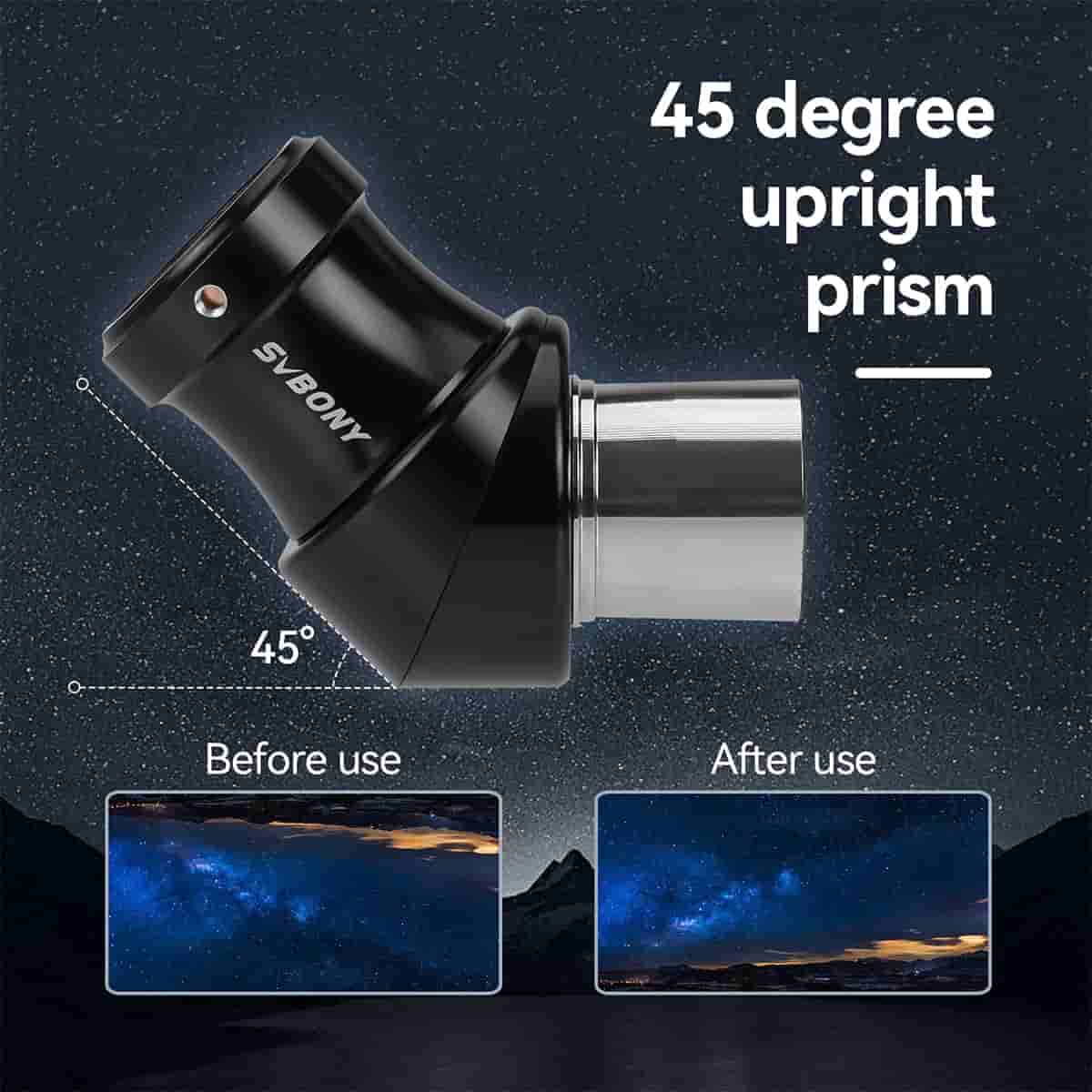

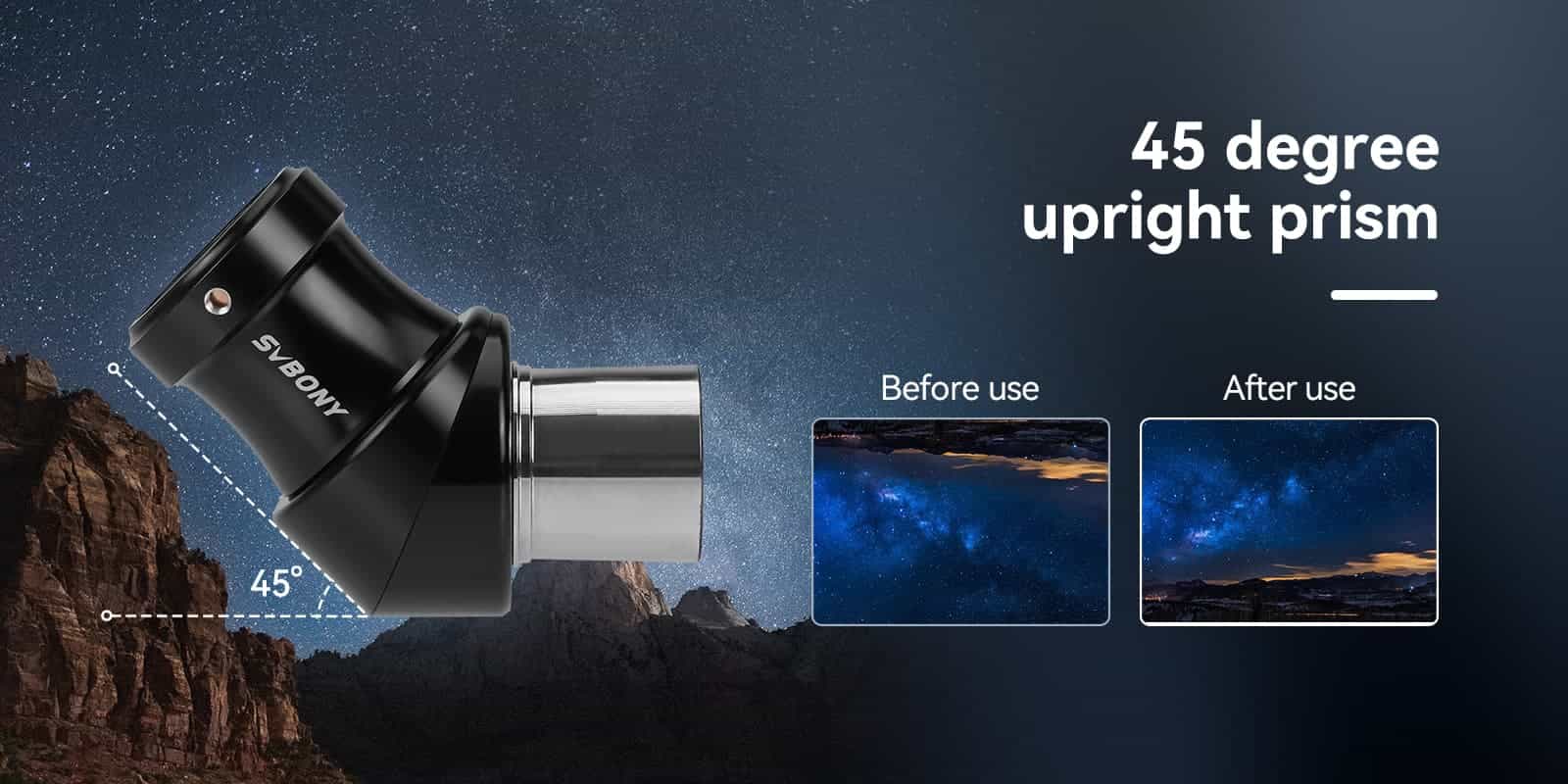

45 Degree Upright Prism
SV222 correct image prism diagonal adopts a 45-degree upright prism; with full multi-layer coating and phase coating; the image contrast is high; the picture is clear and bright.

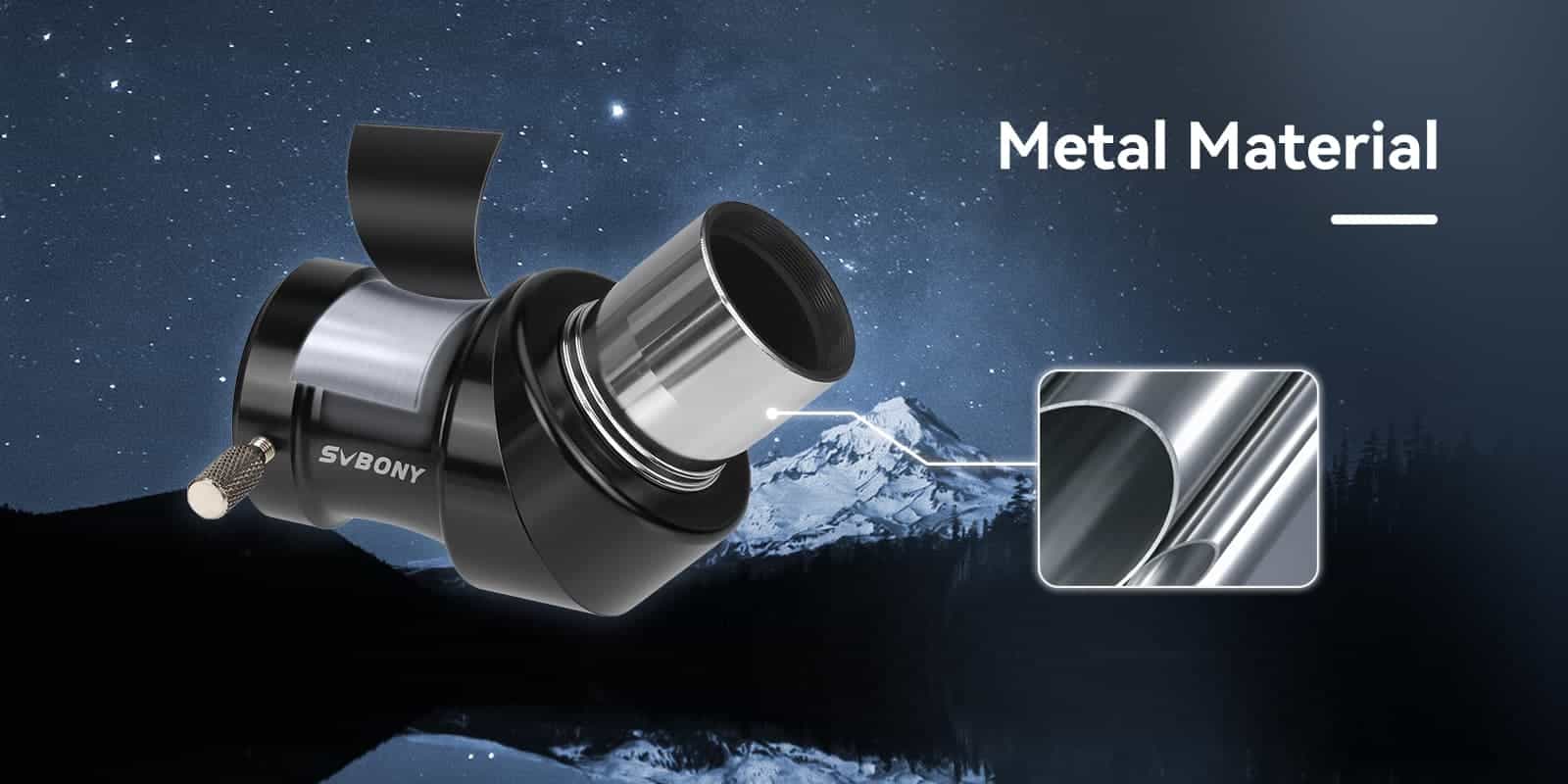

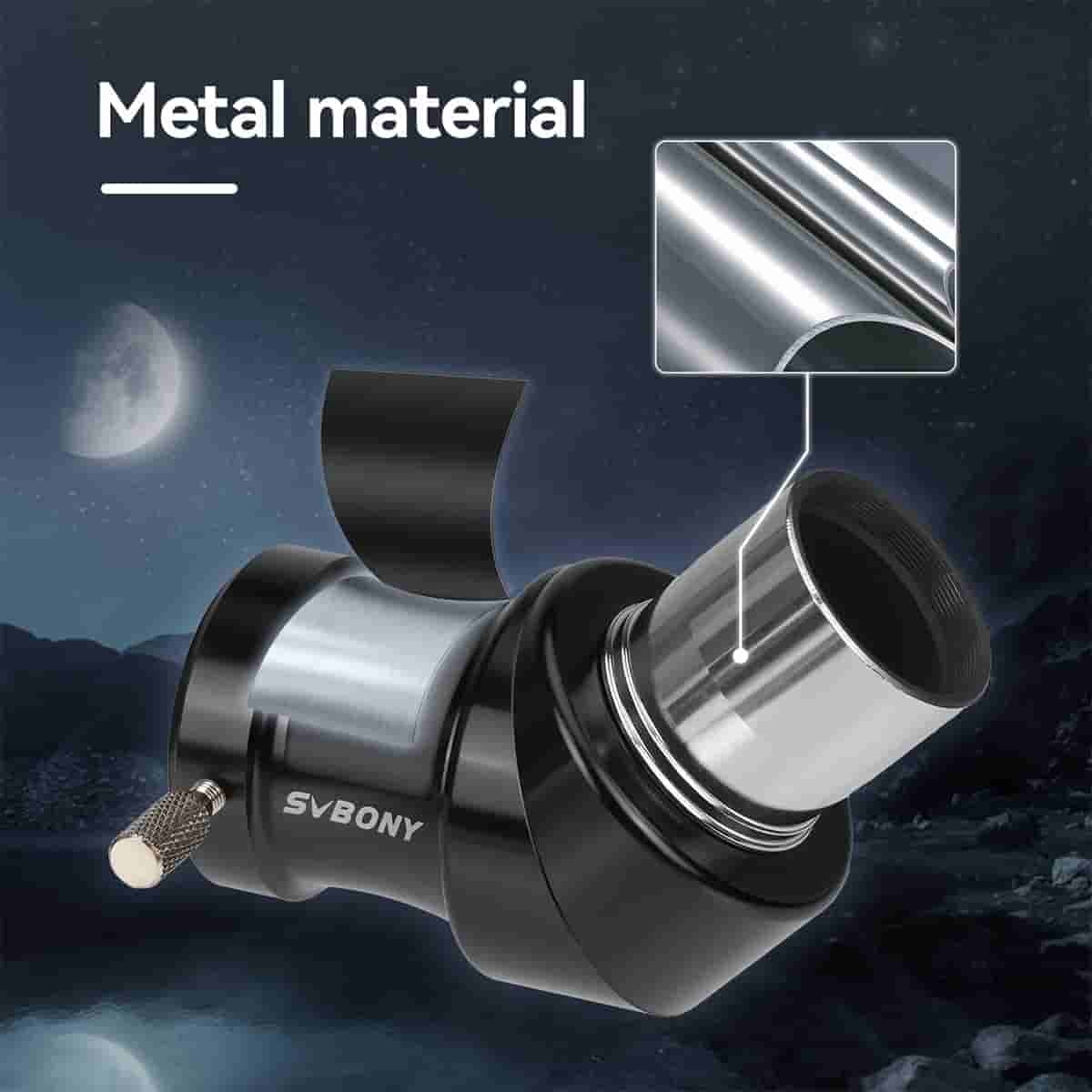

Metal Material
SV222 zenith mirror is made of aluminum alloy metal material; with black anodizing; sturdy and durable.

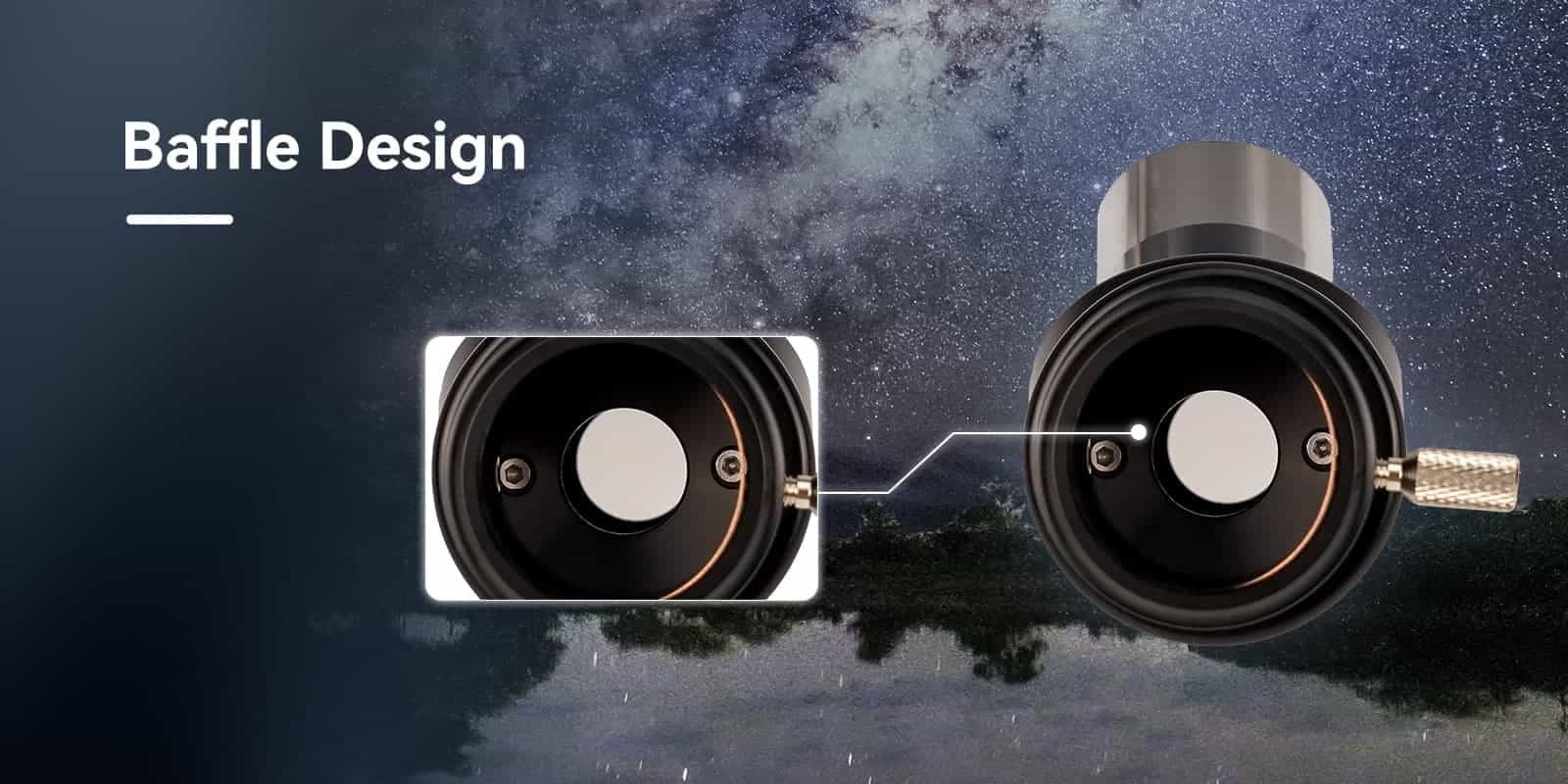

Baffle Design
SVBONY SV222 correct image prism diagonal 45 degree is blackened and baffled inside; it can prevent internal stray light reflection.

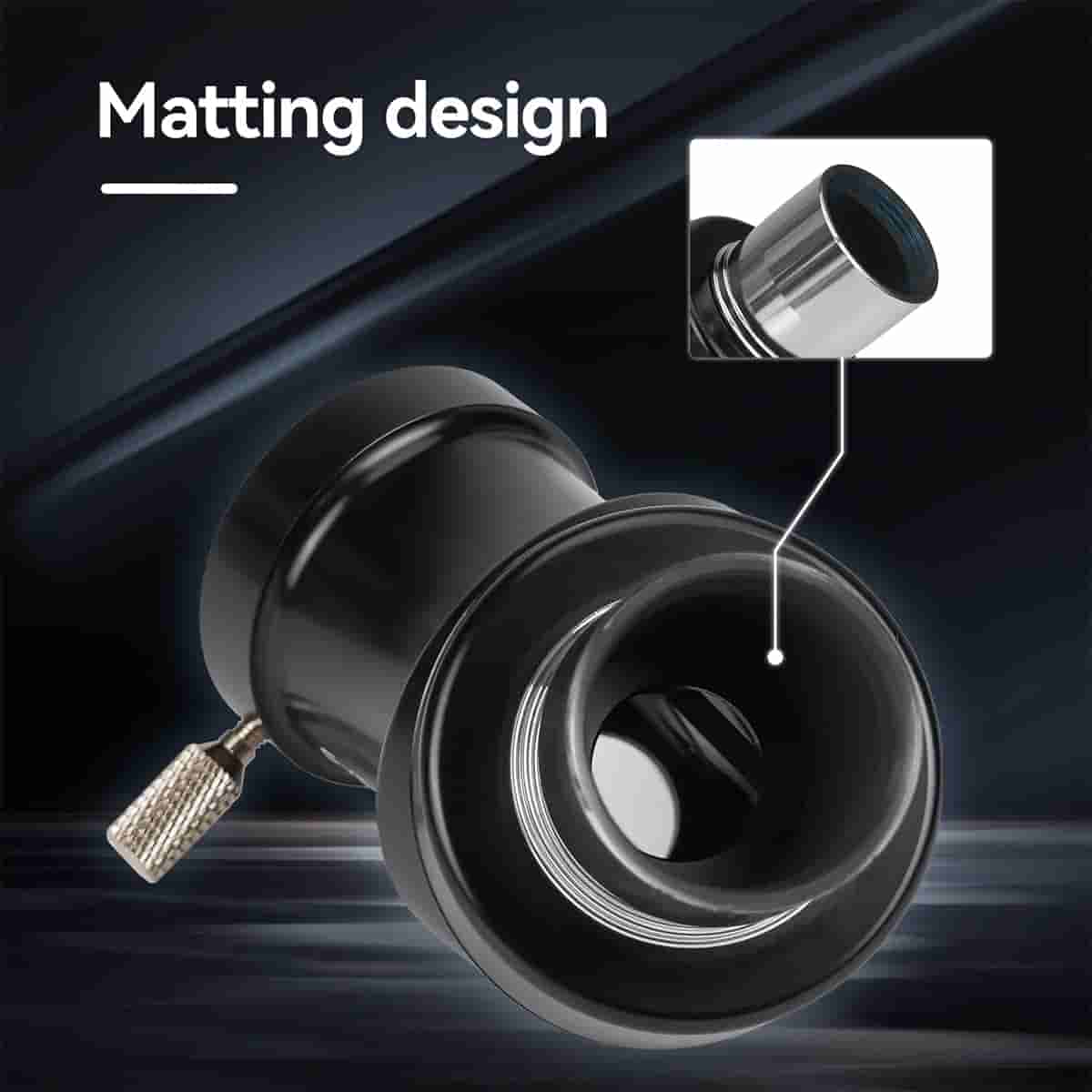

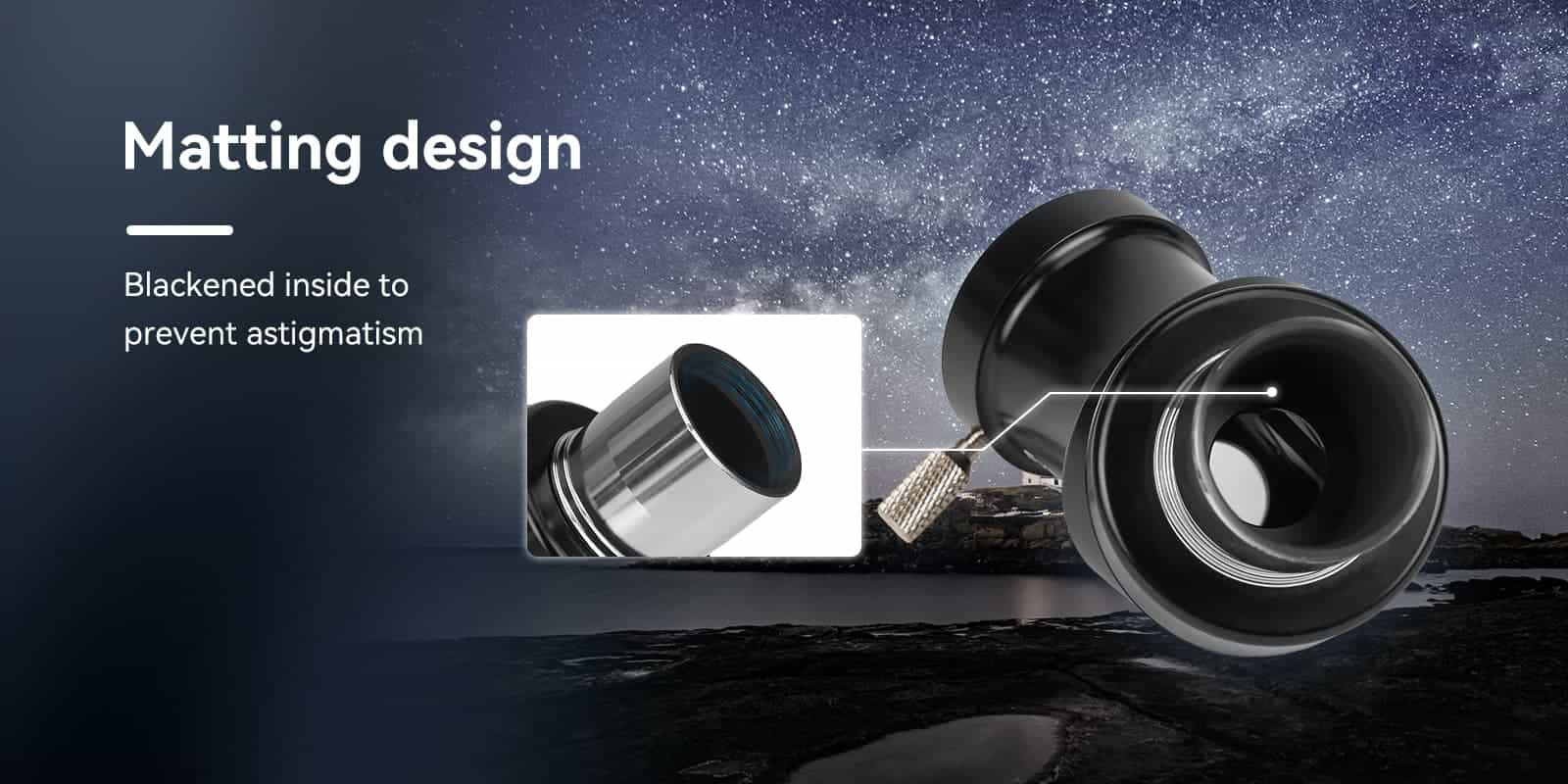

Matting Design
This approach involves coating the interior surfaces of the optical tube with a matte black finish, which significantly reduces unwanted internal reflections caused by stray light.

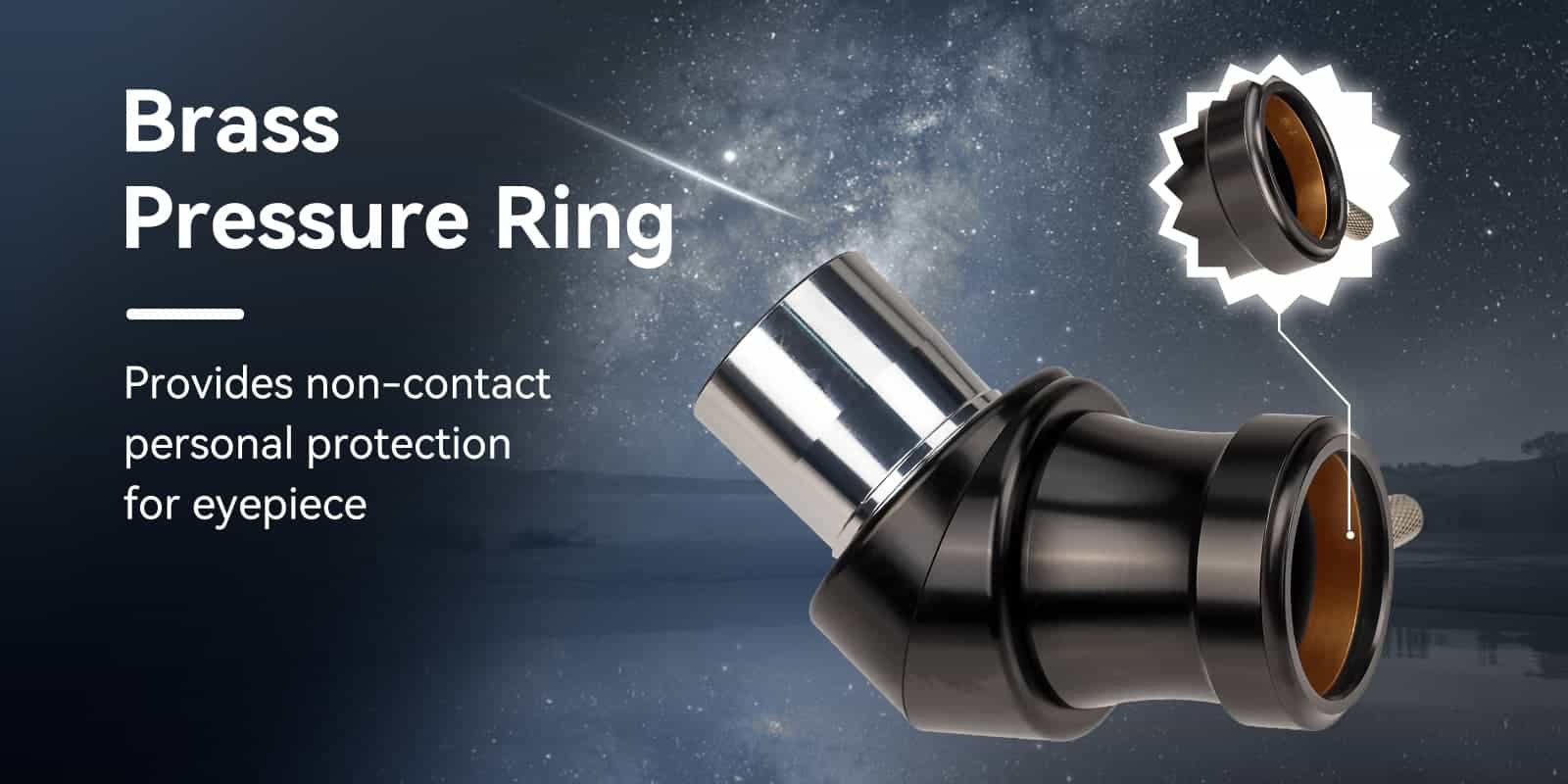

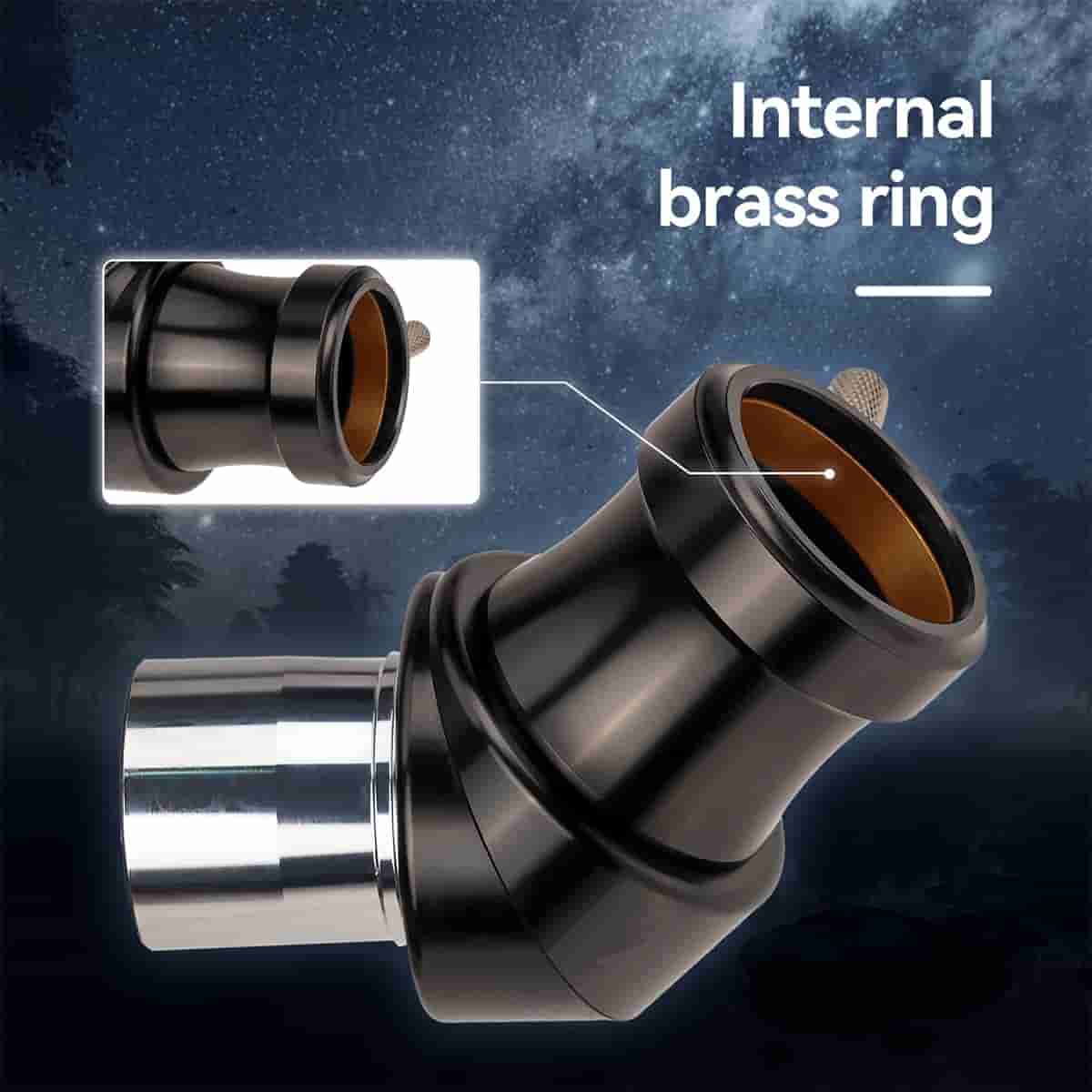

Brass Pressure Ring
SV222 has a brass pressure ring design; it is firmly connected with the eyepiece and does not shake; it will not scratch the eyepiece.

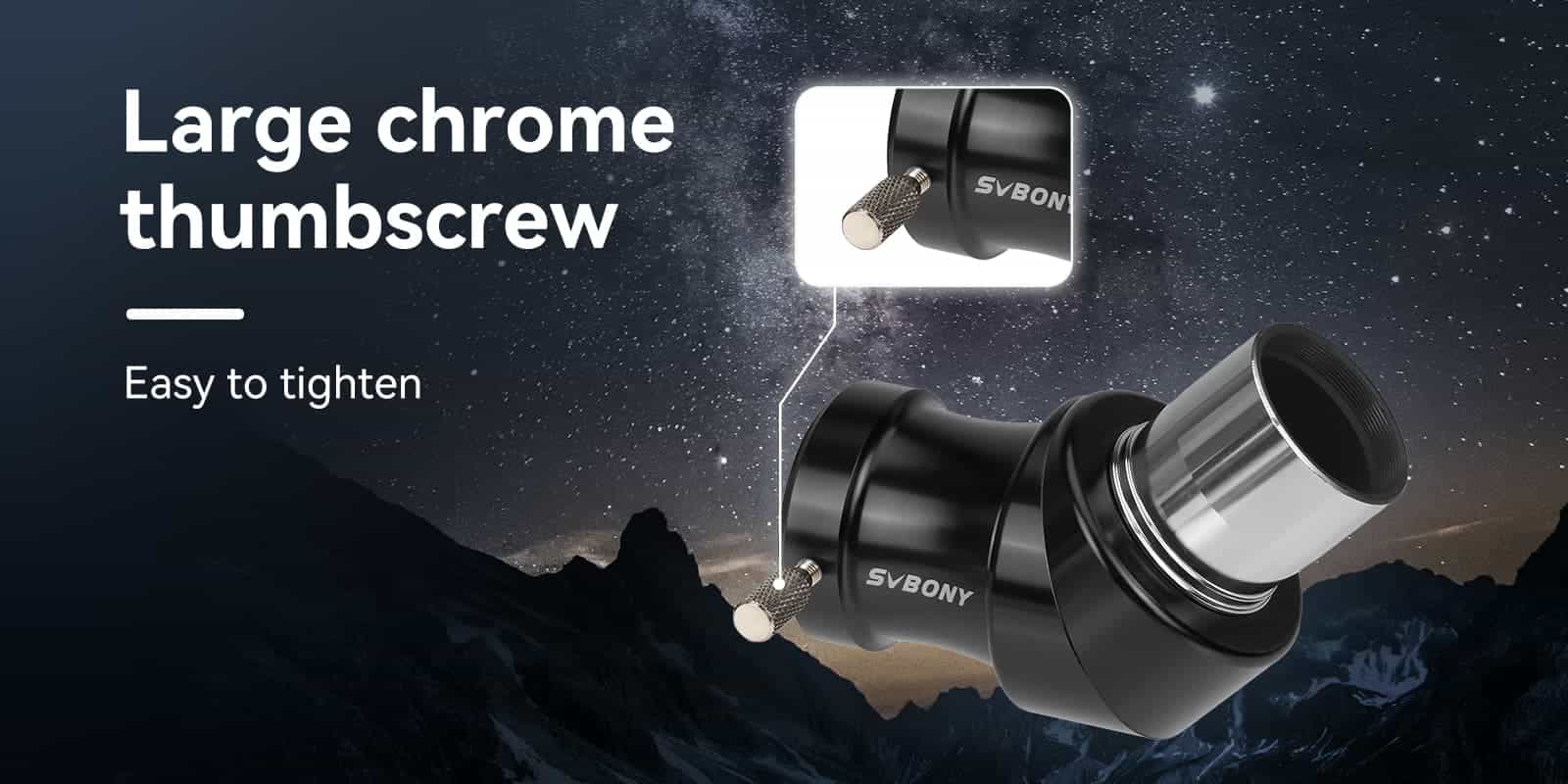

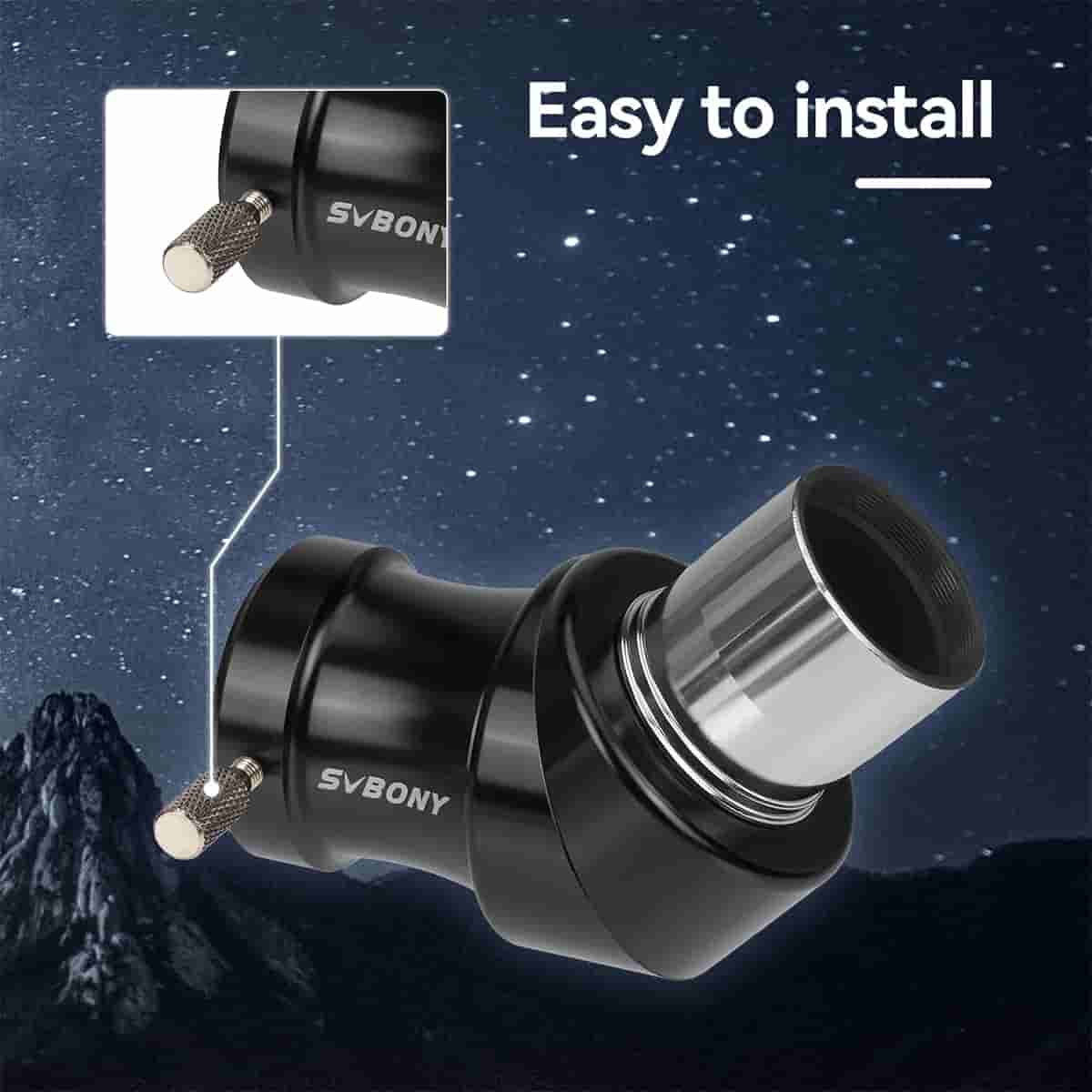

Large Chrome Thumbscrew
SV222 diagonal 45 degree is designed with large chrome thumbscrew; easy to hold; easy to install.

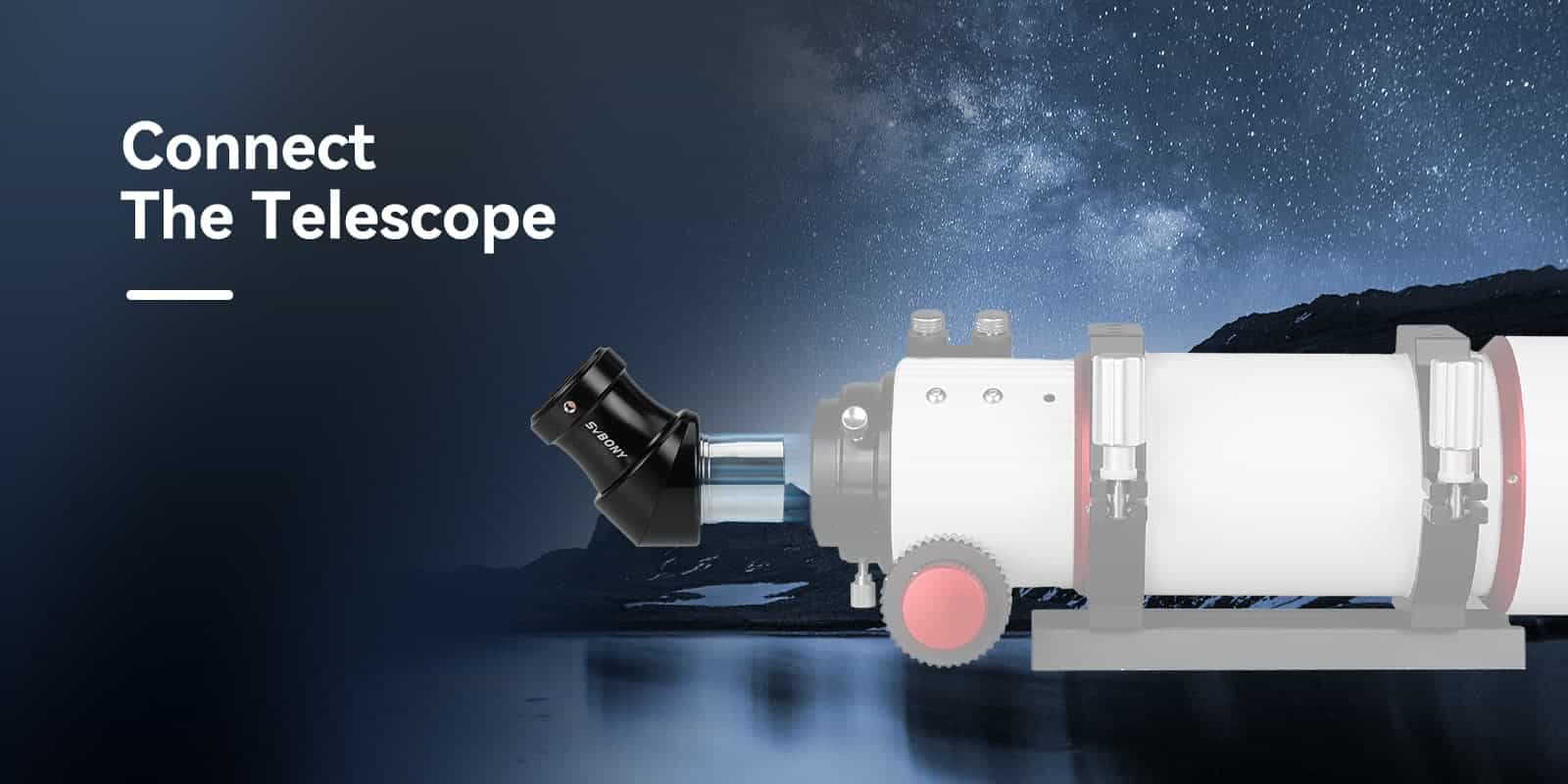

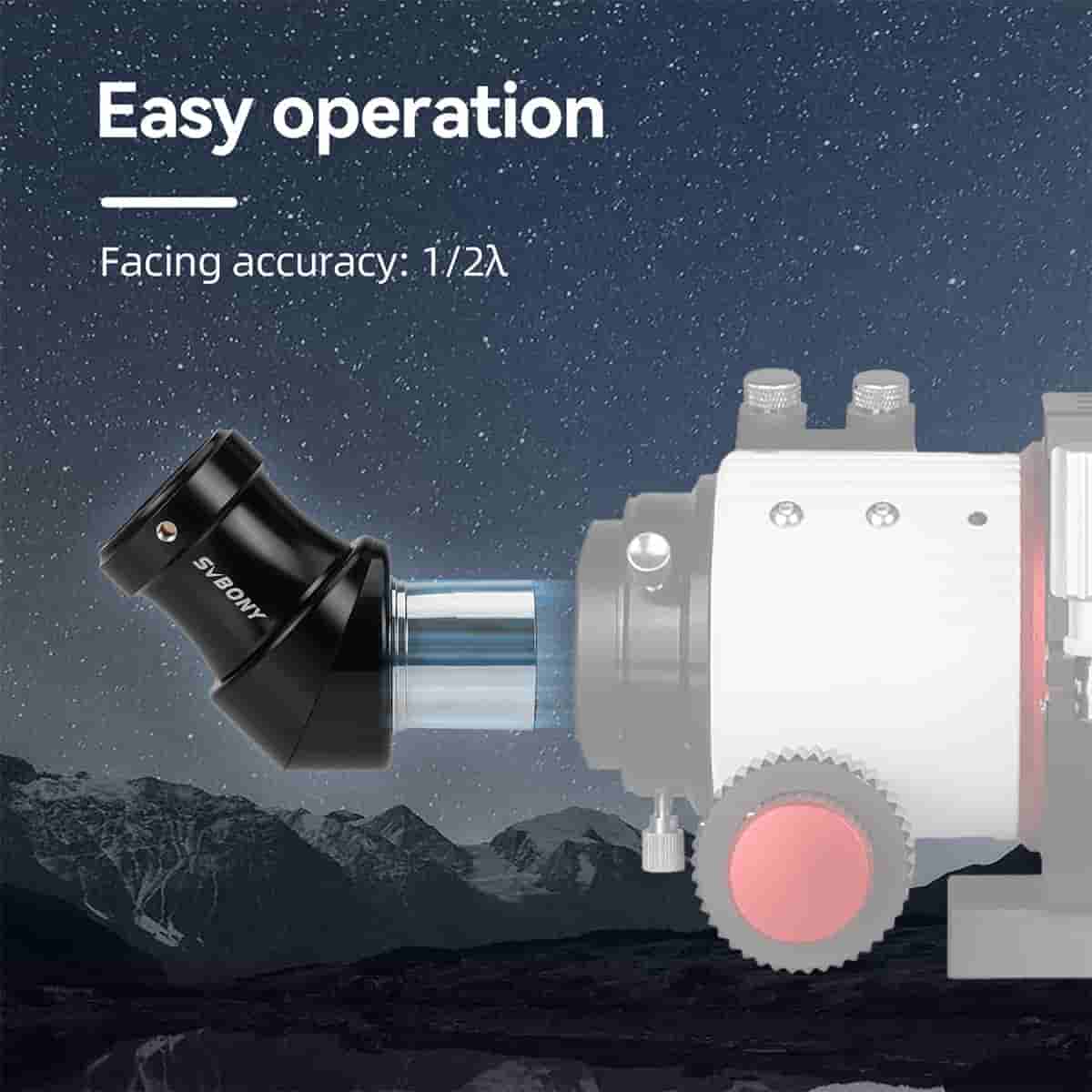

Connect the Telescope
SV222 1.25 inch diagonal mirror can be applied to planets; visual observation of astronomical scenes such as deep space; suitable for refracting telescopes.

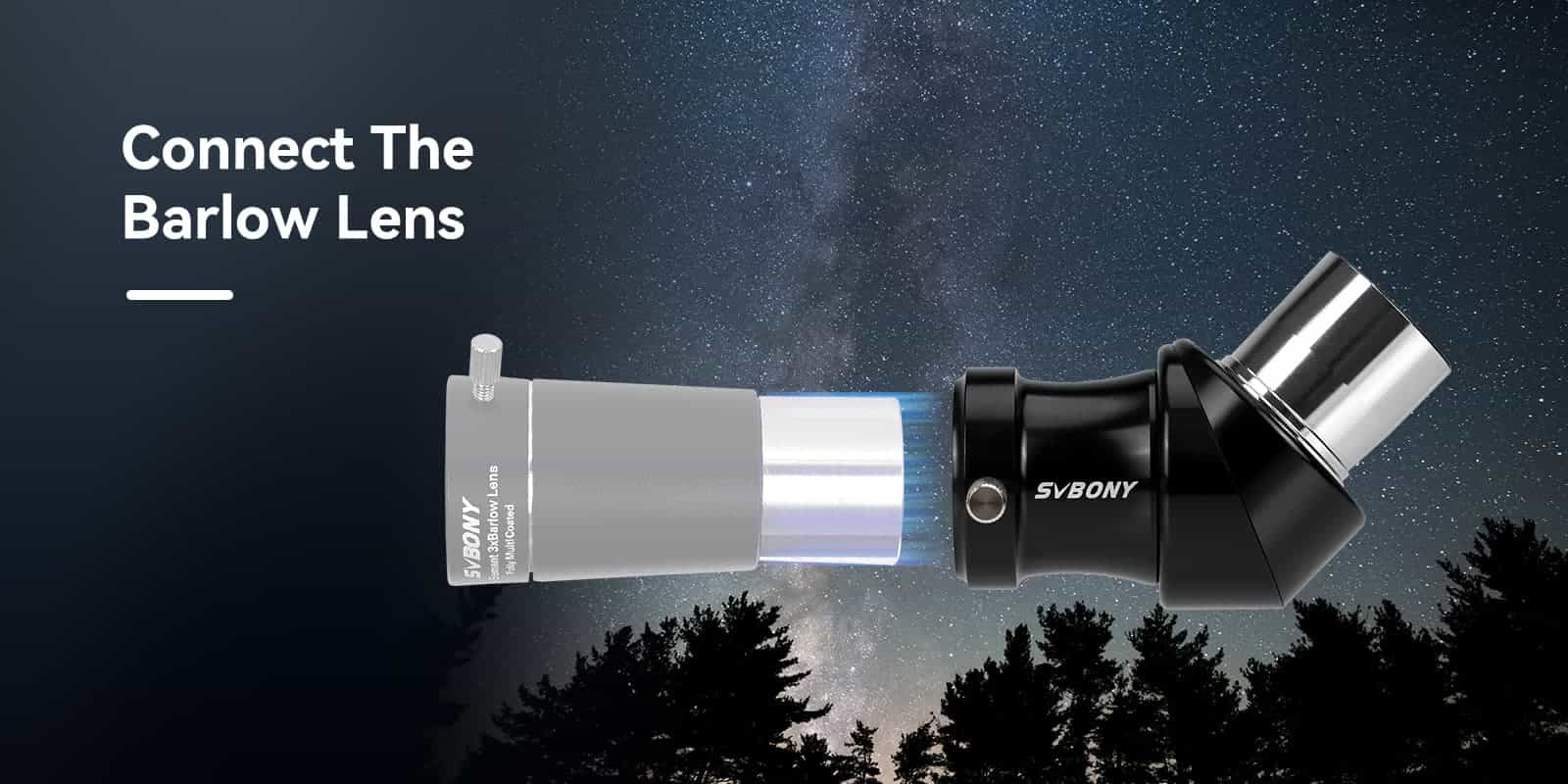

Connect the Barlow Lens

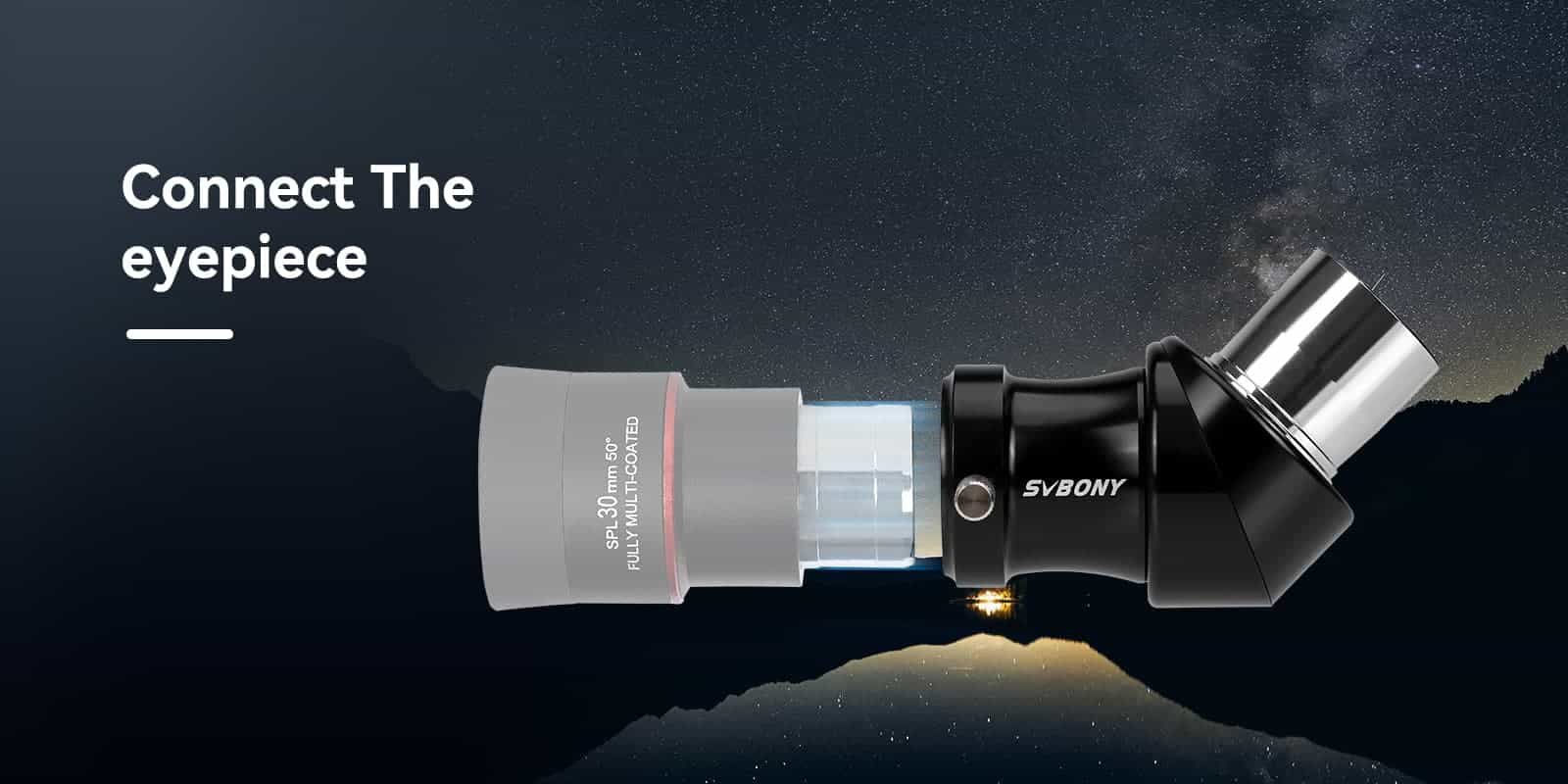

Connect the Eyepiece

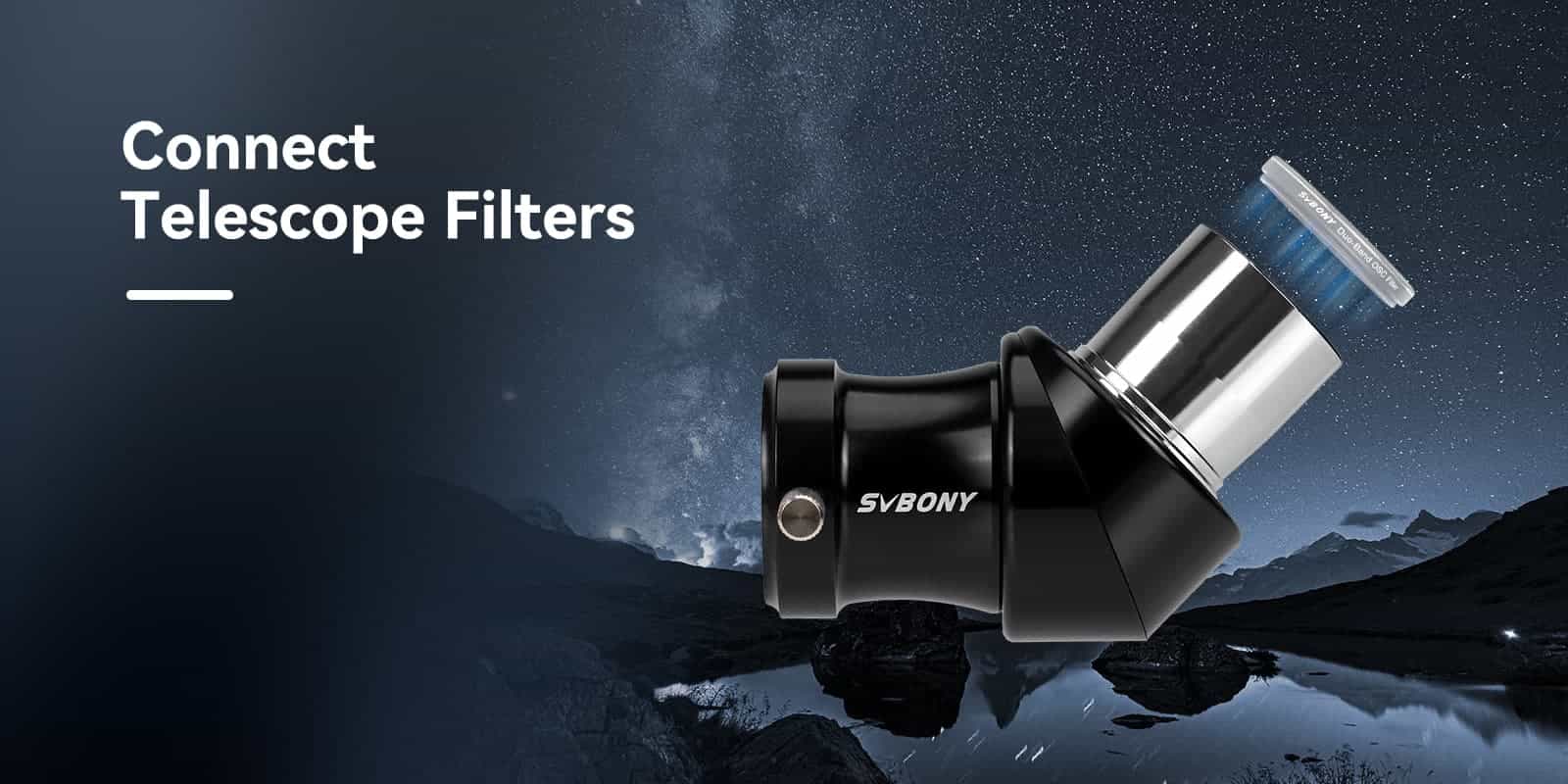

Connect Telescope Filters
Specifications
| Brand | SVBONY |
| Model | SV222 |
| Size | 1.25inch |
| Optical Design | Prism Diagonal |
| Inner Connection (Lens Sided) | Thread M28.5x0.6 |
| Outer Connection (Lens Sided) | Barrel 1.25inch |
| Inner Connection (Eyepiece Sided) | Clamp 1.25inch |
| Coating | Fully Multi-Coated + Phase Coatings |
| Image Orientation | Erect image, non-reversed |
| Optical Length | appr. 93mm |
| Clamping System | Screw clamps |
| Deflection Angle | 45° |
| Clear Aperture | 16mm |
| Body Material | CNC Metal Aluminum |
| Prism Material | BK7 |
| Net Weight | 167g/5.87oz |
Features
1.High-quality 45-degree erecting prism with Phase Coatings allows for good contrast and bright images.
2.Entirely aluminum, black anodized eyepiece holder, large, chromed thumbscrews.
3.Internally blackened and baffled to prevent internal stray light reflections.
4.1.25" eyepiece holder comes with anti-marring brass compression ring.
5.Accepts 1.25" eyepieces, fits in 1.25" focusers.
6.For terrestrial or astronomical use, this diagonal produces a right-side-up, non-reversed image with correct daytime orientation
7.Not recommended for use in Newtonian reflector or DOB reflector telescopes
8.Tips：But all Prism Diagonal – no matter how good they are – suffer from one design feature: There is a line going through the center of the image, where both sides of the prism surfaces come together. This may cause reflections or spikes. To some extent, this will always happen when a bright object like a star is viewed in front of a dark background like the night sky. This should be obvious only with very bright stars or planets.

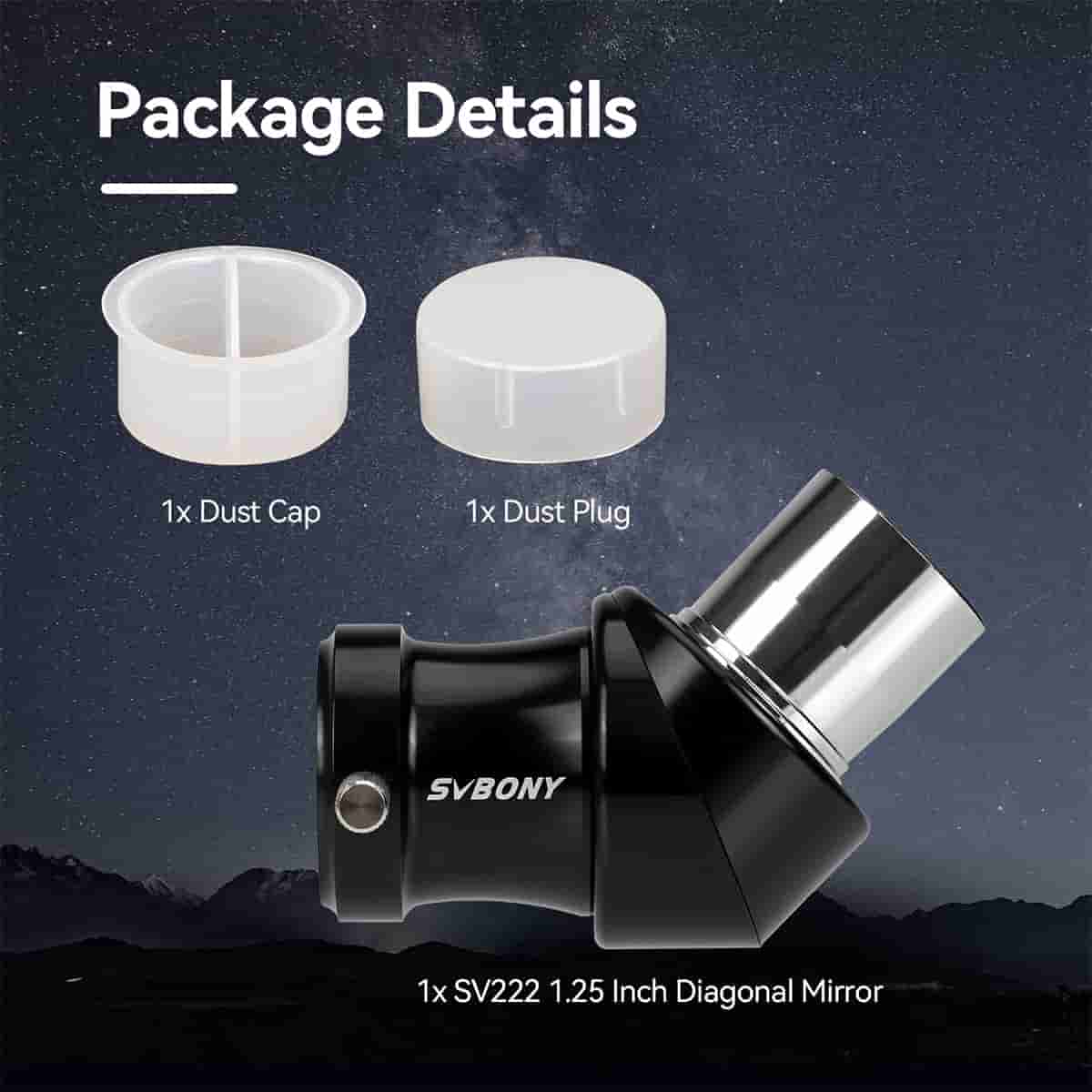

Package Includes
SV222 1.25" 45 Degree Metal Correct Image Prism Diagonal
1PCS M4 Screws
1PCS Dust Cap
1PCS Dust Plug
