SV225 Alt-Azimuth Telescope Mount Adjustable Angle Perfect Travel Companion For Visual Astronomy
- CNC hollow structure; SV225 altazimuth mount adopts hollow structure; reduce the weight(2.34Kg); convenient for you to carry out; light weight
- Fine adjustment shift; SV225 alt-az mount can fine-tune the telescope to meet your adjustment efficiency in different scenarios
- Variable speed gear; SV225 alt-azimuth mount is variable speed gear slow motion controls on both axes to let you smoothly follow the motion of the moon and planets
- Load capacity; with a payload capacity of 10kg; even light weight; the SV225 alt azimuth mounts will match well with the telescope; camera and so on
- Applicable scenes; SV225 alt-az mount is suitable for many senorios; like astronomical visual observation and surface observation
Get the reviews by (@BogdanDamian)
Free shipping, duty-free

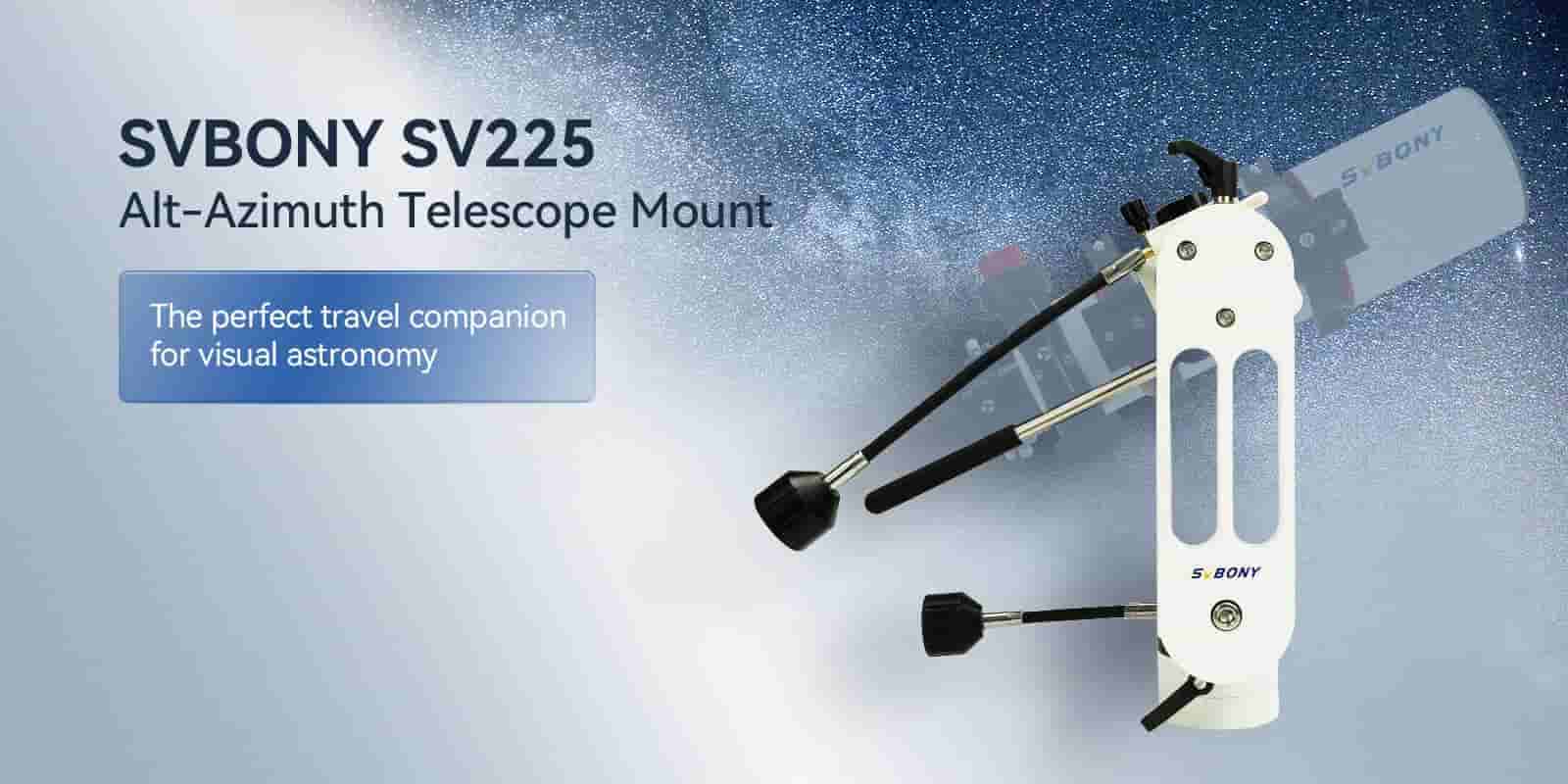

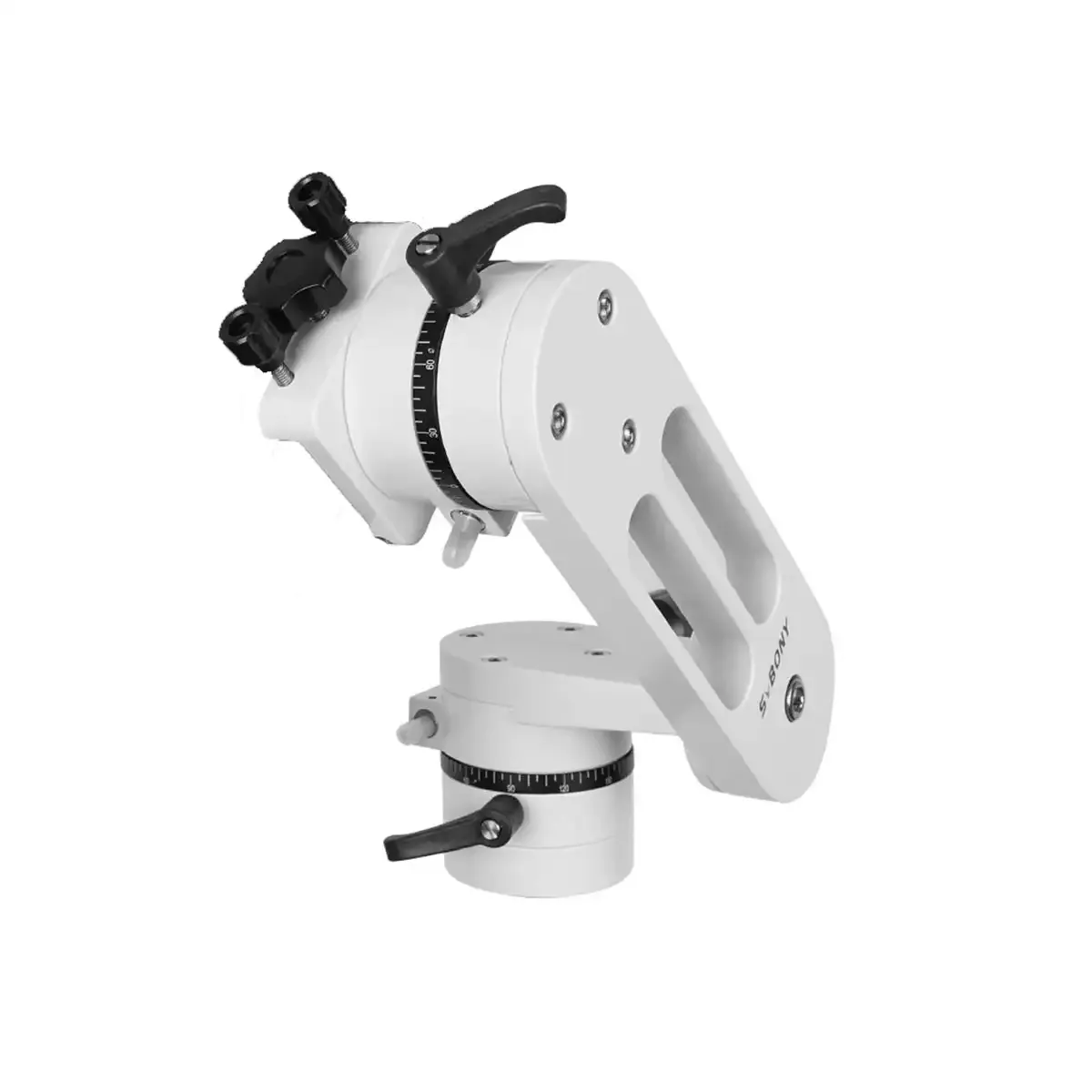

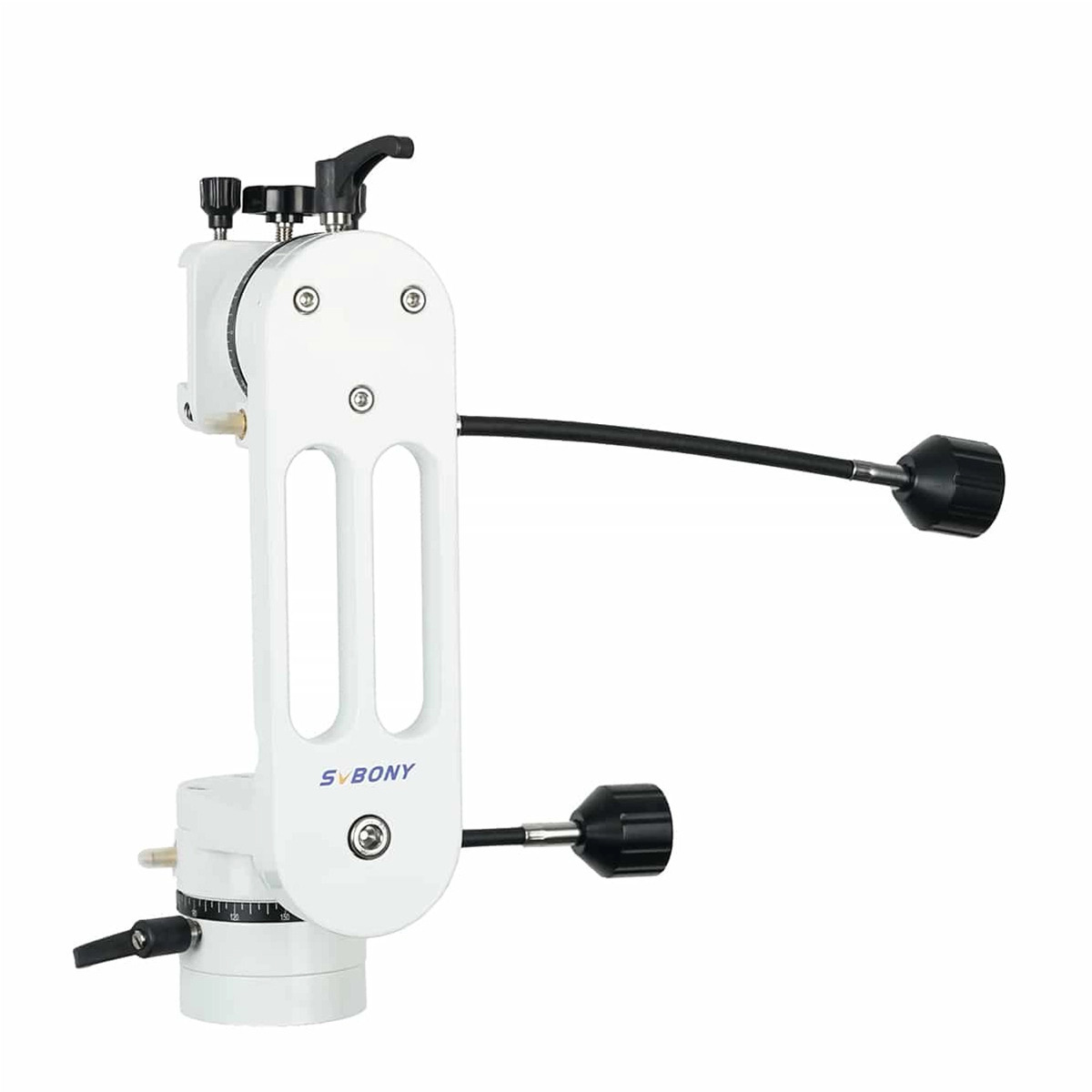

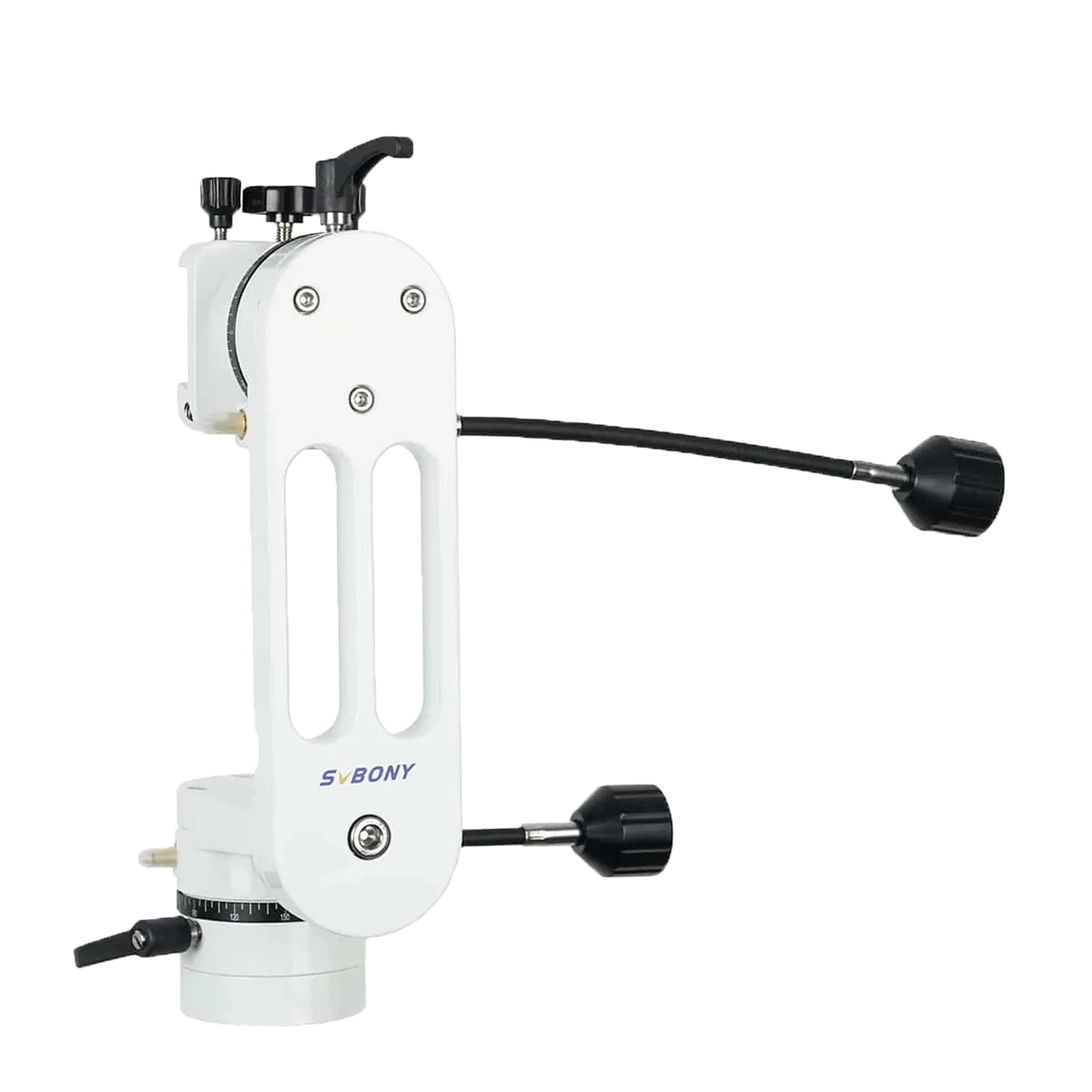

SV225 Adjustable Angle Alt-Azimuth Telescope Mount
SVBONY SV225 Alt-Azimuth telescope mount is the perfect visual astronomy travel companion and strong practicality.

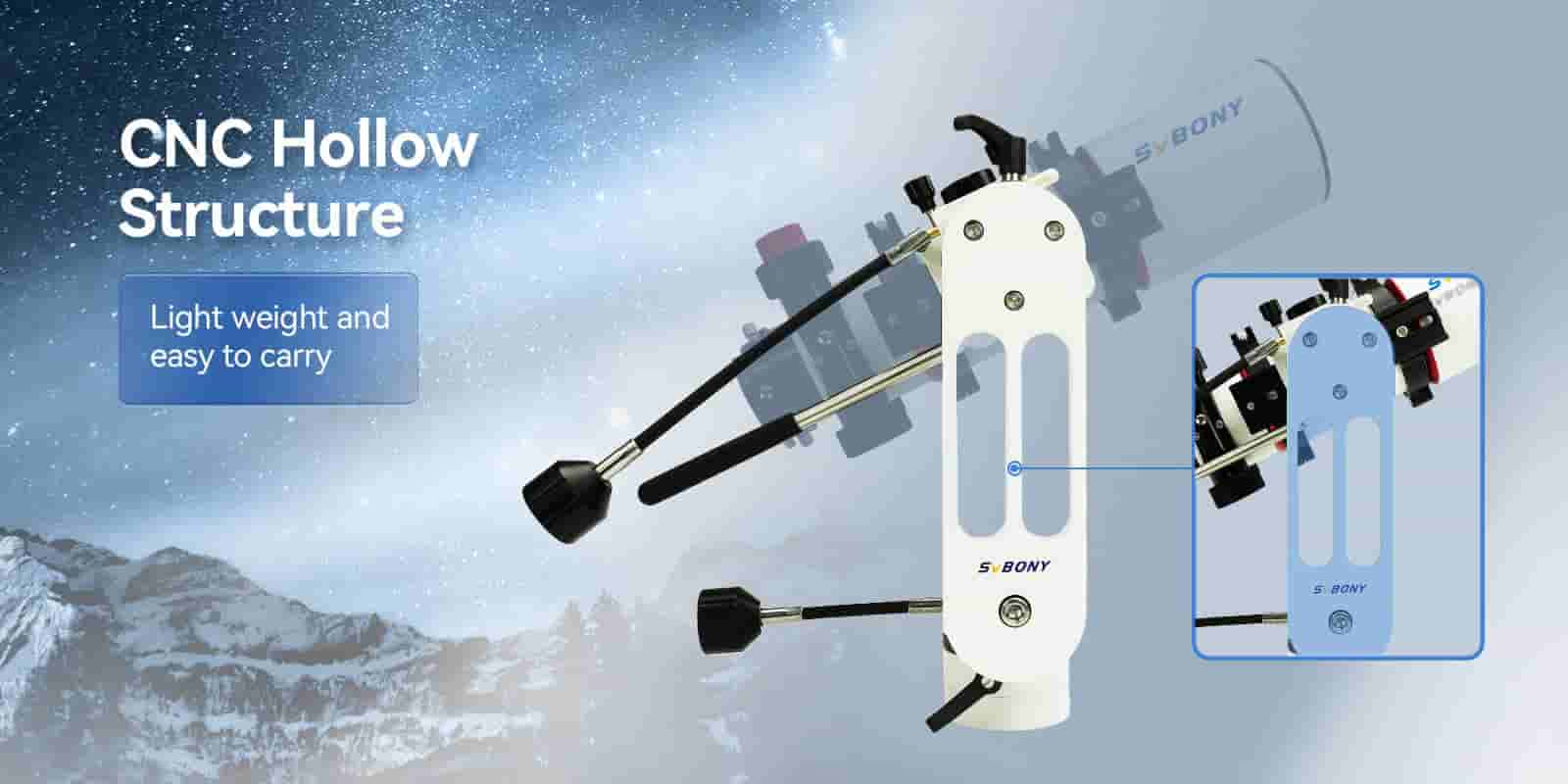

CNC Hollow Structure
CNC Metal construction,durable steady for a long-term use. Applicable to most astronomical OTAs.

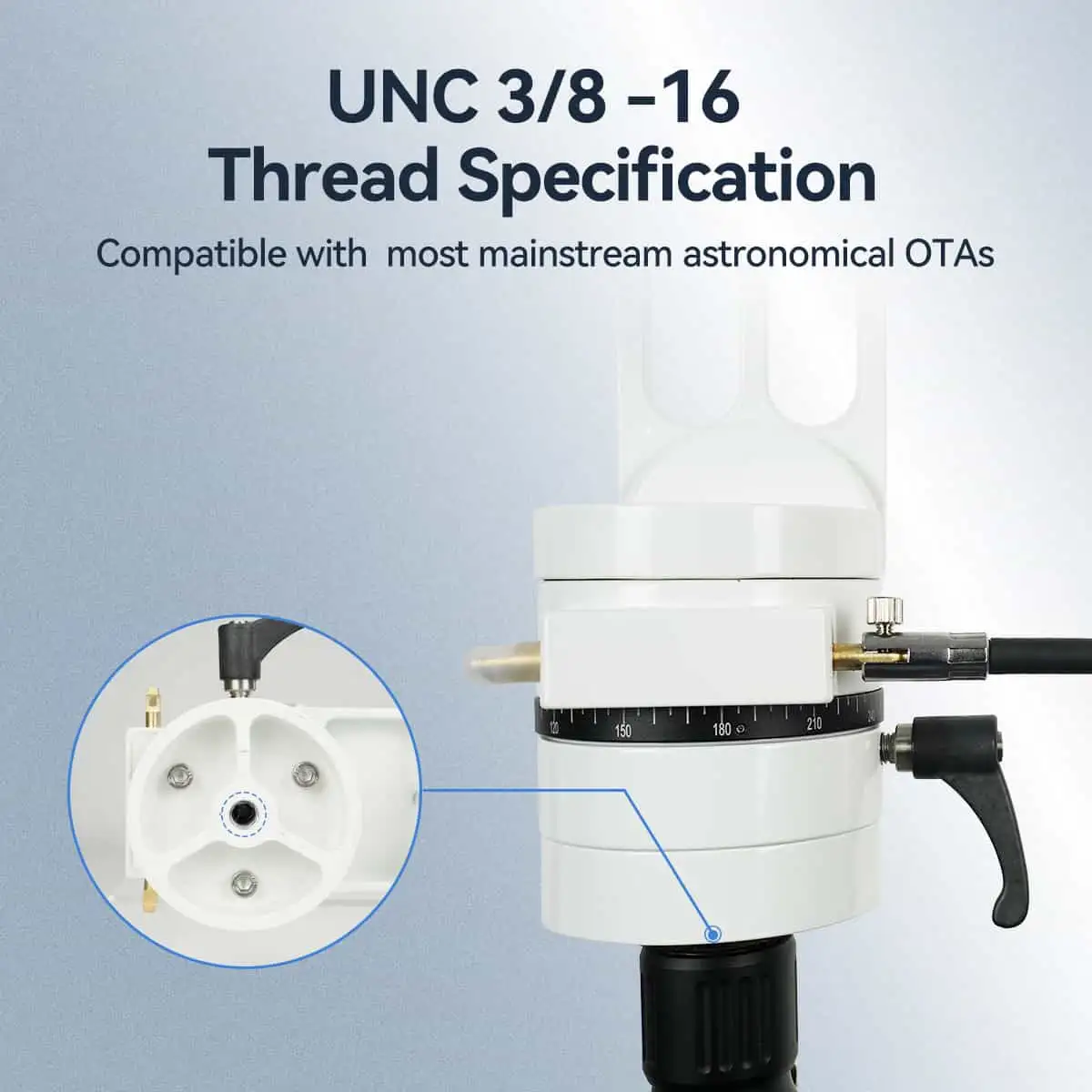

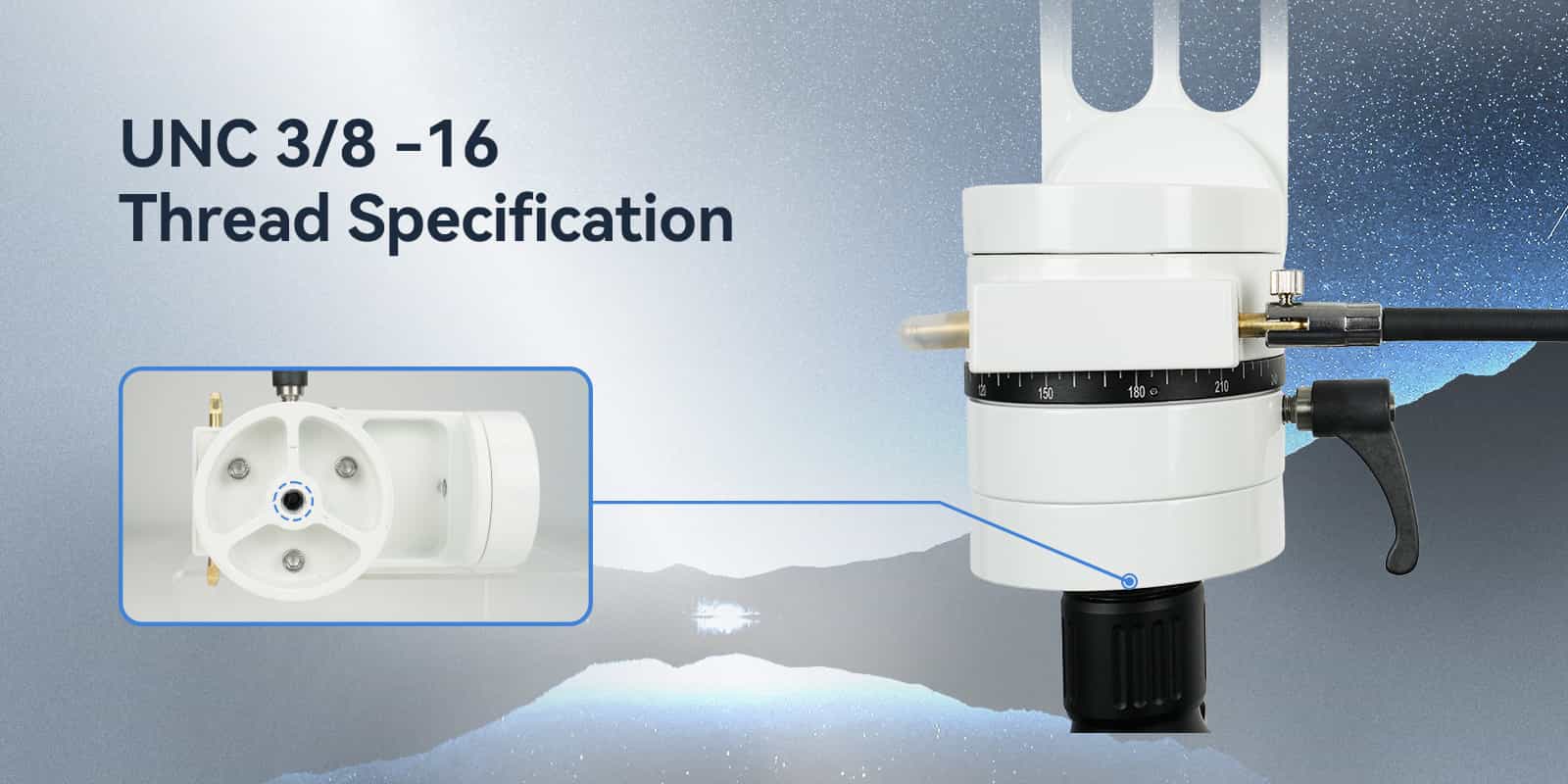

UNC 3/8-16 Thread Specification
UNC 3/8 -16 thread specification is compatible with Celestron/Skywatcher/Orion/Vixen & most mainstream astronomical OTAs.

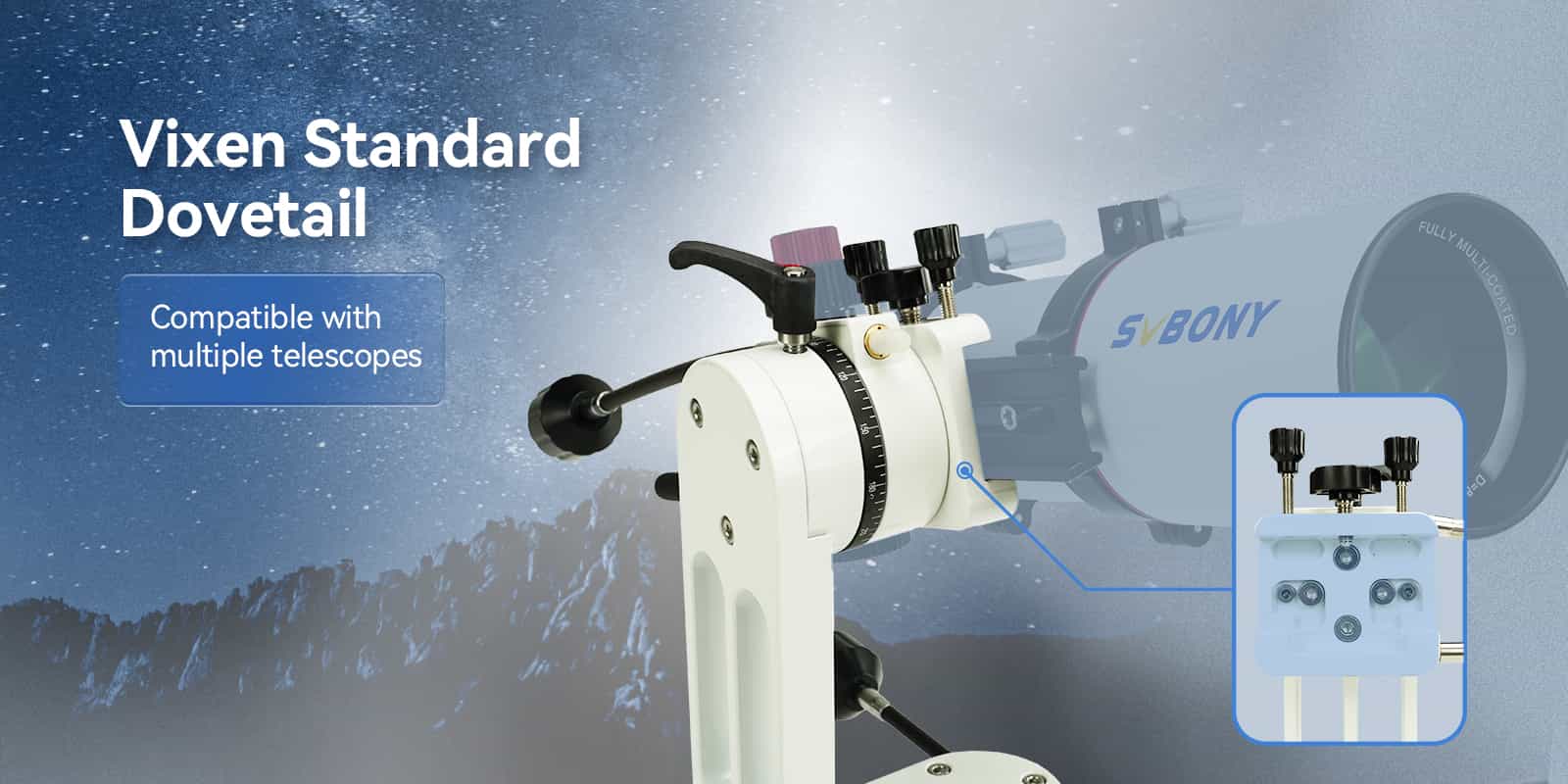

Vixen Standard Dovetail

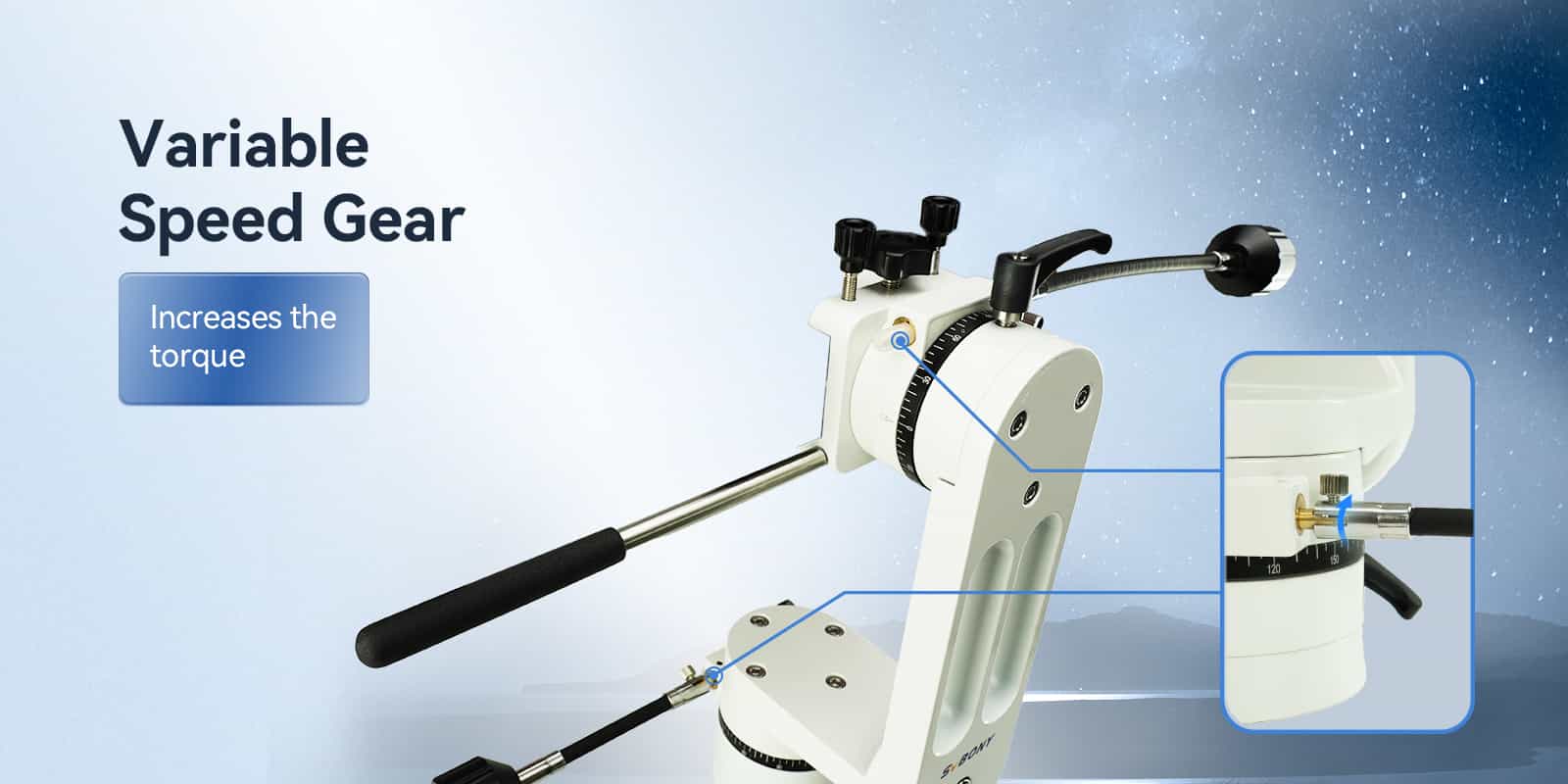

Variable Speed Gear
The newly added variable speed gear increases the torque, and the customer reduces the idle adjustment during use, which makes the operation feel more comfortable. With low motion controls on both axes to let you smoothly follow the motion of the Moon and planets.

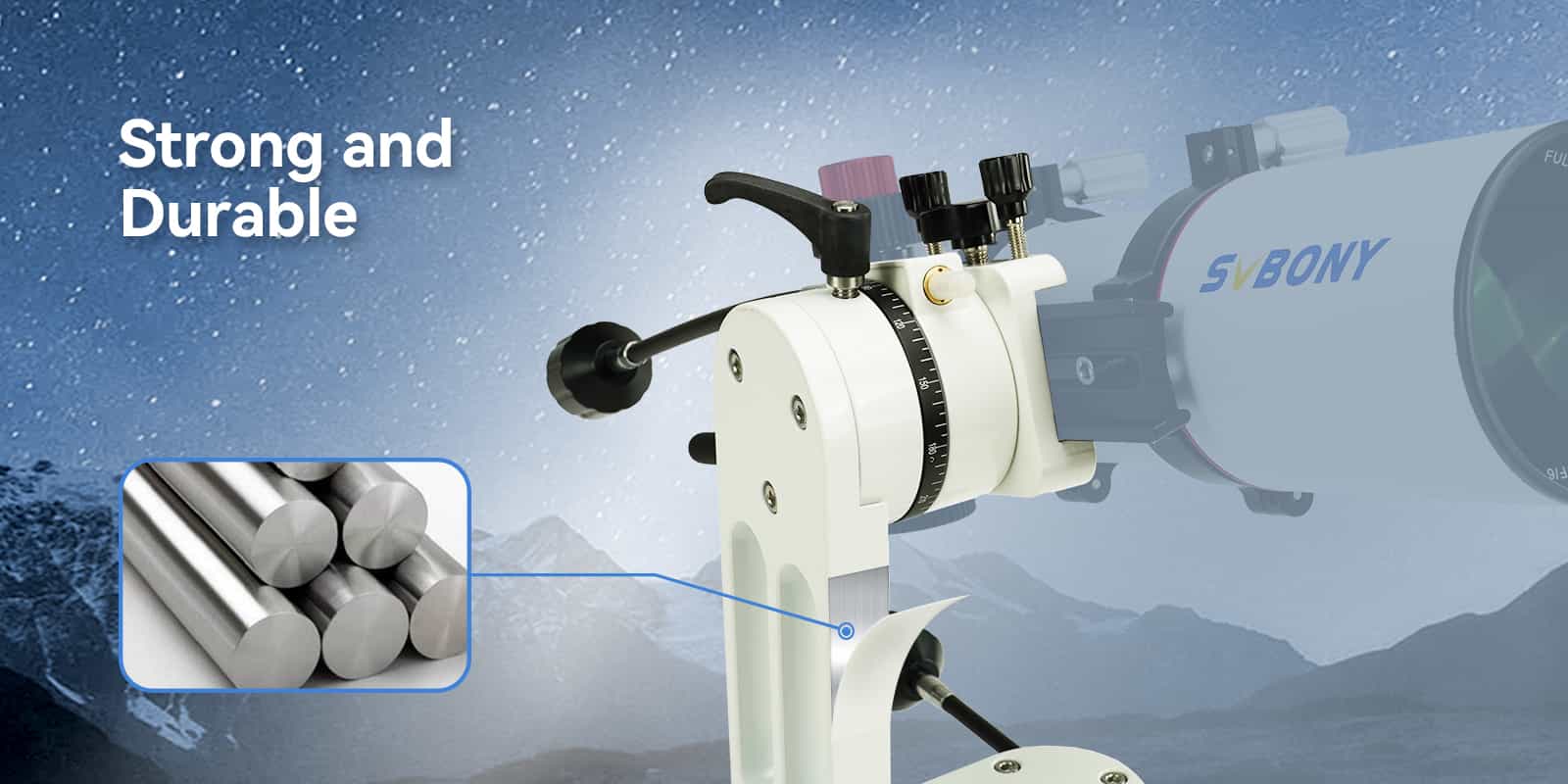

Strong & Durable

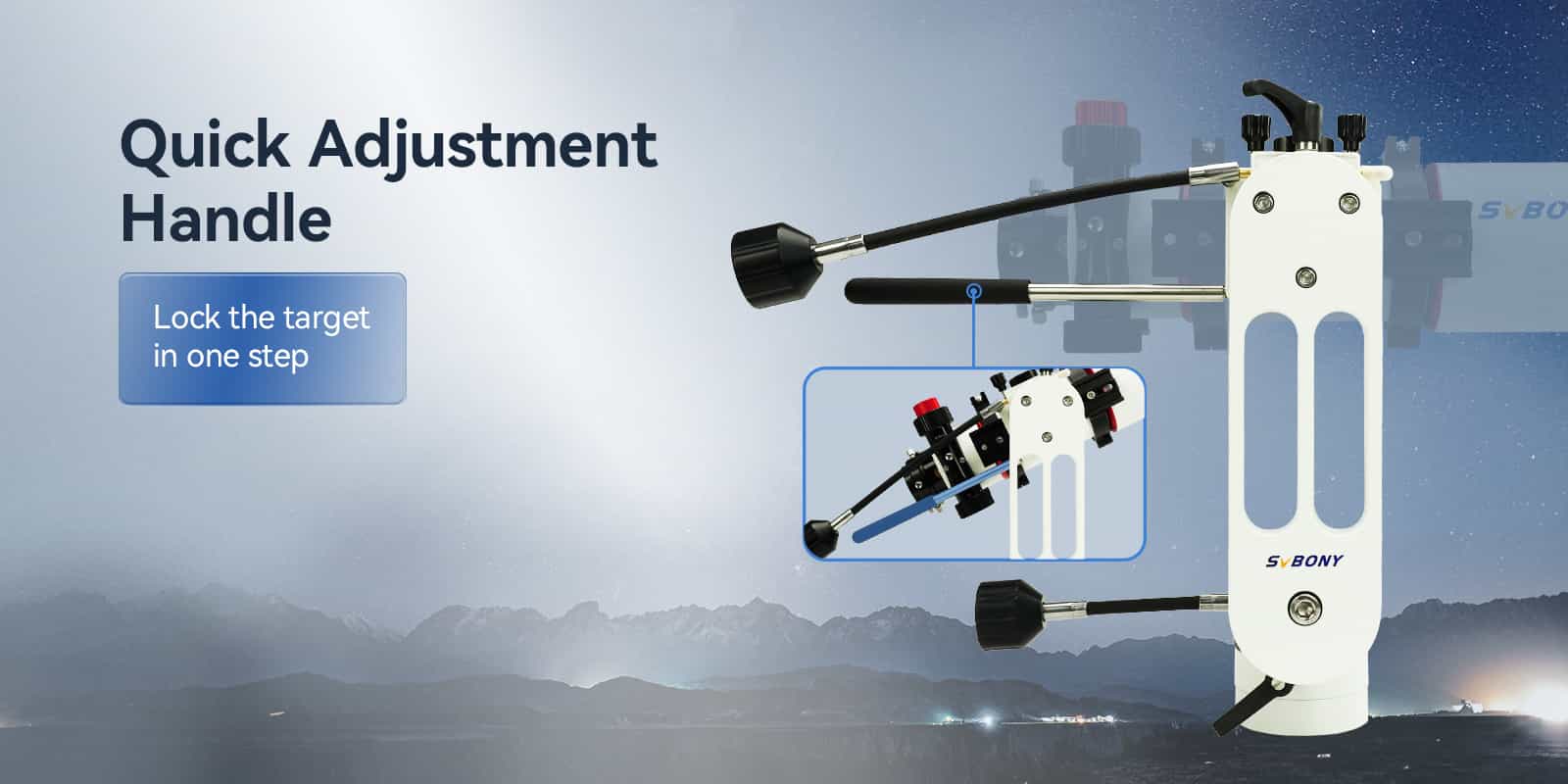

Quick Adjustment Handle
The handle helps you position quickly and is easy to use and operate.

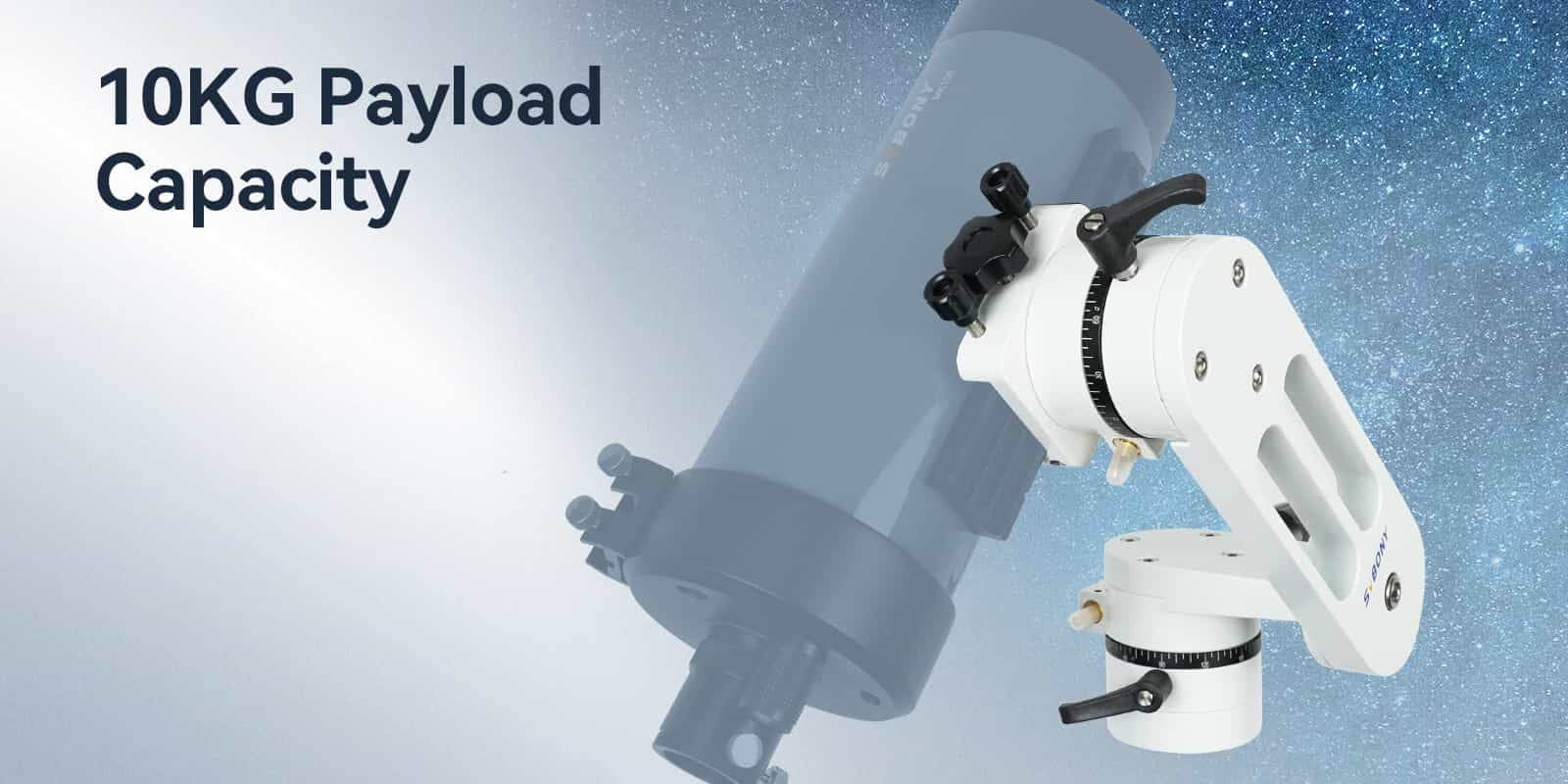

Payload Capacity
10KG load bearing makes sure you can have a smooth load operation even with the 122mm aperture SV550 OTA.

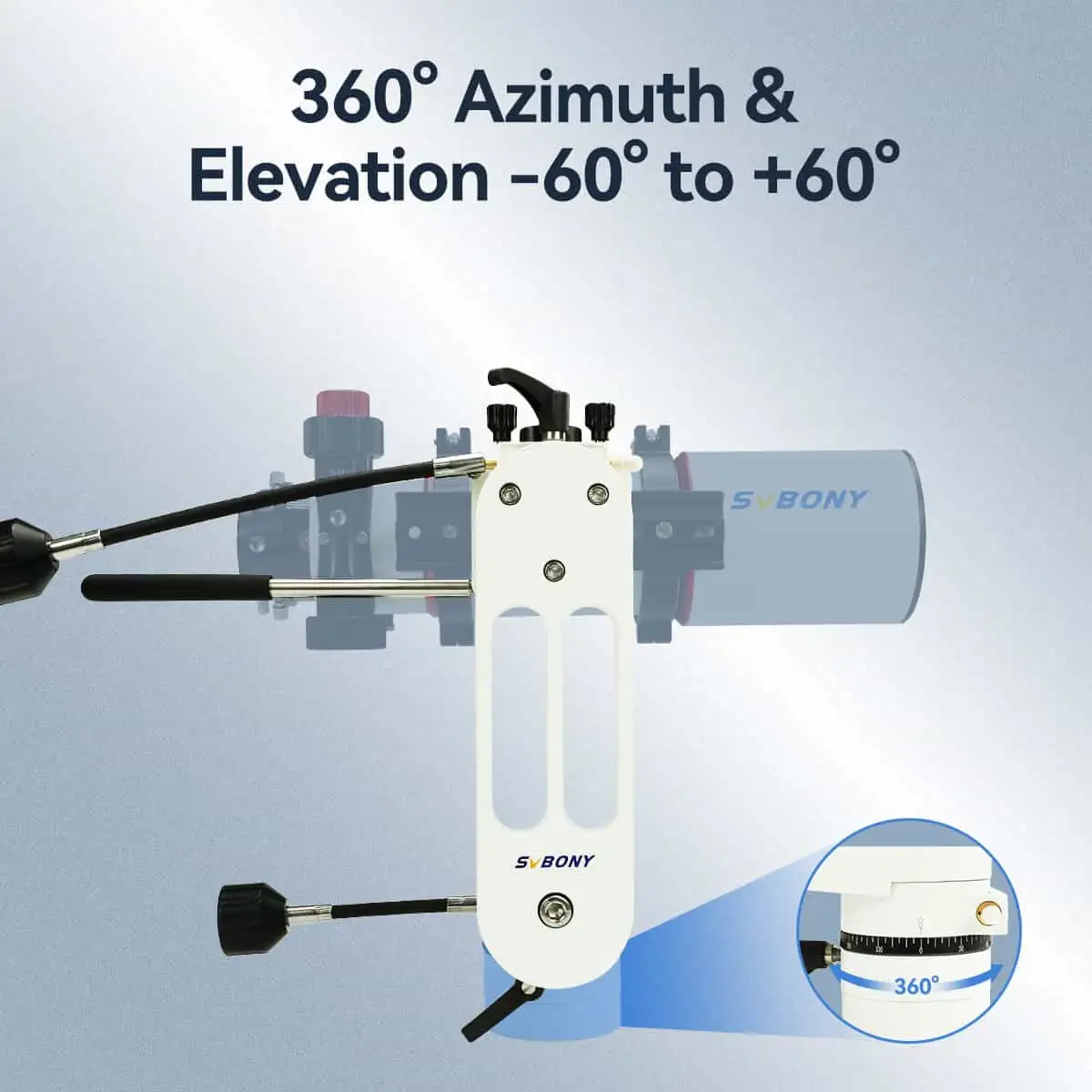

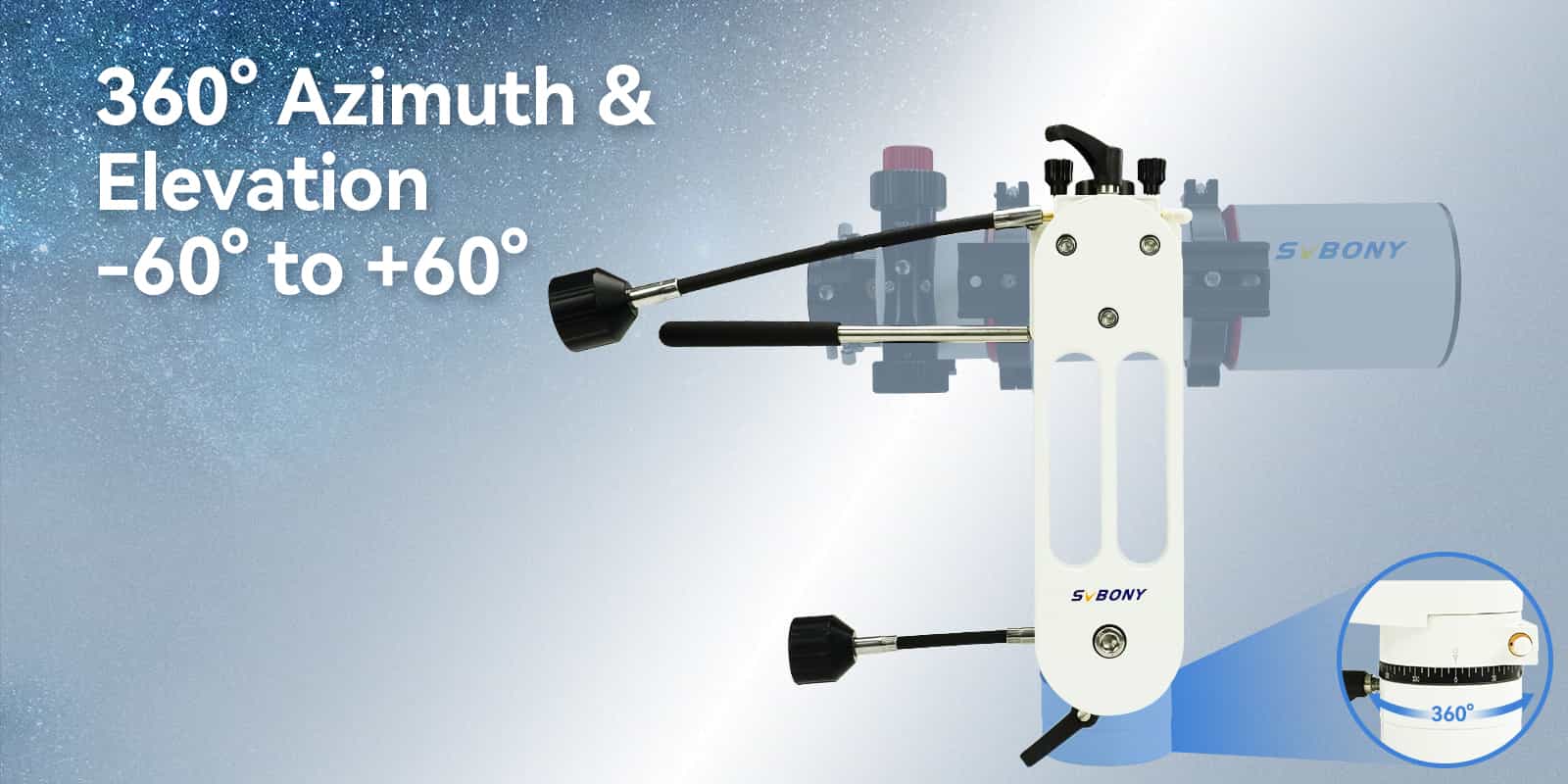

360° Azimuth & Elevation
Adjustable all-round viewing angle, observe as one pleases. Helical turbine drive supports 360° all-round adjustment, -60° to +60° altitude adjustment, all-round visual adjustment angle to meet your visual observation needs.

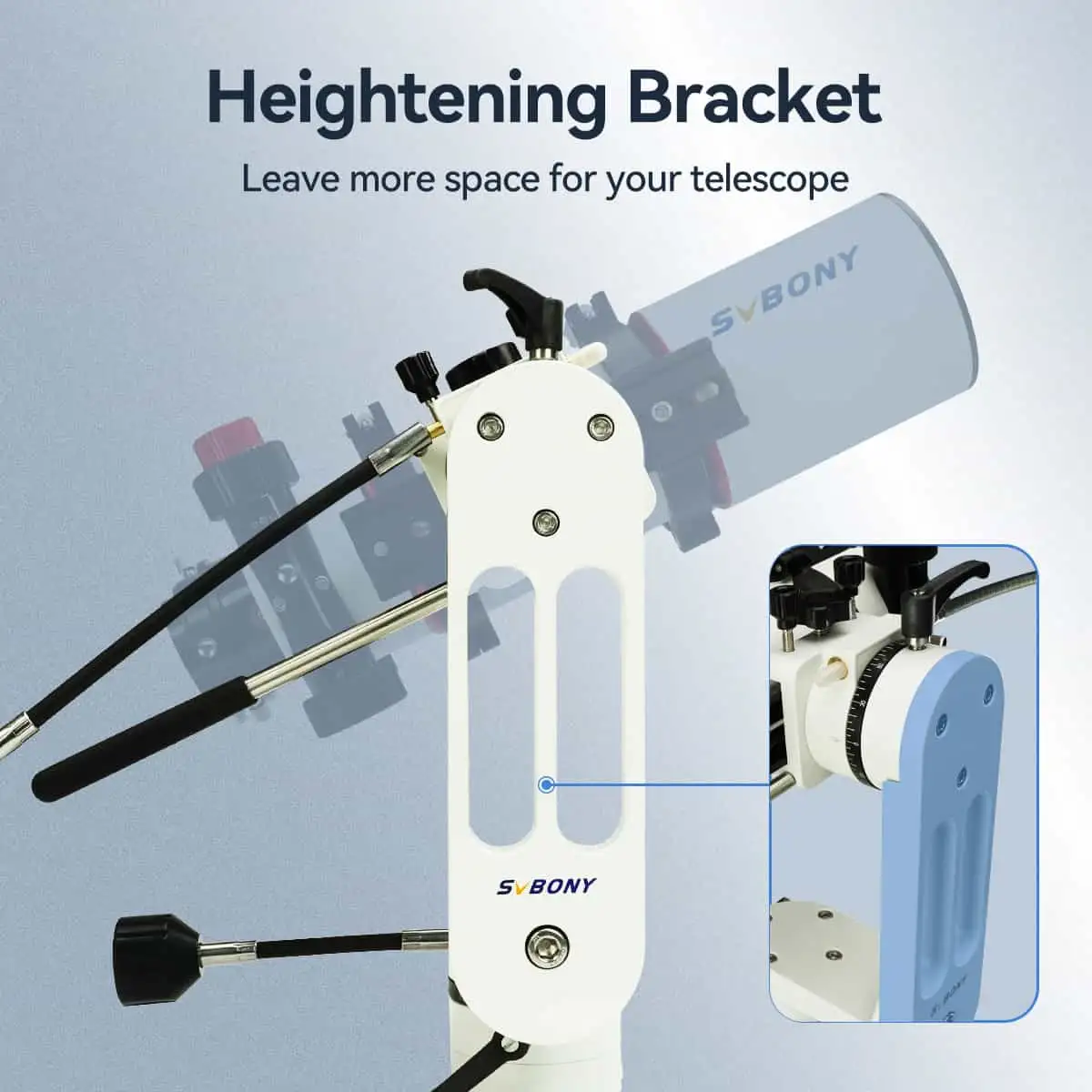

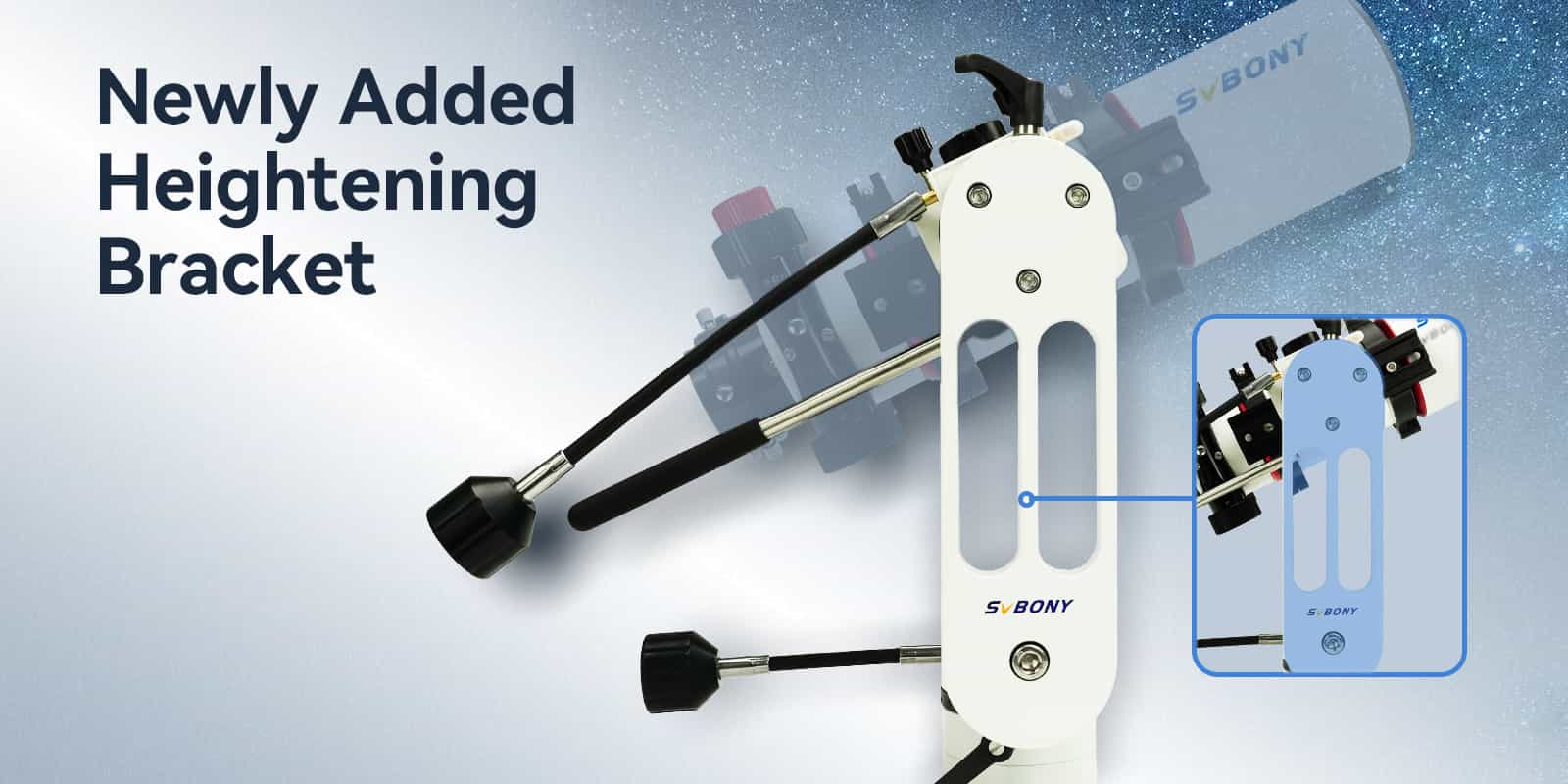

Heightening Bracket

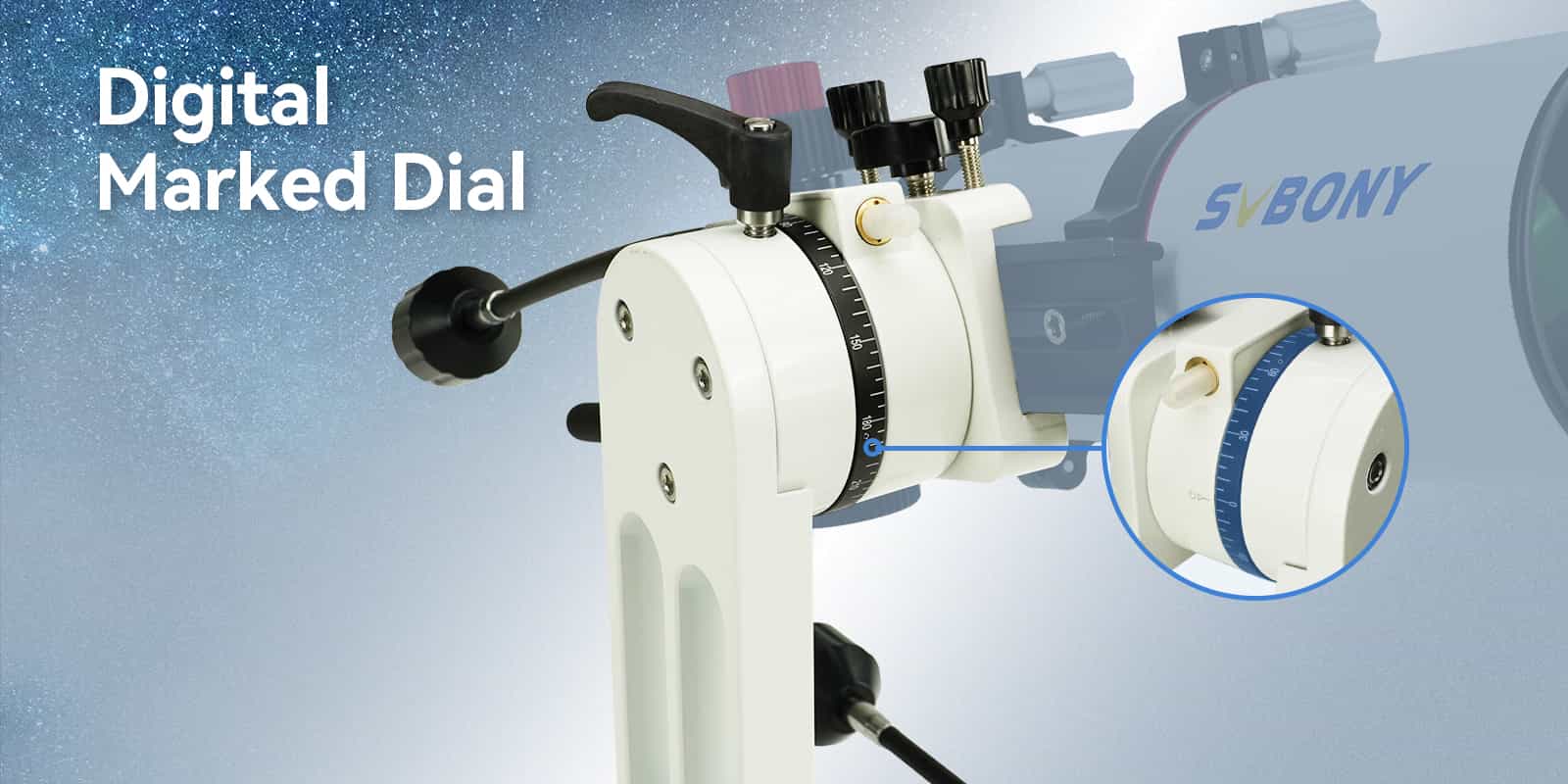

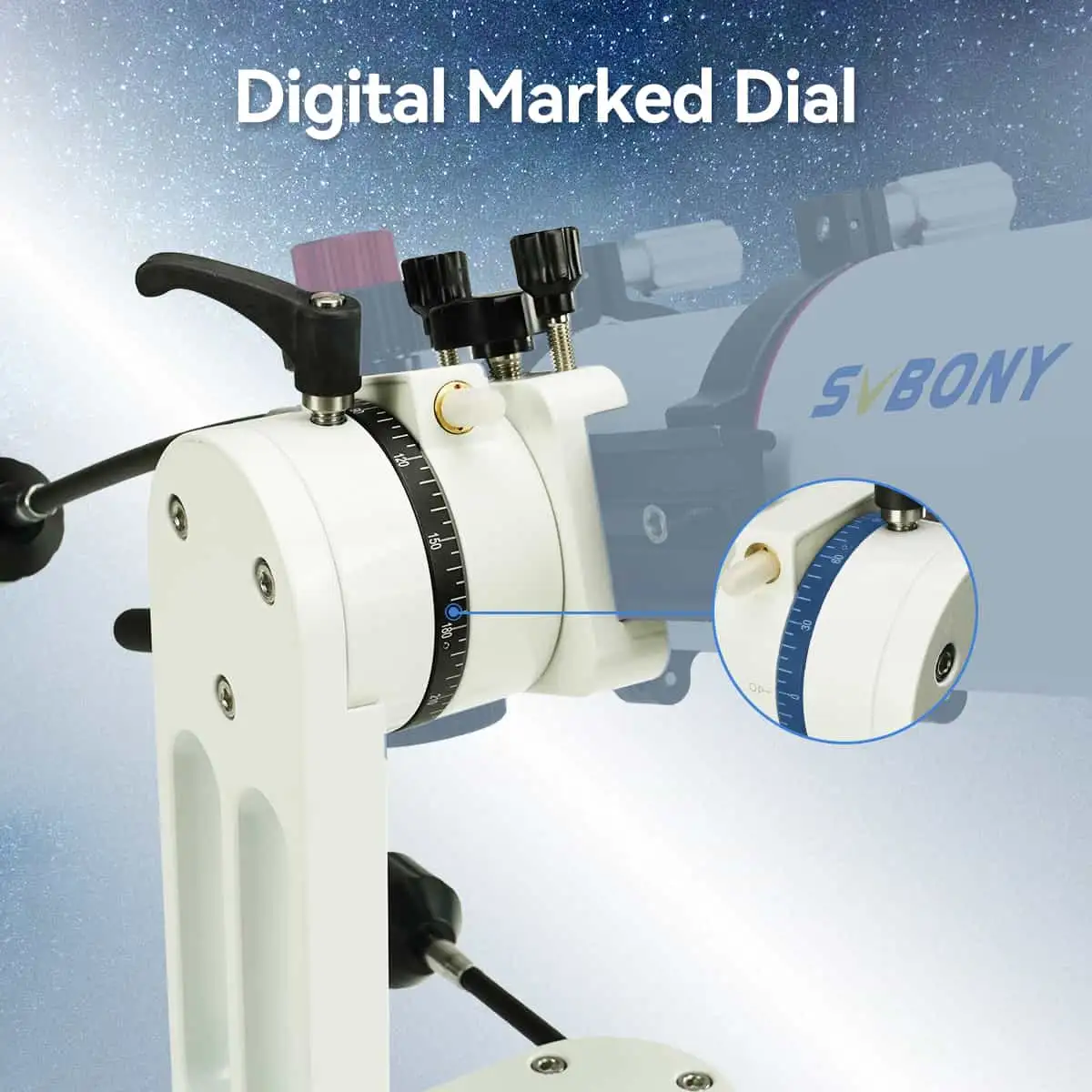

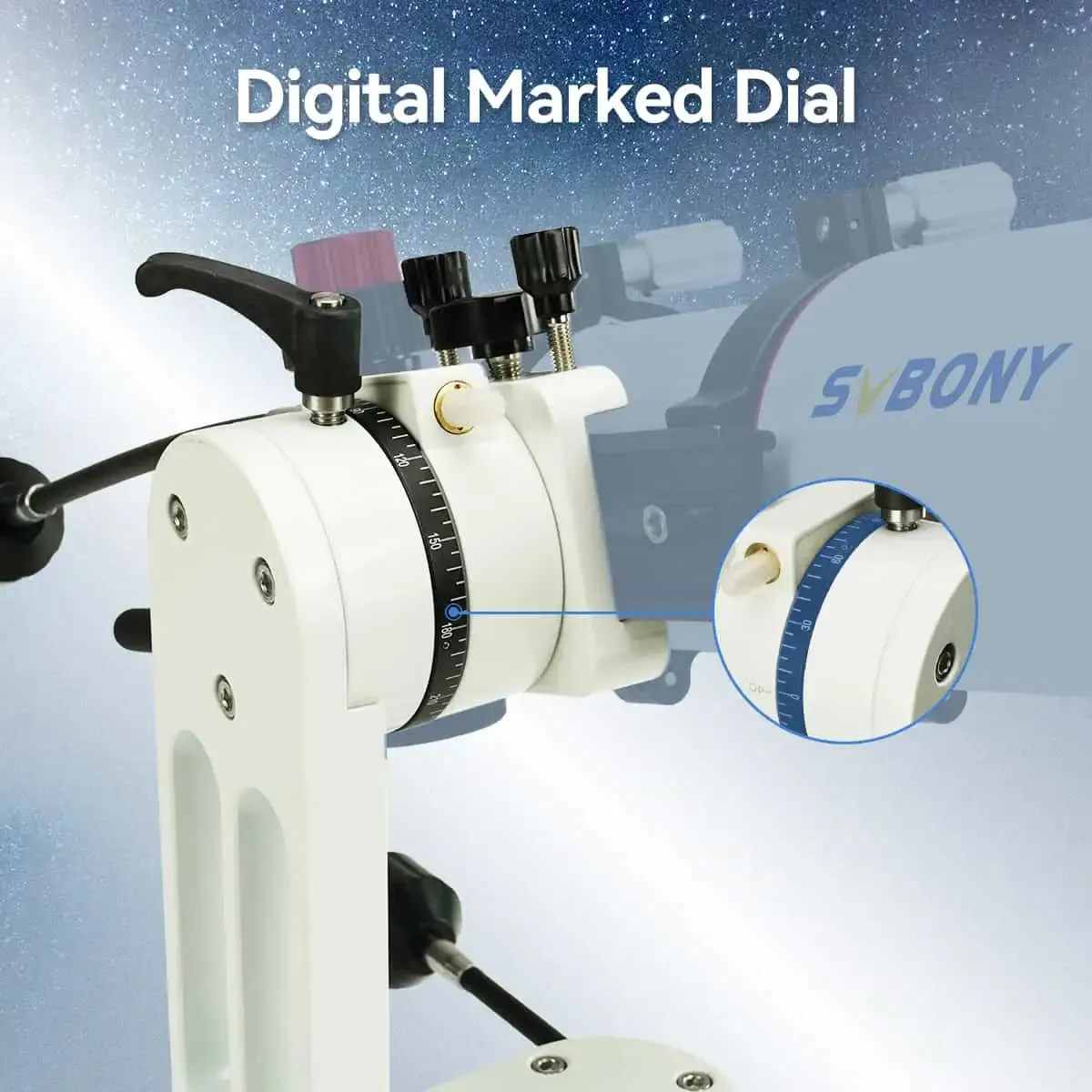

Digital Marked Dial
Digital scale mark is convenient for customer positioning and adjustment; quickly point to the observation target.

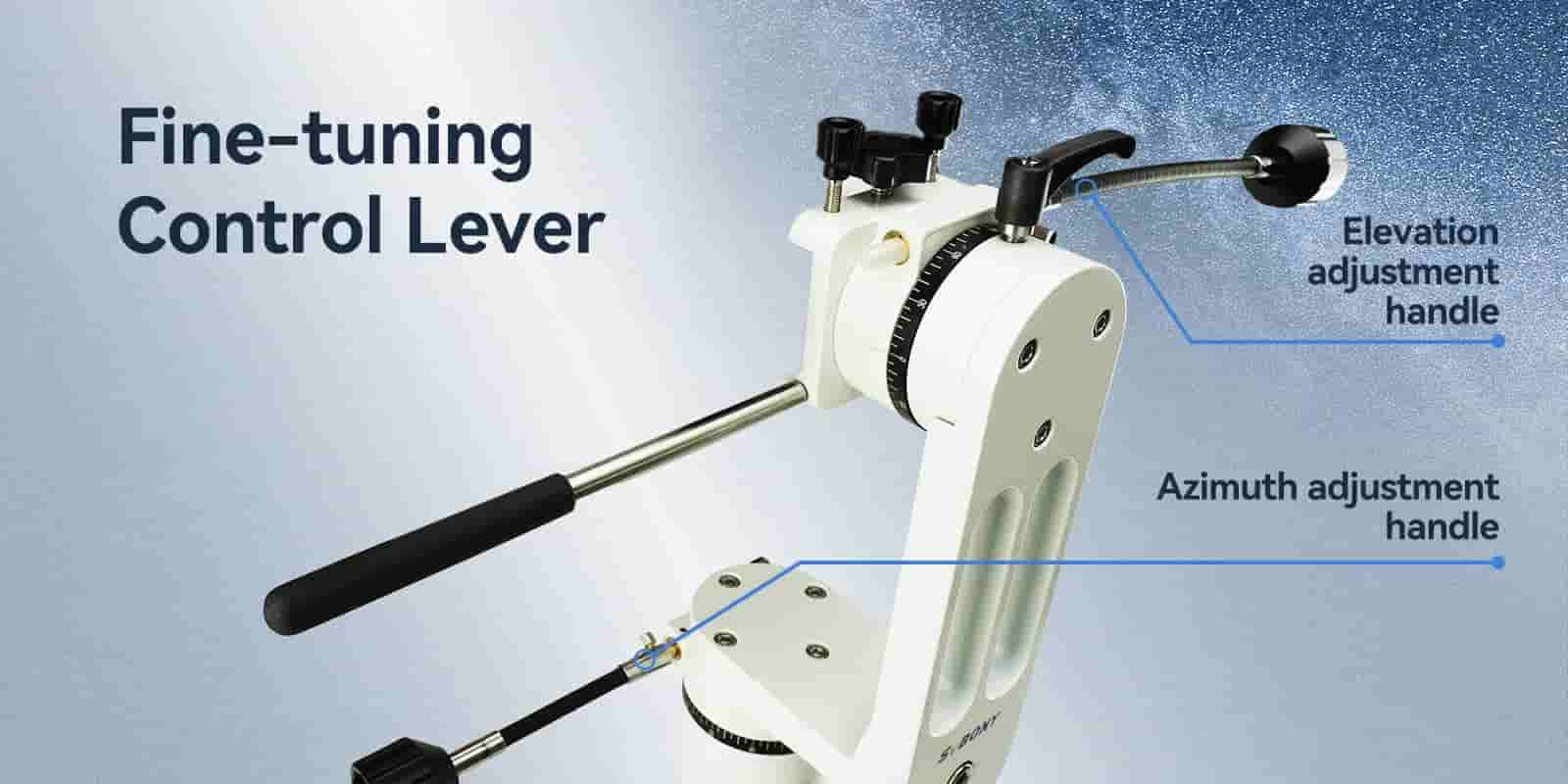

Fine-tuning Control Lever
Fine-tuning control lever is designed to meet the adjustment efficiency of customers in different scenarios.
Applicable Scenes
The Alt azimuth mounts Alt-Az is suitable for many senorios; like astronomical visual observation and surface observation.
| Brand | SVBONY |
| Model | SV225 |
| Max. additional load capacity | 10kg |
| Mounting Saddle | Vixen-Style |
| Fine adjustment | Yes |
| Manual tracking | Yes |
| Underneath the Base thread | UNC 3/8 -16 Female |
| Worm gear teeth (RA) (piece) | 120 |
| Altitude Mount Rotation Angle (Continuous) | -60° to + 60° |
| Azimuth Mount Rotation Angle (Continuous) | 360° |
| Material | Aluminum 6061T |
| Net Weight | 3kg |
| Package |
340*285*145mm |
-
Feature
- 1.The SVBONY SV225 is a solid and low-vibration light-to-medium-duty altazimuth mount designed to quickly and easily accept small to medium sized refractors or catadioptric telescope in the 2inch to 5inch range.
2.With a payload capacity of 10kg, even light weight, fast focal ratio Newtonians will match up nicely with the mount.
3.The SV225 alt-azimuth mount head is made of powder-coated aluminum. There are worm gear slow motion controls on both axes to let you smoothly follow the motion of the Moon, planets, and deep space objects across the heavens.
4.The adjustable angle head can tilt forward or back at a 45° angle, as well as point straight up, depending on the length of your optical tube and your observing preferences.
5.Enable quick and precise telescopic observations along the vertical and horizontal axes without the need for a complex setup.
6.Vixen standard the dovetail mounting system to ensures maximum compatibility with a wide range of telescopes. -

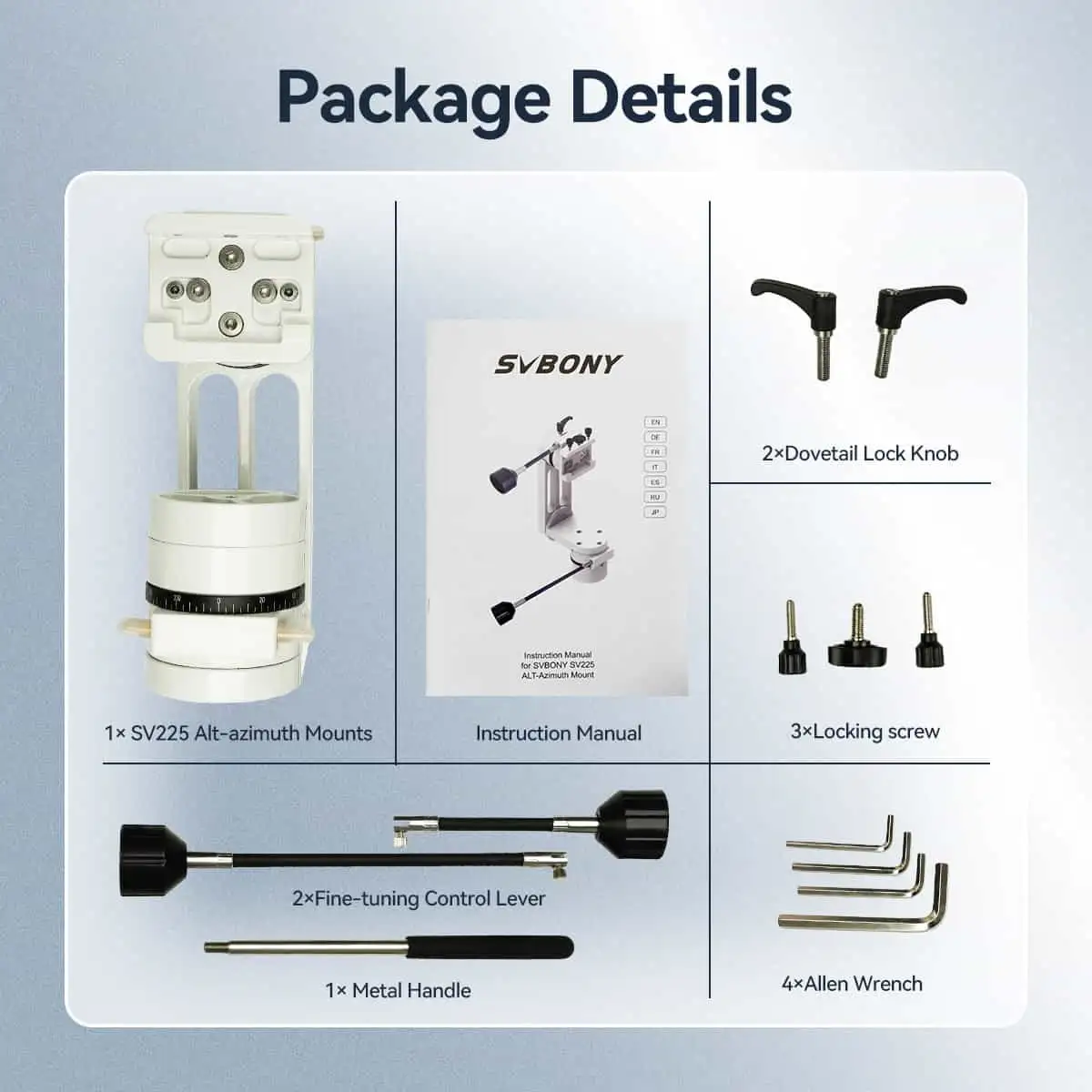

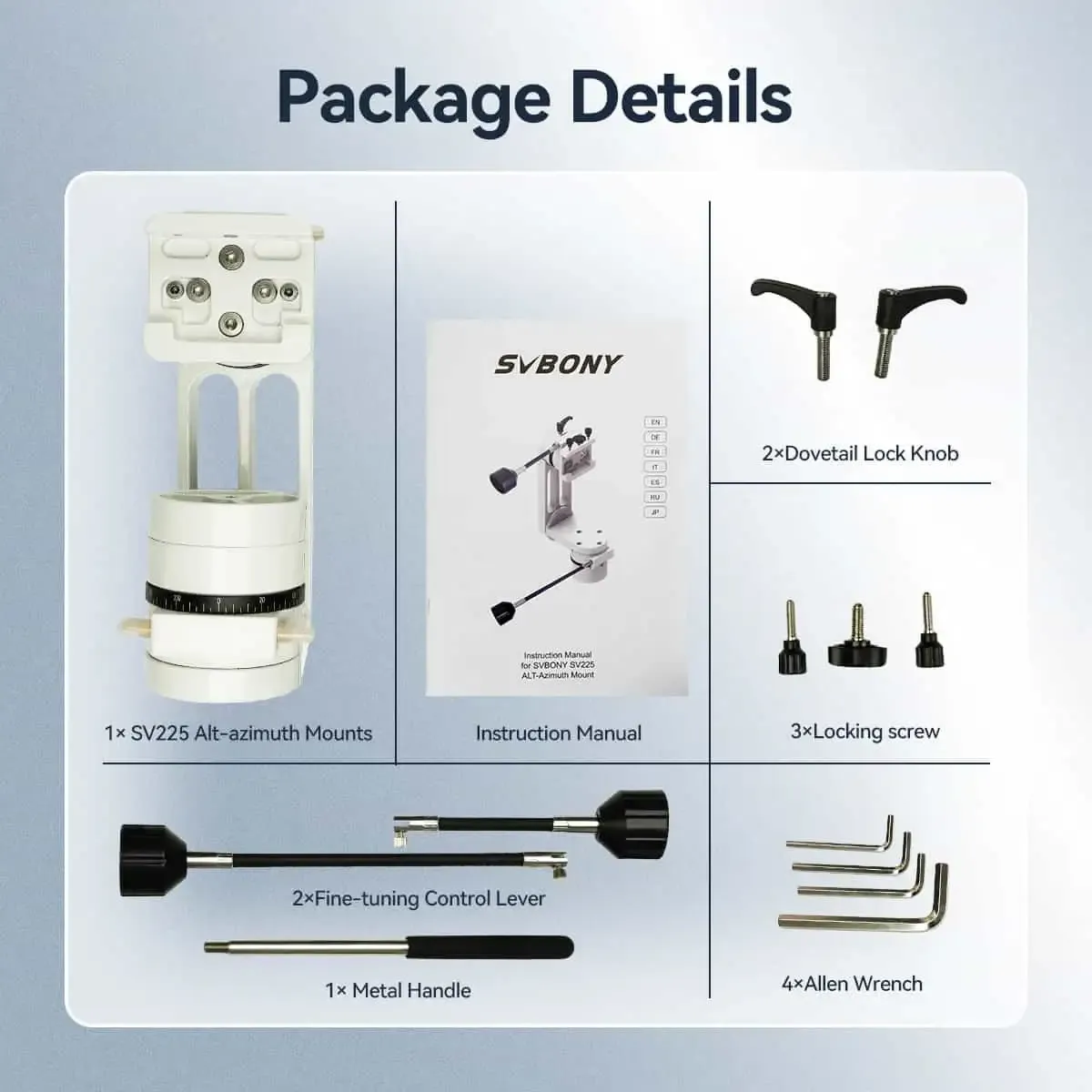

Package Includes
- 1. SV225 alt-azimuth Mounts
2. Metal Handle
3. Altitude Slow Motion Flexible Control Cables
4. Azimuth Slow motion Flexible Control Cables
5. Dovetail Lock Knob
6. Locking screws
7. Allen Wrench
I purchased the SVBony 225 Alt-Az mount a couple months ago. I was pleased with the price, and the shipping from Asia was quicker than originally stated. The mount arrived in perfect condition. I have used it a few times since receiving it, and I have not been disappointed. With the exception of being unable to adjust the altitude scale to a useful position on the mount, there hasn't been an issue. At 100x magnification, my scope reaches stability in about 1 second. Whereas the original mount that came with the telescope took much longer to settle down. I would like to see SVBony offer a suitable sturdy tripod to complement the SV225.
Purchased for use with my Svbony 503 103ED telescope. Nicely packaged and easy to assemble. Stylish lightweight design is also very sturdy, absolutely no "wobbles" to worry about. Handle and two fine tune knobs are easily detached for storage and transport. Would recommend to others.
It's solid. The adjustment between the azimuth and the upright is a hexagon shape within the casting so when bolted down the interface is very rigid. The fine adjusts work as expected. Very pleased.
I purchased this mount and I have it set up and ready to use (as soon as the clouds clear up)! It was easy to install and was even better quality than expected. I had one minor issue, which was that some paint had dripped into the screw holes on the dovetail clamp during the manufacturing process. I reached out to SVBONY and got a response quickly. I was able to remove the excess paint by putting a little rubbing alcohol on the set screws, and then worked them in. SVBONY assured me that if I had any problems, they would make it right for me. So far I've set it up with a 114mm Newtonian and an 8" SCT (each for visual observing only). Each is sturdy with minimal to no vibrations. My only recommendation is to make sure you have an appropriate tripod to support the weight of the mount and your OTA...
This Svbony mount is actually an improved and better than twilight, because it has 2 safety screws instead of just one, it has a handle bar and it has 3 bars on the side arm instead of just two. I think it is the best AZ mount on the market right now.
Easy to install, very flexible design to accommodate my weird scope. Love it. Tighten the control screws real good or the kids will yank the handle off too easily.
I got my SV225 this week. Upon assembly I found that the lower arm connected to the base has way too much play, I would say at least by half a centimeter and I have the bolt tightened as tight as it will get. It is very annoying when pointing to my desired target, because I have to account for the movement. It would seem I received one that got past quality control, and now I will have to figure out how to remedy this. Otherwise, it is a very solid mount able to hold by AT80ED with RACI, two inch diagonal, and my favorite 25mm eyepiece very well. I have all this mounted on a Orion Paragon HD tripod and it is rock solid, except, the aforementioned problem. Even though I am experiencing the one issue with the mount I would definitely recommend it to anyone that ask, but also warn them about my issues.
Just received my SV225 yesterday. I have it mounted on a Orion Paragon HD tripod. Set it up in the daylight with my AT80ED fully configured with RACI two Inch diagonal and my favorite 25mm eyepiece. It holds everything nicely and is very sturdy. The craftsmanship is really good. It could be excellent, but there is a lot of play in the arm at the base as it is not a snug fit, and moves back and forth about half a centimeter in the altitude axis, even though I have the bolt as tight as it will go. I'll have to DIY a fix for this. All movements are very smooth. I would recommend in spite of the one flaw in mine.
Well designed and constructed, this mount feels rock solid. I especially like the smooth & silky resistance feeling on the slow motion controls and clutch. Its size and 10kg capacity give me confidence that my visual telescope set-up is stable and safe. The vixen clamp design is not my favorite choice, but it has triple lock security (works well) and can be interchanged if you like. Overall, I am very pleased with this mount. It`s a good value, like most SVBony products! I also reviewed this product in detail on my YouTube site at "Astrophotography Japan".
A well made robust fully adjustable telescope mount. Suitable for astronomical and terestrial use. Ideal if you want to use for a quick observing session and cant be bothered toget all your goto kit assembled. Or use for bird watching. Ideal size to take on holiday. Can be supplied with a light weight aluminium tripod for use with smaller telescopes up to about 3Kg. The telescope mount is cable of taking a 5/6Kg scope, so if you ahve an eq5 or 6 tripod you could purchase an adapter which screws onto your tripod and will accept the 3/8 fitting of the SV225. Brilliant and versitile.
