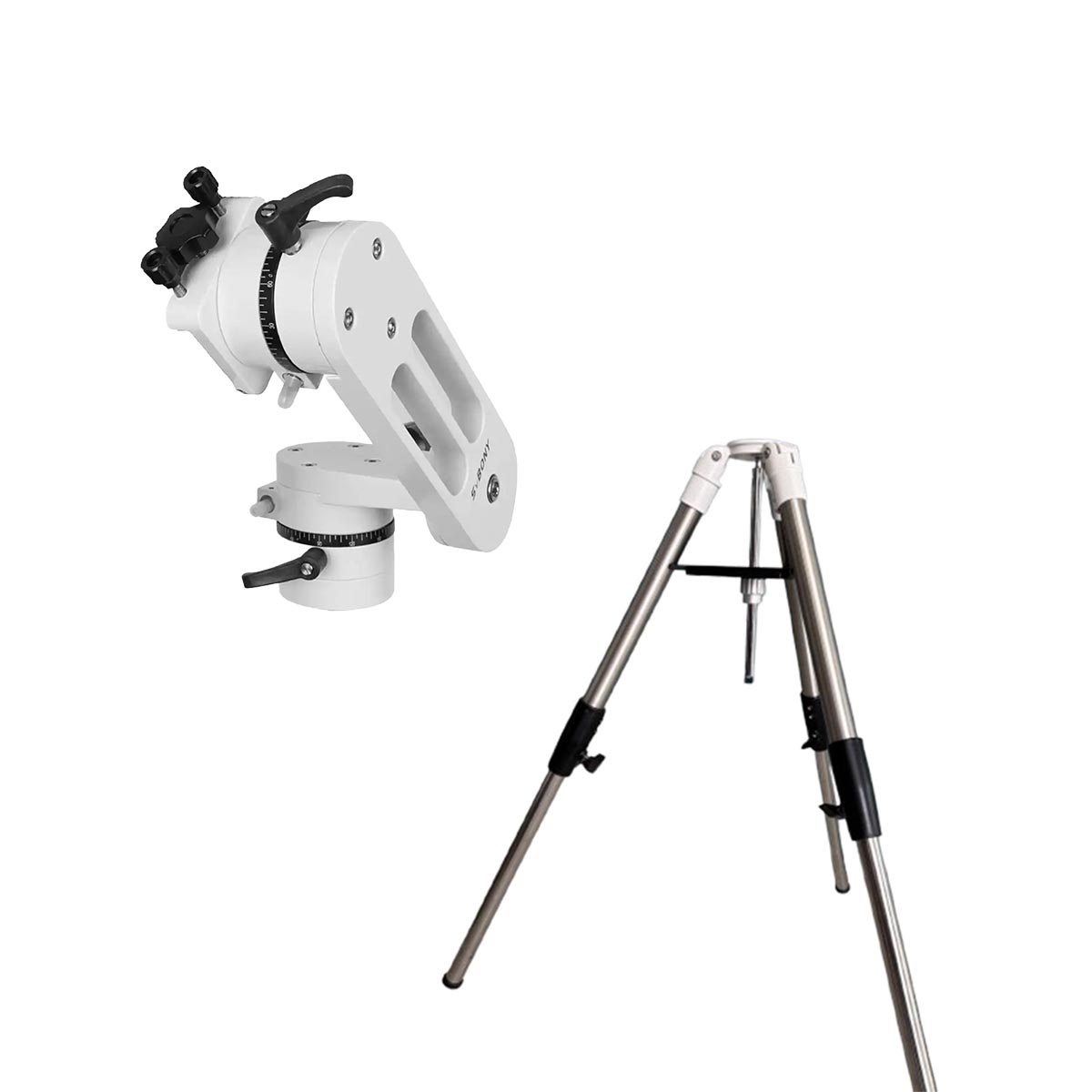

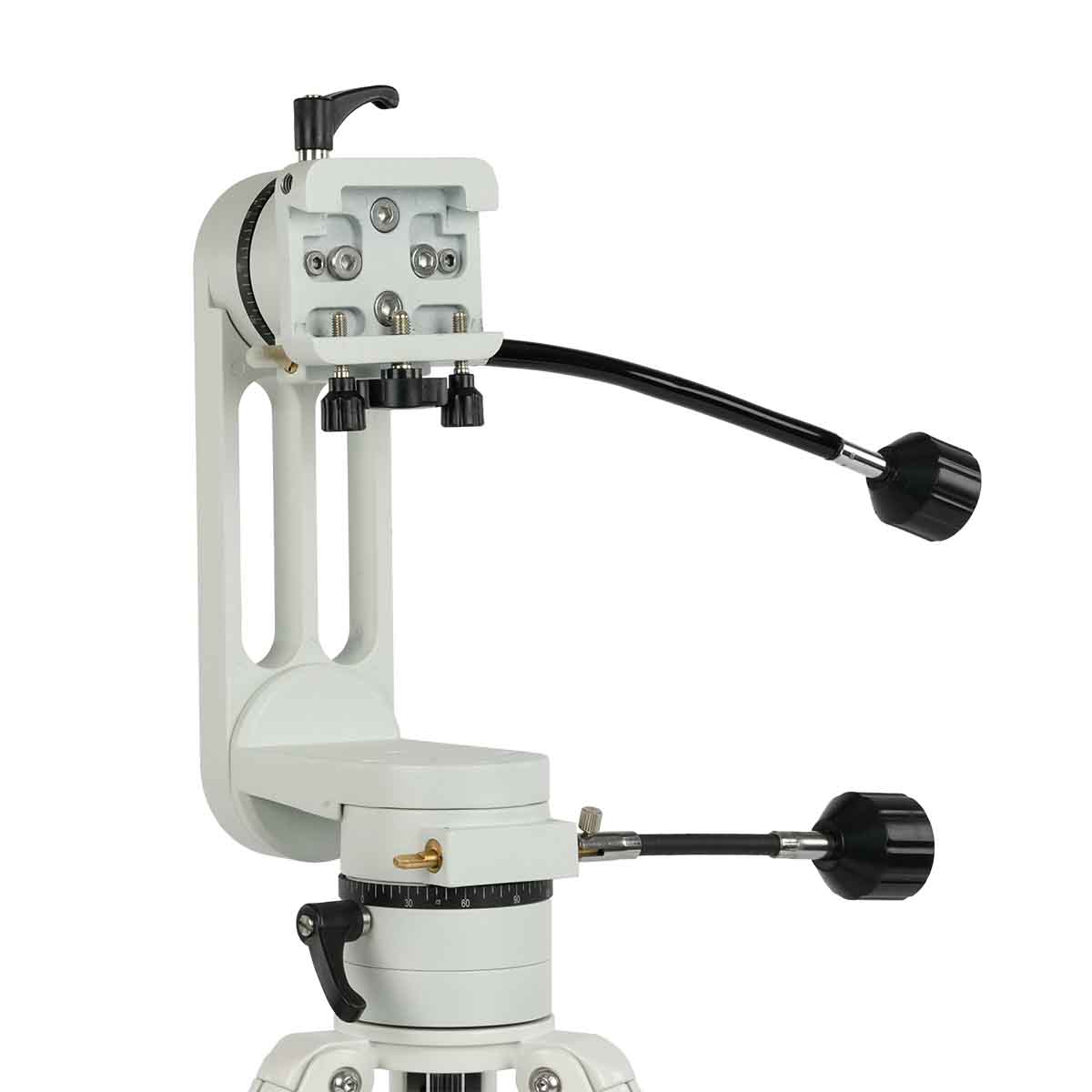

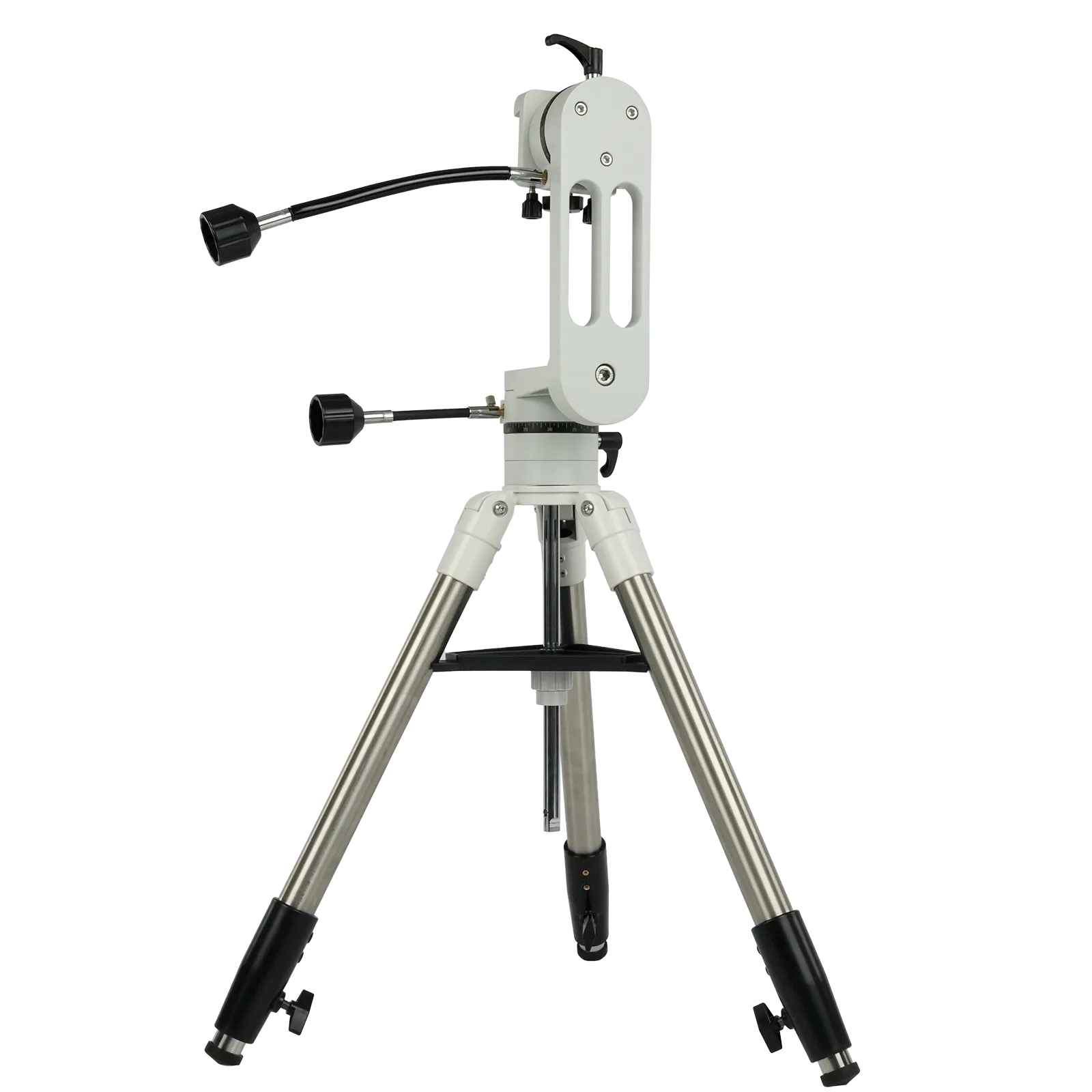

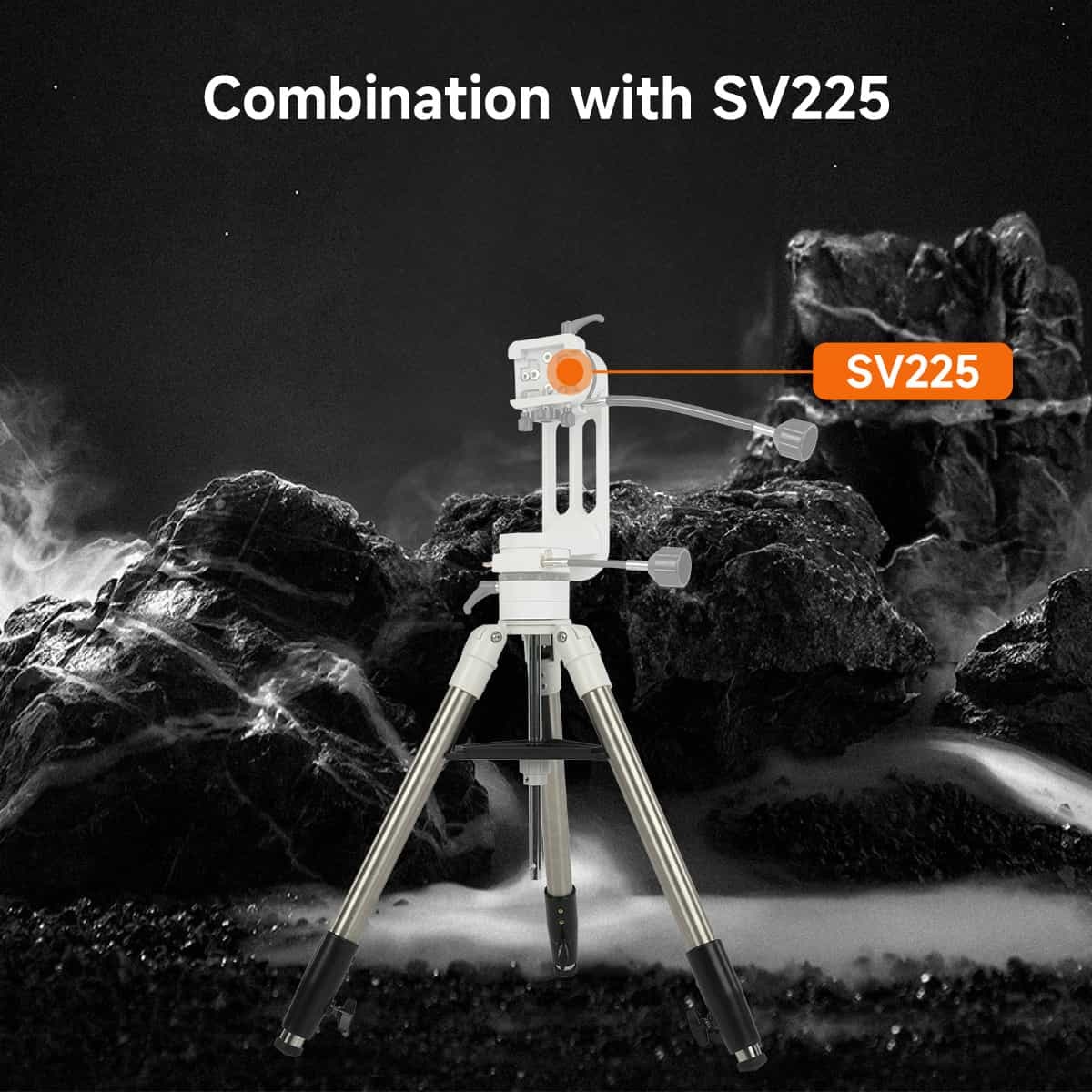

SV225 Alt-Azimuth AZ Telescope Mount & Tripod

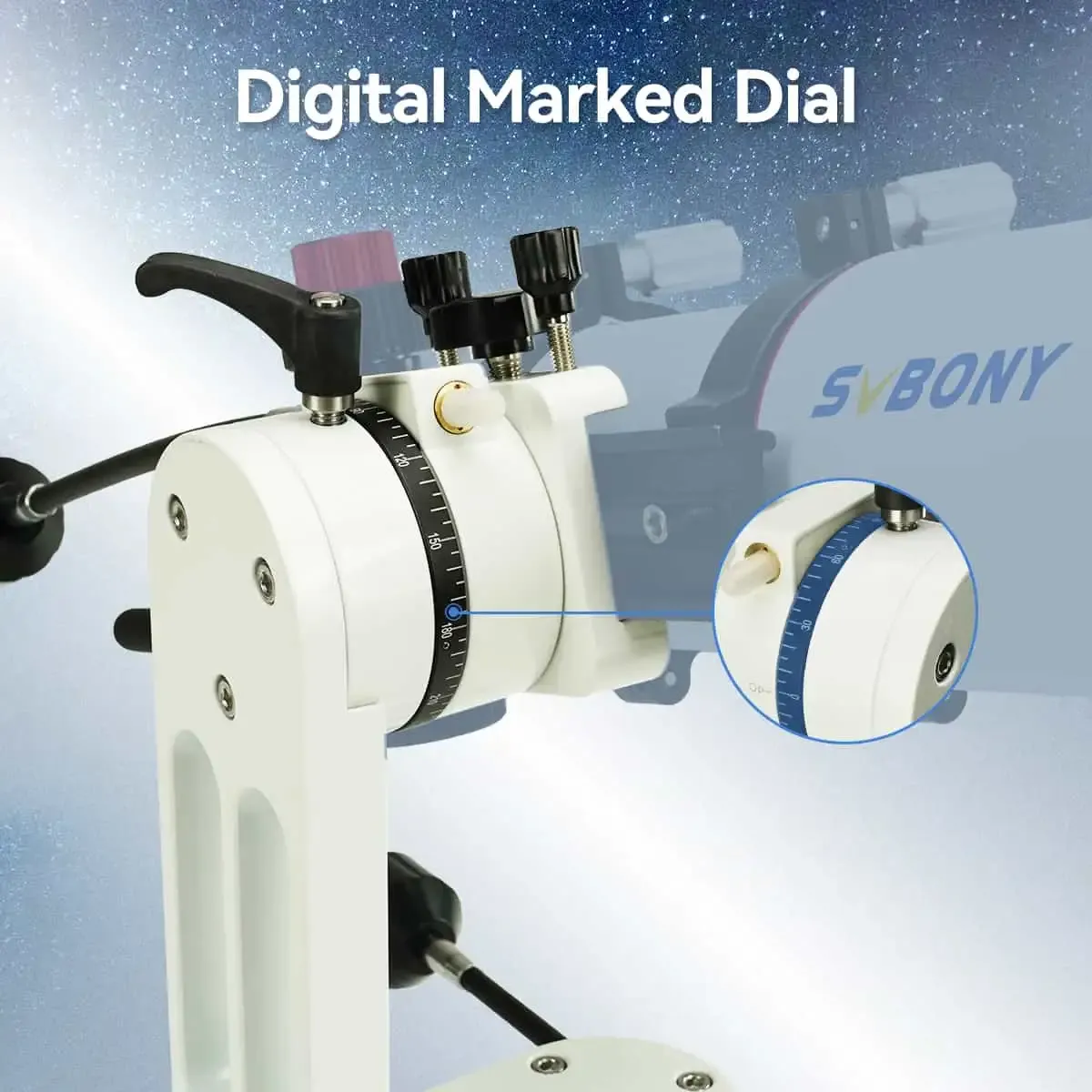

- Fine Adjustment Shift: Allows precise fine-tuning of the telescope;
- Variable Speed Gear: The A-Z mount features variable speed gear slow-motion controls on both axes;

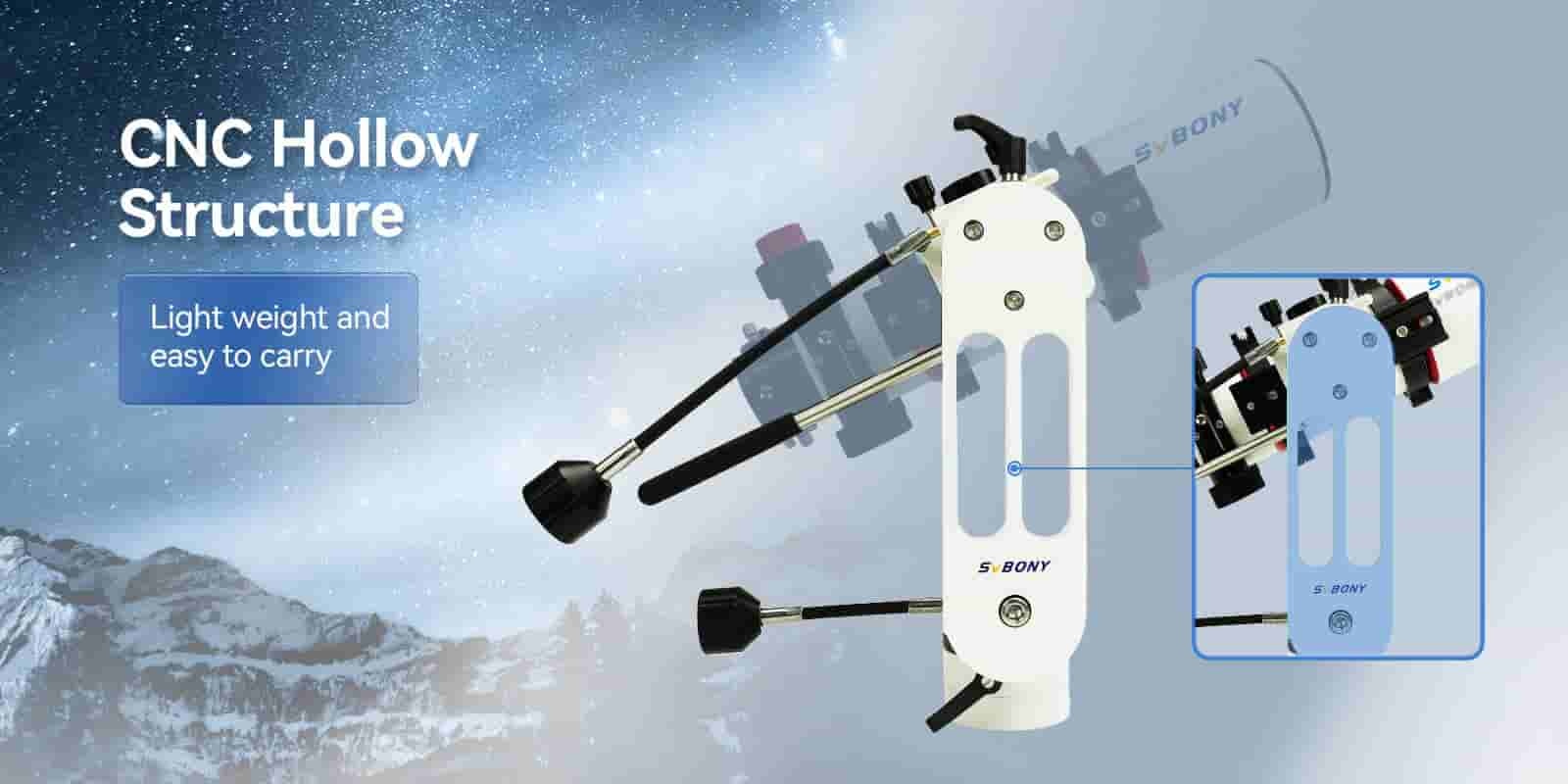

- CNC Hollow Structure: Adopts a hollow design, making it lightweight and easy to carry;
- Load Capacity: Supports a payload of up to 10 kg;
- Multi-functional Design: Features a two-stage telescopic design for easy portability. Rubberized feet with a stone-protruding design ensure stability.
| Model | SV225T |

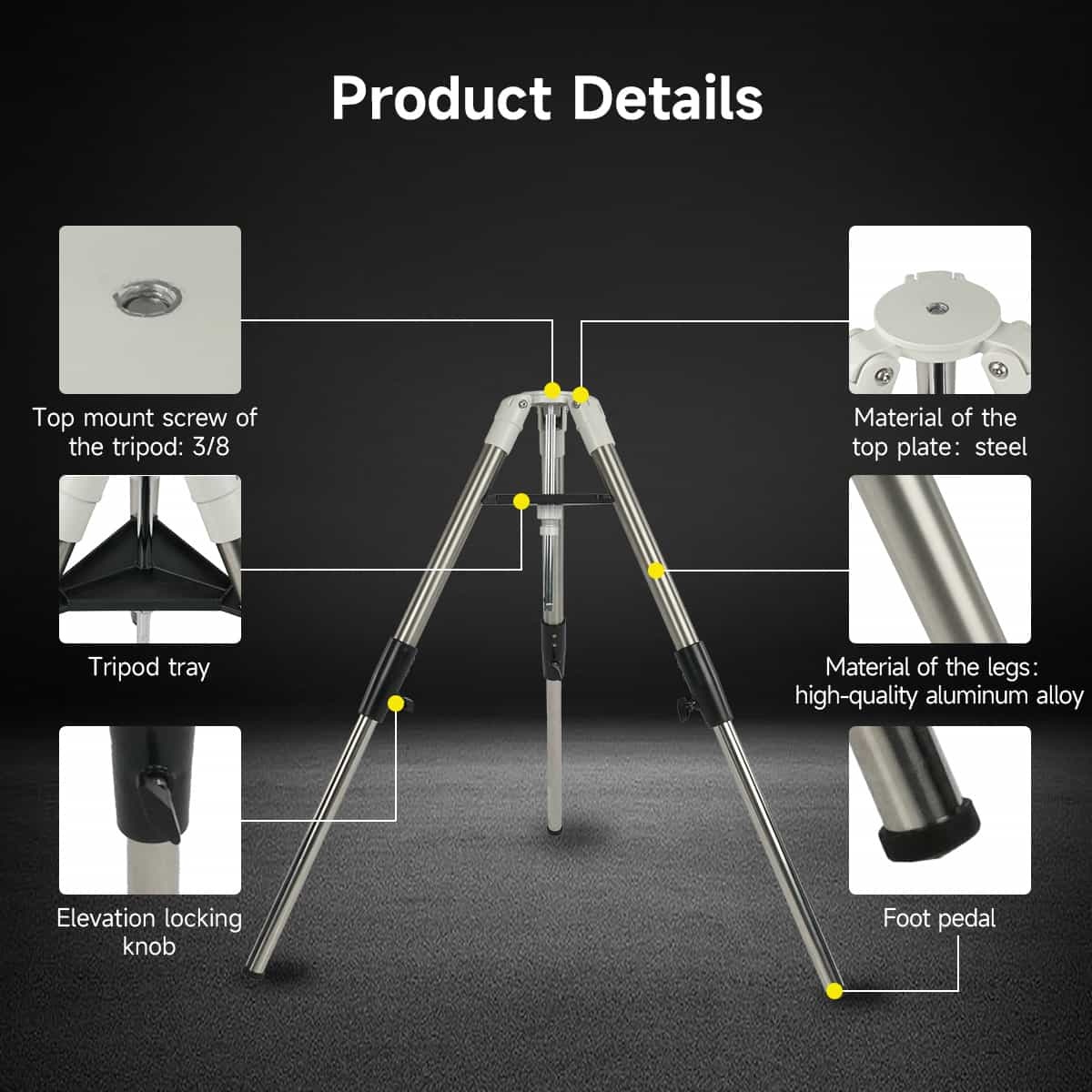

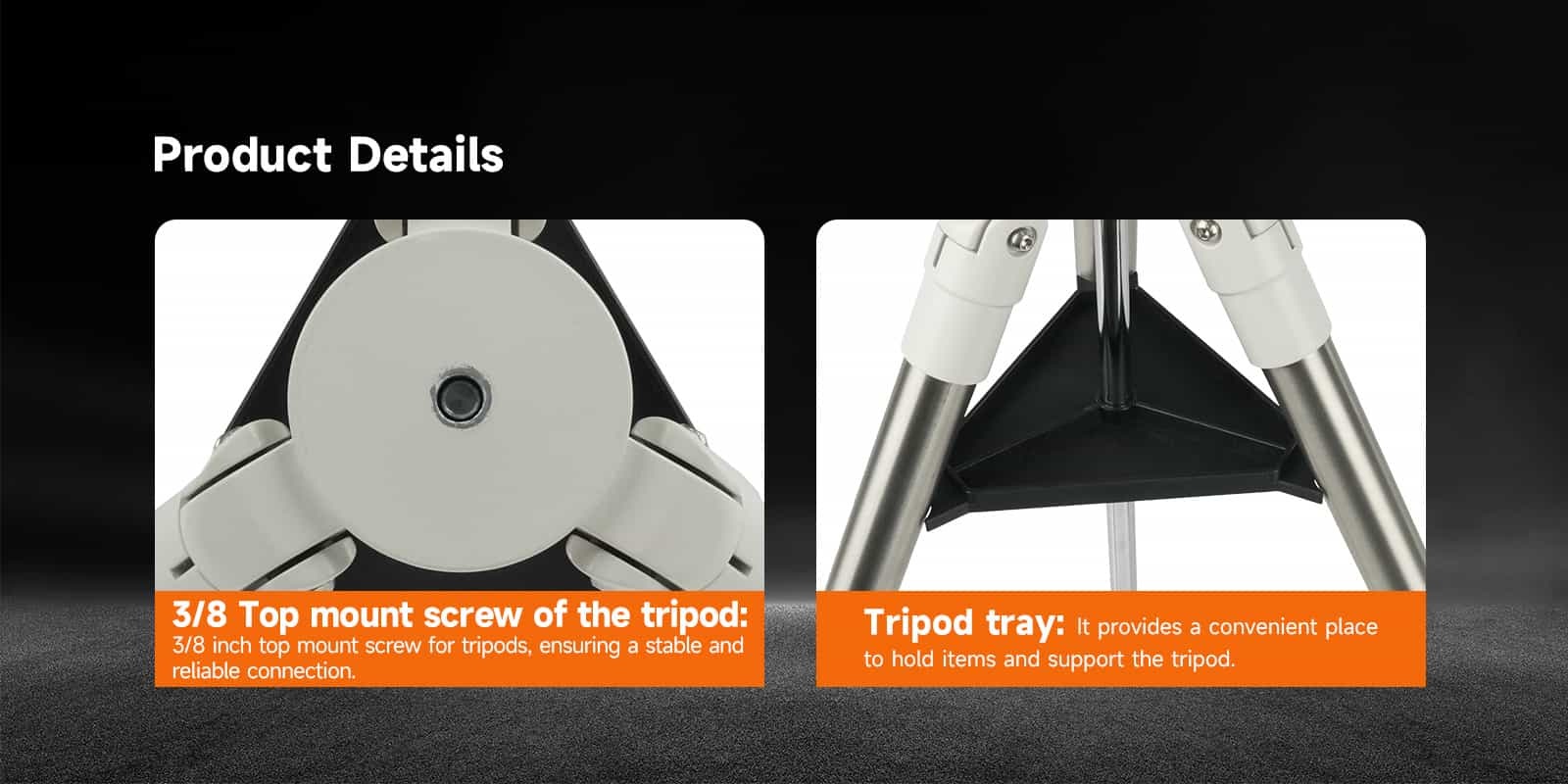

| Installation interface screw | UNC 3/8-16 |
| Folded Length | 500mm |

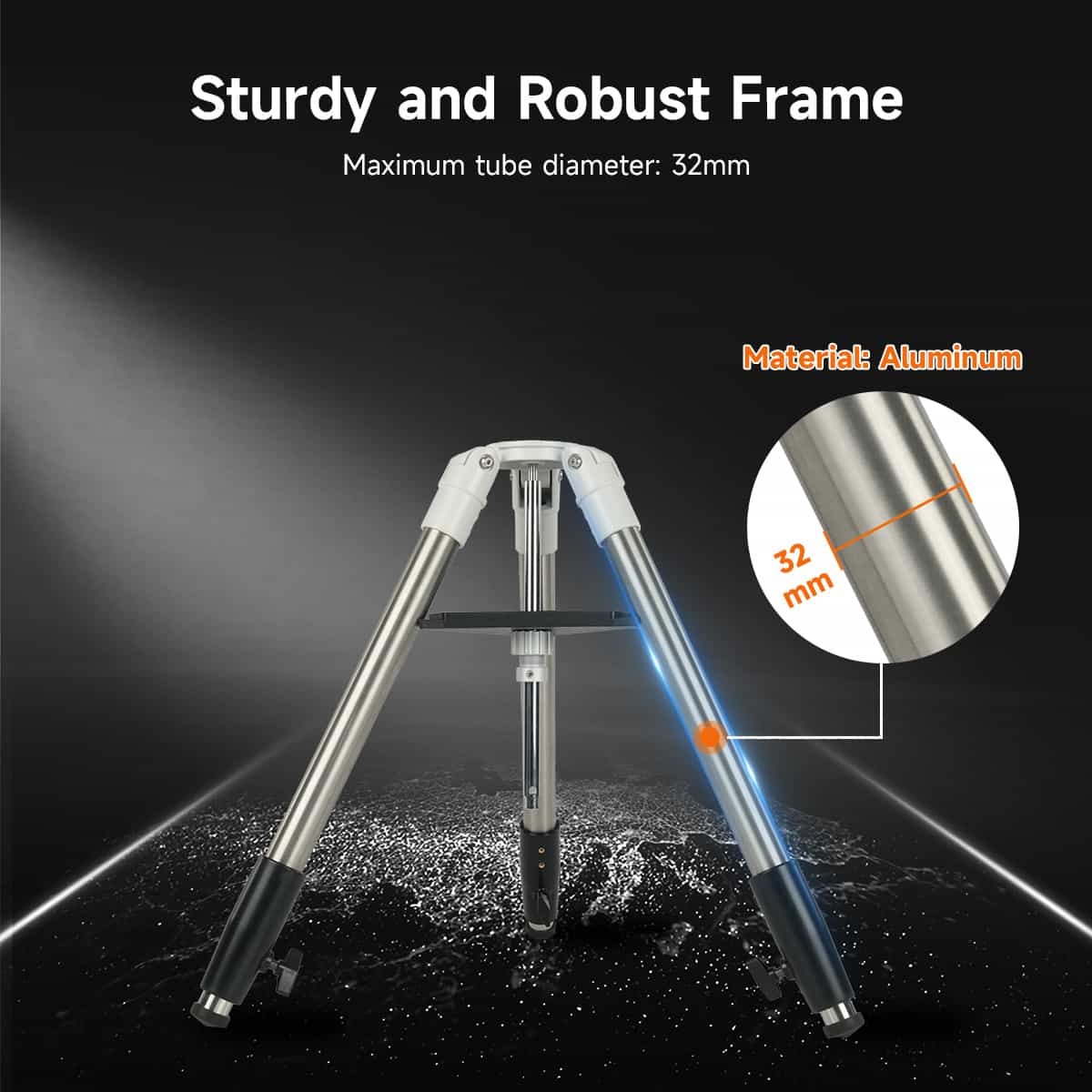

| Max. Tube Diameter | 32mm |
| Chassis Diameter | 83mm |
| Leg Section | 3 |
| Max Loading Capacity | 12kg |
| Maximum support interface screw | 180mm |
| Sections | 2 |
| Material | Aluminum Alloy |
| Net weight | 2263g |
| Package Size | 543x193x185mm |
| Model | SV225 |
| Max. additional load capacity | 10kg |
| Mounting Saddle | Vixen-Style |
| Fine adjustment | Yes |
| Manual tracking | Yes |

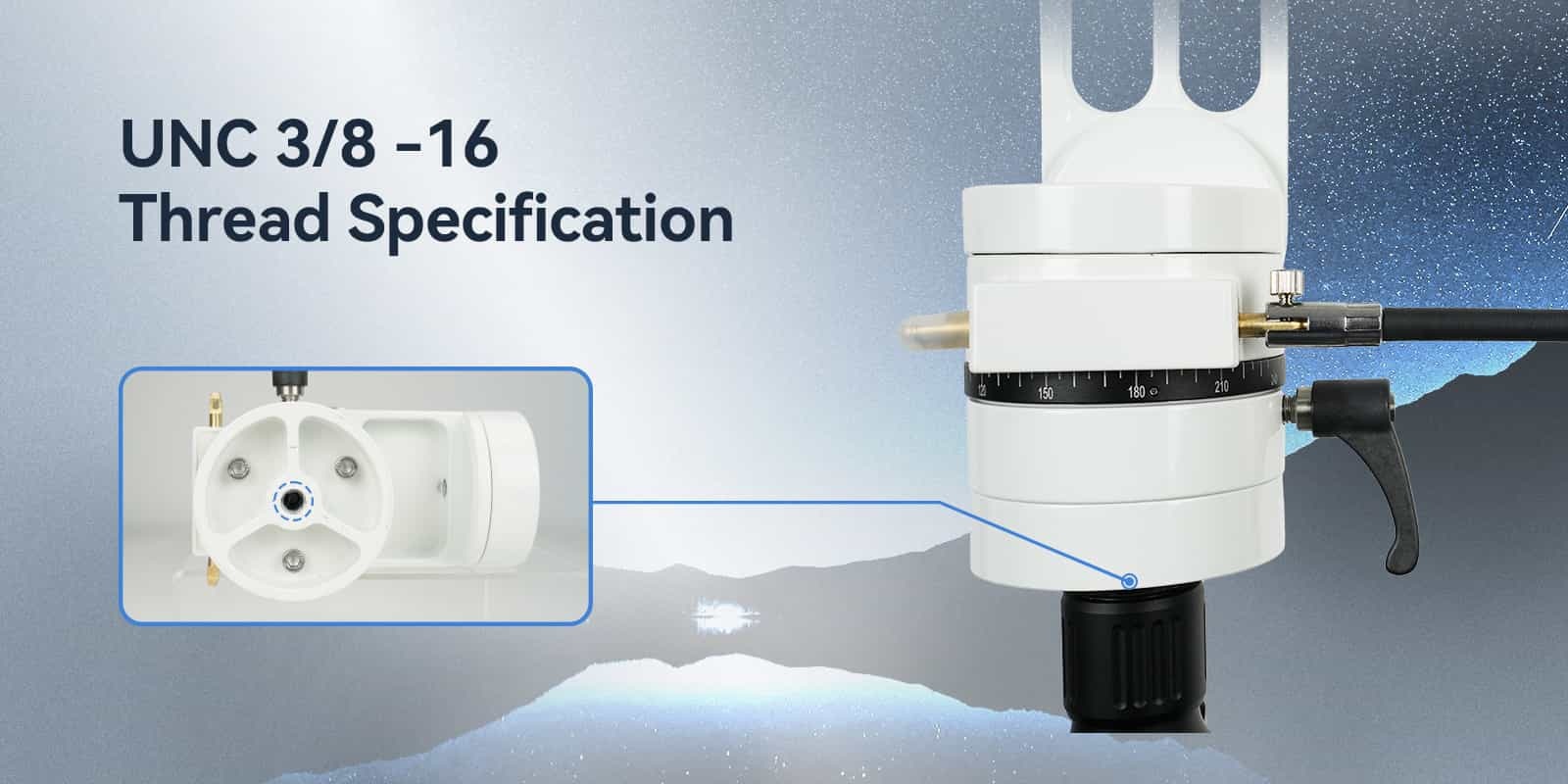

| Underneath the Base thread | UNC 3/8 -16 Female |
| Worm gear teeth (RA) (piece) | 120 |

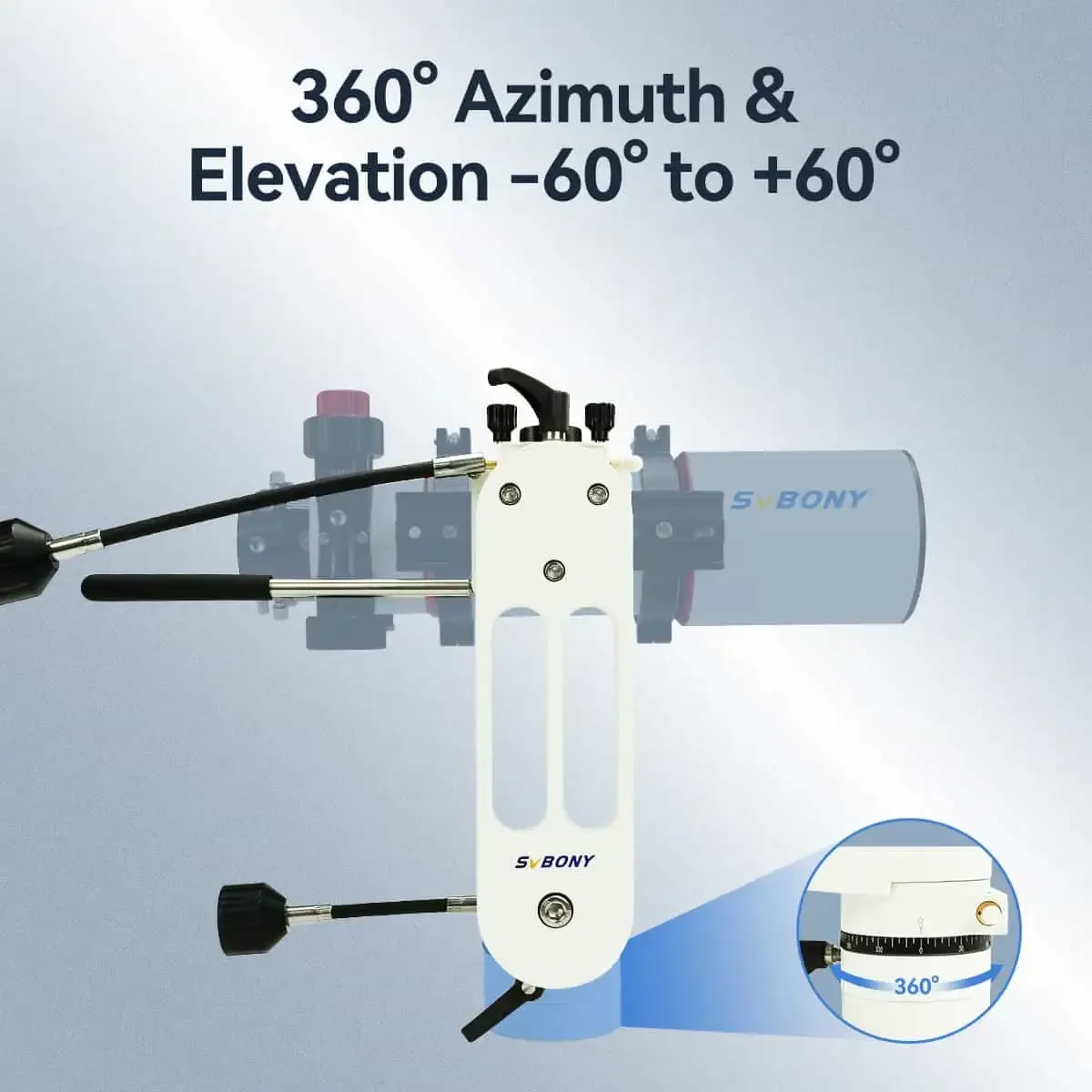

| Altitude Mount Rotation Angle (Continuous) | -60° to + 60° |
| Azimuth Mount Rotation Angle (Continuous) | 360° |
| Material | Aluminum 6061T |
| Net Weight | 3.50kg |
| Diameters |
340*285*145mm |
I have really grown to appreciate the build quality and professional features of this tripod and mount. It is very quality and extremely sturdy. This mount and tripod does not feel cheap at all and is professional grade in my opinion. Has slow motion controls which is really nice and allows you to mount just about anything to it. I have my SV503 80mm F7 ED mounted to it and it works like a dream! I am planning to purchase a second one of these for my MAK as well. Great design!
