SVBONY Fully Metal Dovetail Base and Mounting Plate Set for Finderscopes
1 | ReviewsKey Features
- Compatible with Multiple Telescope Brands
- Fully Metal Construction for Durability
- Ideal for Finder Scopes and Laser Pointers
- Quick-Release Dovetail for Easy Setup
- Suitable for SV48 and SV48P Telescopes
Customer Reviews
Matt Dawson
Aug 13, 2024
High end scopes like AstroPhysics focusers do not have a finderscope shoe. However this shoe has nearly the exact same diameter as AP focsers, so a bit of silicone will affix it to the focuser body, and you can then use any Orion or Vixen or Synta style finderscope available. It’s also black and matches the AP focuser body. So if you use black silicone, on a black focuser on a black quick release shoe it looks very good and almost factory when done.

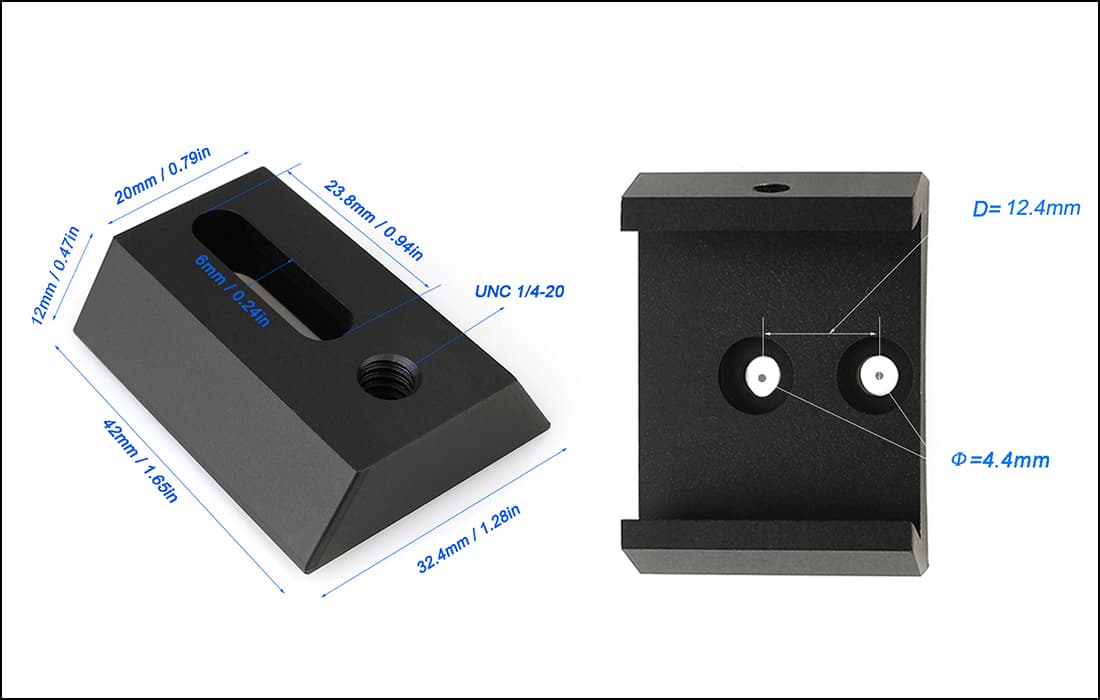

| Model | F9176A |
| Base Width | 42mm |
| Base Length | 29.5mm |
| Base Width of internal trapezoid (bottom) | 33.4mm |
| Base Width of internal trapezoid (top) | 28.7mm |
| Base Height of inner part | appr. 9mm |

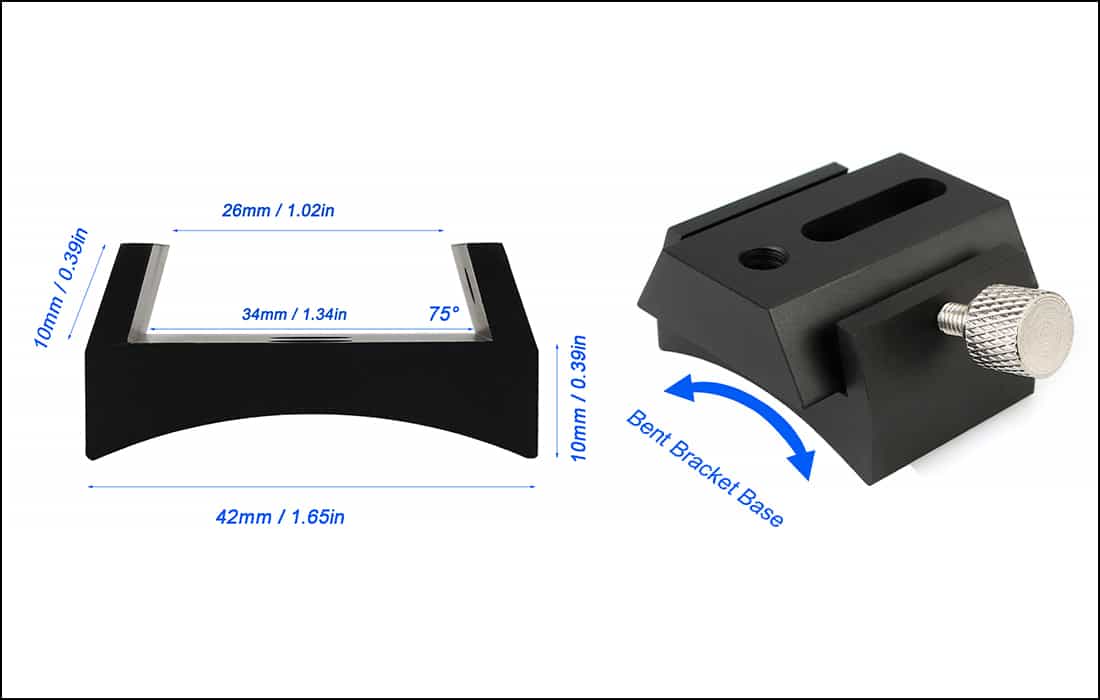

| Dovetail Board Length | 42mm |
| Dovetail Board Width (bottom) | 32mm |
| Dovetail Board Width (top) | 20mm |
| Dovetail Board Height | 11mm |
1.Black small-sized design suitable for finder scopes
2.Fully metal construction can connect the finder scopes with your telescopes firmly and stable

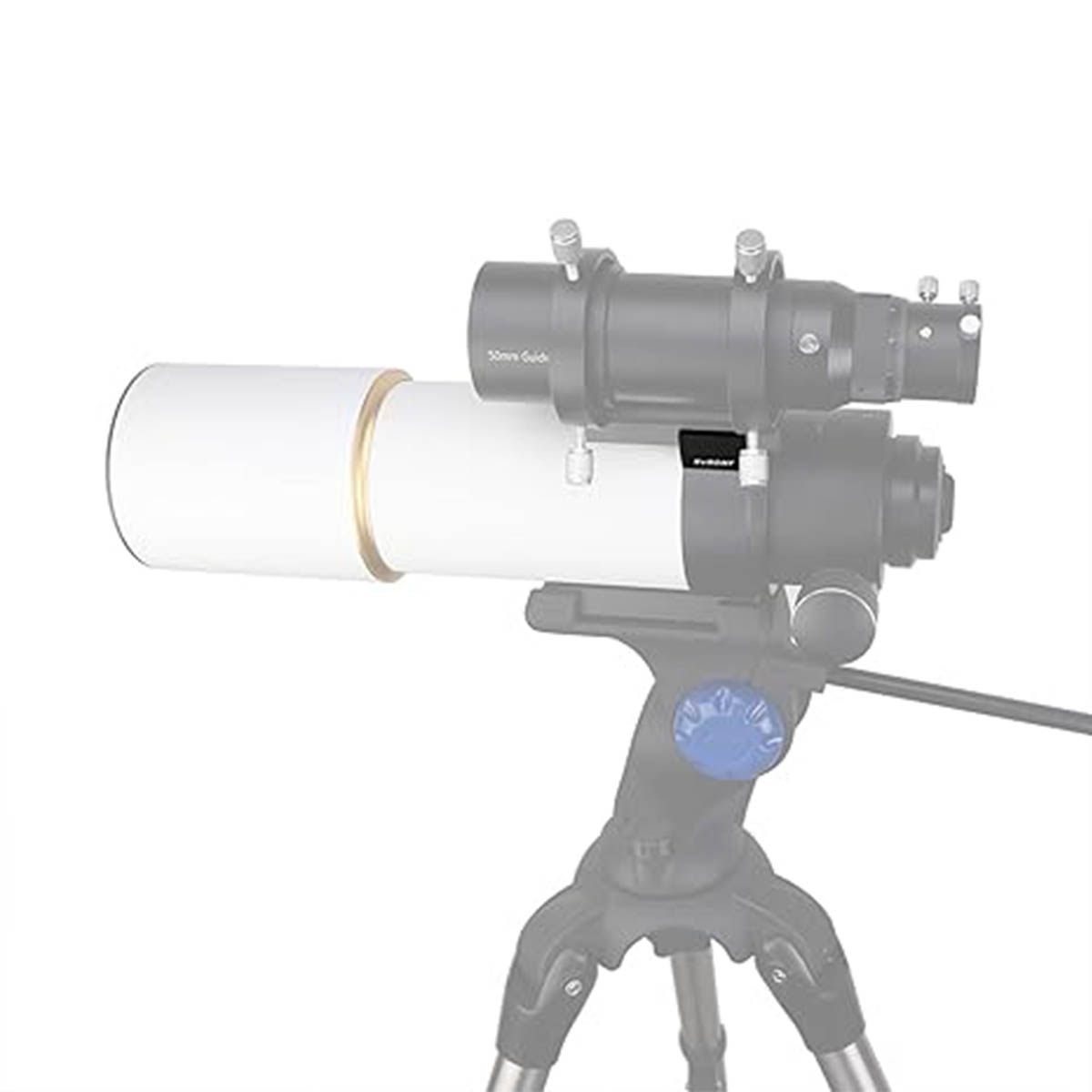

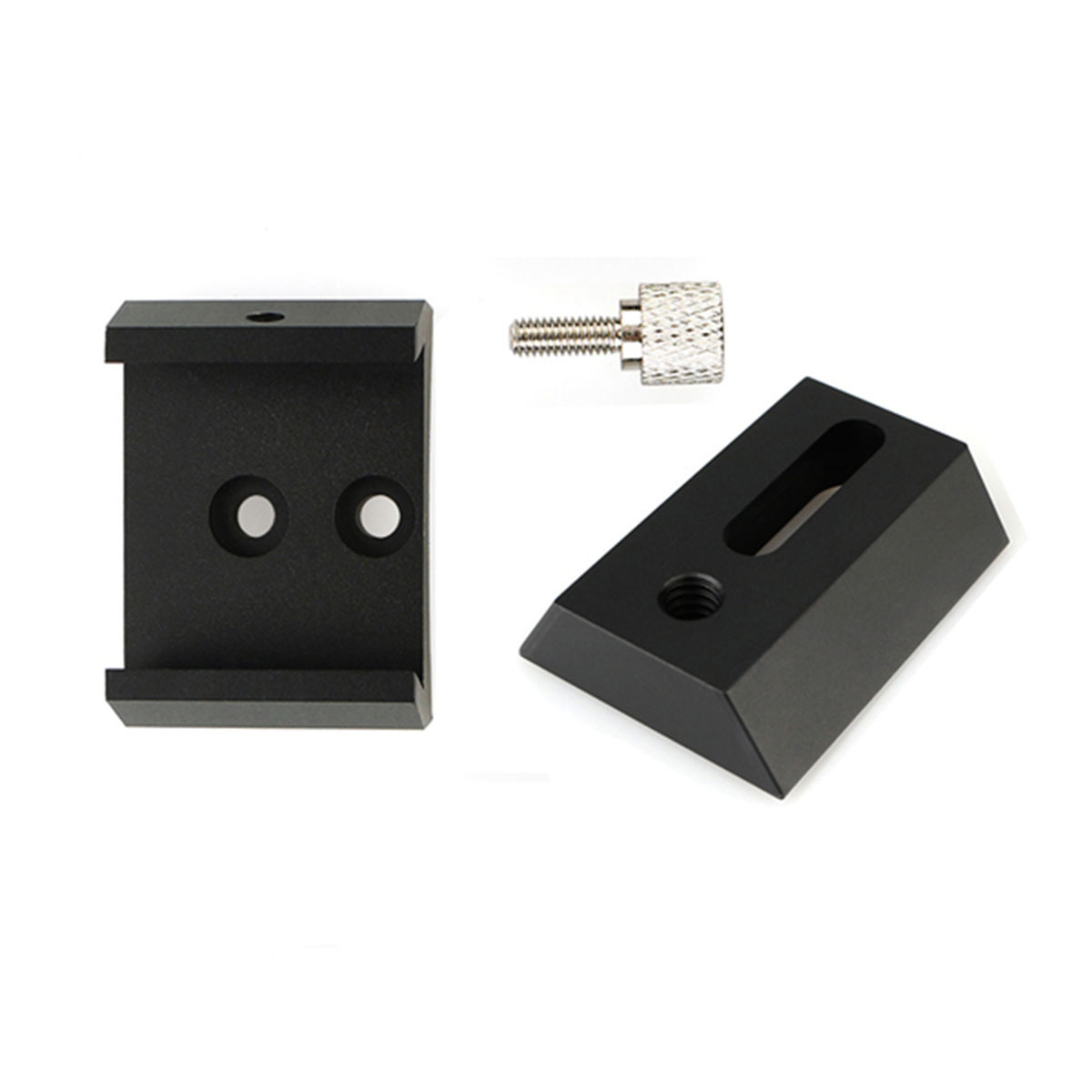

3.All metal finder scope bracket base for your telescope that comes with the standard quick release dovetail board. It can fit and protect the tube very well
