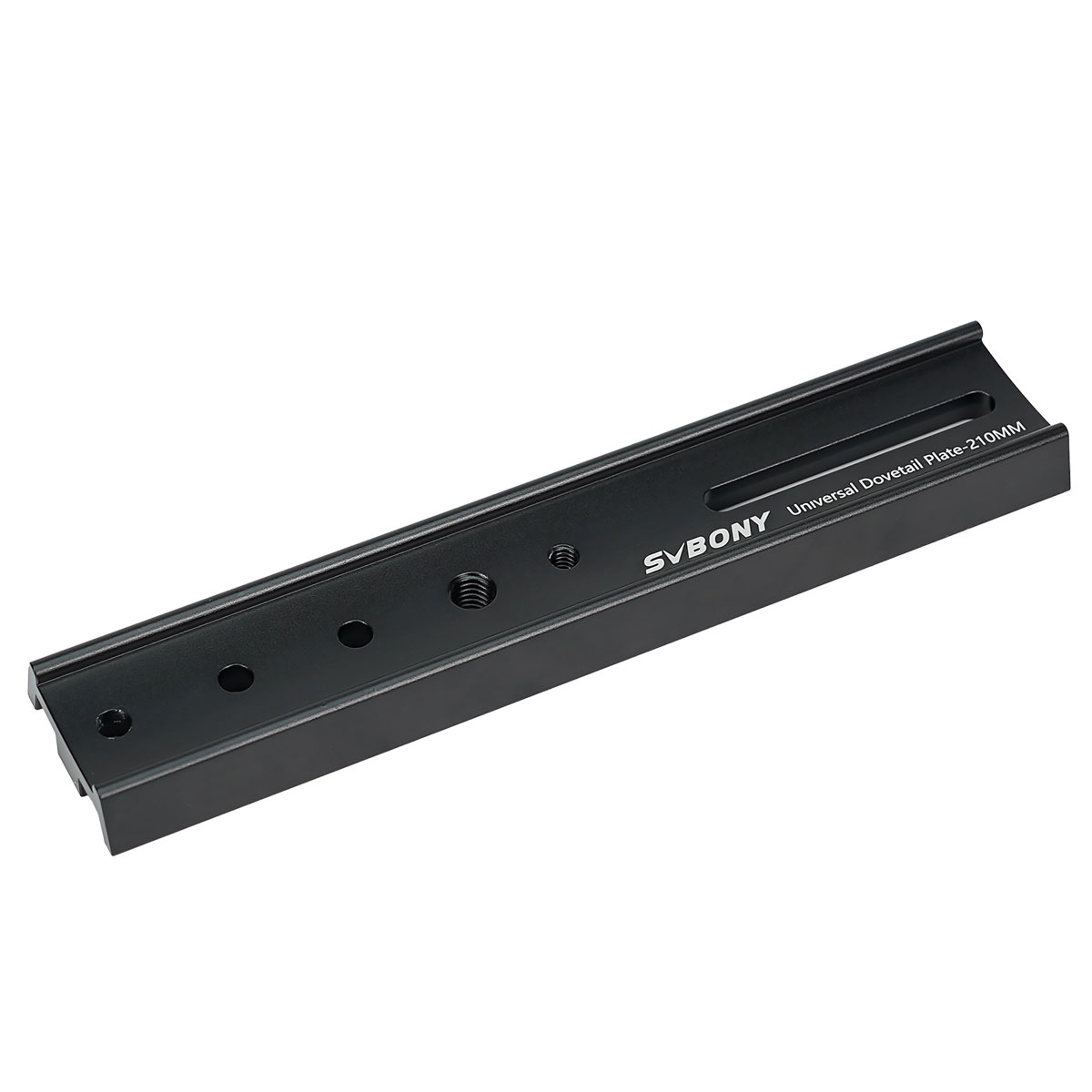

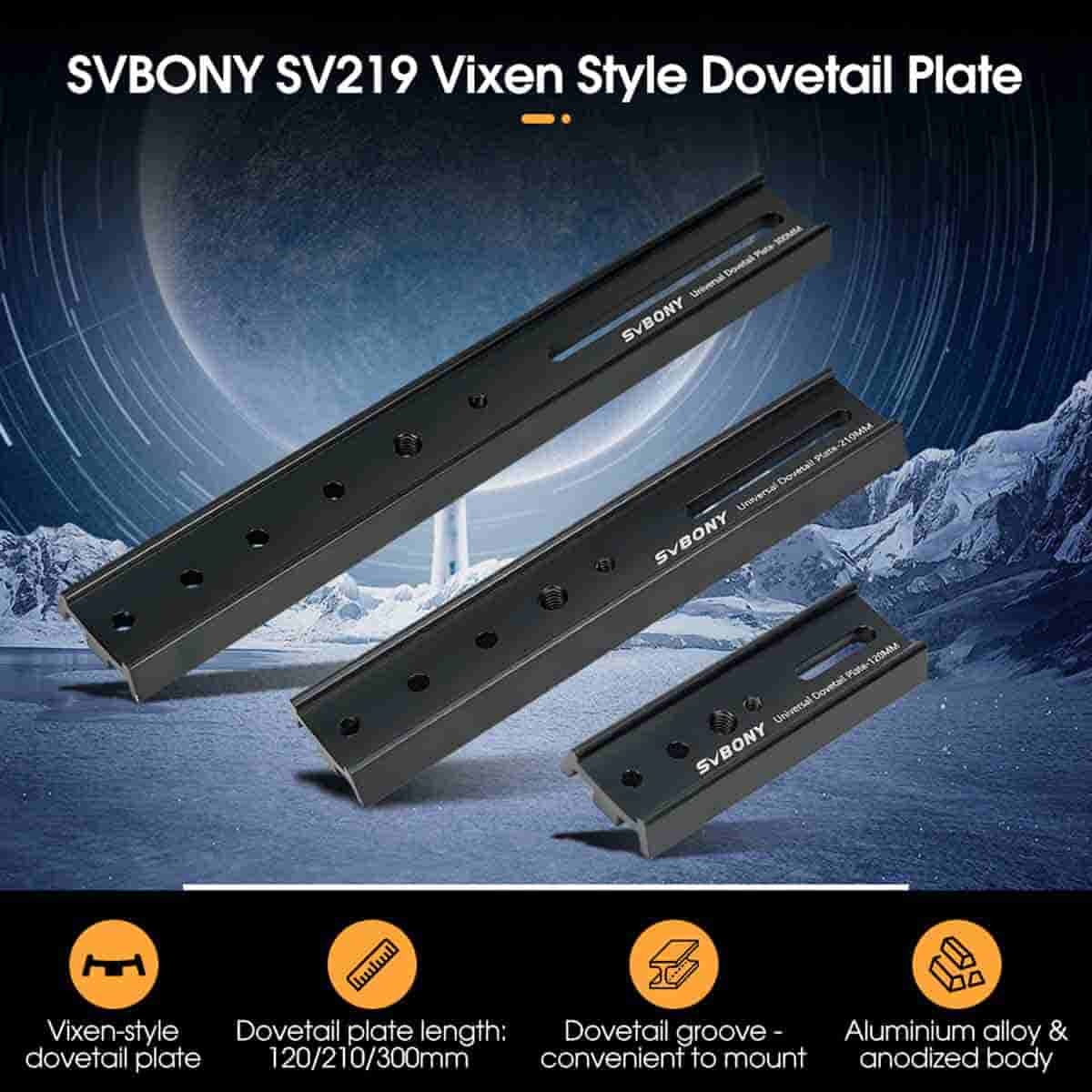

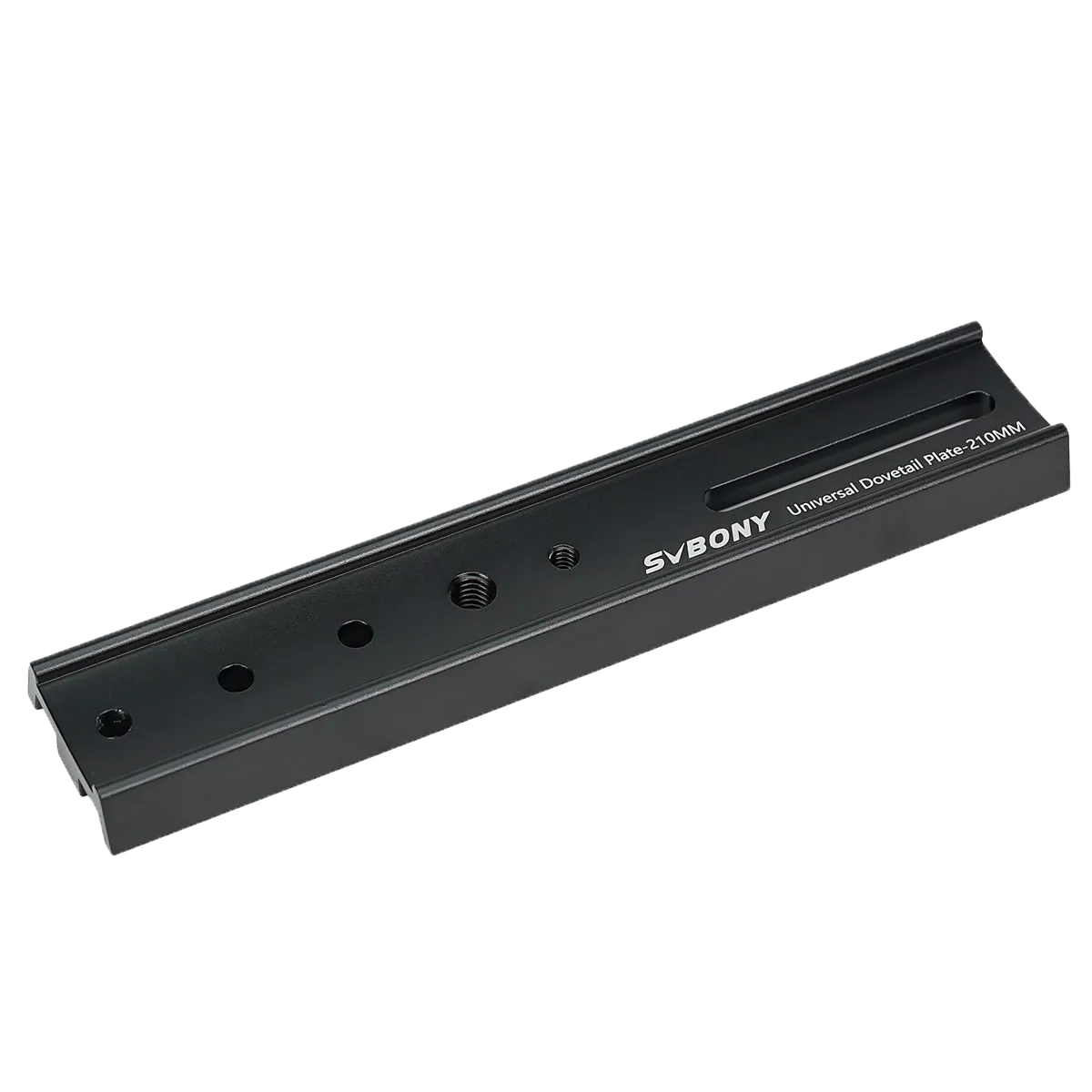

SVBONY SV219 Vixen Style Dovetail Mounting Plate 120/210/300mm for Telescope
The SV219 black dovetail mounting plate for different sizes of telescopes. We provide you with three specifications of different lengths to choose from according to your telescope size.

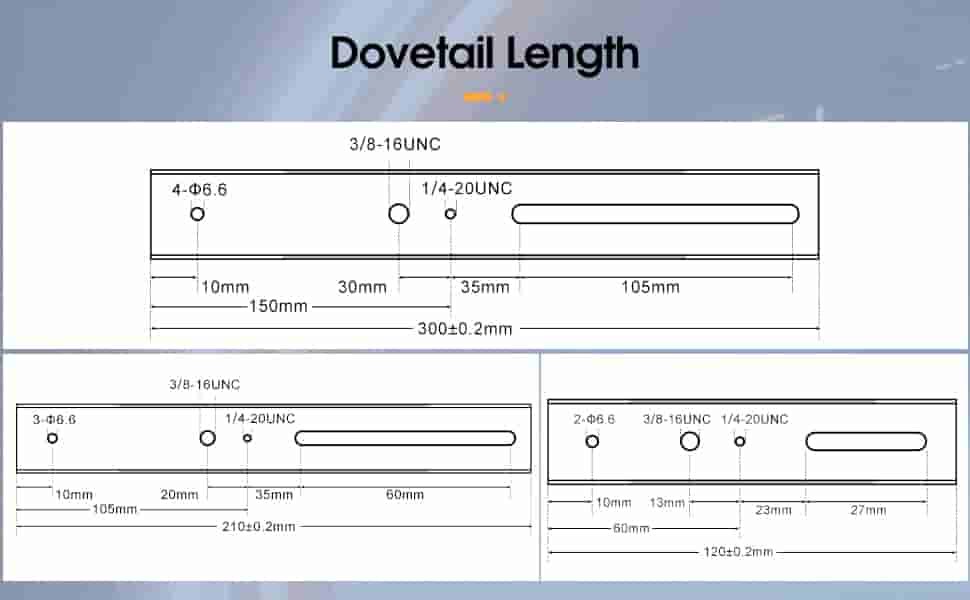

The Specific Structure And Parameters Of The SV219 Dovetail Plate

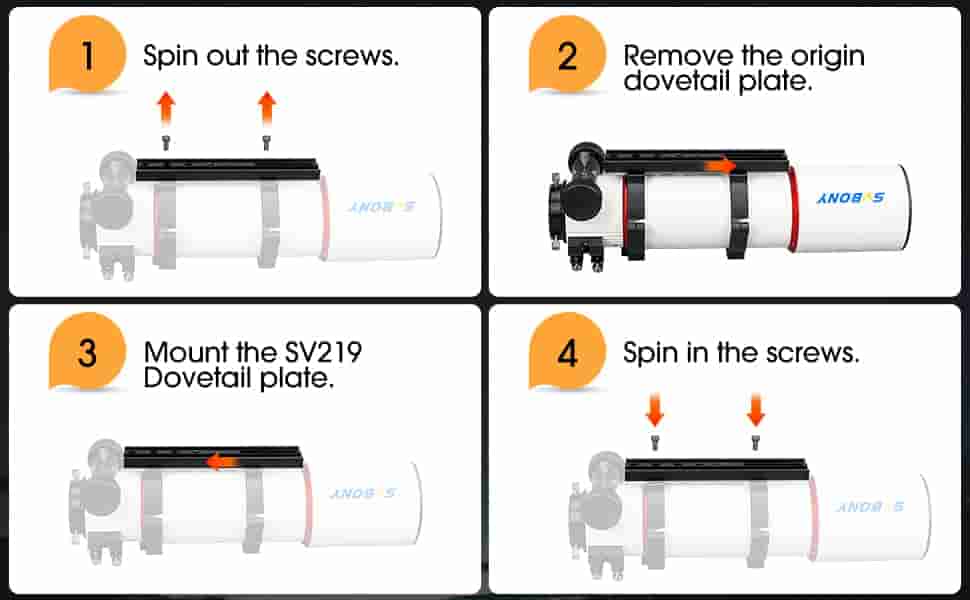

The Installation Instructions Of SV219 Dovetail Plate
| Brand | SVBONY | ||
| Model | SV219 | ||
| SKU | W9175A | W9175B | W9175C |

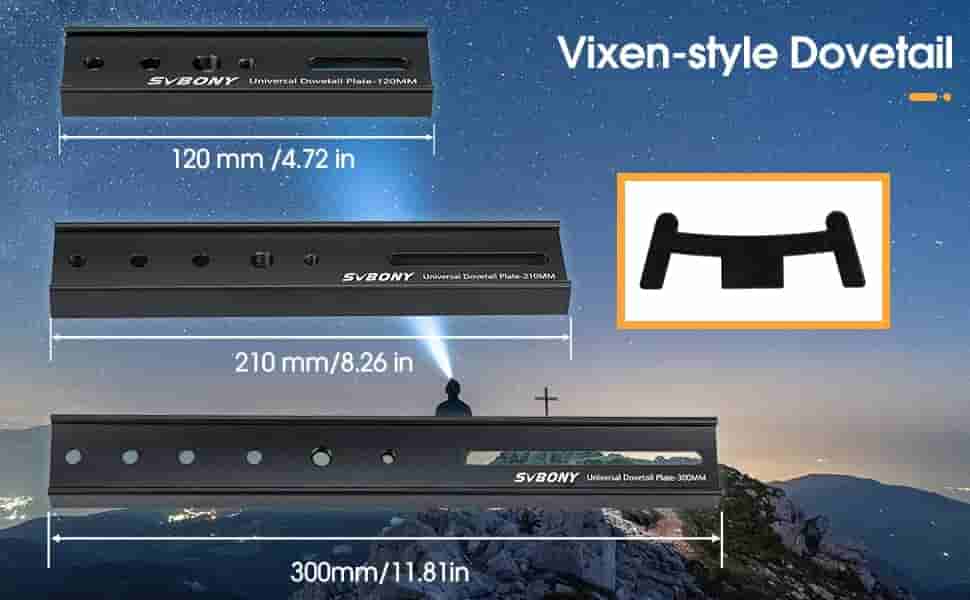

| Length | 4.72in/120mm | 8.26in / 210mm | 11.81in / 300mm |
| Function | Vixen-Style Dovetail Plate | ||
| Surface Treatment | Black Anodized finish | ||
| Width | Vixen Standard | ||
| Material | Aluminum Construction | ||
Features
- 1.According to your telescope size, we provide you with three specifications to choose from.

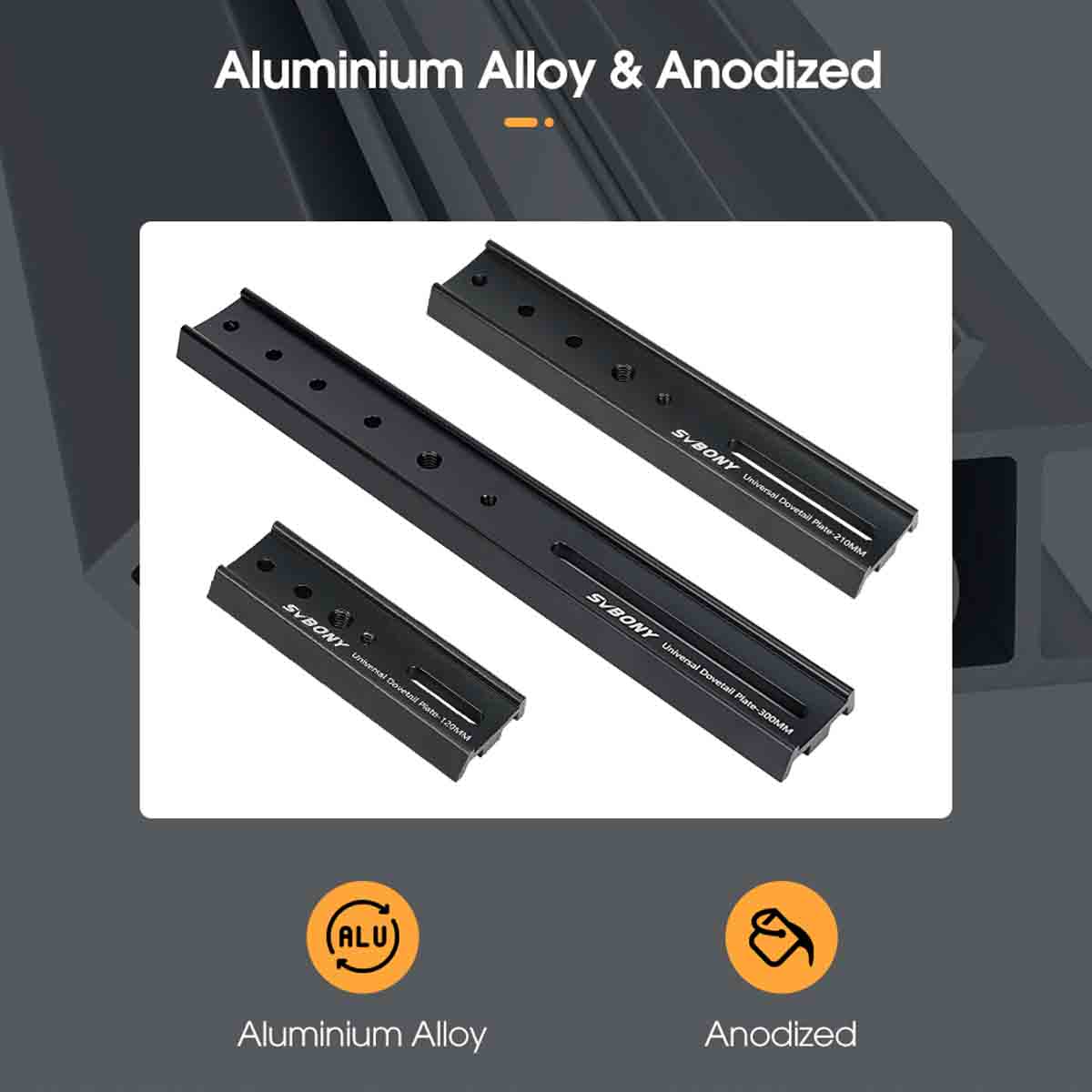

- 2.Fully metal alloy precision manufacturing and full surface oxidized. After anodizing treatment, an electrical insulating coating will be formed on the surface to maintain the smoothness of the metal, and it feels very comfortable.
- 3.It is easy to attach and detach instruments without using tools.

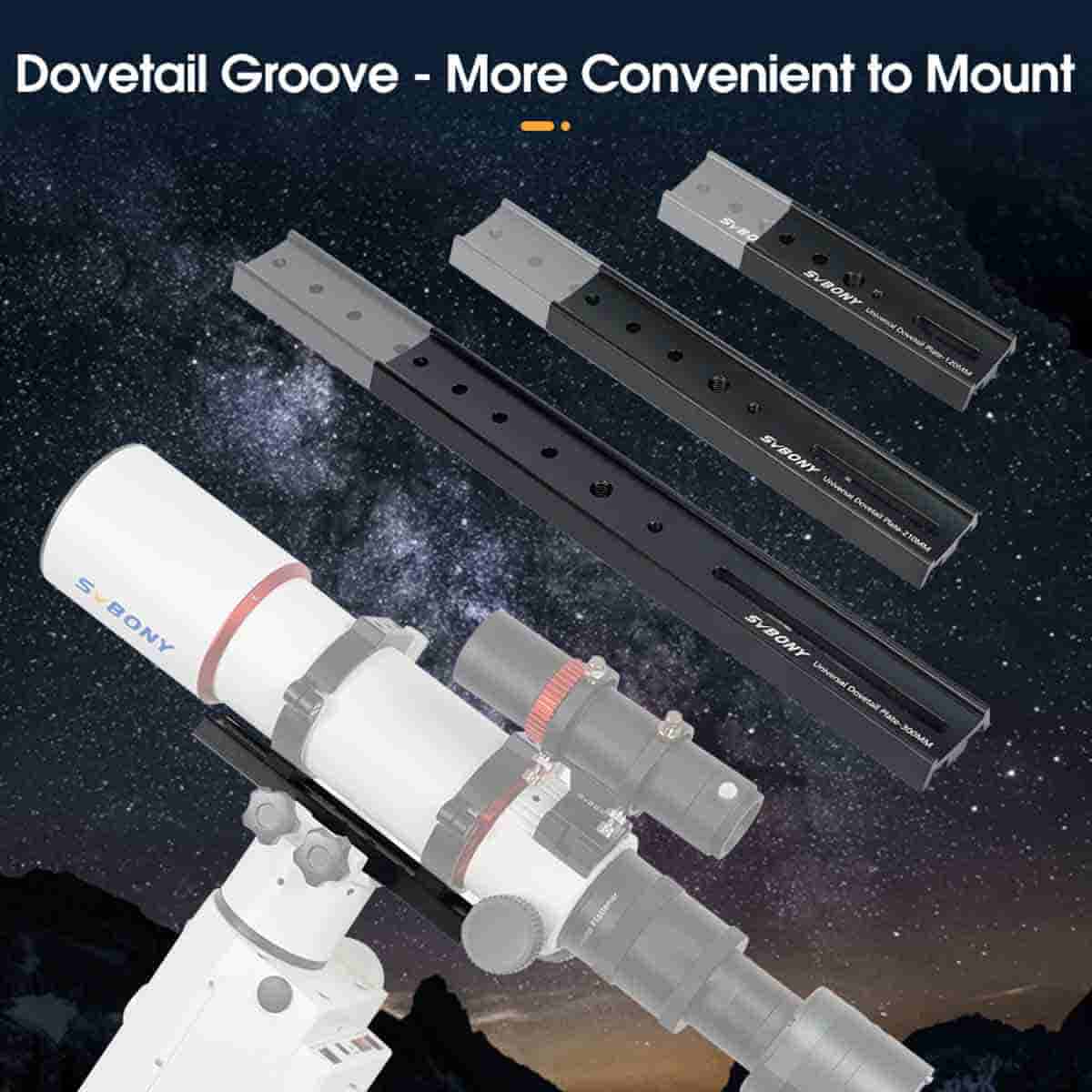

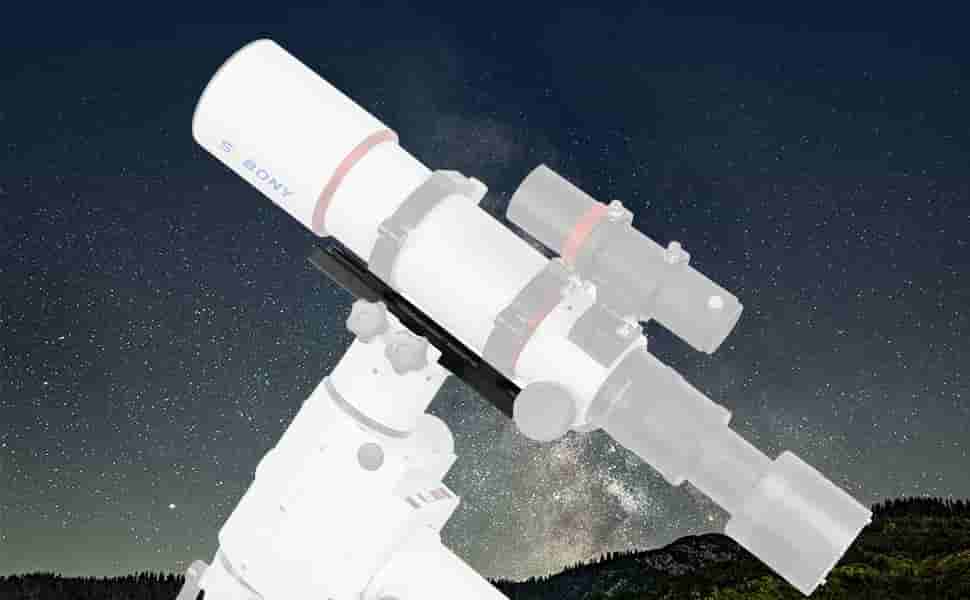

- 4. This metal mounting plate can be used to mount your telescopes or spotting scopes to tripod head with dovetail clamp. It provides a platform for coupling telescope optical tubes to equatorial mounting.

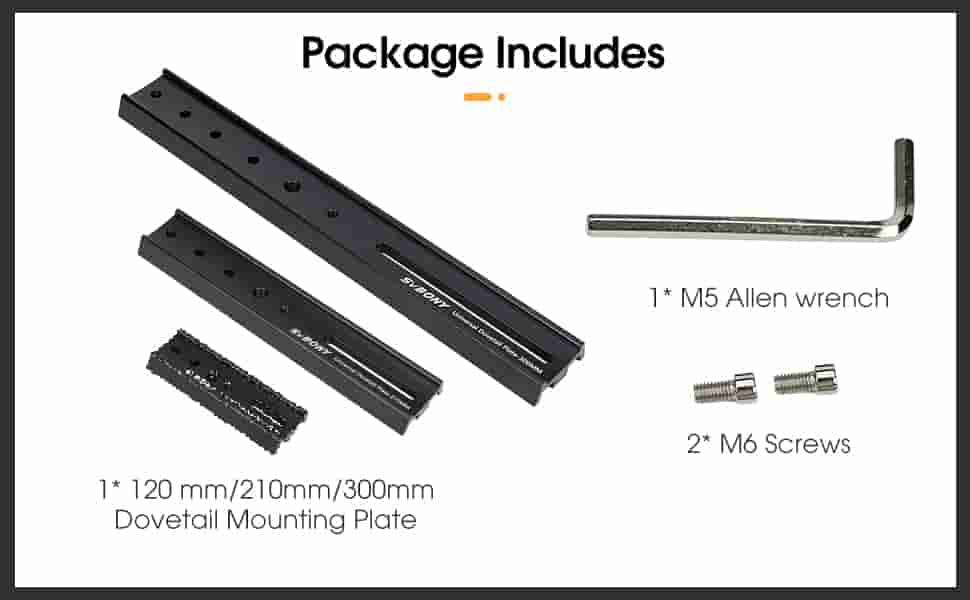

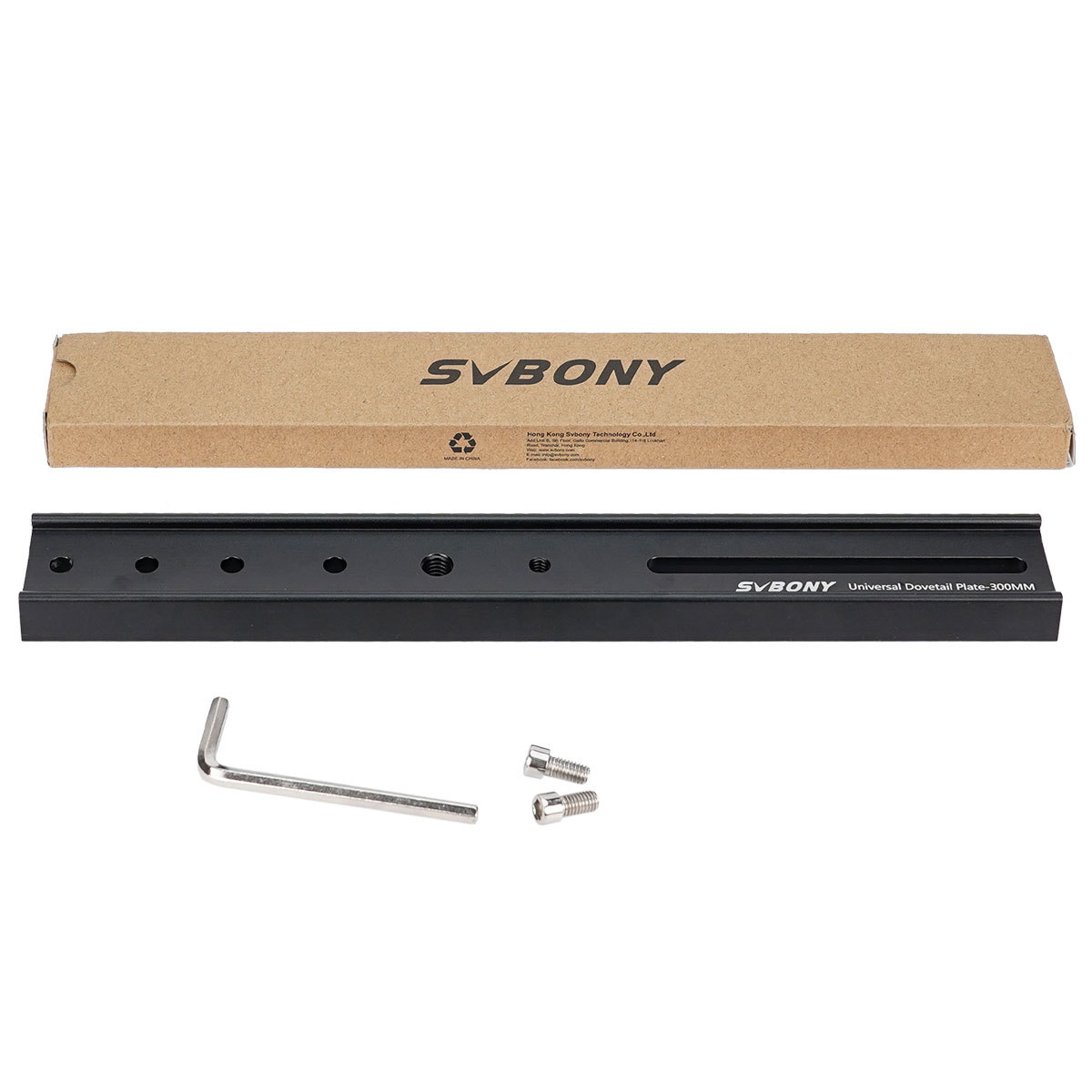

Package Inculdes

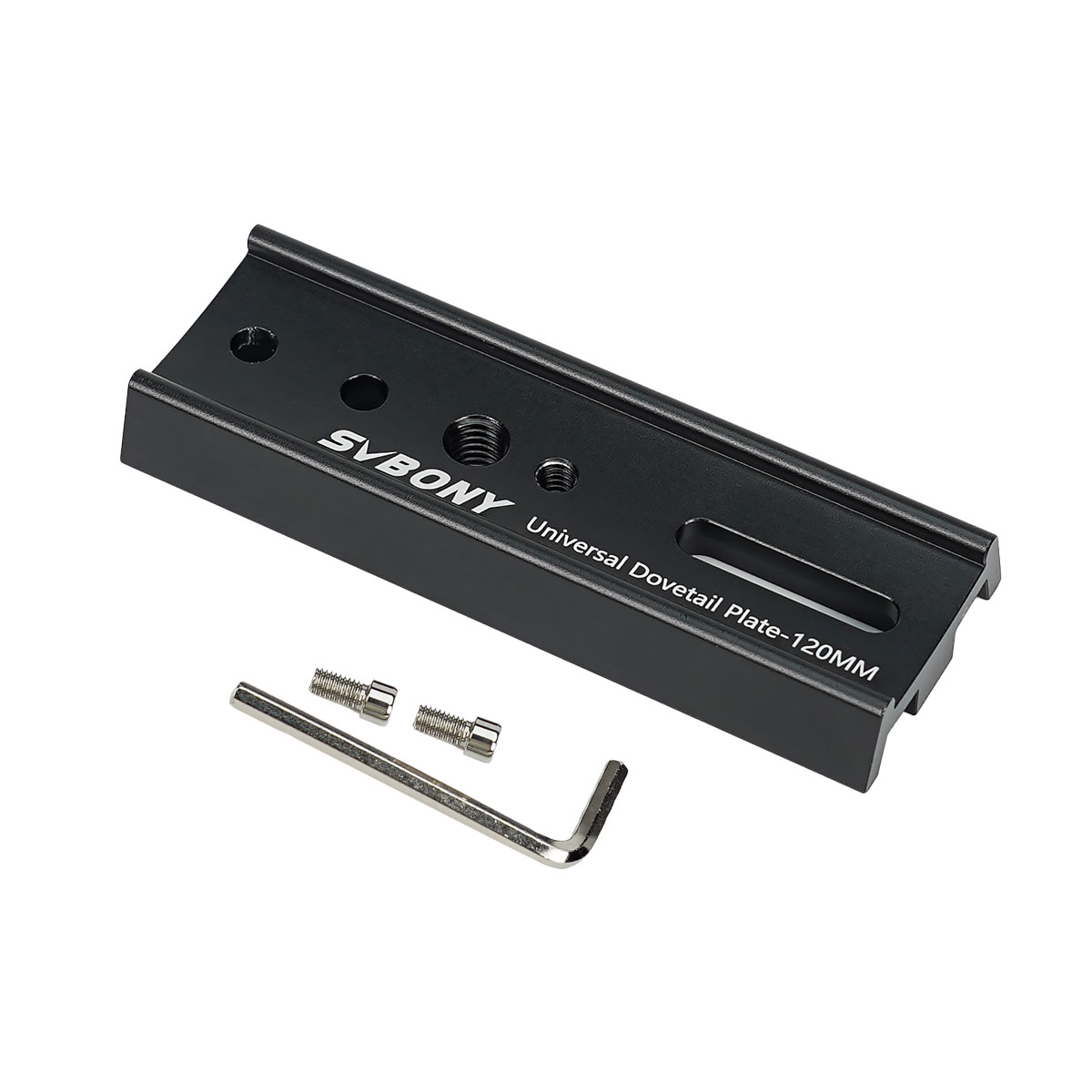

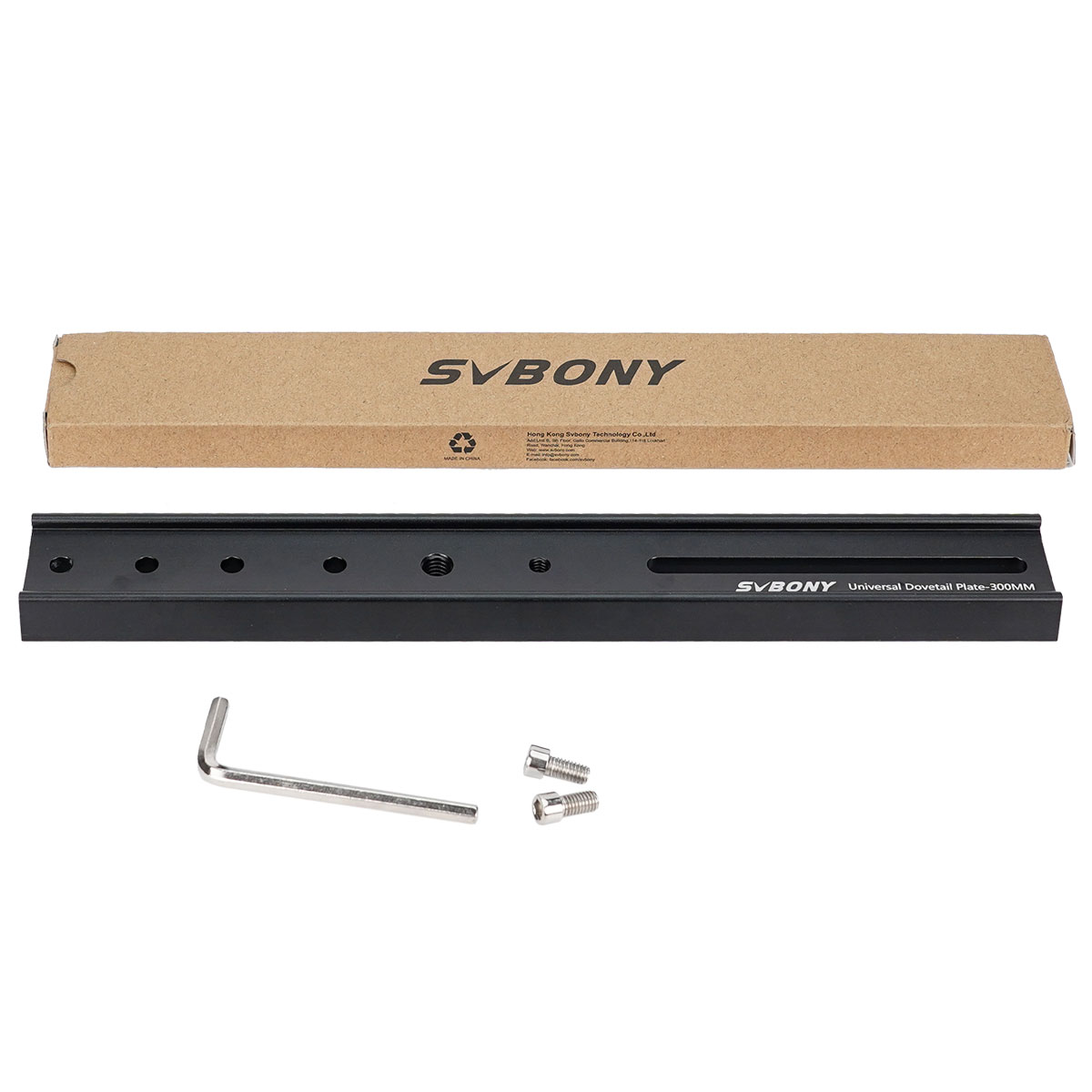

1* 120mm / 210mm / 300 mm Dovetail Mounting Plate
1* M5 Allen Wrench
2* M6 Screws
I use a lot of SVBony gear for astronomy and their dovetails are always great quality at usually the best price out there. Threads are always clean and the bolt holes are always true to the stated dimensions.
