This eyepiece removes field curvature at the edge, resulting in a flat, distortion-free image, and features over-sized lenses with a large 60° field of view with 16mm eye relief.
In Stock
| Product Name | SV190 Ultra Flat Field Eyepiece |
| Focal length | 10mm |

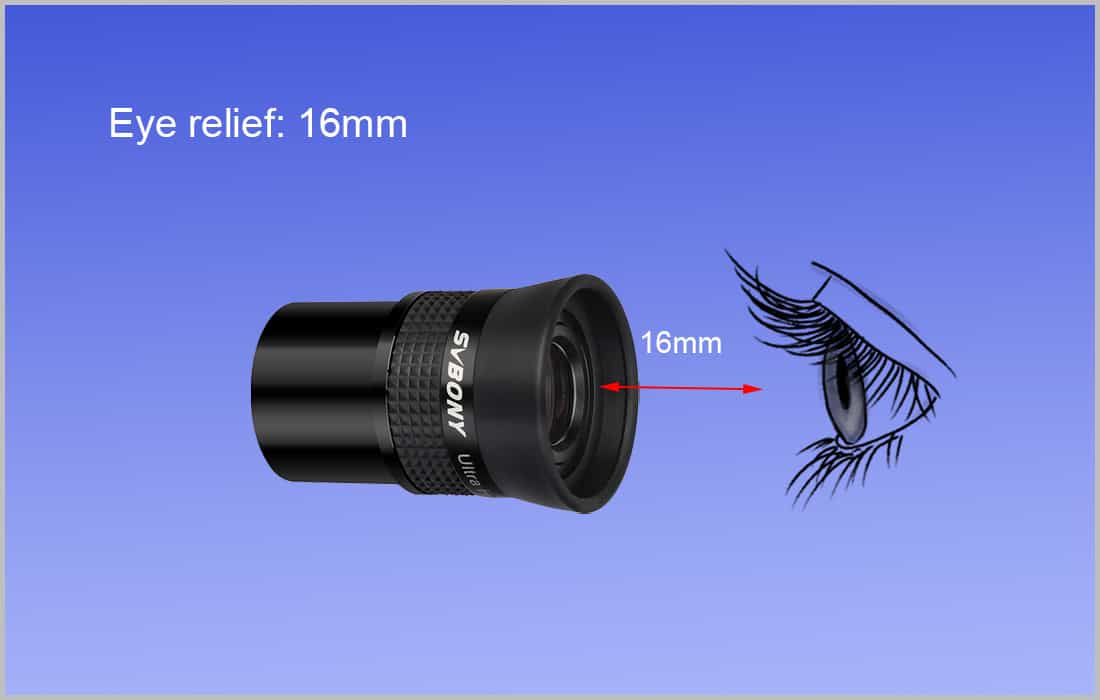

| Eye Relief | 16mm |
| Lens Structure | 5-Elements/4Groups |
| Field of view | 60-Degrees |
| Coatings | Fully Multi-Coated |
| 1.25" Thread size | M28.5*0.6 |
| Thread specification under the eyecup | M34*0.75 |
| Eye Cup type | Rubber |

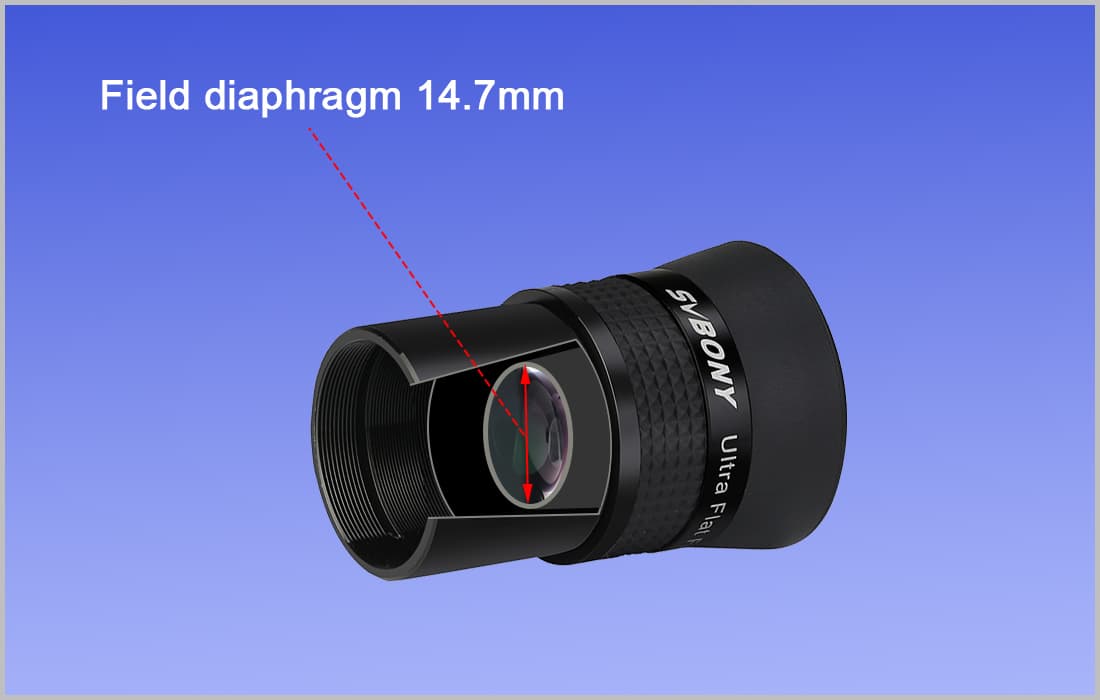

| Field diaphragm | 14.7mm |
| Net weight | 84g/ 2.95oz |
| Package Size | 110x76x70mm |

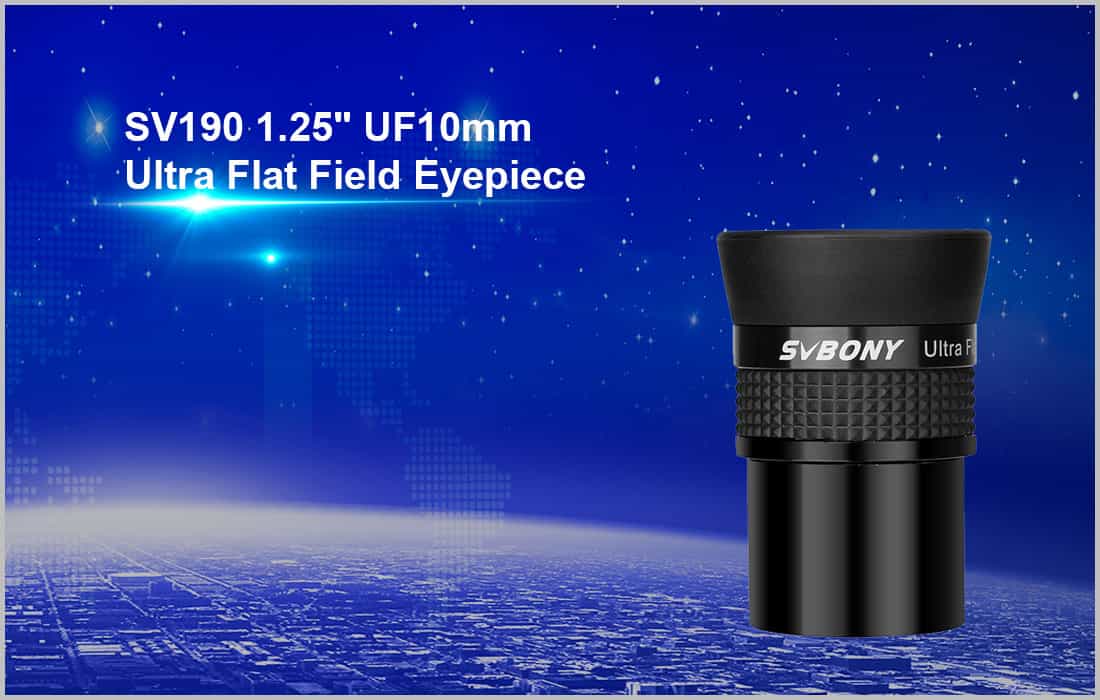

SVBONY SV190 10mm Ultra Flat Field Eyepiece delivers high quality in a very compact design. This eyepiece removes field curvature at the edge, resulting in a flat, distortion-free image, and features over-sized lenses with a large 60° field of view with 10mm eye relief. All lenses (5 lenses in 4 groups) have a broad-band multi-coating (FMC) and blackened lens edges, and the plug-in sleeve is equipped with a thread for 1.25″ filters.
