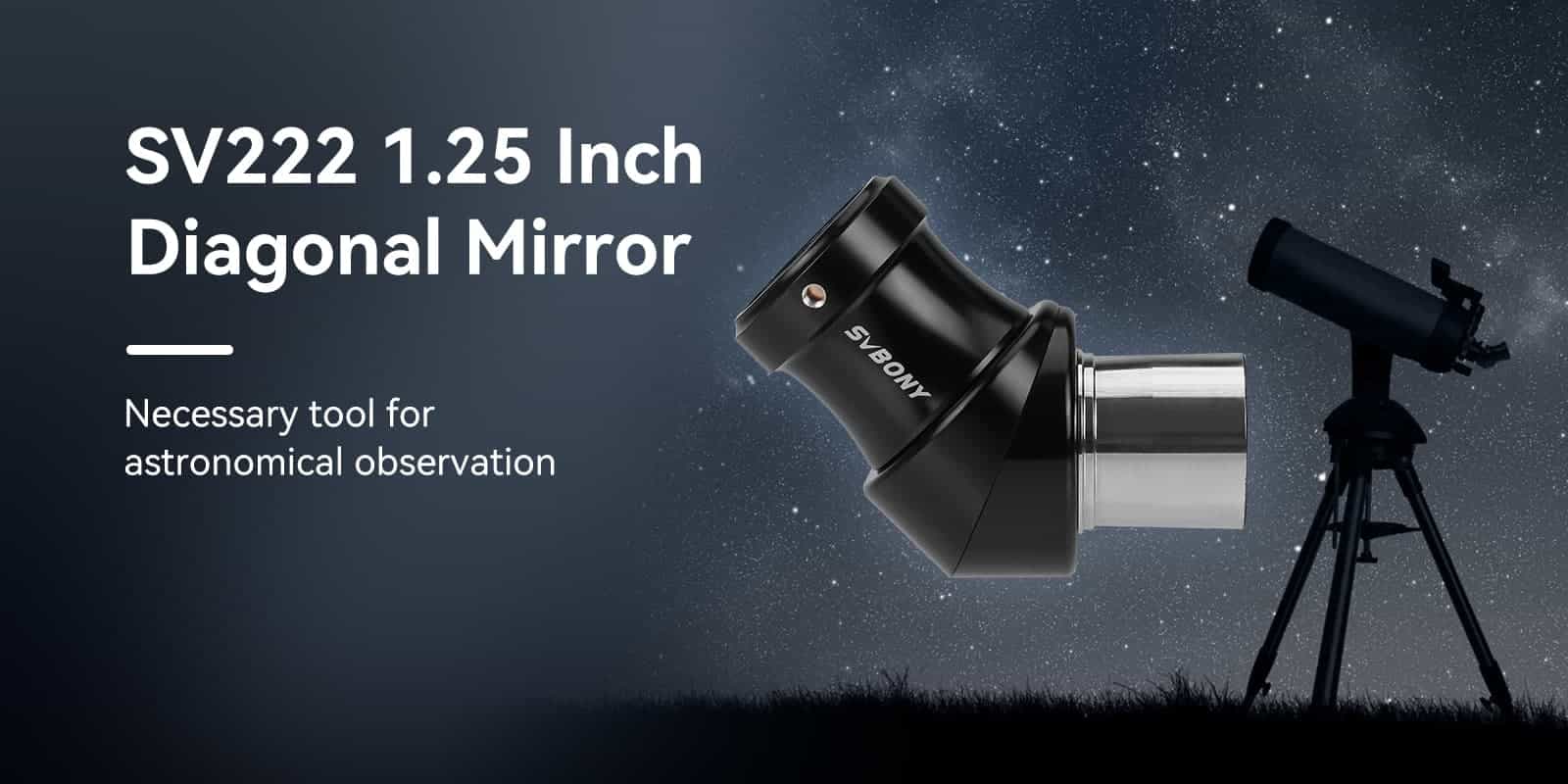

SV222 1.25-inch 45 Degree Correct Image Diagonal Mirror with FMC and Phase Coating for Refractor Telescope

SKU: W9179A
US$ 41.24 -25%
List Price: US$ 54.99
  • 1.25-inch aperture; SV222 45 degree diagonal is 1.25-inch aperture; strong versatility; can be applied to 1.25-inch eyepieces and astronomical accessories
  • The image is clear and bright; correct image diagonal adopts a 45-degree upright prism; with full multi-layer coating and phase coating; the image contrast is high; the picture is clear and bright
  • Delustering design; blackened and baffled inside; it can prevent internal stray light reflection
  • Metal material; 1.25 inch SV222 telescope diagonal is made of aluminum alloy metal material; with black anodizing; sturdy and durable
  • The installation is stable; brass pressure ring design; SV222 45 degree diagonal is firmly connected with the eyepiece and does not shake; it will not scratch the eyepiece
In Stock Out Of Stock

SV222 Correct Image Prism Diagonal 45 Degree 1.25-inch Fully Multi-Coated Metal for Refractor Telescope

SV222 correct image prism diagonal is 1.25-inch aperture; strong versatility; can be applied to 1.25-inch eyepieces and 1.25-inch astronomical accessories. Suitable for terrestrial or astronomical use, this diagonal produces a right-side-up, non-reversed image with correct daytime orientation.

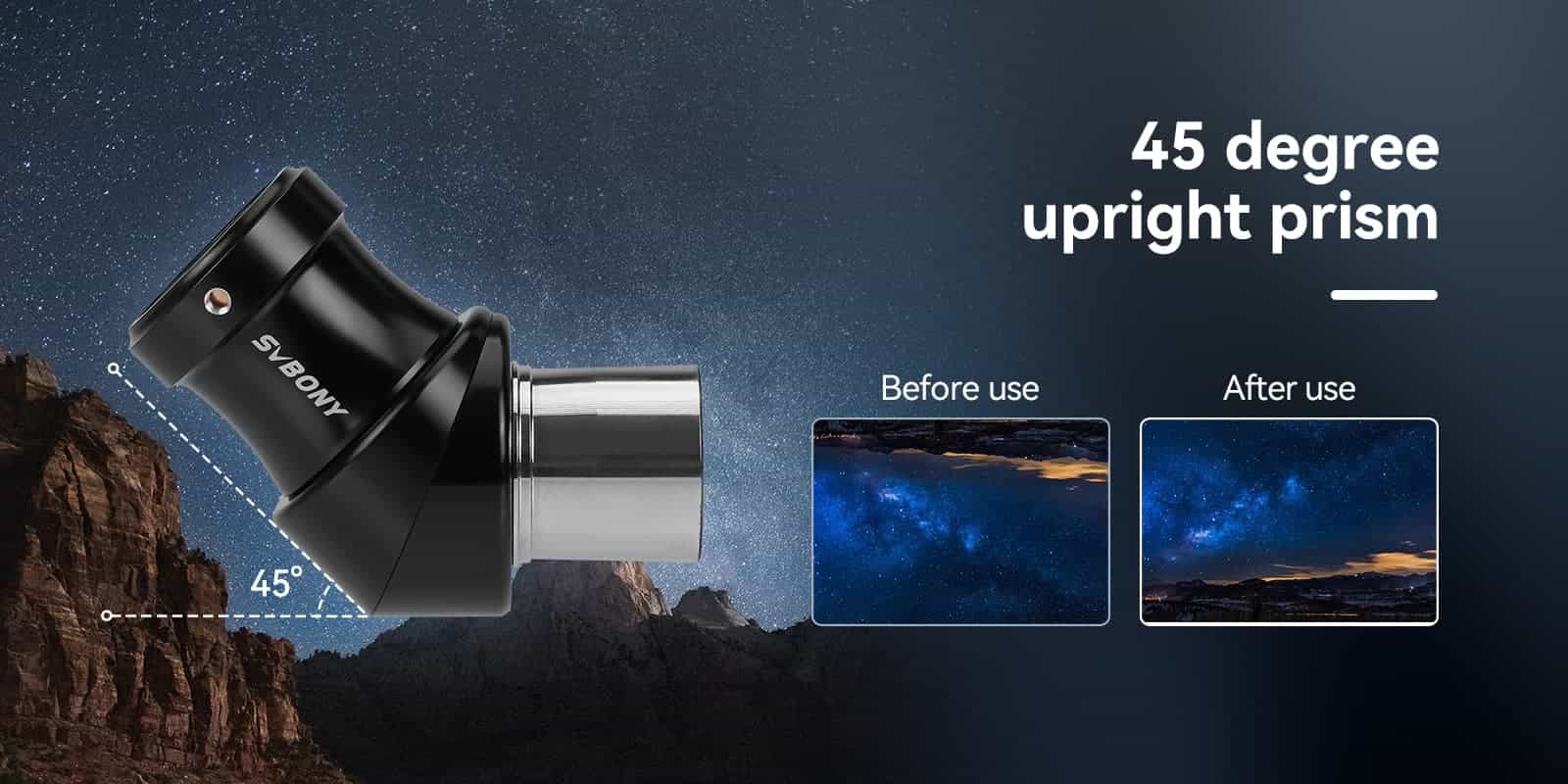

45 Degree Upright Prism

SV222 correct image prism diagonal adopts a 45-degree upright prism; with full multi-layer coating and phase coating; the image contrast is high; the picture is clear and bright.

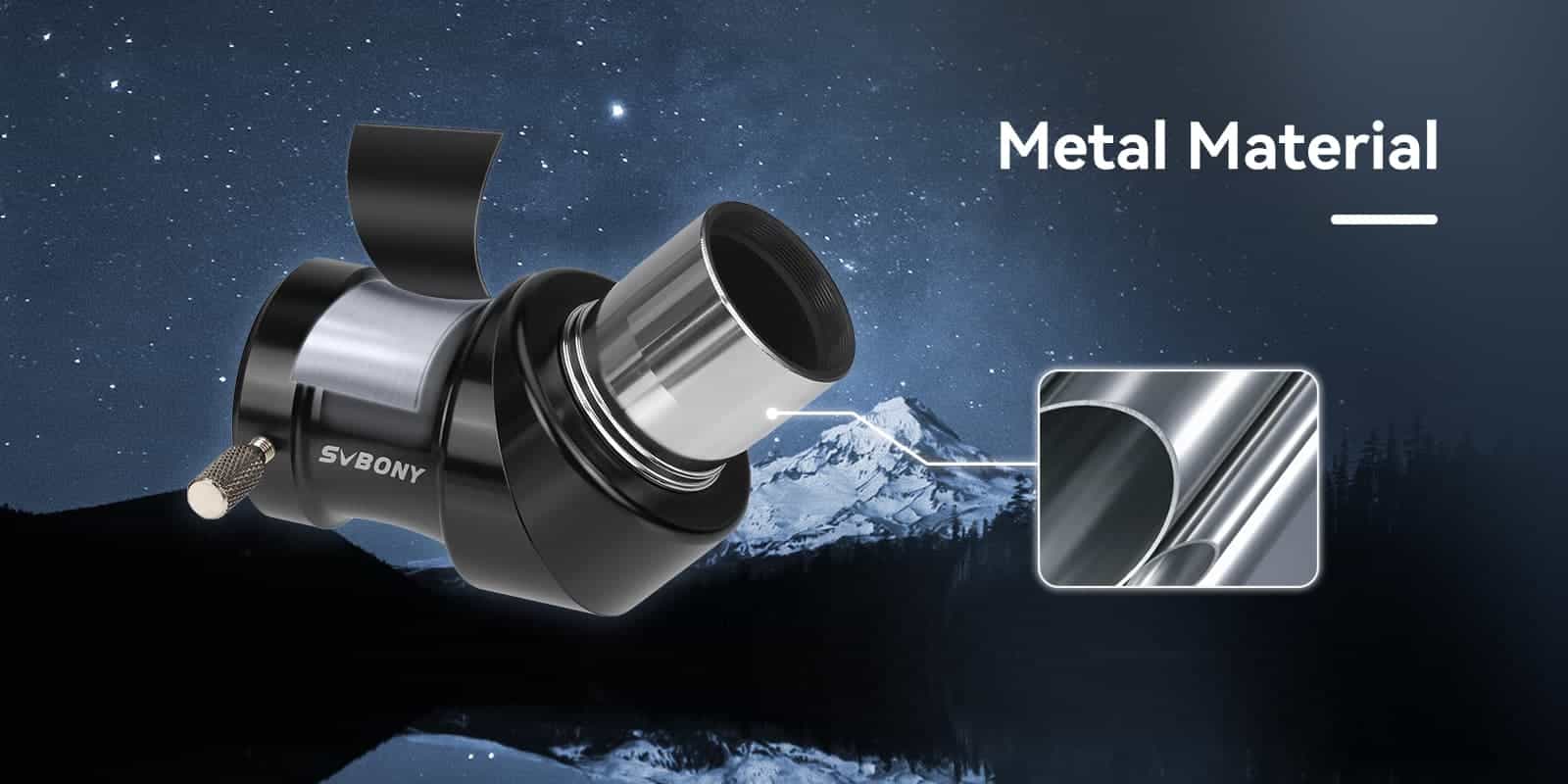

Metal Material

SV222 zenith mirror is made of aluminum alloy metal material; with black anodizing; sturdy and durable.

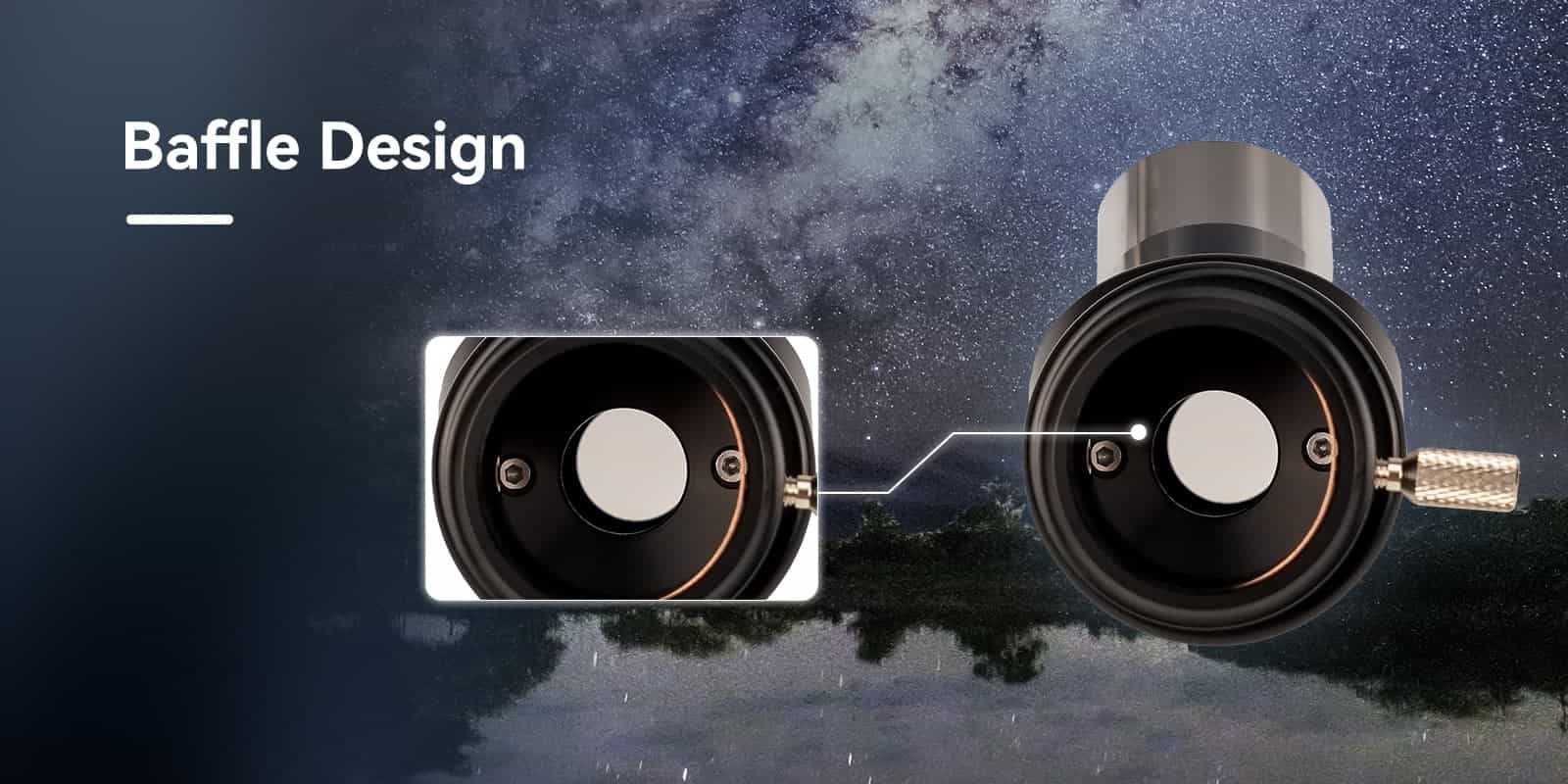

Baffle Design

SVBONY SV222 correct image prism diagonal 45 degree is blackened and baffled inside; it can prevent internal stray light reflection.

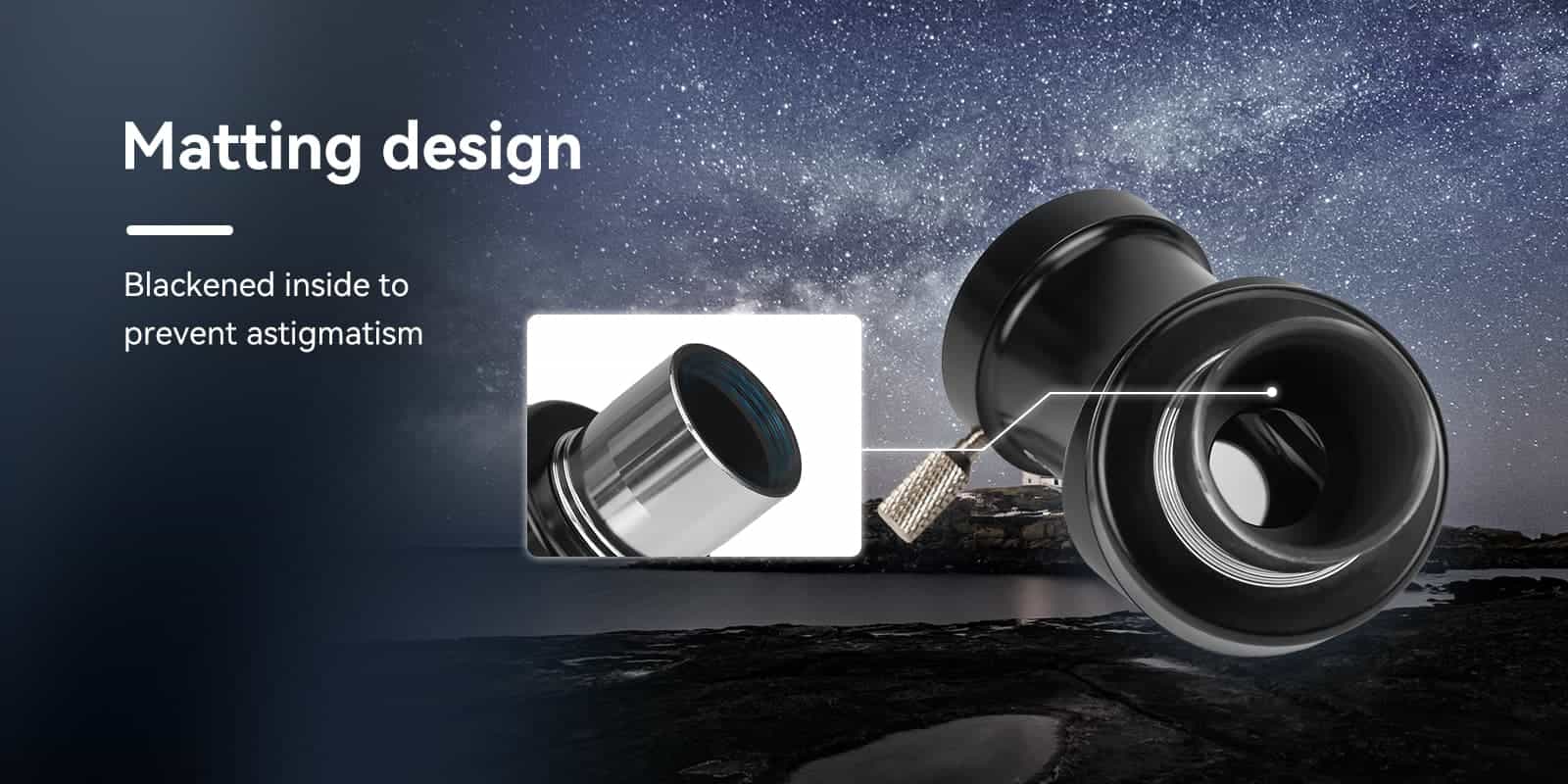

Matting Design

This approach involves coating the interior surfaces of the optical tube with a matte black finish, which significantly reduces unwanted internal reflections caused by stray light.

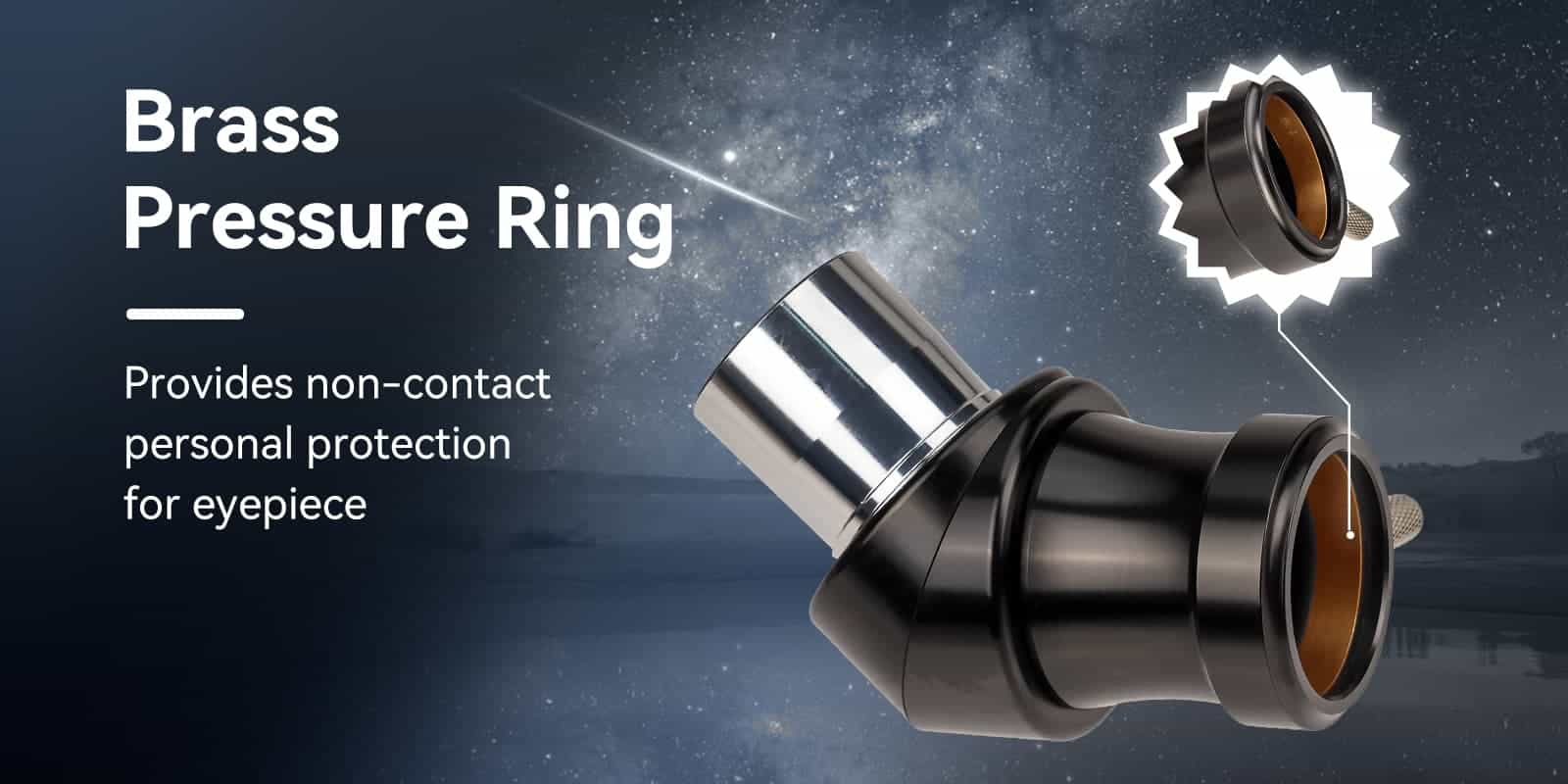

Brass Pressure Ring

SV222 has a brass pressure ring design; it is firmly connected with the eyepiece and does not shake; it will not scratch the eyepiece.

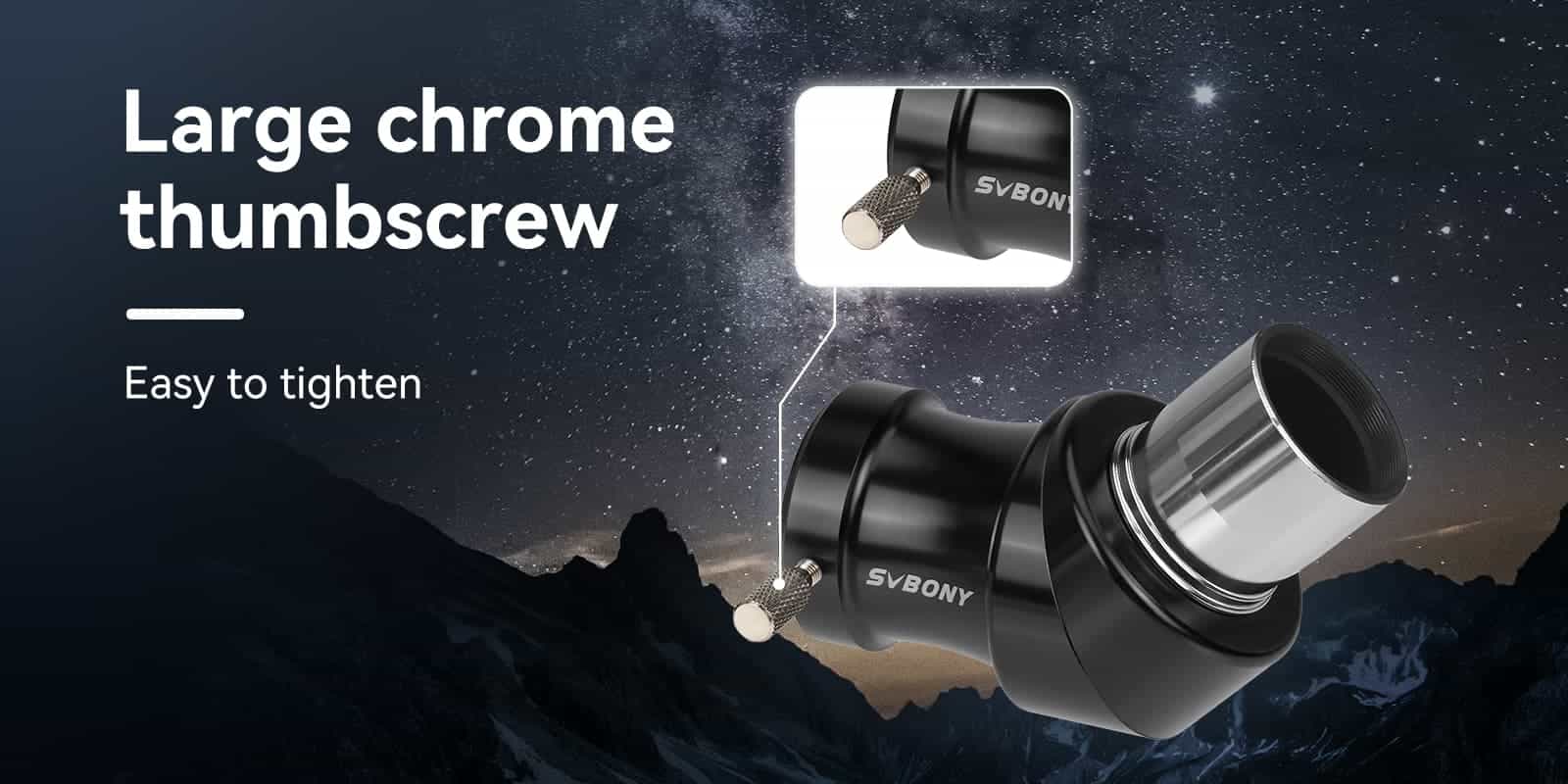

Large Chrome Thumbscrew

SV222 diagonal 45 degree is designed with large chrome thumbscrew; easy to hold; easy to install.

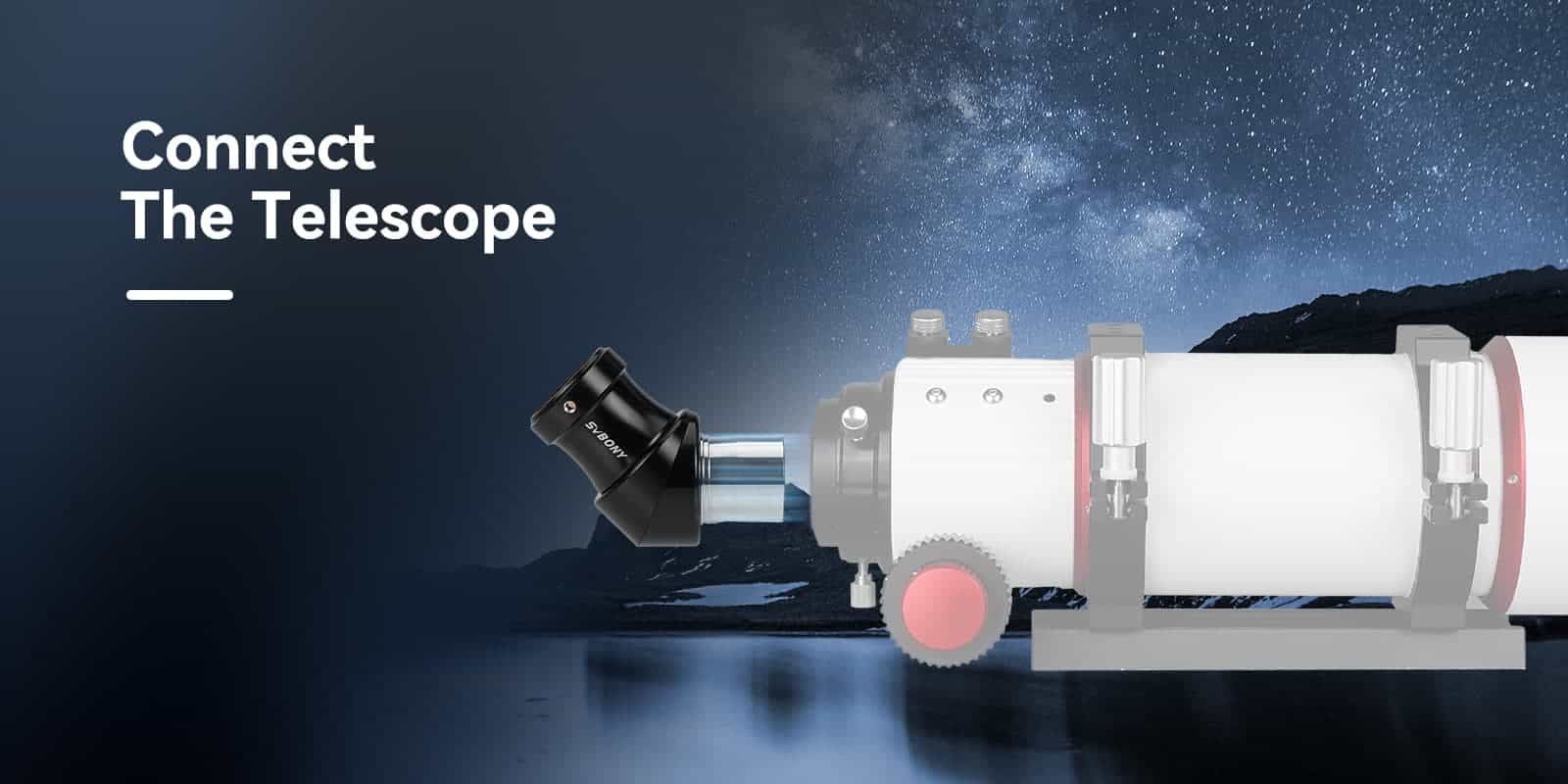

Connect the Telescope

SV222 1.25 inch diagonal mirror can be applied to planets; visual observation of astronomical scenes such as deep space; suitable for refracting telescopes.

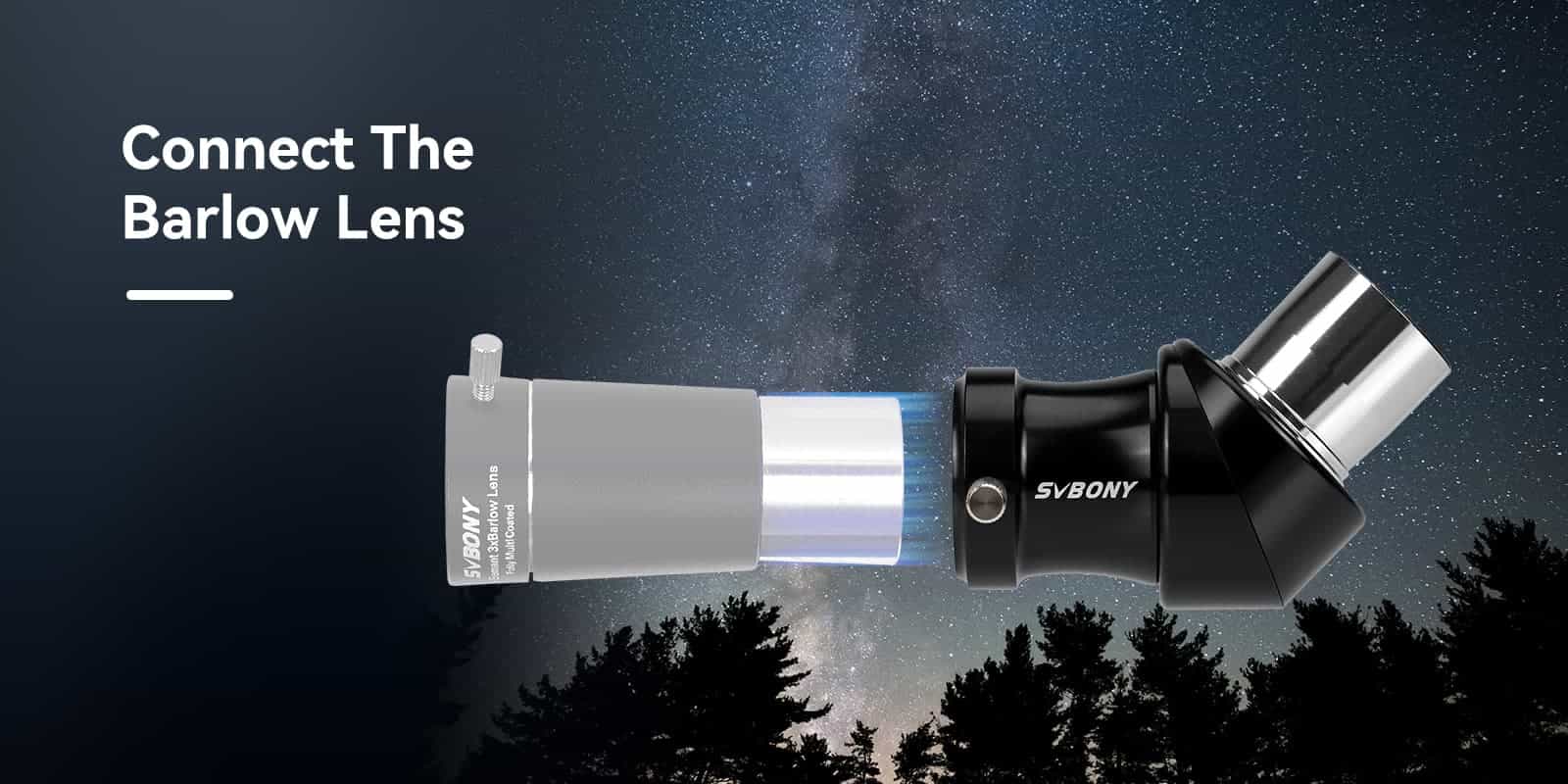

Connect the Barlow Lens

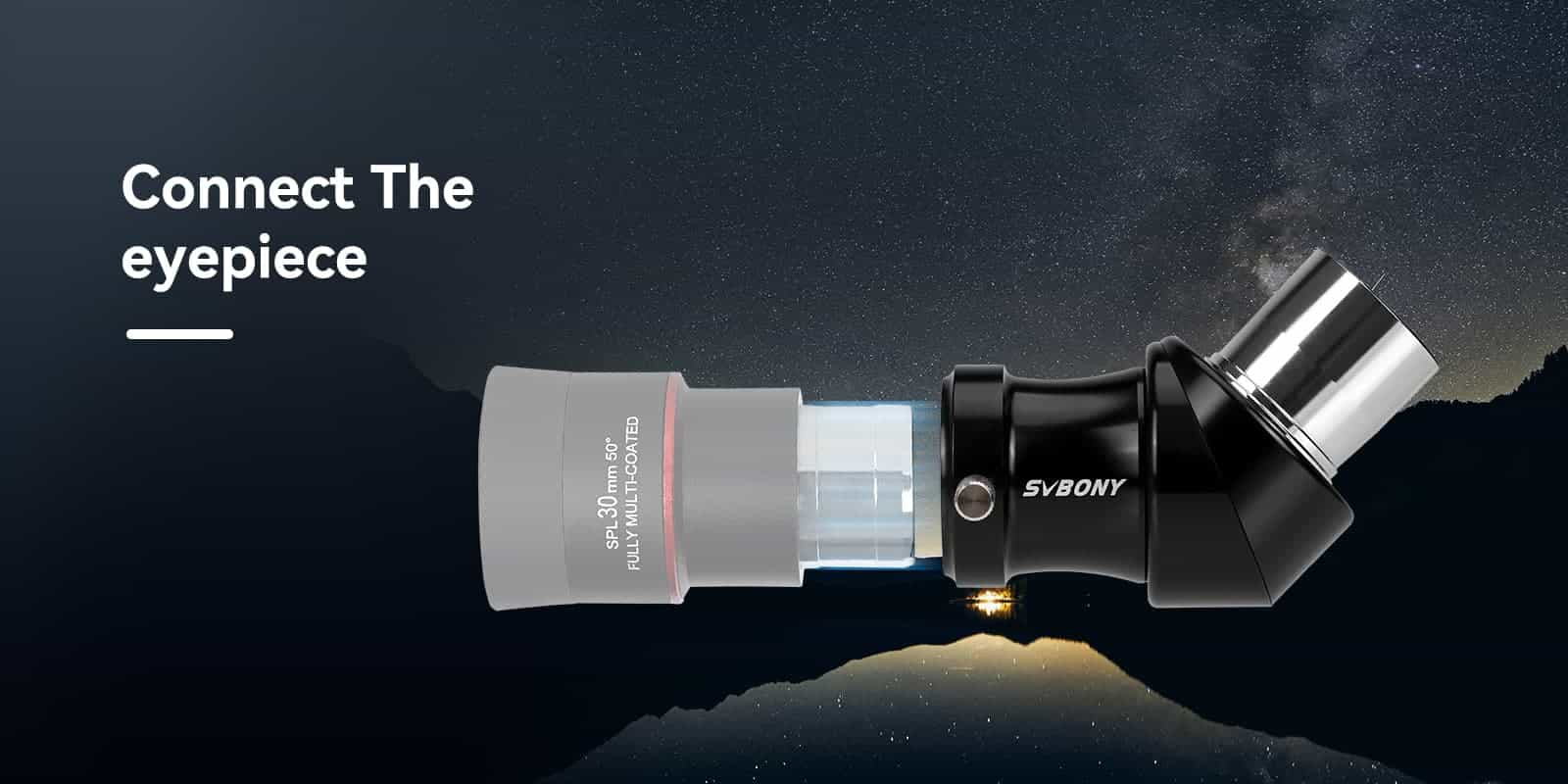

Connect the Eyepiece

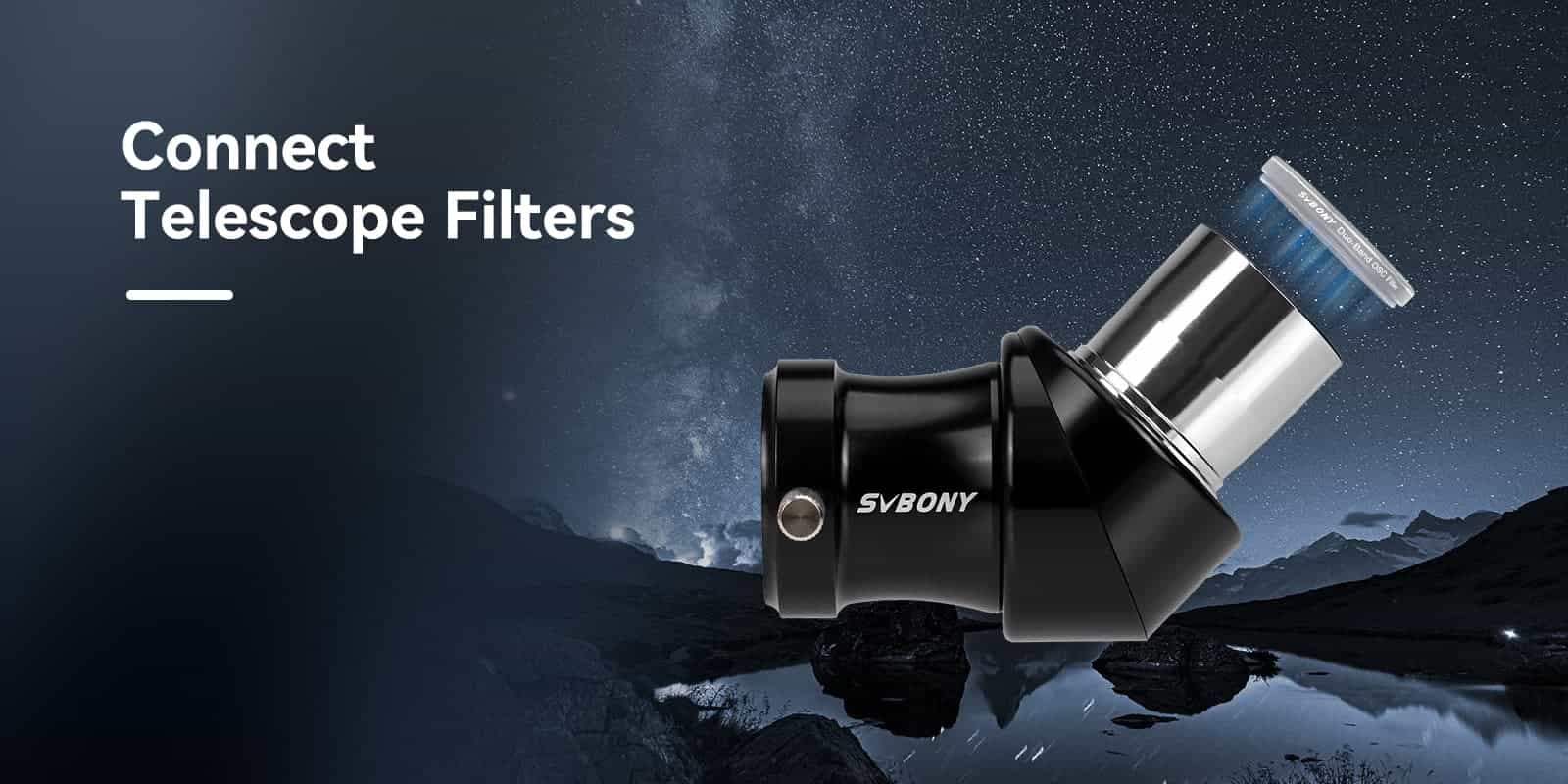

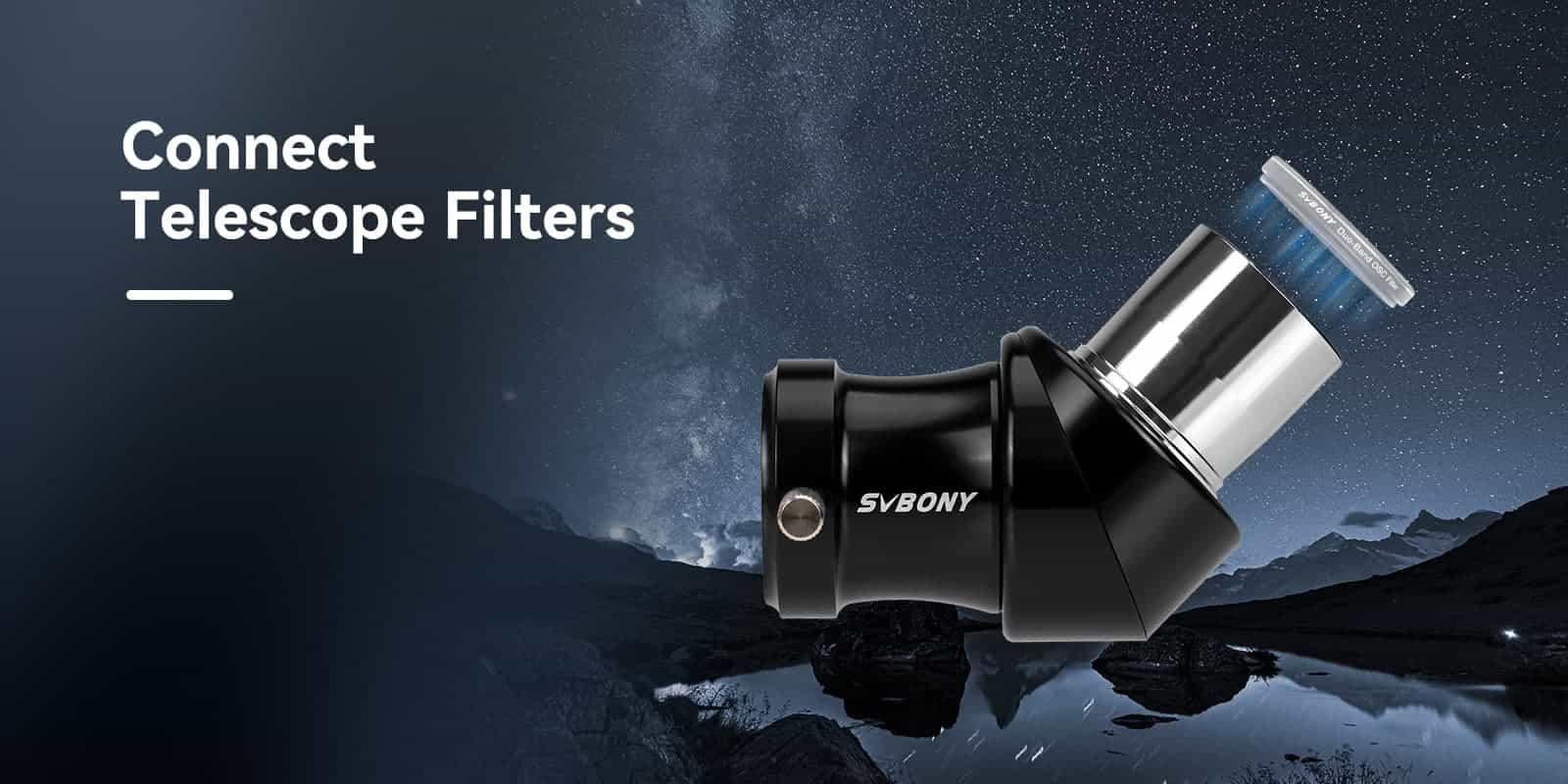

Connect Telescope Filters

2 reviews

Write a review

Great value / Great performance!

I used this in combination with the MK105 for terrestrial viewing and the images were fantastic! The BAK7 prism glass and baffling provide clear and crisp daytime views with natural color. Definitely an excellent value. The 45-degree angle and upright views are just what you need for daytime viewing. My preference is for a 90-degree diagonal at night so I have not used it for viewing stars.

Errecting prism

Really not much to say more then that it does what it say it does. Makes your viewing angle a bit more comfortable and corrects the picture. Well made, easy to use and looks nice. If that is what you whant, look no further

Specifications

Brand SVBONY
Model SV222
Size 1.25inch
Optical Design Prism Diagonal
Inner Connection (Lens Sided) Thread M28.5x0.6
Outer Connection (Lens Sided) Barrel 1.25inch
Inner Connection (Eyepiece Sided) Clamp 1.25inch
Coating Fully Multi-Coated + Phase Coatings
Image Orientation Erect image, non-reversed
Optical Length appr. 93mm
Clamping System Screw clamps
Deflection Angle 45°
Clear Aperture 16mm
Body Material CNC Metal Aluminum
Prism Material BK7
Net Weight 167g/5.87oz

Features

1.High-quality 45-degree erecting prism with Phase Coatings allows for good contrast and bright images.
2.Entirely aluminum, black anodized eyepiece holder, large, chromed thumbscrews.
3.Internally blackened and baffled to prevent internal stray light reflections.
4.1.25" eyepiece holder comes with anti-marring brass compression ring.
5.Accepts 1.25" eyepieces, fits in 1.25" focusers.
6.For terrestrial or astronomical use, this diagonal produces a right-side-up, non-reversed image with correct daytime orientation
7.Not recommended for use in Newtonian reflector or DOB reflector telescopes
8.Tips:But all Prism Diagonal – no matter how good they are – suffer from one design feature: There is a line going through the center of the image, where both sides of the prism surfaces come together. This may cause reflections or spikes. To some extent, this will always happen when a bright object like a star is viewed in front of a dark background like the night sky. This should be obvious only with very bright stars or planets.



Package Includes

SV222 1.25" 45 Degree Metal Correct Image Prism Diagonal
1PCS M4 Screws
1PCS Dust Cap
1PCS Dust Plug
