Svbony fully metal dovetail bracket base and dovetail mounting plate for finderscope. It can fit and protect the tube very well.
Suitable for SV48 and SV48P, not applicable for SV503 series telescope.

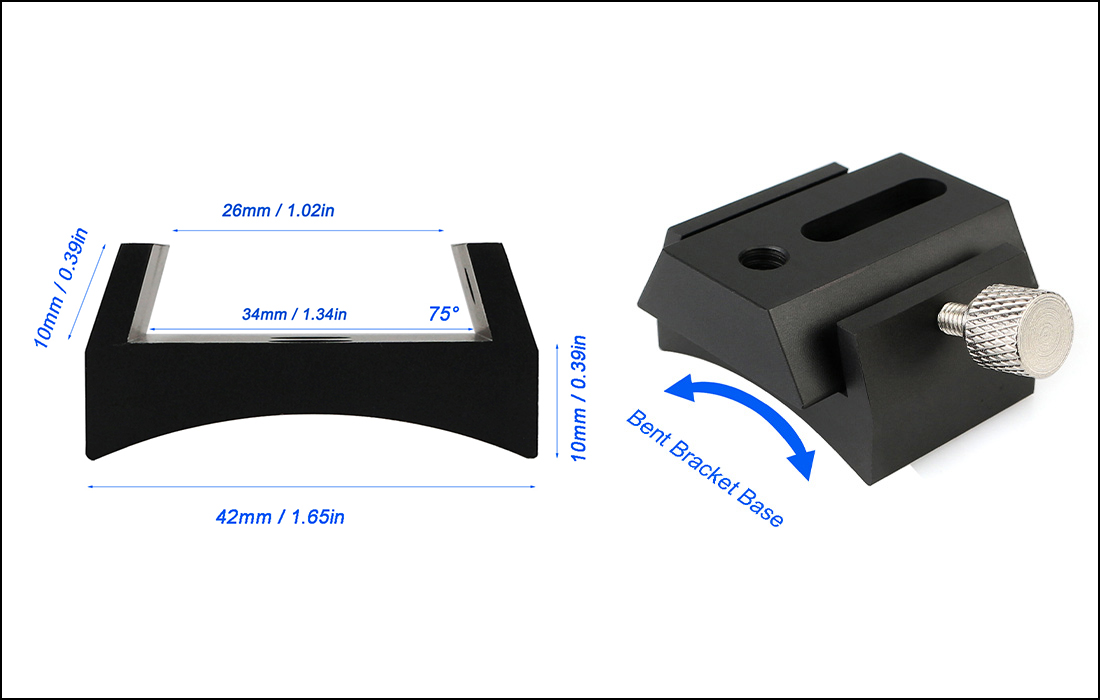

|Base Width of internal trapezoid (bottom)||33.4mm|
|Base Width of internal trapezoid (top)||28.7mm|
|Base Height of inner part||appr. 9mm|

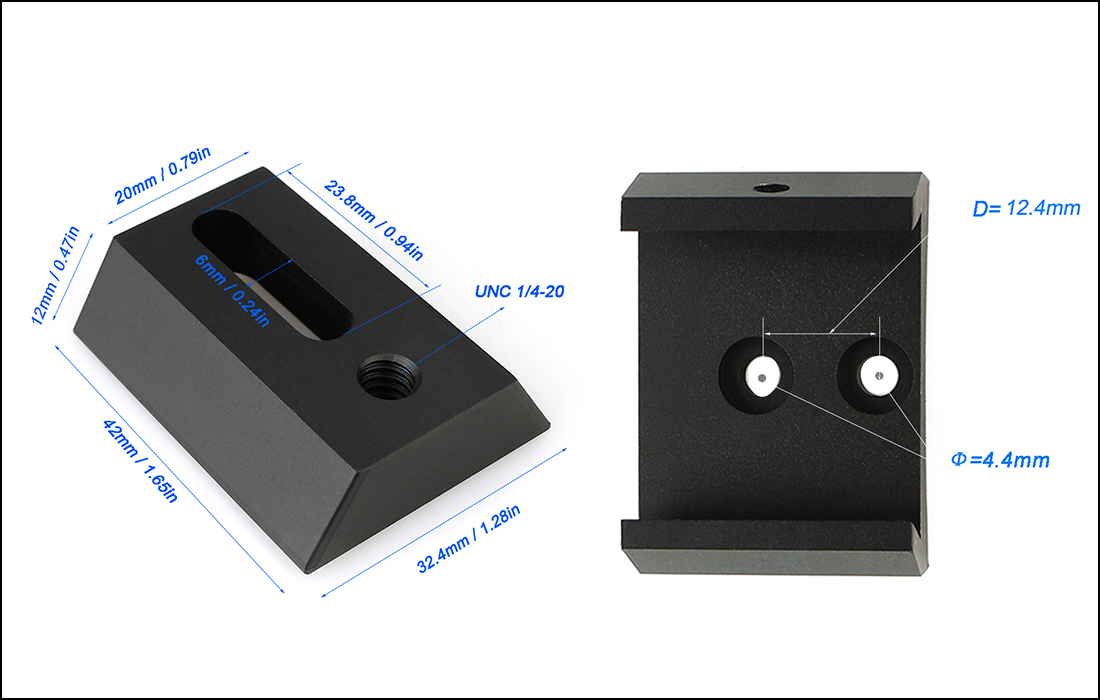

|Dovetail Board Length||42mm|
|Dovetail Board Width (bottom)||32mm|
|Dovetail Board Width (top)||20mm|
|Dovetail Board Height||11mm|
1.Black small-sized design suitable for finder scopes
2.Fully metal construction can connect the finder scopes with your telescopes firmly and stable
3.All metal finder scope bracket base for your telescope that comes with the standard quick release dovetail board. It can fit and protect the tube very well
