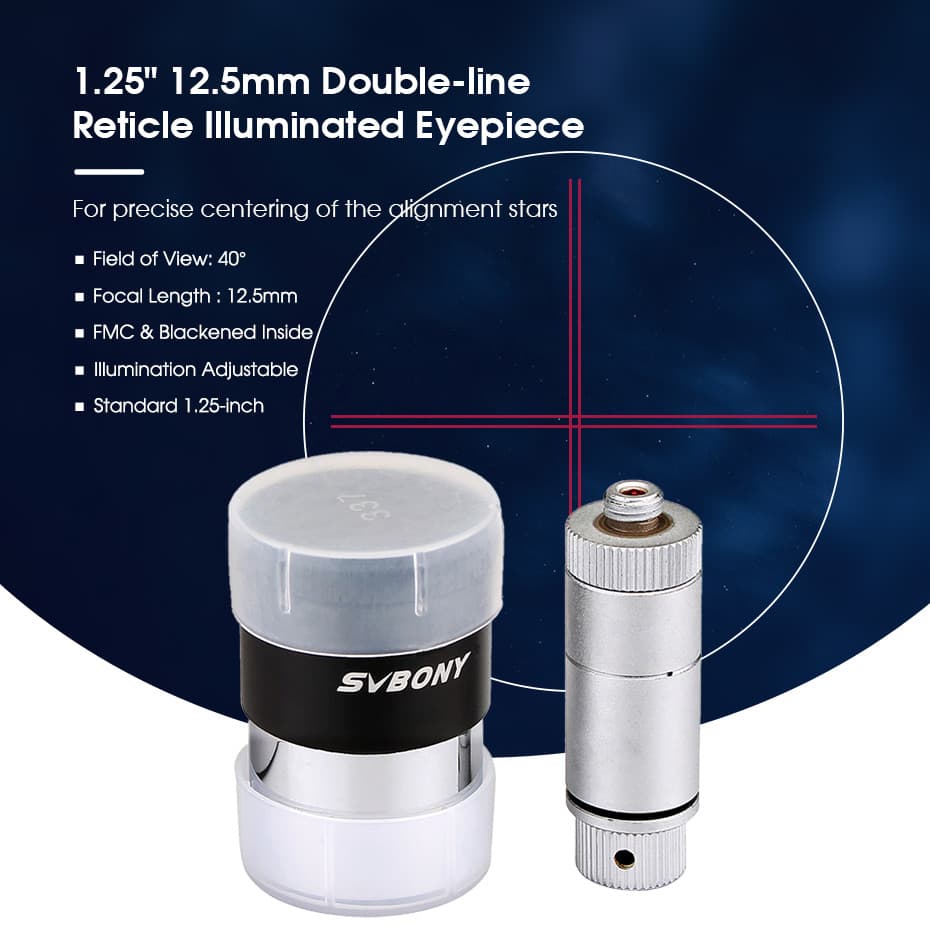

SVBONY Reticle Illuminated Eyepiece 1.25inch 12.5mm Double-line Crosshair 4-Elements Plossl Design 40-Degree FOV
- For accurate polar and go-to alignment and centering guide stars for photography;
- Red LED-illuminated double-line reticle with a high-contrast 40°field of view;
- 12.5mm focal length and 11mm eye relief forcomfortable observing experiences;
- Fully Multi-coated optics & Blackened inner wall ensures high light transmission;

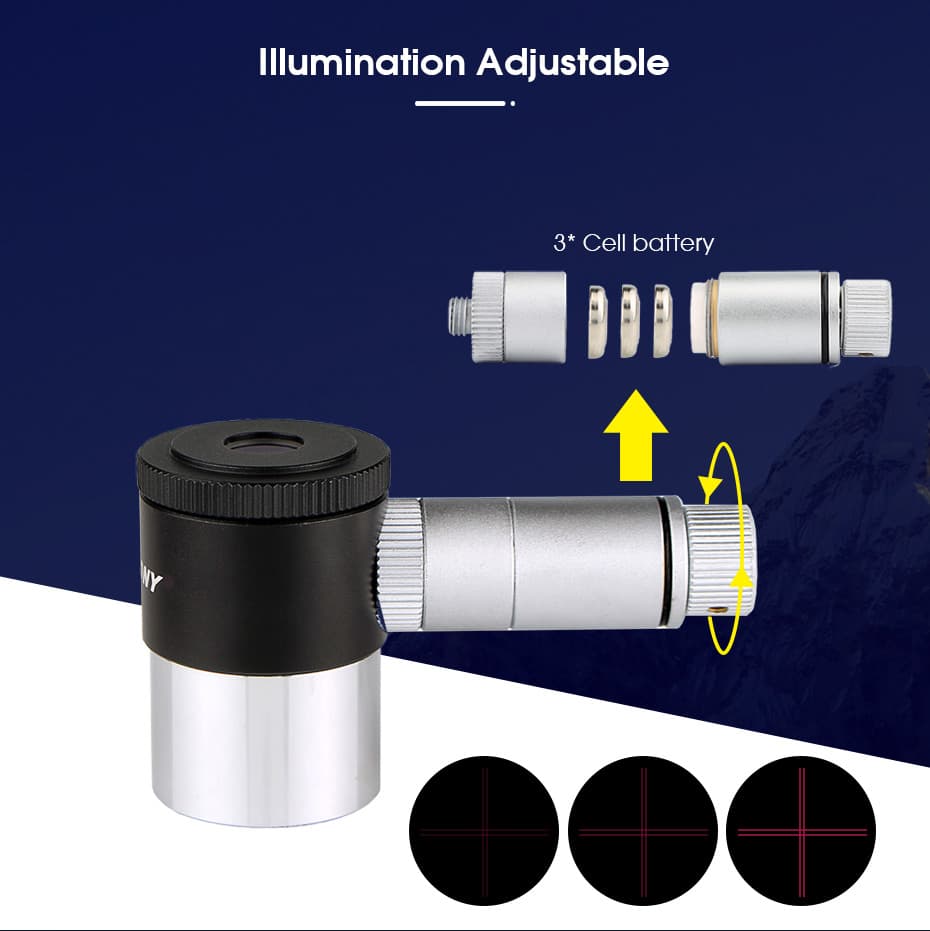

- The eyepiece is powered by 3* Cell battery, and the Illumination is adjustable.

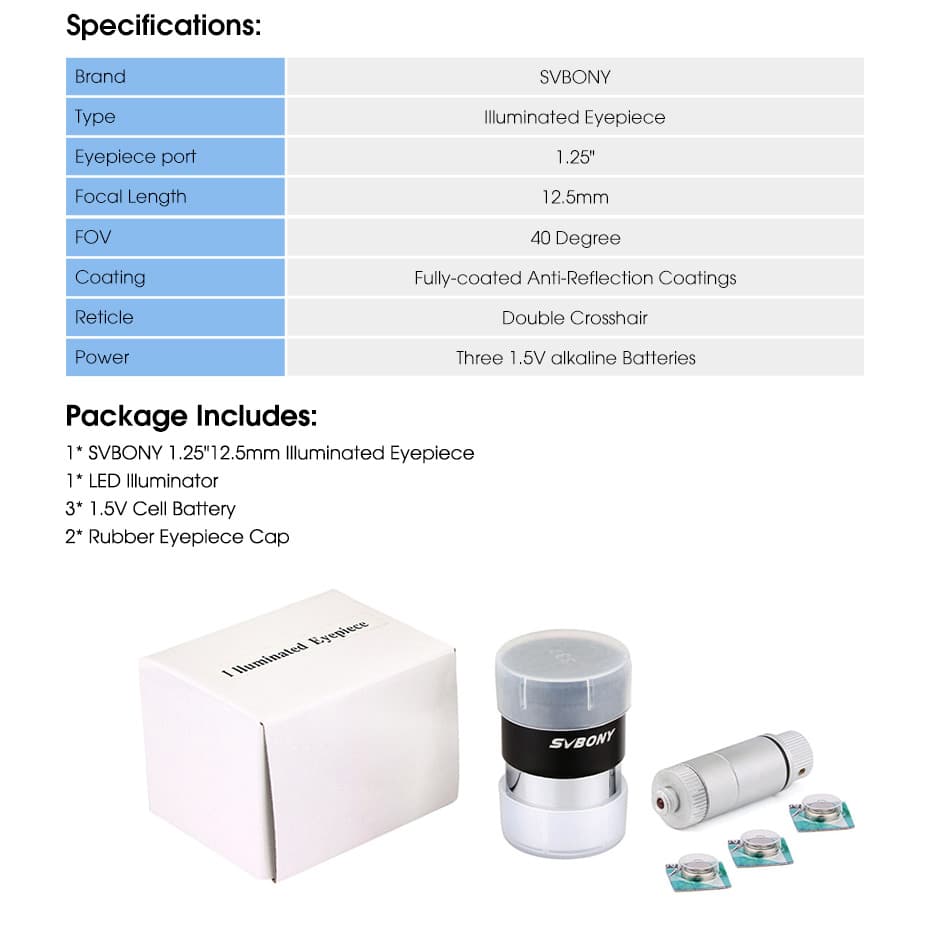

| Model | F9132A |
| Eyepiece Type | Illuminated Eyepiece |
| Barrel Size | 1.25 inch |
| Focal Length | 12.5mm |
| Angle Field of View | 40 Degree |
| Lens Coating | FMC |
| Reticle | Double Crosshair |
| Power | Three 1.5V alkaline Batteries |
| Lens Design | PL/ 4 elements |
| Net Weight | 170g |
| Size | 70*60*60mm |

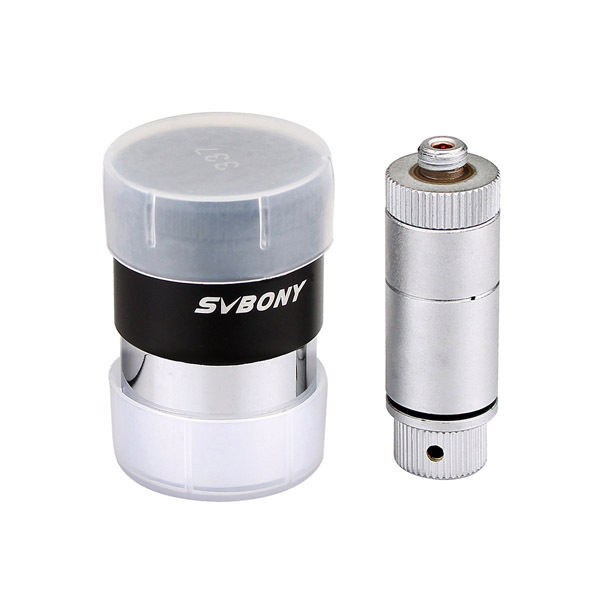

1. Svbony eyepiece body is made of aluminum. A two-step anodizing process results in a beautiful matte finish that resists reflections and glare

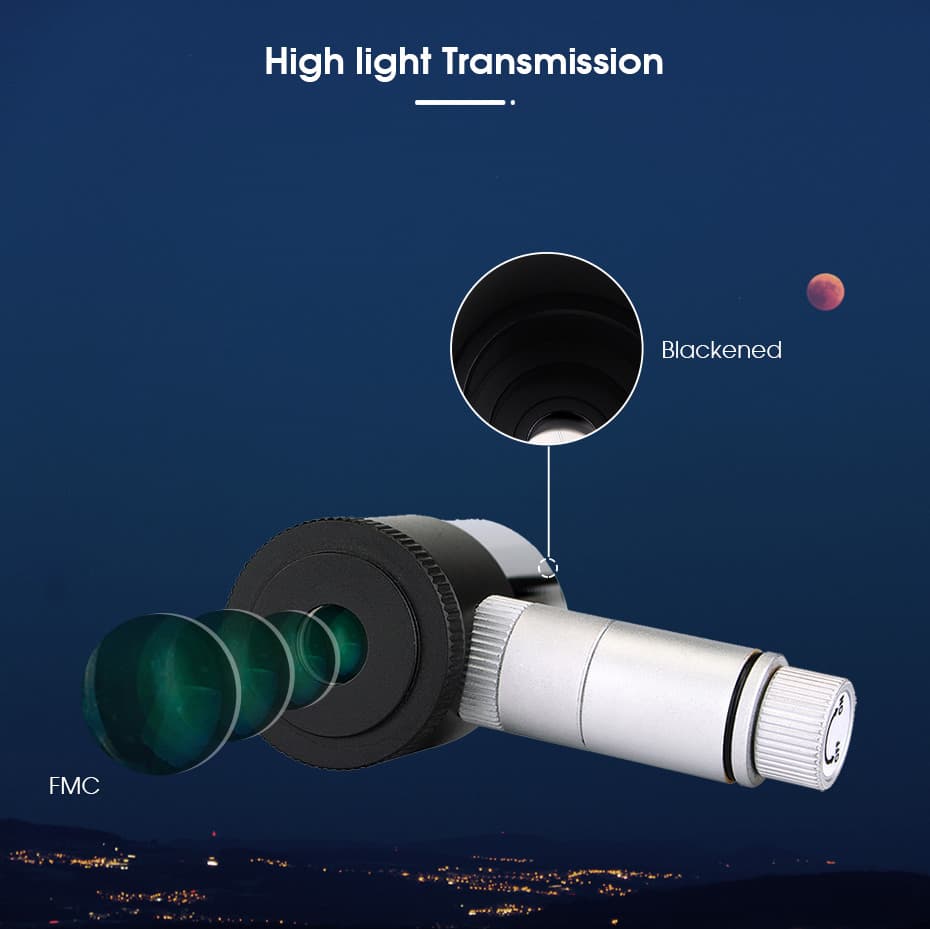

2. SVBONY 1.25" 12.5mm Double-line Crosshair Reticle Illuminated Eyepiece edges of the optics are blackened for increased contrast, and prevent internal reflections.
3. Anti-reflection fully multi-coated optics ensure bright and clear high-images at any magnification, with true color rendition

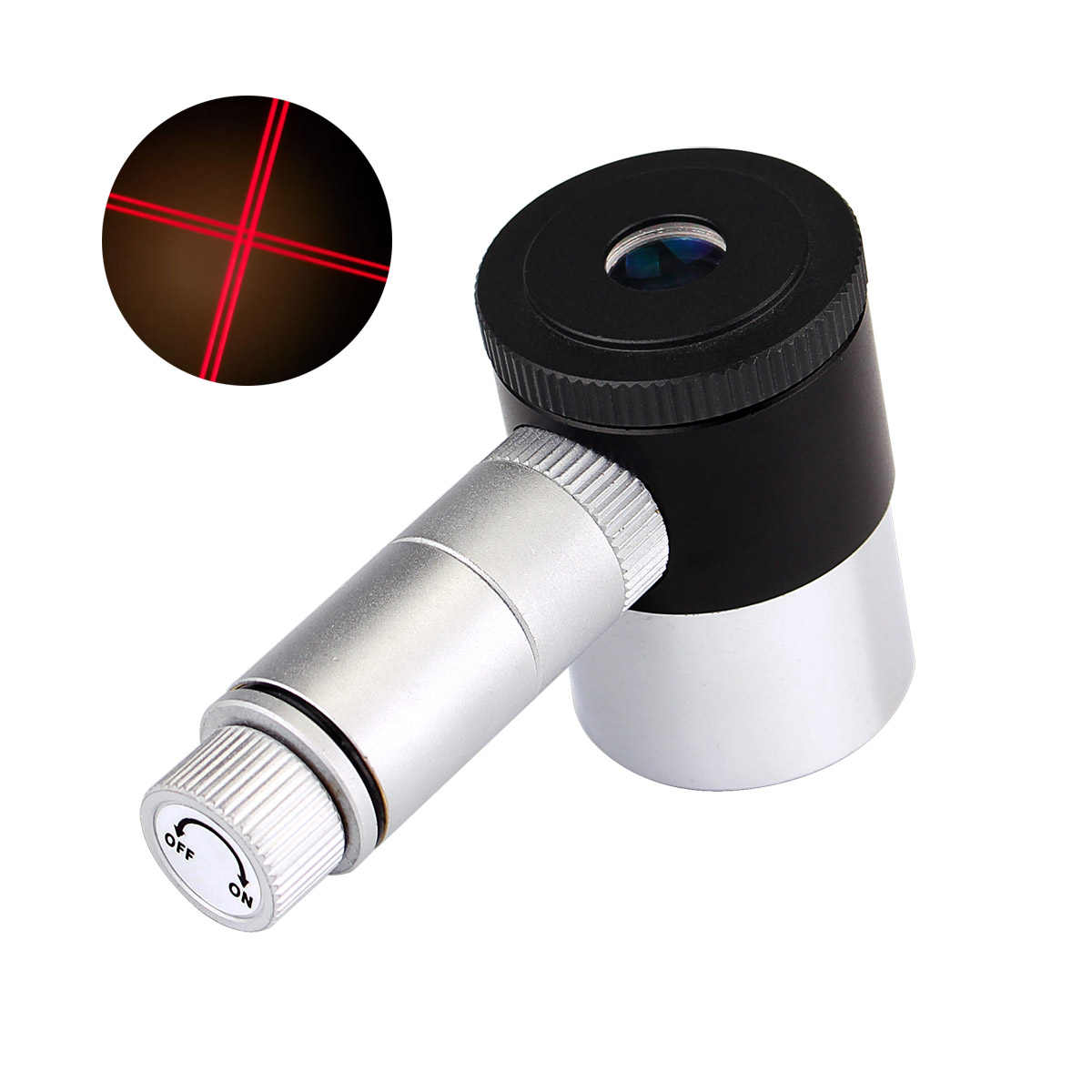

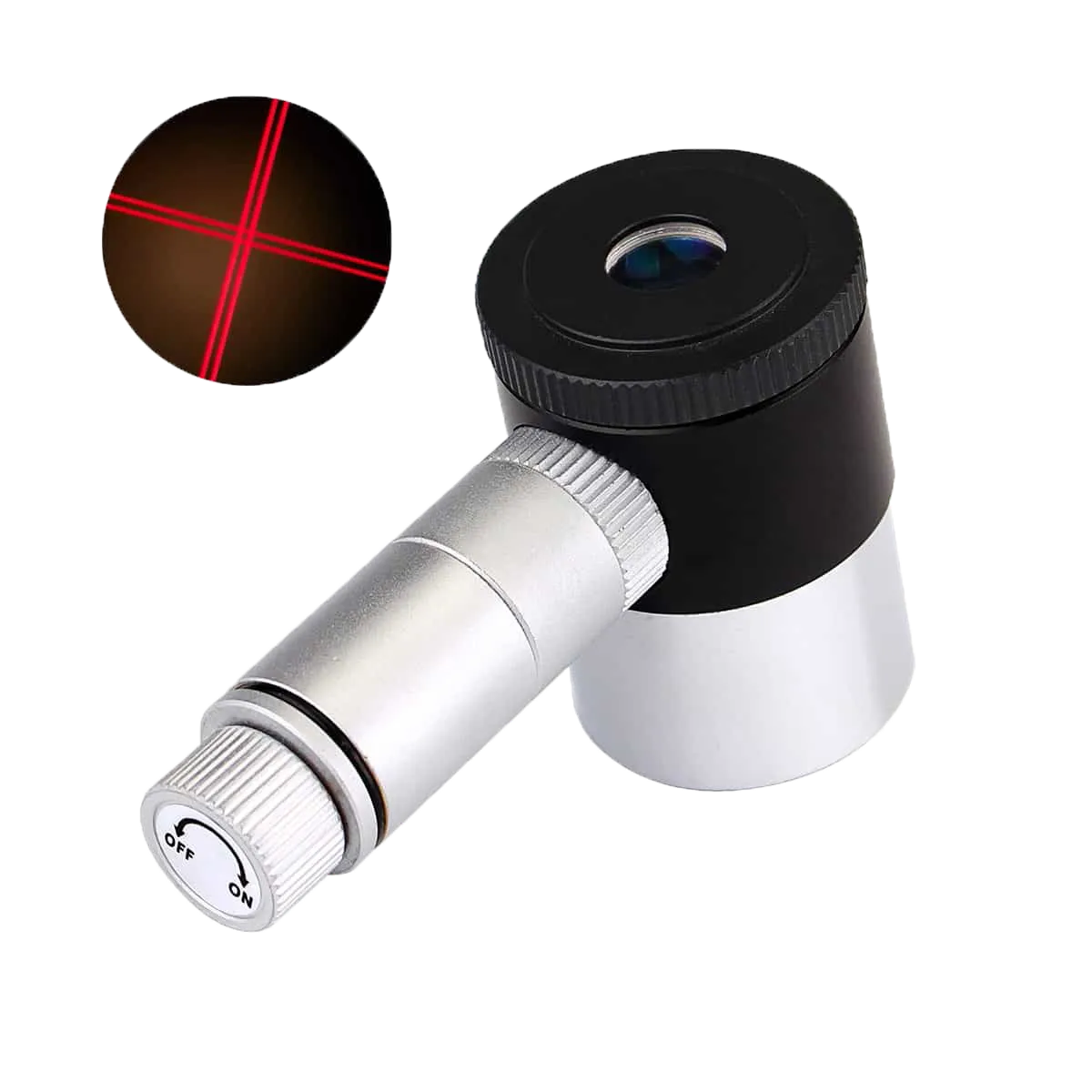

4. SVBONY 12.5mm focal length Plossl eyepiece with red LED-illuminated double-line crosshair Reticle

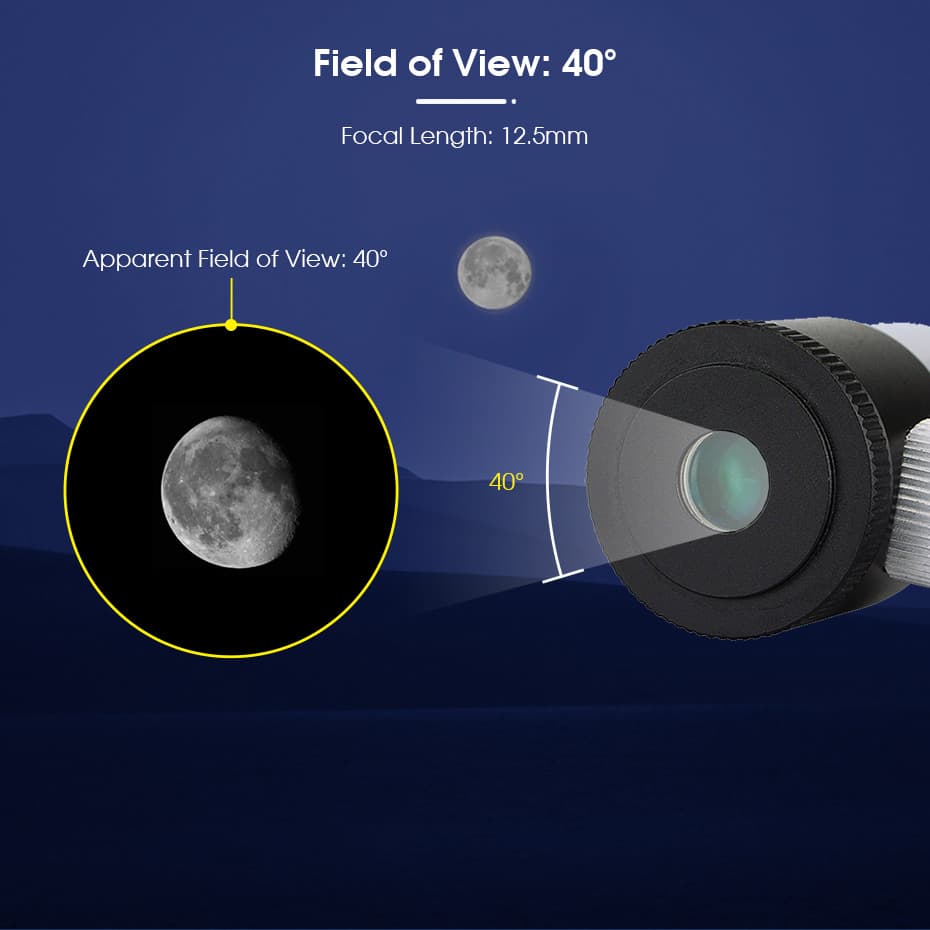

5. Bright high-contrast views with a 40-degree apparent field of view and 11 mm eye relief, comfortable eye relief
6. Steplessly adjust the brightness of the dual crosshair Reticle

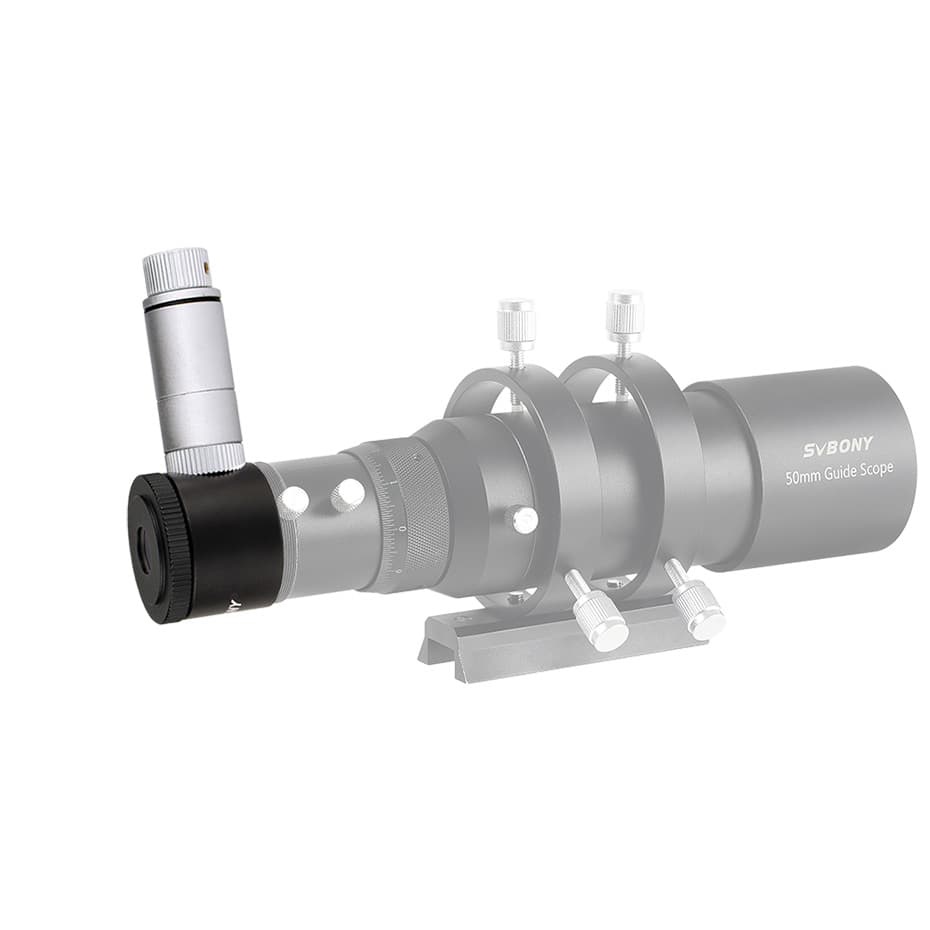

7. Excellent for accurate polar and go-to alignment and for centering guide stars for astrophotography

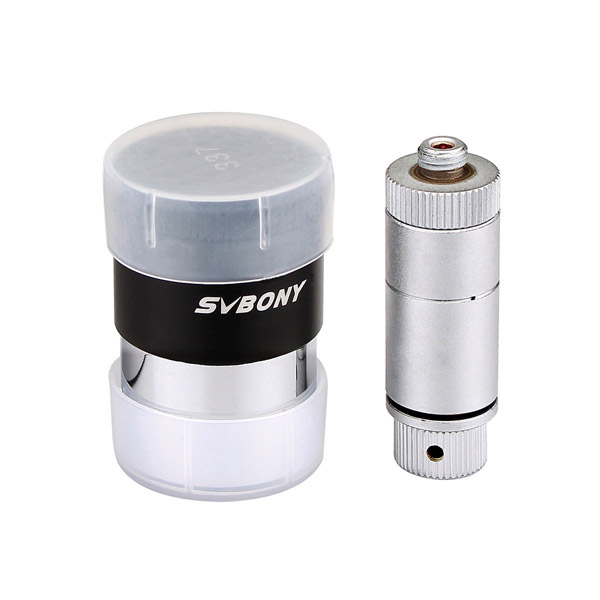

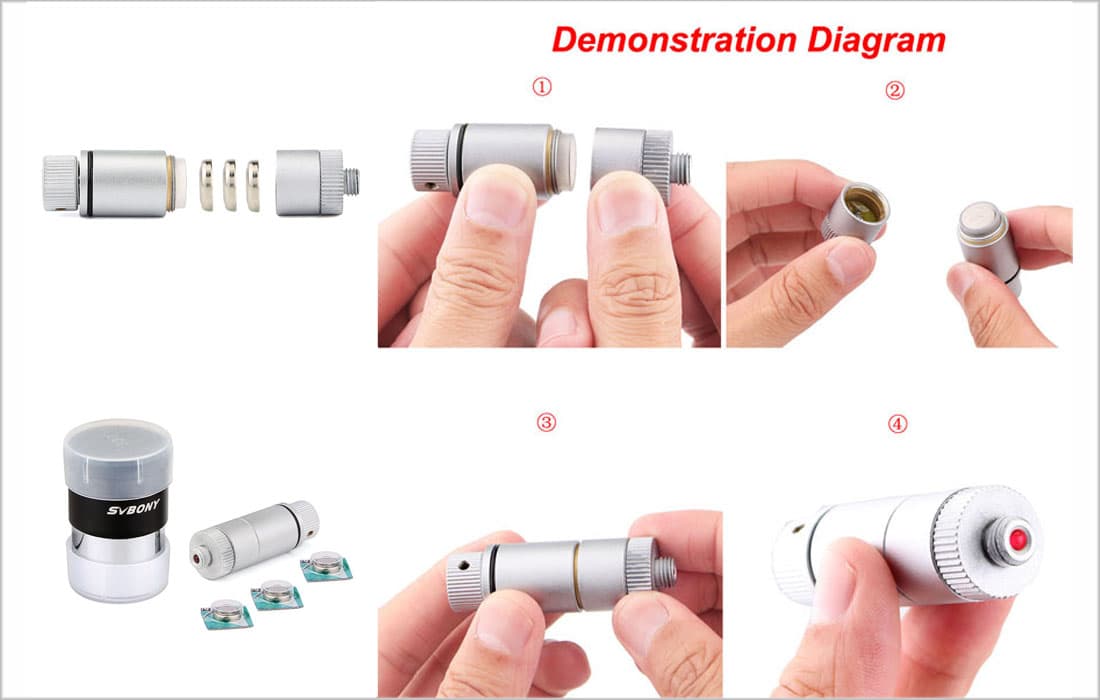

This is a terrific product once you figure out how to assemble and operate it without instructions. You will get it with 3 small watch/hearing-aid style batteries. Screw apart the illuminator in the middle. The batteries go into the half with the clear plastic tube that has a small round battery contact inside. The batteries go button side down, flat side up, into the tube. Stack all 3 batteries the same way, then screw the other half of the illuminator back on. You should be able to see the red light come on at the end of the illuminator when you click the switch knob on and turn it all the way bright. Screw the illuminator into the hole in the side of the eyepiece. Turn off the illuminator light and look through the eyepiece in normal room or day light and see the four black crosshairs. Most likely they will be very blurred. The ring on top of the eyepiece is for focusing the cross-hairs, so turn it as many turns as needed to get the two double cross hairs into sharp focus, and you're done. When using it at night through your scope, adjust the illuminator brightness as needed, depending on how bright your target is. On "first light" with this eyepiece, I achieved the best alignment that I've ever experienced with my Alt-Az mount.
12.5mm and 40°, clear view, a good eyepiece for its price, but when you turn on the LED, you have a dual reticle with adjustable illumination, ideal for those obsessed with perfect alignment like me. I also use it with a 90° diagonal and the SV106 60mm as a finderscope for the Mak 127.
