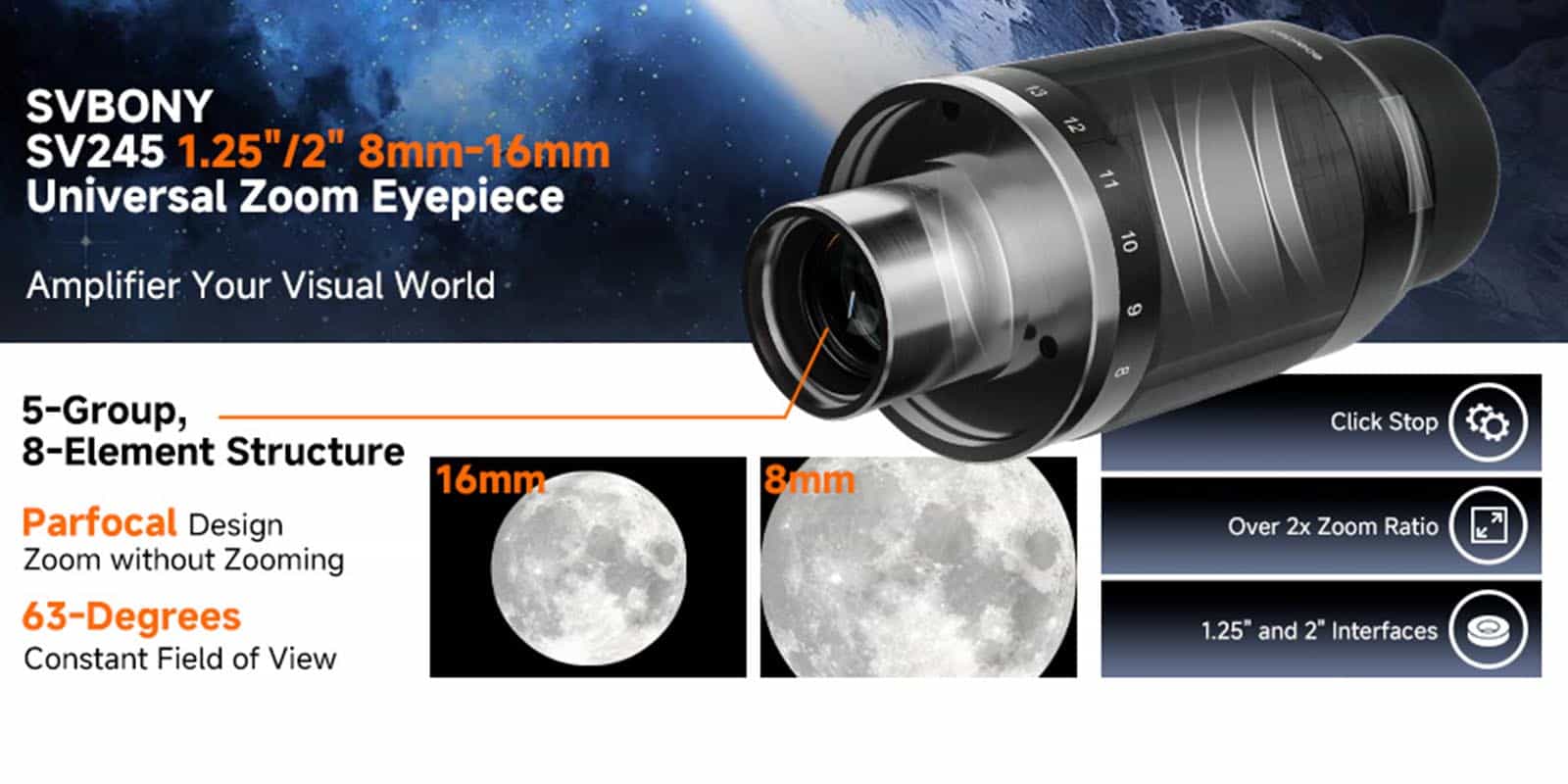

SV245 Zoom Eyepiece 8-16mm FOV 63° Parfocal & ClickStop Design for Visual Planetary Observation,Binoviewing

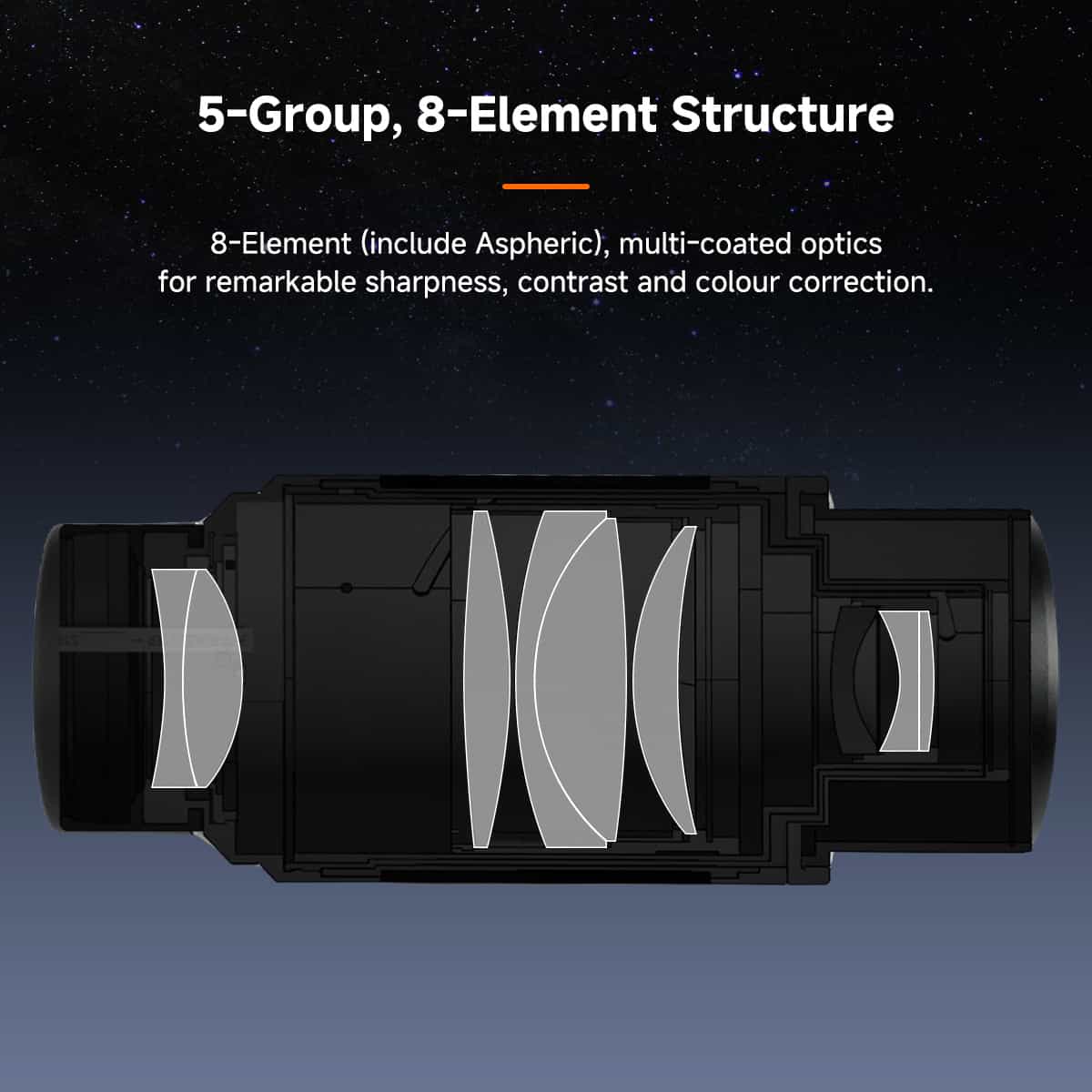

- Advanced Optics: Features 8 high-quality elements, including aspherical lenses and multi-coated optics;
- High-definition 2X zoom: This zoom astronomical telescope eyepiece comes equipped with high-quality 2X zoom capabilities; allowing you to effortlessly achieve double magnification during observation;

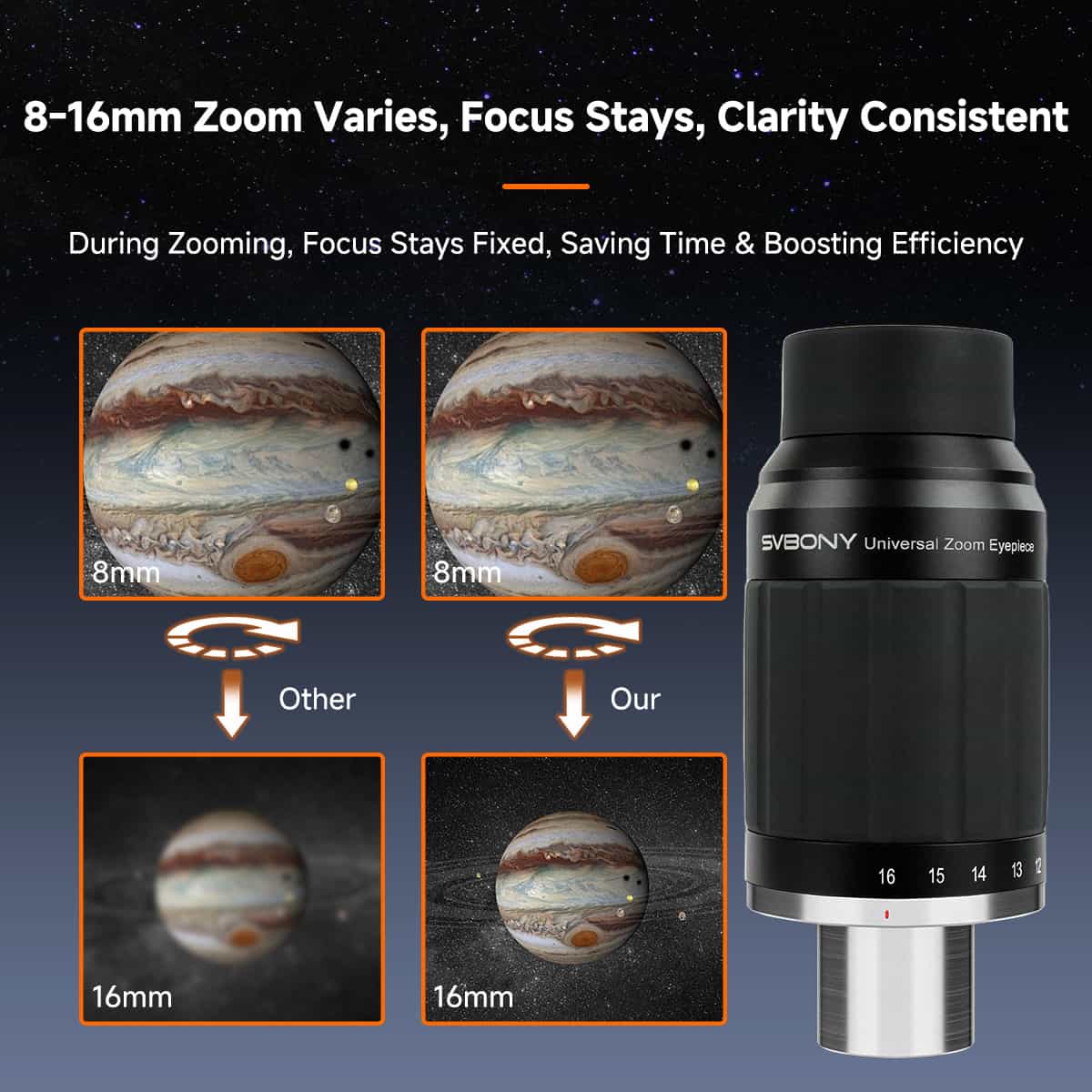

- Parfocal Design: Parfocal across the entire zoom range. There is almost no need to refocus when changing magnification.
Click Stop knob: Each focal length from 8mm to 16mm is equipped with a precise detent. Provides convenience for stargazing in the dark night; - Dual-lens interface: Features a 1.25" and 2" dual-lens design;

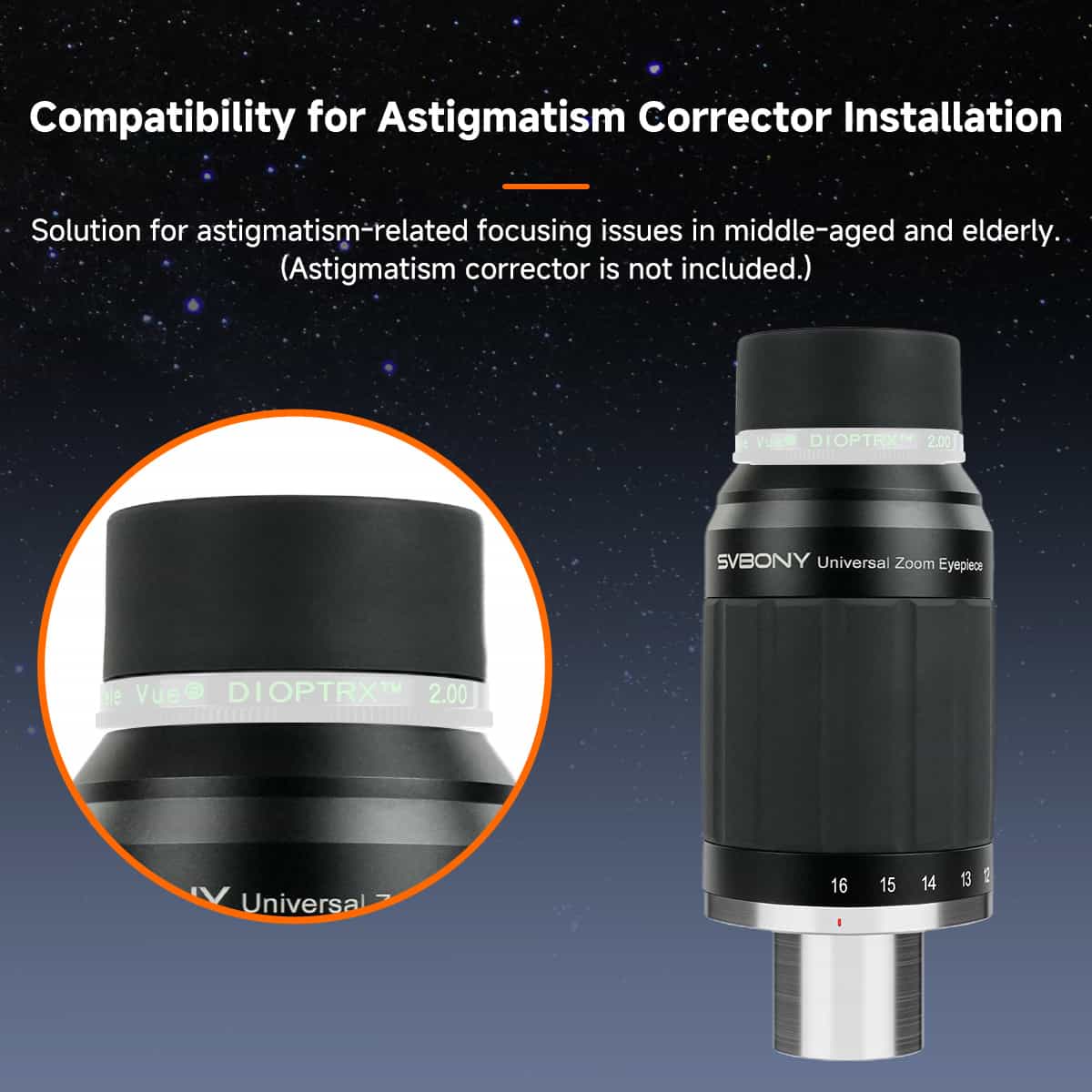

- Compatibility for Astigmatism Corrector Installation: Compatible with all mainstream astigmatism correctors on the market, solving vision focusing problems caused by astigmatism.

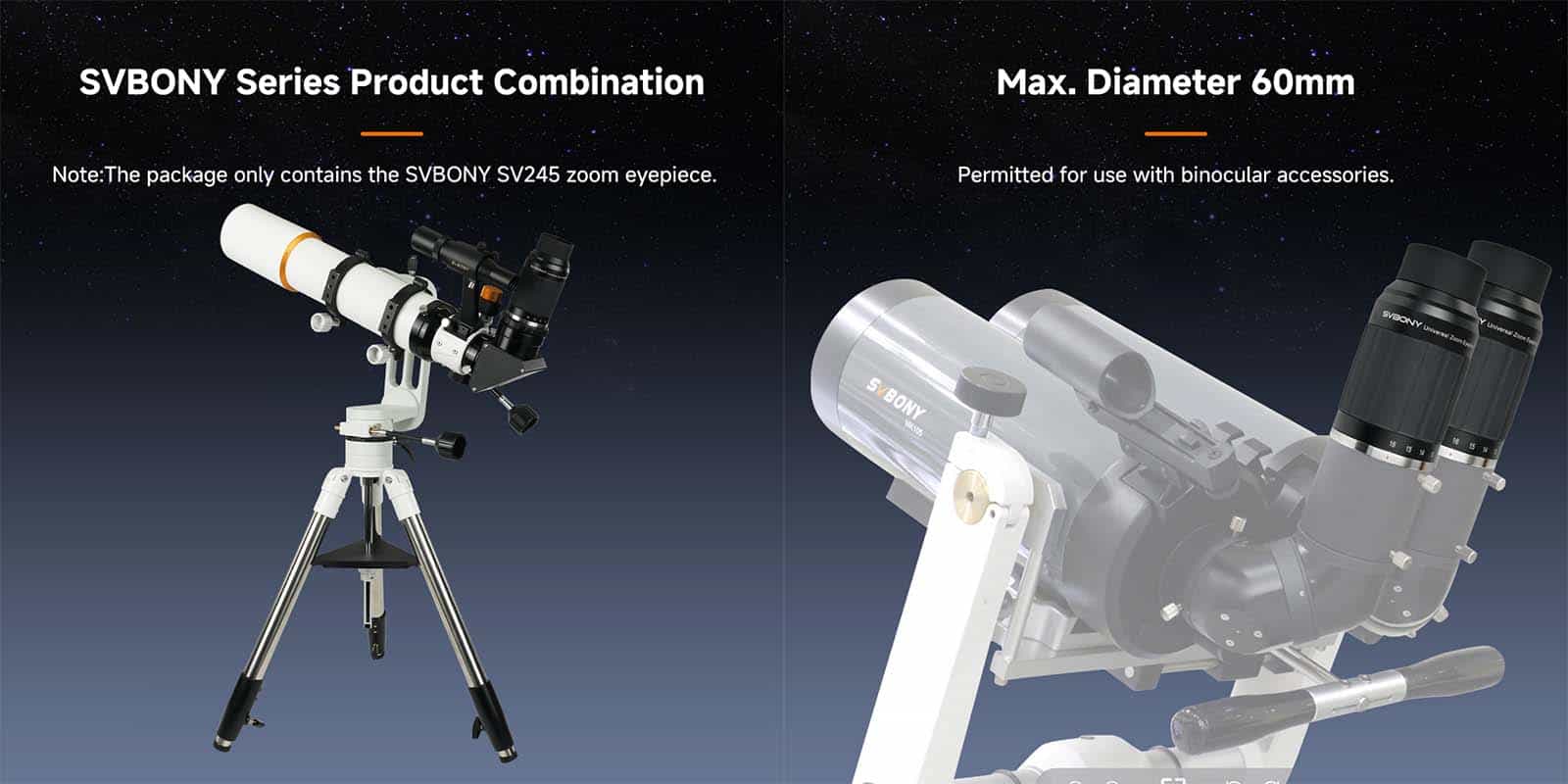

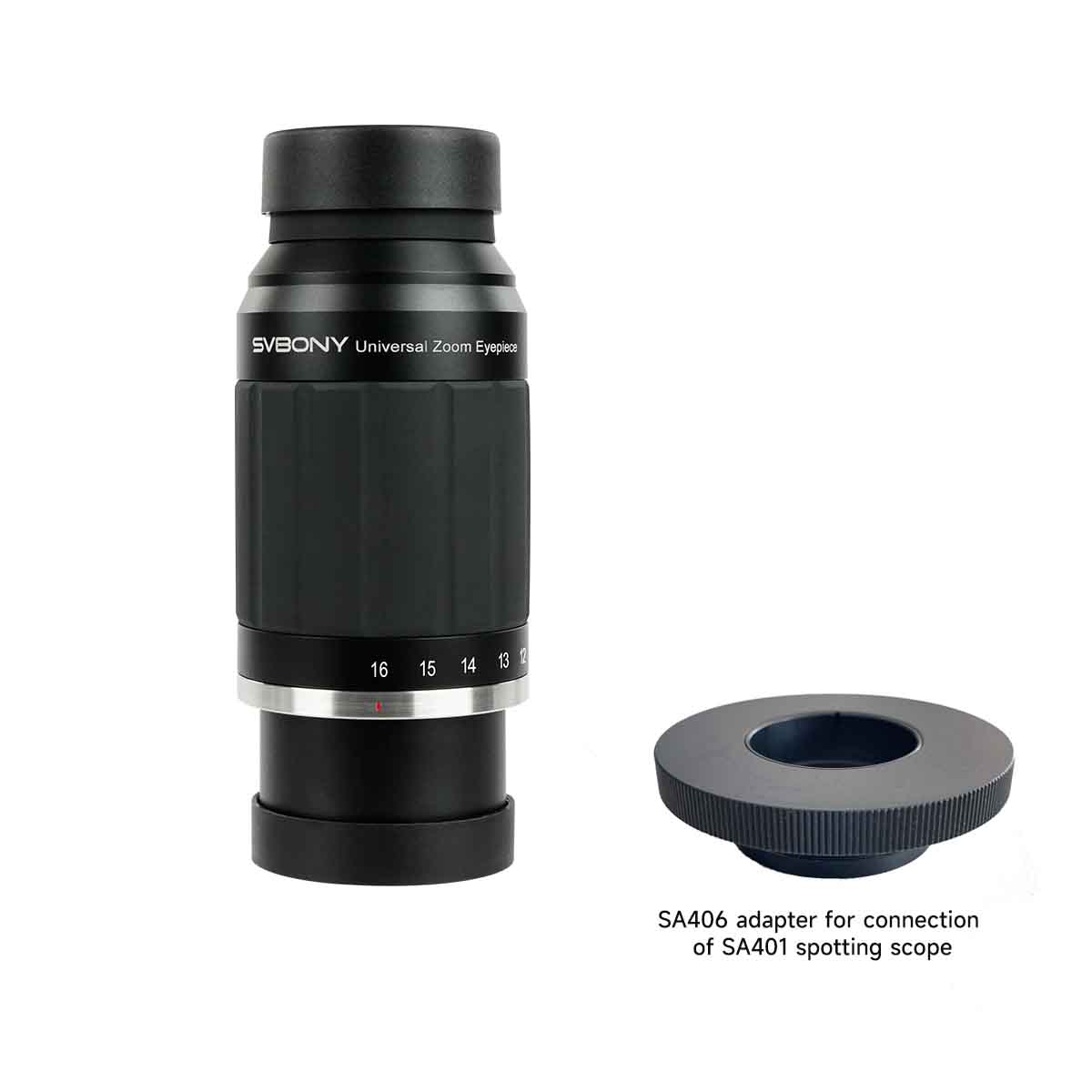

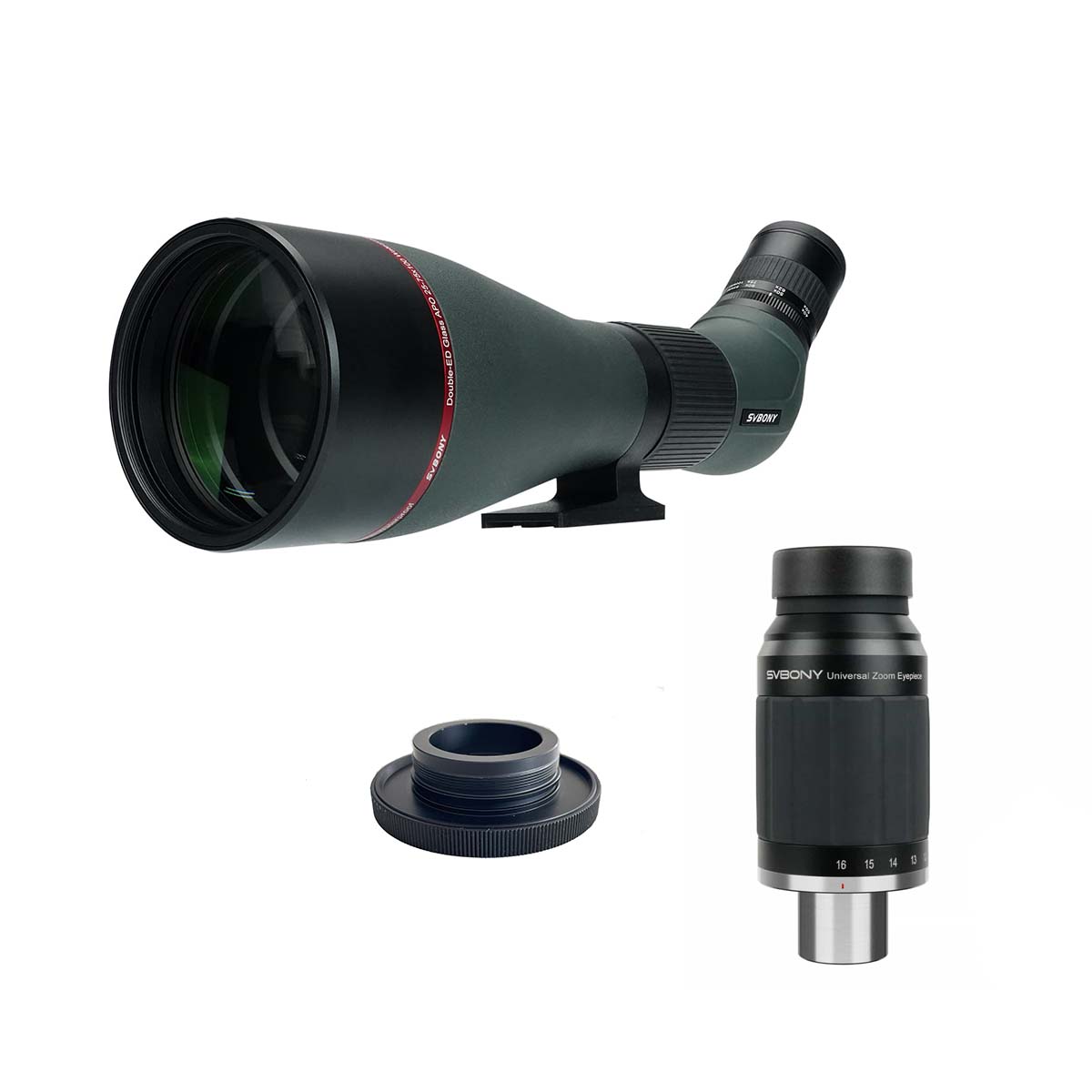

Tips: The SV245 can be used upon SVBONY SA401 APO or SV406P spotting scope, it will boost the scope for stellar clarity and ultra-wide views.
Note: Product is out of stock, estimated arrival date: September 30.
Free Shipping

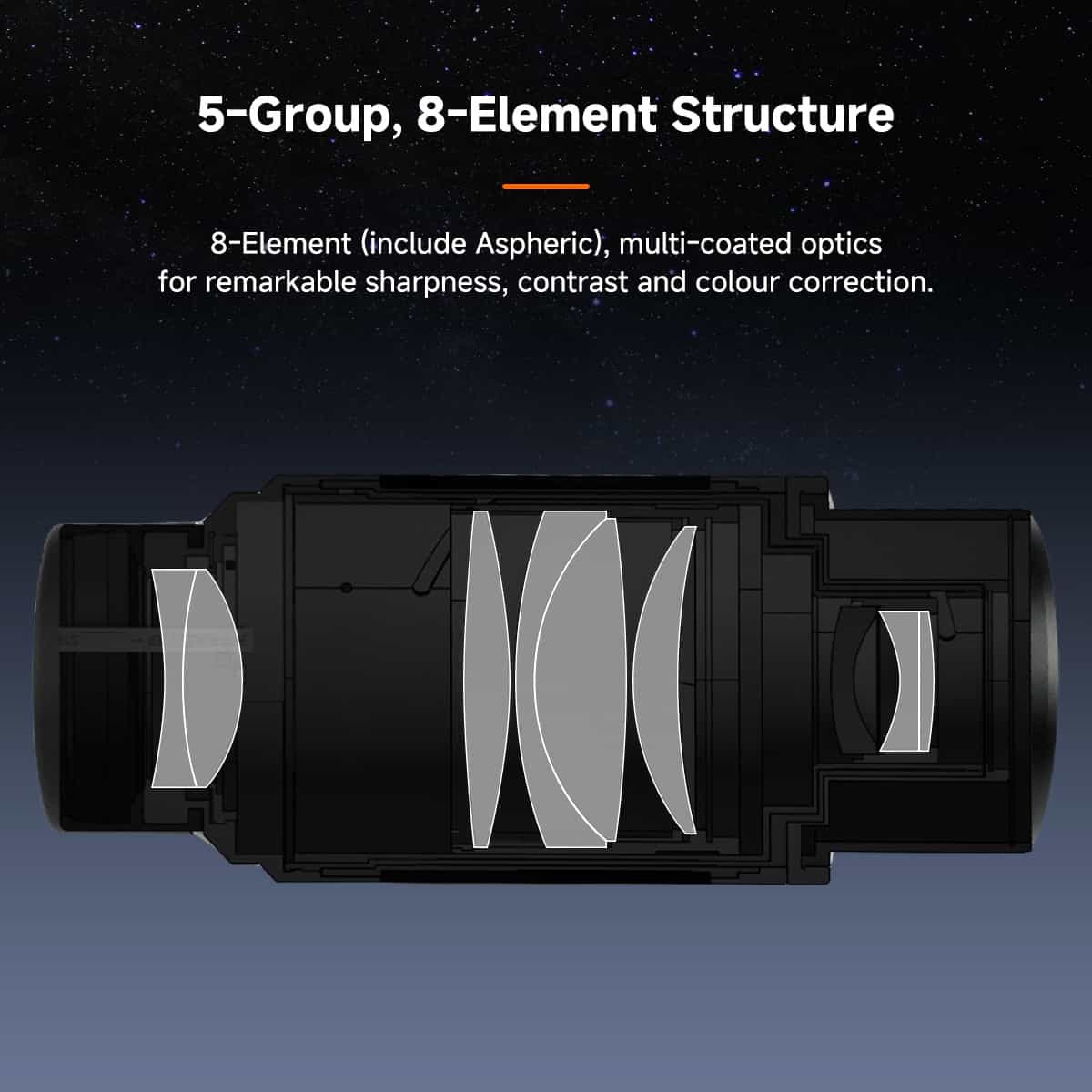

The SV245 zoom eyepiece features 8 high-quality elements and multi-coated optics. This cutting-edge design delivers exceptional sharpness, vivid contrast and true-to-life color correction.

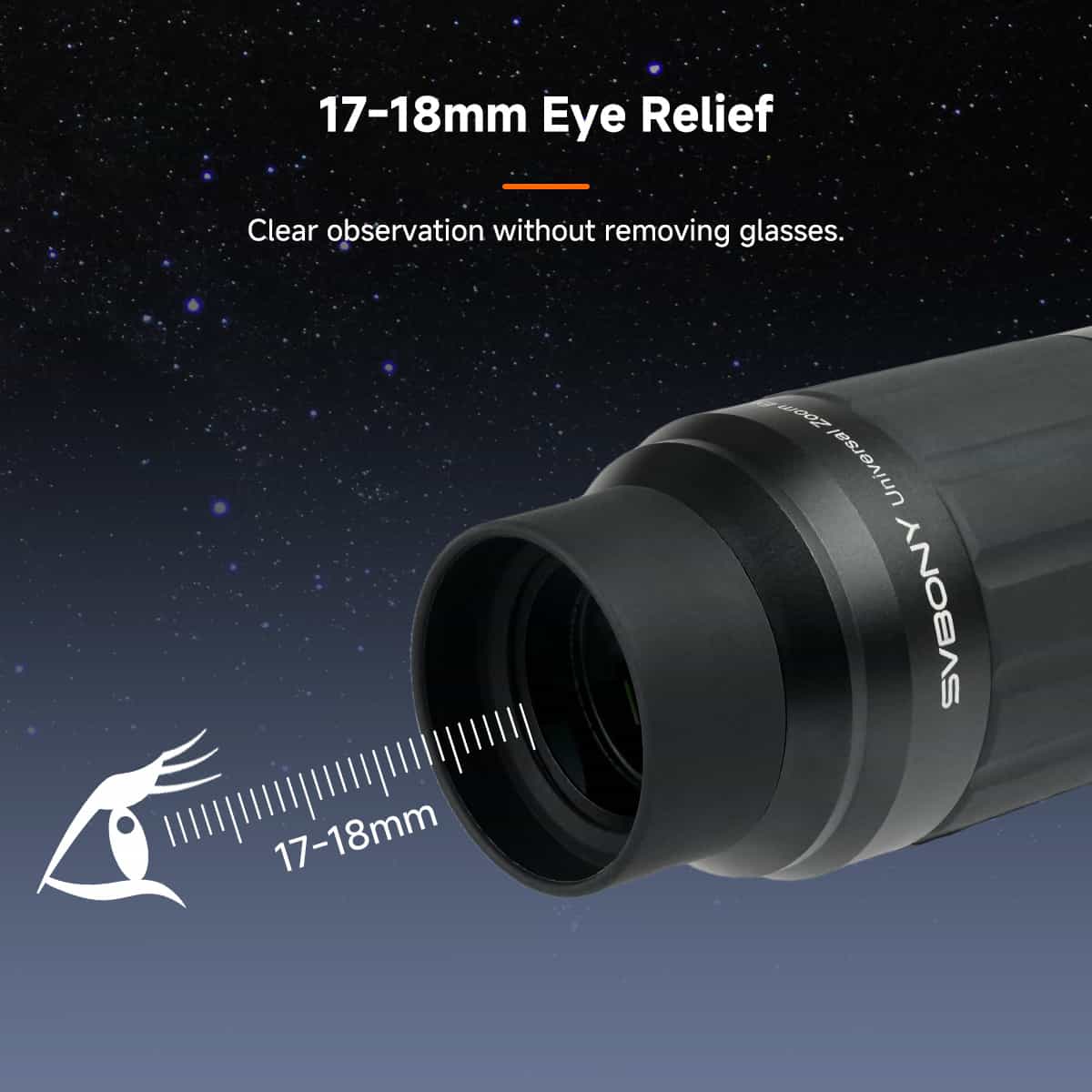

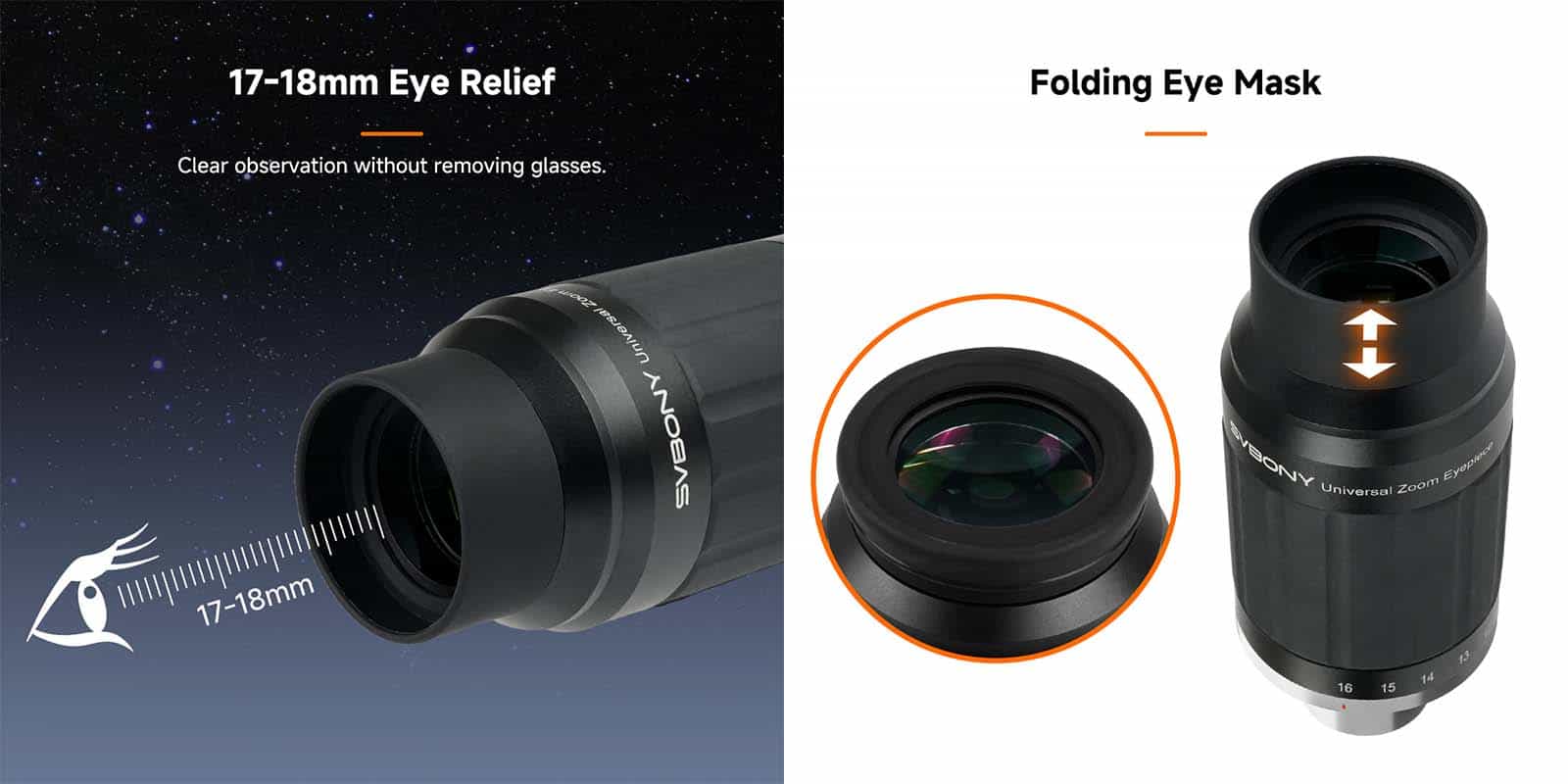

The 17-18mm eye relief design of this SVBONY SV245 parfocal eyepiece ensures there is enough space between your glasses and the eyecup. You can see clearly without removing your glasses.

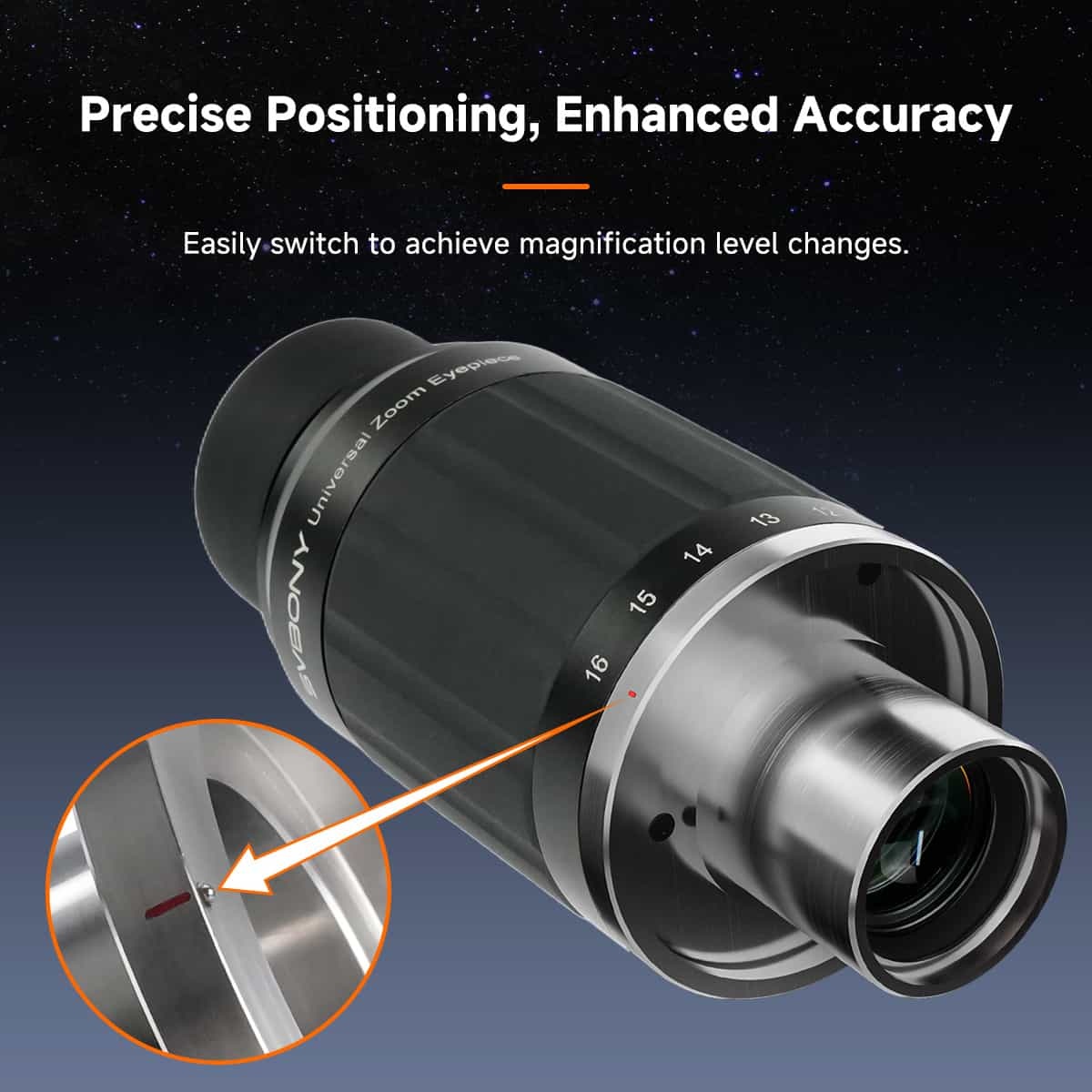

This clickstop zoom eyepiece is equipped with a click stop design. Each focal length from 8mm to 16mm is equipped with a precise detent. This ensures smooth and accurate adjustment without any play.
Leave a Reply
Customer Reviews
4.5 (Overall) | Based on 2 Reviews
I bought this eyepiece and tried it out on my 6-inch f10 telescope. I observed the moon and the planet Jupiter. The eye relief and the width of the field of view were pretty good. The images seemed to be sharp and clear from the center to the edge of the field of view. The craters on the moon were wonderful. In a few minutes of very good seeing conditions, with the eyepiece focal length set close to 9 mm., I could observe much intricate and subtle shadings in Jupiter's cloud belts. Jupiter's four bright moons were neatly portrayed with no visible unwanted flare. This eyepiece seems to be optically really good.A good zoom eyepiece can be very useful in observing faint galaxies and comets. You can sometimes see a faint galaxy pop into visibility as you slowly zoom from low to high power.
| Brand | SVBONY | SVBONY | SVBONY |
| Model | SV245 | SV230 | SV215 |
| Focal Length | 8mm-16mm/0.31-0.63" | 8mm-20mm | 3-8mm |
| Apparent Field of View | 63° | 57°- 72° | 56° |
| Barrel Size | 1.25" & 2" | 1.25" & 2" | 1.25" |
| Coatings | Fully multi-coated | Fully multi-coated | Fully multi-coated |
| Blackened Lens Edges | Yes | Yes | Yes |
| Eye Relief | 18-17mm/0.71-0.67" | 17-19mm | 10mm |
| Parfocal | Yes | Yes | Yes |
| Rubber Eye Guard | Yes | Yes | Yes |
| Clickstop Click Design | Yes | Yes | Yes |
| Dioptrix Mounting | Support | Support | No |

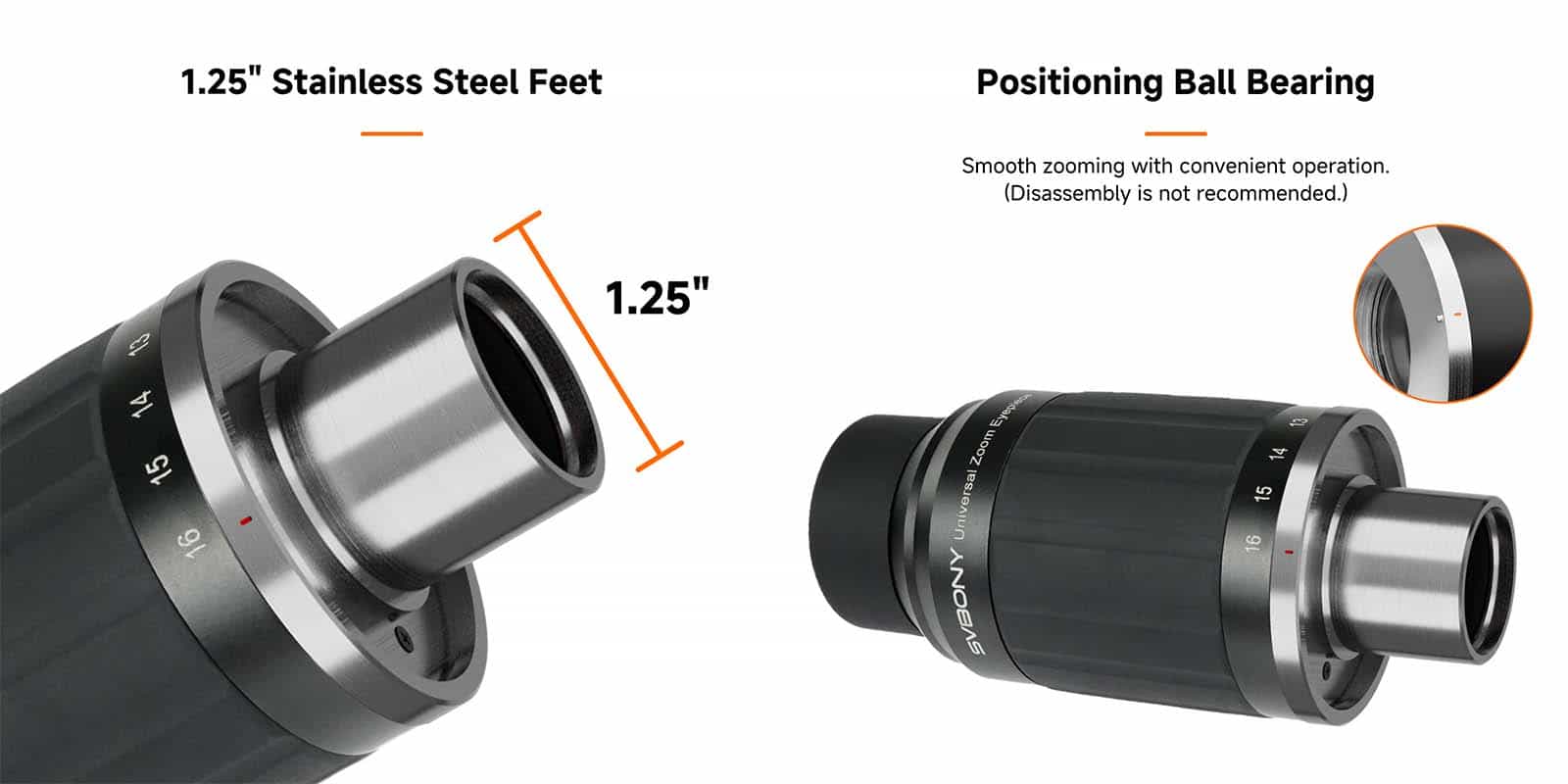

| Material of Barrel | Stainless steel-1.25" & Aluminum Alloy-2" | Stainless steel | Stainless steel |
| Filter Threads | M28.5x0.6 & M48x0.75 | M28.5x0.6 & M48x0.75 | M28.5x0.6 |
| Groups/Elements | 5/8 | 6/9 | 4/6 |
| Outer Diameter | 60mm/2.36" | 60mm | |
| Net Weight | 486g/17.17oz | 500g/17.66oz | |
| Size | 129*60mm/5.08*2.36" |
Feature

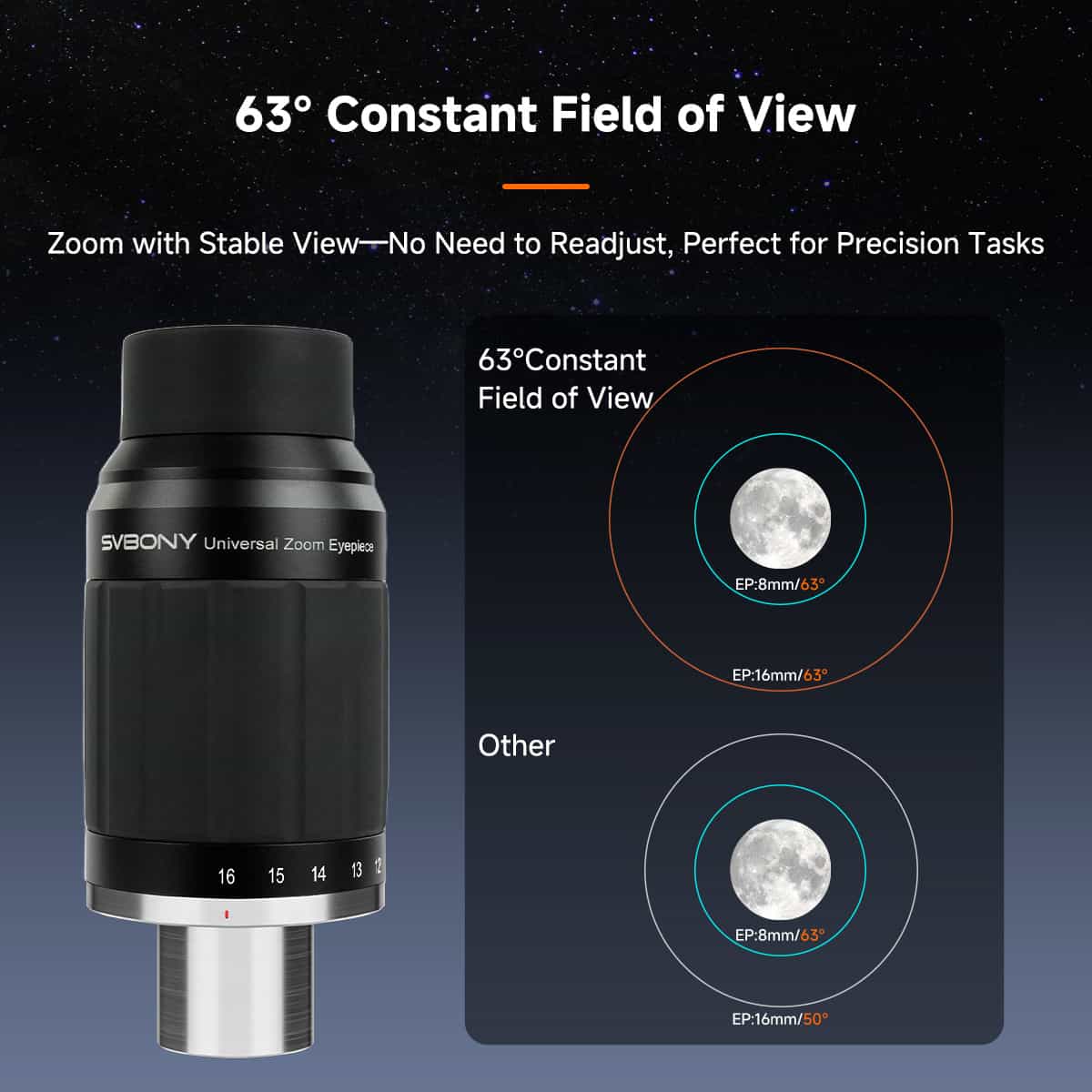

- 1. Ultra-wide-angle design: 63° wide field of view meets mainstream needs. This SVBONY SV245 zoom eyepiece strikes a perfect balance between portability and performance. Enjoy a consistent, immersive field of view without losing the field of view during zooming;
- 2. 17-18mm pupil distance: The 17-18mm exit pupil distance design of this astro eyepiece ensures there is enough space between your glasses and the eyecup. You can observe clearly without taking off your glasses;
- 3. Supports installation of astigmatism corrector: All mainstream astigmatism correctors available in the market can be installed, and by doing so, the issue of elderly individuals being unable to achieve visual focus due to astigmatism can be resolved.
- 4. Folding eye mask: The SV245 zoom eyepiece's folding eye mask ensures optimal eye relief for glasses wearers. While non-glasses users can simply fold it down for a comfortable fit.

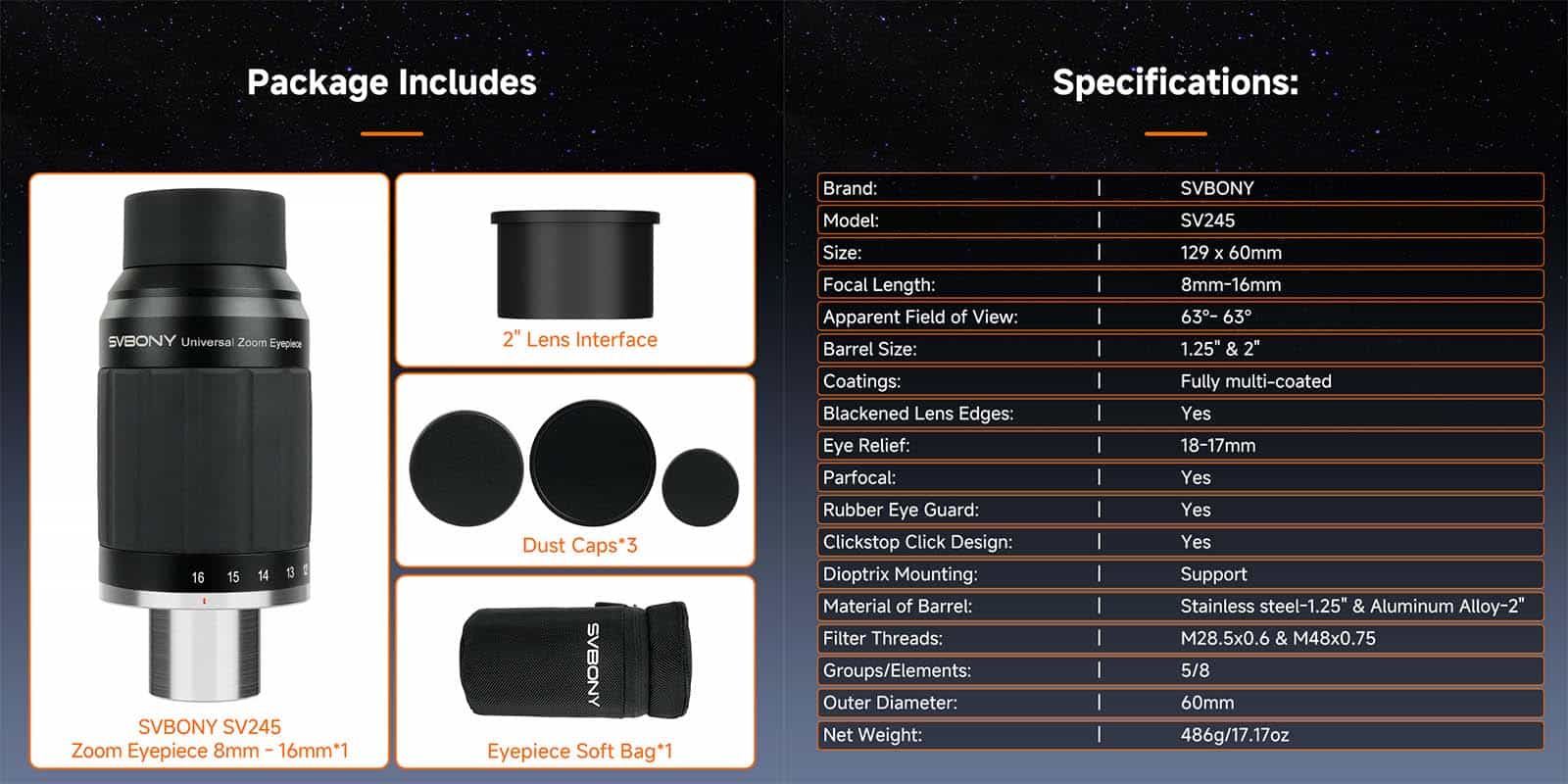

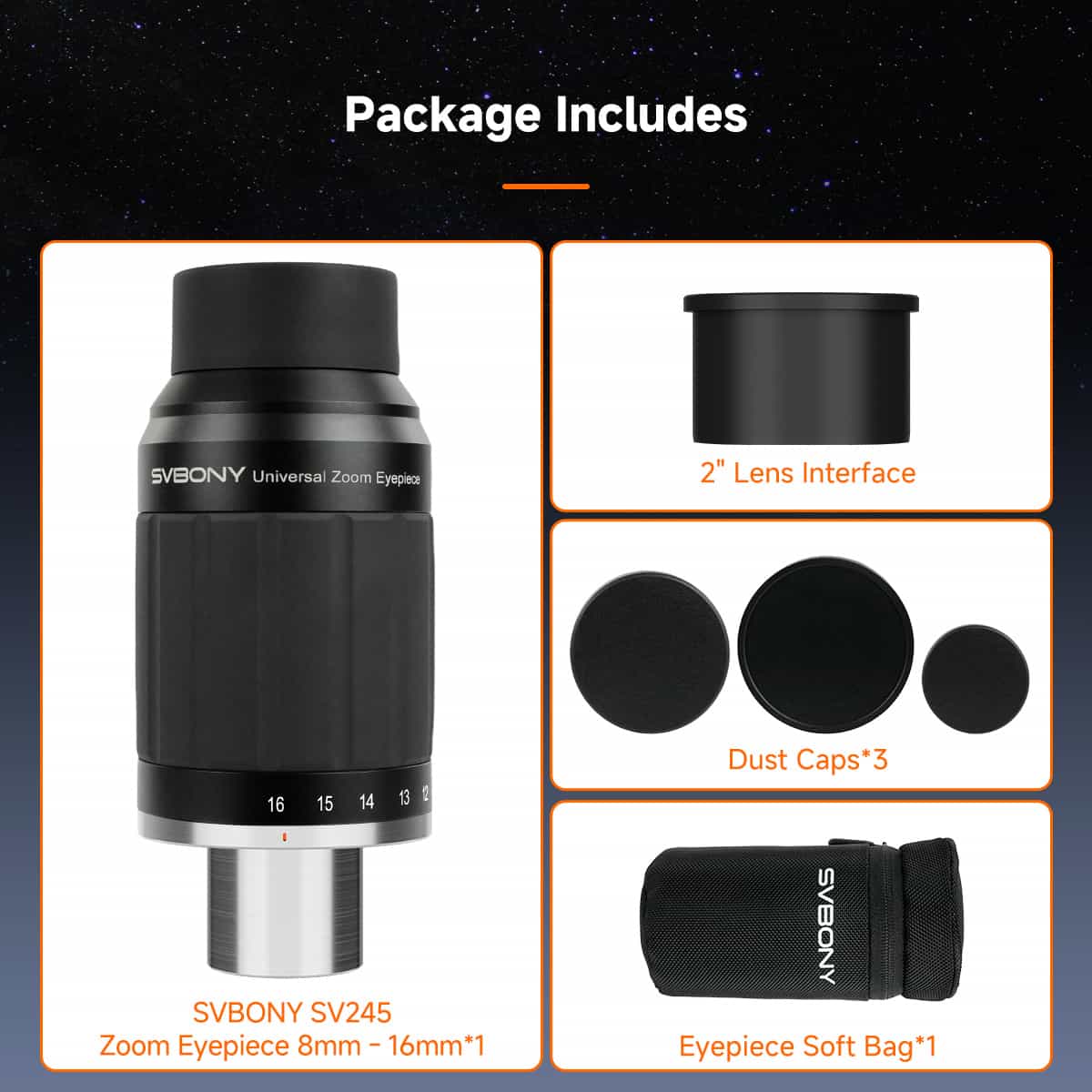

Package Includes
SVBONY SV245 Zoom Eyepiece 8mm-16mm *1

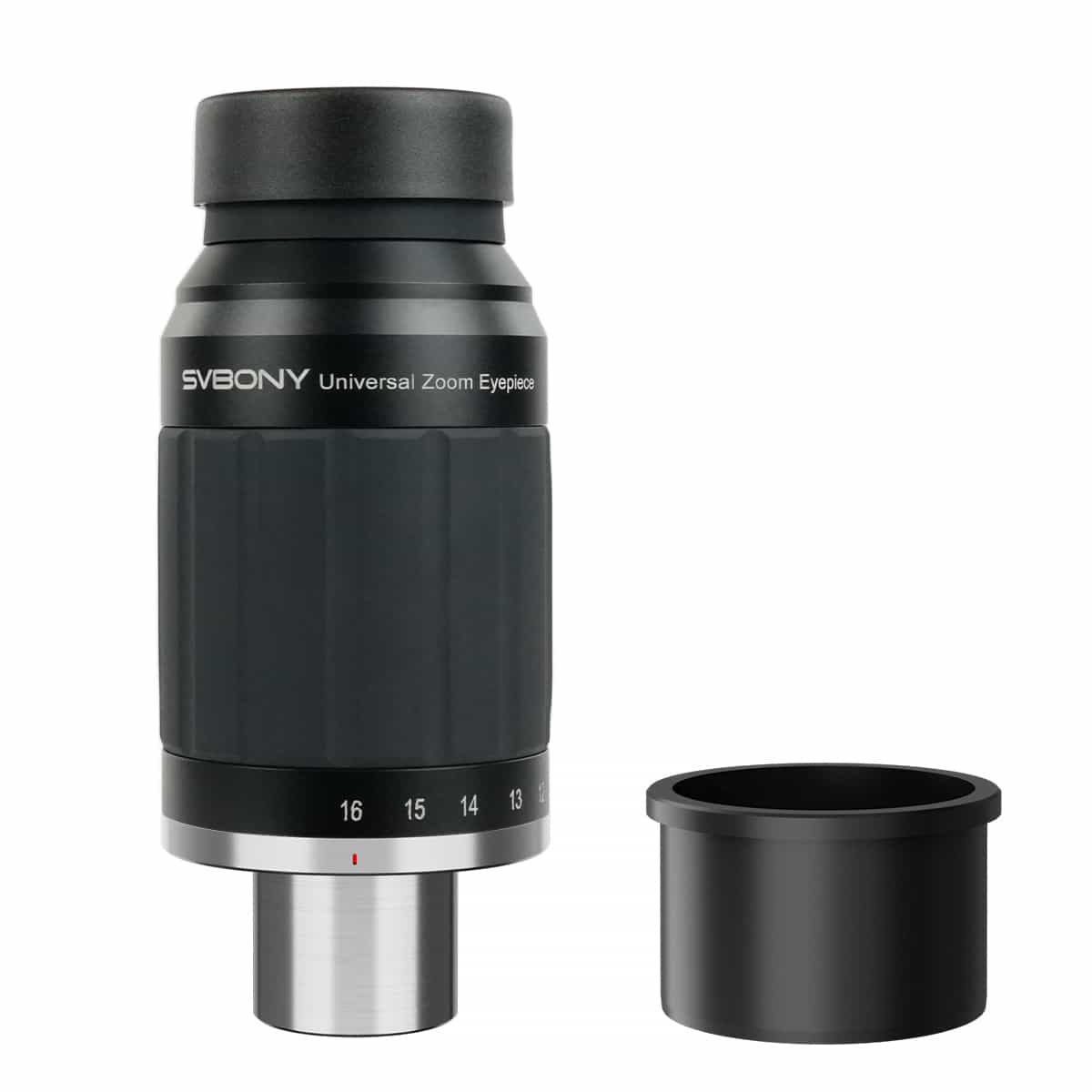

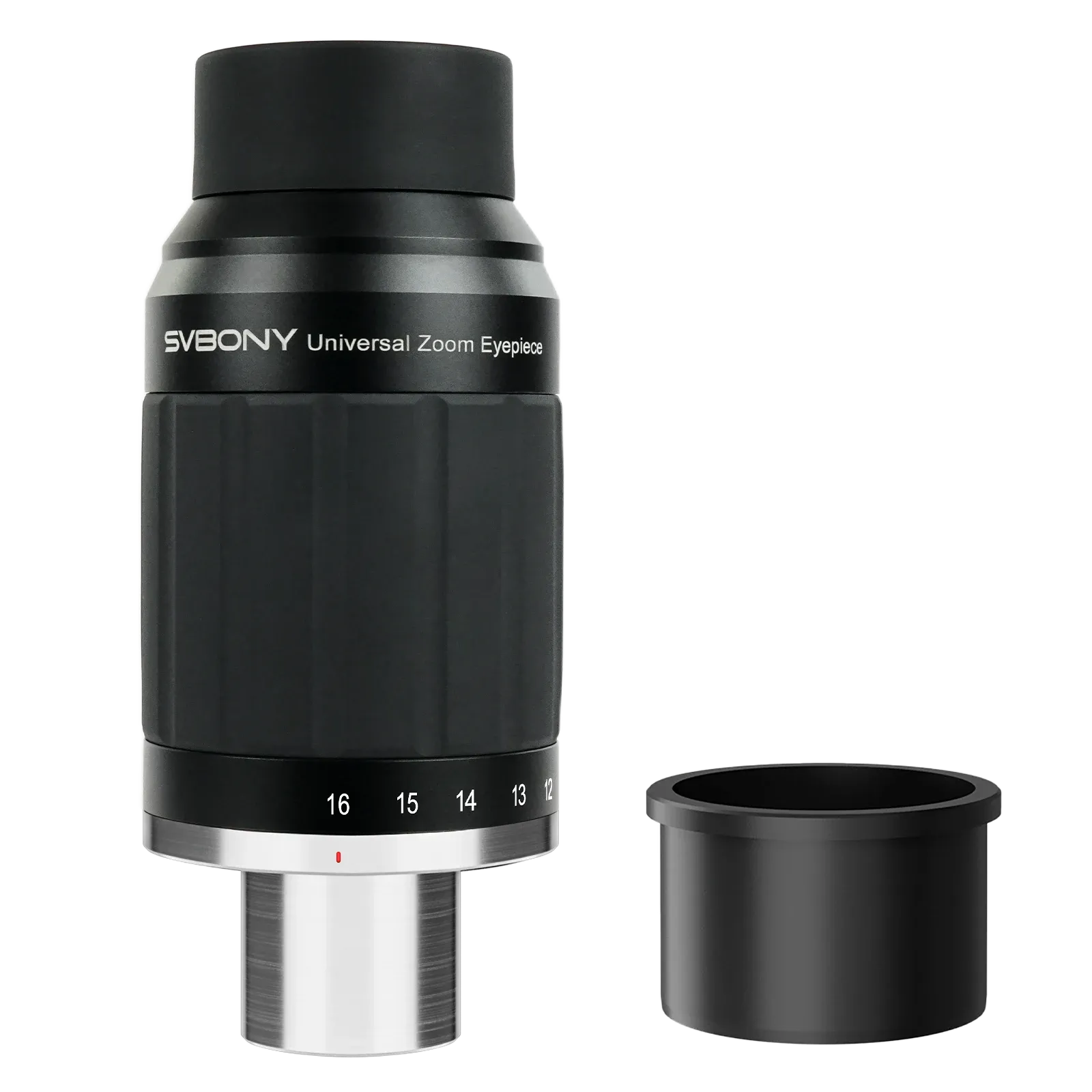

2'' Lens Interface *1
Dust Caps *3
Eyepiece Soft Bag *1
Related Products
66
Recently Viewed
3
I bought this while on introductory offer. I wanted a do it all lower power eyepiece, and one with fixed field of view at all focal lengths. Not the usual zoom eyepiece that is like looking through a straw at the low power end. This zoom eyepiece ticked the boxes. A constant 63deg field, really nice click stop for each focal length and good eye relief. Worth pointing out straight off the bat that this a large and heavy eyepiece. If you already own the superb SV215 3-8mm zoom, then you will be shocked by the size and weight disparity between the two. You will need a much larger space in your eyepiece case for the SV245. Onto how it performs. Mixed bag really. In the slower scopes (F10 SCT and F8.3 refractor) it performs really well. Sharp across the field. Comfortable view. Does what I hoped. In the faster scopes (F5 refractor and F4.5 newtonian) things are much less positive. Now the eyepiece is unable to cope with the steep cone these scopes produce, this results in only part of the field being sharp. In the f4.5 the outer 50% of the field is not sharp and the eyepiece is struggling. I just except its not for my faster scopes but great in the slower ones. Its great to just twist the eyepiece and work through the powers.
