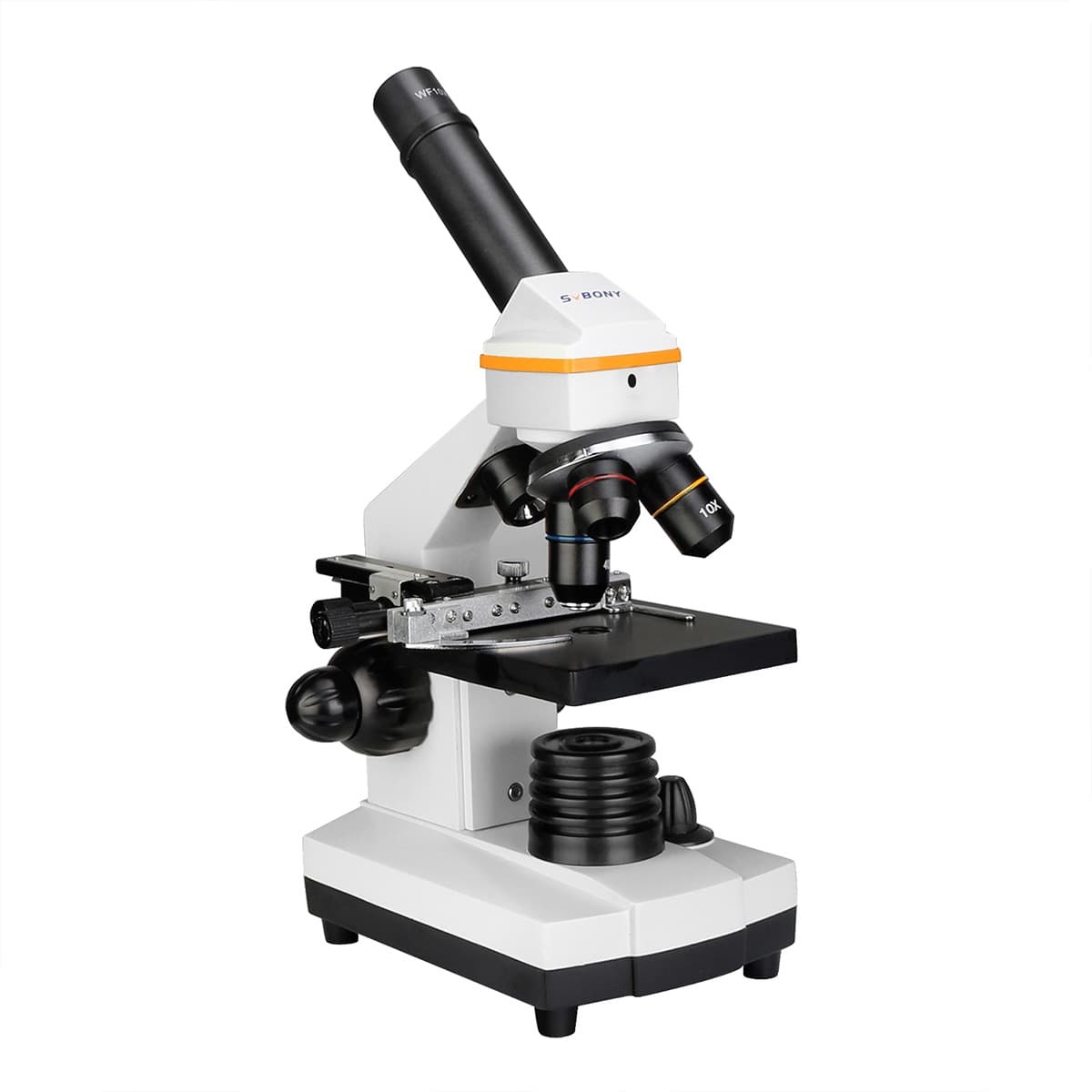

SV601 HD Professional 80x -1600X Portable Microscope
Write a reviewKey Features
- High‑Magnification Range
- Metal Construction
- Dual LED Illumination
- Wide Eyepiece Selection
- Accurate Mechanical Stage
SV601 as an indispensable professional tool for microcosm exploration, can achieve high-definition imaging up to 1600X. The main components are made of metal materials and are precisely processed. It is a very cost-effective microscope.

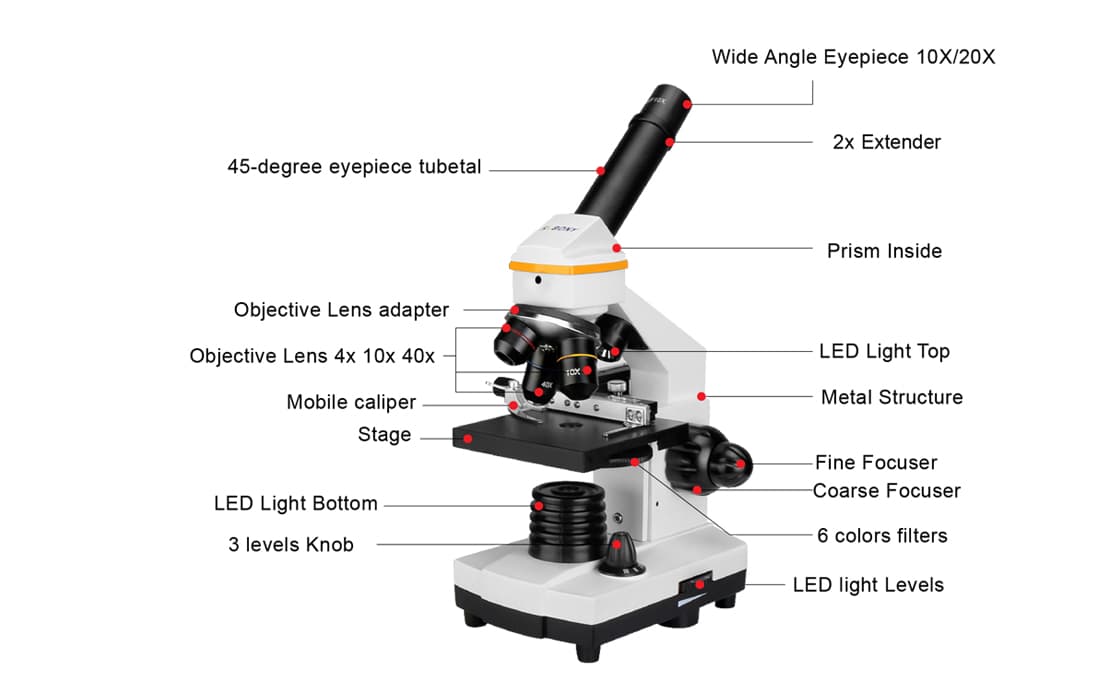

The objective lens of the microscope is mounted on a rotating wheel. You only need to rotate it to align it with the light hole below.The eyepiece is inserted into the lens barrel, and you can choose 10x or 20x.
The objective lens of the microscope is mounted on a rotating wheel. You only need to rotate it to align it with the light hole below.The eyepiece is inserted into the lens barrel, and you can choose 10x or 20x.
Customer Reviews
There are no customer reviews yet
| Model | SV601 |
| Optical System | Finite Biological Microscope |
| Eyepiece | WF10X WF20X |
| Objective | 4X 10X S40X |
| Extender | 2.0X |
| Magnification | 80X-1600X |
| Working Stage | 90mmX90mm Square |
| Adjustment | Coarse Focuser & Fine Focuser |
| Illuminator Top /Bottom | LED Lights |
| Net Weight | 1200g / 2.65lb |
1. The main components are made of metal materials and are precisely processed. It is a very cost-effective microscope

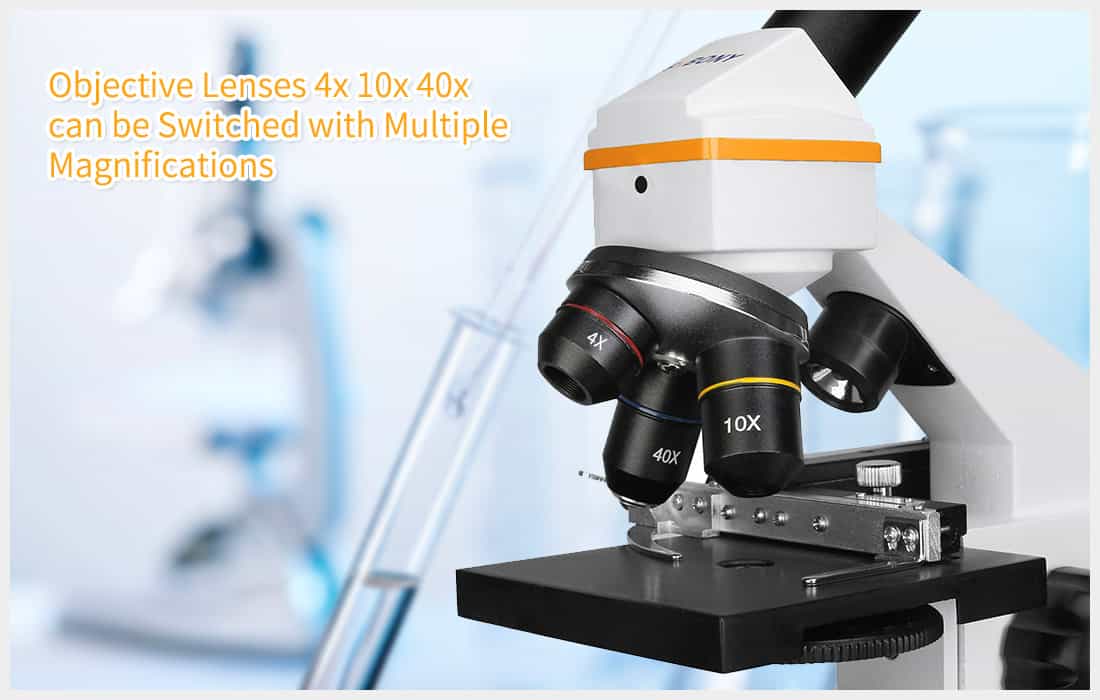

2. Using 18MM wide-angle eyepieces to observe a wider range, high-magnification achromatic objective lenses 4X, 10X, 40x, can be switched with multiple magnifications, the image is clearer and sharper

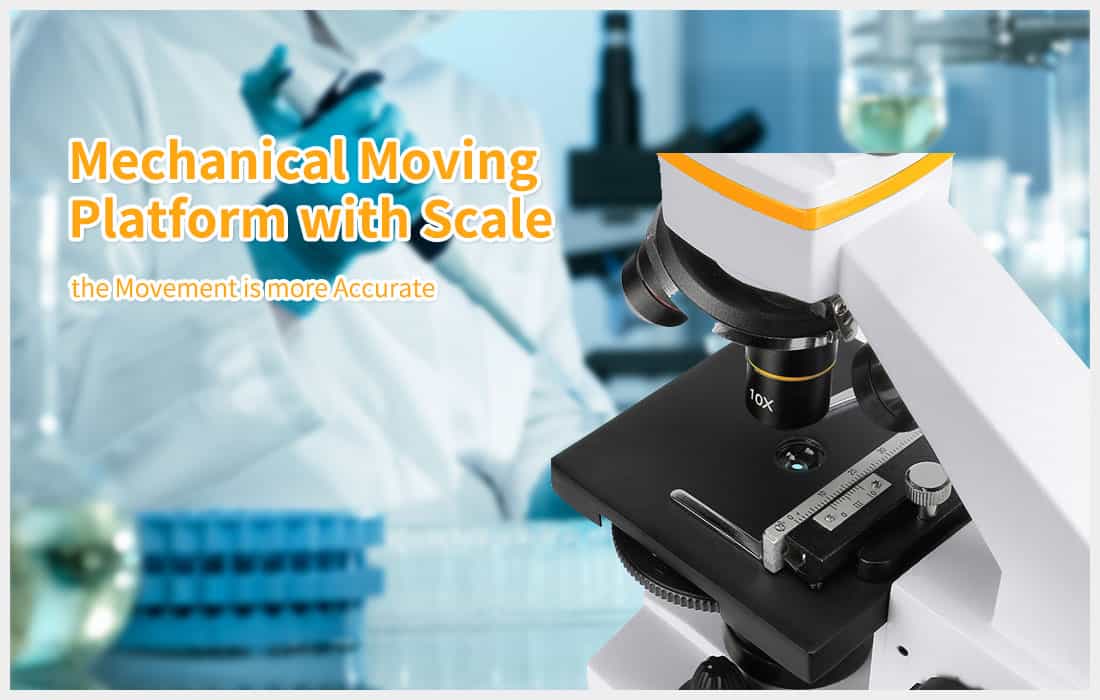

3. Use mechanical moving platform, with scale, X-axis and Y-axis move coaxially, the movement is more accurate, the surface of the metal platform is wear-resistant and corrosion-resistant, and the upper and lower thickness coaxial focusing wheel structure

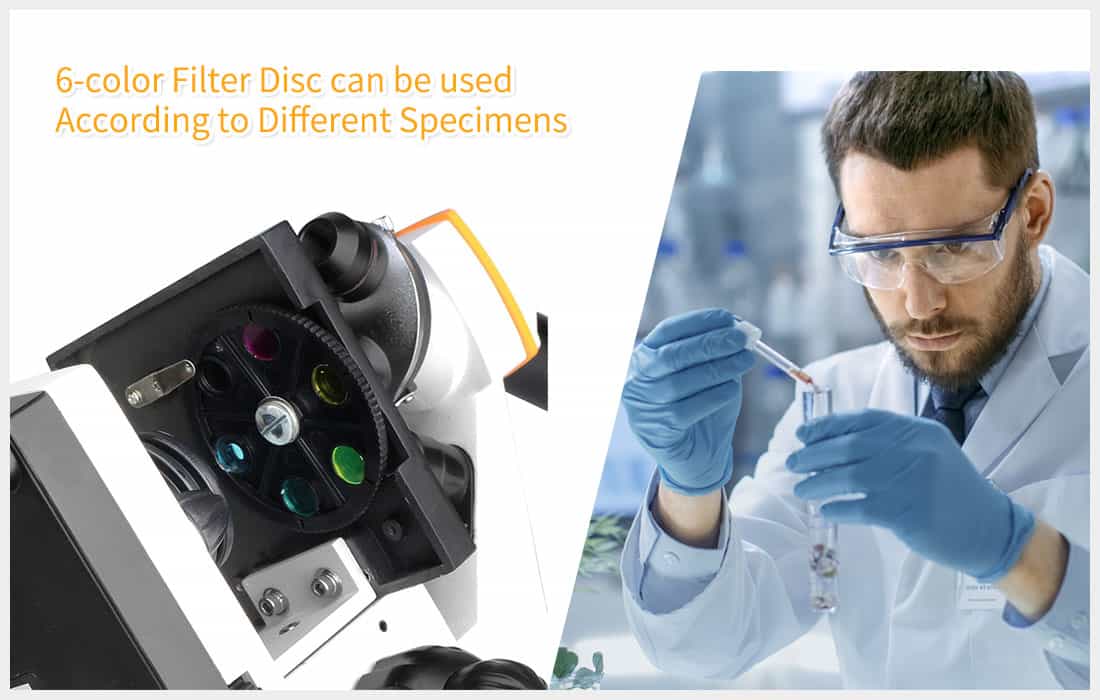

4. 5-color filter disc, suitable color filters can be used according to different specimens to obtain better observation results
5. Transmission and epi-illumination dual illumination system, the upper and lower light sources can be independently controlled
6. Support dual power supply system of power and battery, easy to carry
