SV604 Portable Microscope LCD 7 Inch for Teaching Circuit Boards
Write a reviewKey Features
- Large HD LCD Screen
- Wide Magnification Range
- Integrated Camera Recorder
- Adjustable LED Illumination
- Remote Control & Portable Power
SV604 LCD 7 Inch portable microscope 1x-1200x magnification, wired remote, camera video recorder with HD screen suitable, for teaching, circuit boards, observing antiques, jewelry identification.
Customer Reviews
There are no customer reviews yet
| Model | SV604 |
| Color | Black |
| Video maximum pixels | 1080FHD |
| Lens Optical Size | 1/4" |
| Language support | English, Portuguese, Japanese, French, German, Korean, Russian, Italian, Dutch, Arabic, Simplified Chinese, Traditional Chinese |
| Photo resolution | 12M, 10M, 8M, 5M, 3M |
| Video resolution | 1080FHD, 1080P, 720P |
| Video format | AVI |
| Focus mode | Manual |
| Image Format | JPG |
| Digital zoom | Not support |
| Light source | 8 led lights (brightness adjustable) |
| Focusing range | 10 ~ 40mm (viewing distant view) |
| PC resolution and image propagation | 1280*720/26fps |
| White balance | Automatic |
| Exposure | Automatic |
| PC operating system | Windows xp, win7, win8.1, winl10, Mac OS x 10.5 or higher |
| Lens structure | 2G+IR |
| Aperture | F4.5 |
| Camera angle | 16° |
| Interface and signal transmission | Type C |
| Operating temperature | -20°C - +60°C |
| Working humidity | 30%~85%Rh |
| Working current | 700mA |
| Power consumption | 3.5W |
1. Equipped with a 7-inch high-definition LCD screen, which can provide high-quality 1080p images for clearer viewing

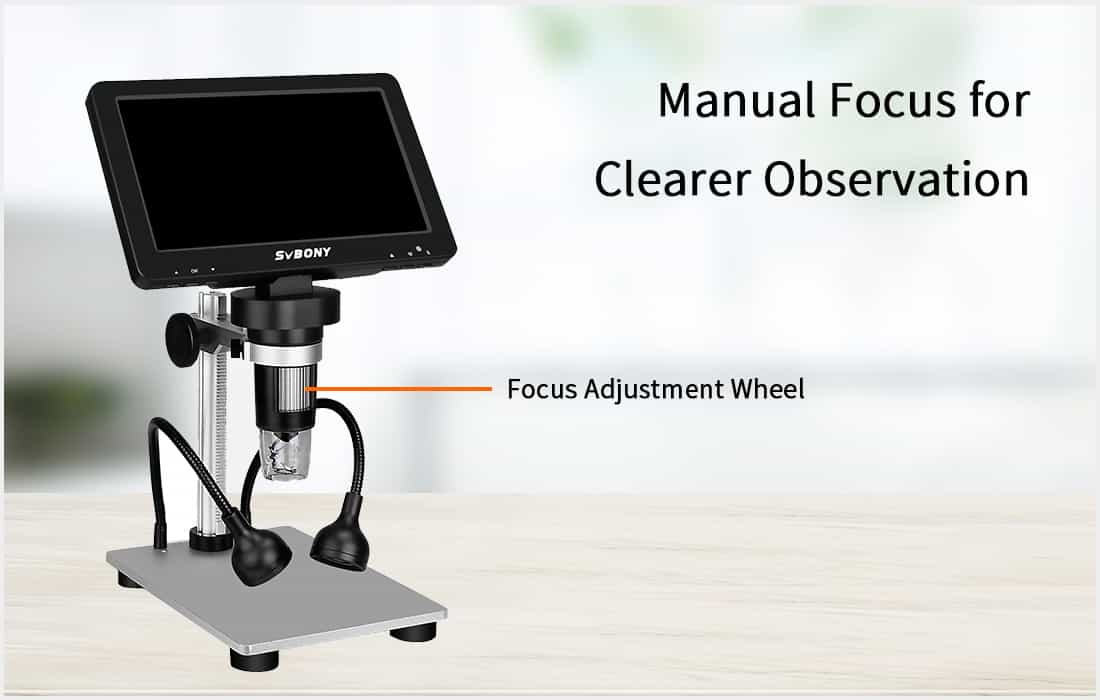

2. 1x-1200x continuous zoom in and zoom out, adjustable bracket, freely adjust the distance between the lens and the object, manual focus to observe the micro details

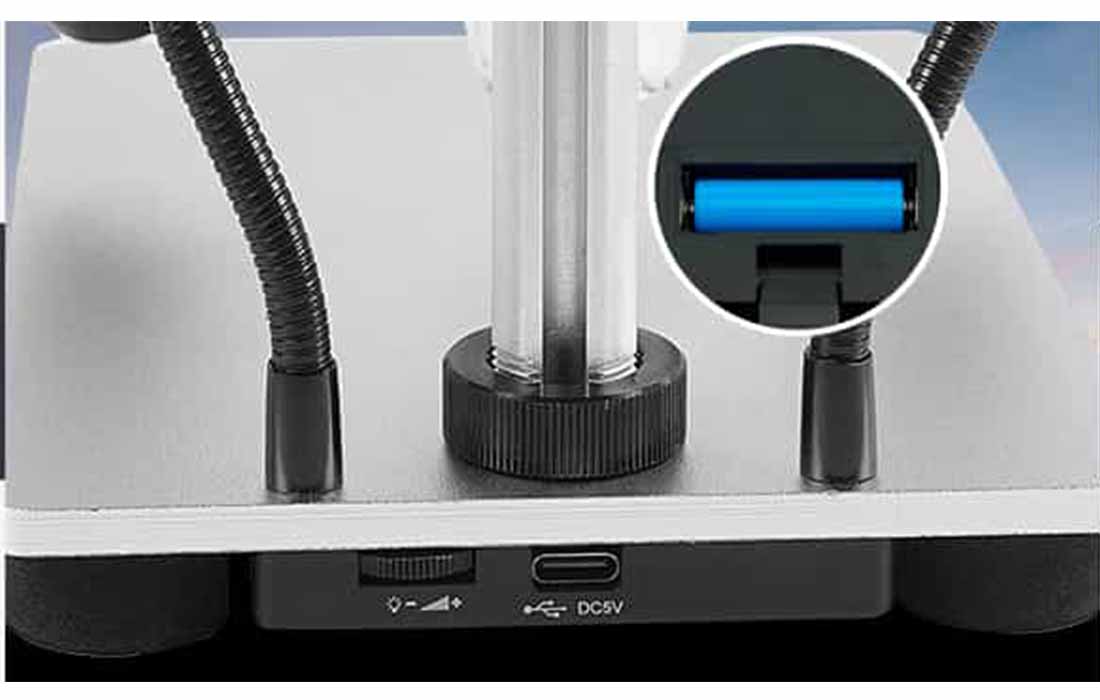

3. The 2000mah rechargeable lithium-ion battery on the host provides power support for 8 LED lights and 2 auxiliary lights

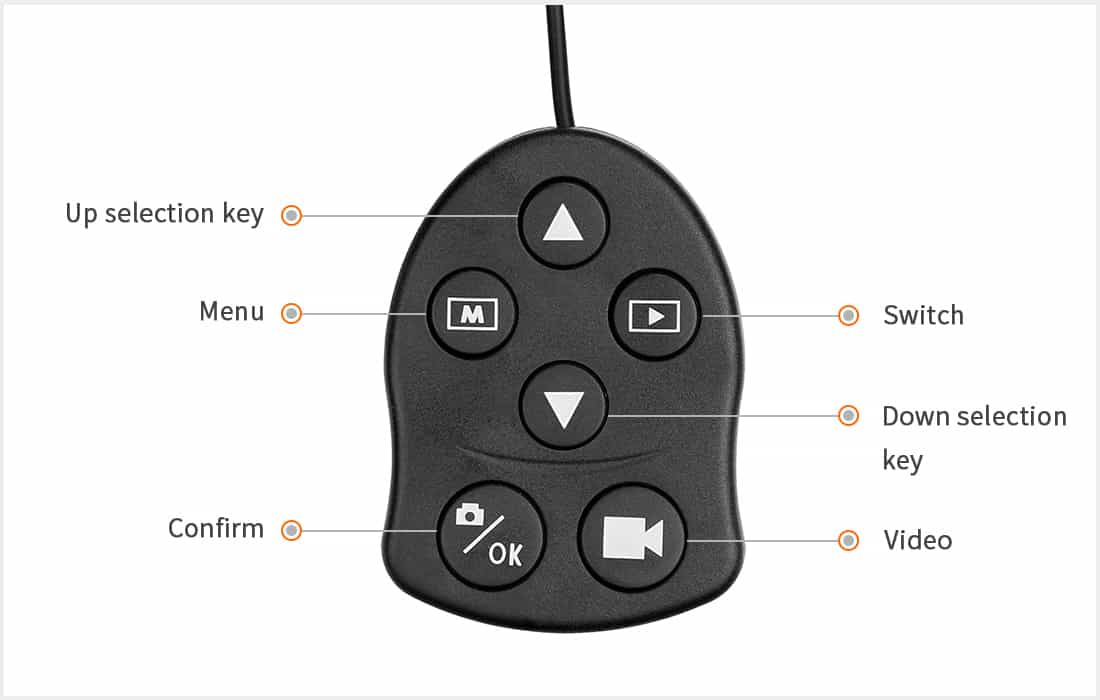

4. Wired remote control, no need to touch the host, one key to call up the menu, making taking pictures and videos more stable and convenient

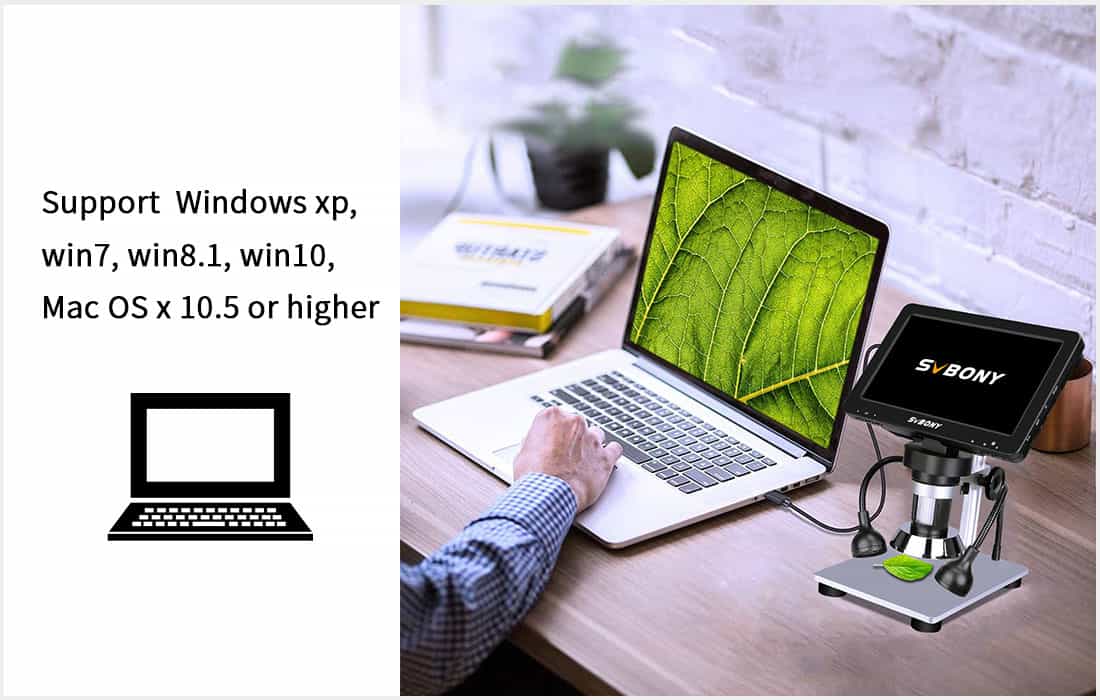

5. Support multi-version computer system connection view, such as: Windows xp, win7, win8.1, win10, Mac OS x 10.5 or higherJust open the software on the CD to view,if your computer can't support CD, you could download it here: https://www.svbony.com/Assets/file/SV604_Microscope_Software.rar
Note: before using this microscope, you should read the user manual carefully
