SV132 2" H-Beta 25nm Visual Nebulosity Filter

SKU: W9102B
Regular price US$ 59.99

The H-Beta filter is a narrowband filter specially designed for visual observation like Horsehead Nebula California and Cocoon Nebulae in Dark Skies.

In Stock Out Of Stock

W9102B-1W9102B-2W9102B-3W9102B-4W9102B-5W9102B-6

0 reviews

Write a review

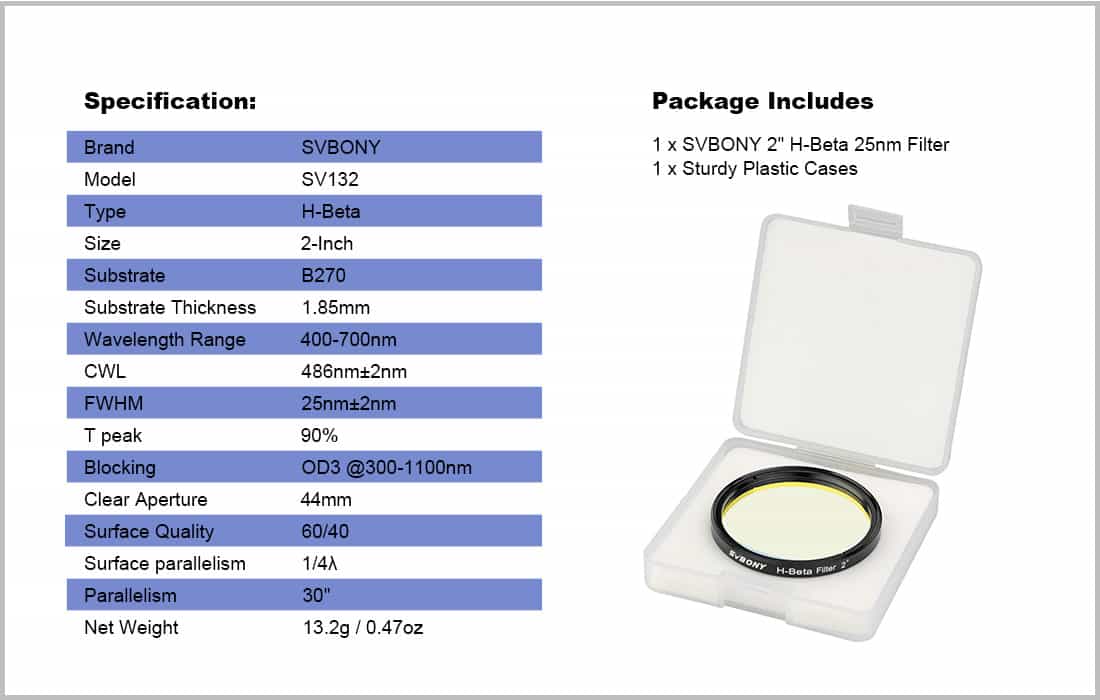

Model SV132
Type H-Beta
Size 2-Inch
Substrate B270
Substrate Thickness 1.85mm
Wavelength Range 400-700nm
CWL 486nm±2nm
FWHM 25nm±2nm

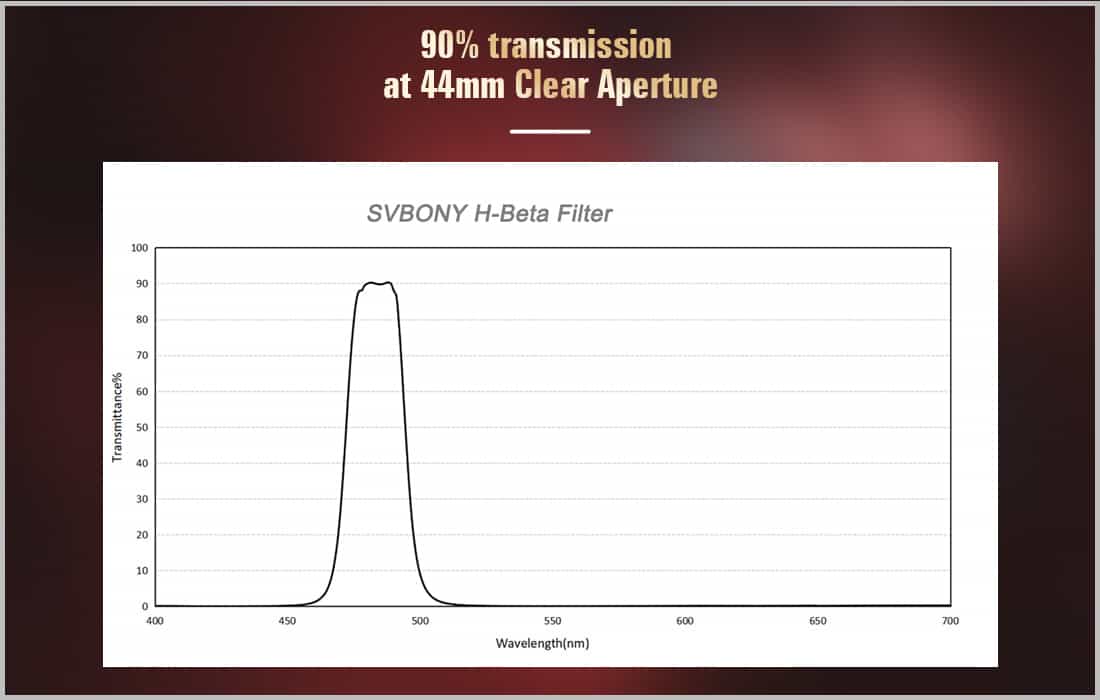

T peak 90%
Blocking OD3 @300-1100nm
Clear Aperture 44mm
Surface Quality 60/40
Surface parallelism 1/4λ
Parallelism 30"
Net Weight 13.2g / 0.47oz

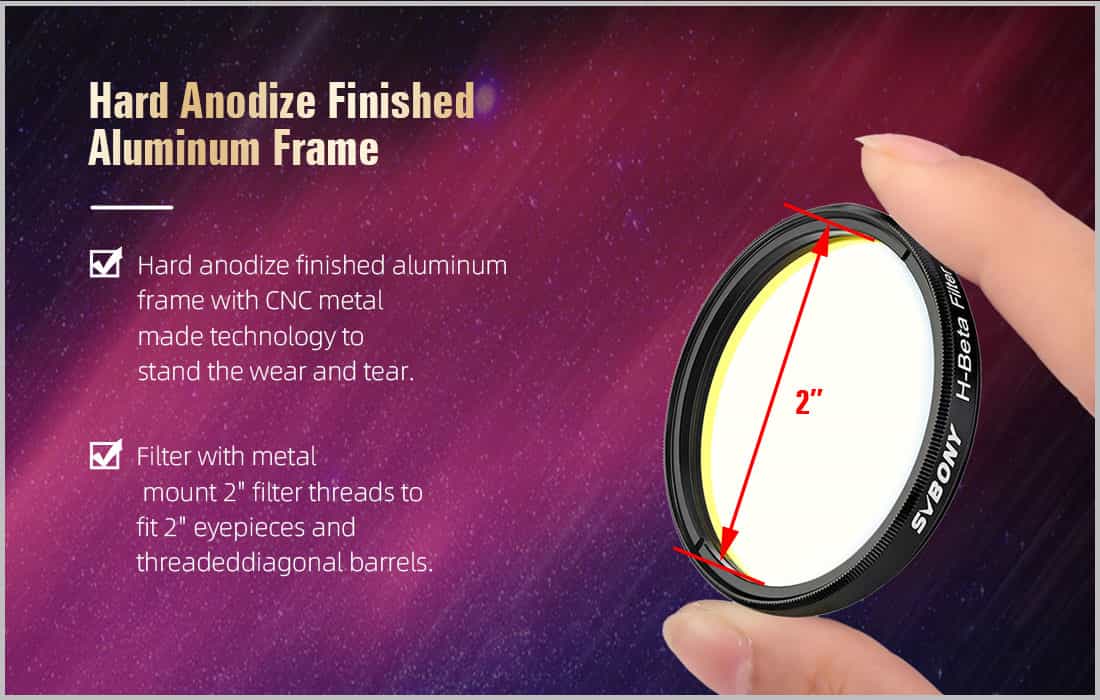

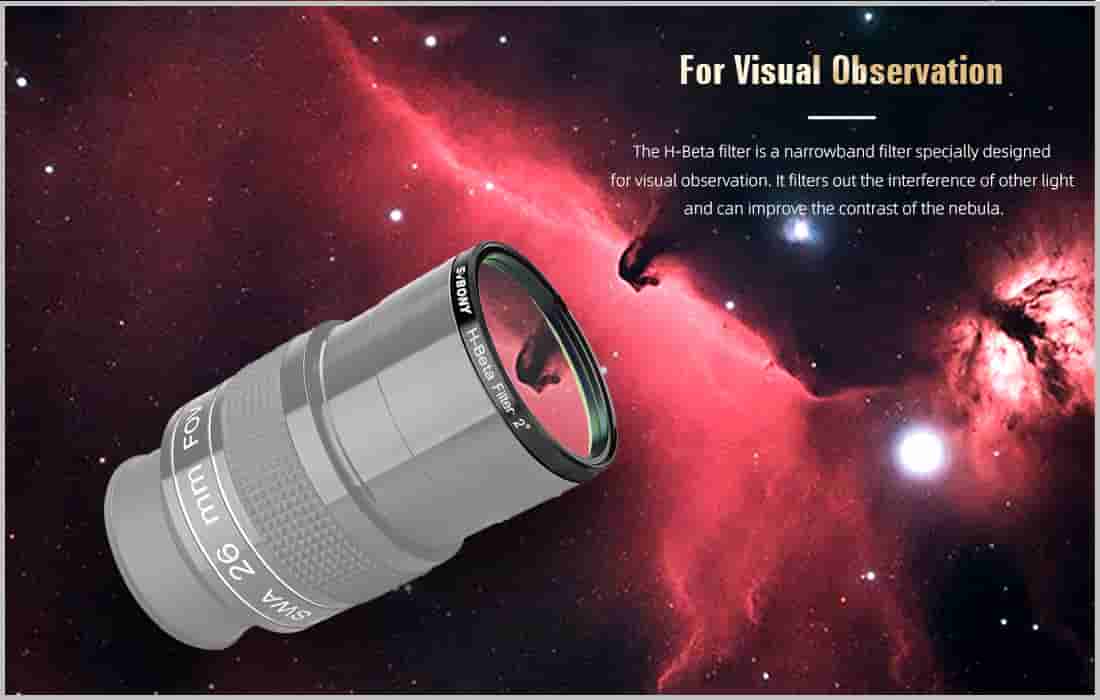

The H-Beta filter is a narrowband filter specially designed for visual observation. It is mainly aimed at the 486nm (blue) line spectrum nebula, removes the interference of other light, and improves the contrast. During observation, in order to see sufficient dark nebula, it is necessary to ensure a large enough luminous flux with a large-aperture telescope. Small-aperture telescopes are not recommended. It is suitable for observing the Horsehead Nebula in Orion and the California Nebula. Filter with metal 2" threads fits 2" eyepieces and diagonal barrels.
