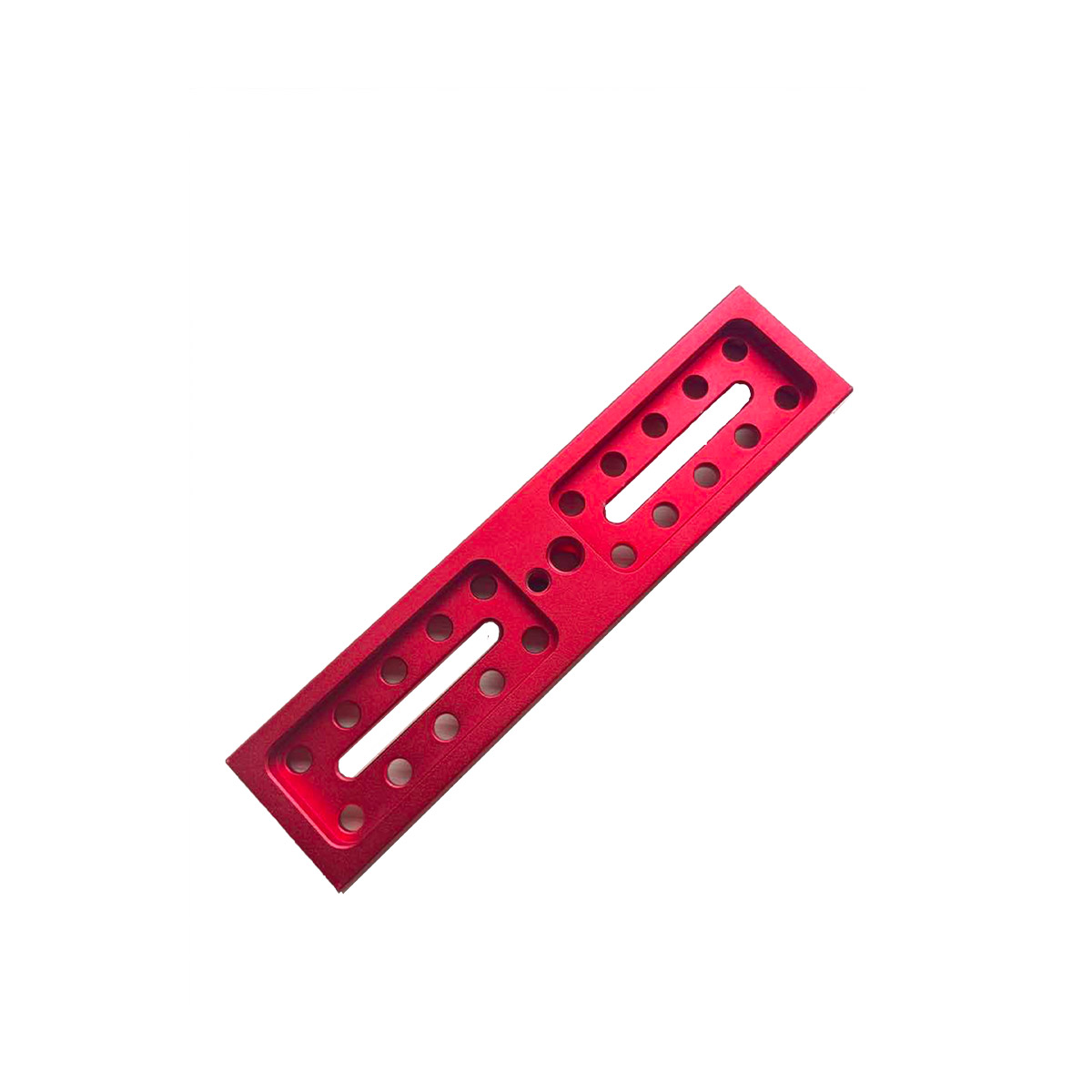

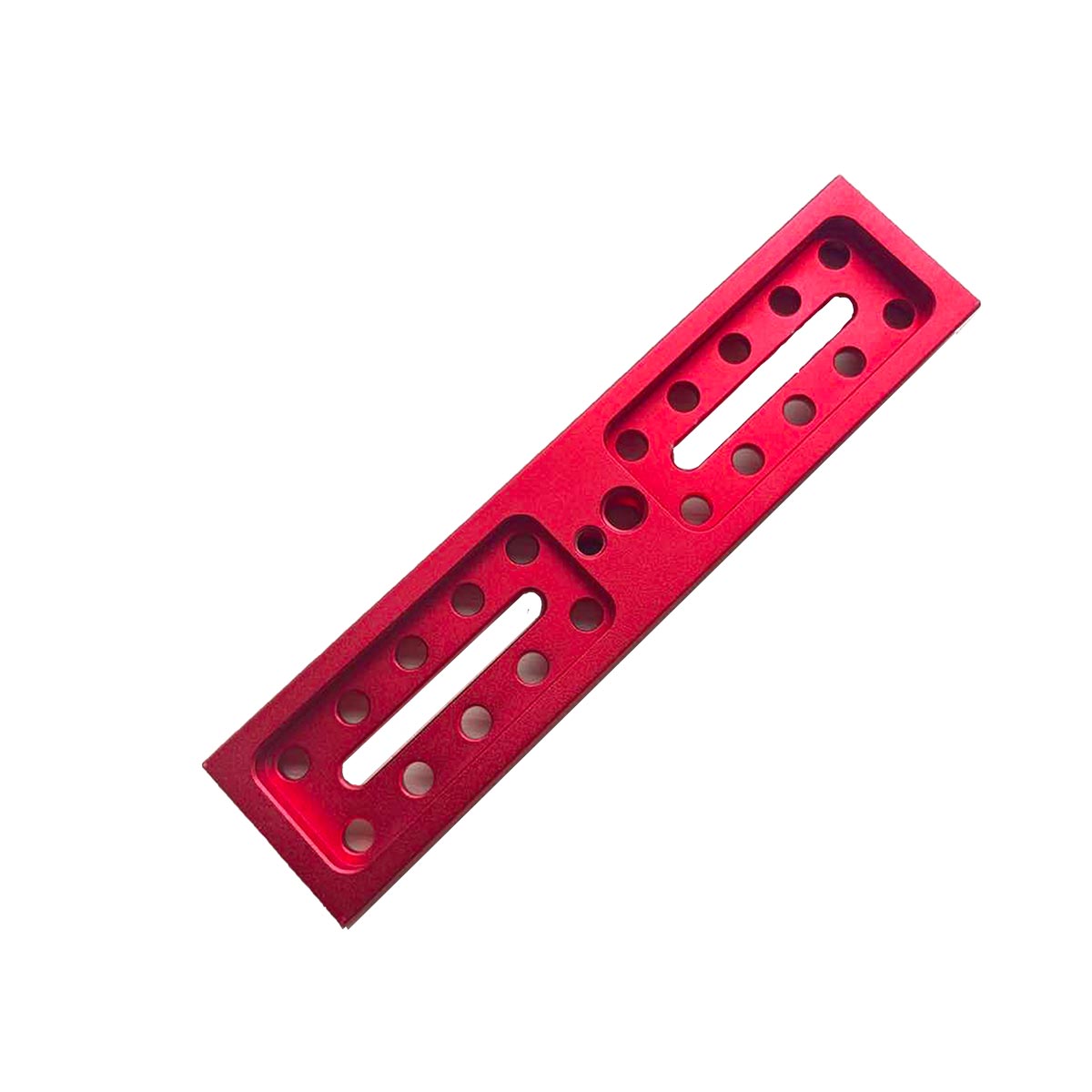

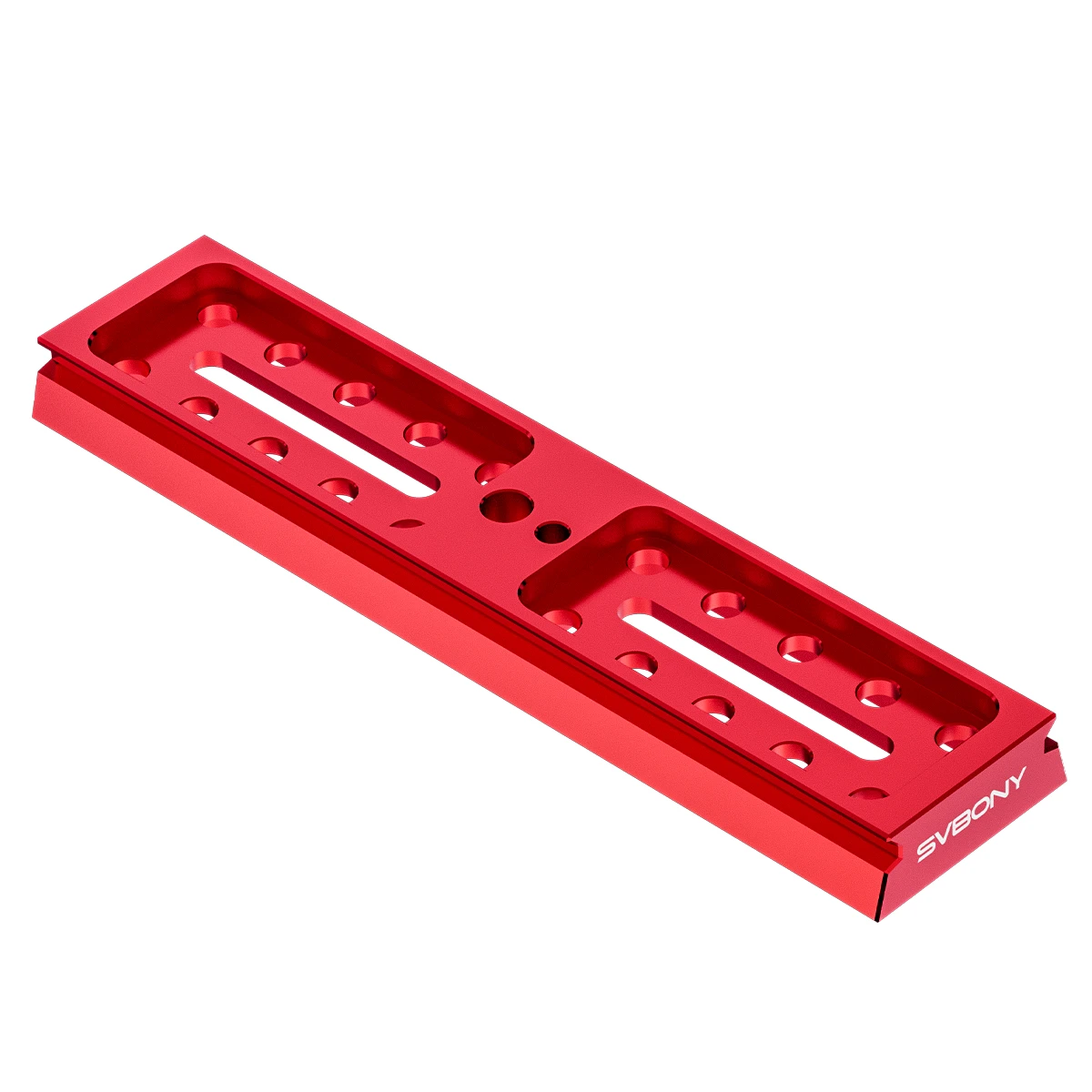

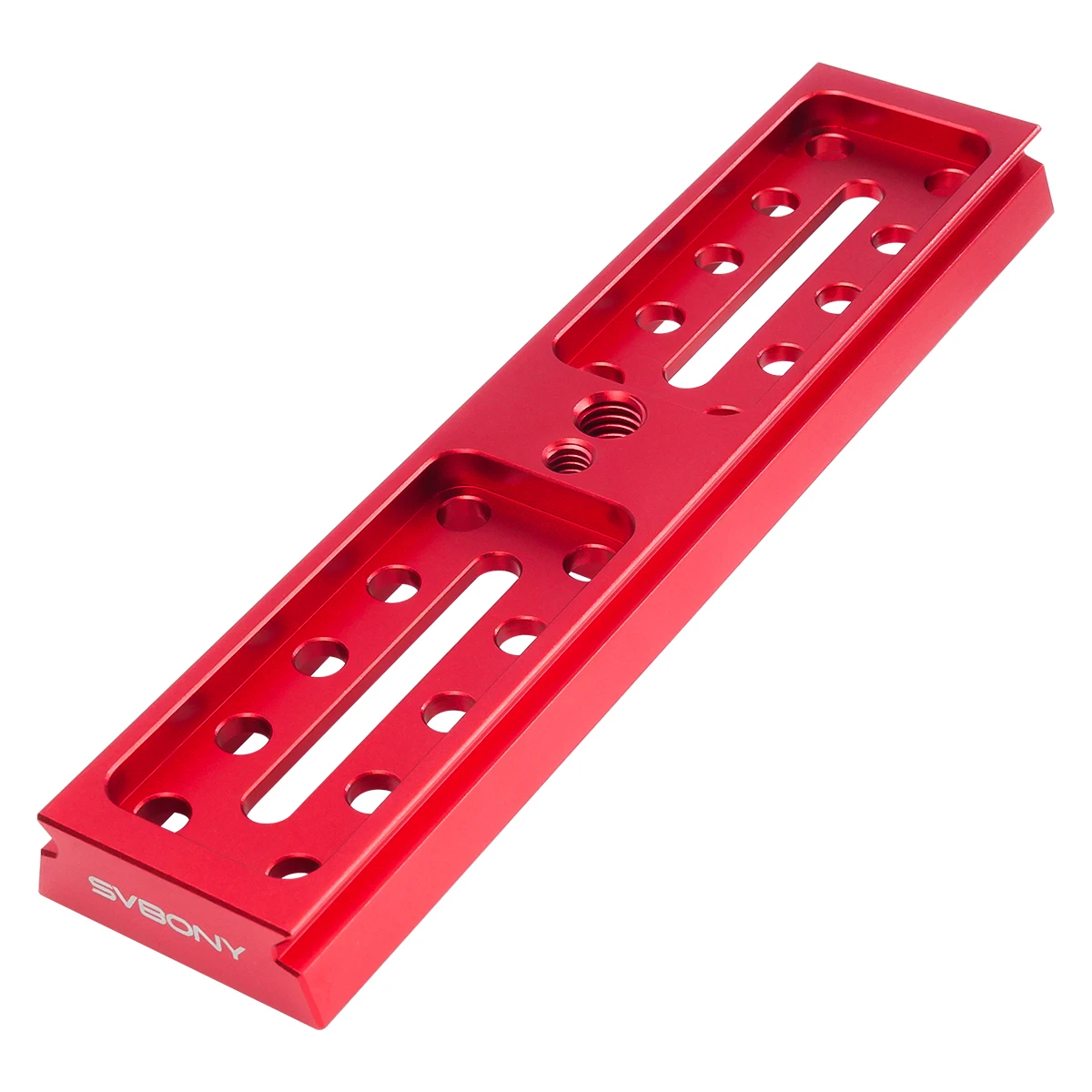

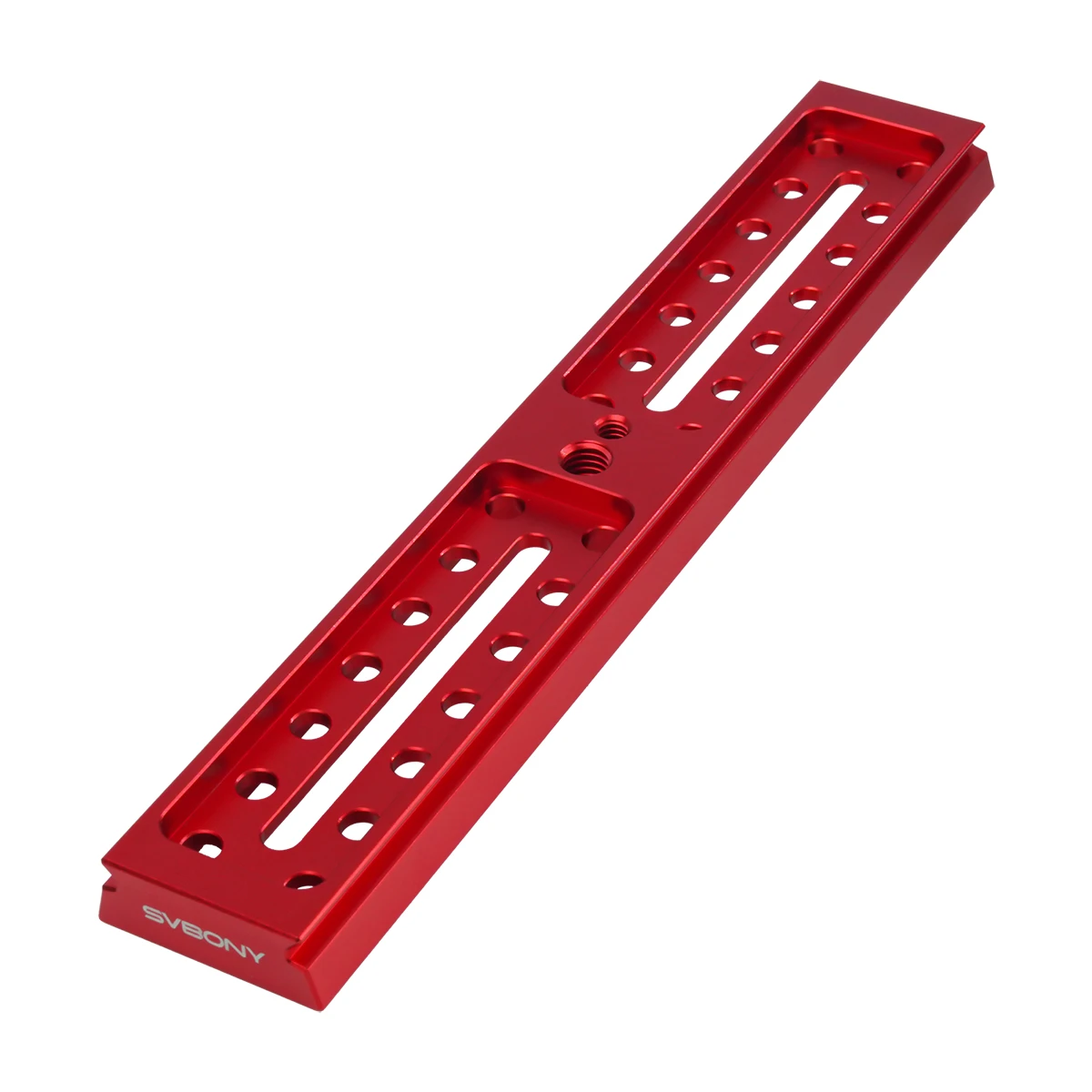

Metal Double Side Dovetail Mounting Plate for Astronomical Telescopes SVBONY SV239
This dovetail mounting plate provides a platform for attaching the telescope optics tube to an equatorial mount. It is compatible with finderscopes, finderscope anchors, and equatorial mounts;

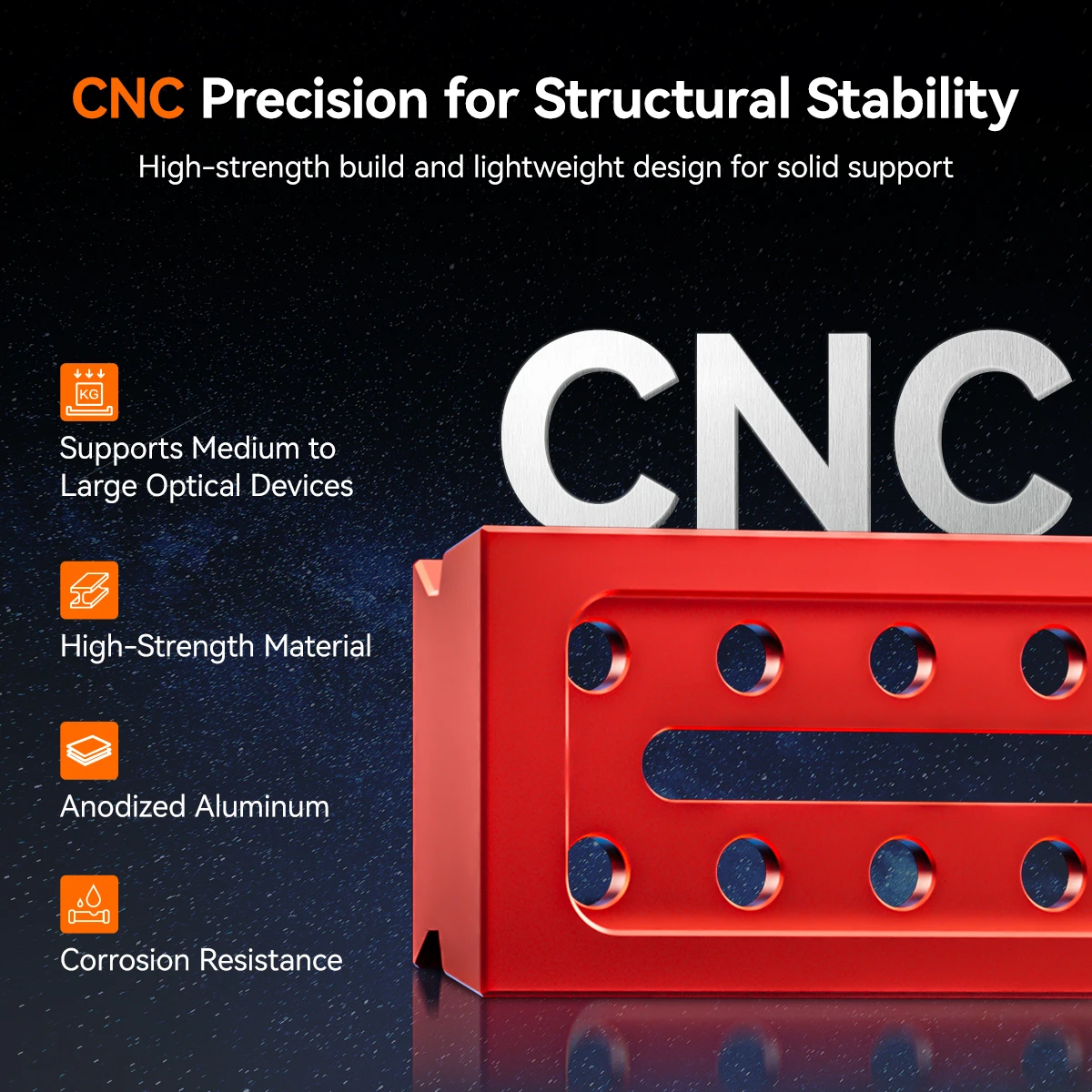

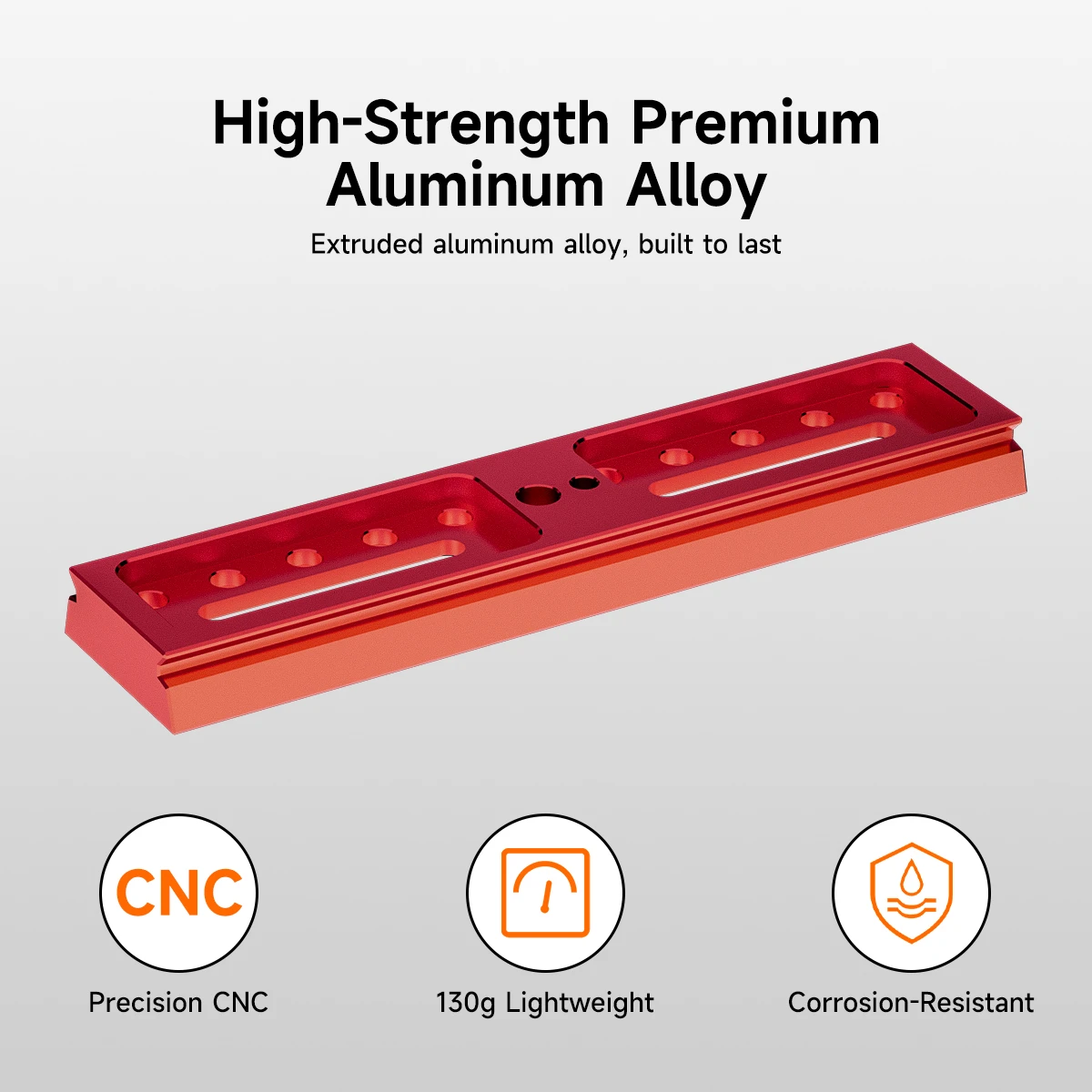

Dovetail plates are made from extruded anodized aluminum, full metal aluminum alloy is used to ensure lightweight yet ultra-strong support;

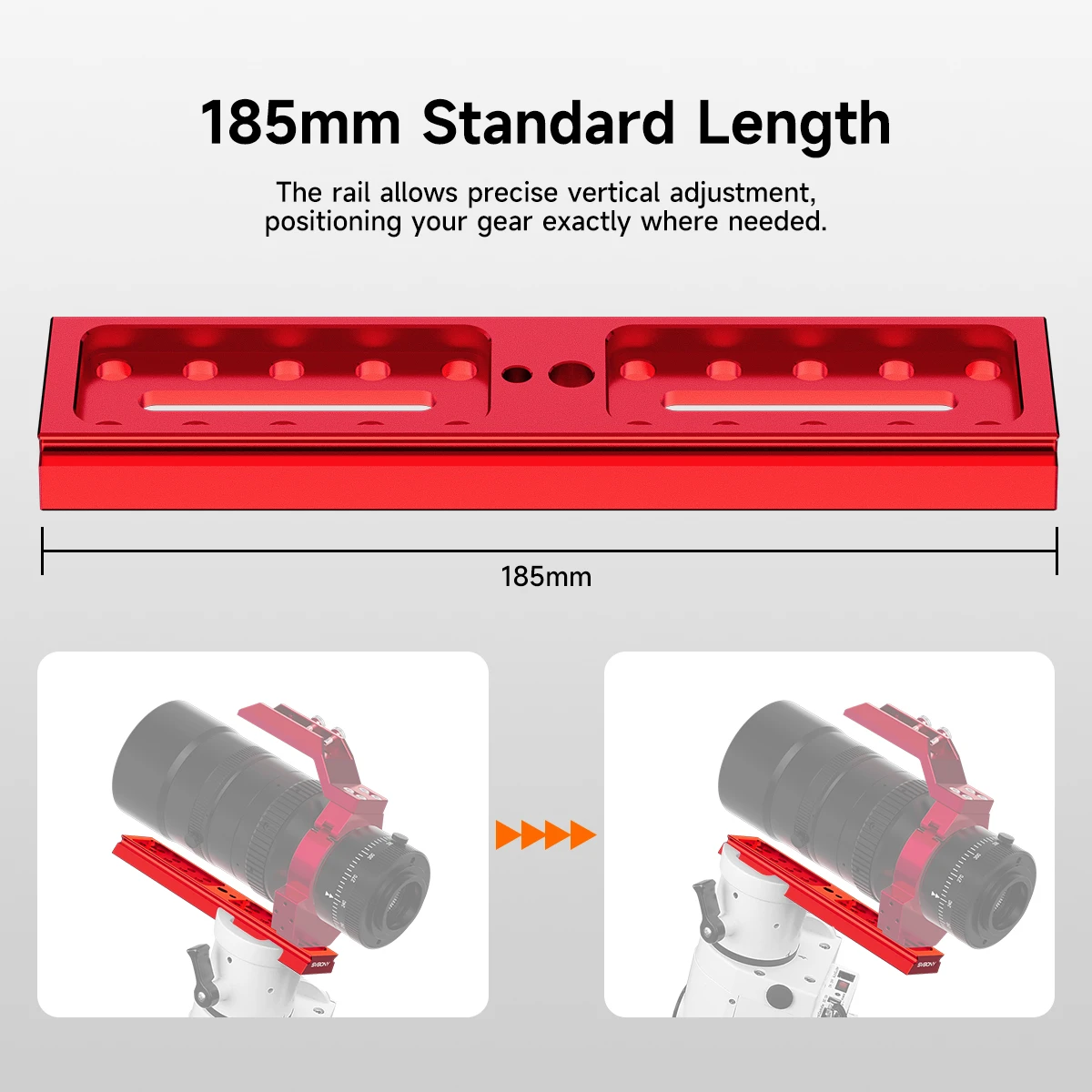

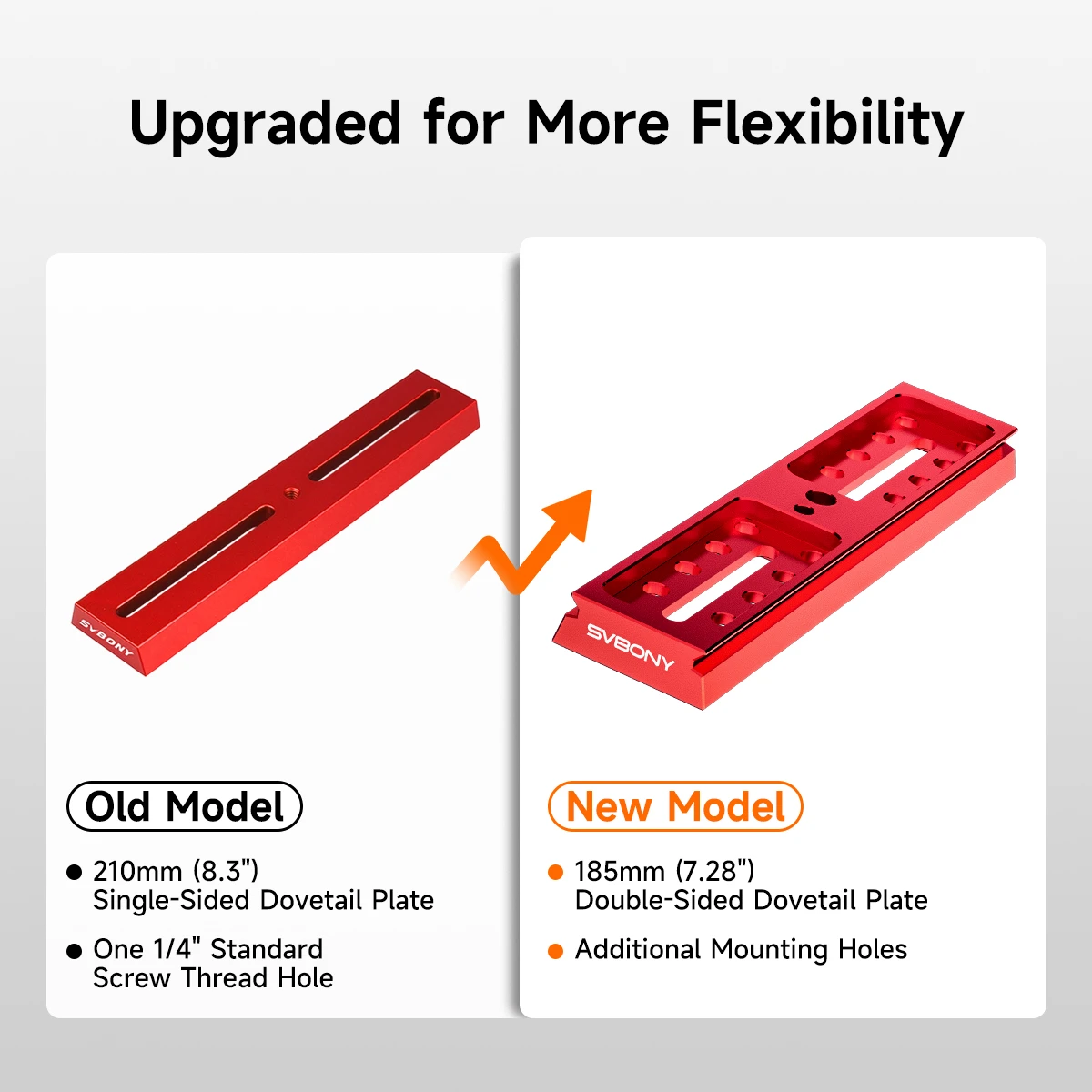

Dual dovetails nodal slide vertical rail along the length makes the mount equipment right where you need it;
1/4 standard thread adds threaded holes to connect other accessories, quickly switch from tripod to other usage scenarios;

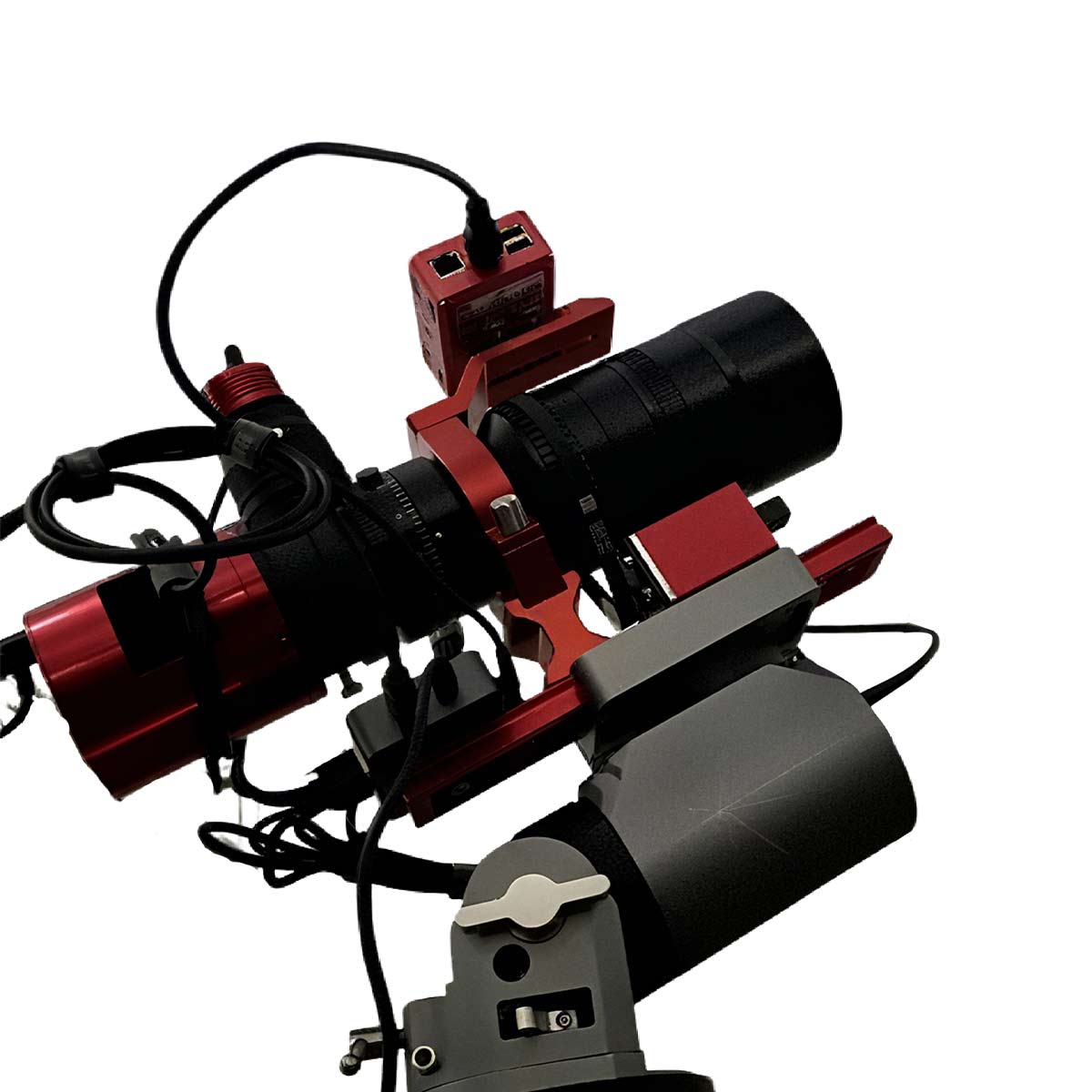

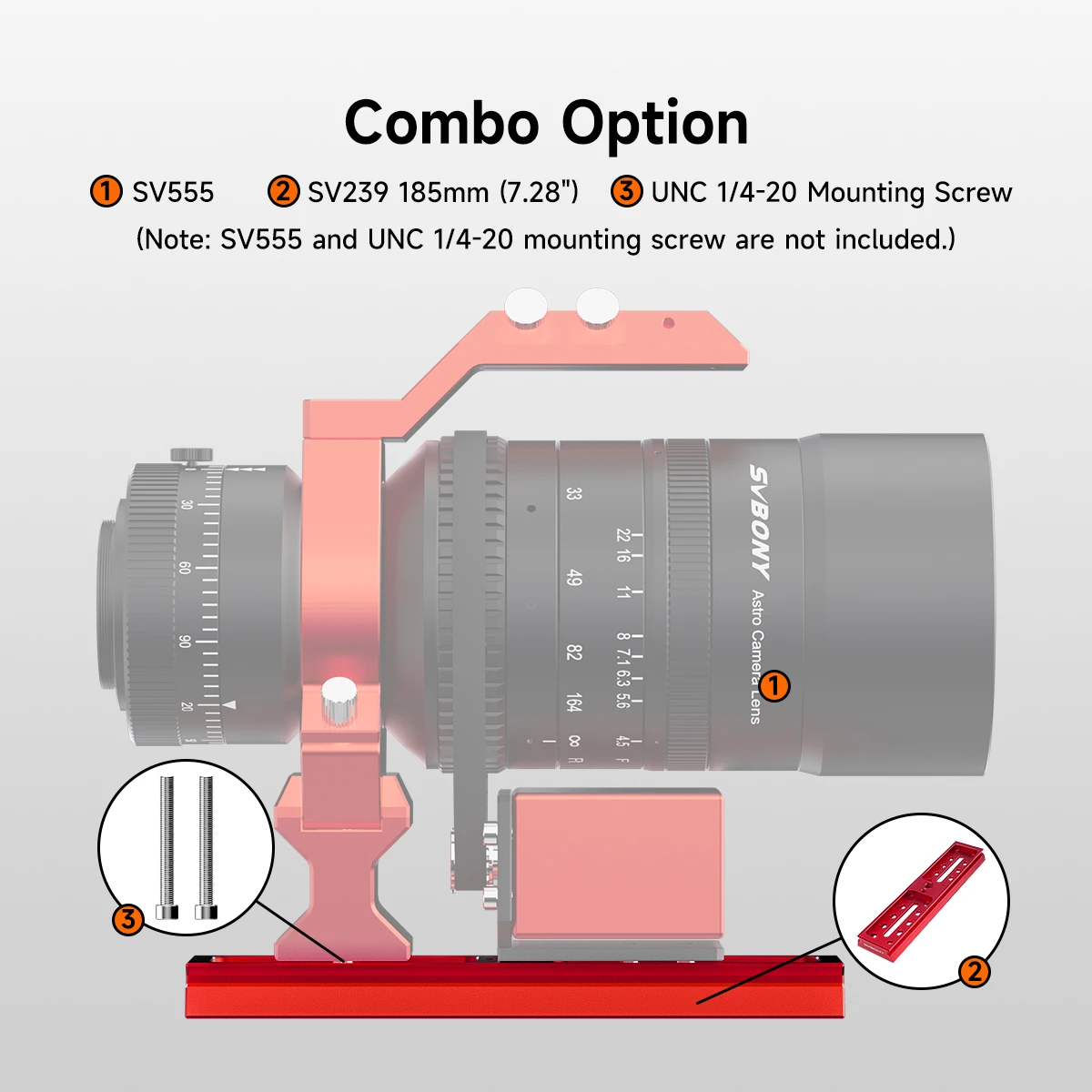

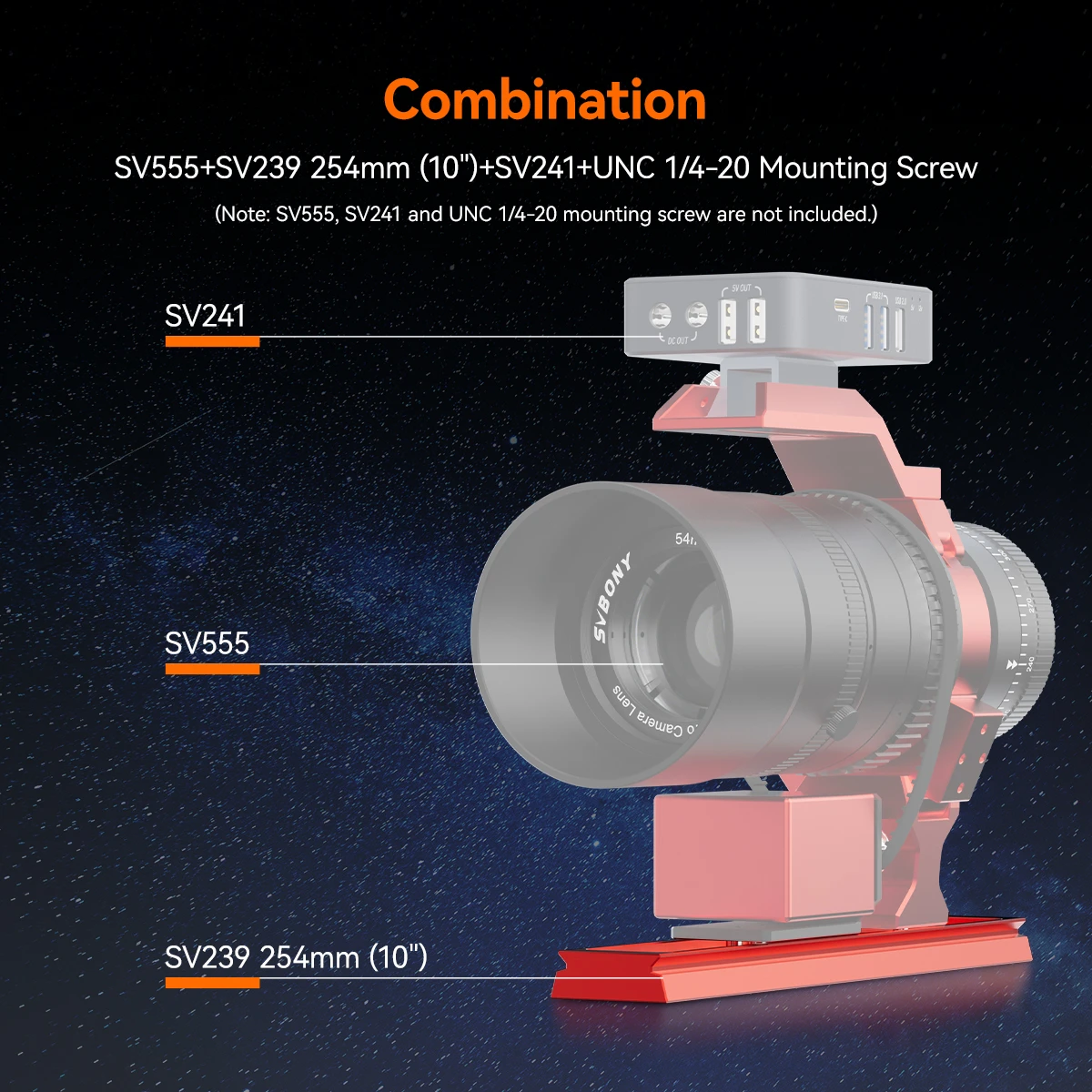

Installation method: The tube ring (sold separately) is bolted to the dovetail plate, and then installed into the dovetail groove on the equatorial head (sold separately).
| Specifications | 185mm | 254mm |

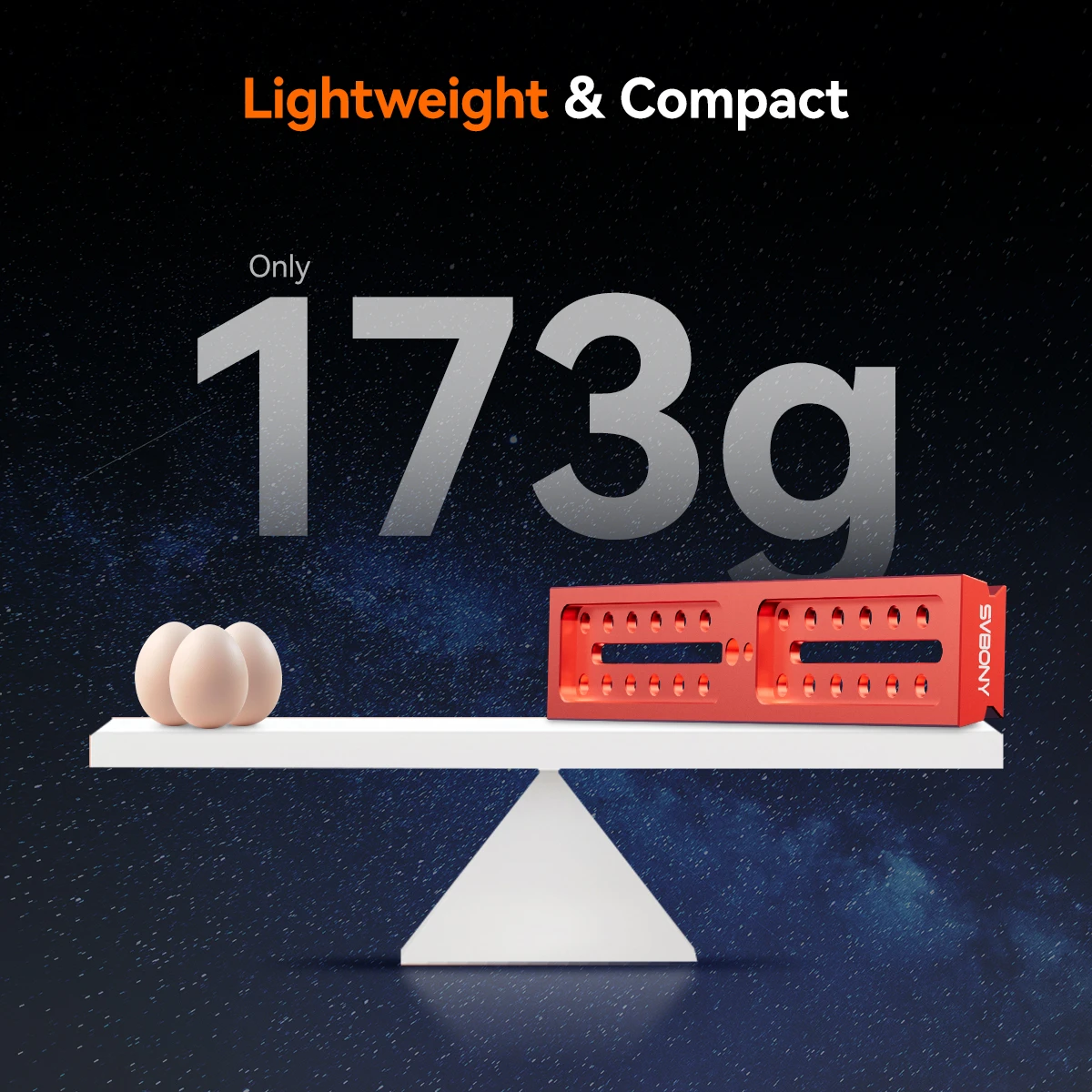

| Net Weight | 130g | 172g |
| Appearance Color | Red [Pantone 485 C] | Red [Pantone 485 C] |

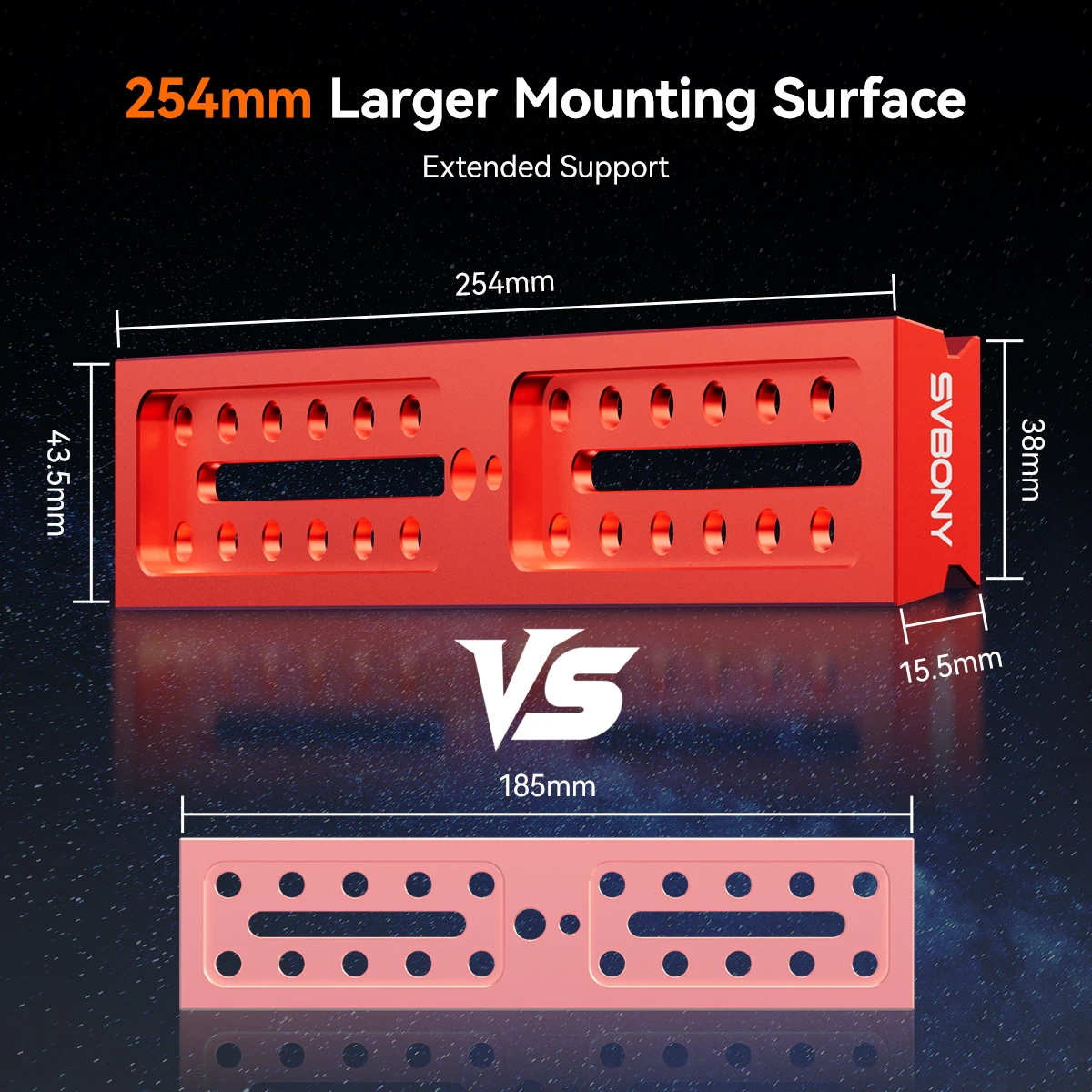

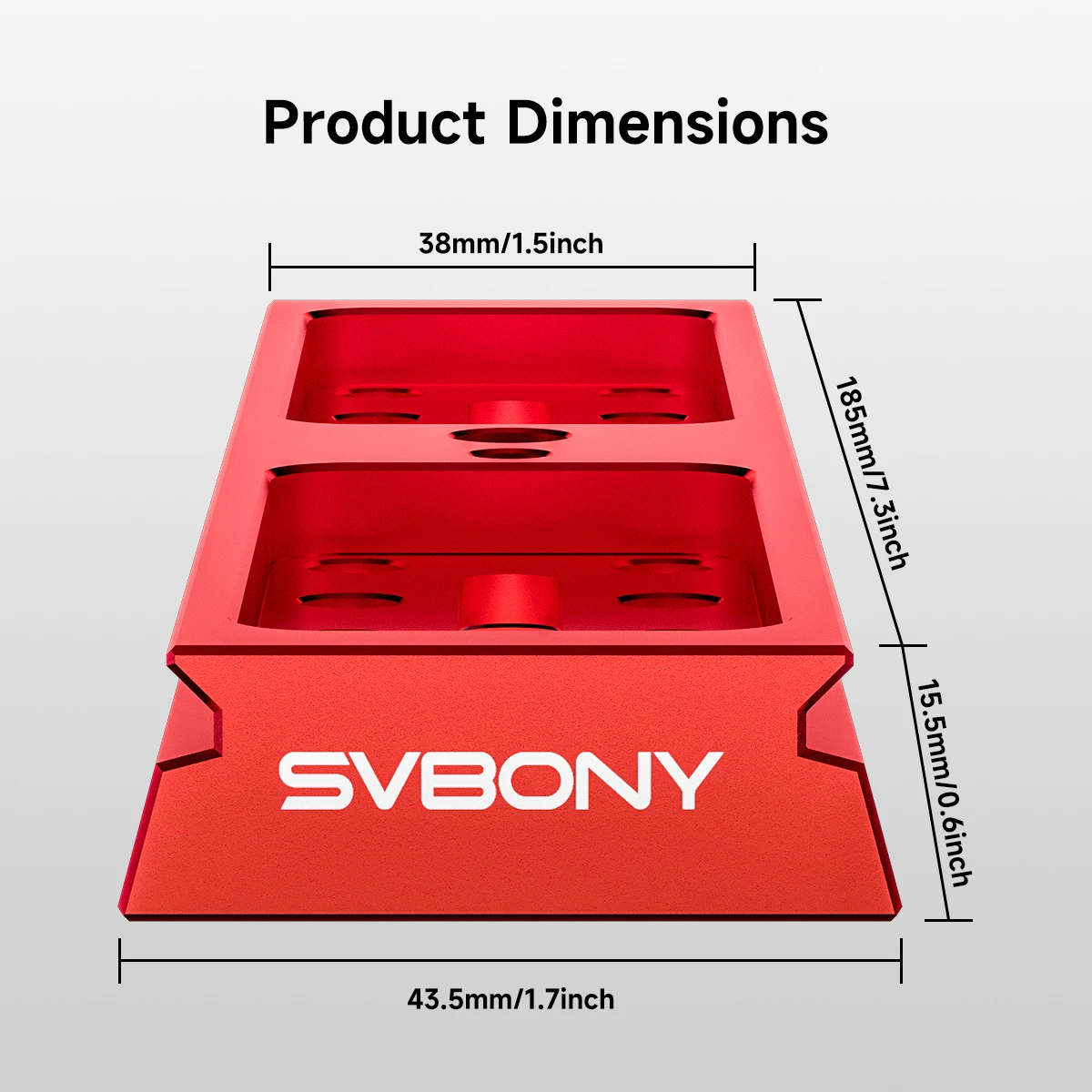

| Dimensions | Height:15.5mm | Height:15.5mm |
| Length：185mm | Length：254mm | |
| Upper width:38mm Lower width：43.5mm |
Upper width:38mm Lower width：43.5mm |
|
| Surface Treatment | Anodized | Anodized |

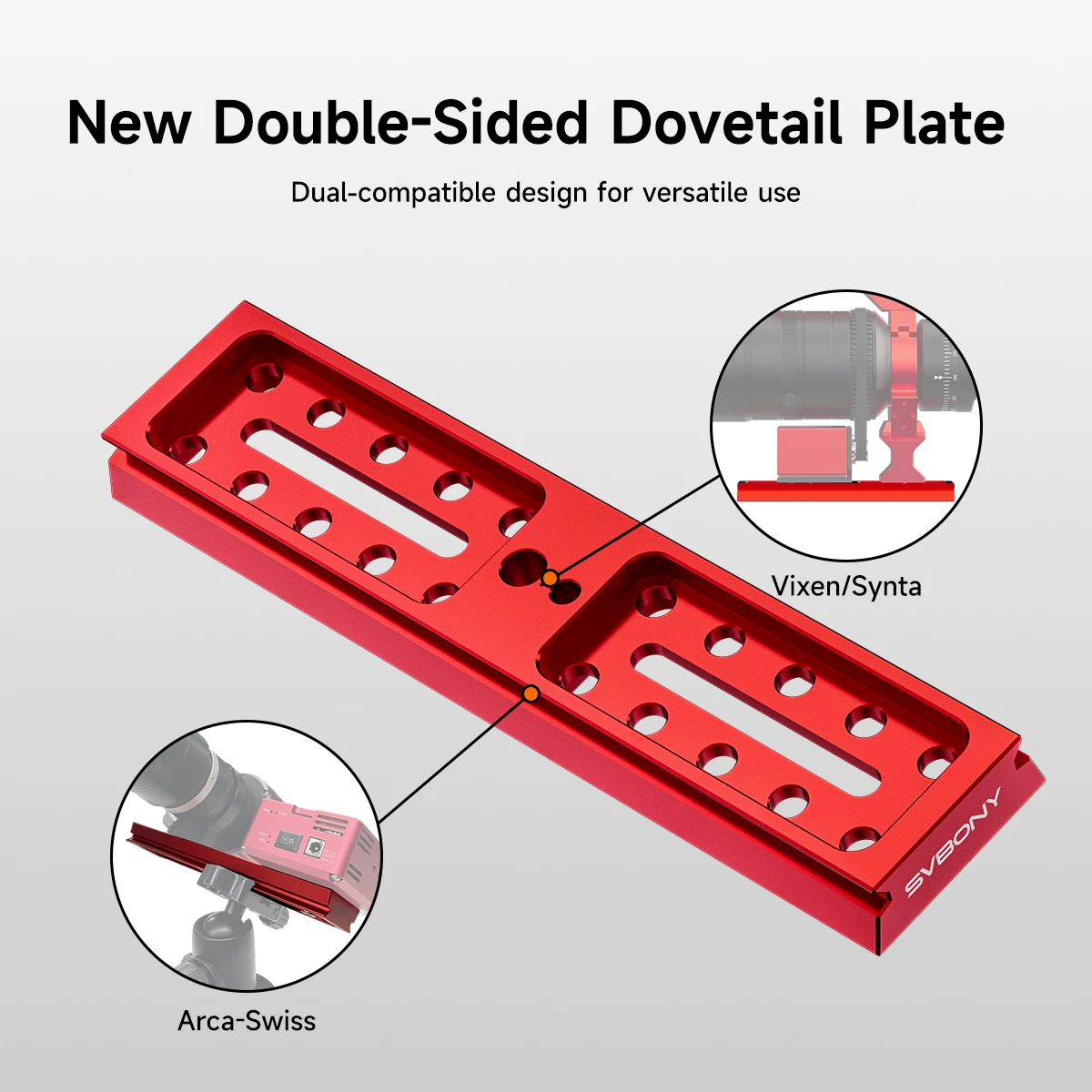

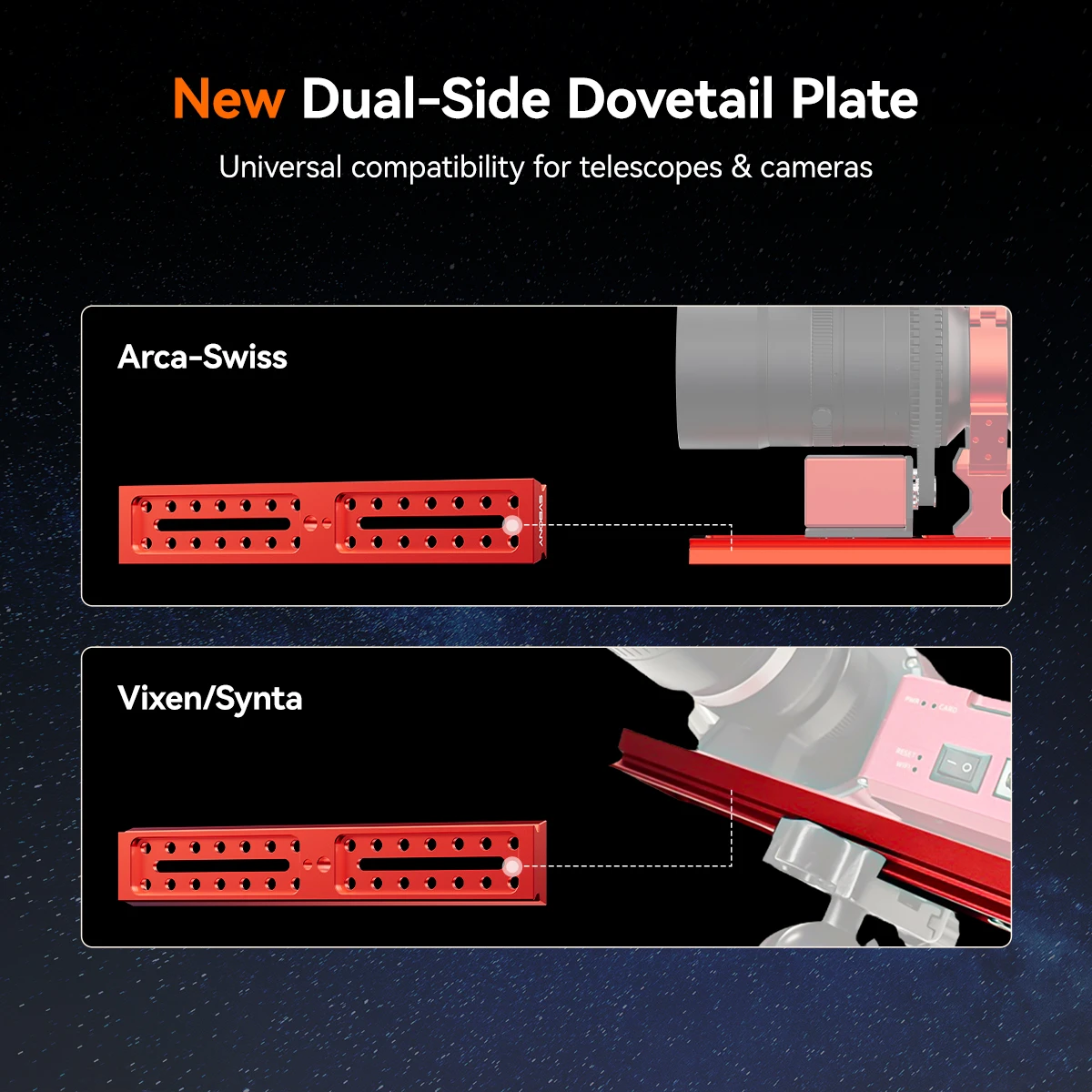

| Mounting Interface Standards | Vixen & Arca Swiss | Vixen & Arca Swiss |

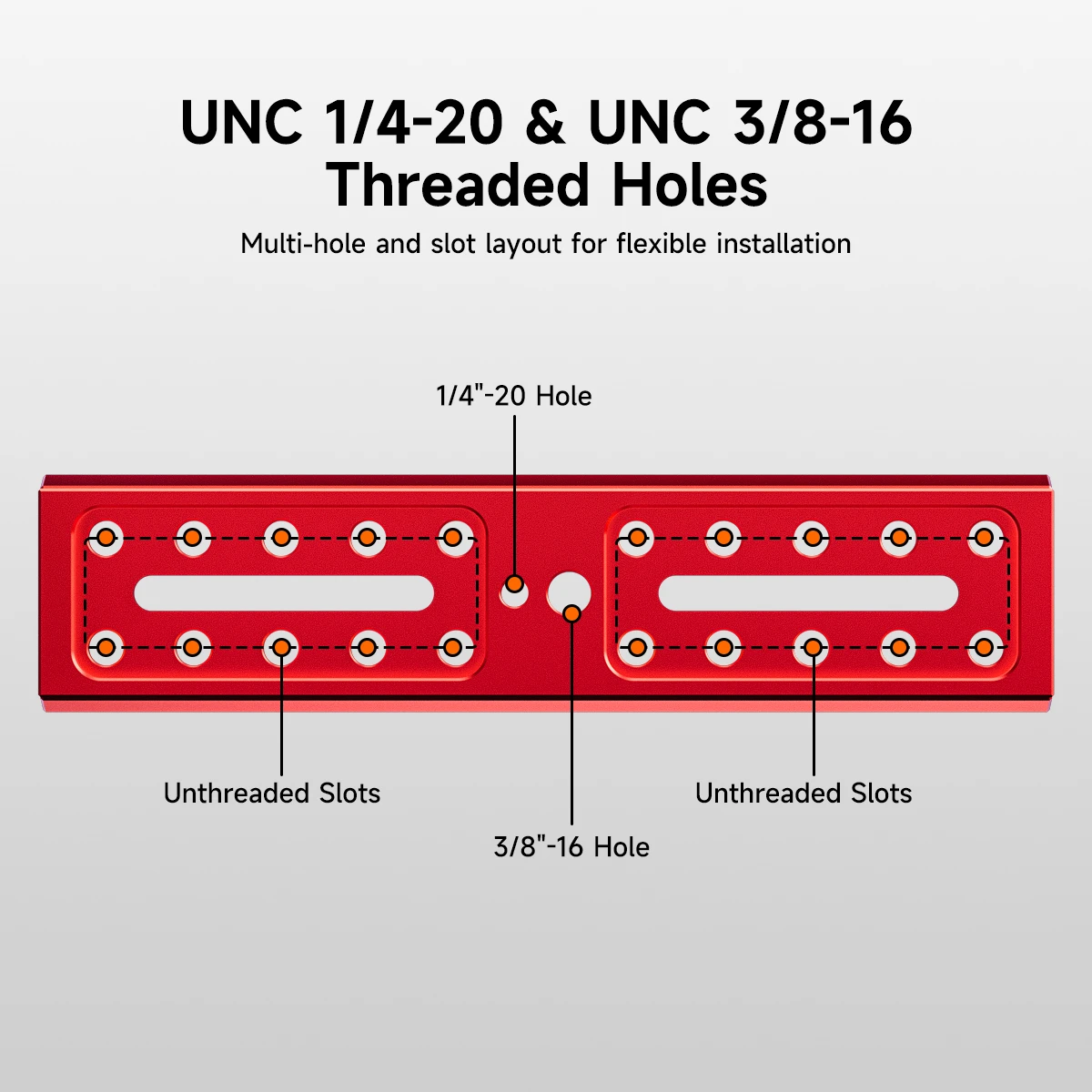

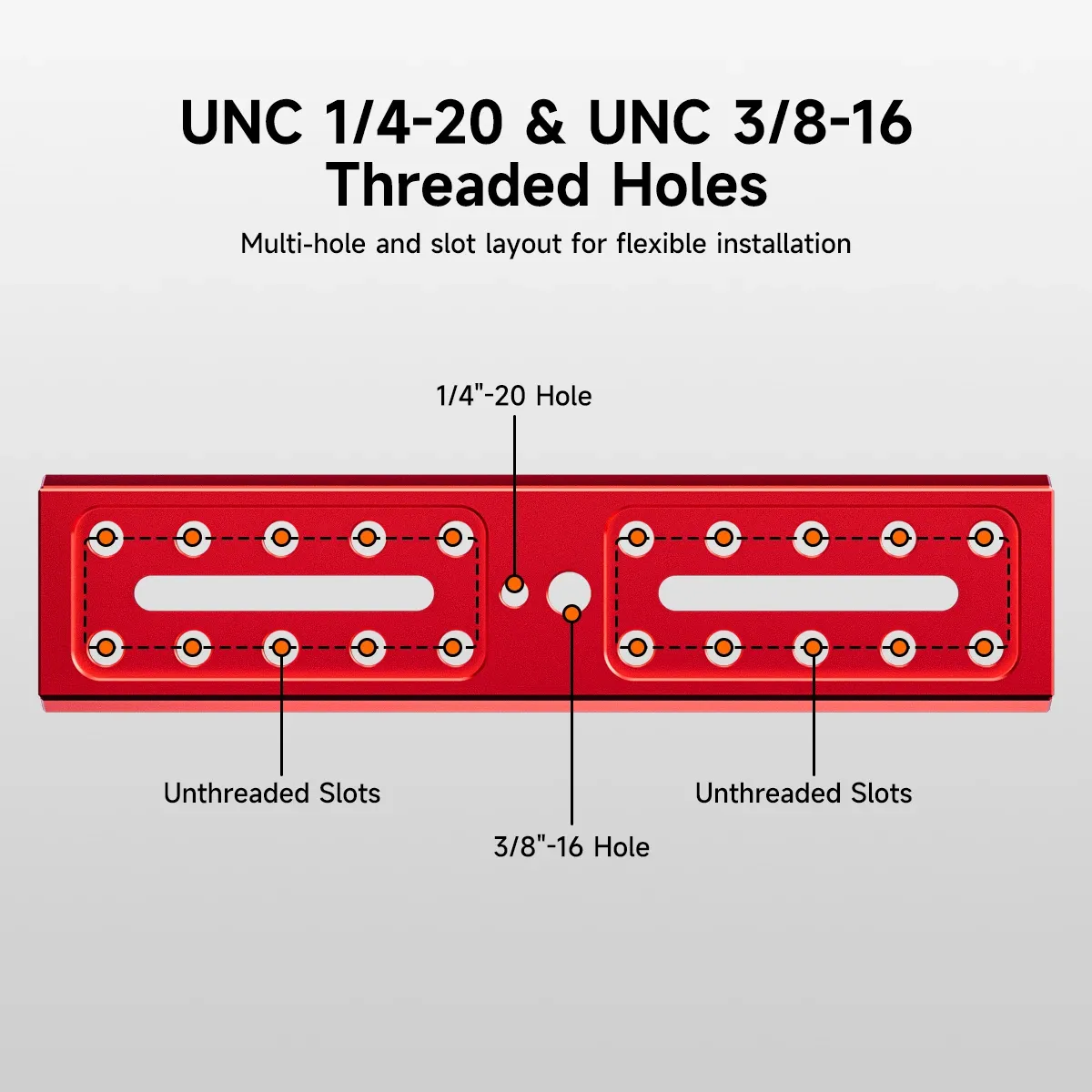

| Thread Specifications | UNC 1/4-20 & UNC 3/8-16 | UNC 1/4-20 & UNC 3/8-16 |
| Through Hole Inner Diameter | 6.5mm | 6.5mm |
| Top/Bottom Groove Depth | 6mm | 6mm |
| Slot Length | 55mm | 87mm |
| Slot Width | 6.5mm | 6.5mm |
