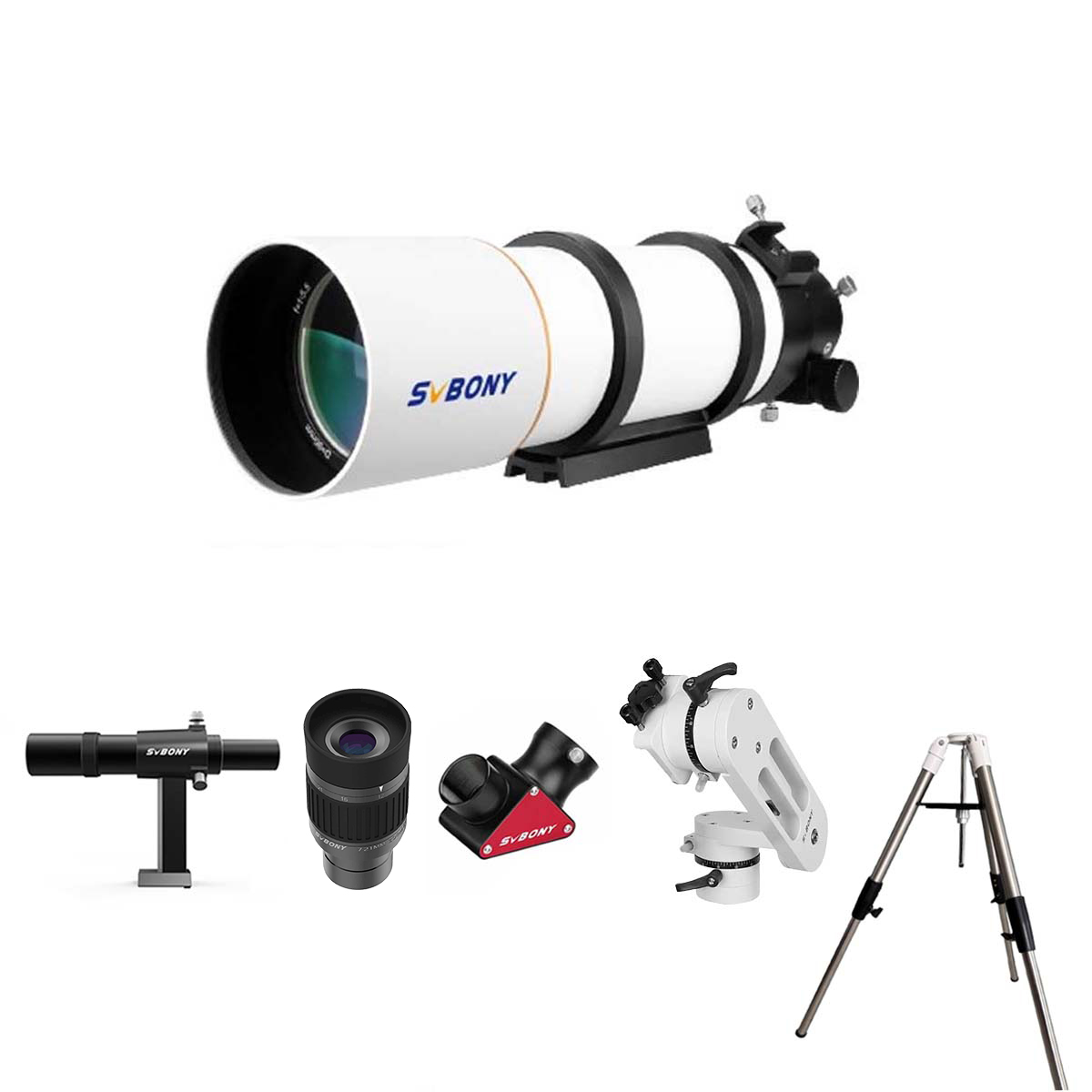

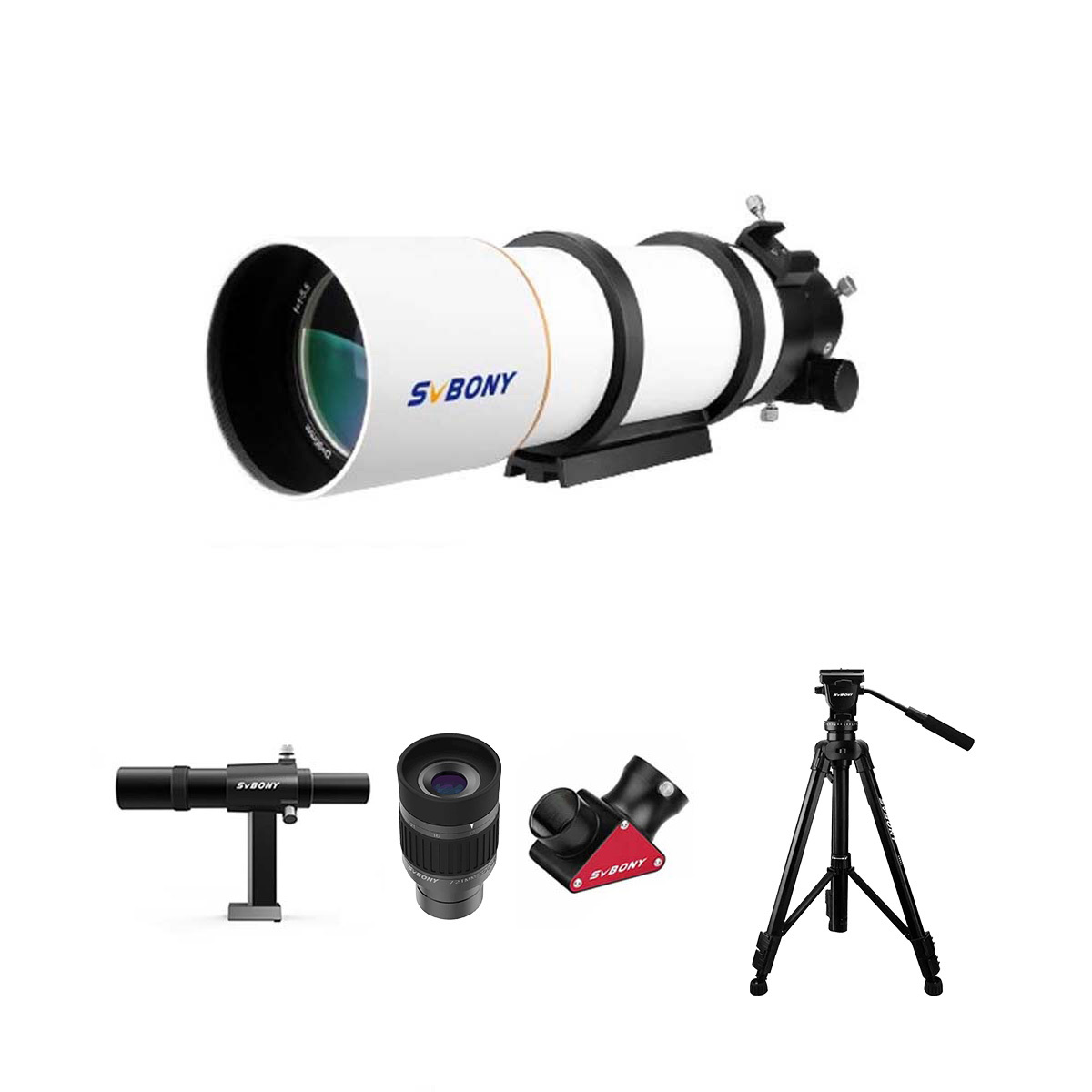

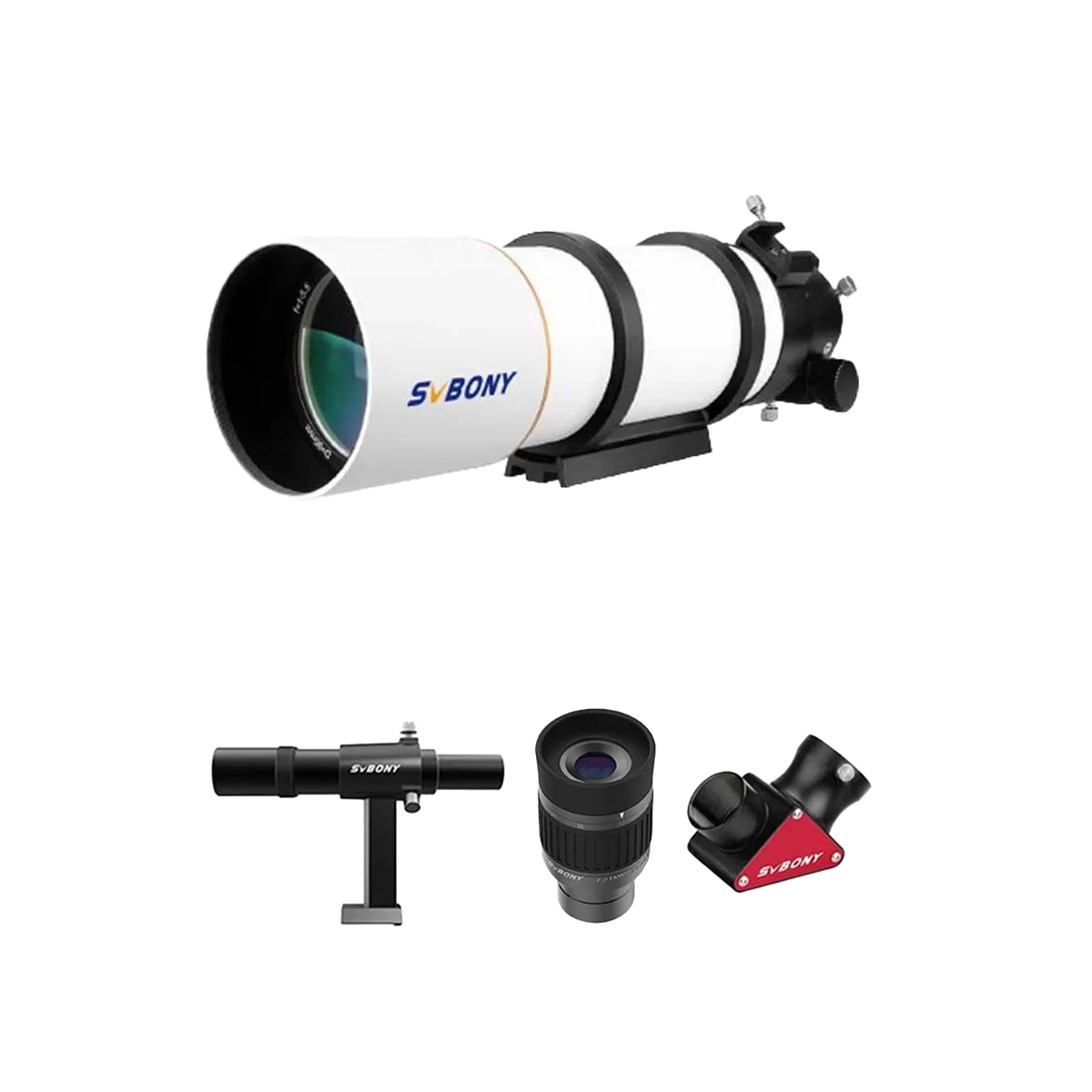

Beginner Telescope Visual Observation Set SVBONY SV48P 90mm
Write a review
Visual Observation Set
No Stand
SA402 Tripod
SV225 A-Z Mount with Tripod
Customer Reviews
There are no customer reviews yet
| Brand | SVBONY |
| Model | SV48P |
| Aperture | 90mm |
| Optic Coated | FMC |
| Objective Lens | Doublet air spaced achromatic design |
| Glass | ZF4/K9 |
| Focal Length | 500mm |
| Focal Ratio | F/5.5 |
| Eyepiece Barrel Diameter | 2-inch (1.25-inch adapter) |
| Focuser | 2-inch RAP Double-speed Focuser |
| Tube Outer Diameter | 108mm |
| Net Body Weight | 2730g / 96.3oz |
| Packing | 490*215*230mm |
| Model | SV182 |
| Type | Straight Orthophoto Stargazer |
| Lens Diameter | 30mm |
| Focal Length | 120mm |
| Magnification | 6x |
| Eye Relief | 15mm |
| Exit Pupil | 5mm |
| Scribing Plate Type | Brass crosshair |
| Mounting Bracket Type | X-Y spring type |
| True field of view | 7.5° |
| Lens coating | FMC |
| Objective structure | 2-Elements/1 Groups |
| Matting Process | Blackened edges |
| Image Orientation | Correct-image |
| Reticle type | Brass crosshairs |
| Mounting bracket type | X-Y spring type |
| Focusing method | Objective thread focusing |
| Observation angle | Straight-through view |
| Imaging Type | Up and down, left and right orthophoto |
| Blackened lens edges | Yes |
| IIIuminated | No |
| Adjustable focus | Yes |
| Net Weight | 295g / 0.651b / 10.41oz |
| Model | SV188P |
| Size | 1.25inch |
| Optical Design | Mirror Diagonal |
| Coatings | Dielectric |
| Reflectivity | dielectric 99% coating for bright images |
| Material | Aluminum Alloy |
| Filter Threads | M28.5*0.6 |
| M4 Set Screws | Yes |
| Outer Connection(Lens Sided) | Barrel 1.25inch |
| Inner Connection(Lens Sided) | Thread M28.5x0.6 |
| Inner Connection(Eyepiece Sided) | Clamp 1.25inch |
| Reflection Surface | Dielectrically Coated |
| Image Orientation | Erect Image, Mirror Inverted |
| Thickness of Mirror | 11mm |
| Net Weight | 125g / 4.41oz |
| Model | SV135 |
| Zoon Type | Linear |
| Focal length | 7-21mm |
| Eye Relief | 13mm - 14mm |
| Lens Design | 3 groups/ 5 pcs |
| Barrel Size | 1.25" |
| Field of view | 52°~36° |
| Lens Coating | Fully Multi-Coated-Green |
| Rubber Eye Guard | Yes |
| Meterial | Metal +Optic Glass |
| Color | Black |
| Thread Size | M28.5*0.6 |
| Net Weight | 95g |
| Model | SA402 |
| Installation interface | UNC 1/4" Screw |
| Max length | 164cm / 64.56in |
| Folded Length | 70cm / 27.56in |
| Max. Tube width | 30mm / 11.81in |
| Spirit Level | 1pcs |
| Leg Section | 3 |
| Max Loading Capacity | 6kg/13.2Ib |
| Material | Aluminum Alloy & ABS |
| Net weight | 2200g / 4.85lb |
| Package Size | 715x130x130mm |
| Model | SV225 |
| Max. additional load capacity | 10kg |
| Mounting Saddle | Vixen-Style |
| Fine adjustment | Yes |
| Manual tracking | Yes |
| Underneath the Base thread | UNC 3/8 -16 Female |
| Worm gear teeth (RA) (piece) | 120 |
| Altitude Mount Rotation Angle (Continuous) | -60° to + 60° |
| Azimuth Mount Rotation Angle (Continuous) | 360° |
| Material | Aluminum 6061T |
| Net Weight | 3kg |
| Package |
340*285*145mm |
| Model | SV225T |
| Installation interface screw | UNC 3/8-16 |
| Max Extended Height | 900mm |
| Folded Length | 500mm |
| Max. Tube Diameter | 32mm |
| Chassis Diameter | 83mm |
| Leg Section | 3 |
| Loading Capacity | Recommended for telescopes up to 100mm aperture & self-weight up to 3kg. |
| Maximum support interface screw | 180mm |
| Sections | 2 |
| Material | Aluminum Alloy |
| Net weight | 2263g |
| Package Size | 543x193x185mm |
