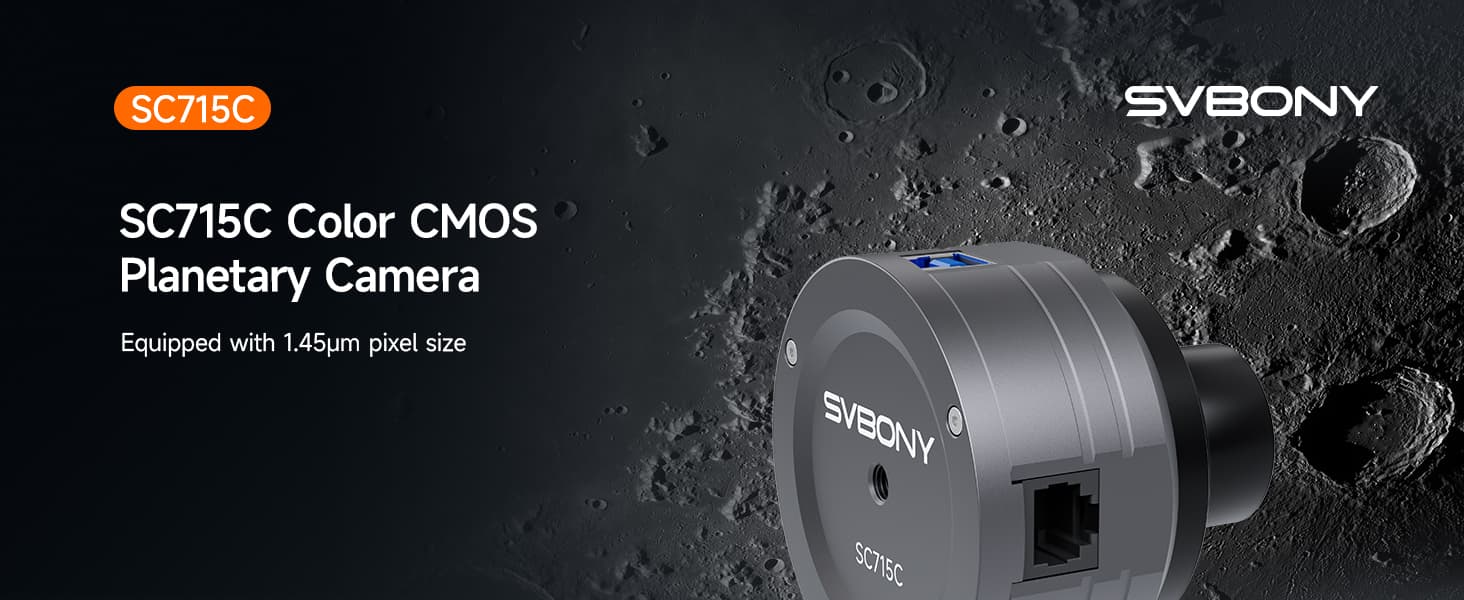

SC715C OSC Planetary Camera Color CMOS IMX715 USB3.0 for Capturing Deep-sky Objects
3 | ReviewsKey Features

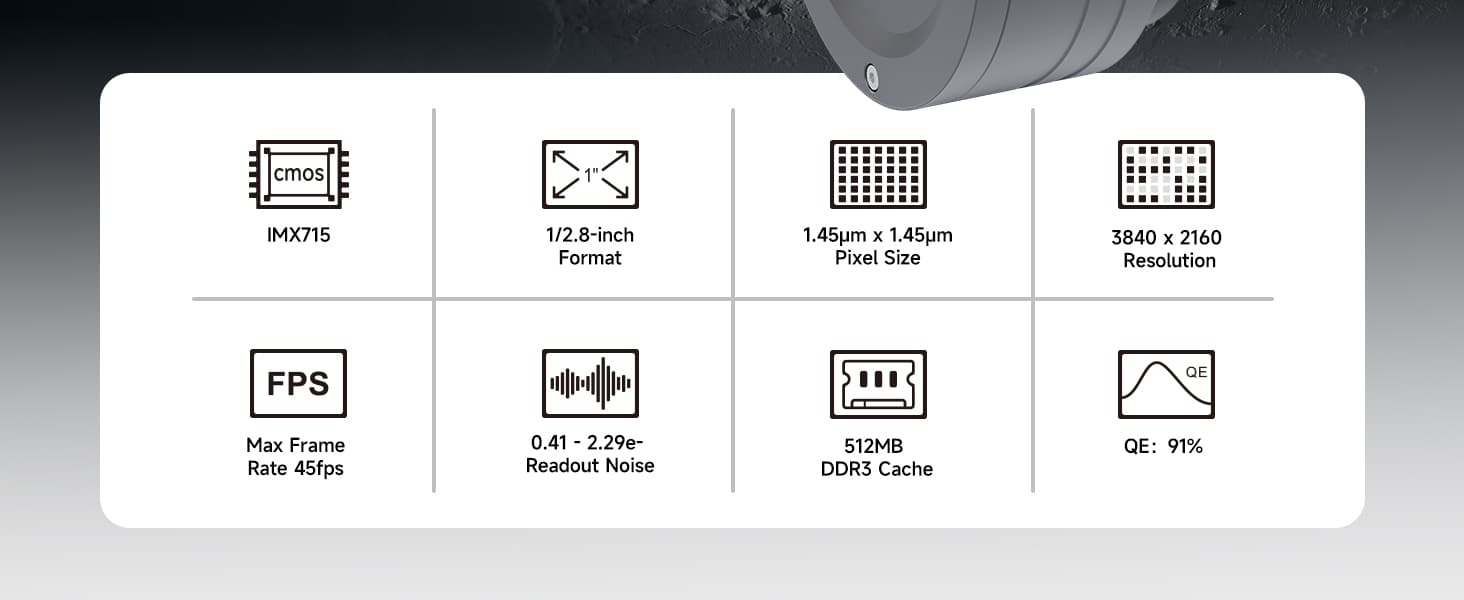

- IMX715 sensor

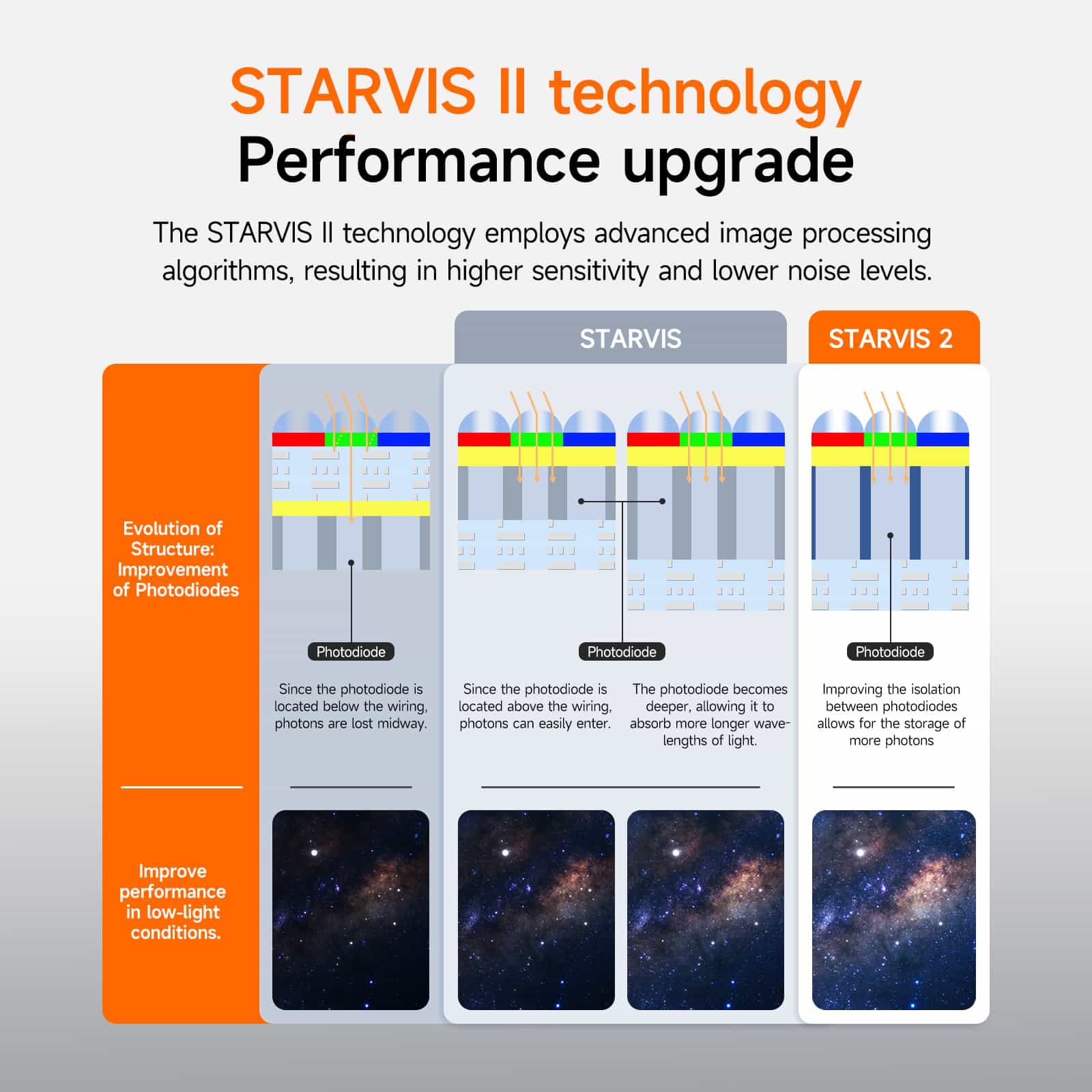

- STARVIS II technology
- USB 3.0 Port & ST4 Guide

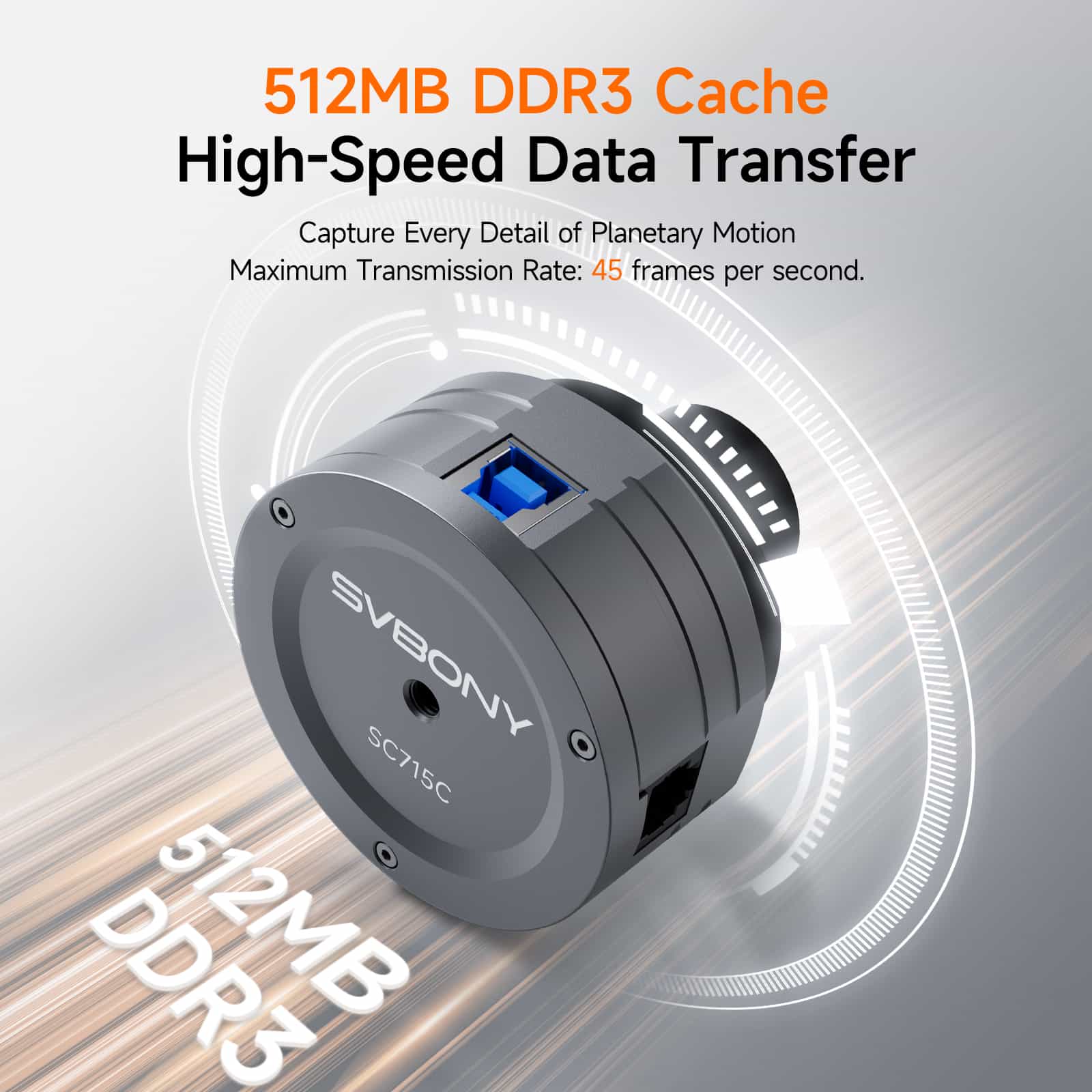

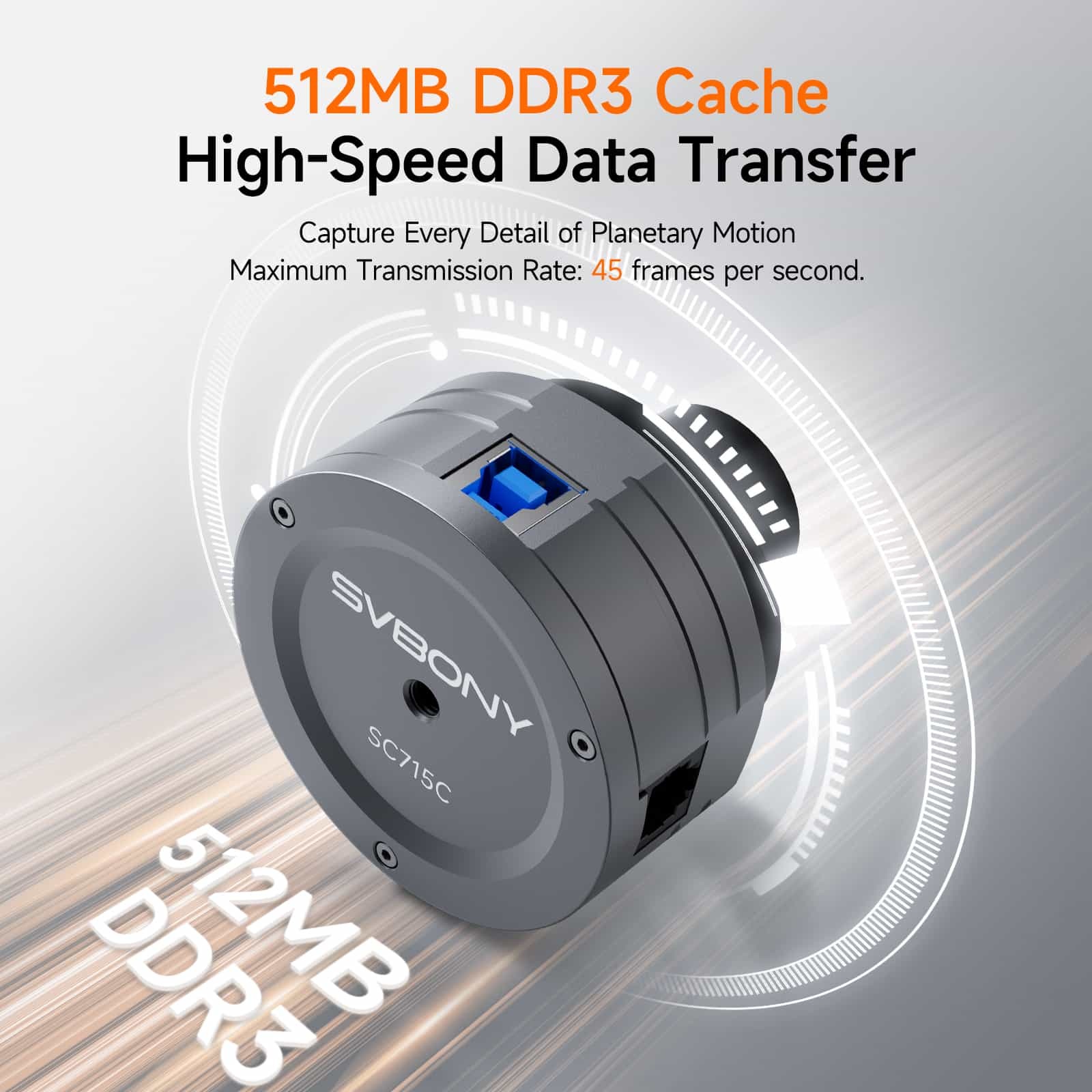

- 512MB DDR3 cache

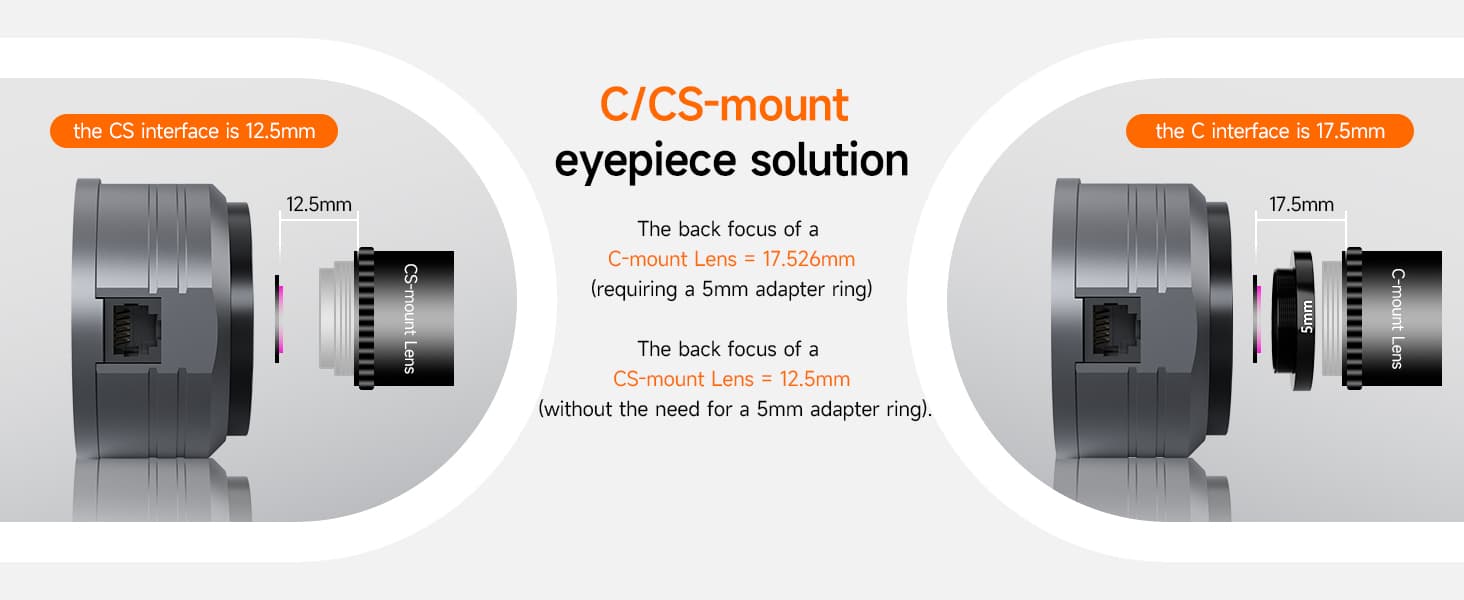

- C/CS-mount eyepiece solution
FREE shipping, duty-free
Customer Reviews
Kaleb
May 15, 2025

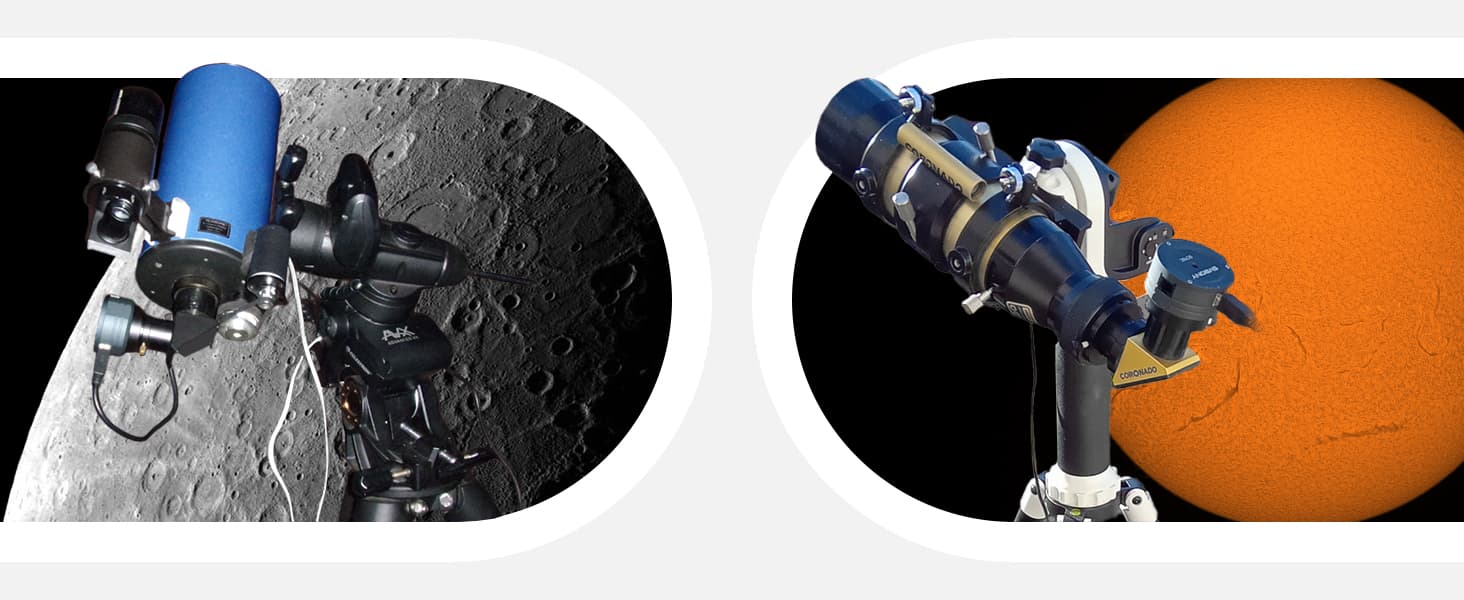

The camera is doing absolutely amazing, granted my capability of getting photos is limited since I have a non-motor goto drive to track onto objects, but any photos Ive gotten have been spectacular. I've attached some photos below for you to post onto your website, the solar ones were taken with a hand made solar filter attachment and the moon one is obviously just a moon photo.
Valerio
May 10, 2025
I used it for the high resolution even though the planets at this time of year are not very visible, I focused on the Moon and the Sun getting very good results, but what I really liked about this astronomical camera is the ability to record even the faint signal of nebulae.
Hilario
Apr 01, 2025
Perfect astronomy camera for both planetary and deep-sky objects, without breaking the bank~

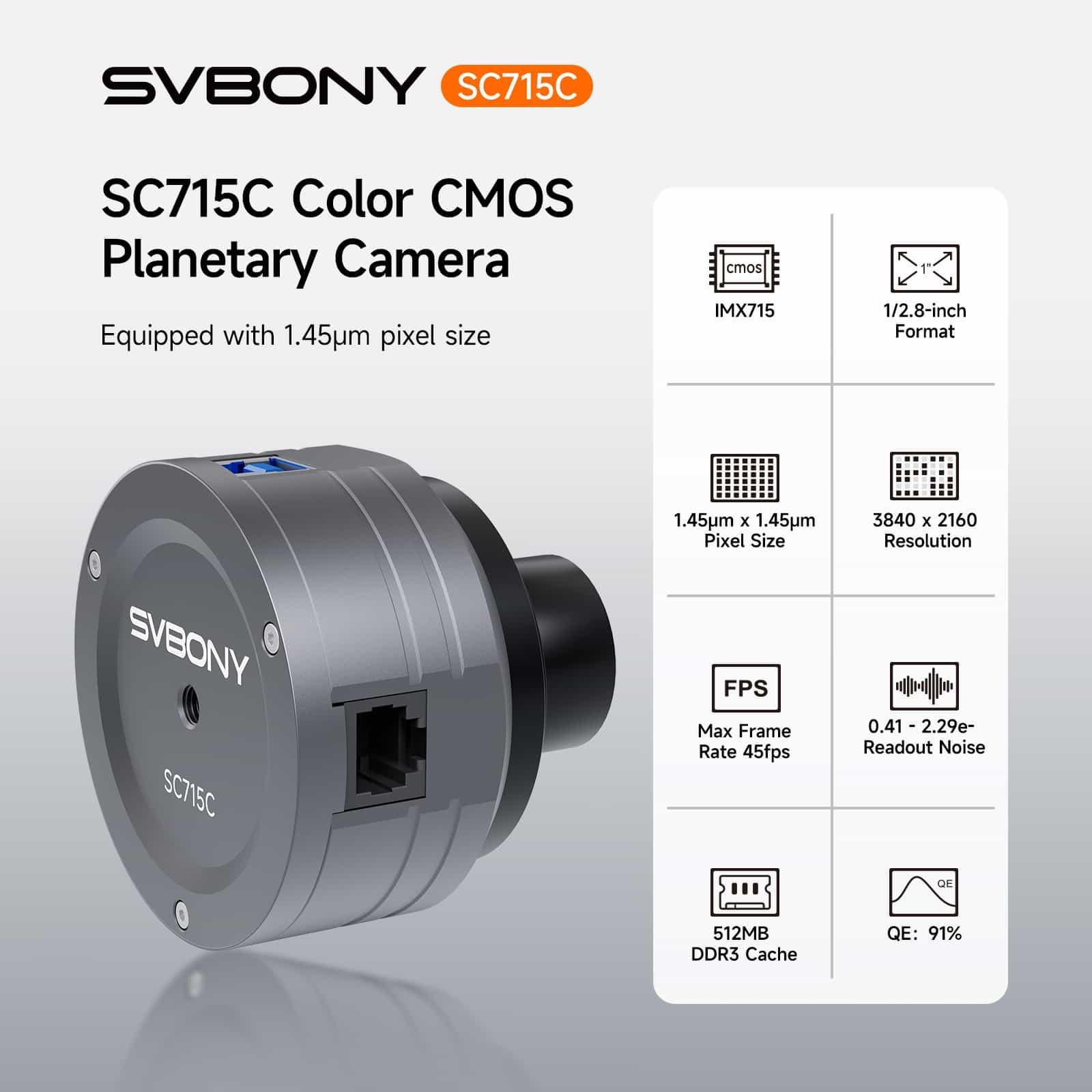

| Brand | Svbony |
| Model | SC715C |
| Material | Aluminum alloy, sandblasted, anodized |
| Color | Iron grey |
| Sensor | SONY IMX715 Color Sensor |
| Processor | FPGA |
| Sensor Size | 1/2.8 inch |
| Diagonal Length | 6.39mm |
| Resolution | 8.4 Mega Pixels (3840 * 2160) |
| Pixel Size | 1.45um * 1.45um |
| Pixel Depth | 12bit |
| Shutter Type | Electric Rolling Shutter |
| Dynamic Range | 72.8dB (1-12 stops) |
| Exposure Time | 0.1ms to 1000s |
| Readout Noise | 0.41-2.29e- |

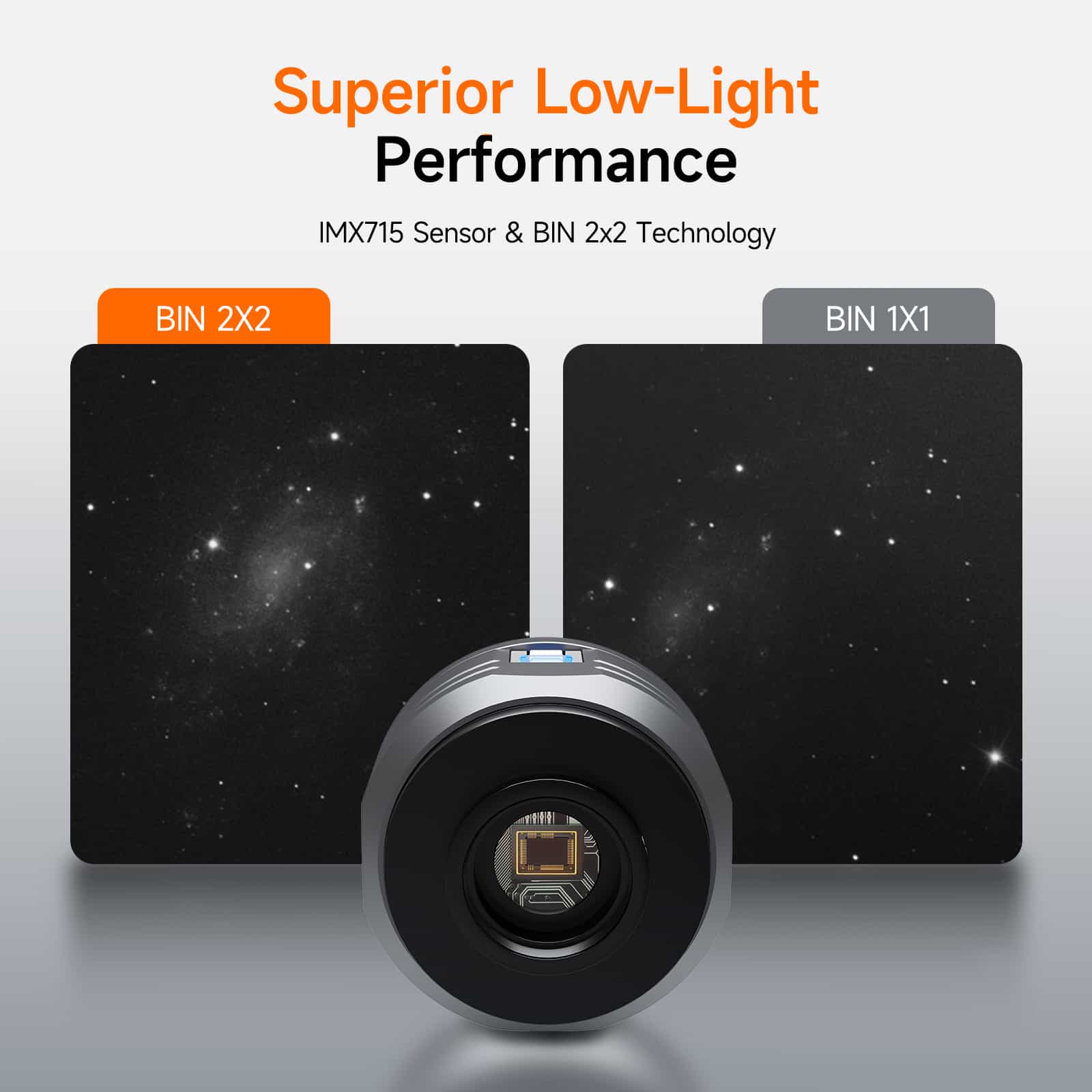

| Pixel Binning | 1x1, 2x2 |
| Data Cable | USB 3.0 B-Type data cable |
| Autoguider Cable | Autoguider data cable |
| Camera Interface 1 | USB 3.0 B-Type data interface |
| Camera Interface 2 | ST4 autoguider interface |
| Camera Interface 3 | 1/4 inch thread at the rear, for mounting on a camera tripod |
| Camera Interface 4 | Front M42 male thread |

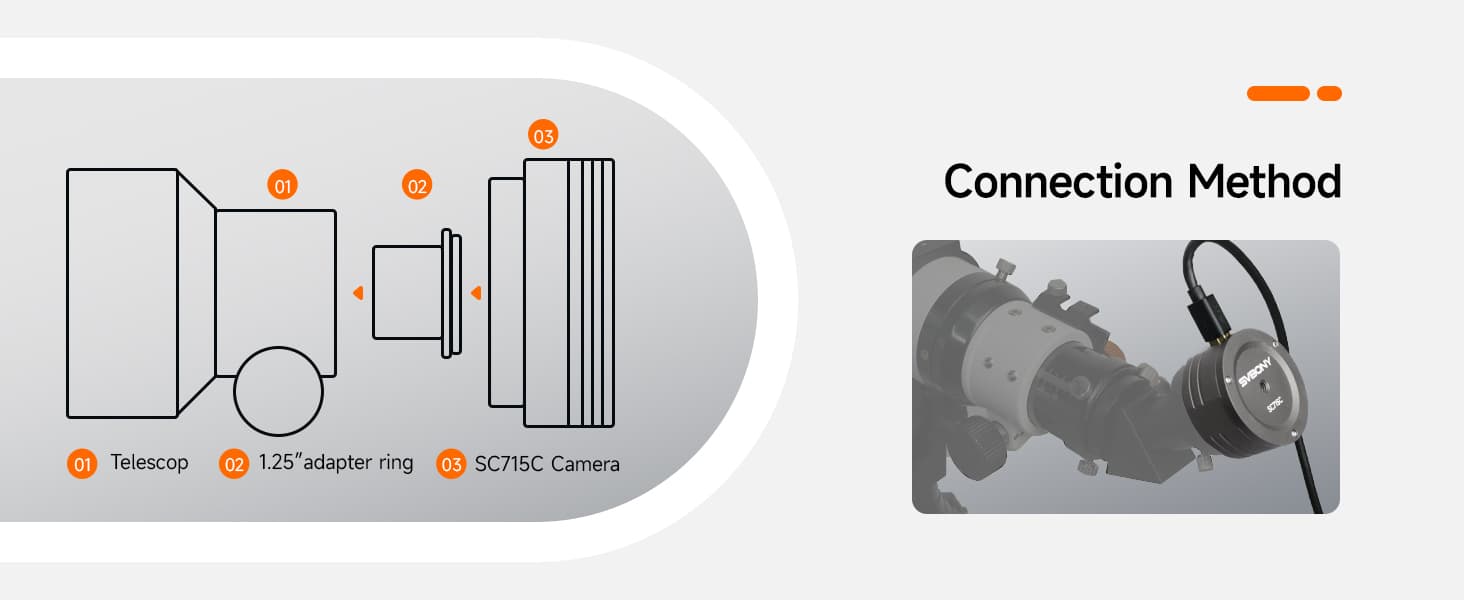

| Adapter 1 | M42 female thread to CS thread |
| Adapter 2 | M42 female thread to M42 female thread |
| Adapter 3 | M42 male thread to 1.25 inch barrel (1.25'' female thread) |
| Adapter 4 | CS-C 5mm adapter |

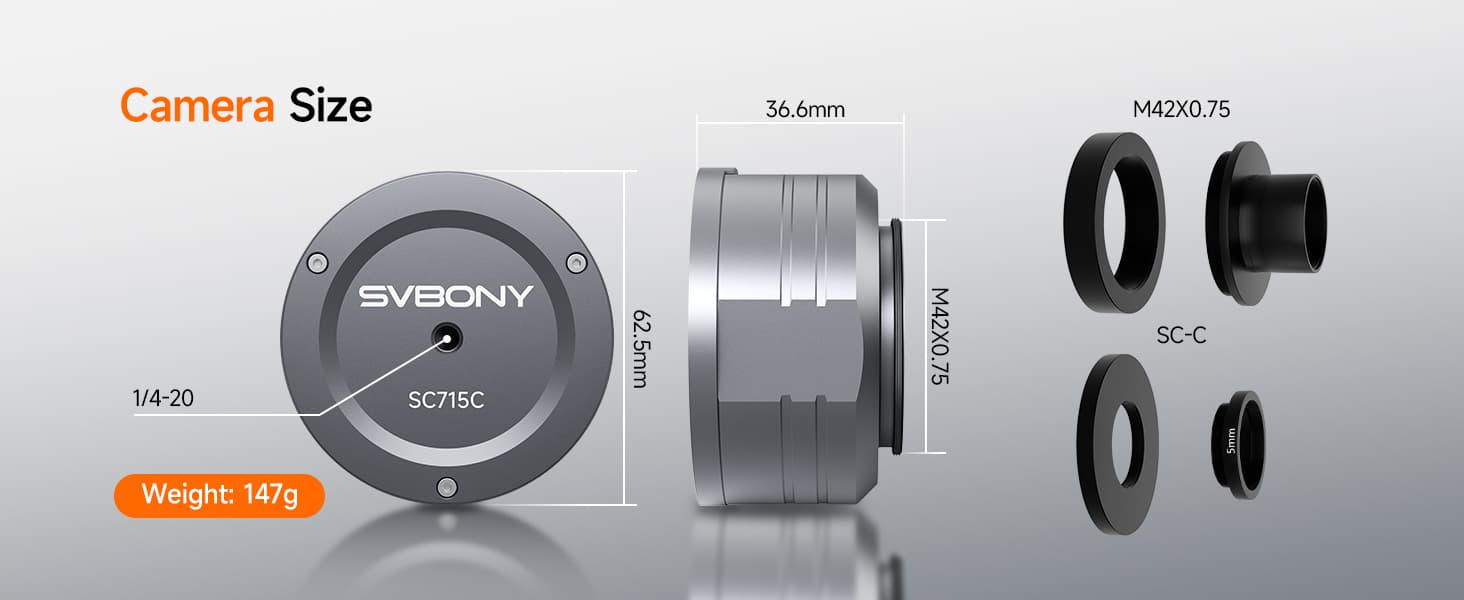

| Weight | 147g (body only) |
Feature

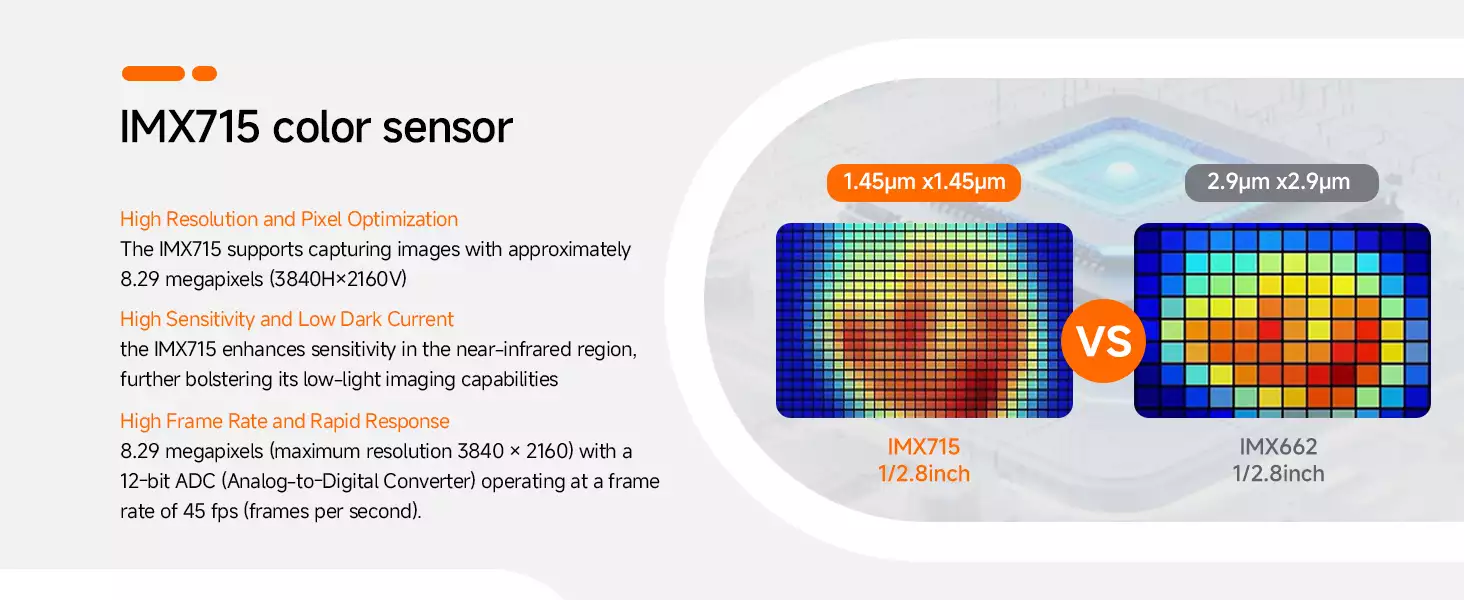

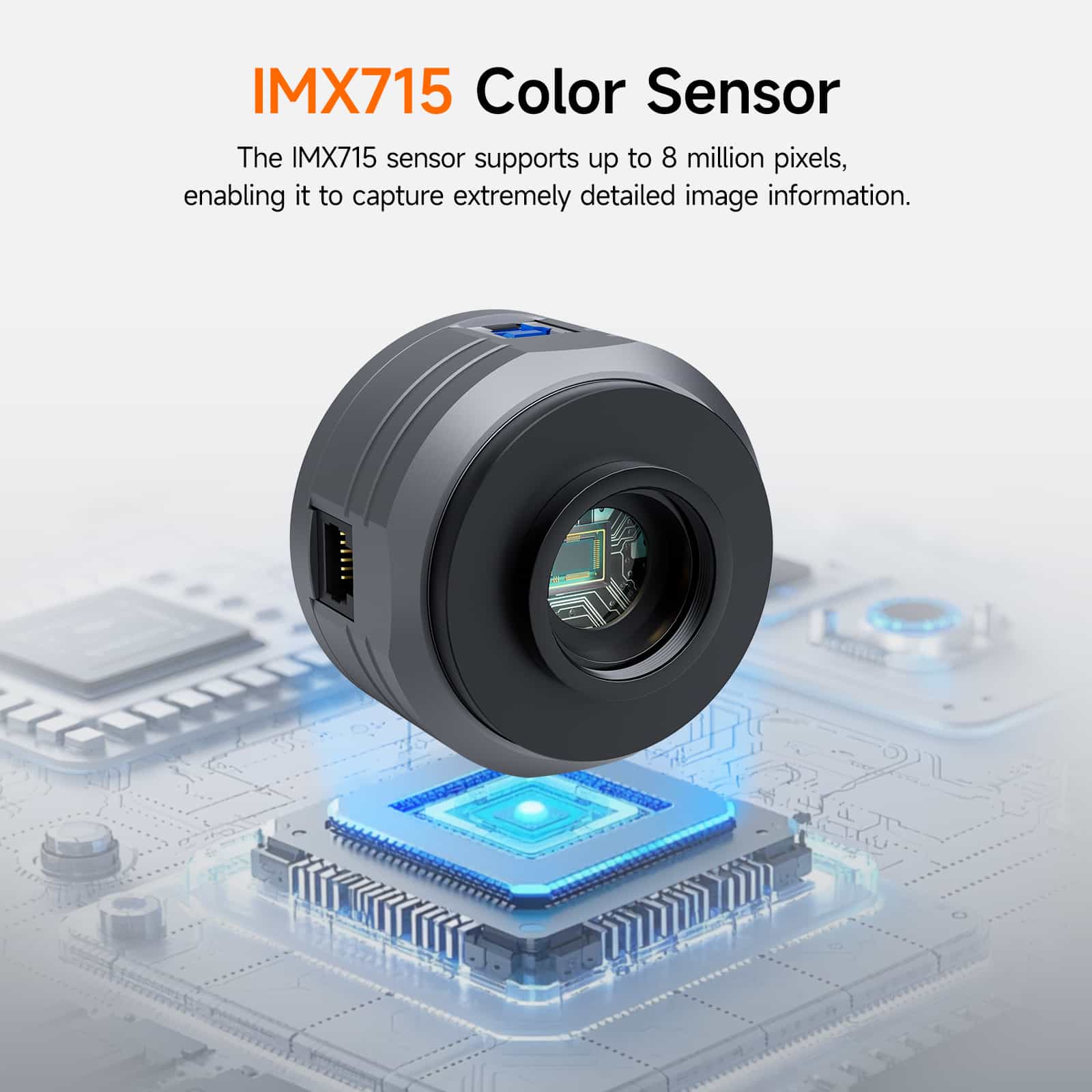

IMX715 Color Sensor-
High Resolution and Pixel Optimization: The IMX715 supports capturing images with approximately 8.29 megapixels.
High Sensitivity and Low Dark Current: The IMX715 enhances sensitivity in the near-infrared region, further bolstering its low-light imaging capabilities.
High Frame Rate and Rapid Response: The IMX715 maximum frame rate of 60.3 frames per second 12-bit or 90.9 frames per seconed 10-bit.

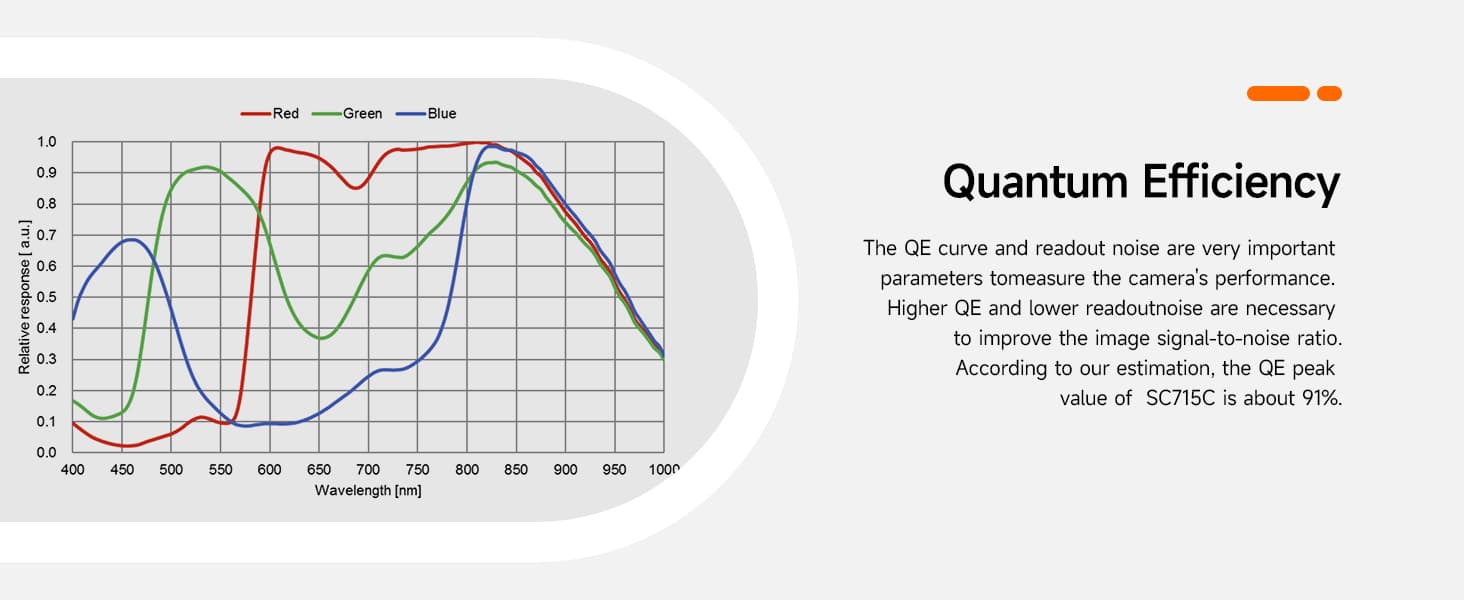

Quantum Efficiency-
The QE curve and readout noise are very important parameters tomeasure the performance of the camera. Higher QE and lower readoutnoise are necessory to improve the image signal-to-noise ratio. According to our estimation, the QE perak value of SC715C camera is about 91%.

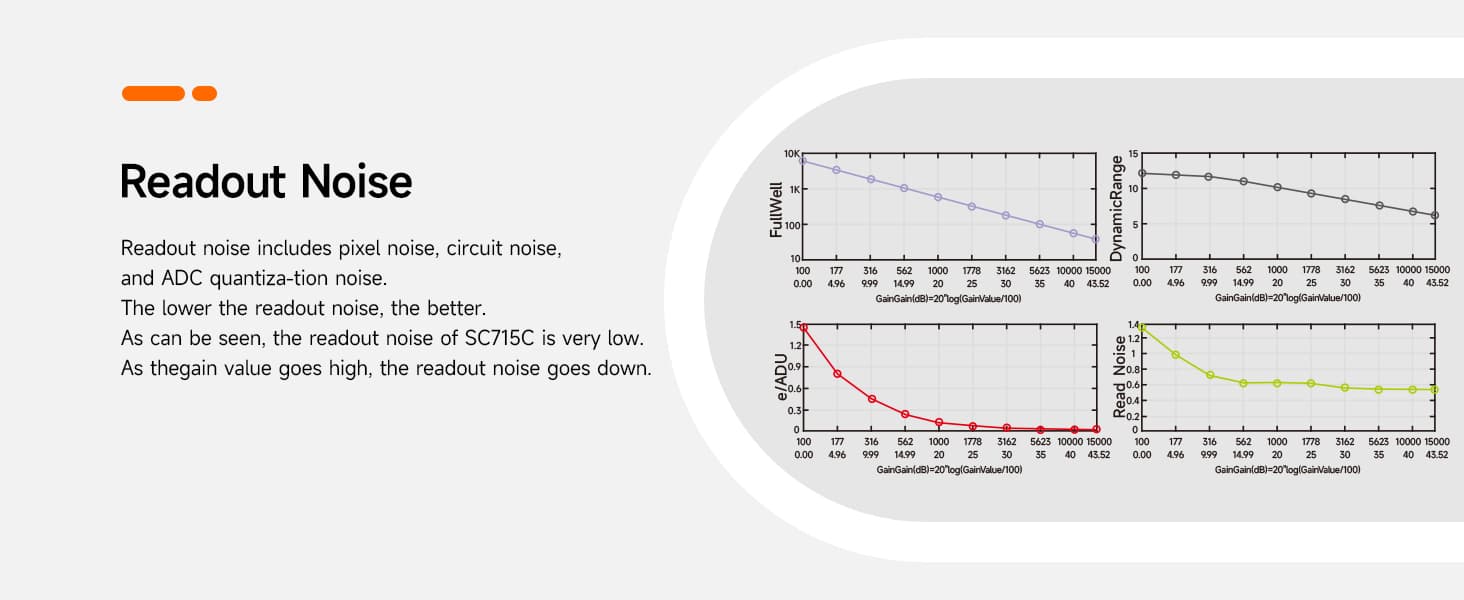

Readout Noise-
Readout noise includes pixel noise, circuit noise, and ADC quantiza-tion noise. The lower the readout noise, the better. As can be seen, the readout noise of the SC715C is very low. As the gain value goes high, the readout noise goes down.

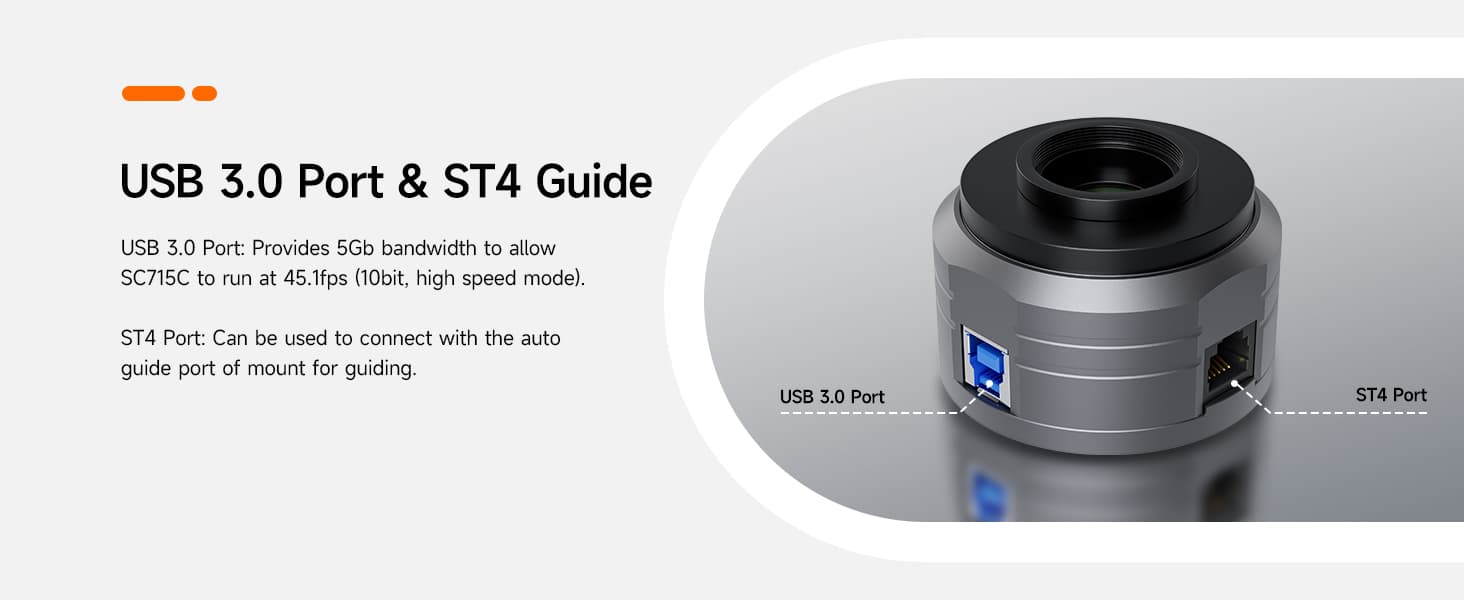

USB 3.0 Port & ST4 Guide-
USB 3.0 Port provides 5Gb bandwidth to allow SC715C to run at 45.1fps (10bit, high speed mode).
ST4 Port can be used to connect with the quto guide port of mount for guiding.

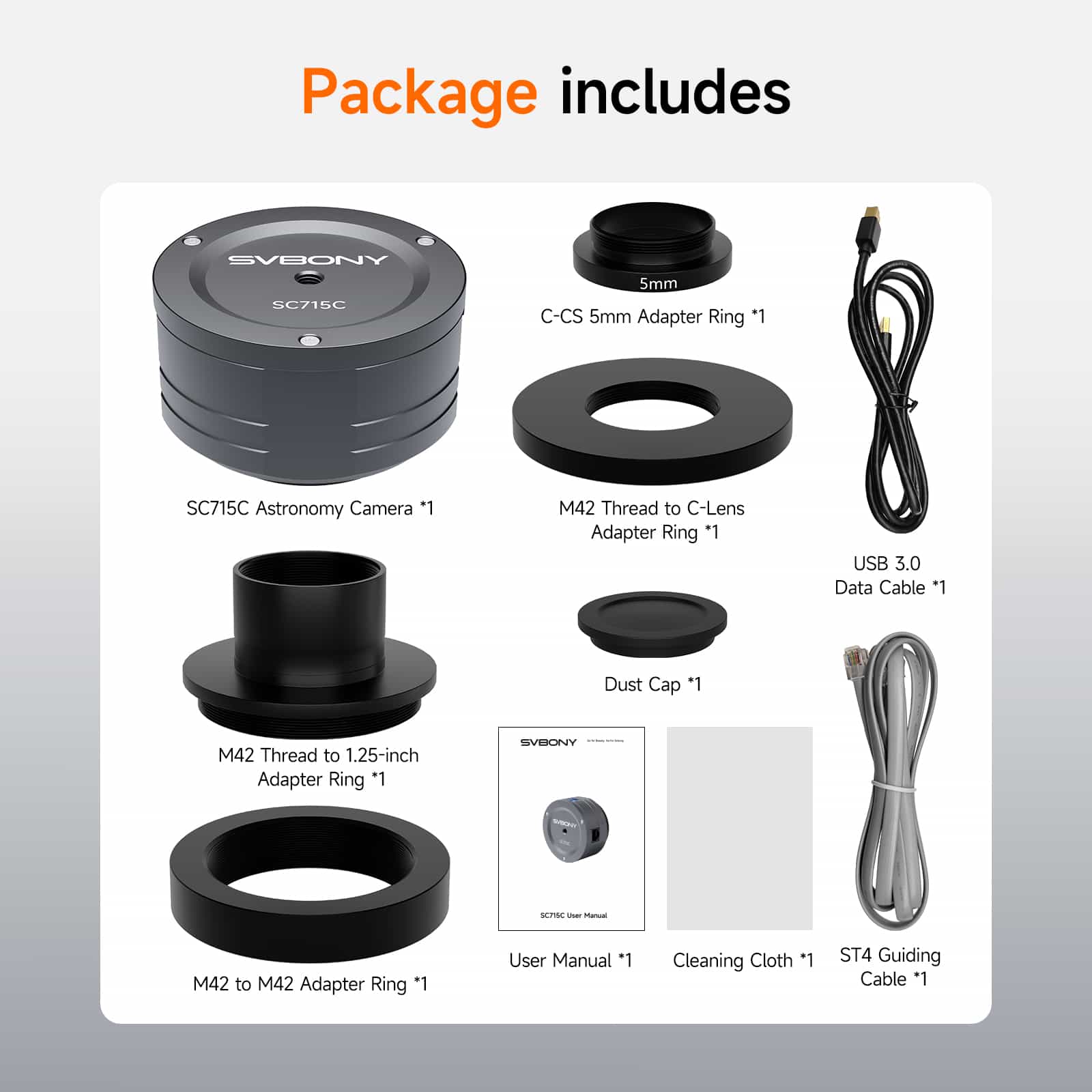

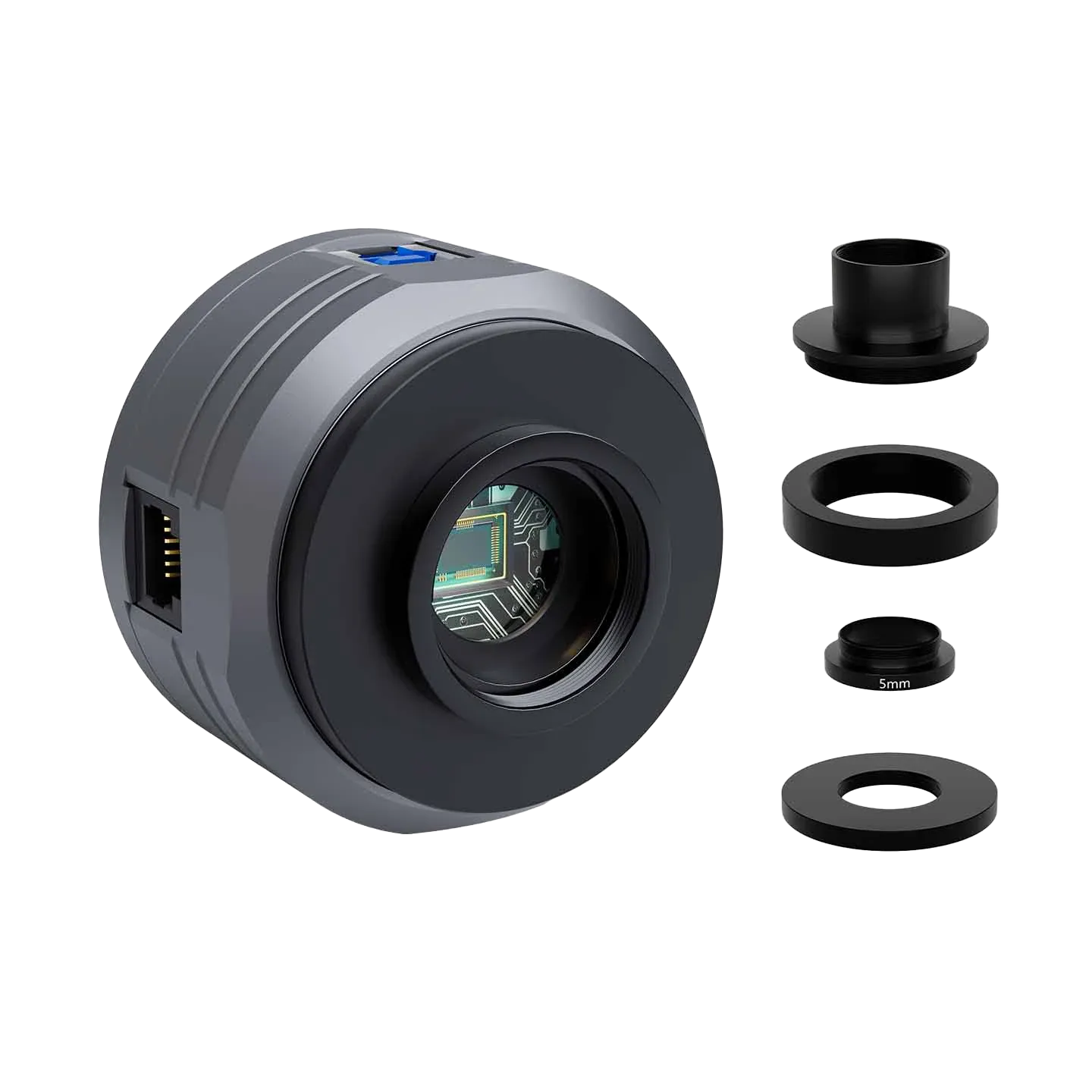

Package Includes
- SC715C Astronomy Camera *1
M42 Thread to 1.25-inch Adapter Ring *1
M42 to M42 Adapter Ring *1
C-CS 5mm Adapter Ring *1
M42 Thread to C-Lens Adapter Ring *1
Dust Cap *1
USB 3.0 Data Cable *1
ST4 Guiding Cable *1
Cleaning Cloth *1
User Manual *1 -
