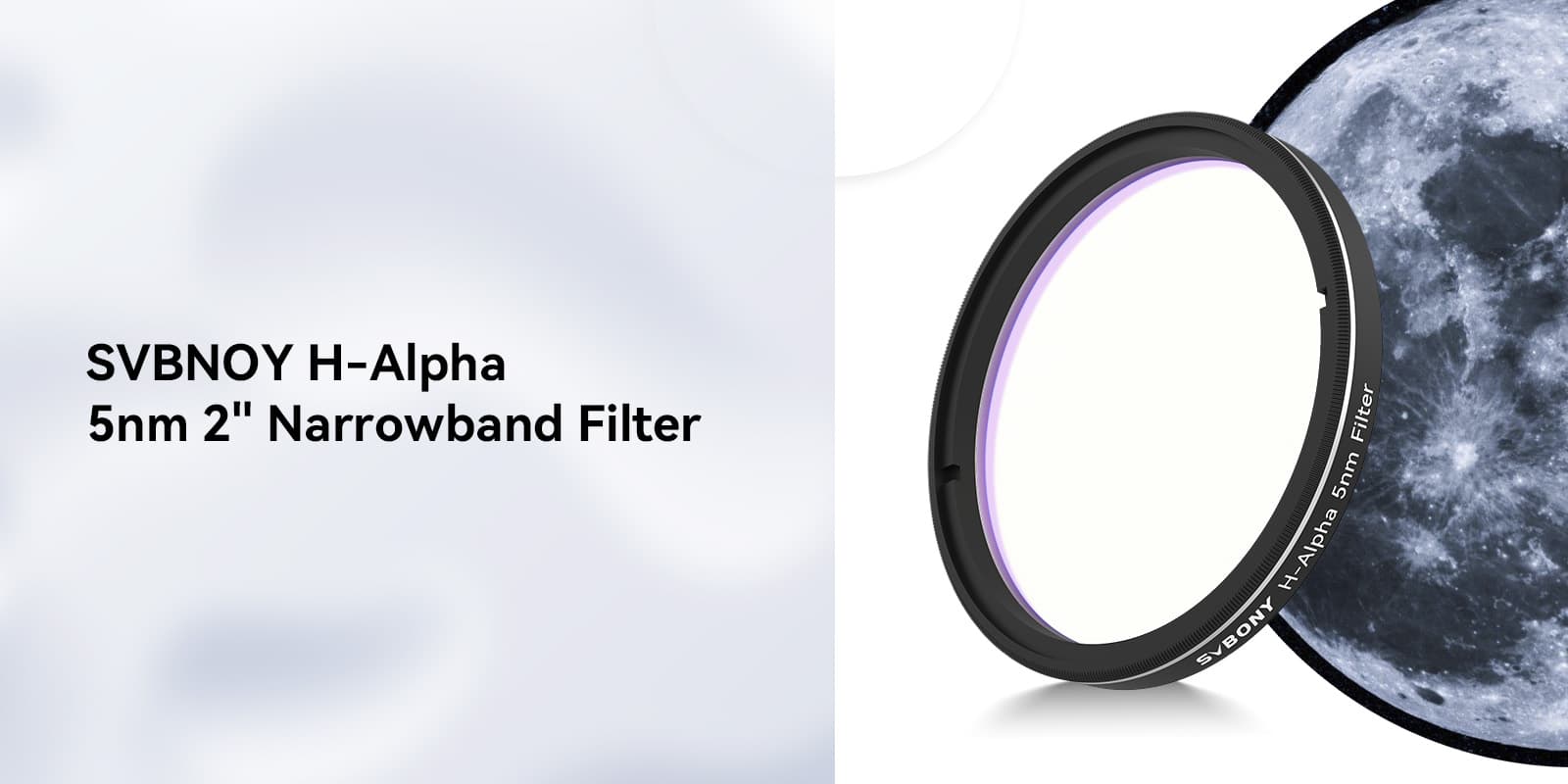

SV227 H-Alpha 5nm Filter 2" Narrowband Astronomical Photographic CCD for Deep Sky
1 | Reviews- SVBNOY H-Alpha 5nm 2" Filter blocks the transmission of contrast-killing light pollution wavelengths; improve contrast and detail;
- This H-Alpha filter also blocks infrared wavelengths from 700nm to 1000nm so you don't need a separate IR-Cut filter

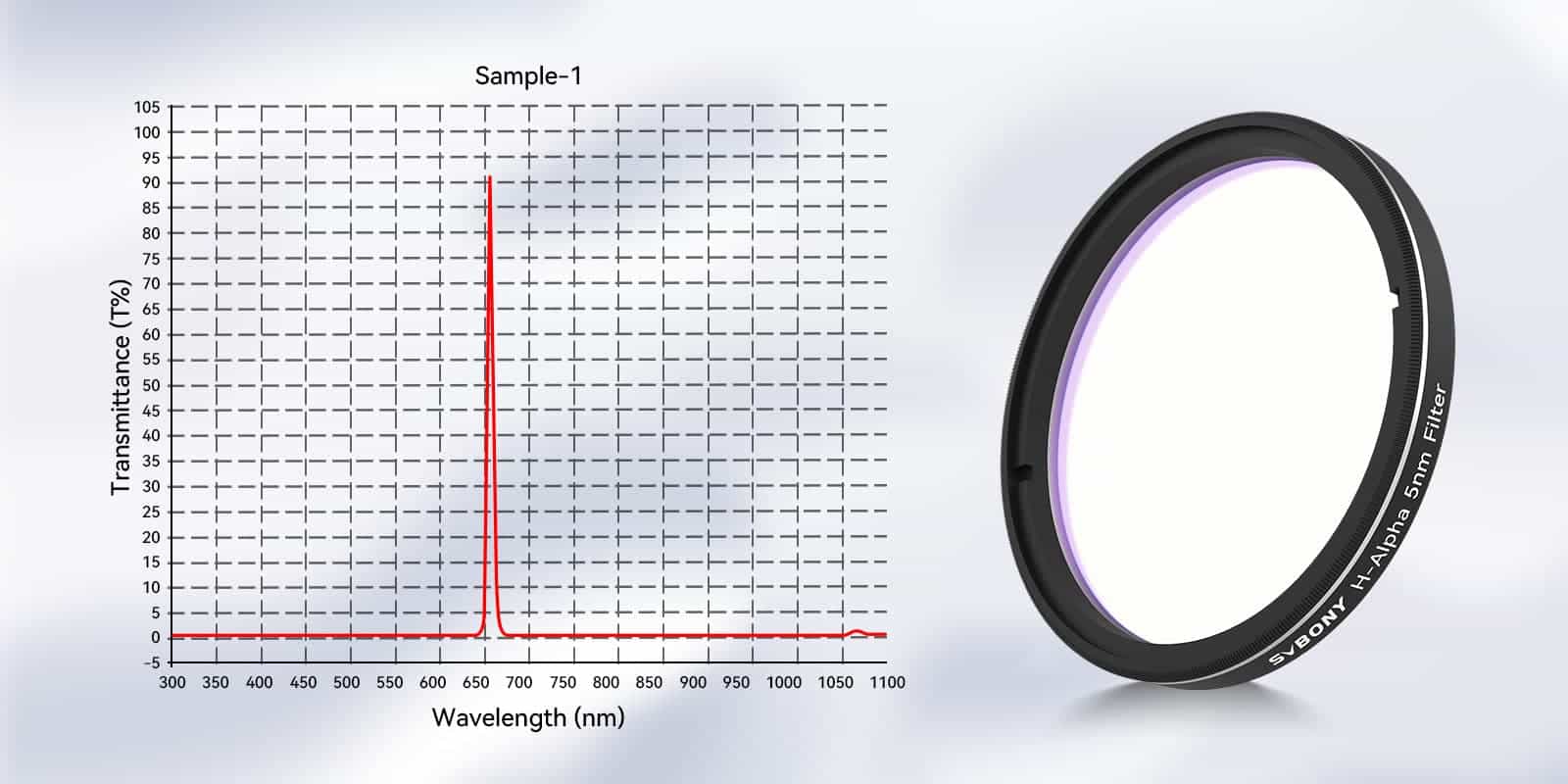

- Allowing 5nm bandwidth of light centered on a wavelength of 656.3nm to pass through; 90% transmission;
- Astrophotography under a light-polluted night sky can be difficult; the solution is an H-alpha filter; the H-alpha cut-off filter works to filter out a large part of this light pollution;
- 2 inch mounted; the filter can thread directly into the 2 inch barrel of your telescope eyepiece.
Note: This OIII filter is NOT for use on the Sun, and also unsuitable for telescopes with a focal ratio below f/4

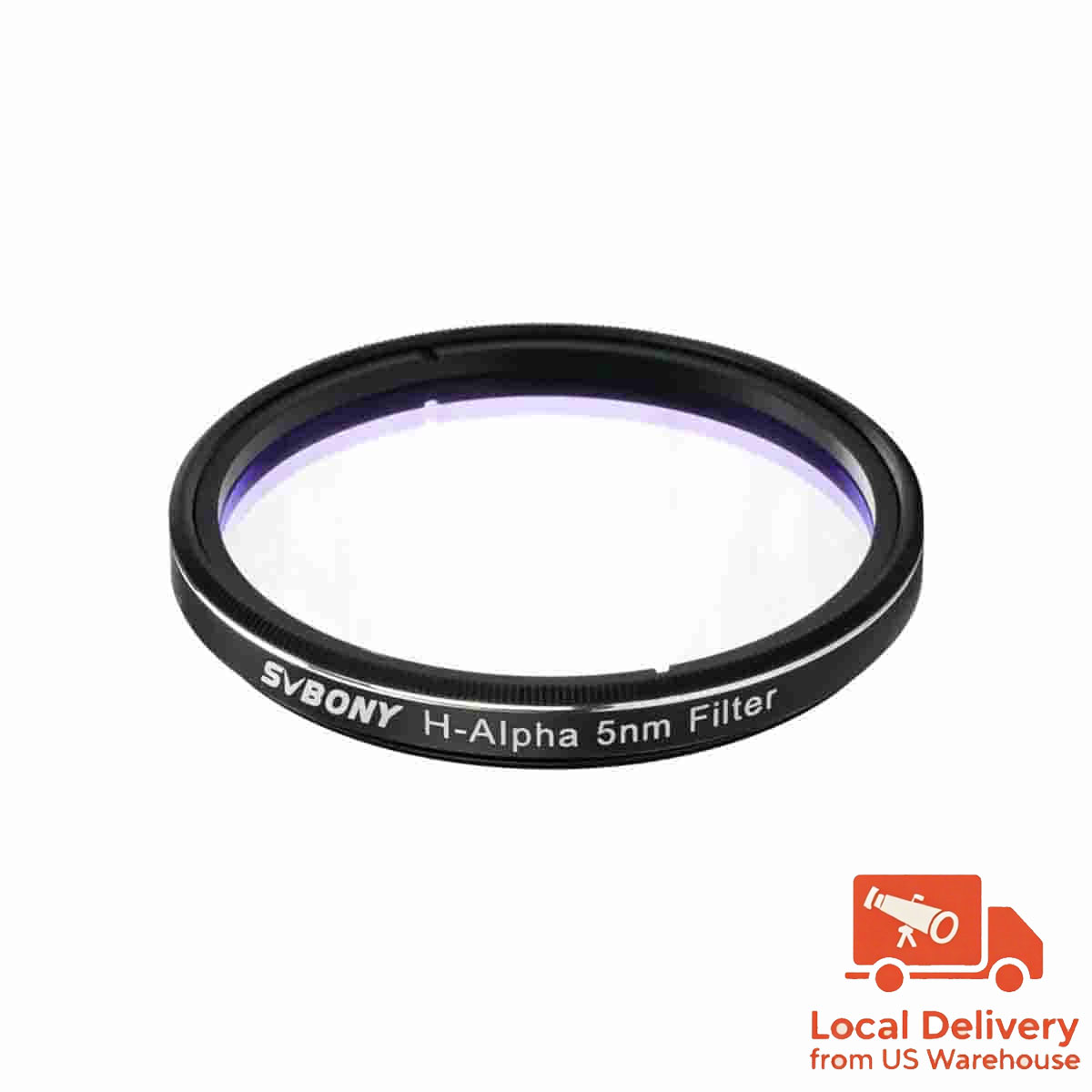

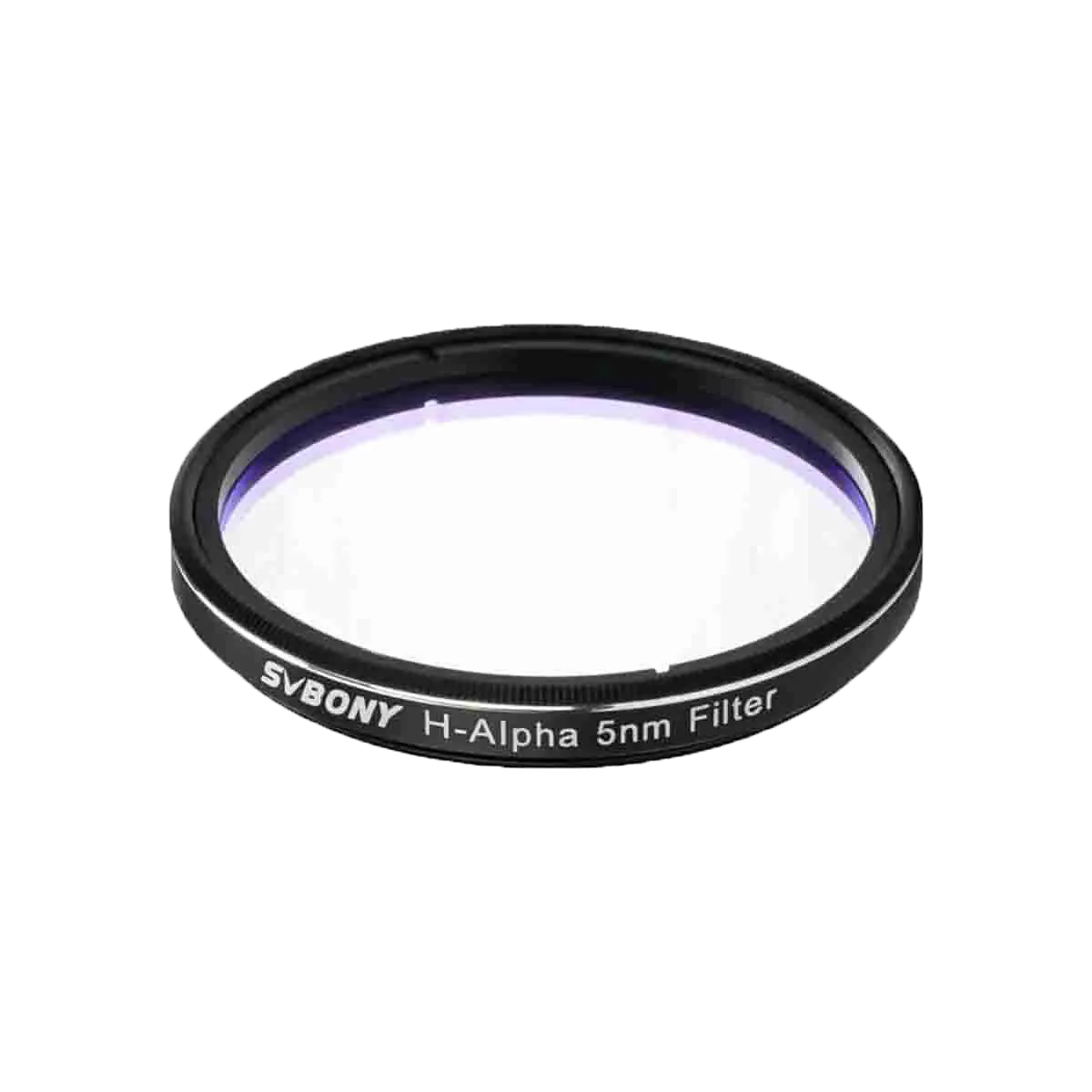

H-Alpha Filter

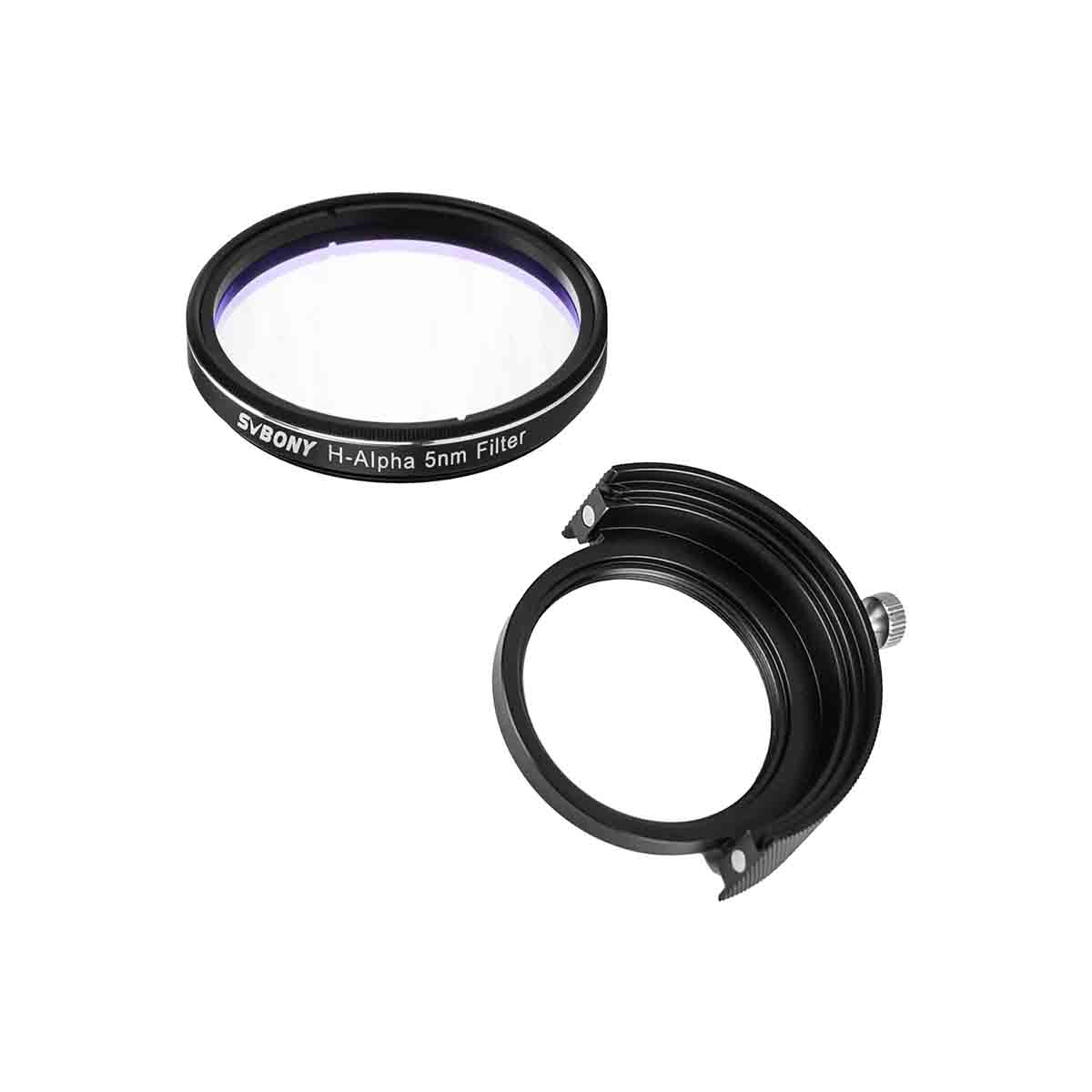

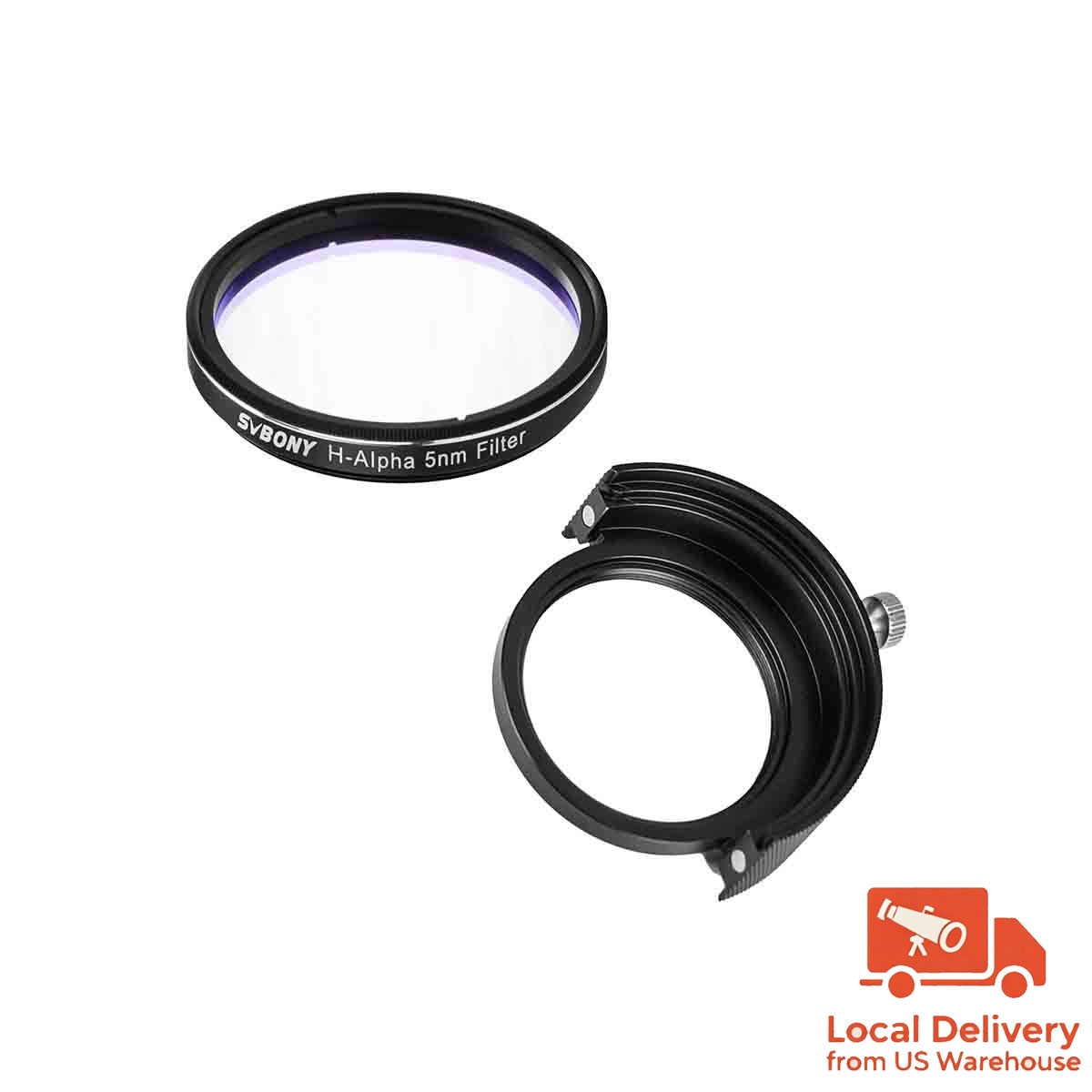

H-Alpha Filter+2-inch Holder
⚡ Shipped: 72 hrs after ordering (Pre-sale products excluded).
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
🔒 Secure Payments | SSL Encrypted
💰️ 30-Day Money-Back Guarantee
🛡️ Hassle-Free Warranty | No Hidden Fees
🎧 Lifetime Customer Support
Customer Reviews
Andy
Aug 29, 2024
Good filter & good price.
| Model | SV227 |
| Type | H-Alpha Filter |

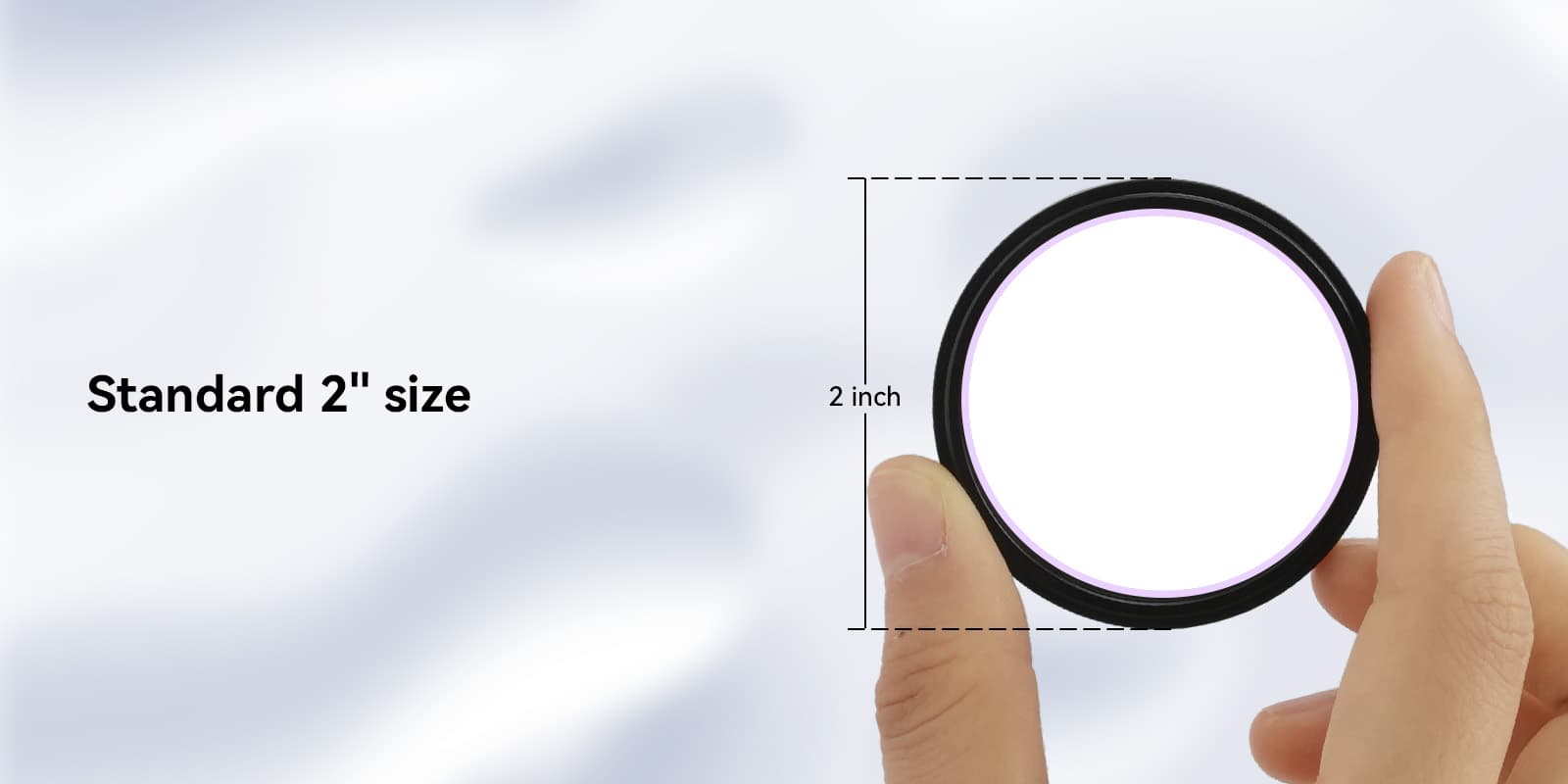

| Size | 2-Inch |

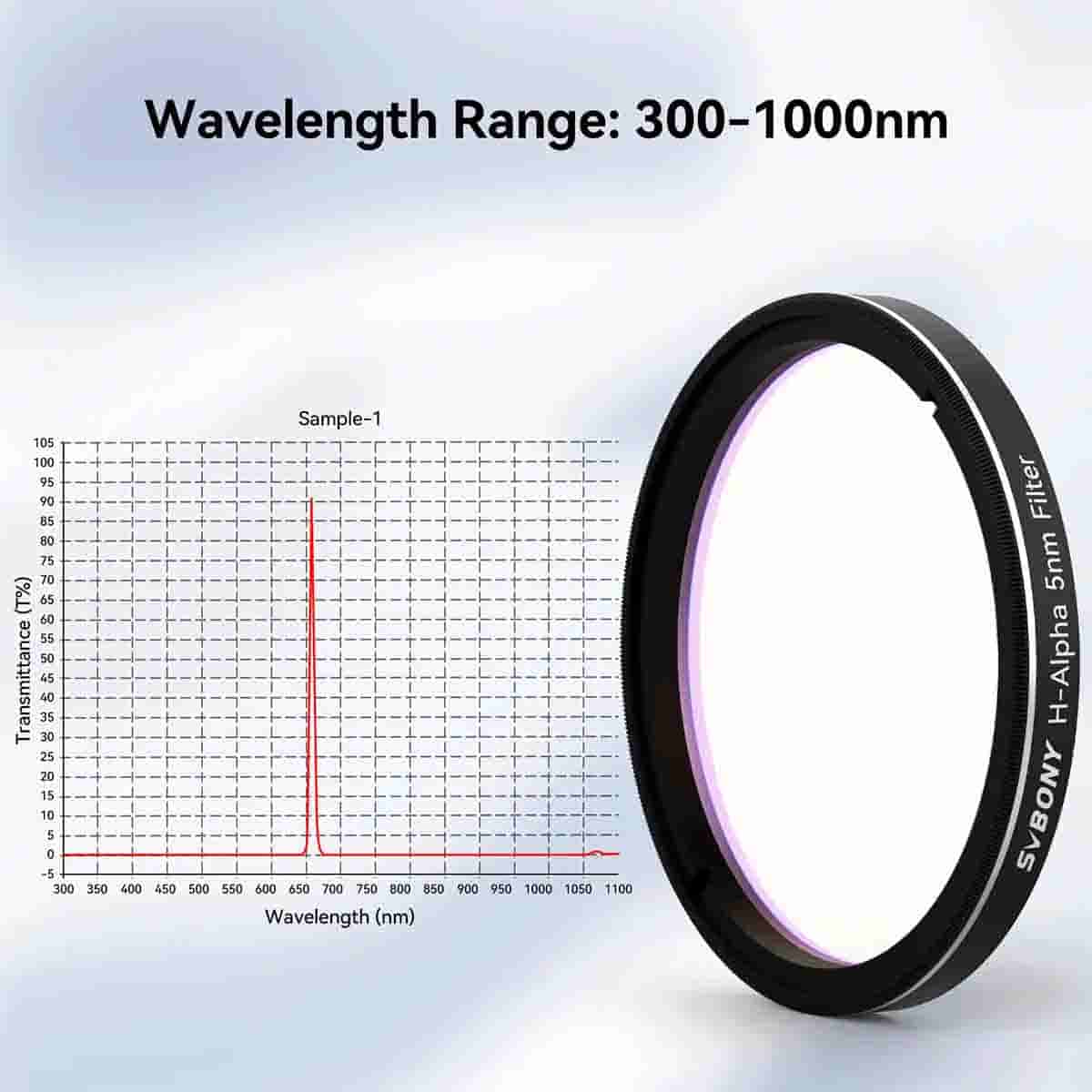

| Wavelength Range | 300-1000nm |

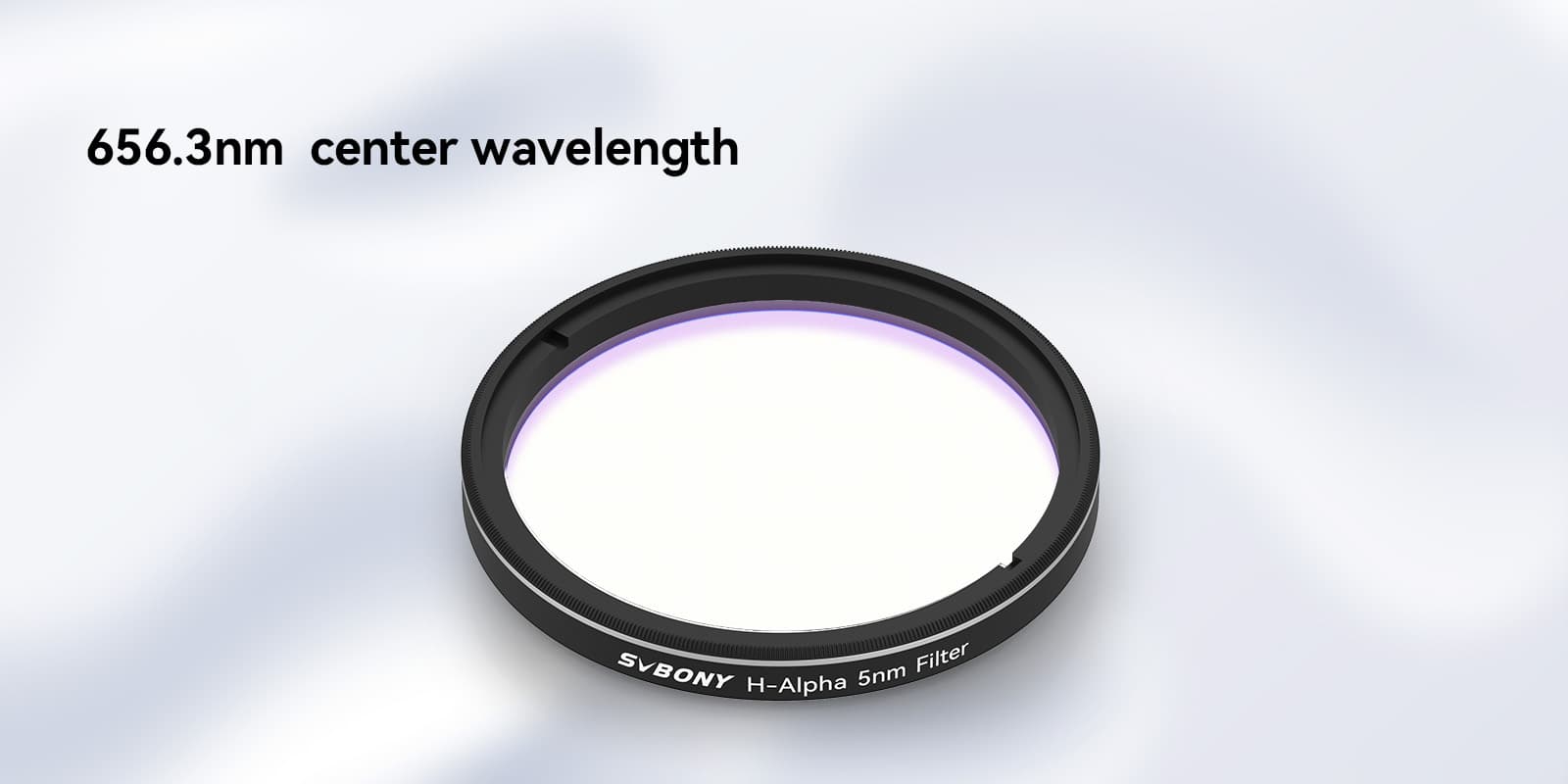

| CWL | 656.3nm |
| FWHM | 5nm |

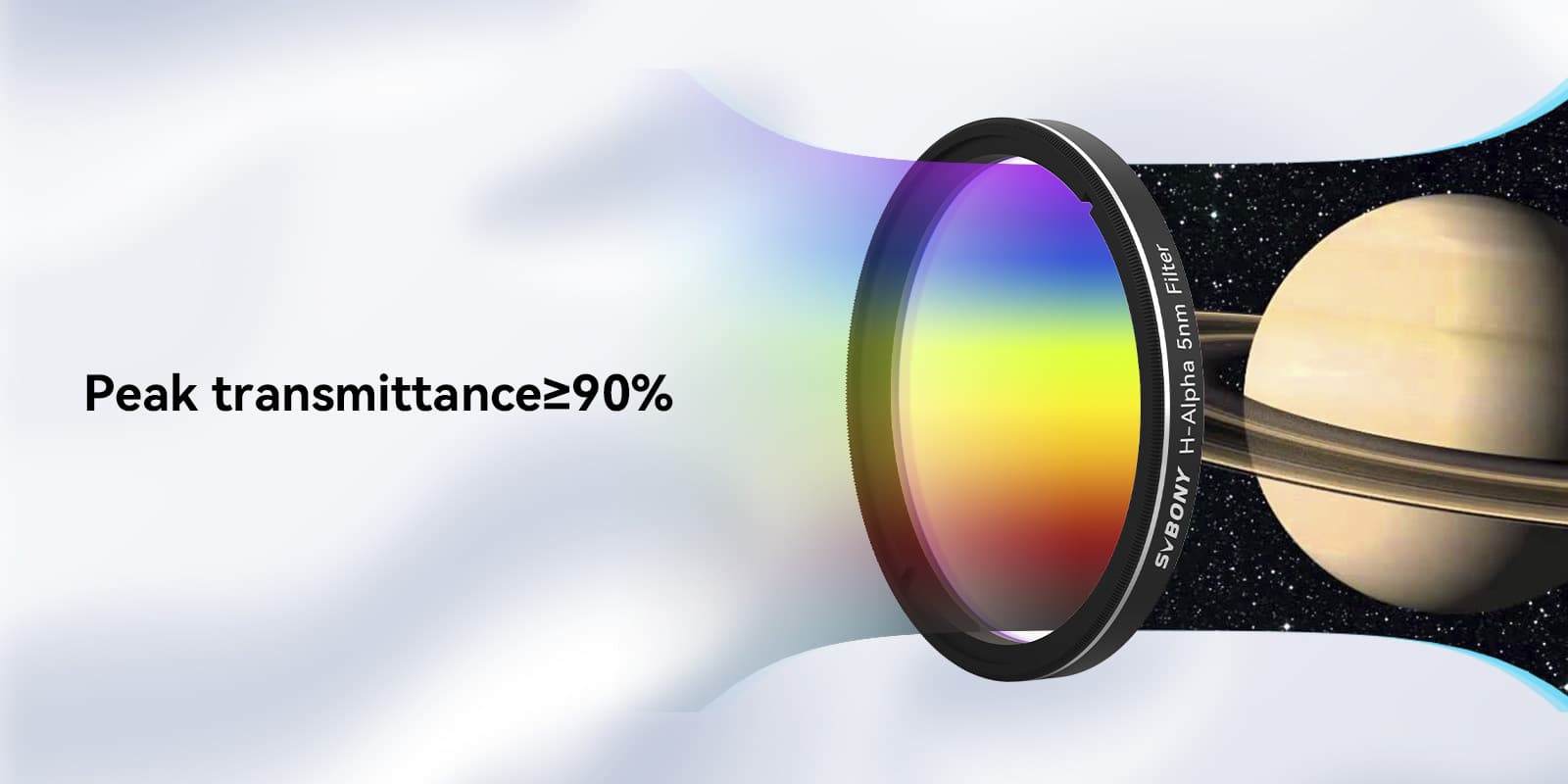

| Peak Transmittance | ≥90% |

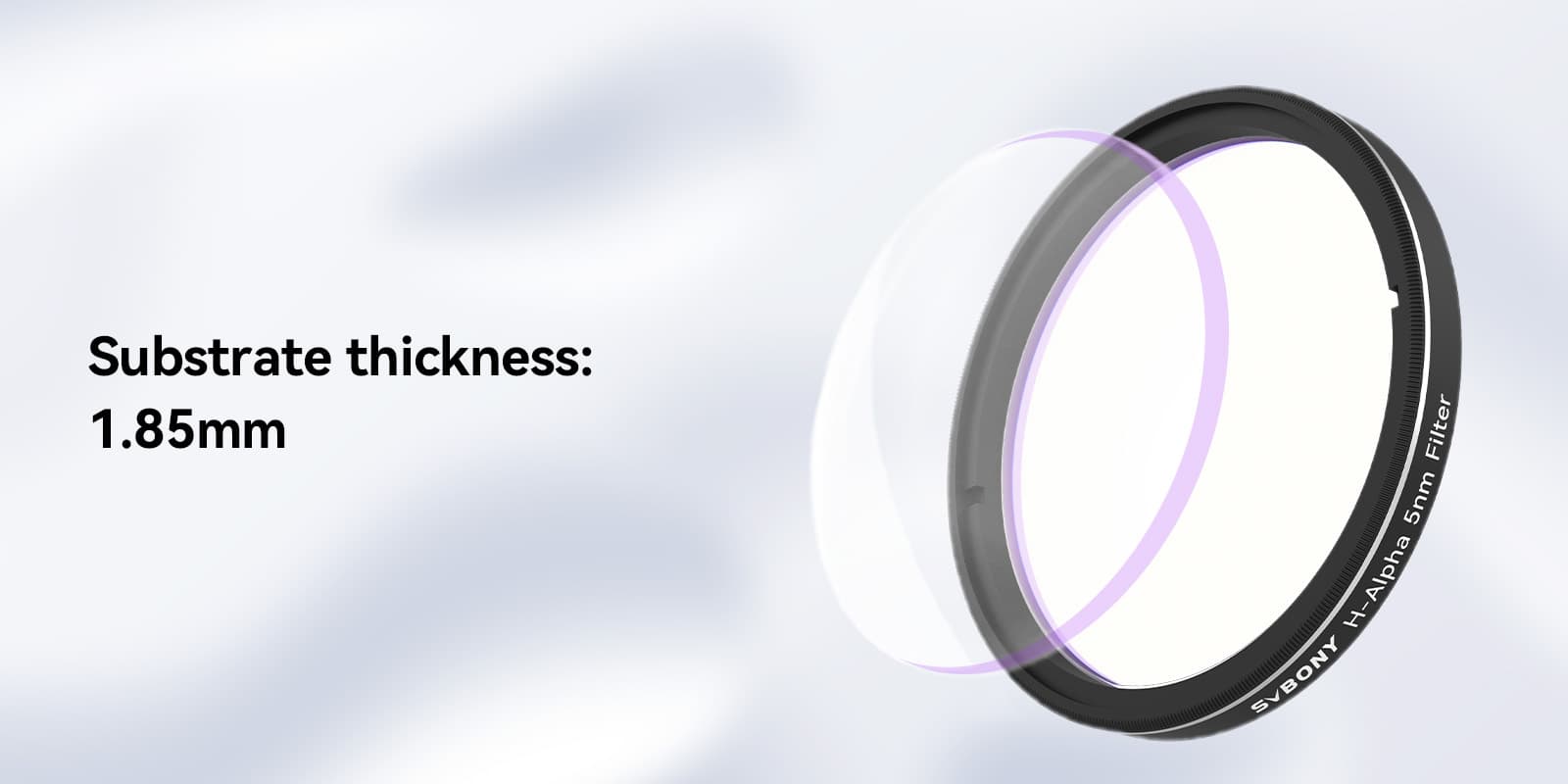

| Substrate Thickness | 1.85mm |

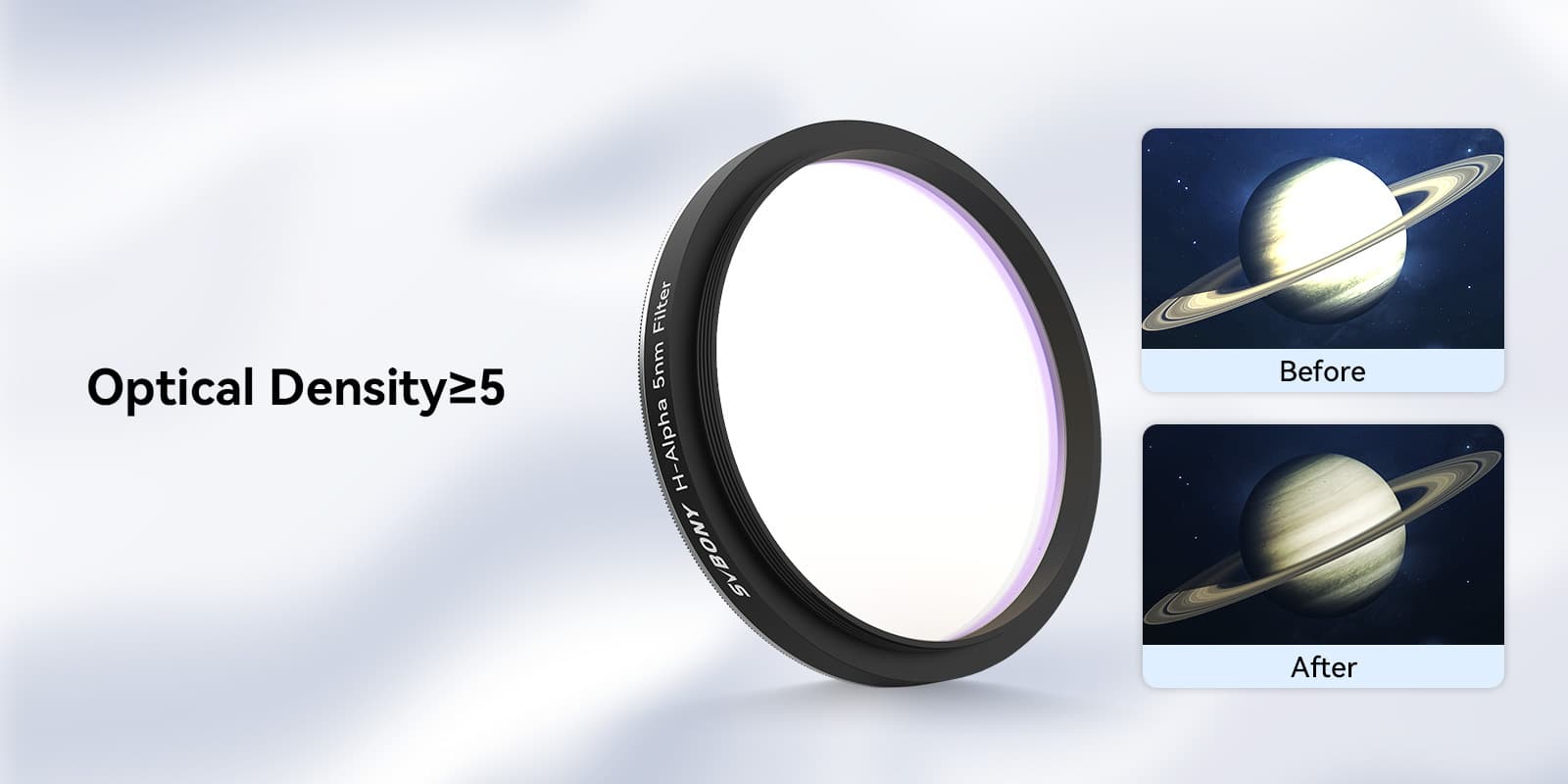

| Blocking | ≥OD5 |
| Clear Aperture | 44mm |
| Surface Quality | 60/40 |
| Surface Pparallelism | 1/4λ |
| Parallelism | 30" |

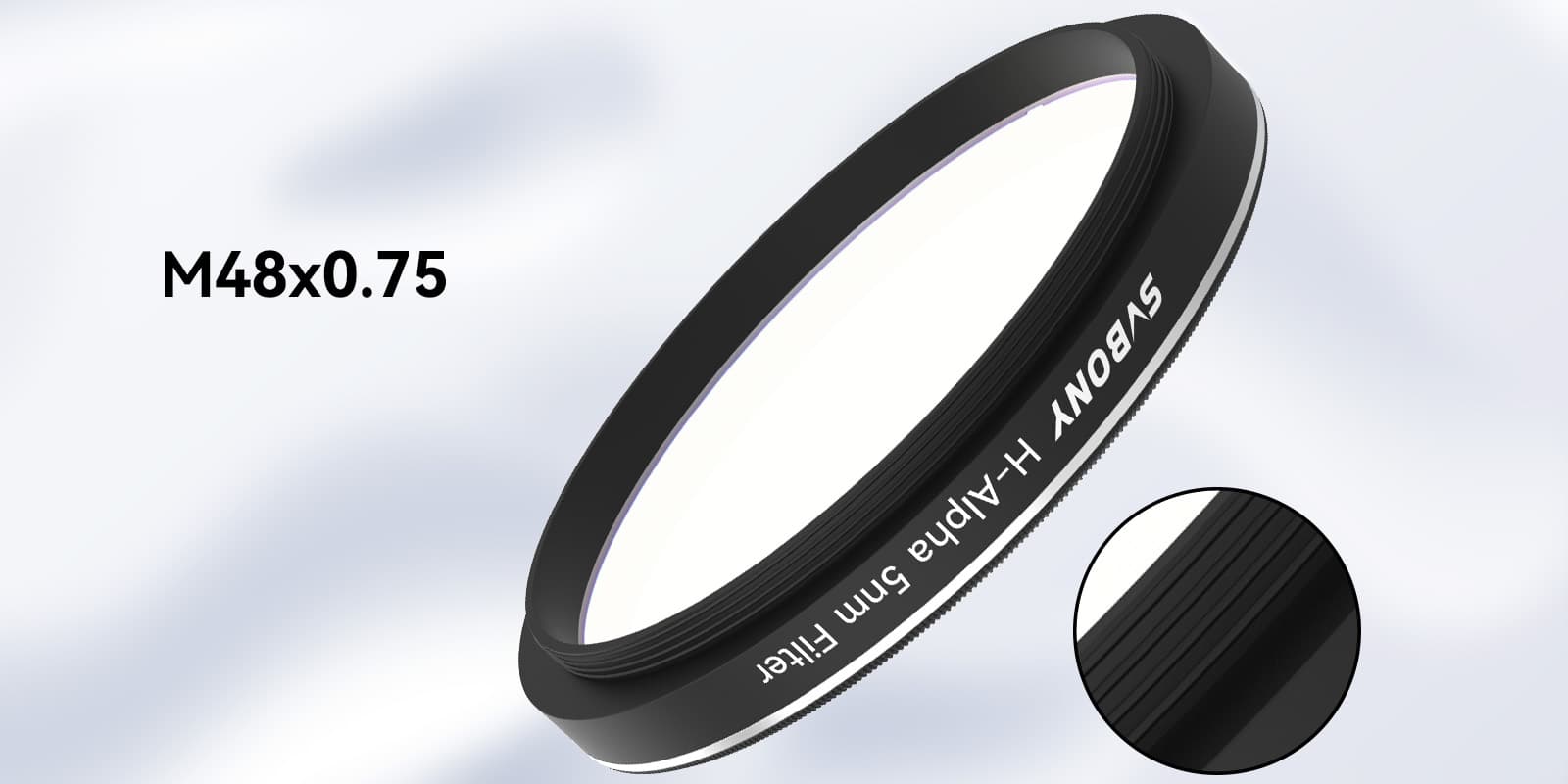

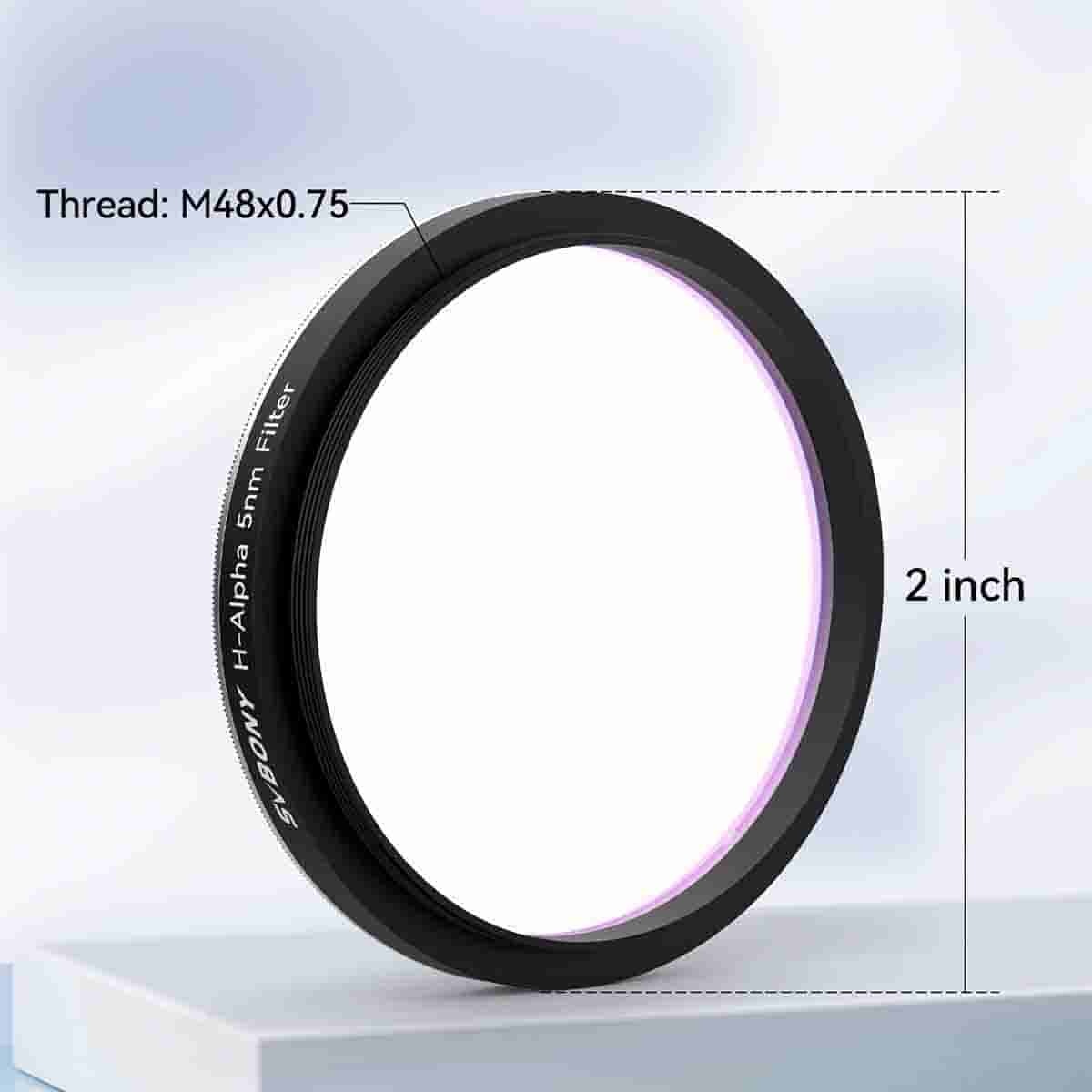

| Thread | M48x0.75 |
| Single Thread | Yes |
| Net Weight | 12.5g / 0.44oz/0.027lb |
Features
- 1. H-Alpha CCD narrow band filter reduces other transmissions, including wavelengths of light that are responsible for light pollution (both artificial and natural);
- 2. 300-1000nm Wavelength Range; the SVBONY Sulfur II 5nm Extra Narrowband Filter transmits a 5nm bandwidth of light that is centered at 656.3nm;
- 3. German imported glass; multiple layers of anti-reflection non-cementing coatings applied via electron-beam gun evaporation with Ion-assisted deposition;
- 4. CNC machined and black anodized aero-metal filter cell that is ultra-thin to provide largest clear aperture; Laser-engraved to prevent fading;
- 5. 2 inch mounted; metal filter cell threads directly into the 2 inch barrel of your telescope eyepiece.
