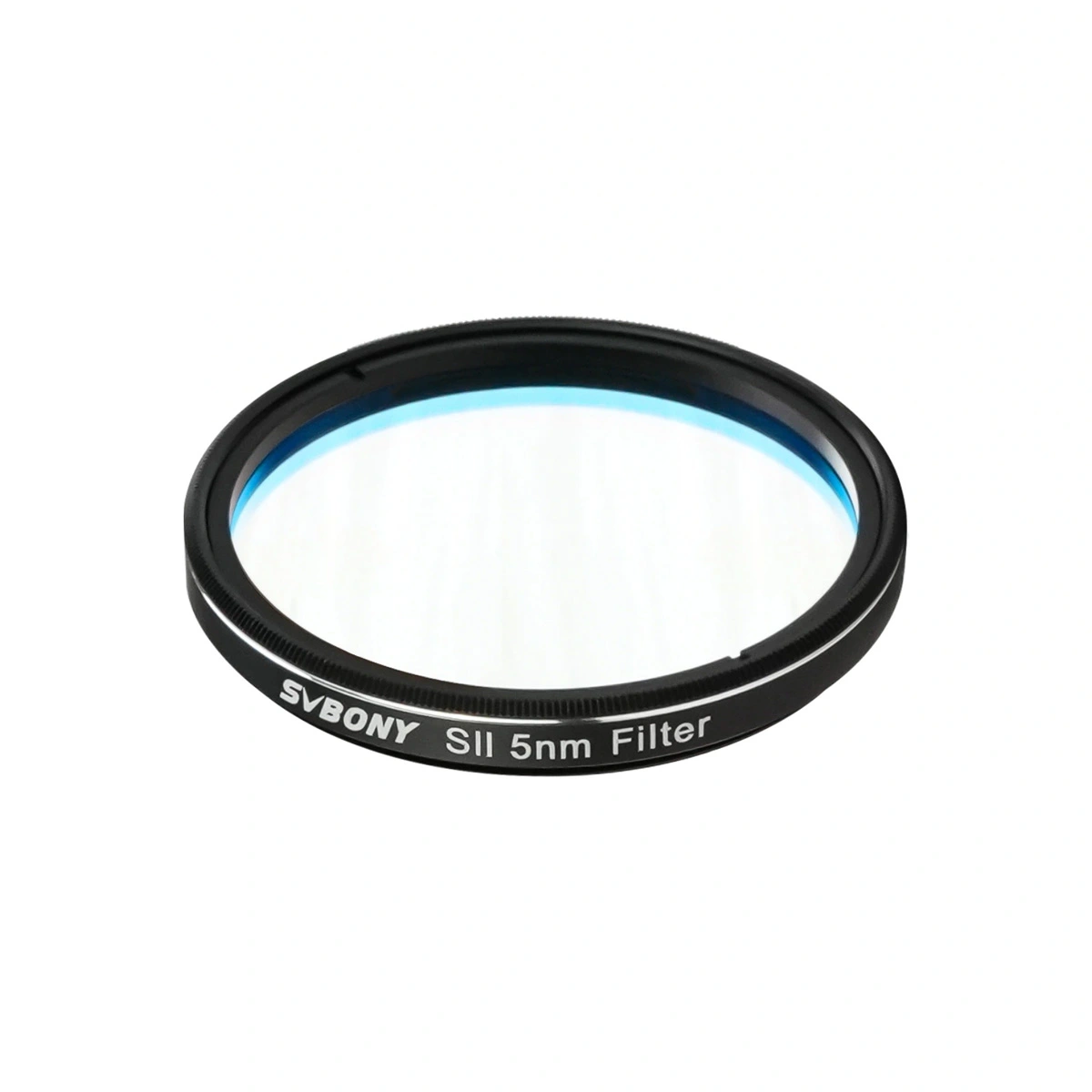

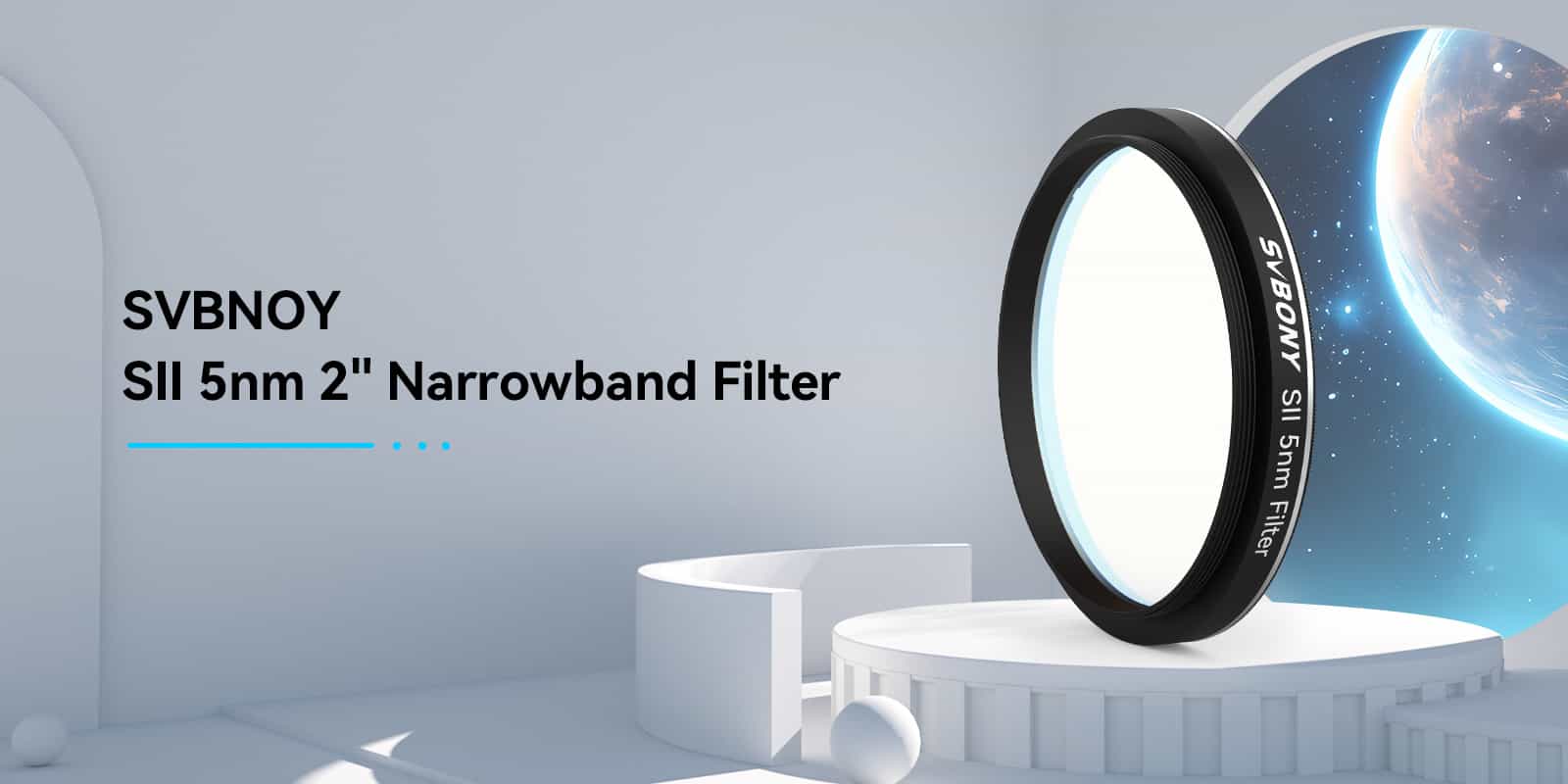

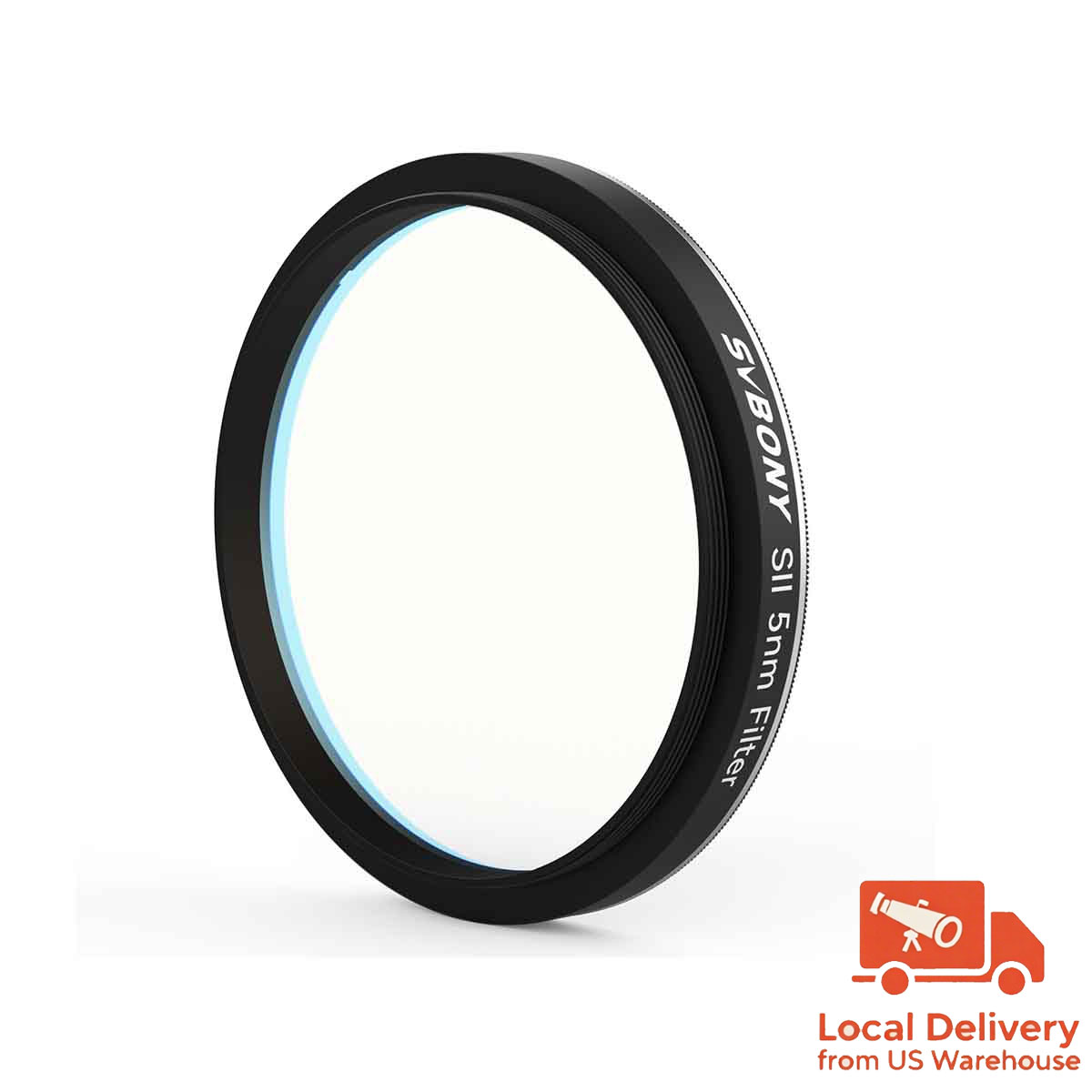

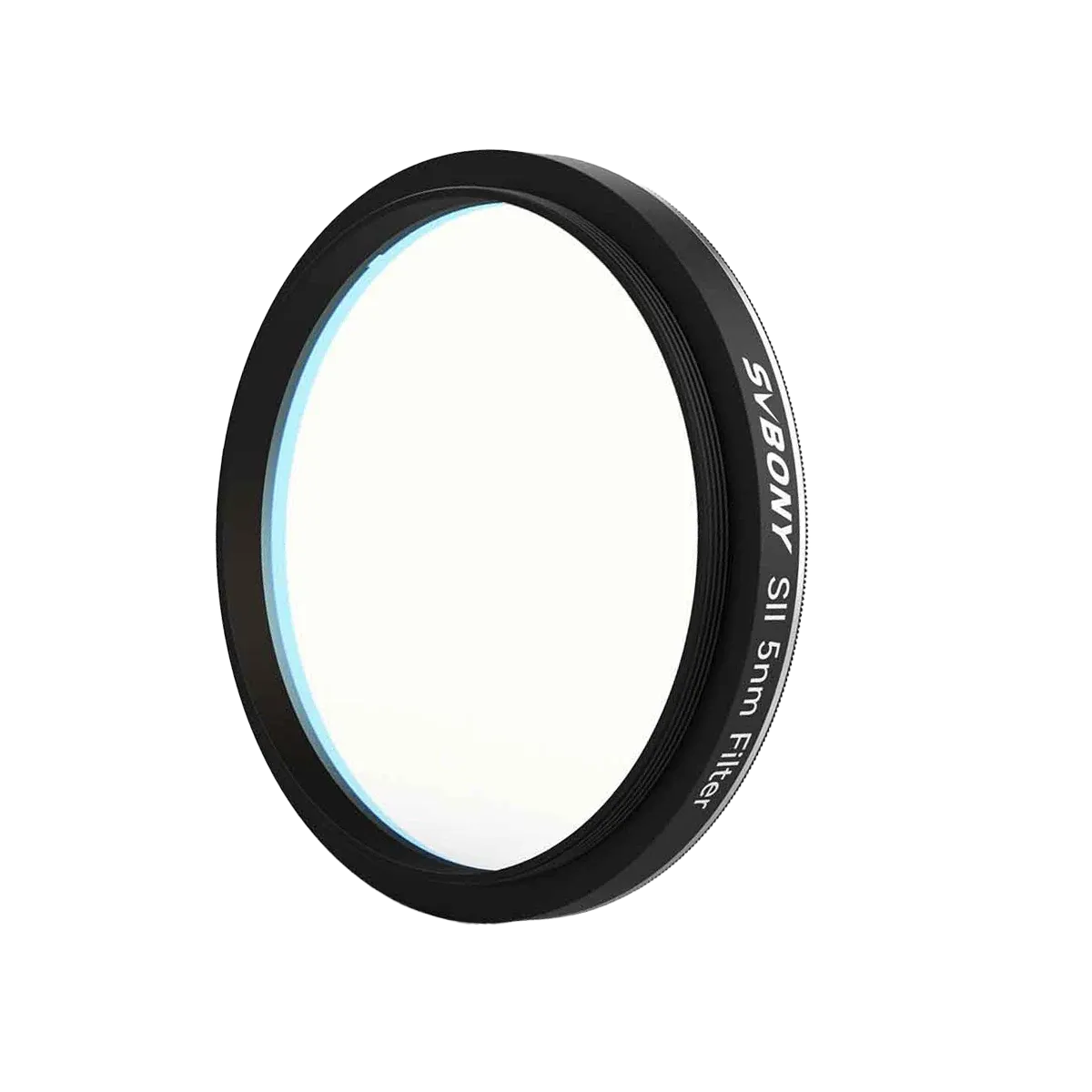

SV227 SII 5nm 2" Filter Narrowband Astronomical Photographic CCD Filter for Deep Sky
- The SV227 SII filter blocks infrared wavelengths from 700nm to 1000nm so you don't need a separate IR-Cut filter;

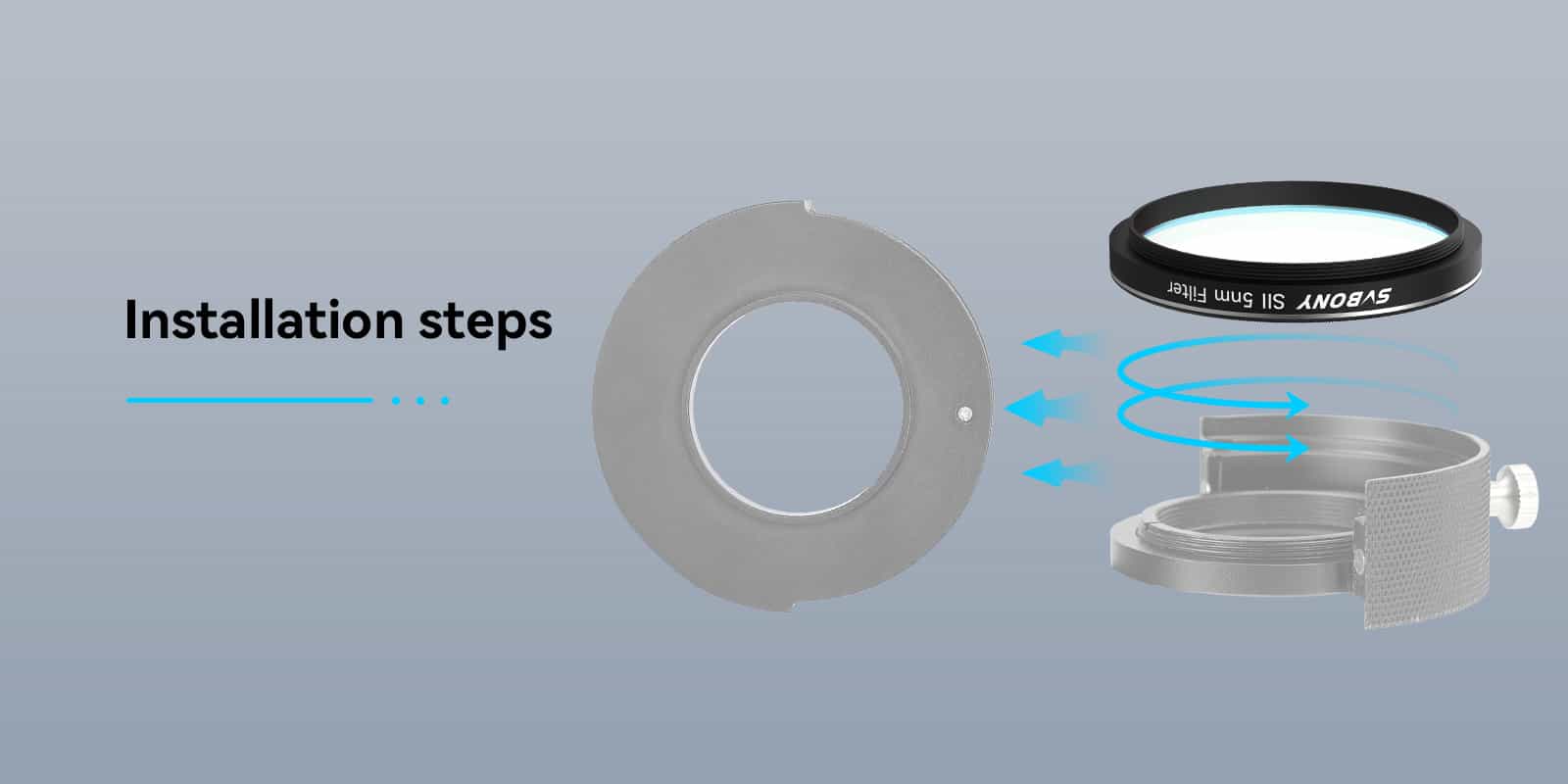

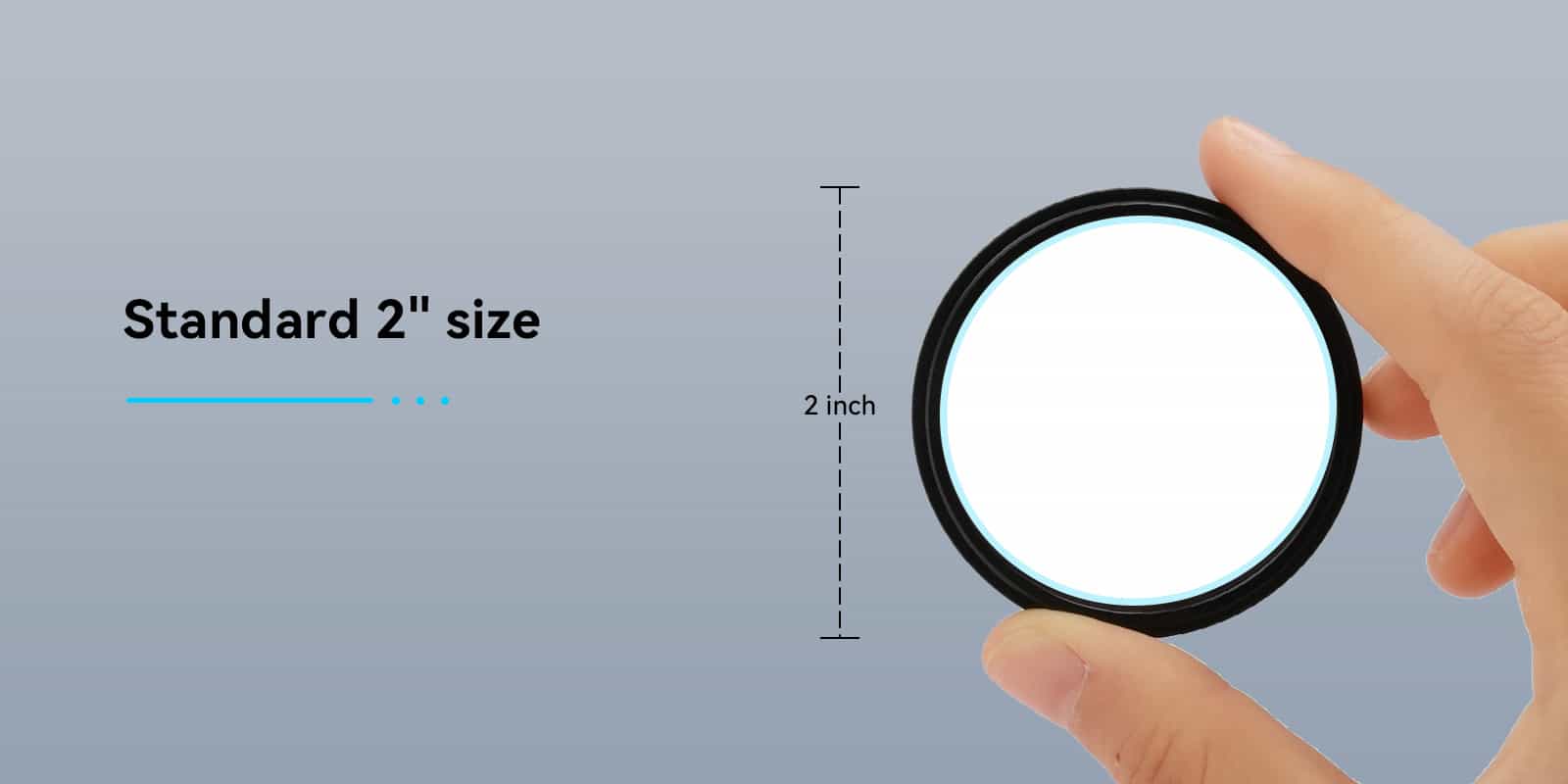

- 2 inch mounted; the filter can thread directly into the 2 inch barrel of your telescope eyepiece;

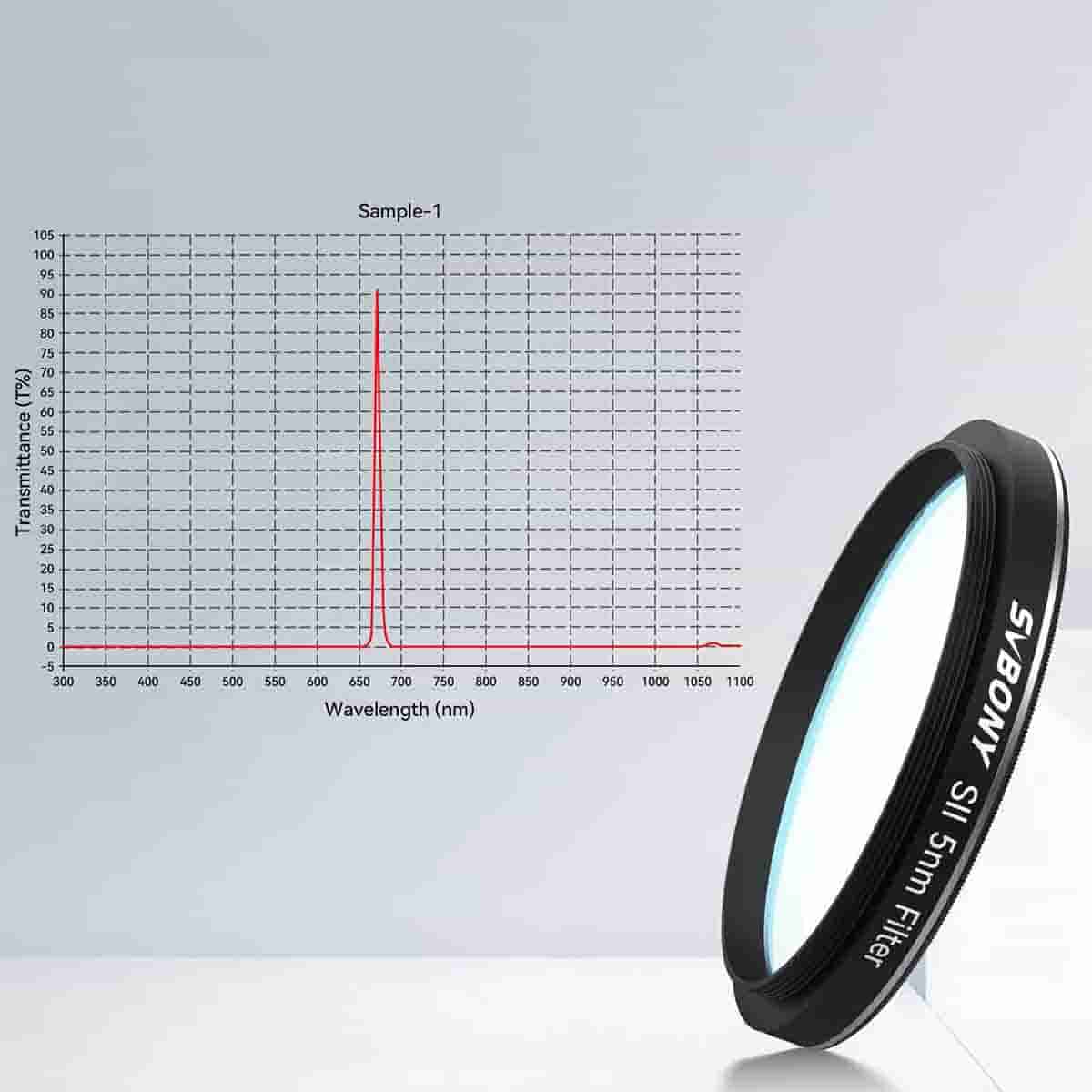

- 300-1000nm wavelength range; the SVBONY SII 5nm 2" Filter transmits a 5nm bandwidth of light that is centered at 672nm;
- This SII narrow band filter reduces other transmissions; including wavelengths of light that are responsible for light pollution;
- The narrow bandwidth and high transmission rate of this filter will make you experience a major boost to contrast.
Note: This OIII filter is NOT for use on the Sun, and is also unsuitable for telescopes with a focal ratio below f/4
SII Filter

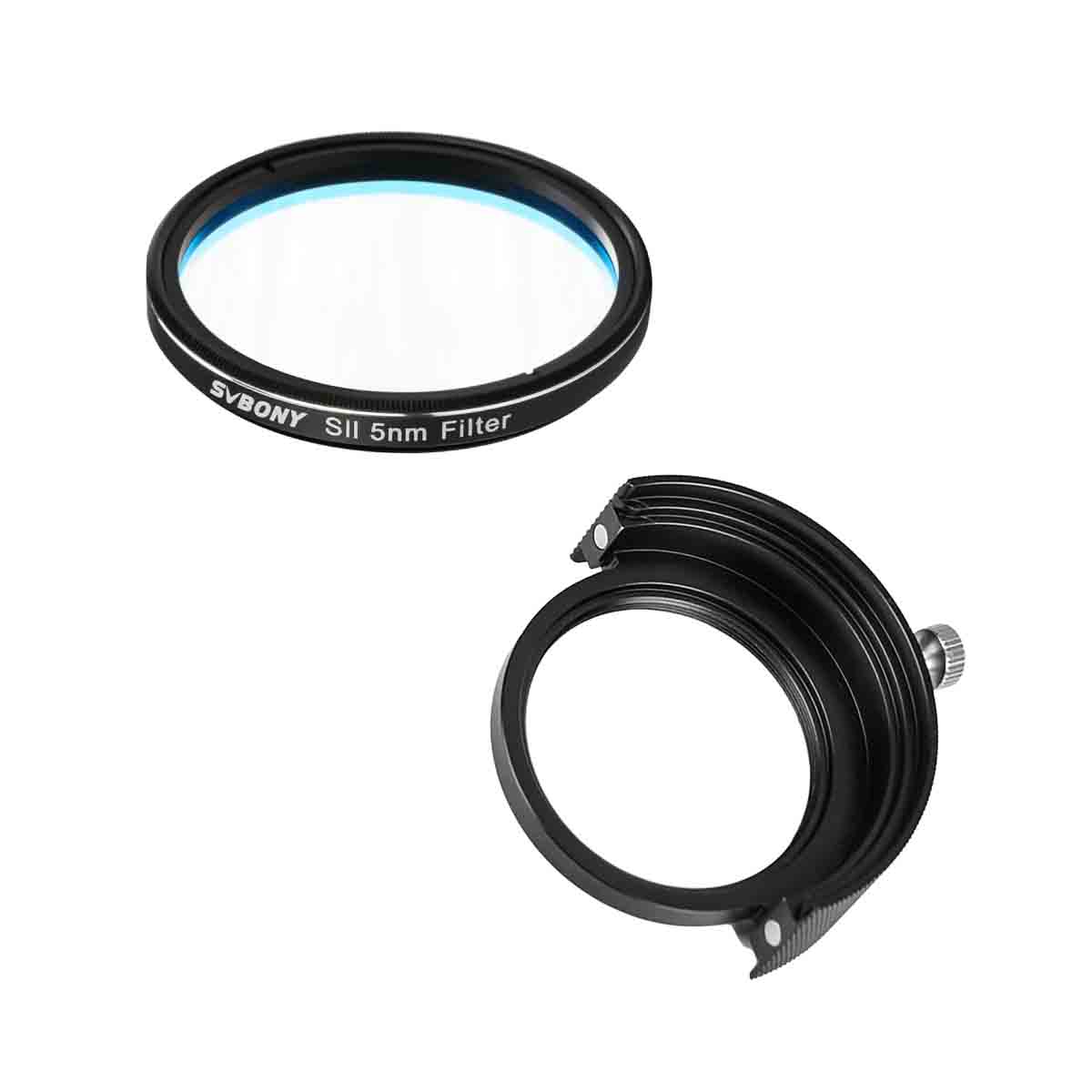

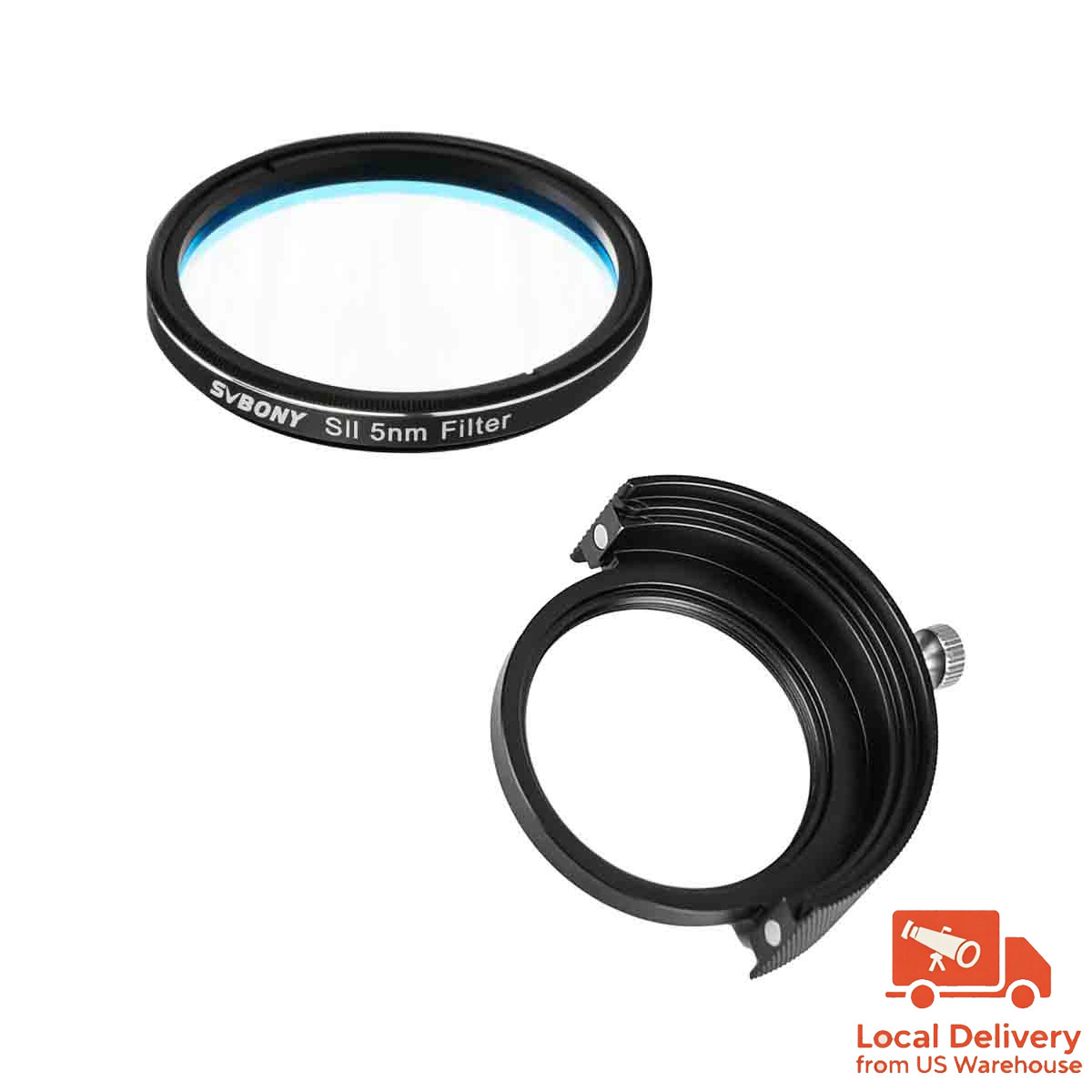

SII Filter+2inch Holder
Customer Reviews
Jakub
Aug 24, 2024
Filter does its job, I use it with imx492 sensor and get very decent results under bortle 7-8 sky
| Model | SV227 |
| Type | SII Filter |
| Size | 2-Inch |

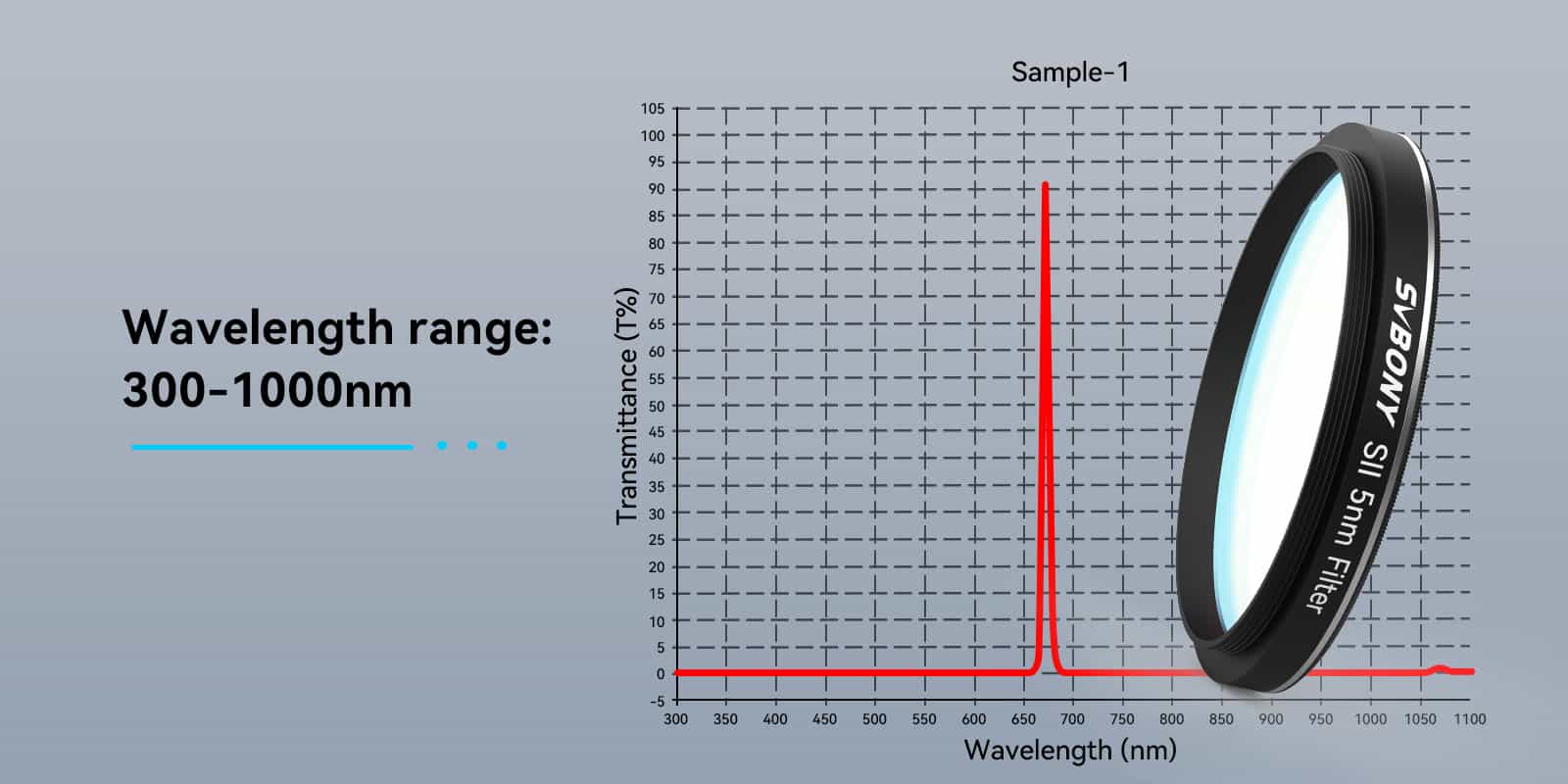

| Wavelength Range | 300-1000nm |

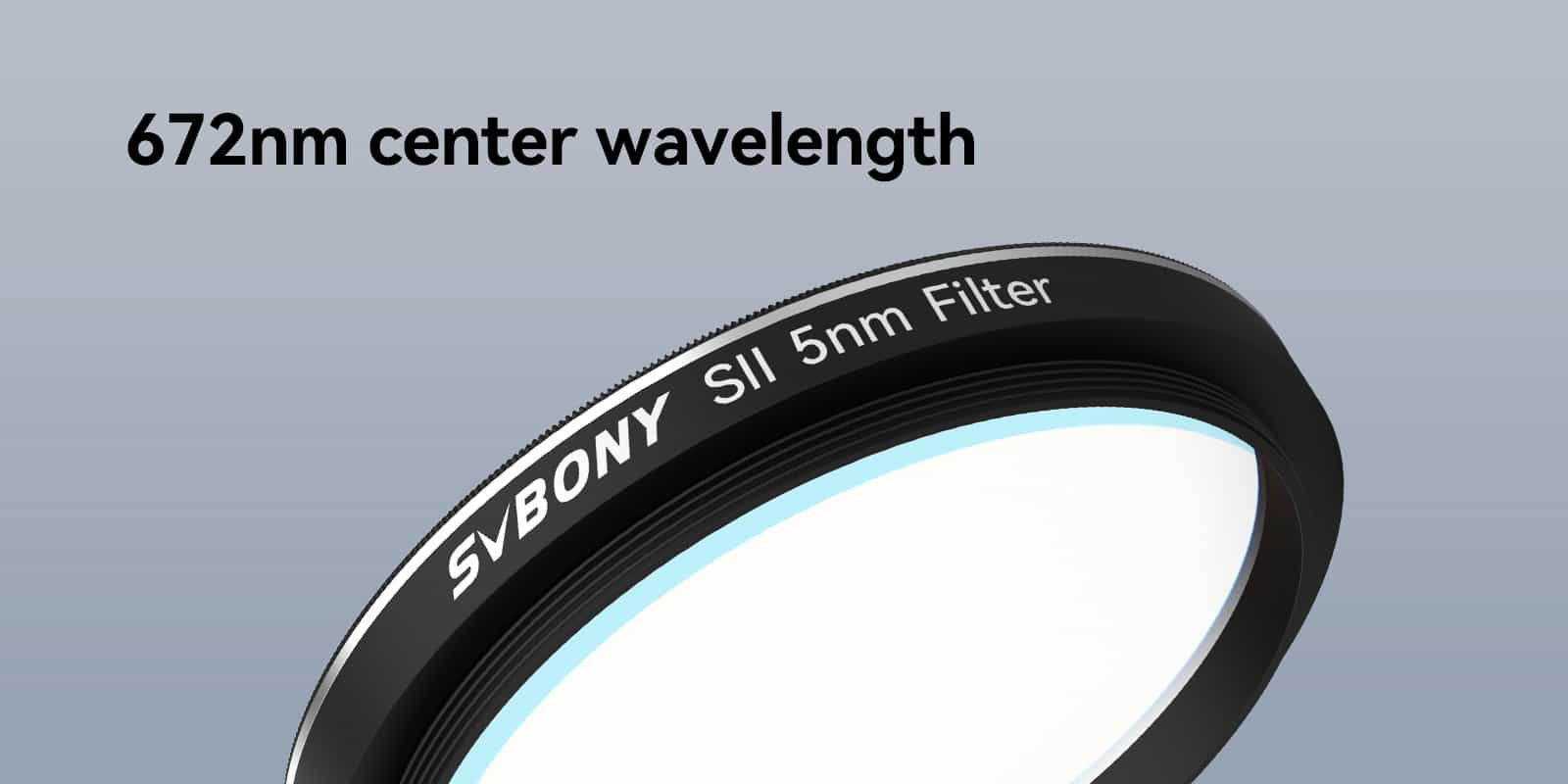

| CWL | 672nm |
| FWHM | 5nm |

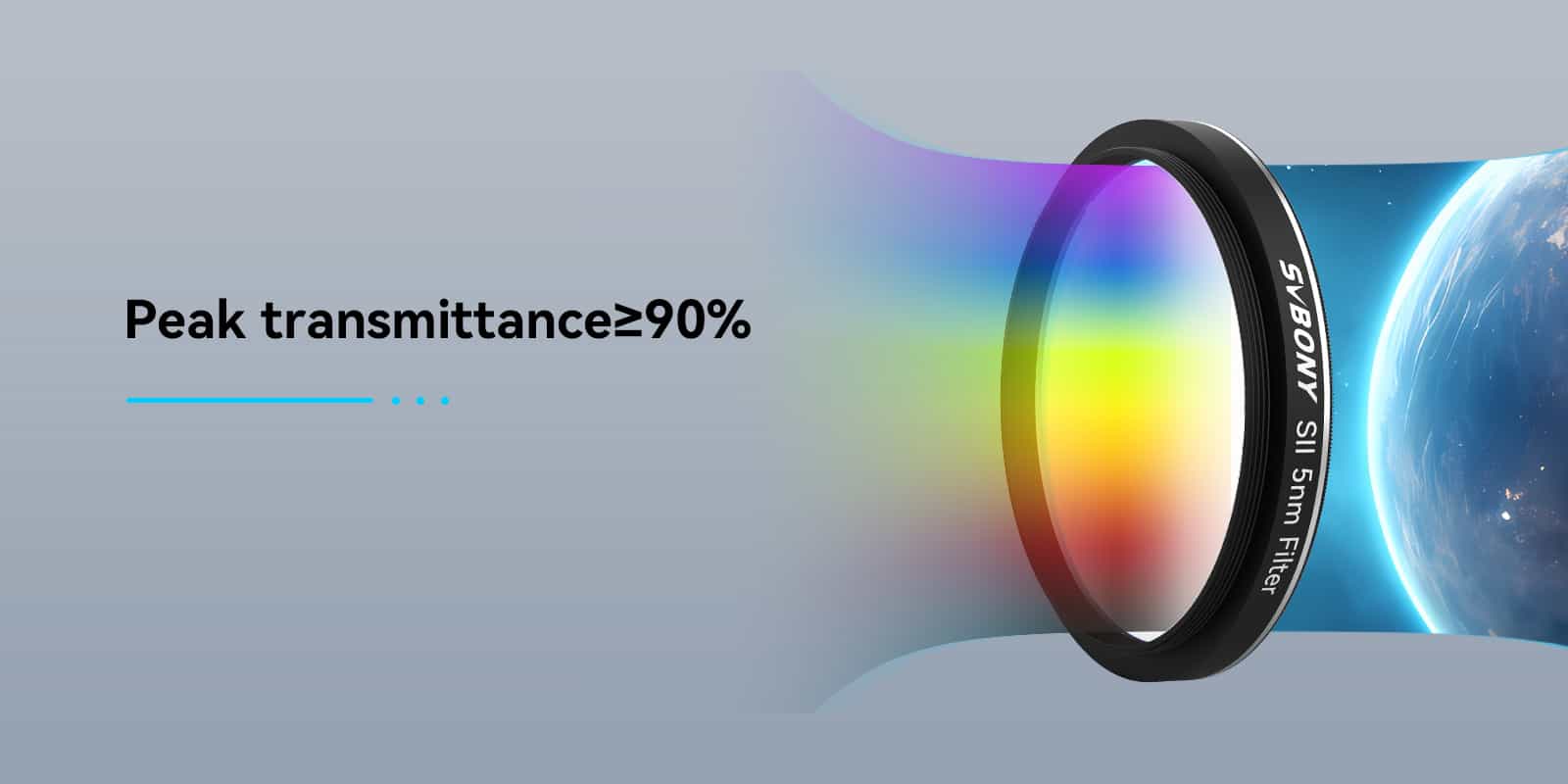

| Peak Transmittance | ≥90% |
| Substrate Thickness | 1.85mm |
| Blocking | ≥OD5 |
| Clear Aperture | 44mm |
| Surface Quality | 60/40 |
| Surface Pparallelism | 1/4λ |
| Parallelism | 30" |

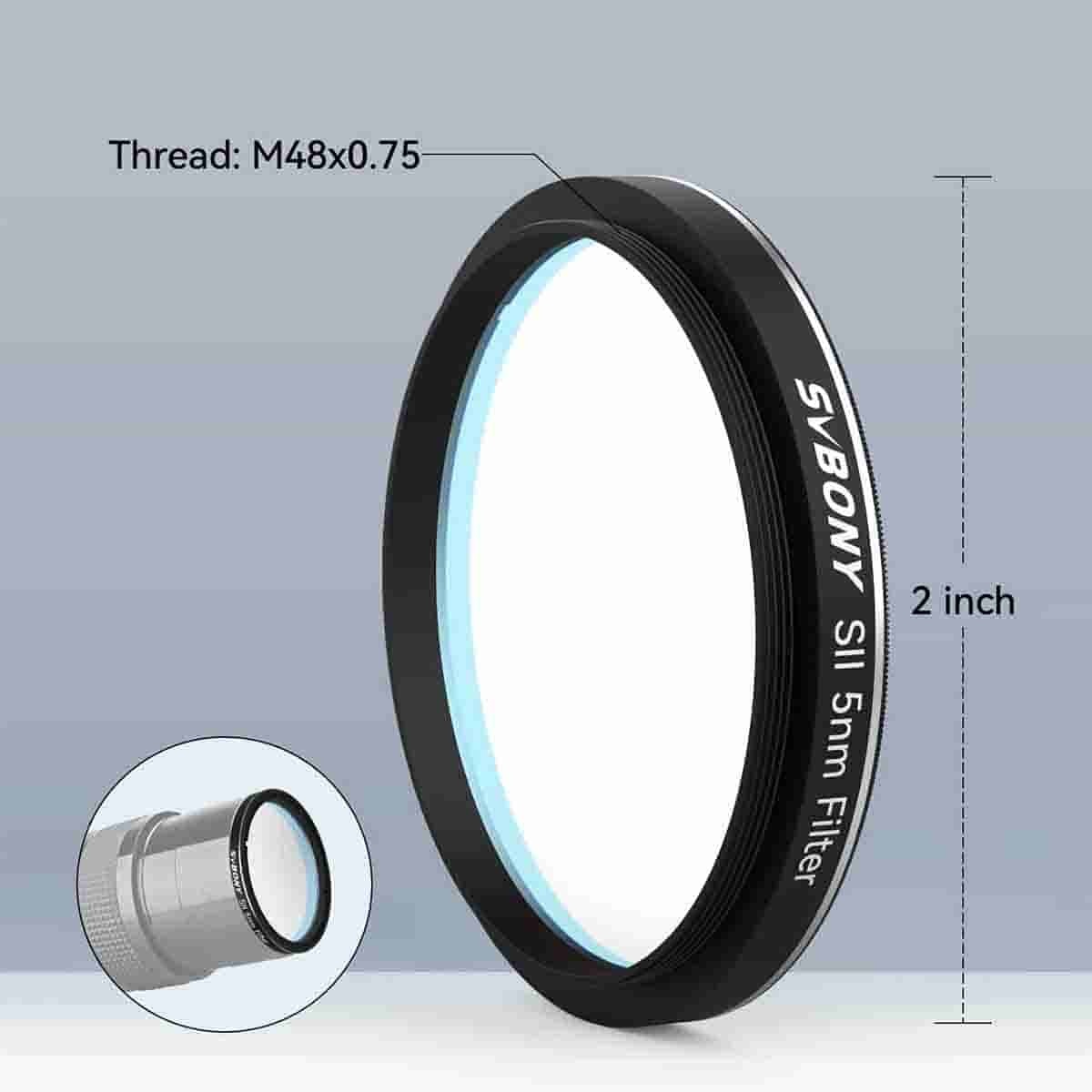

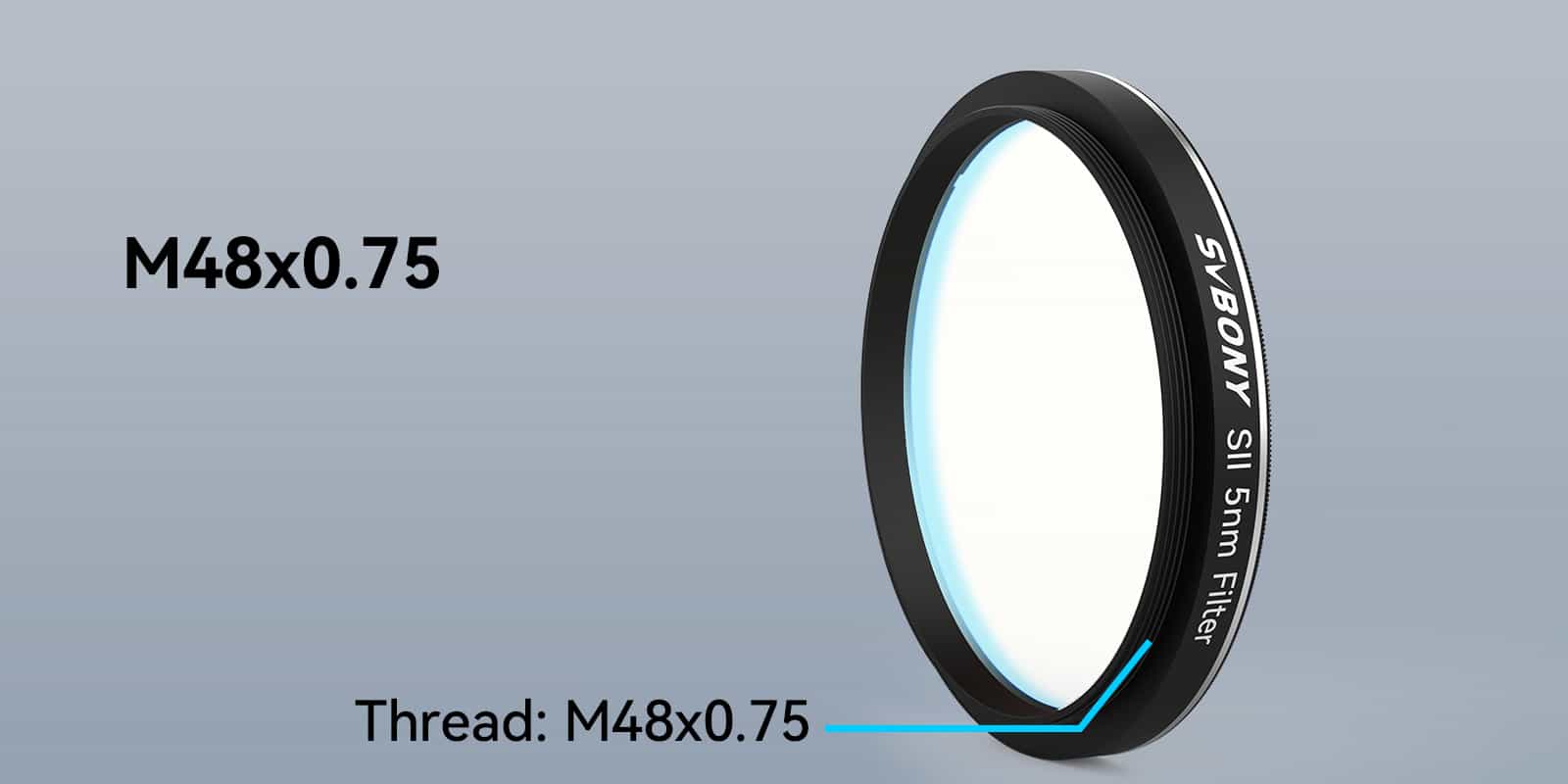

| Thread | M48x0.75 |
| Single Thread | Yes |
| Net Weight | 12.5g / 0.44oz/0.027lb |
Features
- 1. SII CCD narrow band filter reduces other transmissions, including wavelengths of light that are responsible for light pollution (both artificial and natural)
- 2. 300-1000nm Wavelength Range; the SVBONY Sulfur II 5nm Extra Narrowband Filter transmits a 5nm bandwidth of light that is centered at 672nm
- 3. German imported glass; multiple layers of anti-reflection non-cementing coatings applied via electron-beam gun evaporation with Ion-assisted deposition
- 4. CNC machined and black anodized aero-metal filter cell that is ultra-thin to provide largest clear aperture; Laser-engraved to prevent fading
- 5. 1.25 inch mounted; metal filter cell threads directly into the 1.25 inch barrel of your telescope eyepiece
