- IMX715 sensor; 1/2.8-inch Format, 1.45μm x 1.45μm pxel size, supports up to 8 million pixels, enabling it to capture extremely detailed image information. It offers higher dynamic range and lower noise, ensuring high-quality and detailed images even in low-light conditions, meeting the needs of professional astrophotography; effectively reduces star trailing or blur during long exposures, ensuring that no details are lost;
- STARVIS II technology; the SC715C osc camera employs advanced image processing algorithms, resulting in higher sensitivity and lower noise levels;
- USB 3.0 Port & ST4 Guide; the SC715C astronomy camera supports data transmission at 45.5 frames per second at full resolution; the cmos camera IMX715 can also connect to an equatorial mount to adjust its position in real-time, preventing shake caused by positional drift and ensuring clear, detailed images;
- 512MB DDR3 cache; allowing the osc camera to respond quickly to every command, reducing delay during focusing and zooming. It ensures smooth, seamless shooting, making it easy for you to effortlessly capture every brilliant moment;

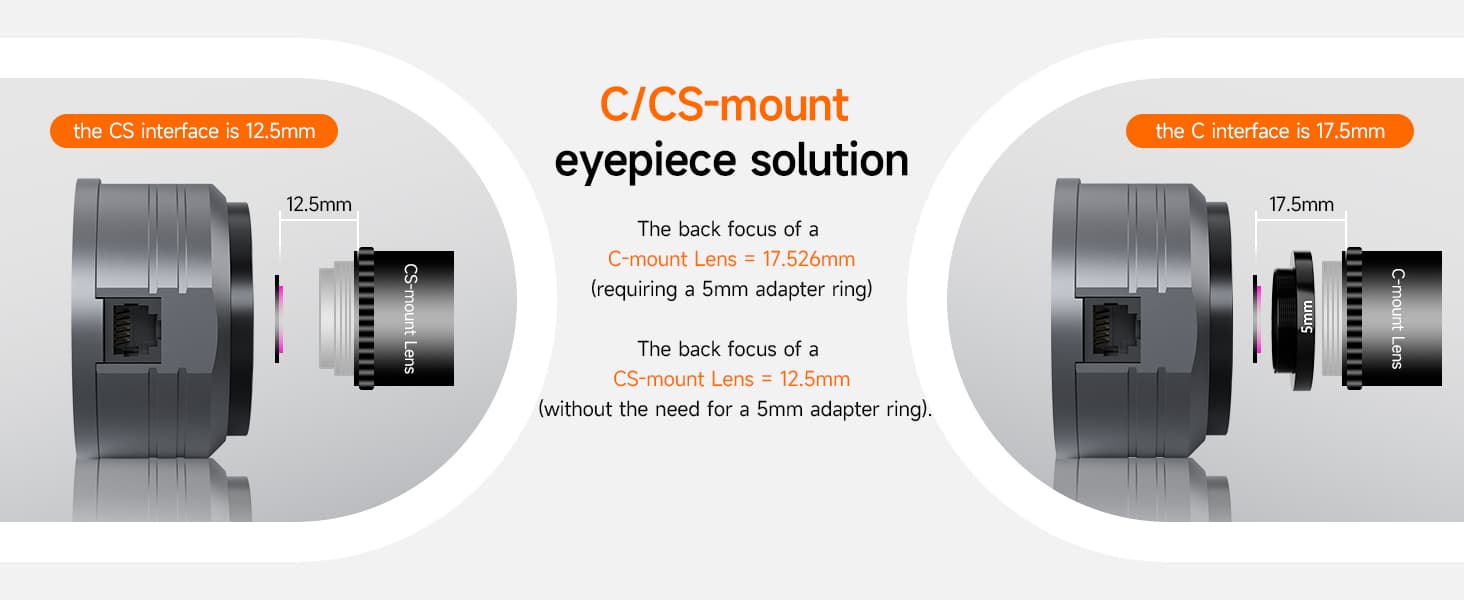

- C/CS-mount eyepiece solution; suitable for different installation needs.
New Release!
| Brand | Svbony |
| Model | SC715C |
| Material | Aluminum alloy, sandblasted, anodized |
| Color | Iron grey |
| Sensor | SONY IMX715 Color Sensor |
| Processor | FPGA |
| Sensor Size | 1/2.8 inch |
| Diagonal Length | 6.39mm |
| Resolution | 8.4 Mega Pixels (3840 * 2160) |
| Pixel Size | 1.45um * 1.45um |
| Pixel Depth | 12bit |
| Shutter Type | Electric Rolling Shutter |
| Dynamic Range | 72.8dB (1-12 stops) |
| Exposure Time | 0.1ms to 900s |
| Readout Noise | 0.41-2.29e- |
| Pixel Binning | 1x1, 2x2 |
| Data Cable | USB 3.0 B-Type data cable |
| Autoguider Cable | Autoguider data cable |
| Camera Interface 1 | USB 3.0 B-Type data interface |
| Camera Interface 2 | ST4 autoguider interface |

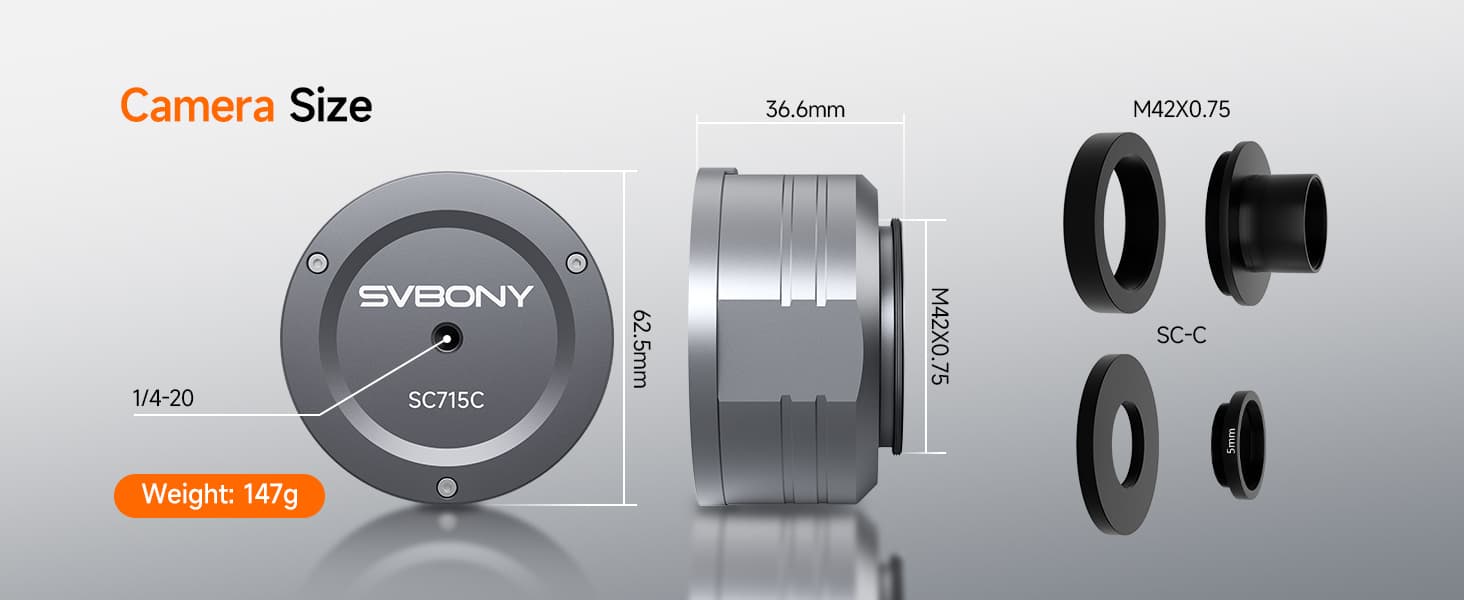

| Camera Interface 3 | 1/4 inch thread at the rear, for mounting on a camera tripod |
| Camera Interface 4 | Front M42 male thread |
| Adapter 1 | M42 female thread to CS thread |
| Adapter 2 | M42 female thread to M42 female thread |
| Adapter 3 | M42 male thread to 1.25 inch barrel (1.25'' female thread) |
| Adapter 4 | CS-C 5mm adapter |
| Weight | 147g (body only) |
Feature

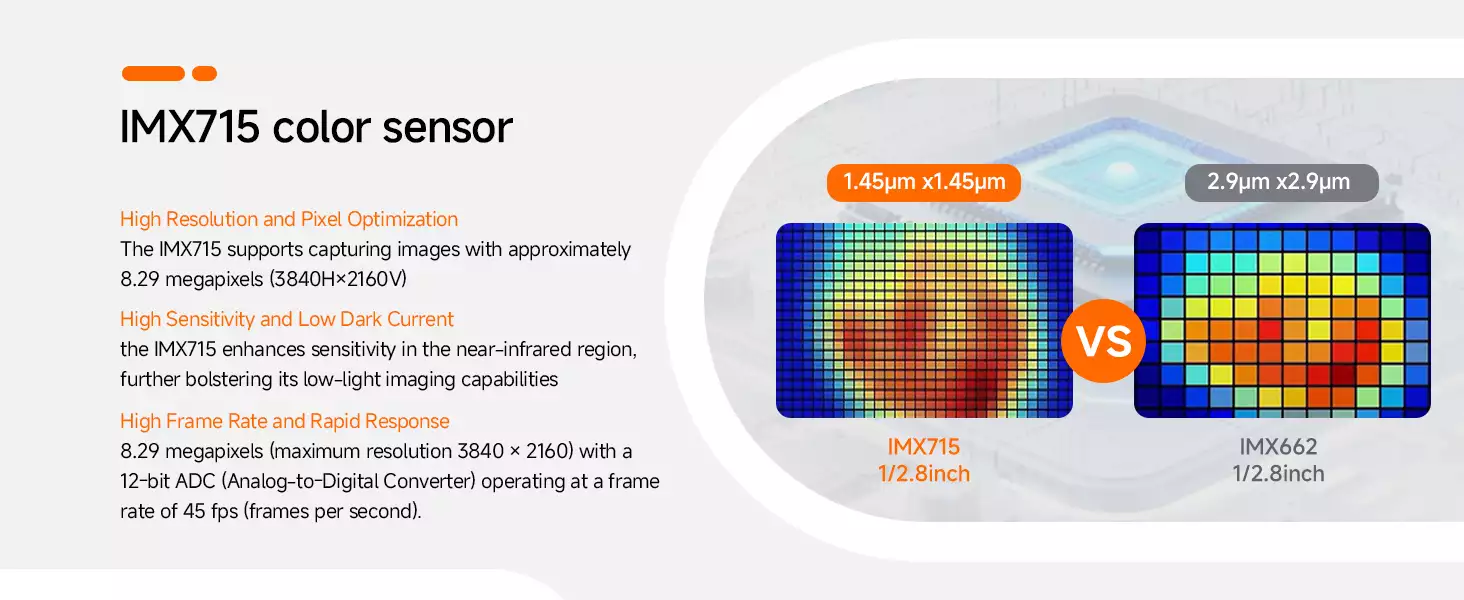

IMX715 Color Sensor-
High Resolution and Pixel Optimization: The IMX715 supports capturing images with approximately 8.29 megapixels.
High Sensitivity and Low Dark Current: The IMX715 enhances sensitivity in the near-infrared region, further bolstering its low-light imaging capabilities.
High Frame Rate and Rapid Response: The IMX715 maximum frame rate of 60.3 frames per second 12-bit or 90.9 frames per seconed 10-bit.

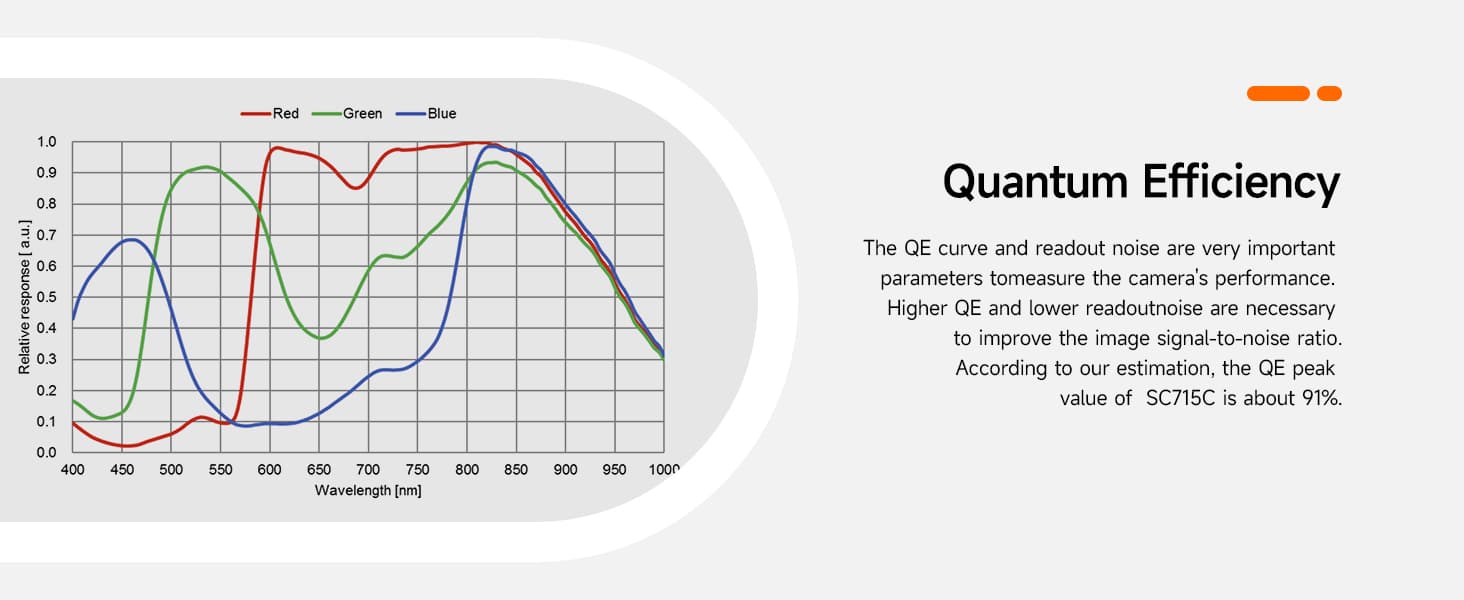

Quantum Efficiency-
The QE curve and readout noise are very important parameters tomeasure the performance of the camera. Higher QE and lower readoutnoise are necessory to improve the image signal-to-noise ratio. According to our estimation, the QE perak value of SC715C camera is about 91%.

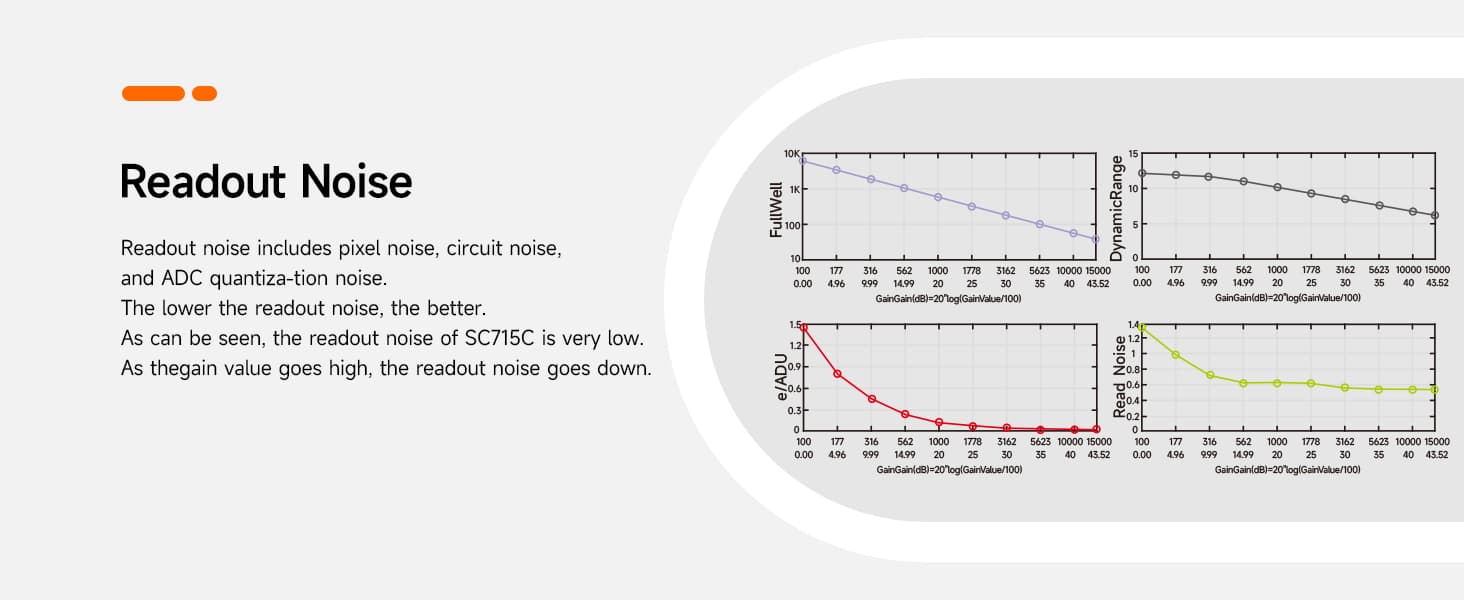

Readout Noise-
Readout noise includes pixel noise, circuit noise, and ADC quantiza-tion noise. The lower the readout noise, the better. As can be seen, the readout noise of the SC715C is very low. As the gain value goes high, the readout noise goes down.

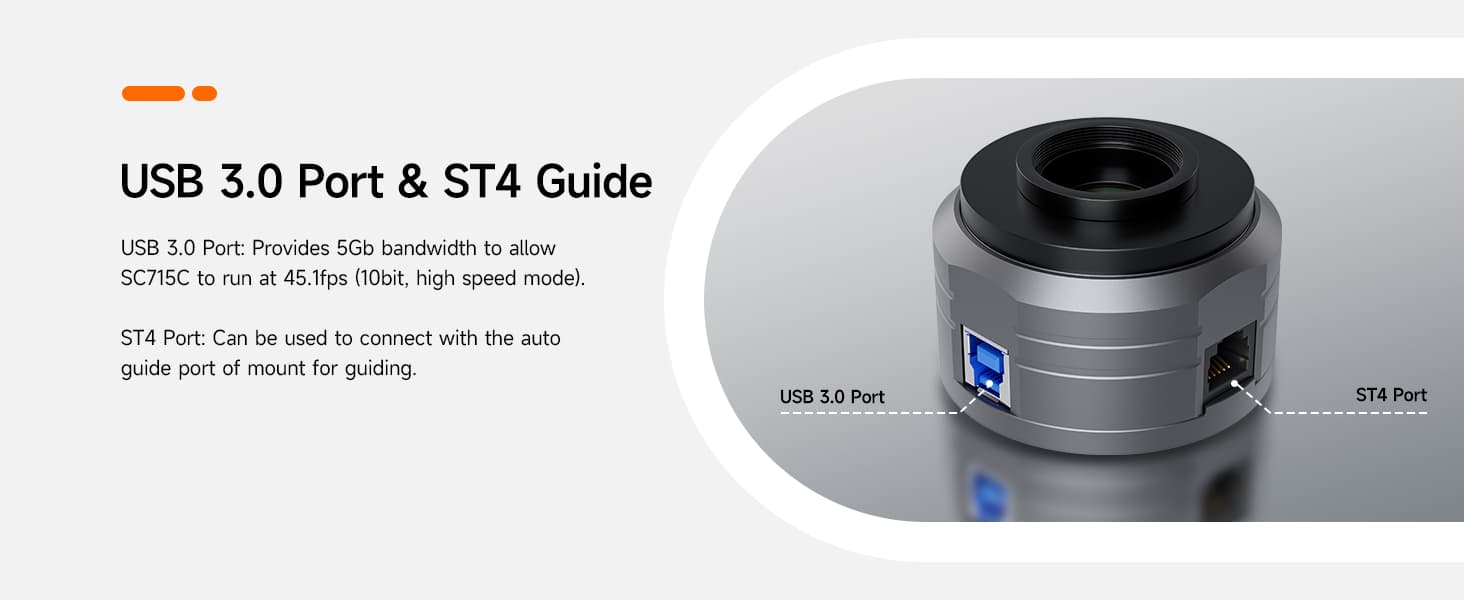

USB 3.0 Port & ST4 Guide-
USB 3.0 Port provides 5Gb bandwidth to allow SC715C to run at 45.1fps (10bit, high speed mode).
ST4 Port can be used to connect with the quto guide port of mount for guiding.

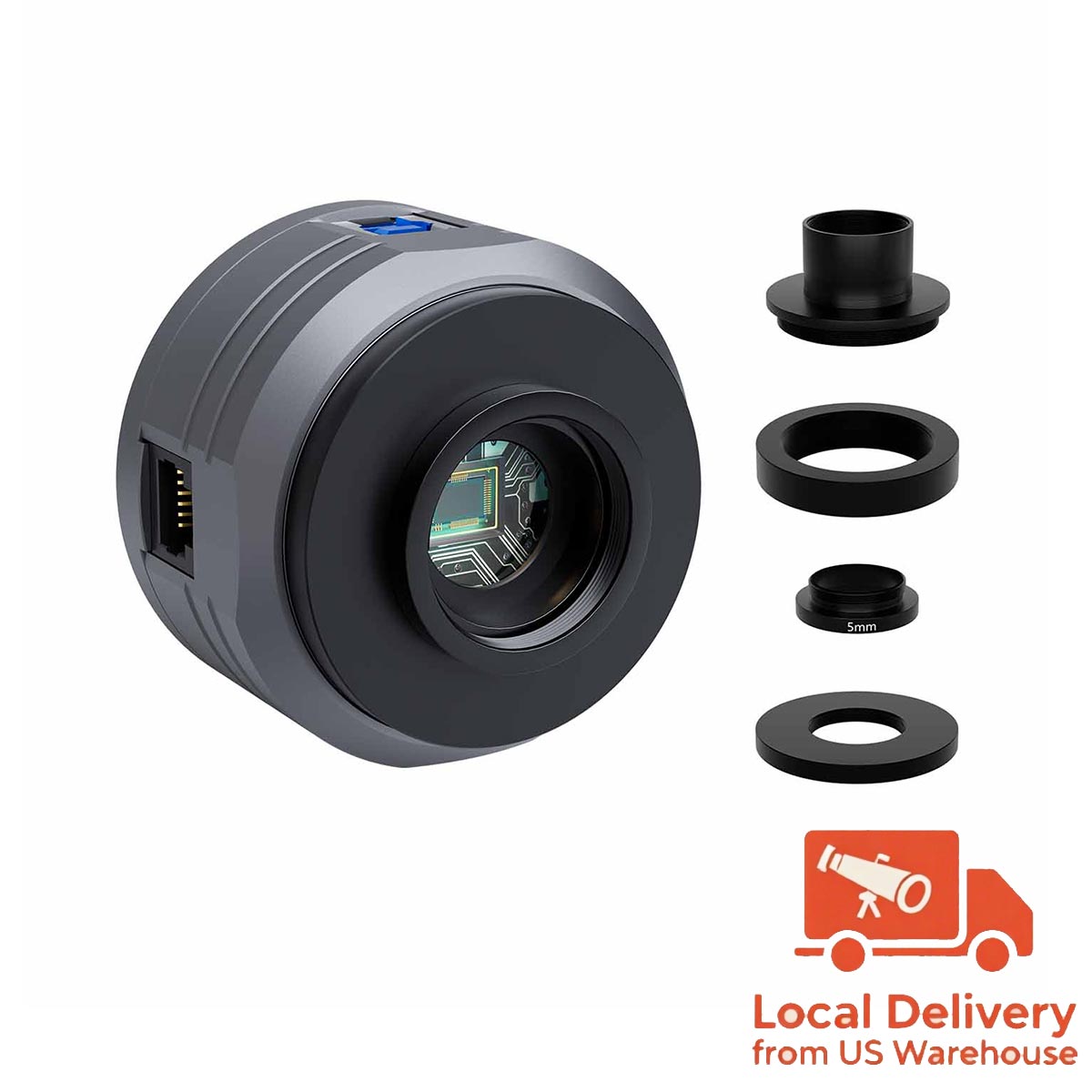

Package Includes
- SC715C Astronomy Camera *1
M42 Thread to 1.25-inch Adapter Ring *1
M42 to M42 Adapter Ring *1
C-CS 5mm Adapter Ring *1
M42 Thread to C-Lens Adapter Ring *1
Dust Cap *1
USB 3.0 Data Cable *1
ST4 Guiding Cable *1
Cleaning Cloth *1
User Manual *1 -
