SV106 Guide Scope - SV905C Camera Auto-Guiding System
1 | Reviews- The SV905C guiding camera and SV106 50mm guiding scope is the popular and sturdy auto-guiding system for Deep-Sky-Object photography;
- 50mm Guide scope will help guide you to capturing higher quality astrophotos;
- High power guide scope features a machined, knurled ring to make fine focus adjustments nice and easy, while a thumbscrew lets you lock-down the focuser in-place once adjustments are complete.

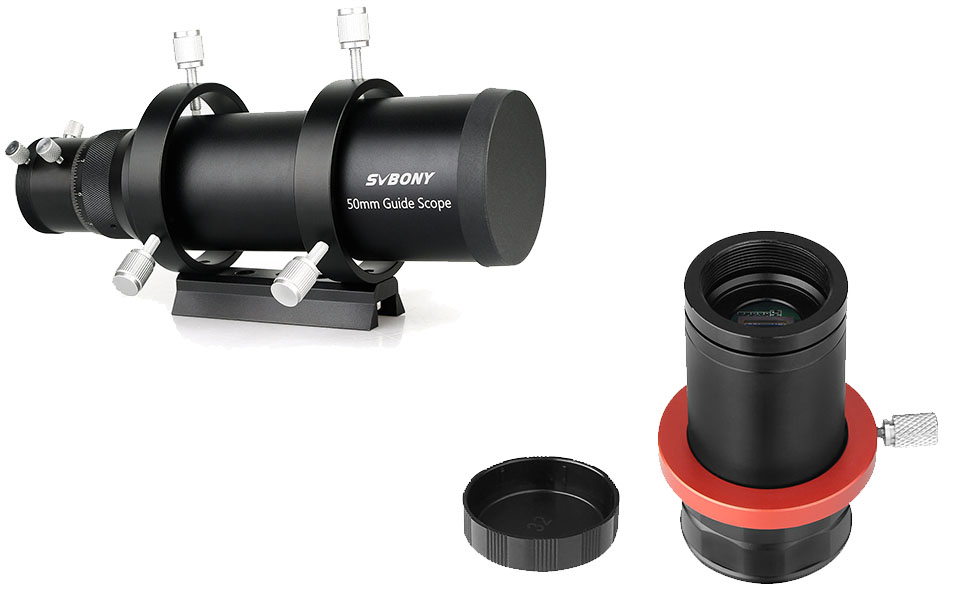

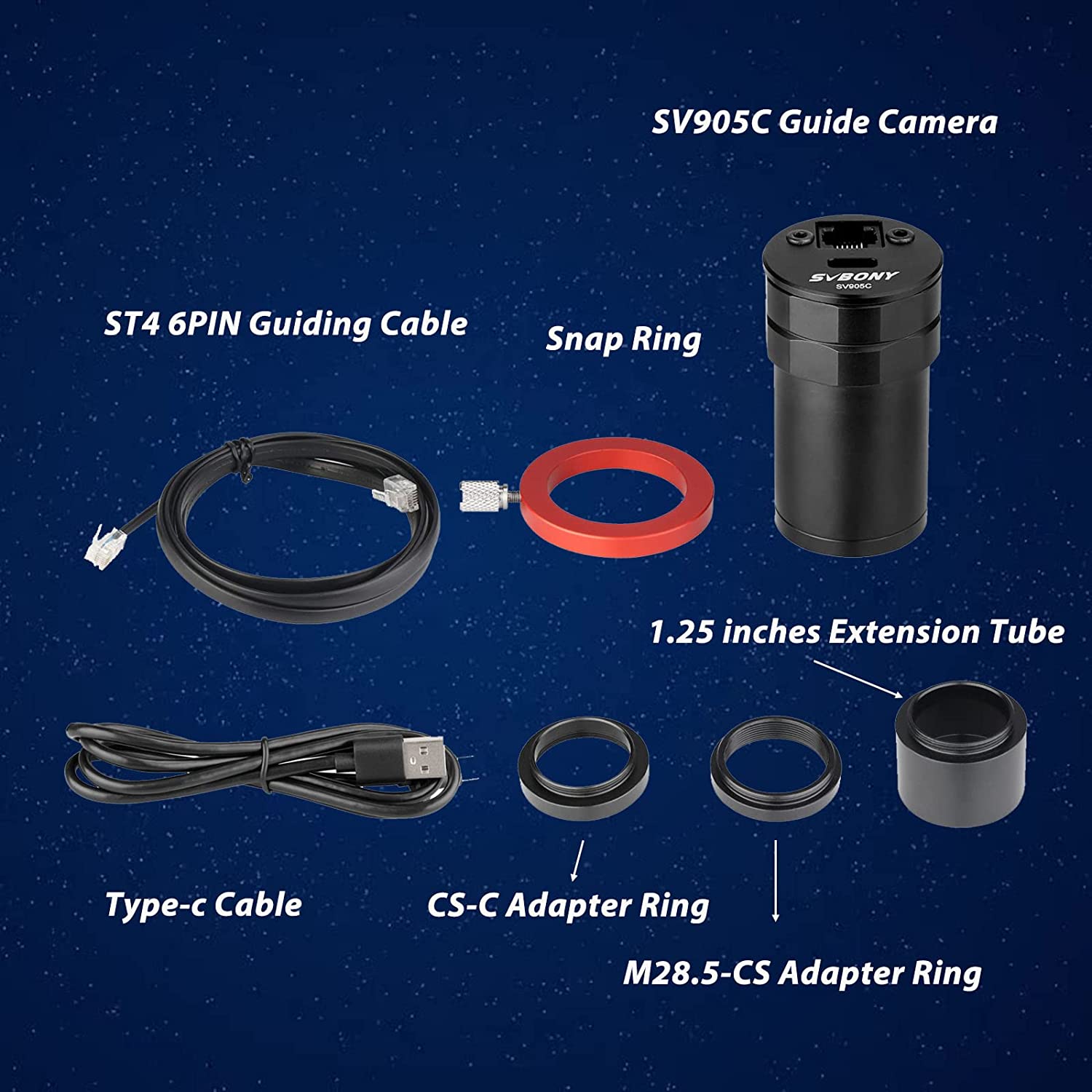

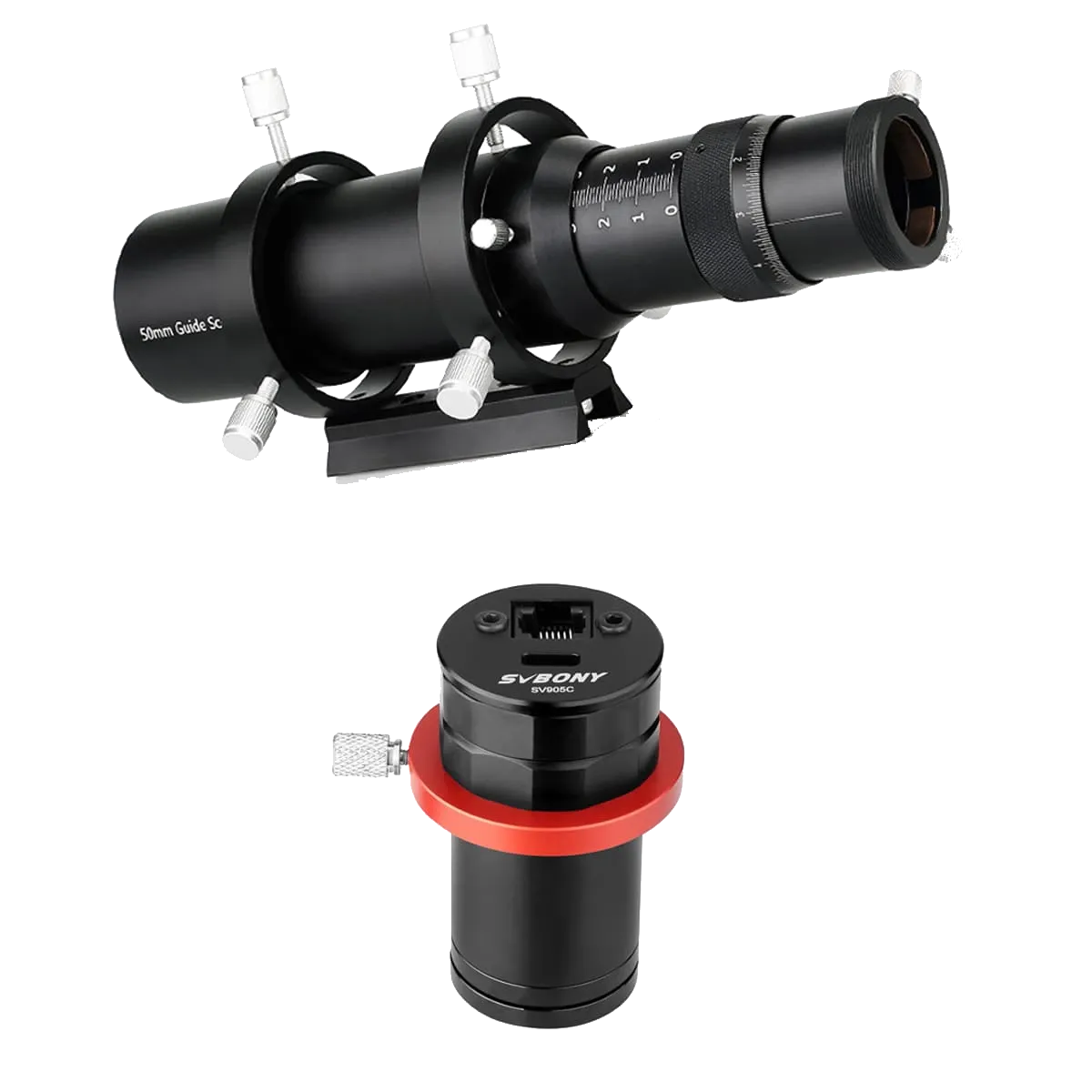

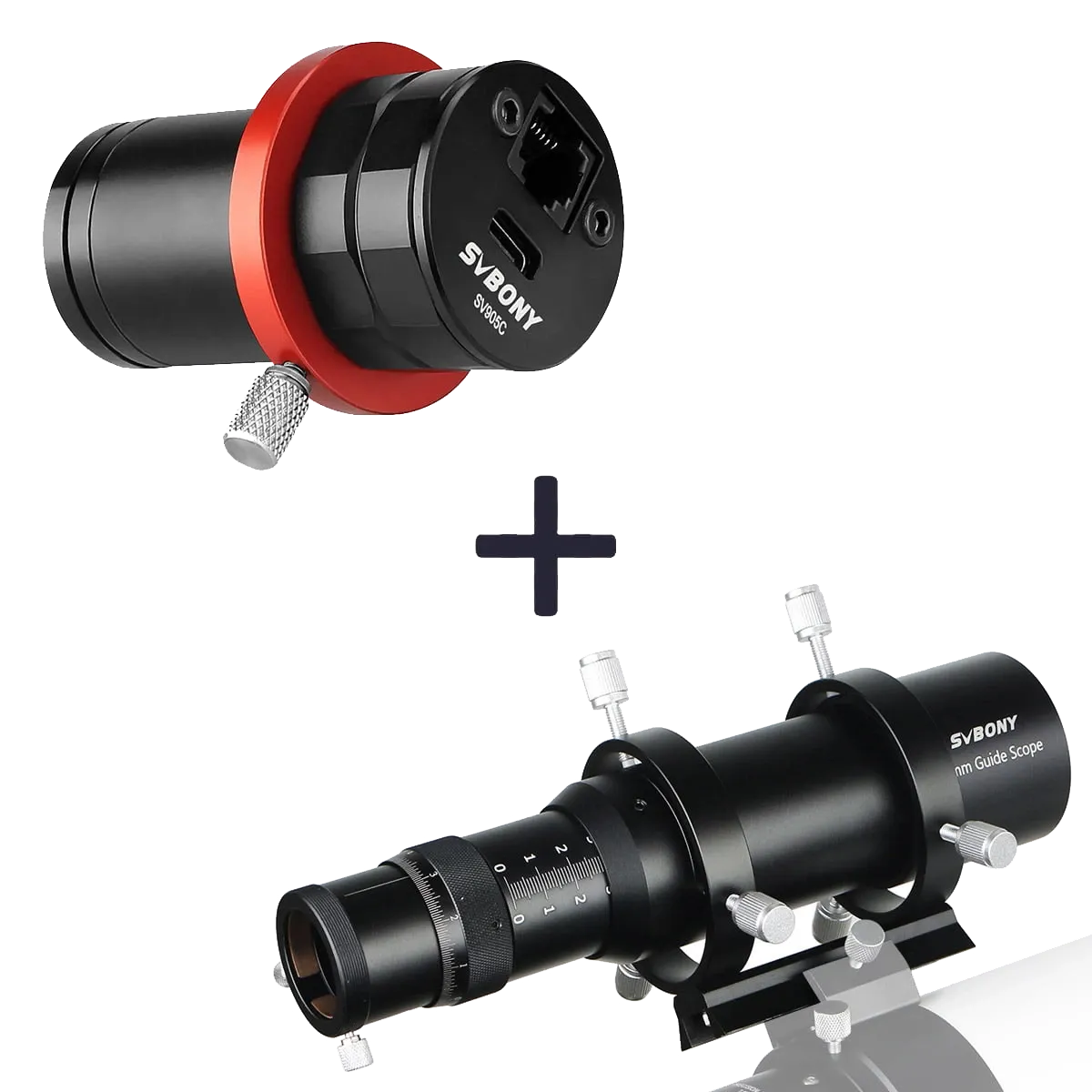

Auto-Guiding System Set Includes:
- SV905C Guiding Camera, SKU: F9198G
- SV106 50mm guiding scope, SKU: F9177A or SV106 60mm guiding scope, SKU: F9177B
Customer Reviews
Stephen K.
Jun 14, 2024
Scope is well constructed, currently using as a finderscope, objects are much brighter than the default 30mm finderscope that my telescope came with. Note that the scope as straight thru for eyepiece only, I could not get it to focus with a star diagonal. The scope also gives me flexibility to use it as a guidescope in the future. The focusing system is precise but I found the dual focusing to be a bit tedious and focus locks do not work that well, I could still adjust the focus after tightening down the focusing lock screws. In all, a great scope, great value, good versatility.

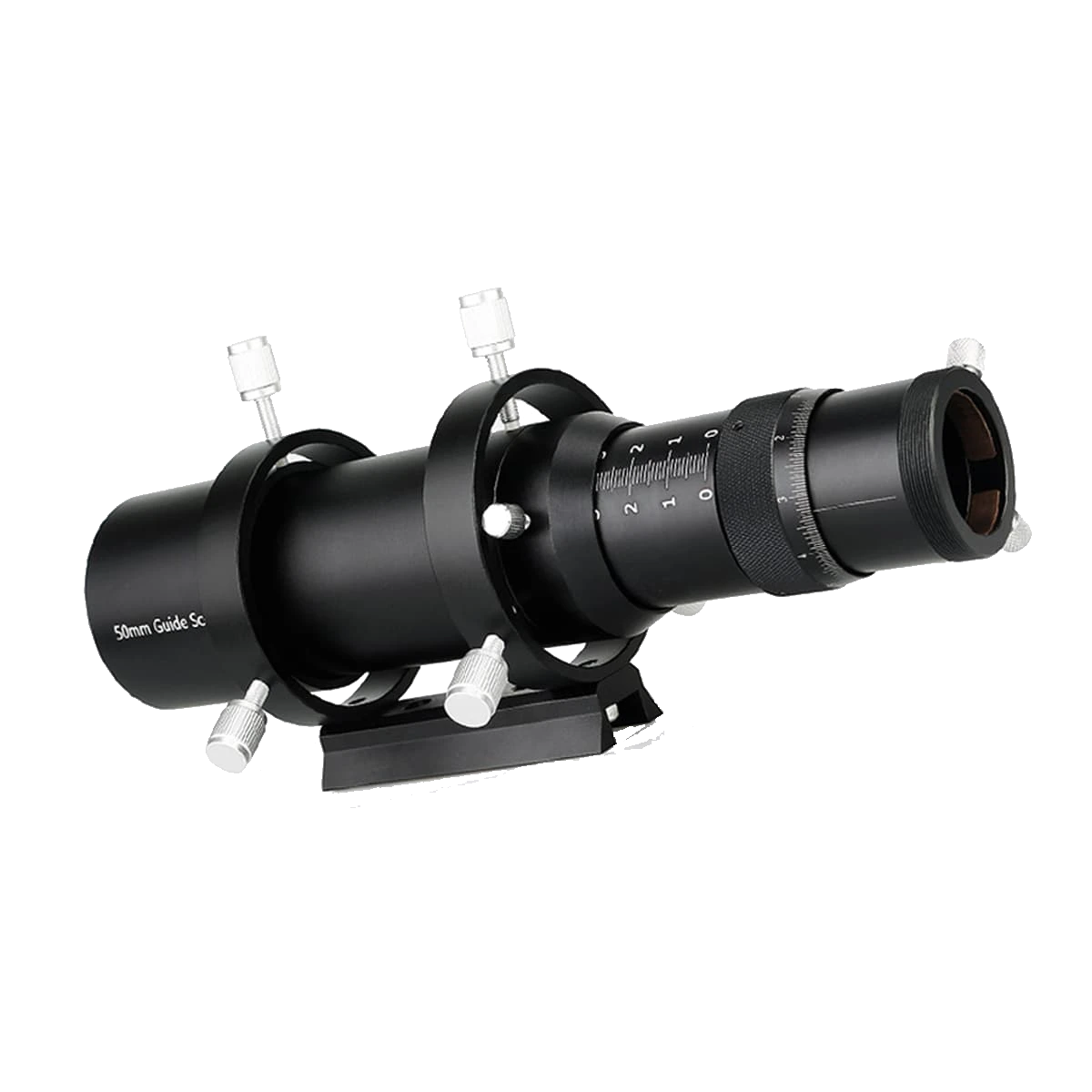

| Model | F9177A |
| Aperture | 50mm / 1.97in |
| Focal Length | 190mm / 7.48in |
| Focal Ratio | F3.8 |
| Coating | Fully multi-coated |
| Type of Telescope | Achromatic Refractor |
| Best for imaging | Deep sky |
| Focuser | Helical Focuser with 8 mm Travel |
| Connection to eyepiece | 1.25inch |
| Tube diameter | 54.5mm |
| Total Length | 240mm |
| Included accessories | Tube Rings and Dovetail Rail |

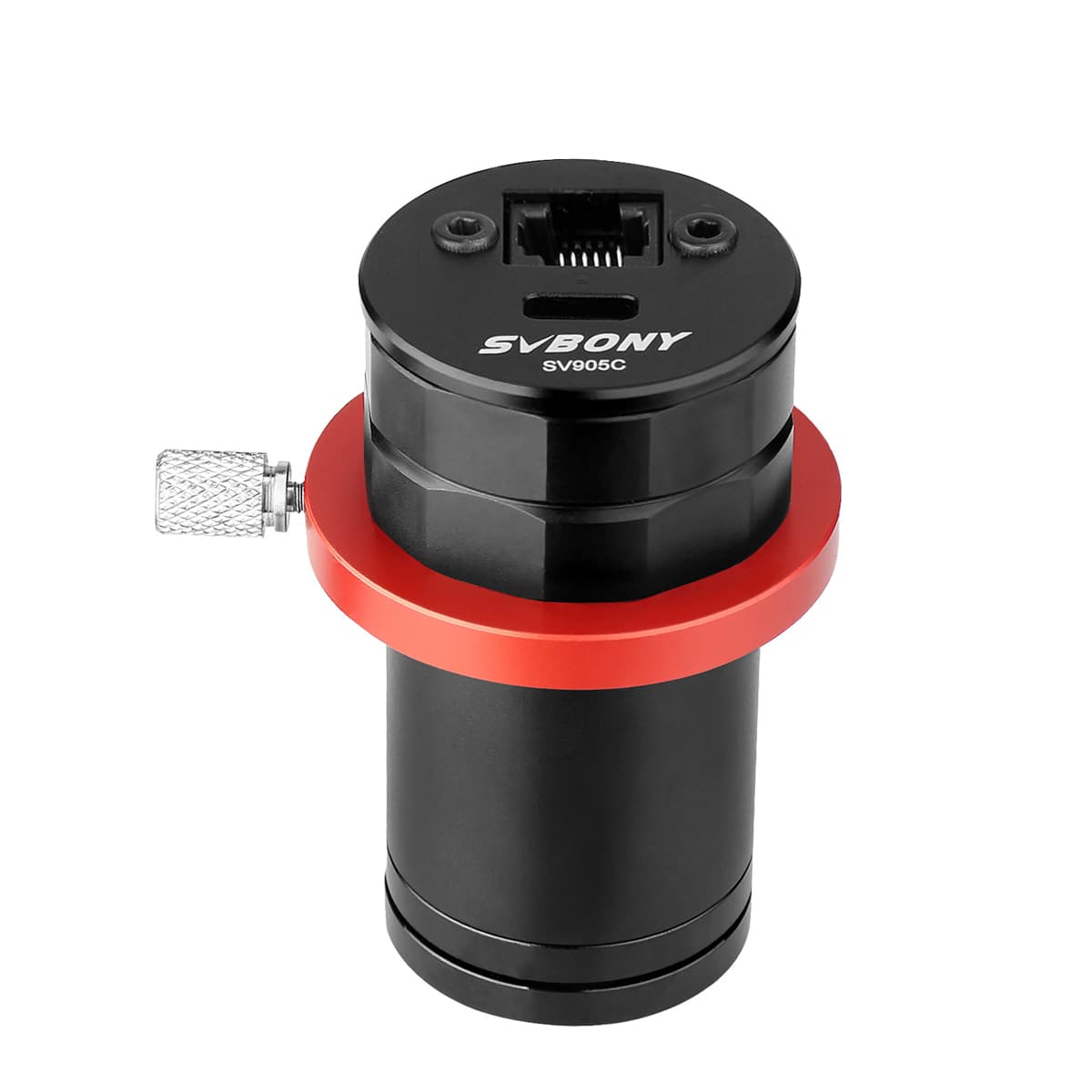

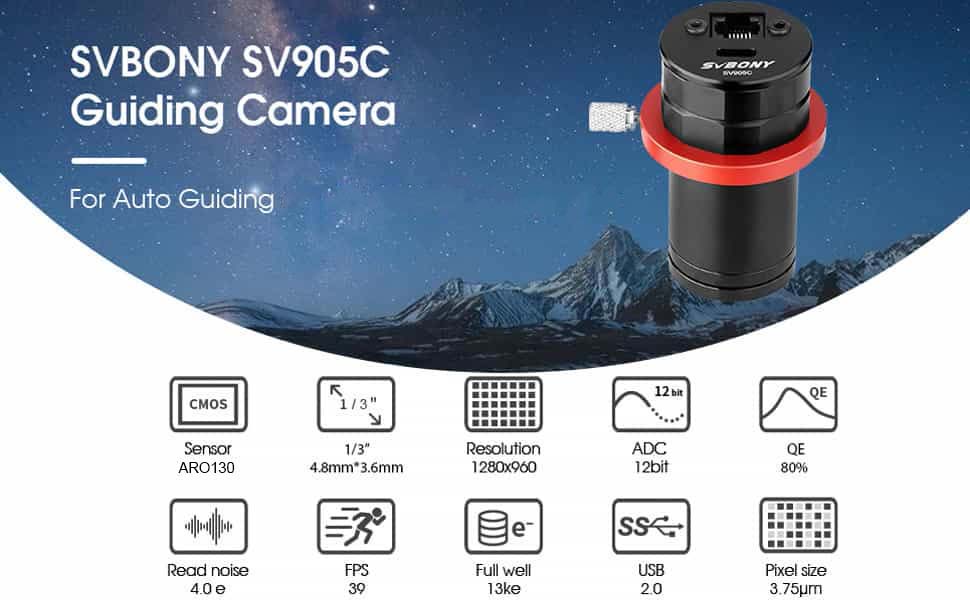

| Model | SV905C |

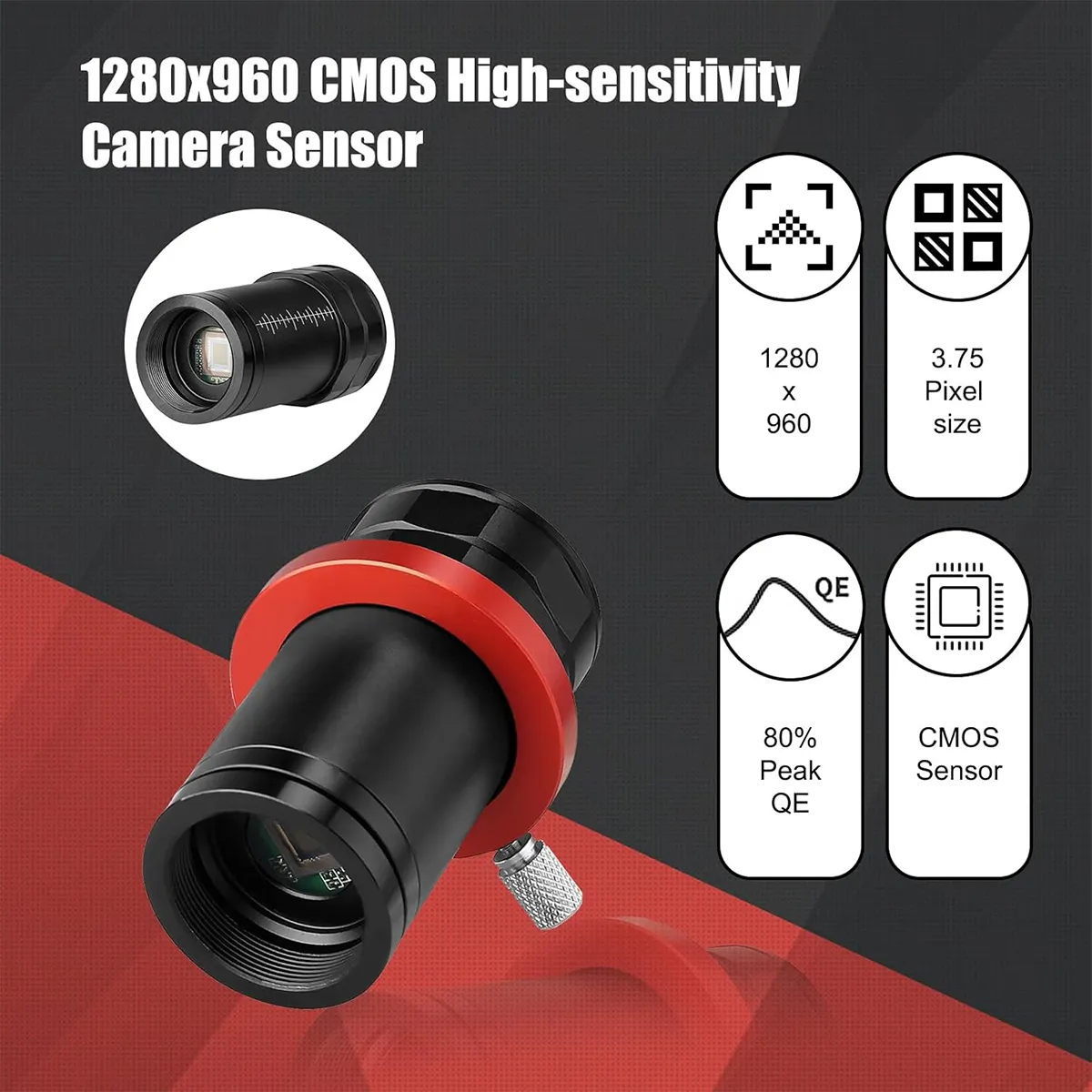

| Sensor | ARO130 |

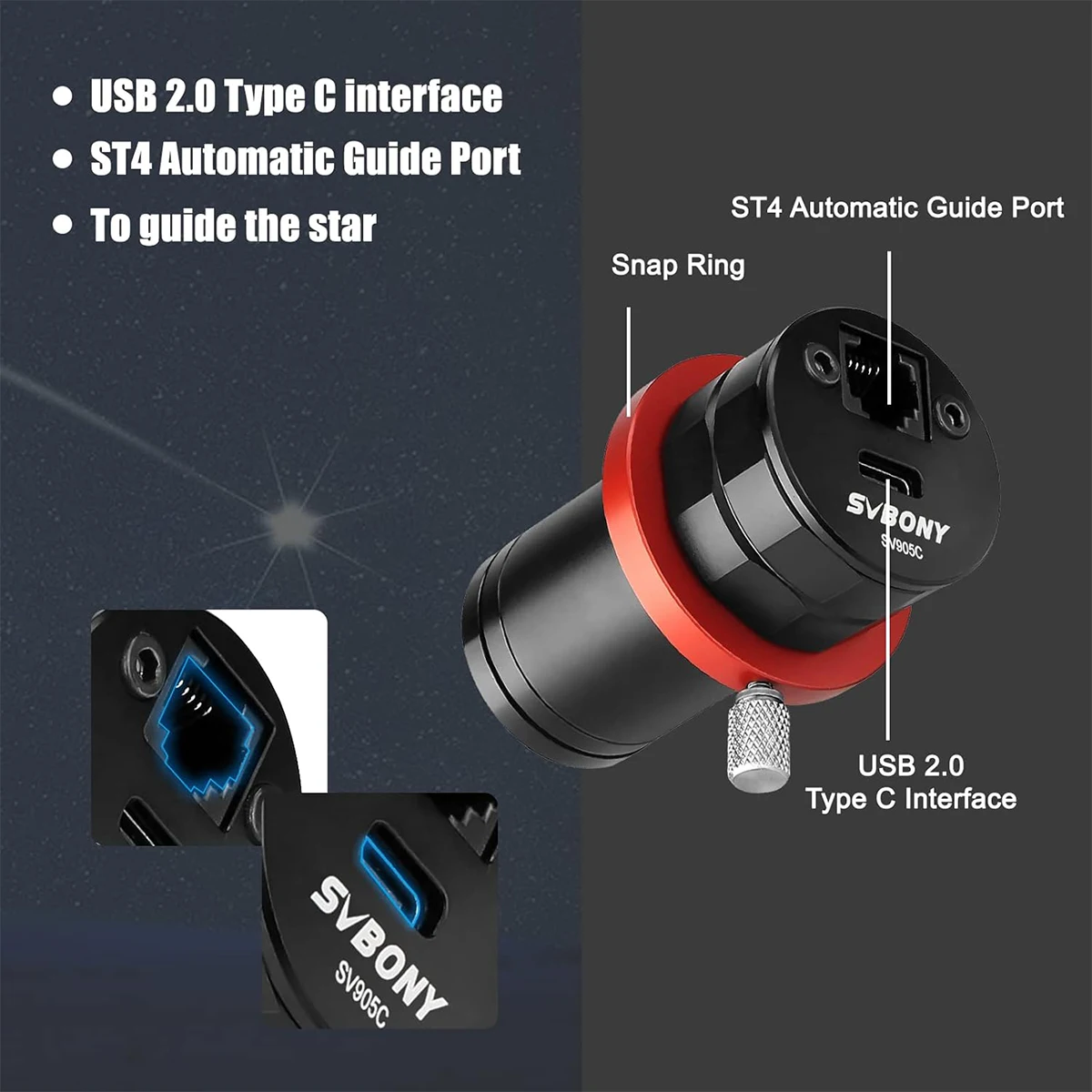

| USB Type | TypeC USB2.0 |
| Pixel Size | 3.75µmx3.75µm |
| Image Area | 5.6mm×3.2mm |
| Total pixels | 1.2M pixel |
| Diagonal | 6mm |
| Maximum Resolution | 1280×960 |
| Exposure Time | 64us~20s |
| Gain | 0-500 |
| Maximum Frame Rate | 39 FPS |
| Read noise | 4.0 e |
| QE peak | 75% |
| Shutter type | Rolling Shutter |
| Full well charge | 13ke |
| ADC | 12 bit |
| ROI function | Yes |
| Bin | 1x1 2x2 |
| Digital noise reduction | HCG mode |
| Video format | AVI mode |
| Communication interface | DirectShow interface |
| Application software | Windows OS: Sharpcap, Firecapture,PHD2 ASCOM platform Linux OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX Capture |
| Compatible system | Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS |
| Working temperature | - 5℃～45℃ |
| Storage temperature | - 20℃～60℃ |
| Working humidity | 20% RH-80% RH |
| Storage humidity | 20% RH-95% RH |
| Power consumption | <0.5W |
| Back intercept | 7.5mm/12.5mm |

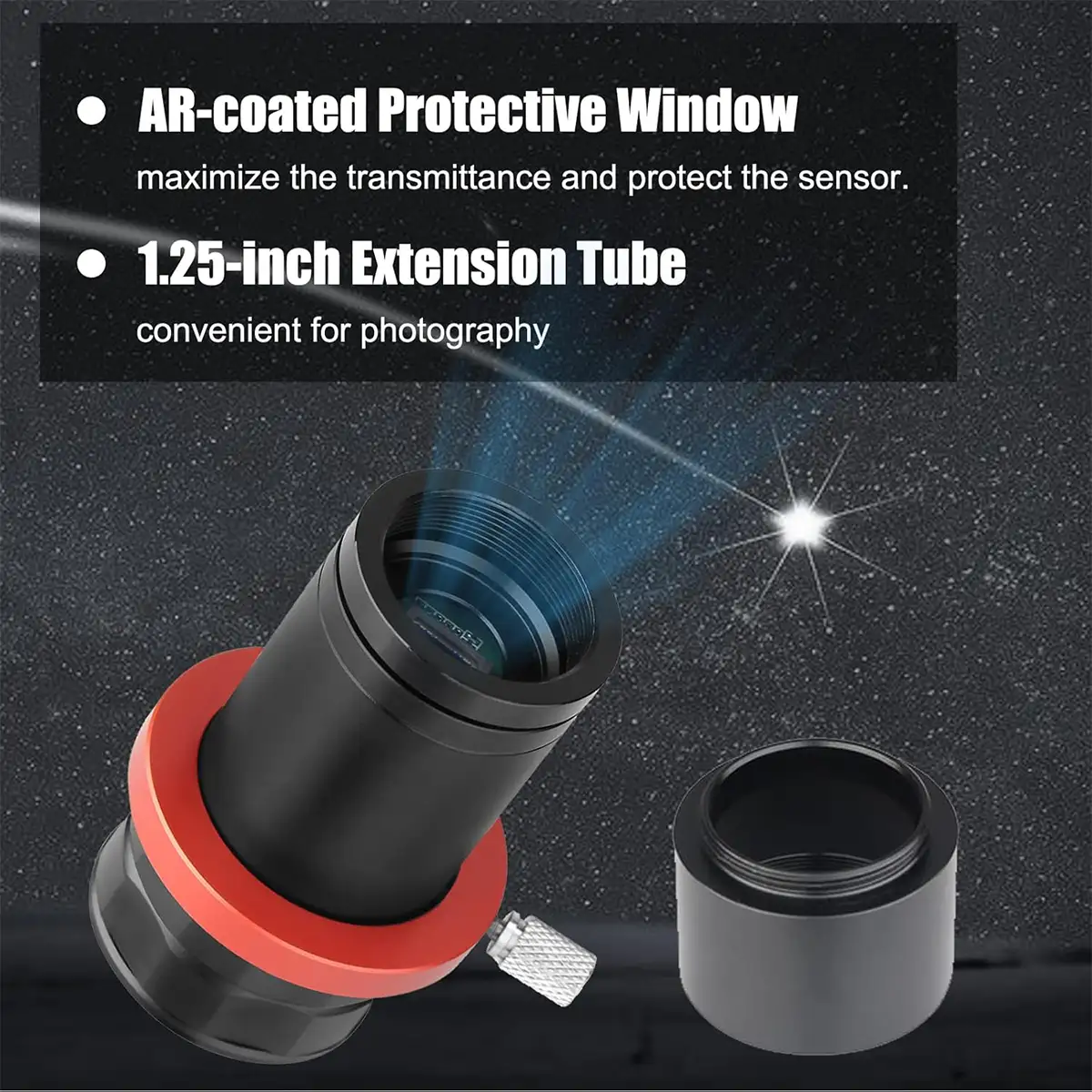

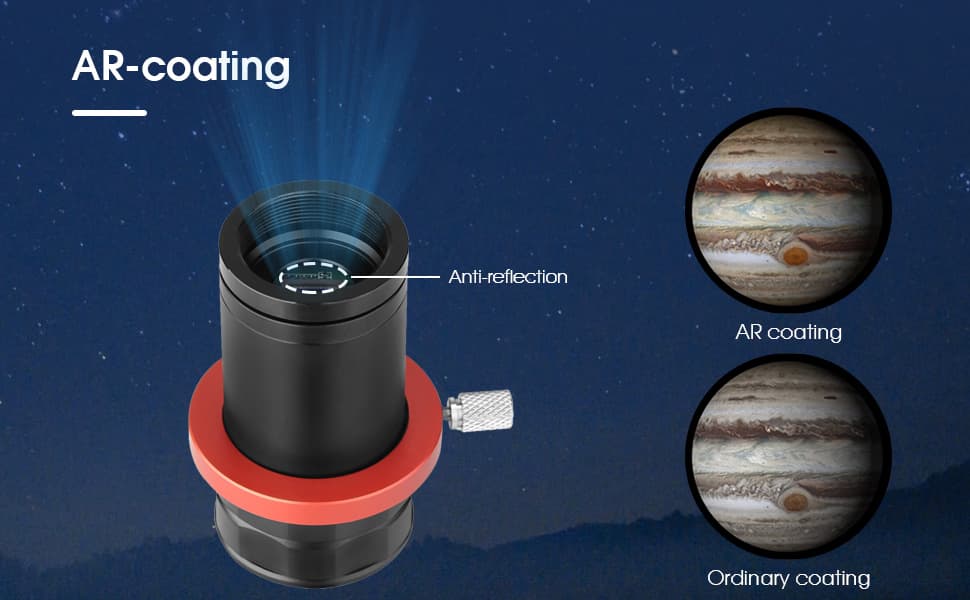

| Protective glass | AR Coating |
| Net weight | 230g |
| Package size | 162*132*70 mm |
1. The SV905C+SV106 guiding combination provides very precise auto-tracking ;

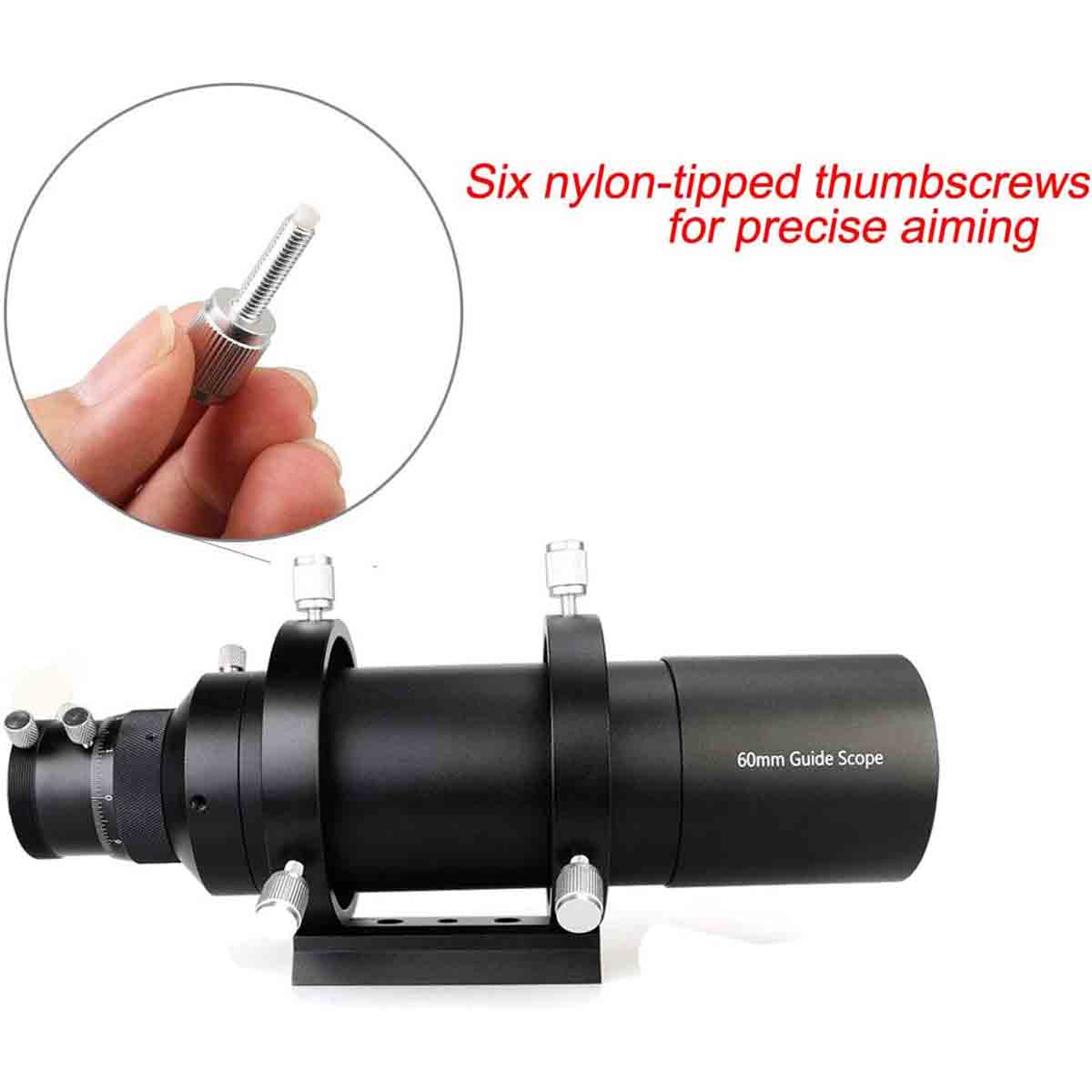

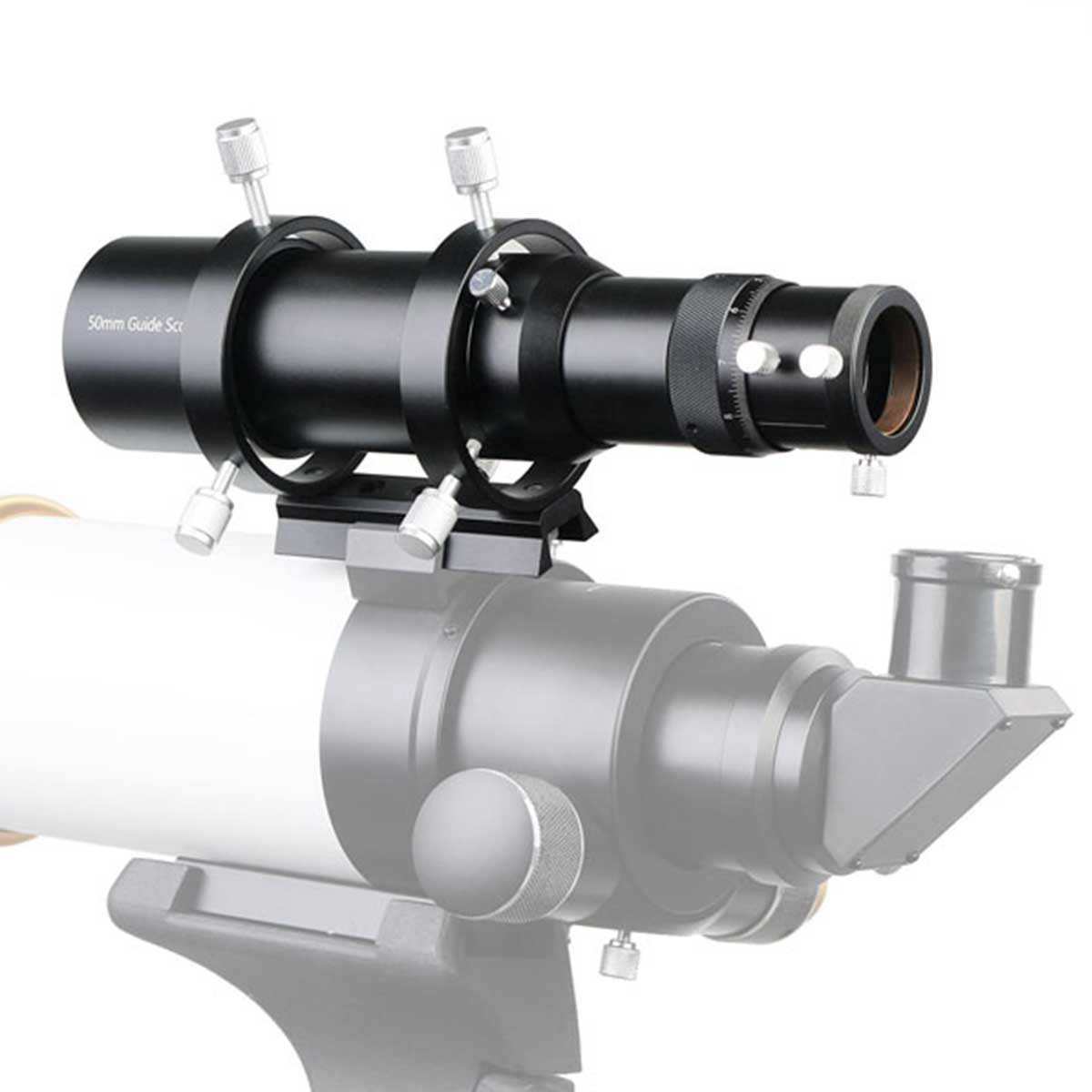

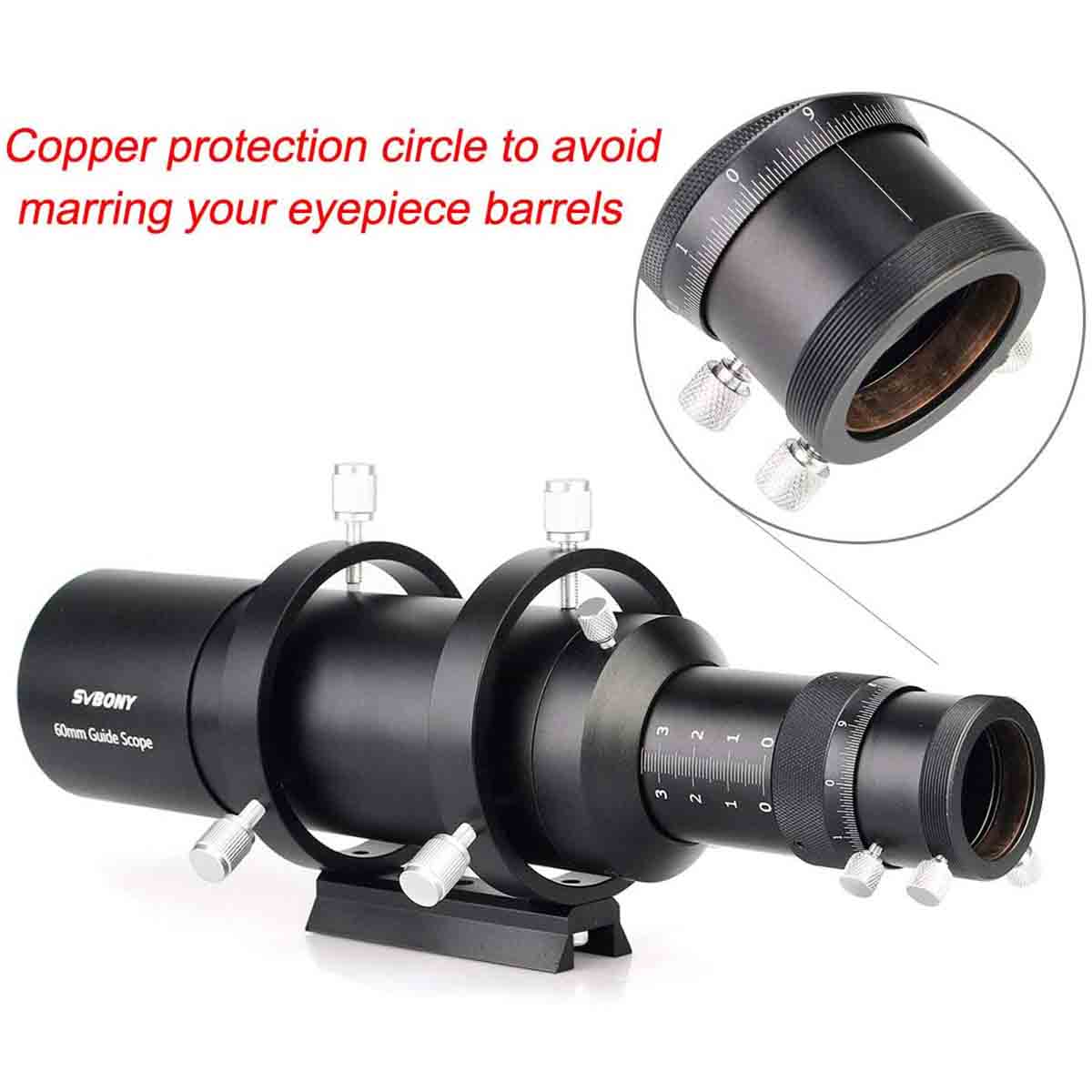

2. SV106 Guide Scope is designed for use with the guider CCD astronomy camera or eyepiece. Helical focuser collar will not rotate attached autoguiding devices during focus adjustments;

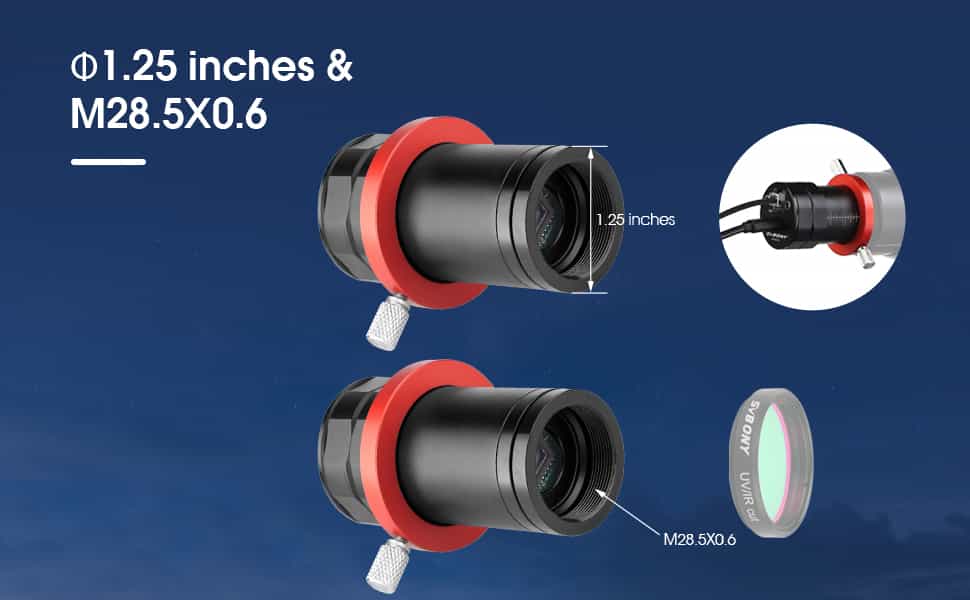

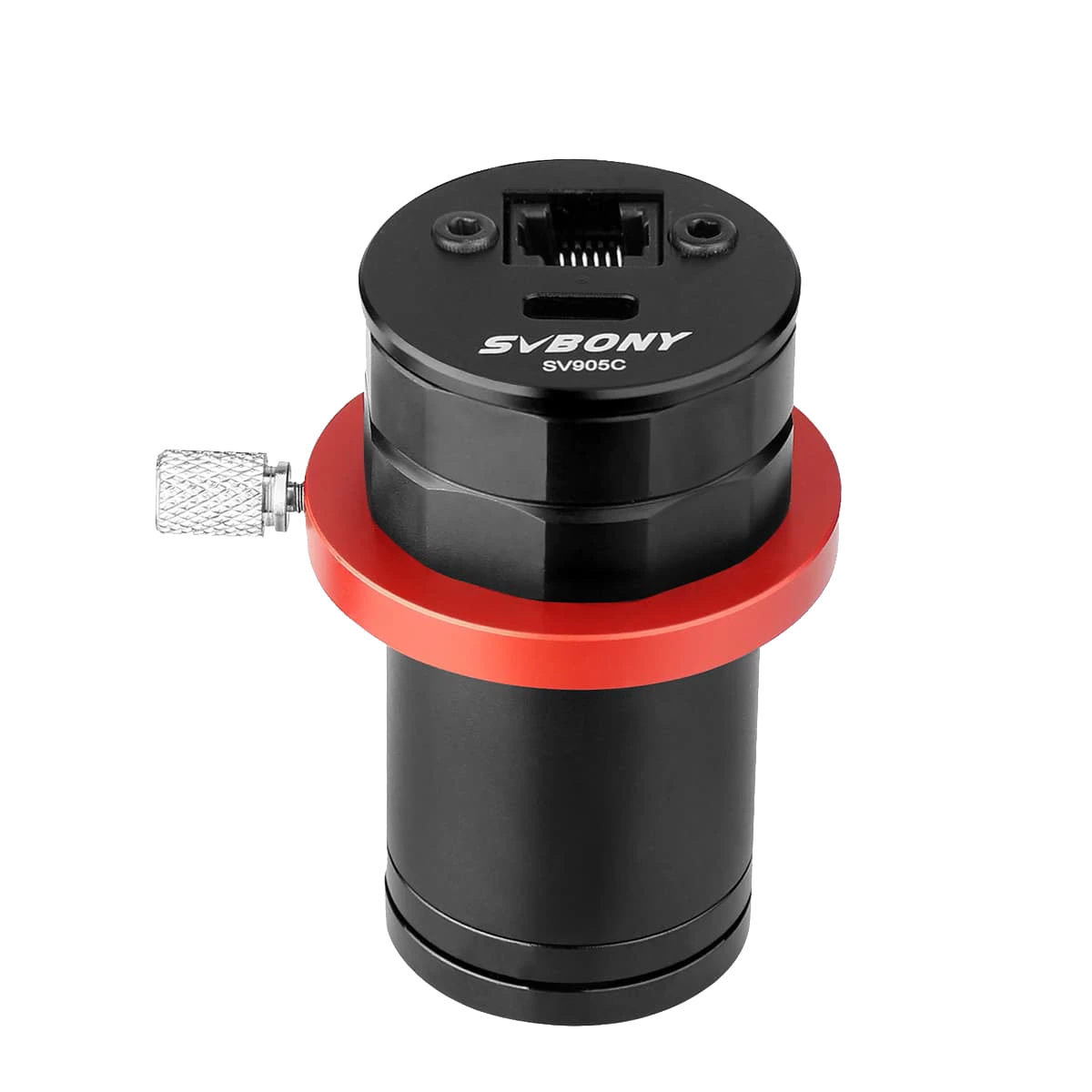

3. SV905C is a high speed1.25'' 2MP guiding camera for Astronomy tracking or planetary imaging.
