How to connect a telescope and camera
How to connect a telescope and camera

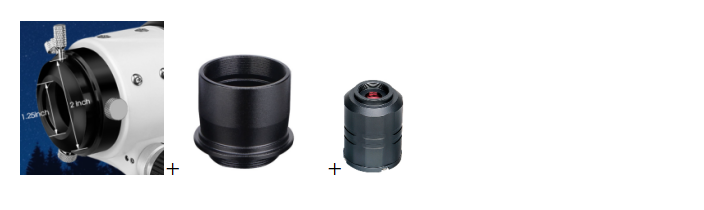

1.SV105,SV205,SV305,SV305Pro
Telescope + 1.25 inch adapter + camera
Note: SV105, SV205 do not need to combine filters, just connect to focus
2. SV305, SV305Pro with CS lens and C-mount lens
CS Lens + Camera
C-mount lens + CS-C adapter ring + camera

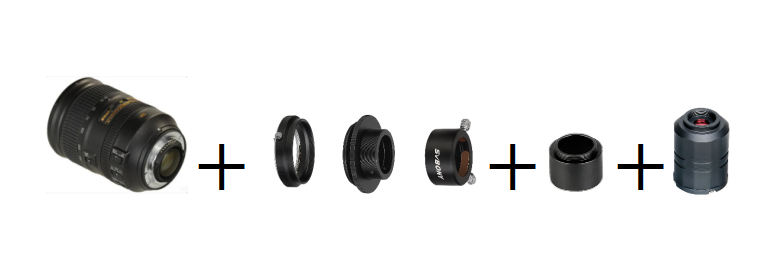

3. SV305, SV305Pro, SV305M Pro with Nikon F mount lens

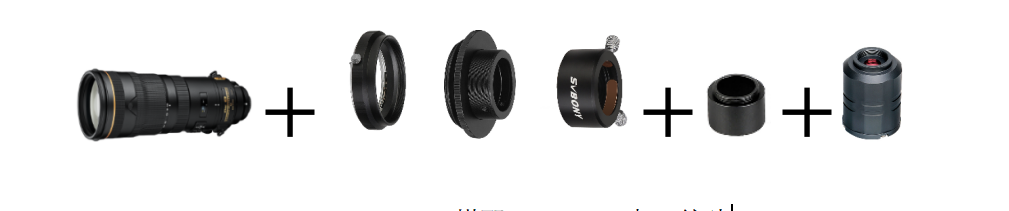

Nikon F mount lens + W9112B + 1.25 inch extension barrel + camera
4. SV305, SV305Pro, SV305M Pro with Canon EF mount lens
Nikon F mount lens + W9112A + 1.25 inch extension barrel + camera

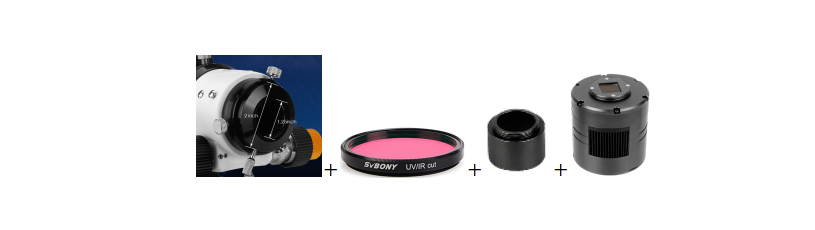

5. SV305Pro, SV305M Pro with filter connection
1.25-inch interface telescope + 1.25-inch filter + 1.25-inch extension barrel + camera

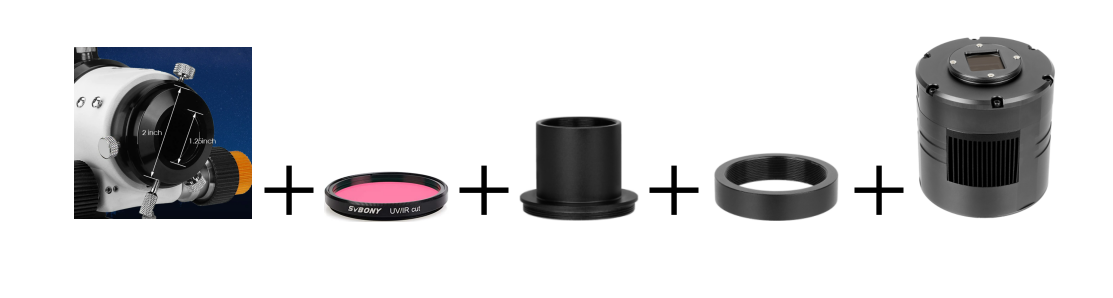

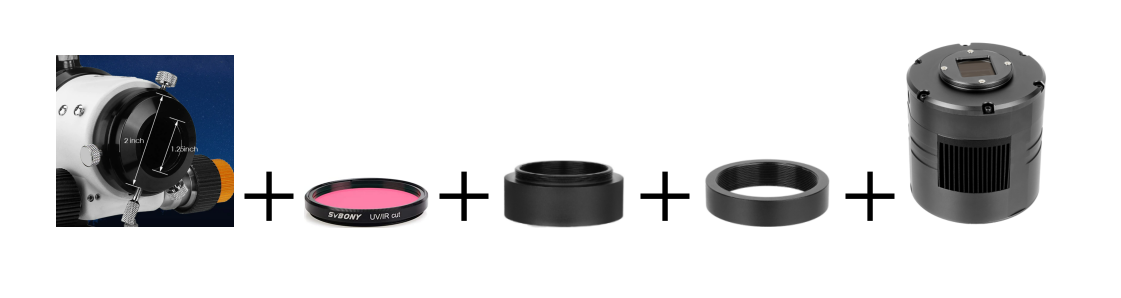

6. SV405CC with telescope 1.25 inch connection
1.25-inch interface telescope + 1.25-inch filter + 1.25-inch T-barrel + T2 adapter + SV405CC camera

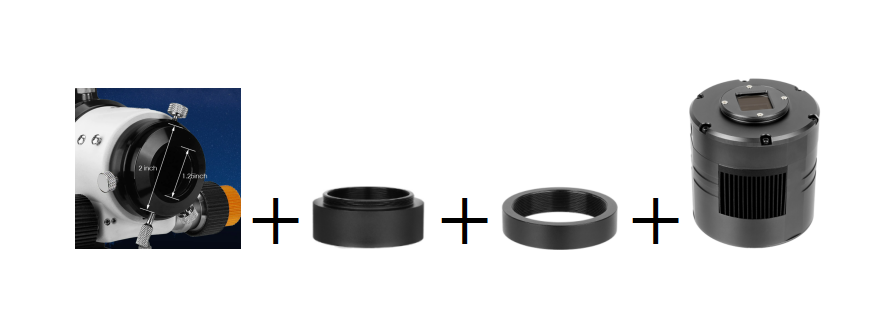

7. SV405CC with telescope 2 inches connection
2-inch interface telescope+M48F-M42M-16.5 adapter ring+T2 adapter ring+SV405CC camera
8. SV405CC with telescope M42 threaded interface
M42 threaded interface telescope + M42M-M42F-21+T2 adapter ring+SV405CC camera

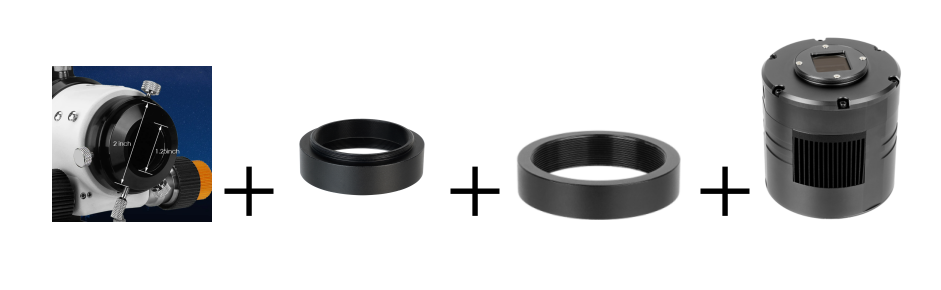

9. SV405CC with telescope M48 threaded interface
M48 threaded interface telescope + M48F-M42M-16.5 adapter ring + T2 adapter ring + SV405CC camera

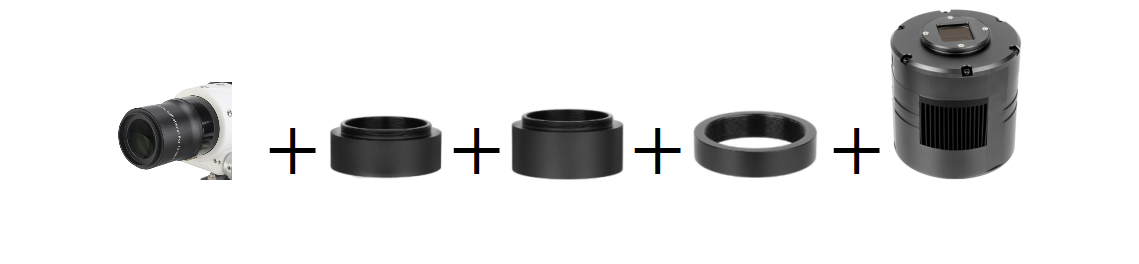

10. SV405CC with flat field lens 55mm back focal connection
Telescope + Field Mirror + M48F-M42M-16.5 Adapter + M42M-M42F-21+T2 Adapter + SV405CC Camera
Schema: Flat field lens+16.5+21+11+6.5=55mm
Comments
Guest
I have an SVBONY 305 camera and want to connect it to a orion 6 inch telescope using 1.25 inch lenses. I am very new at this, 1st time attempting to use a camera with my telescope. Please explain in detail how I would go about connecting the camera and scope. I don't even know if the camera connects to the lense in the focuser or directly to only the focuser tube
svbony Elena Author
Thank you for reaching out, please connect the camera to the eyepiece side 1.25 inch connector. We have also sent you an email.
James
Can you please show mw how to connect my new SVBONY 405CC to my Skywatcher Flextube 200P Focus tube? I cannot achieve clear focus like other customers seem to achieve. I have an SVBONY 205 camera which achieves reasonable focus but the 405 does not. I have tried the assembly you show here but with no success... The 405 camera is otherwise excellent, beautifully made and I can't wait to have it working :) Any suggestions would be appreciated. :)
Author
Thank you for your message. And also thank you for your recognition of the sv405cc astronomical camera. If you are experiencing problems with focusing, you may have to check the other optics you are using to see if they are able to focus, and if the focal length is too short, you can use an extension tube or other focus-enhancing accessory. It is advisable for you to provide more features or details about your use of the product so that we can better assist you. For more details, you can send us emails by info@svbony.com
Guest\
How do I connect my SV605CC Camera to my Celestron CGX mount? What connectors do I use?
Author
Thank you for your message, pls clarify which specific gear you are using, as this will help us better help you with your question. Our contact email is support@svbony.com
