1.Use background

I hadn’t planned on purchasing the telescope. In September 2021, I decided it was time to “go big” with astrophotography and ordered a “rig” which is a synonym for putting a lot of money into various parts that can be cobbled together to take pretty space pictures. I’ll save that one for a different review. Due to the pandemic, shipments were delayed and the main telescope was indefinitely backordered. The mount was, too, but I chose to compromise and swap it with another, similar model. My mount arrived and I began taking awesome shots with my Sony Alpha 6300, but I couldn’t help imagine what more I could be doing with a proper scope.

Perfect equipment

After being nickled and dimed to death piecing together the system, I knew I had to keep costs down for this new “interim” investment. I did quite a bit of research, from scouring reviews (hint: I trust the ones on astrophotography sites.) to visiting AstroBin and performing searches to find pictures taken with the same telescope. Initial results looked very promising. I decided to pursue the SV503 from Svbony.

The results of a search for pictures taken with the SV503

The telescope looked like it facilitated great pictures, the specs were good on paper, and people were giving it positive reviews.

The telescope looked like it facilitated great pictures, the specs were good on paper, and people were giving it positive reviews.

I added a guide scope, the SV106 Guide Scope.So, what did I get?

The Specs

I bought the entry level 70ED which comes with a focal length of 420mm and an aperture of 70mm for an f-stop of F6. I intentionally picked this model to have an option to shoot at focal lengths between my first telescope (Stellina, 400mm/80mm) and the one I was waiting for (Celestron EdgeHD 9.25”, 2350mm, 235mm). With a 2x Barlow lens I am able to hit close to 1000mm focal length.

The telescope itself is a doublet air-spaced achromatic refractor. The type of lens traditionally exhibits chromatic and spherical aberration, but the doublet design helps counter the effects, hence achromatic or without chromatic aberration. (It does exist, but is diminished). Everything I read indicated a field flattener would be a must for astrophotography. The flattener not only corrects spherical aberration for pinpoint stars to the edge, it reduces the focal length to 80% or a wide and very useful 336mm. This also brings the f-stop down to F4.8 or a full stop. Personally, I think the scope isn’t complete without the reducer and wouldn’t advise going without it.

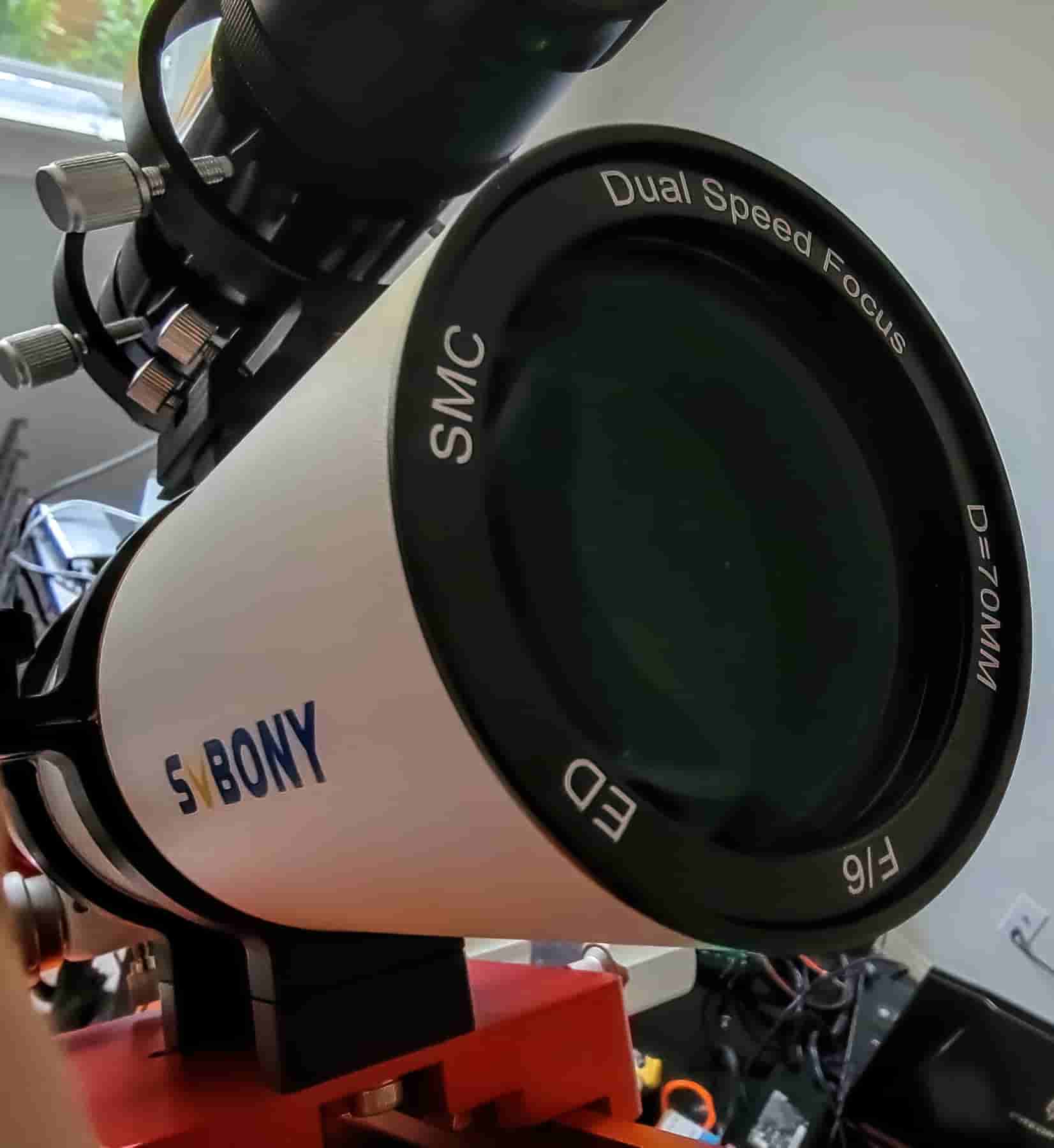

SV503 70ED Lens

The glass is S-FPL51. This is a good glass for a telescope, but not the best choice for the combination of a refractor and astrophotography. The higher-end S-FPL53 would have been better, but it also would raise the overall cost of the telescope. You can see for yourself whether or not the images pass muster as I’ll share samples from multiple cameras.

Last, but not least, freed from its guidescope, the SV503 weighs five pounds. Add another pound for cameras and extension tubes, and it’s a six pound payload. Not the daintiest of options, but just within the limit of my ultra portable Sky Adventurer Mini star tracker. That makes it a candidate to tag along on hikes, although if we’re being honest here I’d also have to add counterweights and the mount itself weighs over three pounds. My shoulders already hurt.

Now, specs aside. Let’s open the box!

What’s in the box?

The package I bought came with the optical tube assembly (telescope, of course) and a pair of rings to hold and mount the scope. There is an adapter that screws into the 2” threads on the observing side of the scope to present a receptable ready to receive 1.25” sleeves. There is a dovetail plate for mounting using clamps and a nice lens cover.

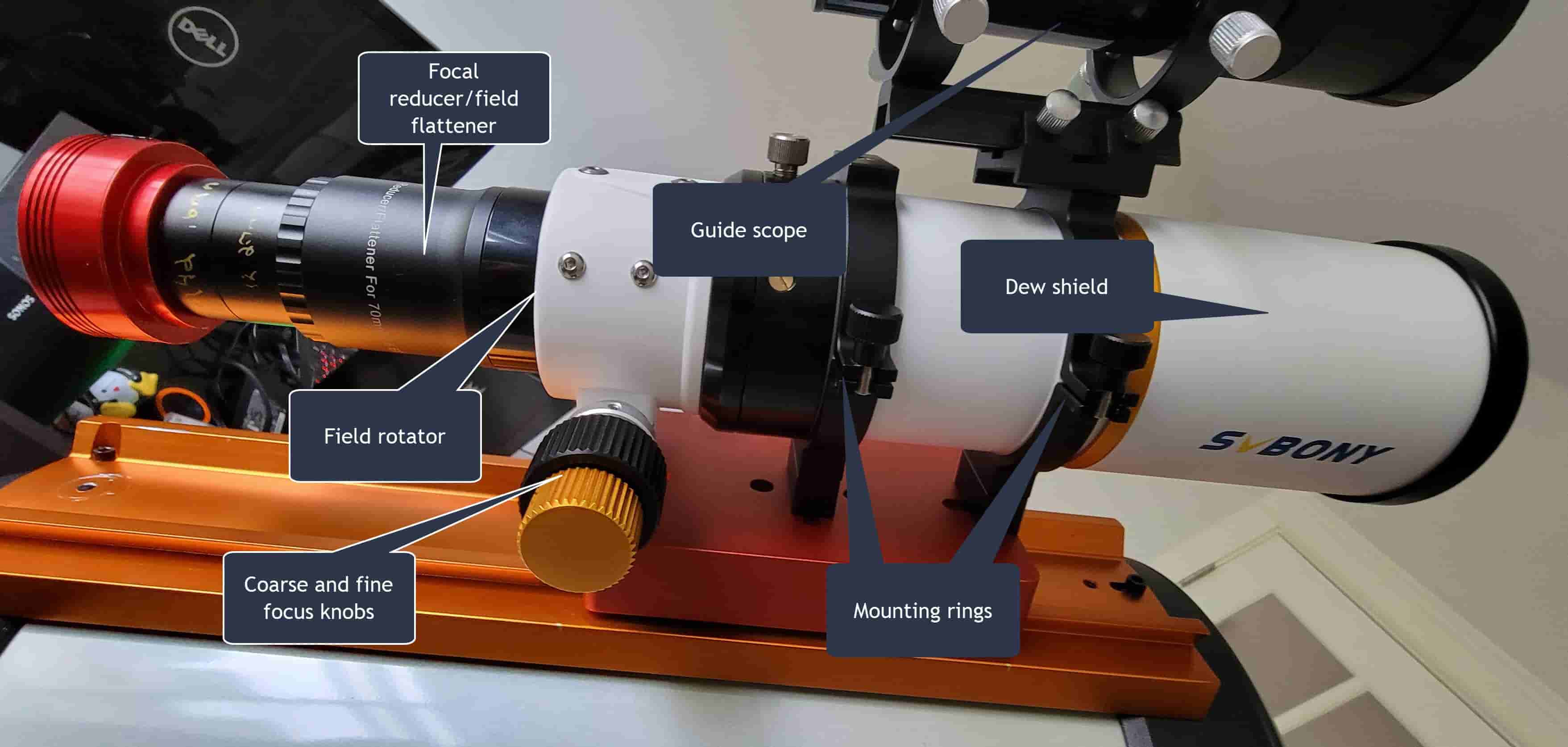

Profiles of  the SV503

It’s surprising that the marketing materials don’t make this more clear, but the box contains a few other goodies. The telescope has a built-in field rotator. This means you can loosen a thumb screw to rotate the tube for composition and framing of a shot. The end of the telescope has a built-in dew shield that slides in/out and I’ve never had an issue with dew and this scope. It also does a great job of blocking external light. Finally, the focus knob is two-tiered with a fine coarse focus and a more precise fine focus. It has a generous 70mm range for focus and the tube is annotated with the distance so you can record the length that achieves focus. The long annotated focus tube combined with the fine focus knob makes dialing in focus really easy even without an autofocuser.

Things I wish I knew

The telescope comes with very little documentation. The website, however, has a digital library of manuals you can download as PDF files that are very thorough. They coverything from weight to screw sizes and even offer examples of how to mount finder scopes (small scopes with a wide field of view to help you align the telescope) scopes and guide scopes (scopes designed to work with a motorized mount to keep the scope positioned correctly for long exposures).

First light

I had my first opportunity to use the telescope the evening of January 27, 2022. I tried several targets. My favorite is the Heart Nebula. All of the images suffered from the same issue. I didn’t understand backfocus at the time, so my camera was the wrong distance from the field flattener. This resulted in everything stretching towards the outside edge as is evident in this picture.

Heart Nebula

Here is a video of an imaging session in February.

https://youtu.be/65S3olO50u0

Nebula

The lens with the field corrector projects sharp images with rich colors. It had no problem resolving the “red curtain” in the Horsehead Nebula or the fine details of the Flame Nebula.

The horse and the flame

For the first time, I was able to capture the delicate nebulosity and rich bluish purple glow of the Maia Nebula, also referred to as the “Seven Sisters” and the Pleiades.

The Maia nebula

Lunar

Pairing the telescope with my Sony Alpha 6300 is like a dream astrophotography kit for photographing the moon. It produces sharp, vibrant images like these:

Half moon

Bright moon just after dawn

Paired with a Barlow lens , it is quite capable at higher magnification. Here’s a closeup of the Copernicus crater region

Copernicus

Galaxies

The field reducer at 336mm is the perfect length to capture the Andromeda galaxy. This was a short session and results would be even better had I imaged longer.

M31:The Andromeda Galaxy.

Here are the galaxies of the Virgo A complex.

The Virgo A galaxy complex

Volcanoes

My house has a terrific view of Mt. Rainier, and I often train my telescope there for calibration. It also takes fantastic pictures. Here are two of my favorites.

Mt.Rainier

Mt.Rainier

Pros and Cons

The pros:

1.Inexpensive

2.Lightweight, stable on a standard tripod and when mounted on a Star 2.Adventurer Mini

3.Flexible focal length with flattener and/or Barlow

4.Built-in dew shield

5.Built-in field rotator

6.Fine-grained focuser

7.Great for deep sky objects

8.Great for lunar photography

9.Takes nice landscape shots too

The cons:

1.A field reducer is a “must have” extra for astrophotography

2.Doesn’t come with eyepieces or diagonals

3.Doesn’t come with mounting plate for guide scope

4.Too short focal length for planetary imaging

Conclusion

I couldn’t be happier that my larger scope was delayed, because I should have started with this one. It provides a lot of mileage for a very affordable price. It is solidly built, lightweight, and portable. The combination of field reducer and Barlow lens provide a wide range of focal lengths from 336mm - 800mm making it ideal for everything from starfields and asterisms to galaxies and nebulae. It is also my favorite telescope to image the moon with and pairs nicely with both my mirrorless camera and my dedicated astrophotography camera.
