Svbony SV172 dew heater strip designed with PWM Function, which can provide more accurate, energy-saving, efficient heating control, thus enhancing the performance and reliability of telescope equipments.
Tips: This dew heater is suitable for SV503 80ED, SV503 102 ED, SV550 80 APO, SV550 122 APO
In Stock
SV172 PWM Function Dew Heater Strip 430mm
This 430mm Dew Heater is designed with PWM function, which can provide more accurate, energy-saving, efficient heating control, thus enhancing the performance and reliability of telescope equipment.

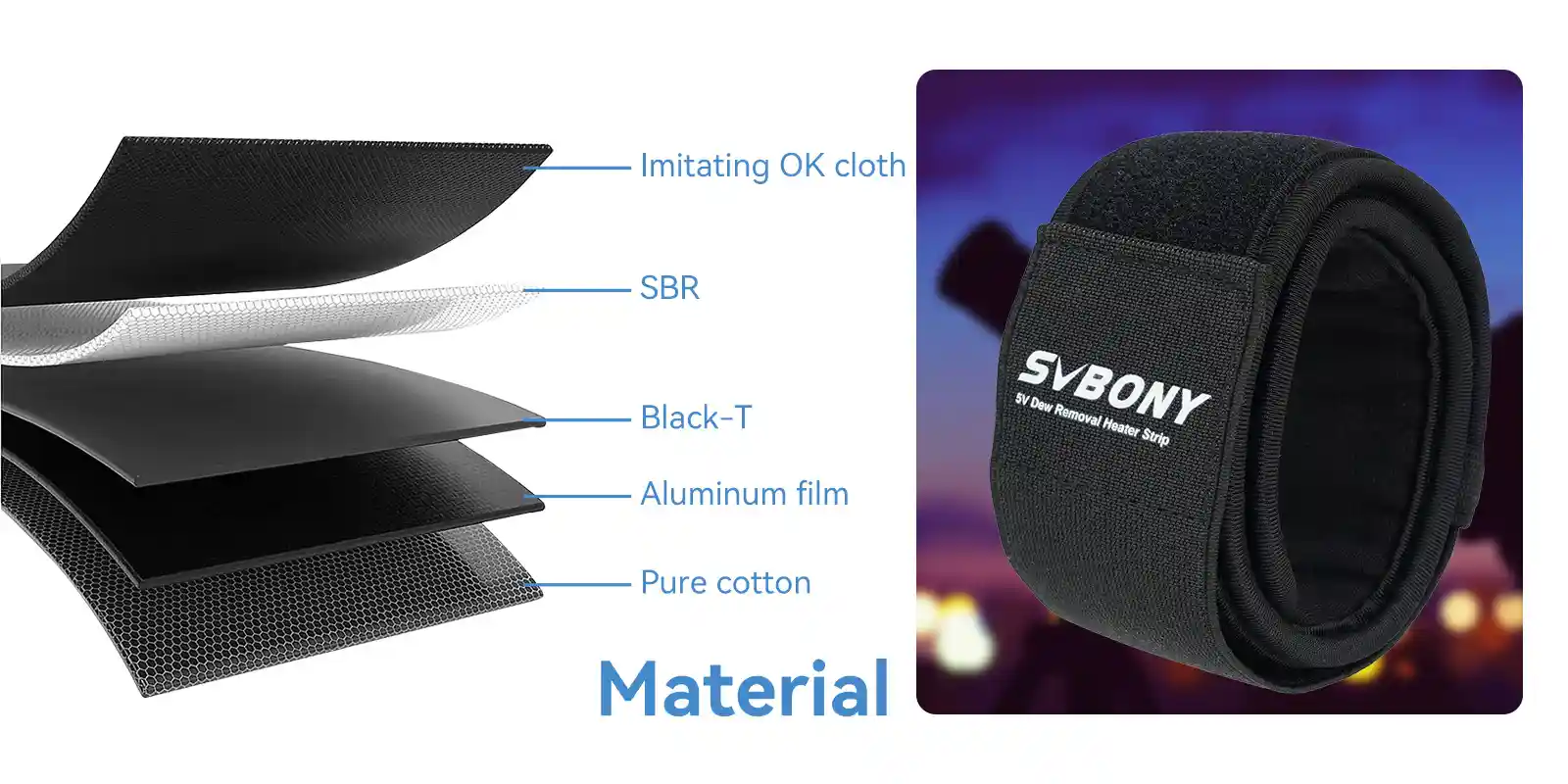

Total Materials

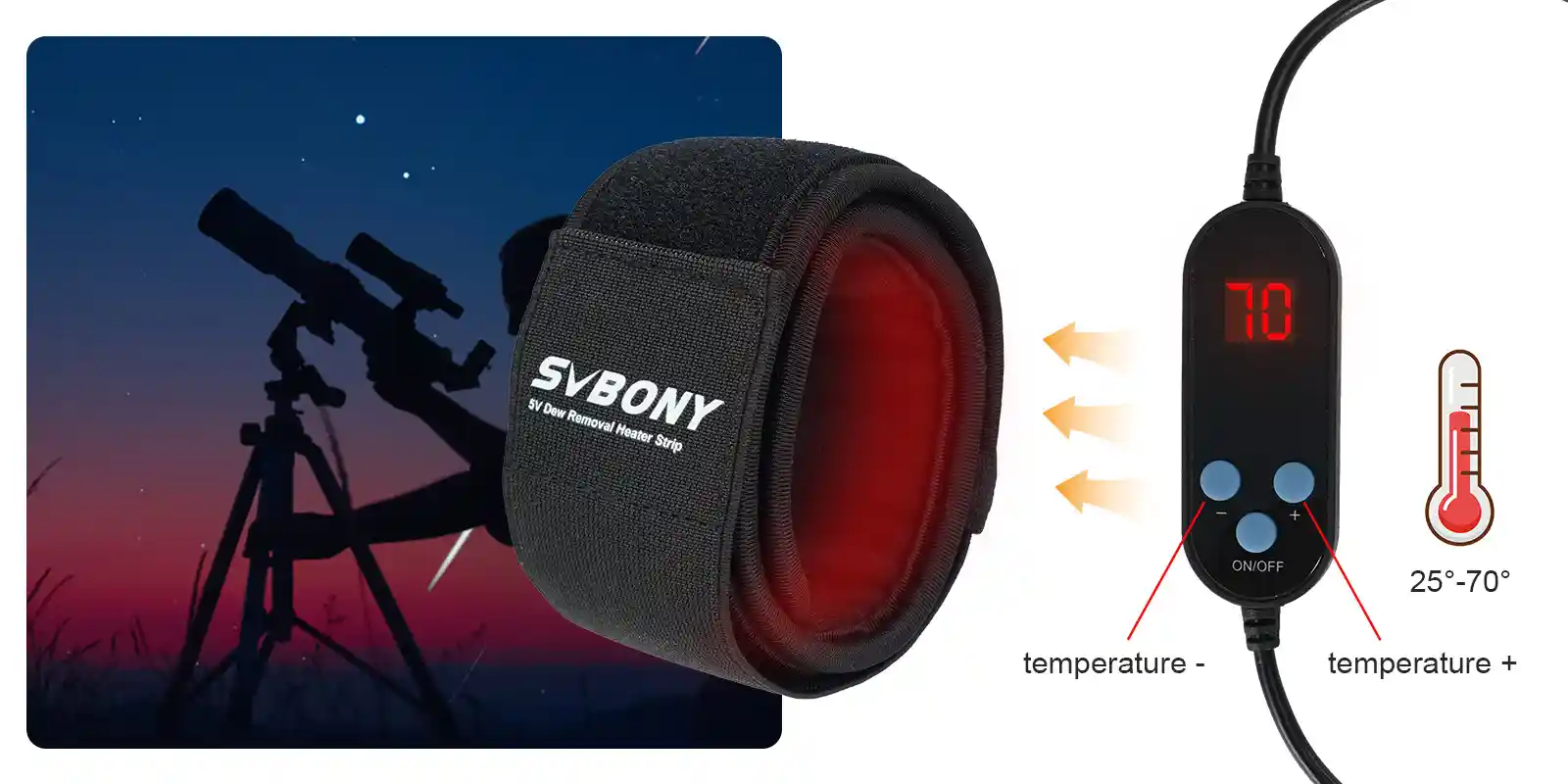

PWM Function

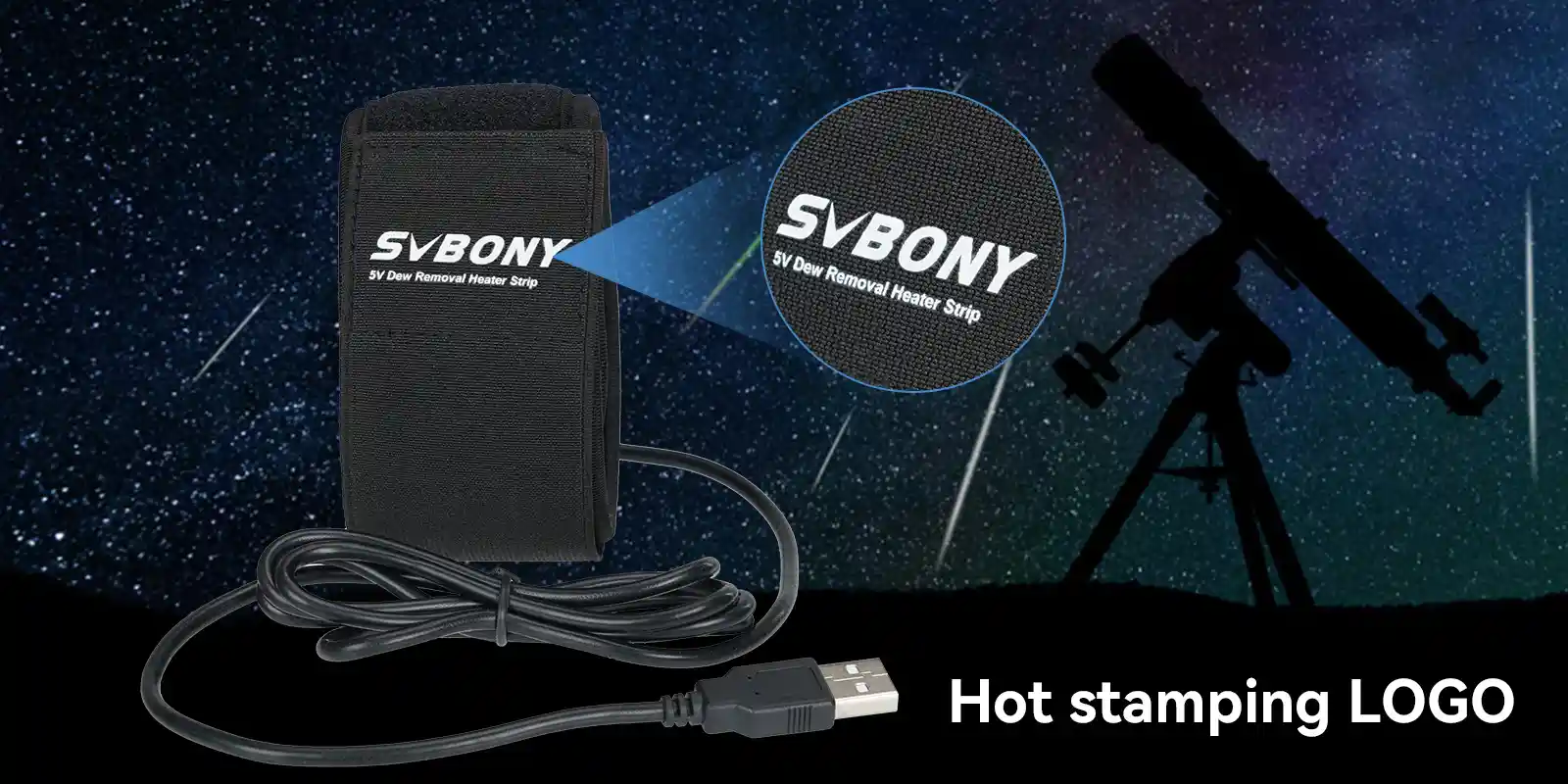

Hot Stamping LOGO

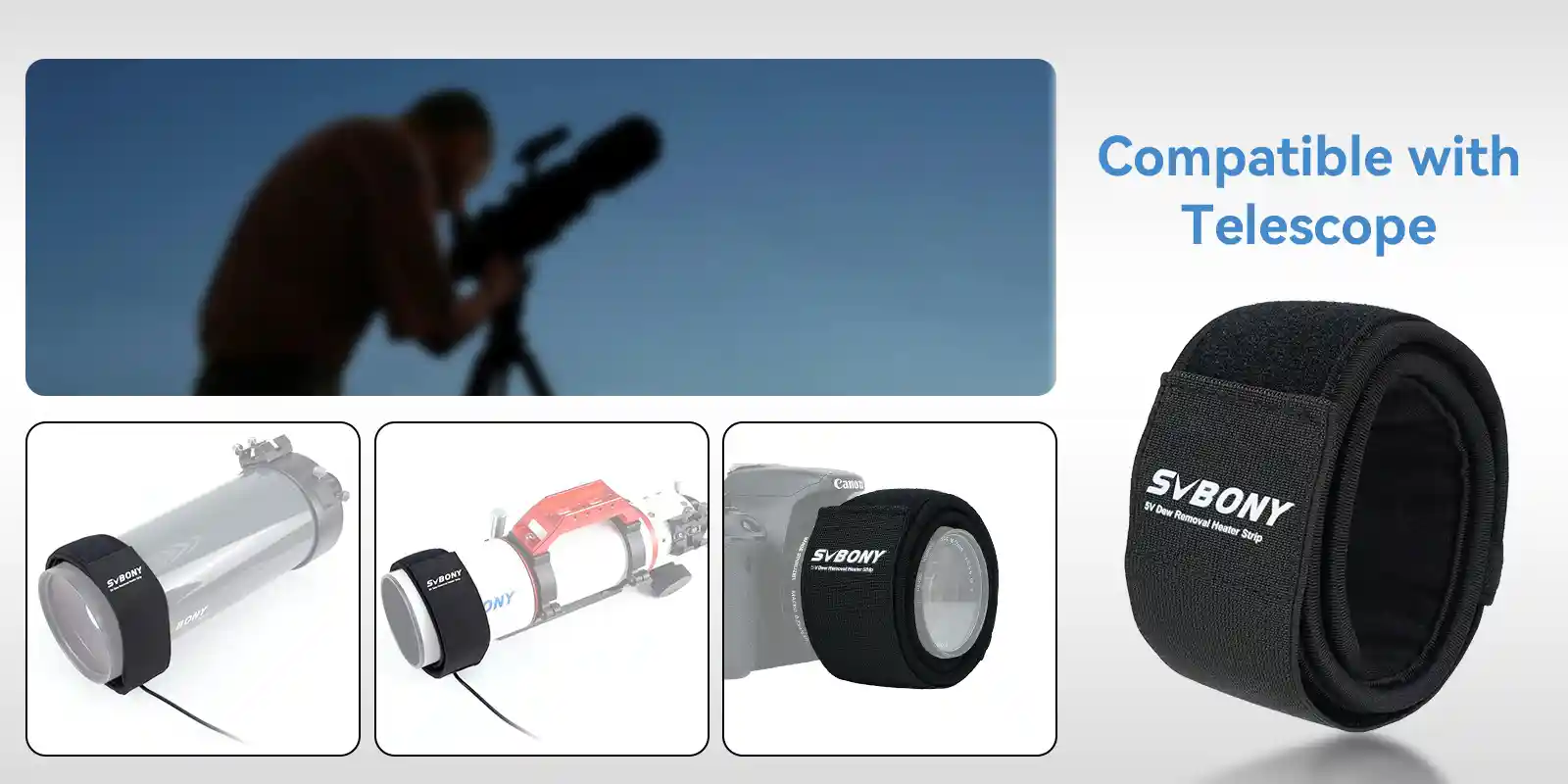

Compatible with Telescope & Camera

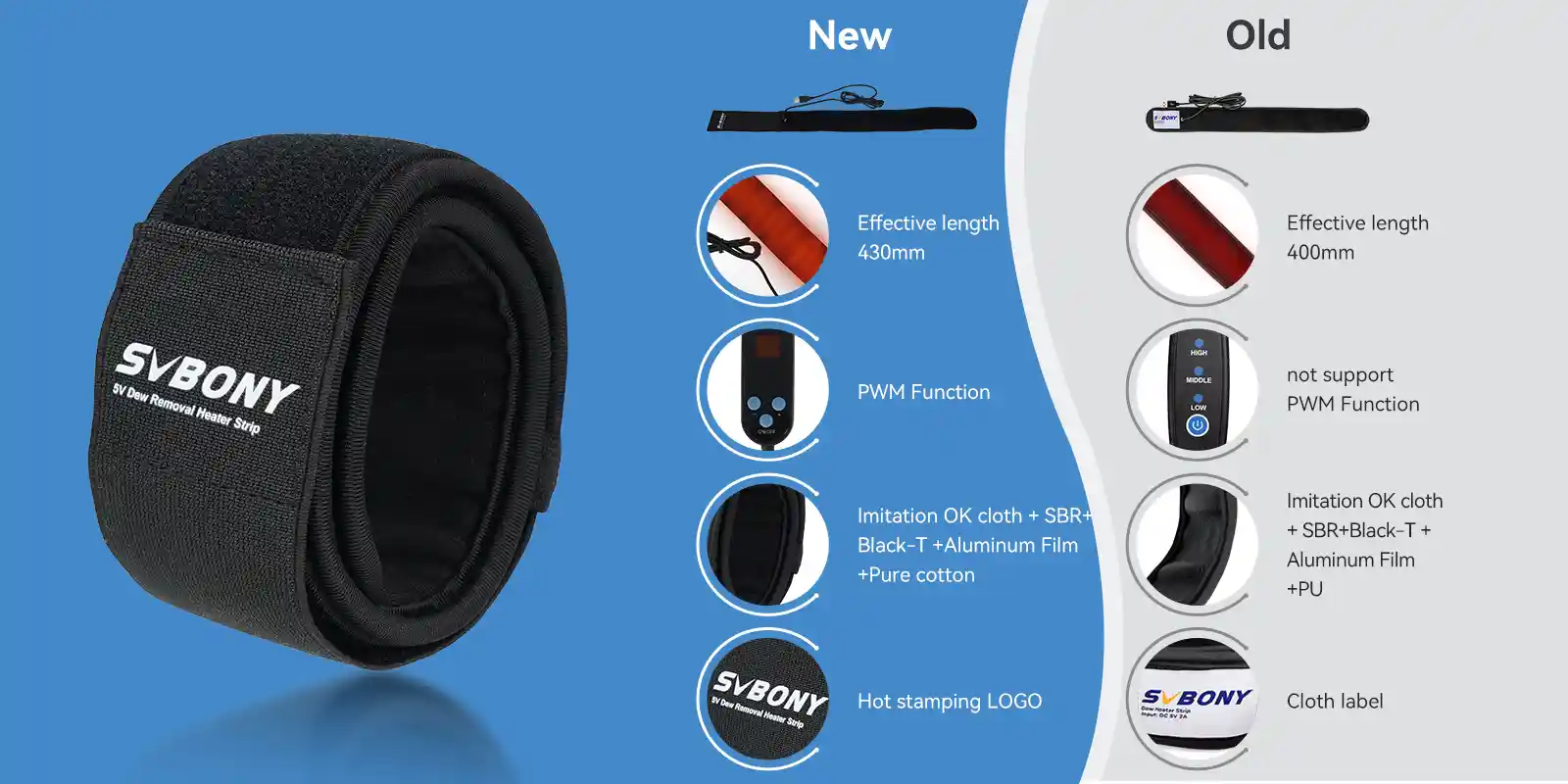

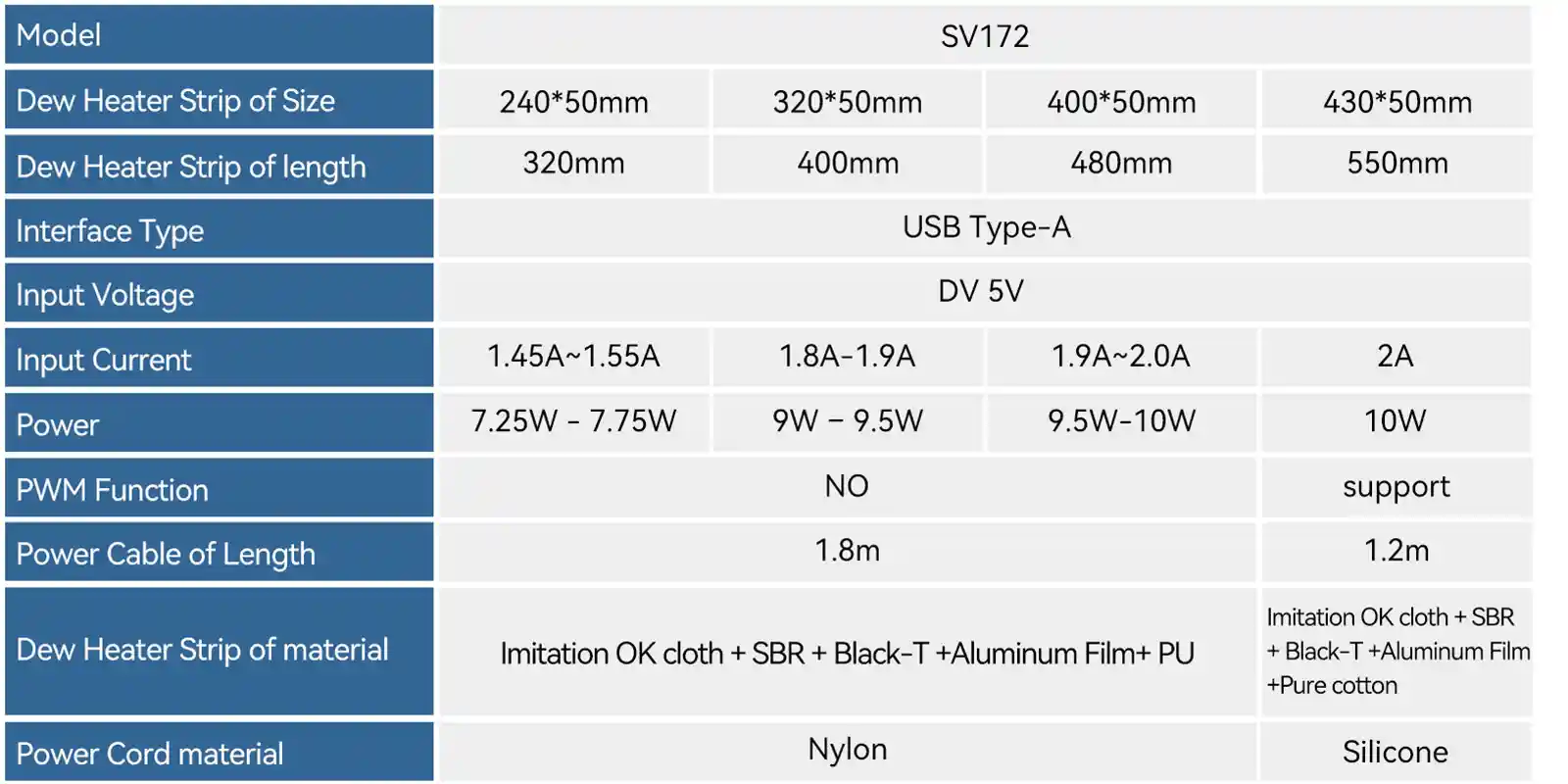

The Comparison of SV172
| Model | W9132A | W9132B | W9132C | W9132D |
| Total Length | 320mm | 400mm | 480mm | 550mm |
| Heater Length | 240mm | 320mm | 400mm | 430mm |
| Interface Type | USB Type-A | USB Type-A | USB Type-A | USB Type-A |
| Input Voltage | DV 5V | DV 5V | DV 5V | DV 5V |
| Input Current | 1.45A~1.55A | 1.8A~1.95A | 1.9A~2.2A | 2A |
| Power | 7.25W - 7.75W | 9W – 9.25W | 9.5W-9.75W | 10W |
| Temperature Adjustable | Yes | Yes | Yes | Yes |
| PWM Function | No | No | No | Support |
| Power Cable Length | 1.8m | 1.8m | 1.8m | 1.2m |
| Strip Material | Imitation OK cloth + SBR + Black-T +Aluminum Film+ PU | Imitation OK cloth + SBR + Black-T +Aluminum Film+ Pure Cotton | ||
| Power cord material | Nylon | Nylon | Nylon | Silicone |
| Fit for OTA | MK105, SV48P, SV503 80 ED, SV503 102 ED, SV550 80 APO, SV550 122 APO | |||
-
Features
- 1. Compatibility: designed for astronomy telescopes and compatible with DSLR camera lens, protecting optical devices like telescope and camera from fogging or freezing
- 2. Energy-saving: PWM technology allows for adjusting the working cycle and pulse width of the heating tape according to the needs, providing heat only when necessary. This reduces energy consumption and saves electricity.
3. Precise control: it control enables precise temperature regulation of the heating tape to meet specific requirements. By changing the pulse width and cycle, high-precision temperature control can be achieved, avoiding overheating or excessive cooling.
4. Extended lifespan: due to the intermittent operation of PWM heating tapes, their lifespan is longer compared to continuously operating regular heating tapes. Additionally, the stable temperature reduces the risk of equipment damage caused by temperature fluctuations.
5. Efficiency: PWM heating tapes can quickly respond to temperature changes and reach the desired temperature in a shorter time. This fast response and efficiency improve heating effectiveness and reduce energy waste.
