SV555 54mm f/4.5 APO Astrograph Set for Deep Sky Astrophotography
84 | ReviewsOfficial Store Exclusive, Double points for a limited time+316 Points
Key Features

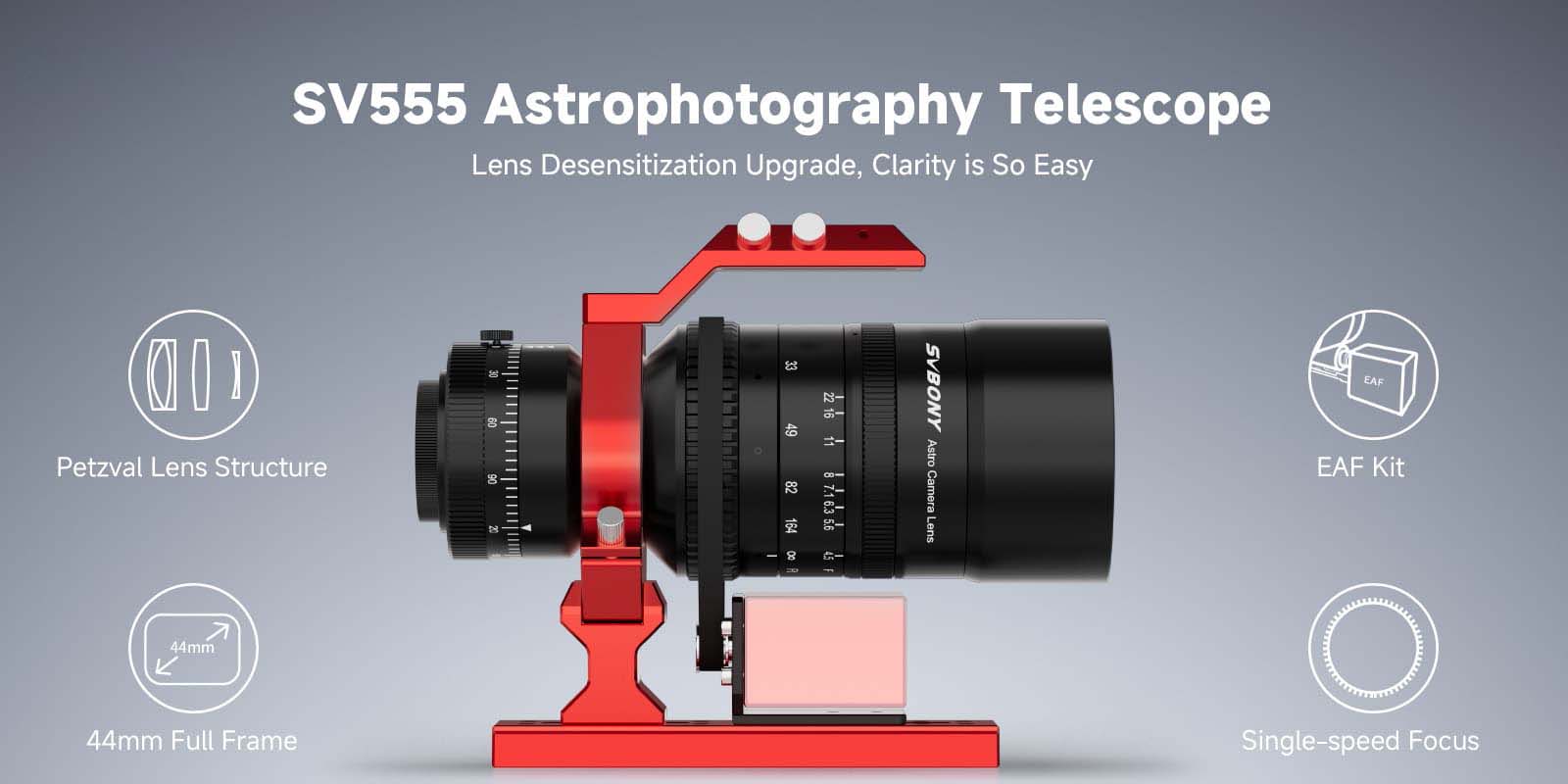

The SV555 APO Astrograph Telescope is designed for deep-sky photography, offering superior optical performance that captures the faintest stars and nebulae with stunning clarity and detail.

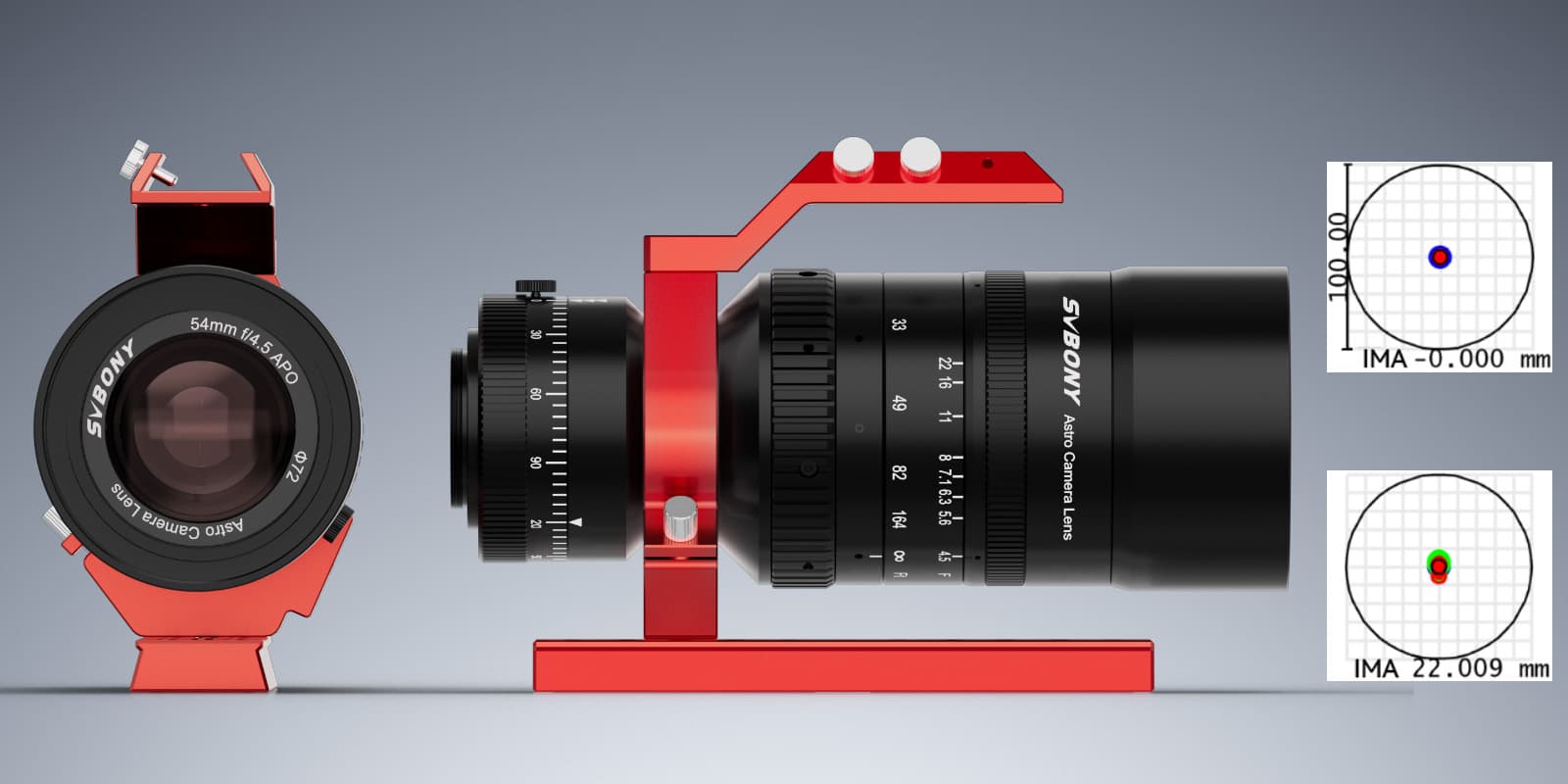

Featuring a wide-field Petzval optical design, this telescope ensures sharp, pin-point stars from edge to edge with minimal chromatic aberration, making it ideal for expansive deep-sky astrophotography.

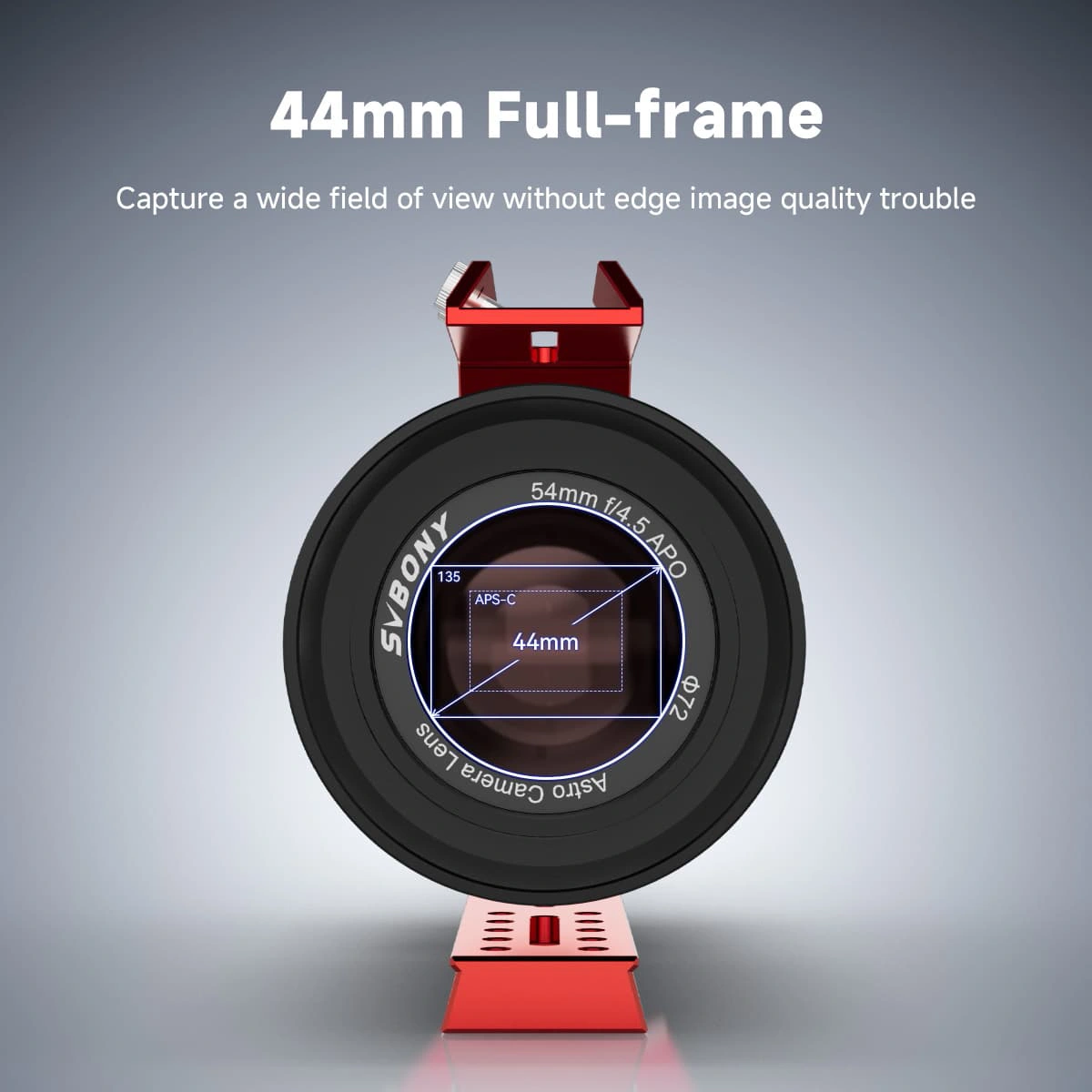

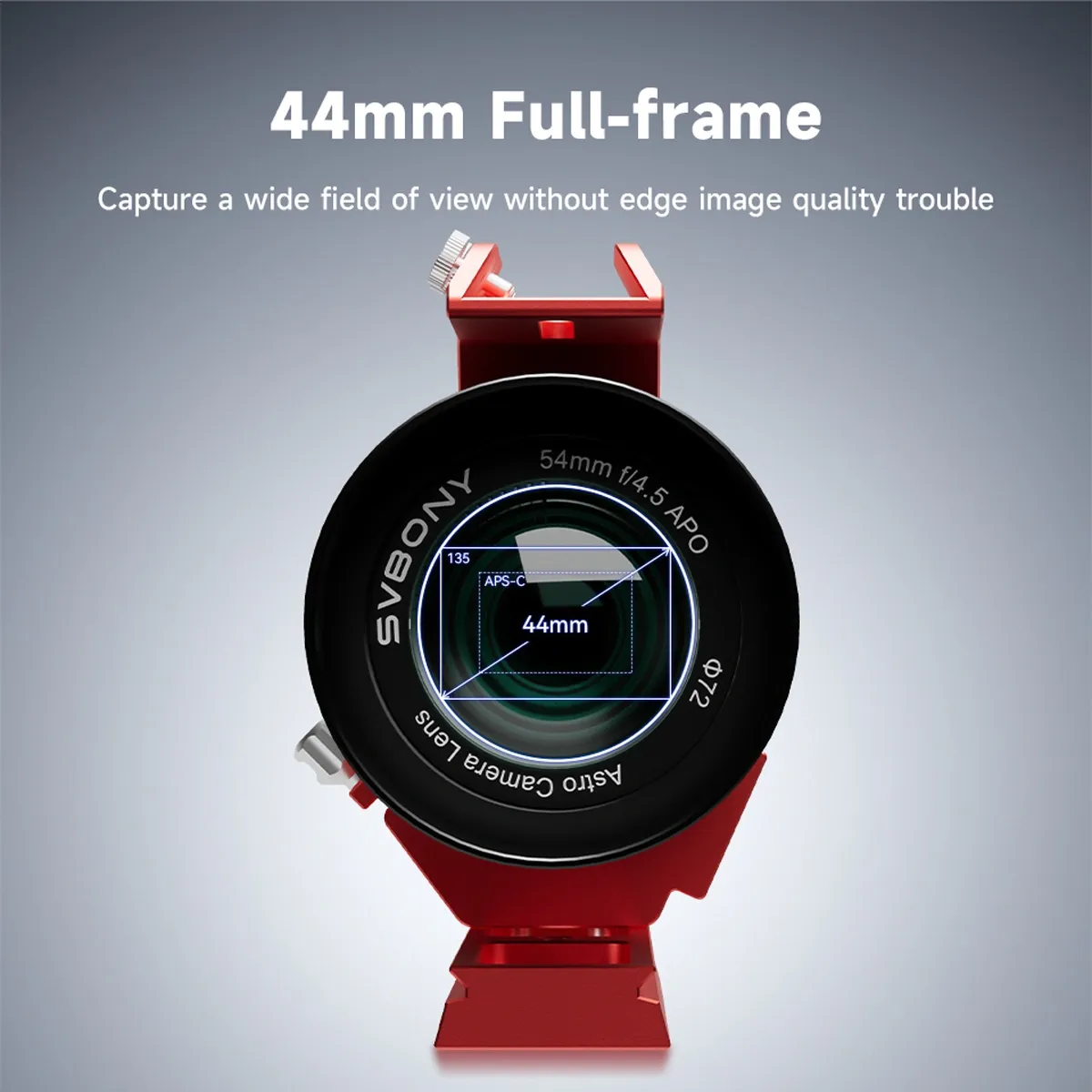

With a 44mm full-frame design, the SV555 eliminates aperture blockage, ensuring compatibility with full-frame DSLR and mirrorless cameras for wide, unobstructed celestial images.
The single-speed focus system and fine adjustment ring provide accurate and smooth focusing, allowing you to capture sharp, detailed images even in long exposure sessions.

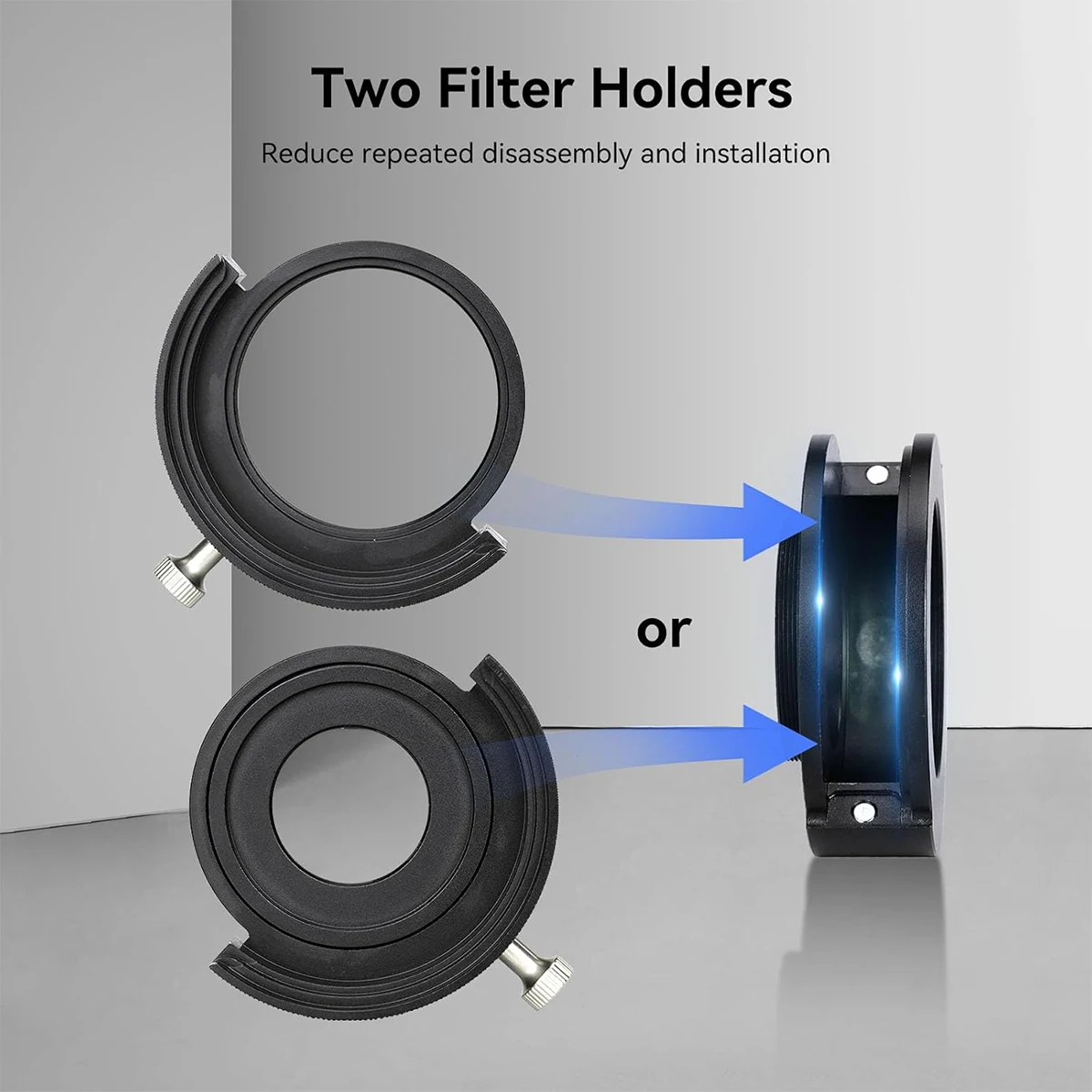

The SV555 comes with an M48x0.75 filter thread for easy filter installation and is compatible with V-style & Arca-Swiss quick-release systems, offering easy setup and versatility for various astrophotography setups.

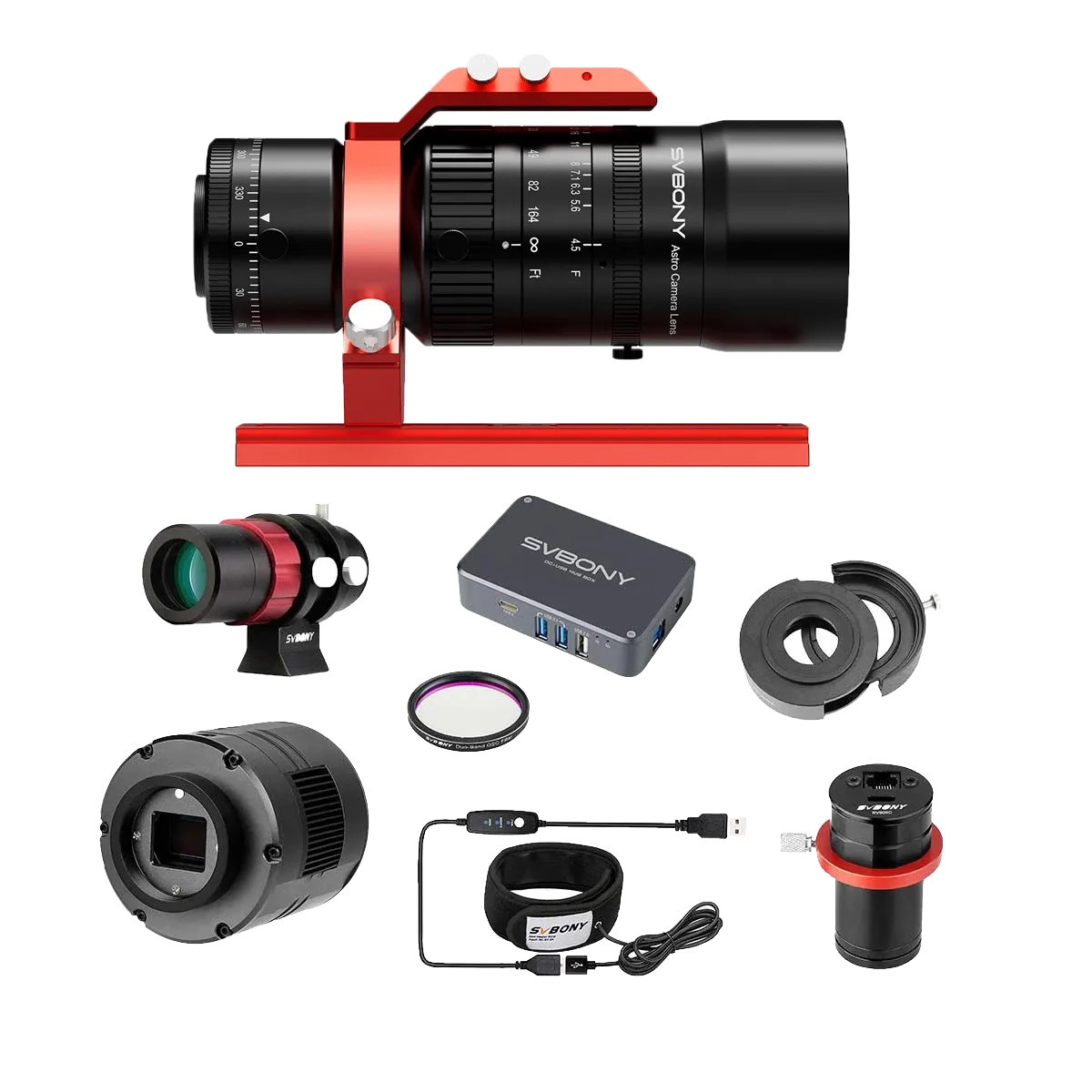

Bundle Includes:
⚡ Shipped: 72 hrs after ordering (Pre-sale products excluded).
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
🔒 Secure Payments | SSL Encrypted
💰️ 30-Day Money-Back Guarantee
🛡️ Hassle-Free Warranty | No Hidden Fees
🎧 Lifetime Customer Support
💳 Payment Methods
📦 Payment Methods
Client Portfolio Display

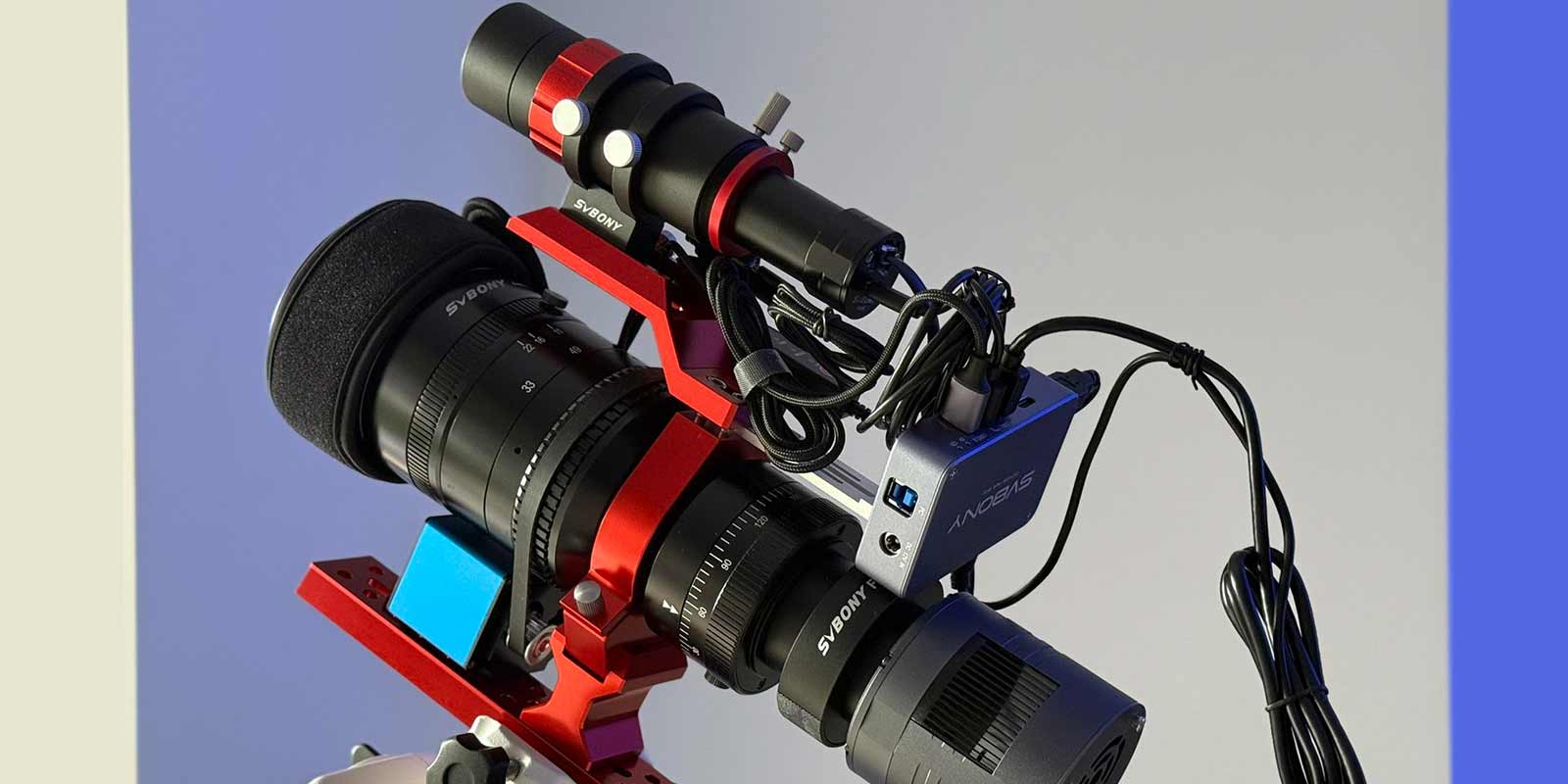

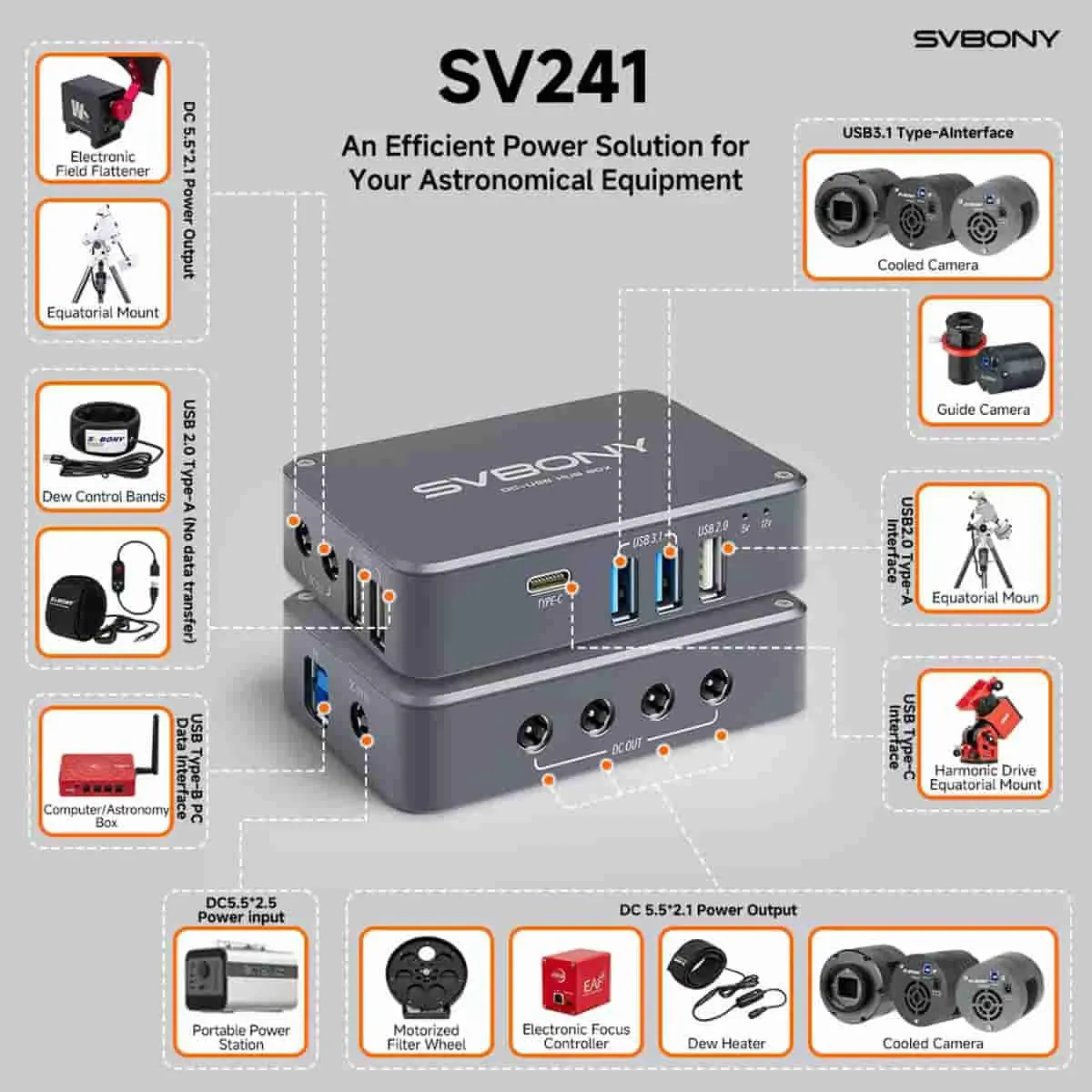

In this astrophotography setup, the SV241 PowerBox serves as the power hub, providing reliable and efficient power supply for the entire system.Streamlines your cable layout, reducing clutter and enhancing overall setup efficiency!
Customer Reviews
All Reviews
Loading...
| Brand | SVBONY |
| Model | SV555 |
| Objective Type | Petzval Design（5 Elements in 3 Groups) |
| Aperture | 54mm |
| Optic Coated | FMC |
| Focal Length | 243mm |
| Focal Ratio | f/4.5-f/22 |
| Focuser | Helical |
| Image Circle | Φ 44mm (Full Frame) |
| Lockable 360º rotator | Yes |
| Mount Type | Dovetail Plate |
| Dovetail Plate Length | 184mm |
| Dovetail Plate Width | 42mm |
| Lens Barrel Circumference | 293mm |
| Front Filter Thread | M72 |
| Back-end connection | M48x0.75 male thread |
| Net Weight | 2450g (excluding accessories) |
| Length of Screws |
2 x M6 short screws, length 10mm
2 x M6 long screws, length 55mm
2 x M4 screws, length 8mm
4 x M5 screws, length 12mm
|

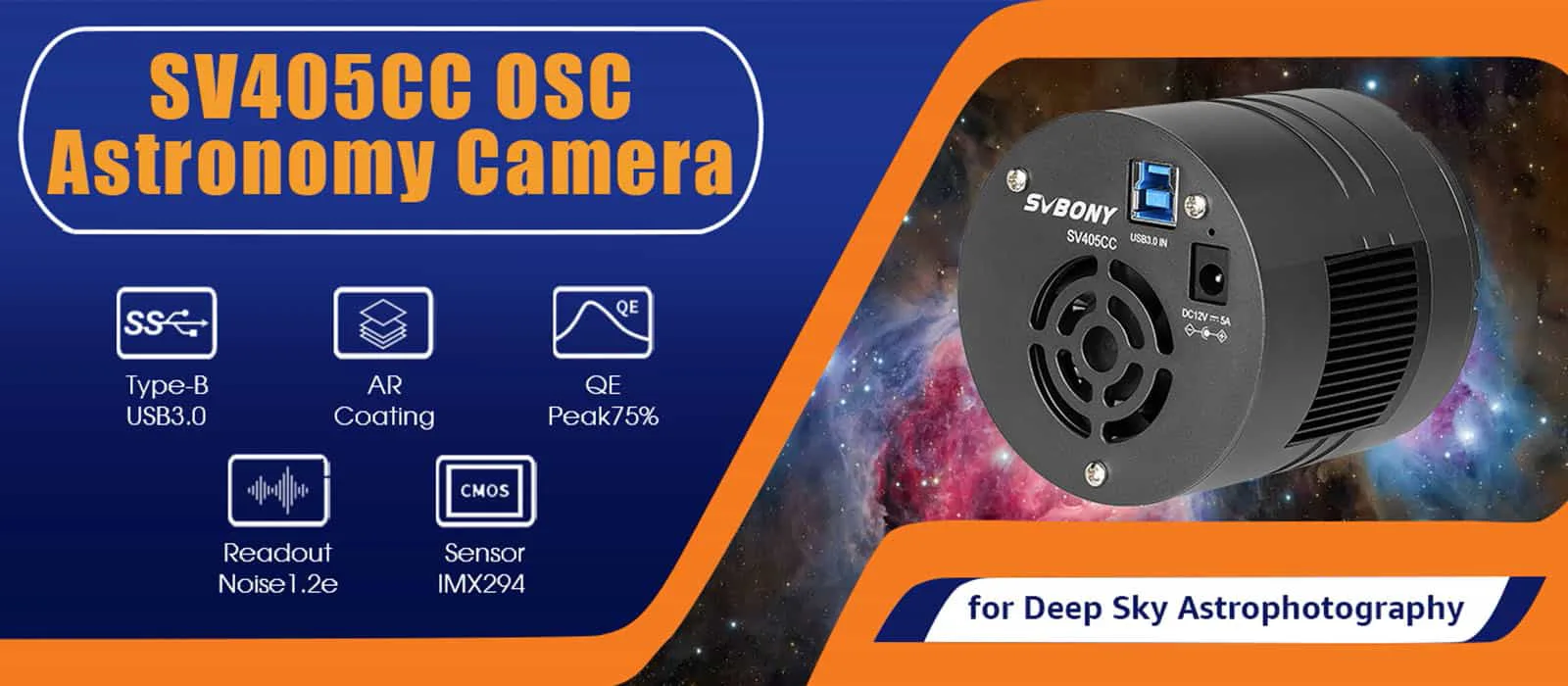

| Model | SV405CC |
| Sensor | IMX294 |
| CMOS Image Resolution | 4144*2822 |
| Total Pixels | 11.7 megapixel |
| Pixel Size | 4.63µm |
| Target Size | 19.2mm*13mm |
| Diagonal | 23.2mm |
| Maximum Frame Rate | 19FPS |
| Shutter Type | Rolling Shutter |
| USB Type | Type-B USB 3.0 |
| DDRIII Buffer | DDR3 256M |
| Exposure | 0.05ms-2000s |
| Readout Noise | 1.2e |
| QE Peak | 0.75 |
| Full Well | 63ke |
| ADC | 14bit |
| Brand | SVBONY |

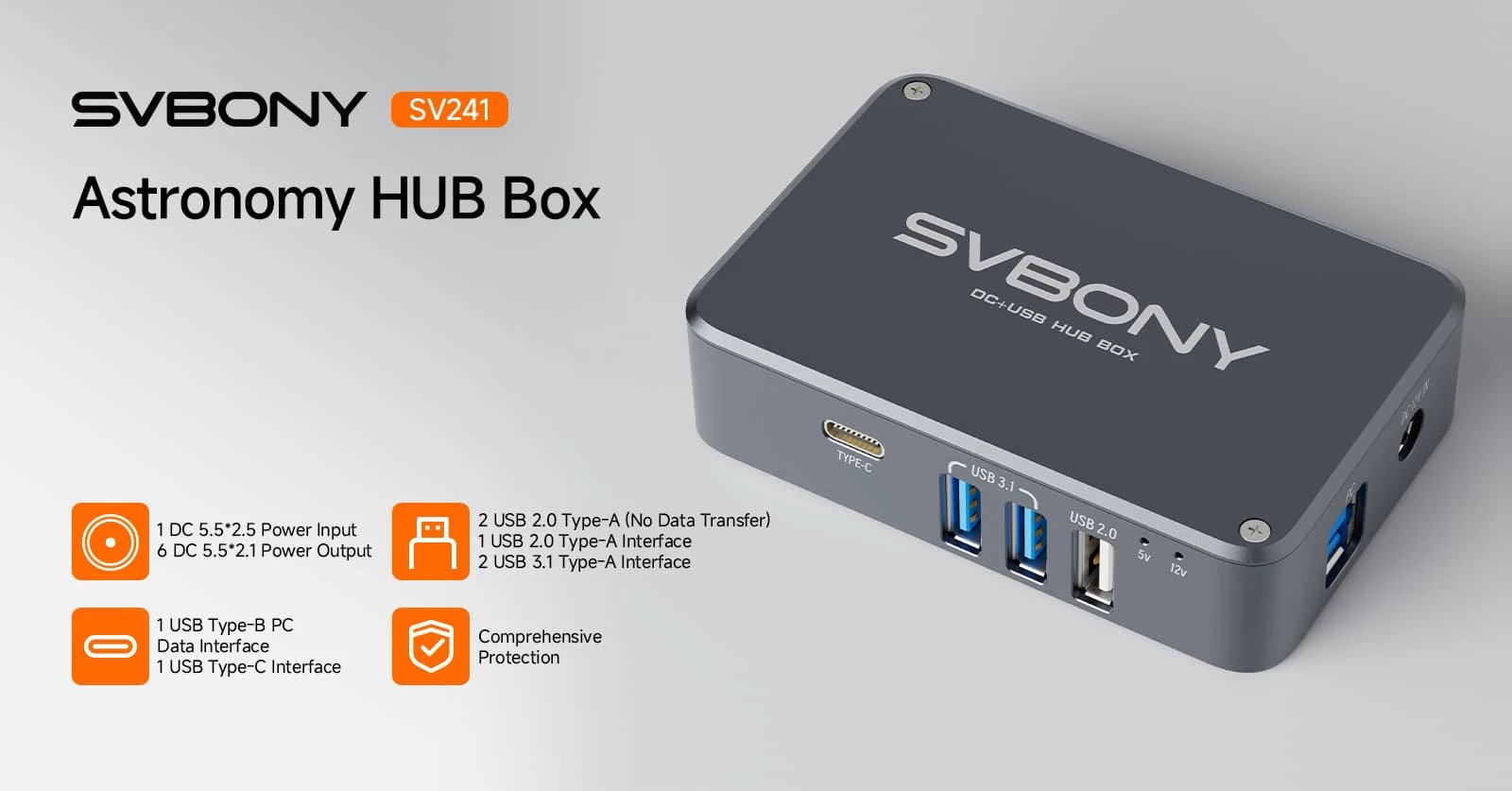

| Name | Powerbox |
| Model | SV241 |
| Power Input | 12VDC 5.5*2.5, 10A |
| DC Output Ports | 6x12VDC 5.5*2.1 straight-through output |
| USB Hub Output | 2*USB 3.1 Type-A (Data Transfer) |
| 1*USB 2.0 Type-A (Data Transfer) | |
| 2*USB 2.0 Type-A (Power Only) | |
| 1 x USB Type-C | |
| USB Power Capability | 5V 8A |
| DC Power Capability | 12V 10A |
| PC Data Transfer Interface | USB Type-B to USB Type-A |
| Power Indicator | Red Indicator Light |
| Circuit Protection | ESD Protection |
| Reverse Polarity Protection | Filter Protection |
| Over-voltage Protection |
Over-current Protection (USB Ports) |
| Short-circuit Protection (USB Ports) | |
| Maximum Current | 10A |
| Compatible Devices |
DC: Astronomical Camera, CAA, Computer, Equatorial Mount, Dew Heater |
| USB: Astronomical Camera, CAA, EAF, Computer, Equatorial Mount, OAG, EFW | |
| Waterproof | No |
| Mount Type | UNC 1/4-20 + 2*M4 (The distance between M4 screw holes is 20mm) |
| Net Weight | 125g |
| Dimensions of the body | 96mm*61mm*25mm |
The Real Shot Image by SV555&SV405CC
