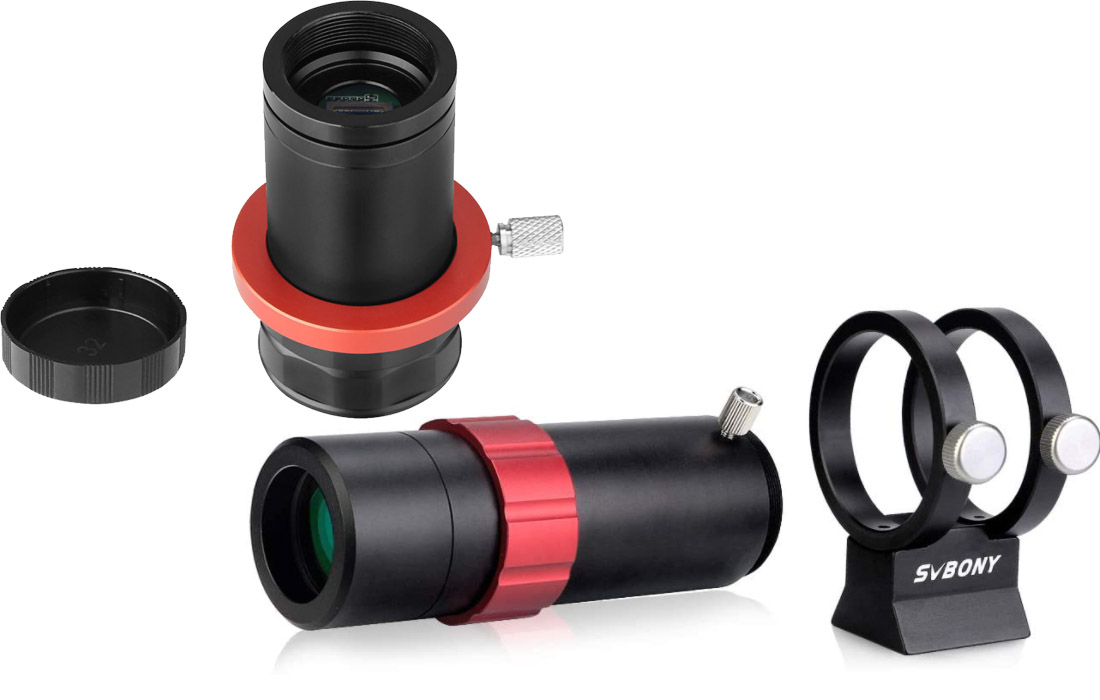

The SV905C guiding camera and SV165 mini 30mm/120mm F4 guide scope is a cost-effective and practical guiding system;
Compact and highly sensitive 1.23-megapixel color camera with 1/3” CMOS 1280x960 sensor perfect for autoguiding or planetary imaging; small 3.75-micron pixels; high peak QE of 80% and low read noise allows tight tracking of faint guide stars;
Sharp image; Ultra wide band fully multilayer coated lens; doublet glass and the 30mm achromatic optics prevent irritating reflections can bring you bright and clear images.

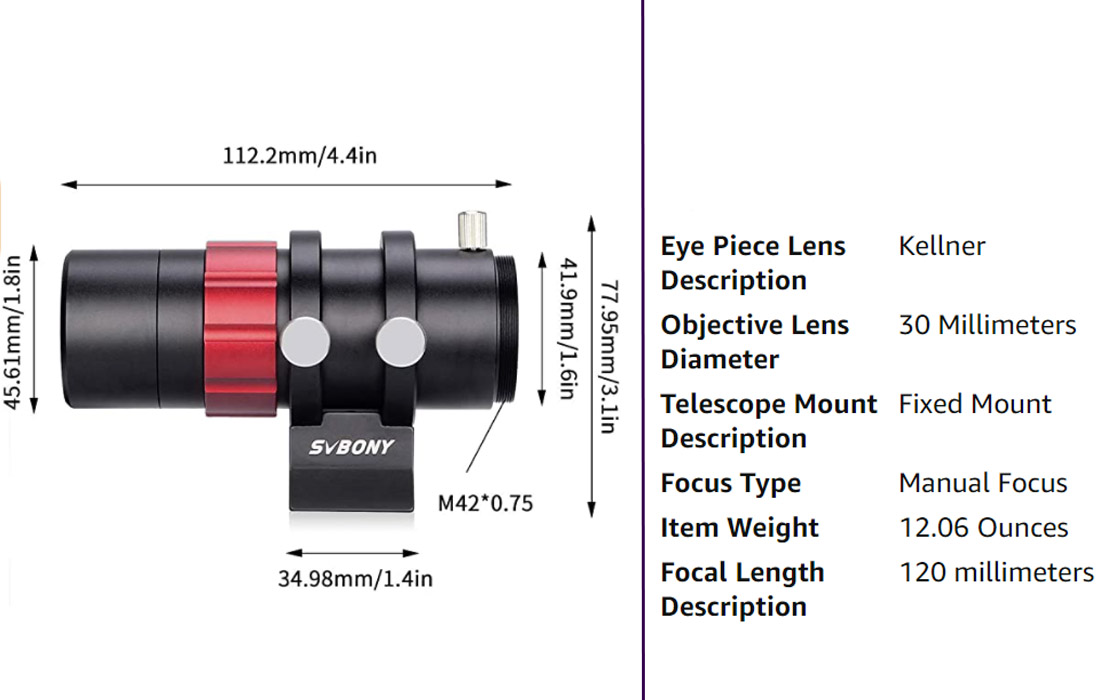

| Model | Svbony SV165 |
| Aperture | 30mm |
| Focal length | 120mm |
| Focal Ratio | F4 |
| Hoop and Mount | Yes |
| Back Focus Length | 45mm |
| Mount | UNC 1/4-20 |
| Material | Aluminum |
| Surface technology | Sandblasting oxidation |

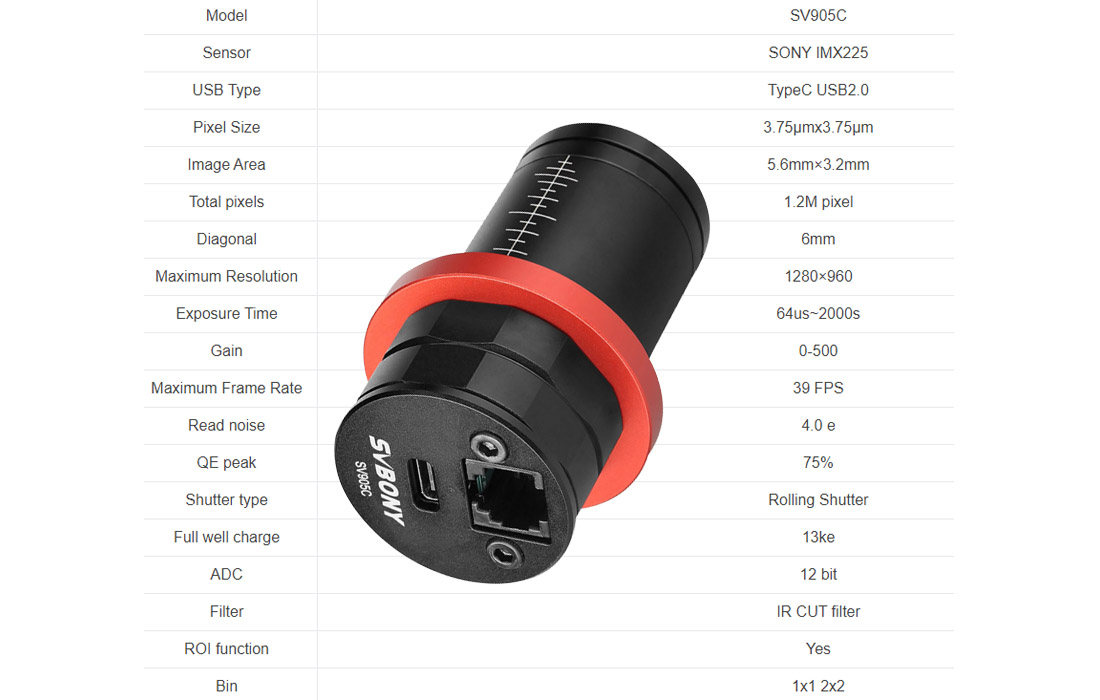

| Model | SV905C |
| Sensor | SONY IMX225 |
| USB Type | TypeC USB2.0 |
| Pixel Size | 3.75µmx3.75µm |
| Image Area | 5.6mm×3.2mm |
| Total pixels | 1.2M pixel |
| Diagonal | 6mm |
| Maximum Resolution | 1280×960 |
| Exposure Time | 64us~20s |
| Gain | 0-500 |
| Maximum Frame Rate | 39 FPS |
| Read noise | 4.0 e |
| QE peak | 75% |
| Shutter type | Rolling Shutter |
| Full well charge | 13ke |
| ADC | 12 bit |
| ROI function | Yes |
| Bin | 1x1 2x2 |
| Digital noise reduction | HCG mode |
| Video format | AVI mode |
| Communication interface | DirectShow interface |
| Application software | Windows OS: Sharpcap, Firecapture,PHD2 ASCOM platform Linux OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX Capture |
| Compatible system | Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS |
| Working temperature | - 5℃～45℃ |
| Storage temperature | - 20℃～60℃ |
| Working humidity | 20% RH-80% RH |
| Storage humidity | 20% RH-95% RH |
| Power consumption | <0.5W |
| Back intercept | 7.5mm/12.5mm |
| Protective glass | AR Coating |
| Net weight | 230g |
| Package size | 162*132*70 mm |
1. The affordable SV905C+SV165 guiding combination also provides precise tracking ;
2. SV165 is a compact versatile 60mm aperture guide scope with a built-in helical focuser for precise focusing of potential guide stars;
3. SV905C is a high speed1.25'' 2MP guiding camera for Astronomy tracking or planetary imaging.
