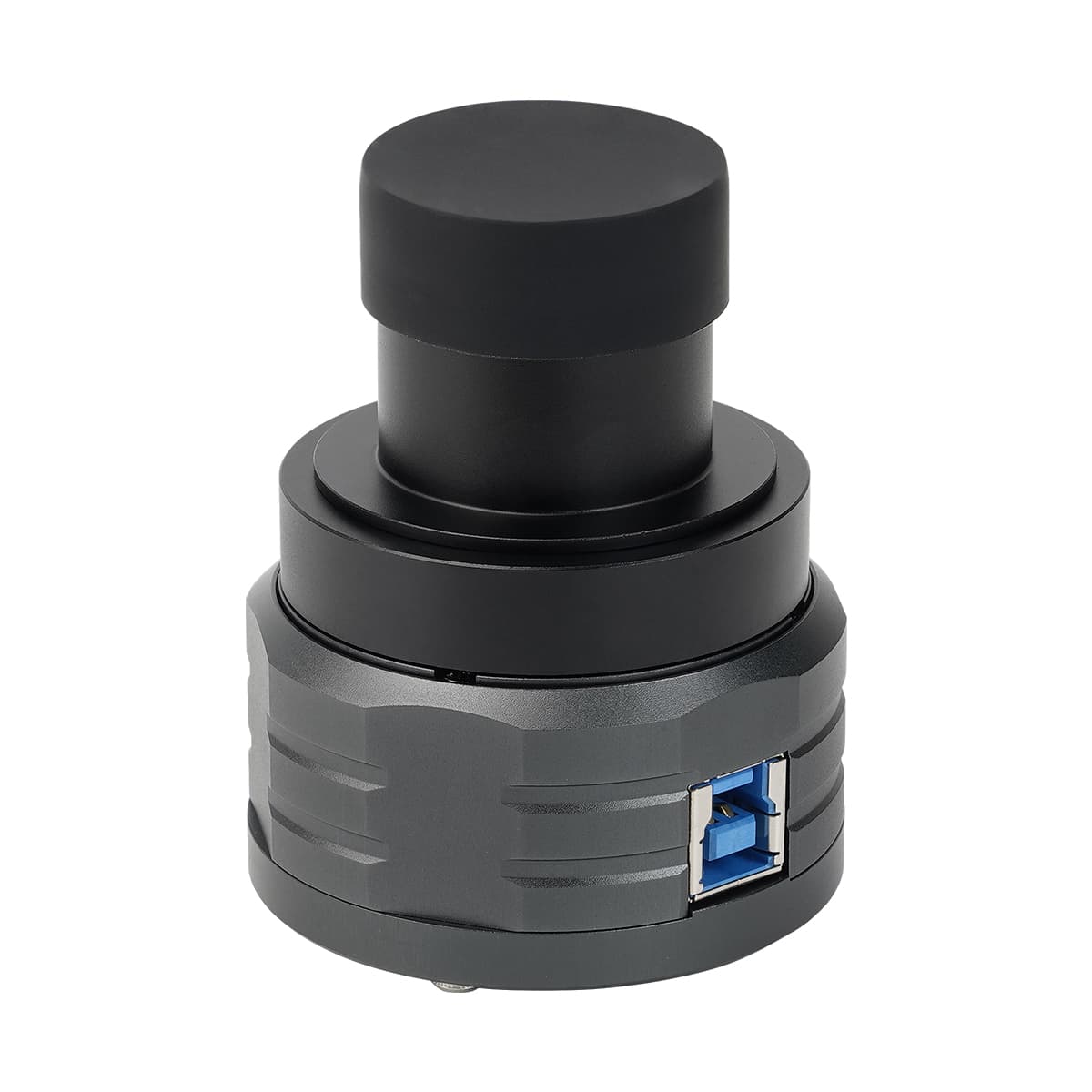

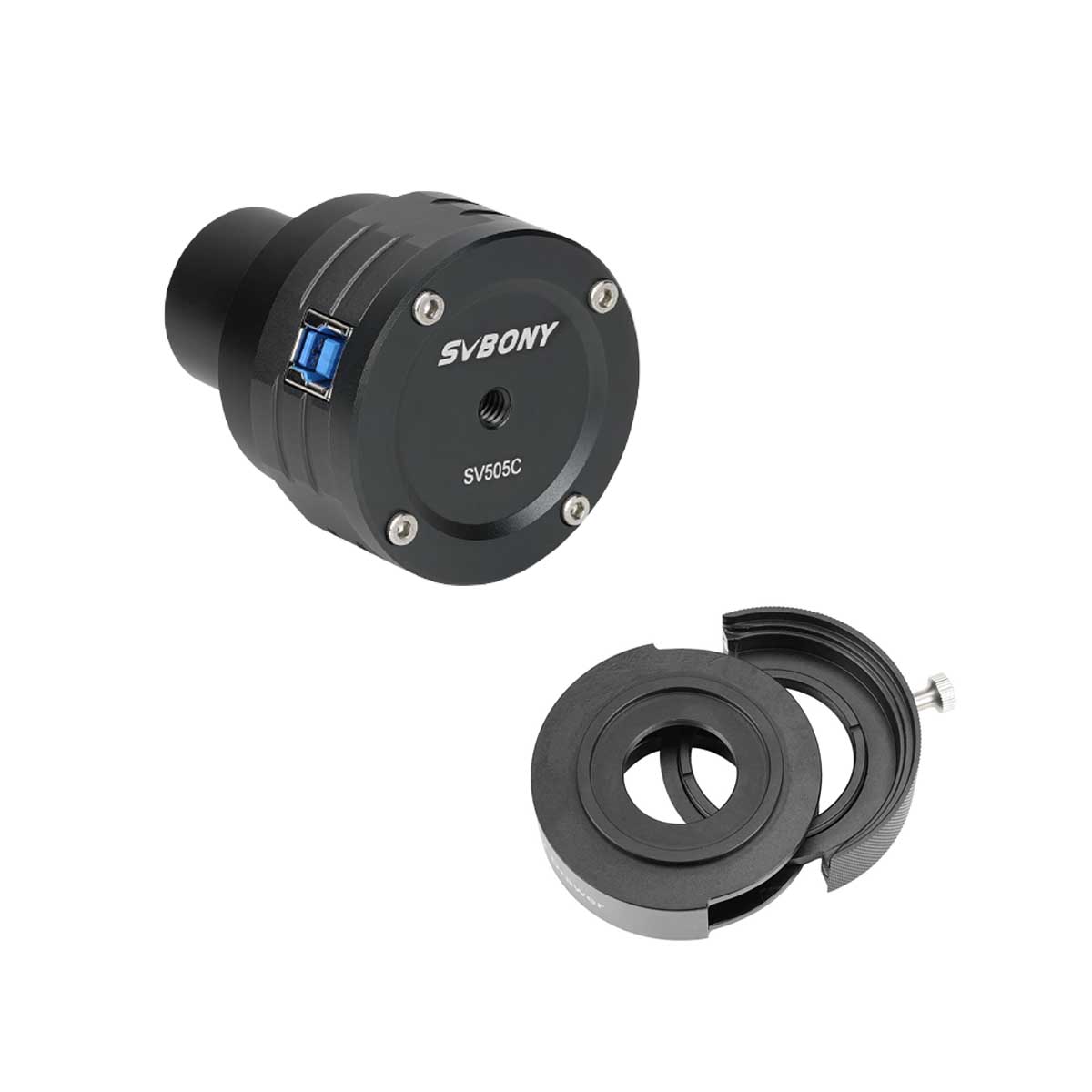

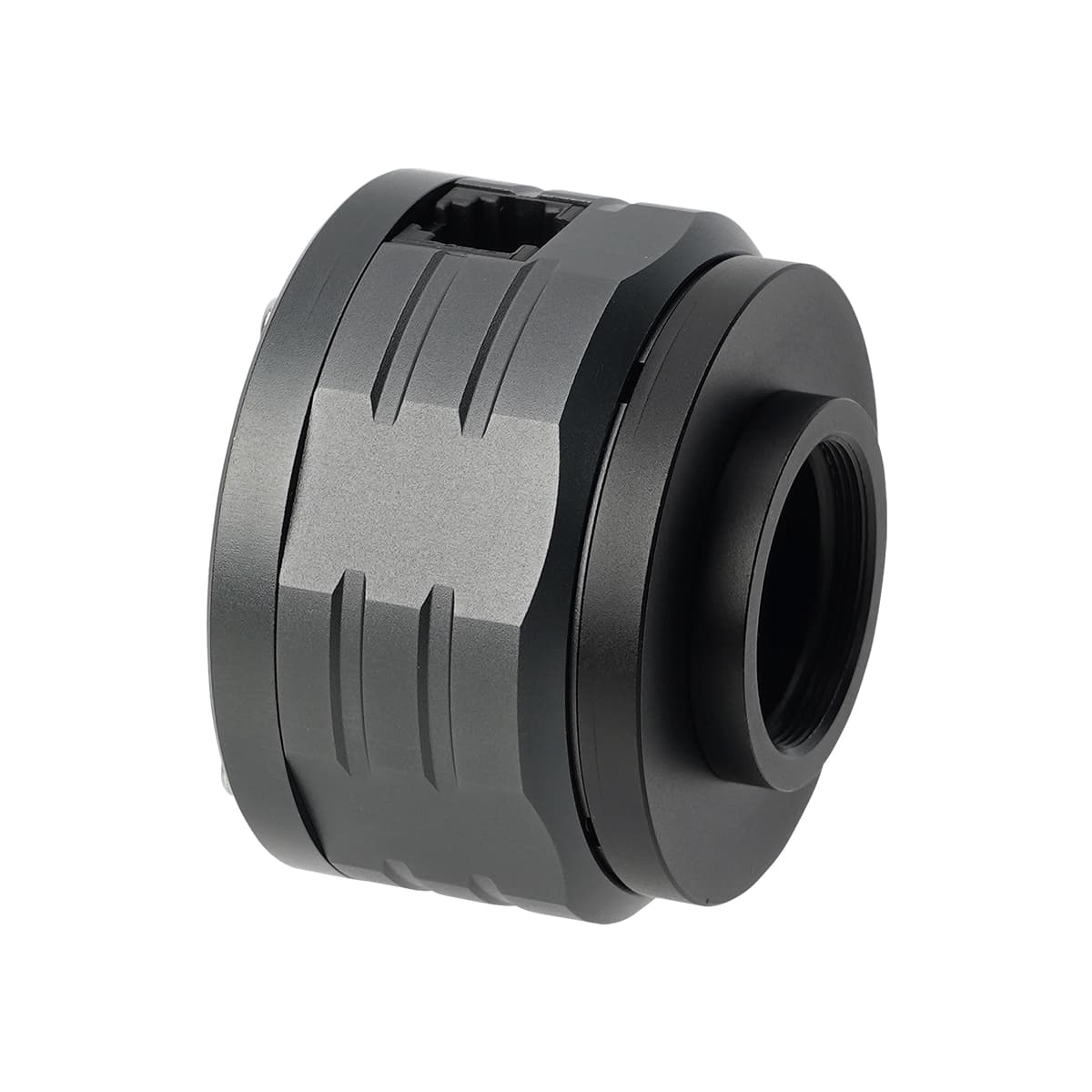

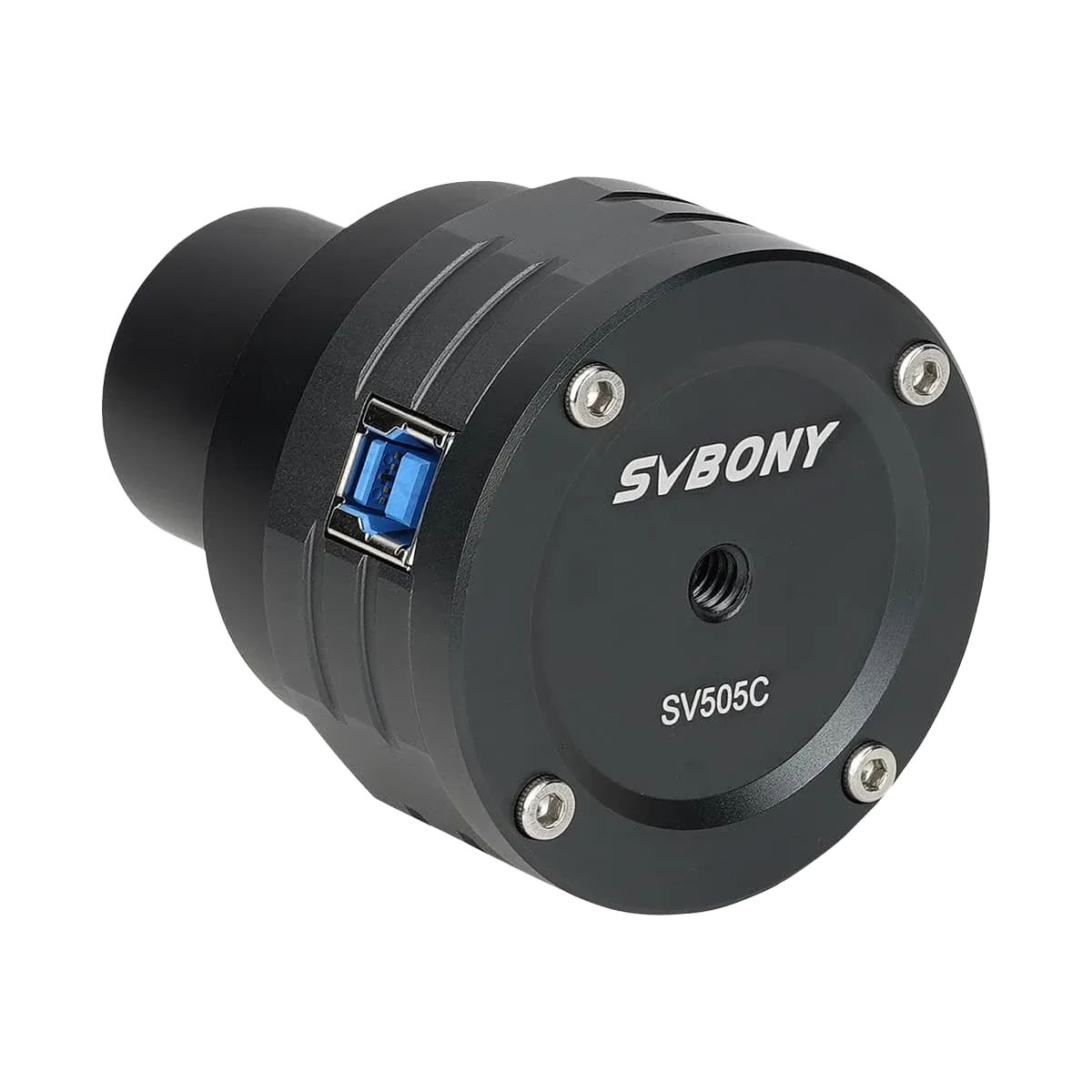

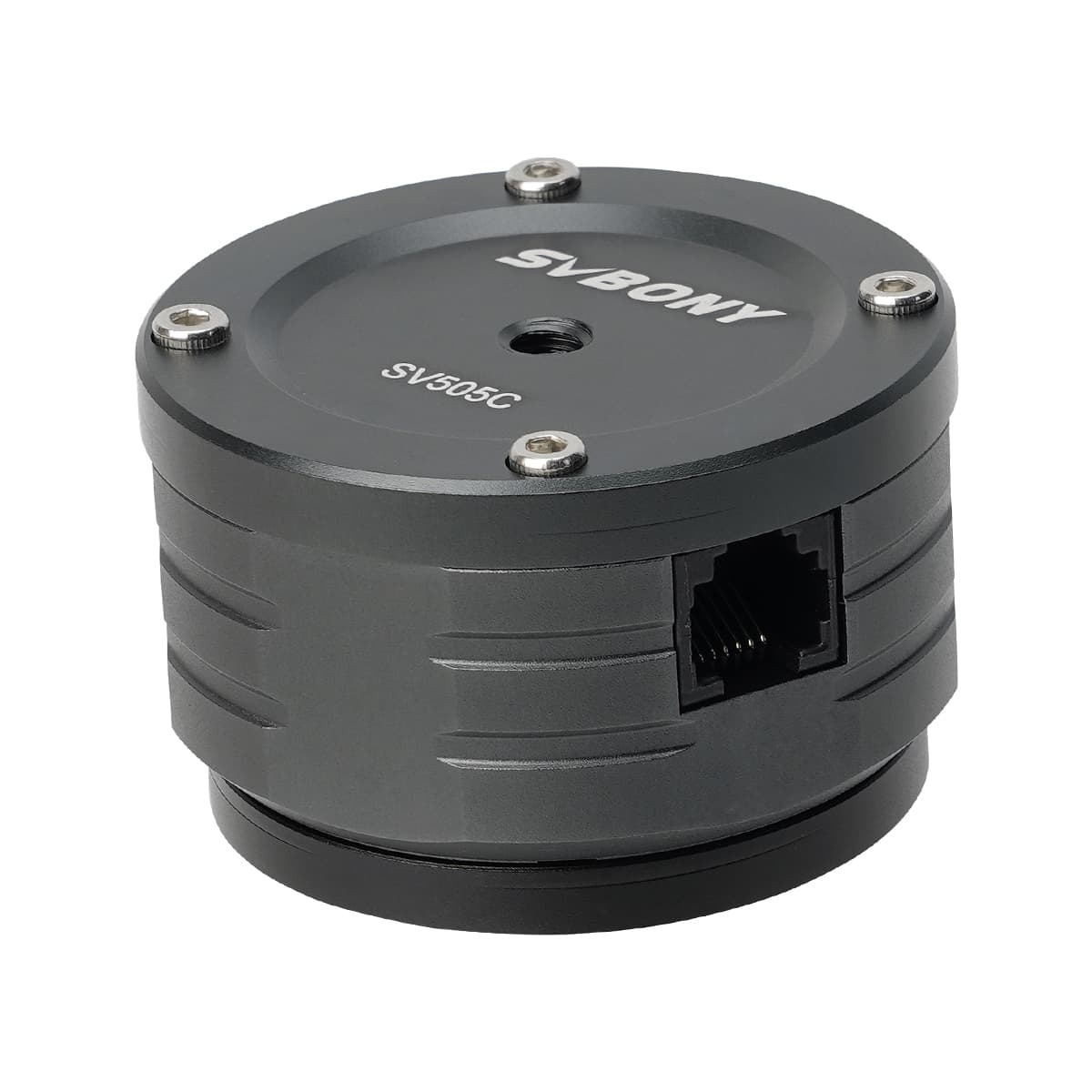

SV505C Color Planetary Camera for Astronomy IR Sensitive Camera IMX464
1 | ReviewsKey Features
- Superior Signal-to-Noise Ratio
- Larger Photosensitive Area
- Ideal for Solar System Imaging
- High Frame Rate for Quick Captures
- Excellent Near-Infrared Sensitivity
Customer Reviews
Geziel Thuler
Oct 04, 2022
Would you like to know the exposure time of this camera model? Taking advantage of this message I also want to know the exposure time of the SV305 camera model, I don't mean the SV305 PRO because in the ad they have the exposure time informed.

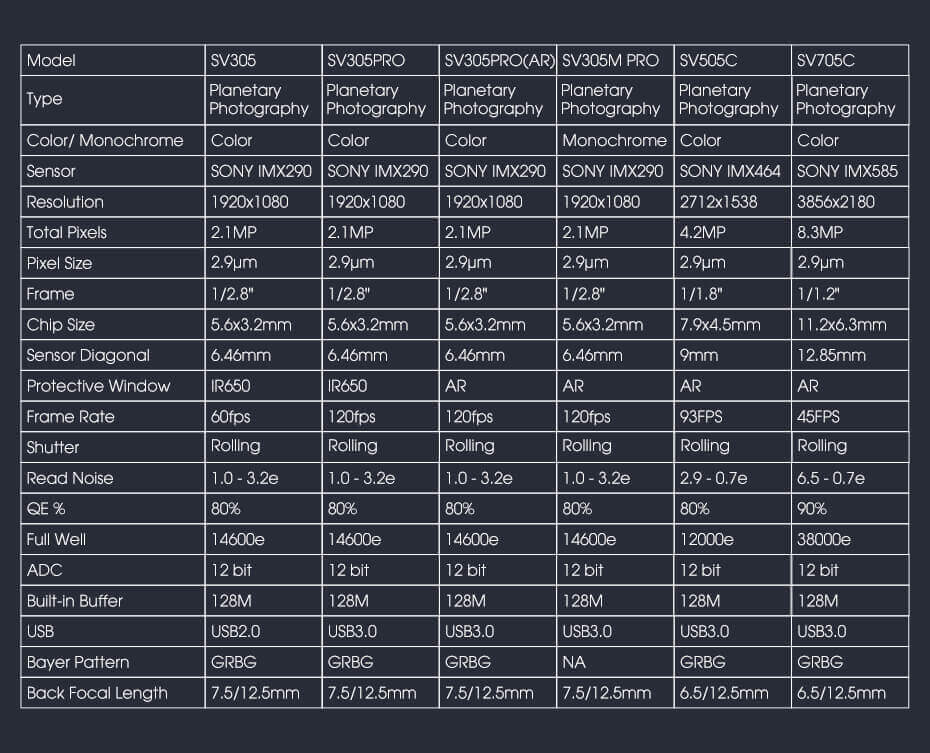

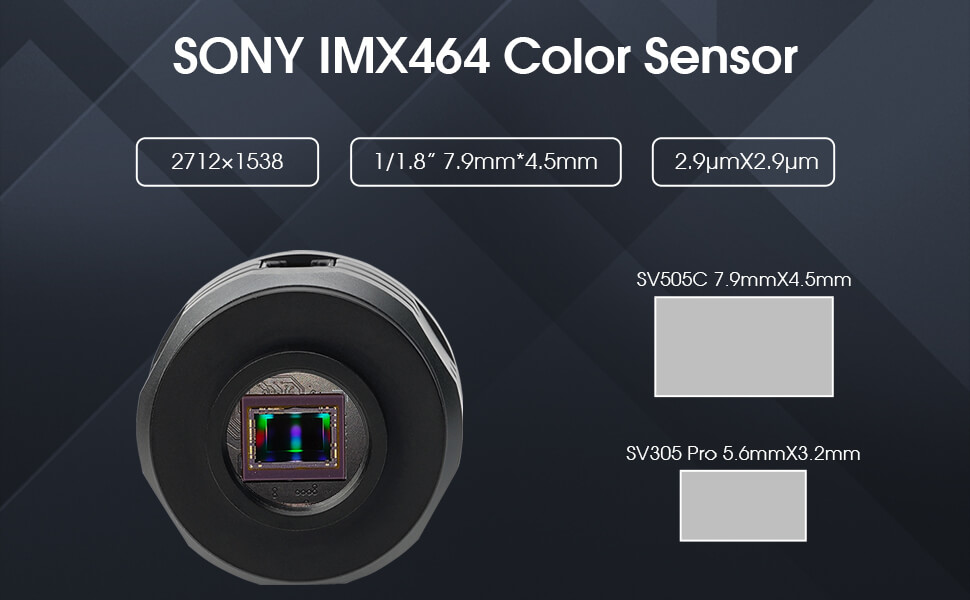

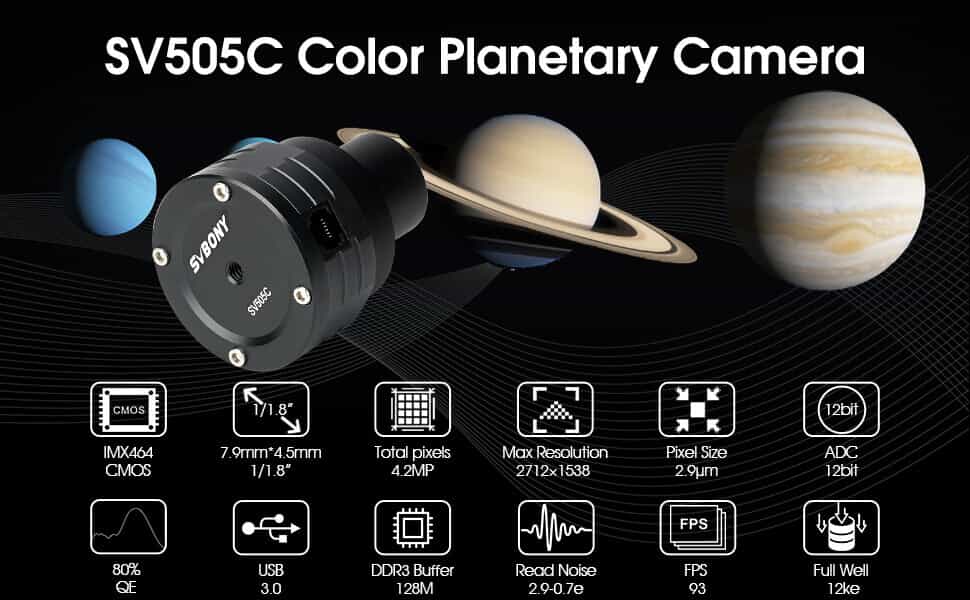

| Sensor | SONY IMX464 CMOS |
| Total pixels | 4.2 million pixels |
| Diagonal | 9mm |
| Maximum resolution | 2712×1538 |
| Pixel size | 2.9μmx2.9μm |
| Image area | 7.9mm×4.5mm |
| Maximum frame rate | 93FPS |
| Time of exposure | 64us-2000s |

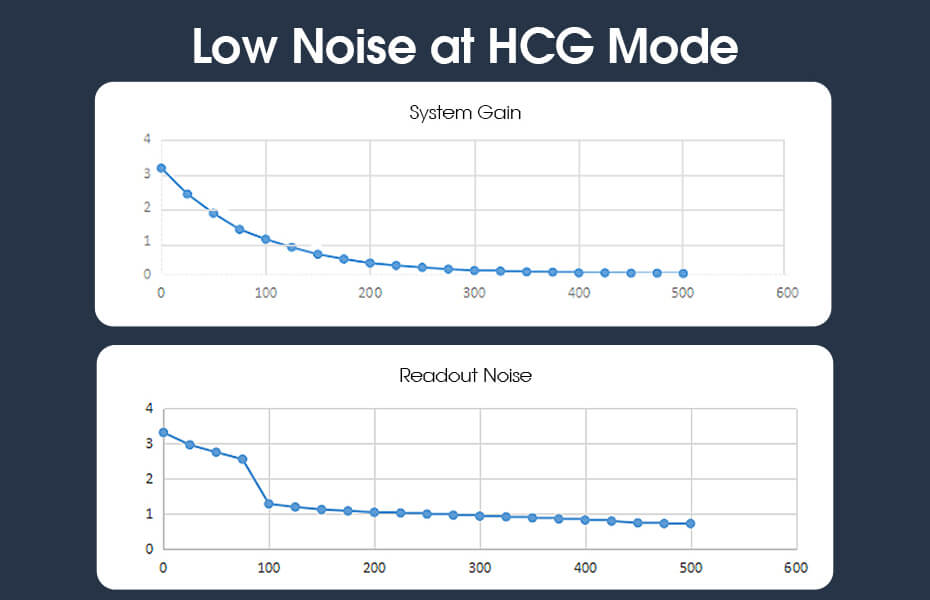

| Read noise | 2.9e~0.7e |

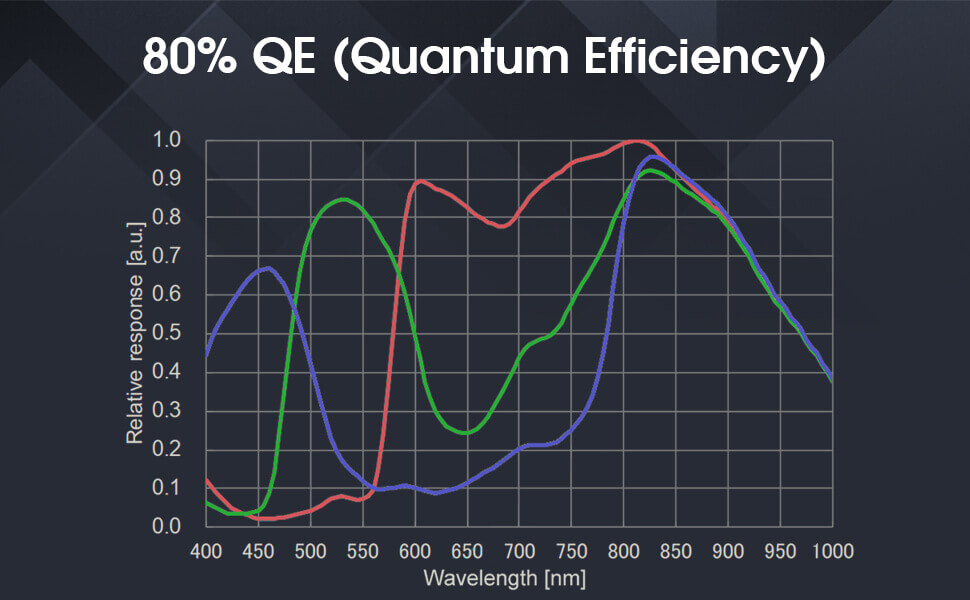

| QE peak | 80% |

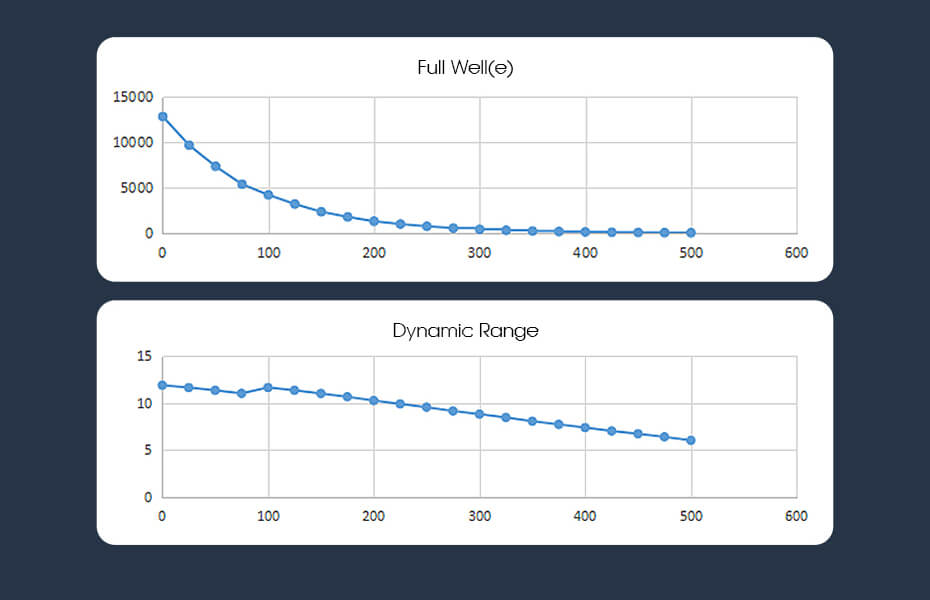

| Full well charge | 12ke |
| ADC | 12bit |
| Gain | 0-500 |

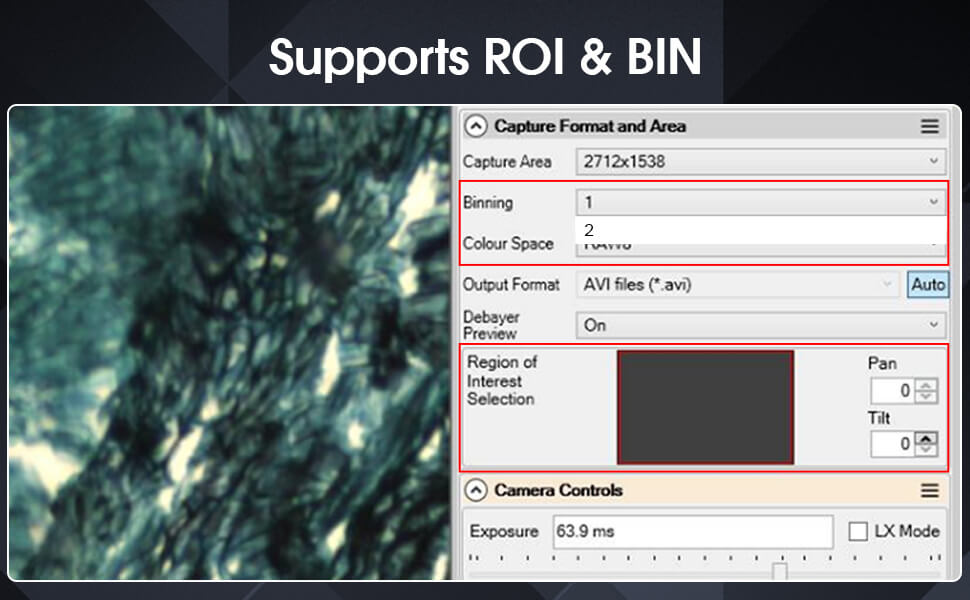

| ROI | YES |
| Bin | 1X1 2X2 |
| Digital noise reduction | HCG mode noise reduction |
| Compatible system | Windows, Linux OS Raspberry Pi, Mac os, Chrome os |
| Cache | DDR3 128M |

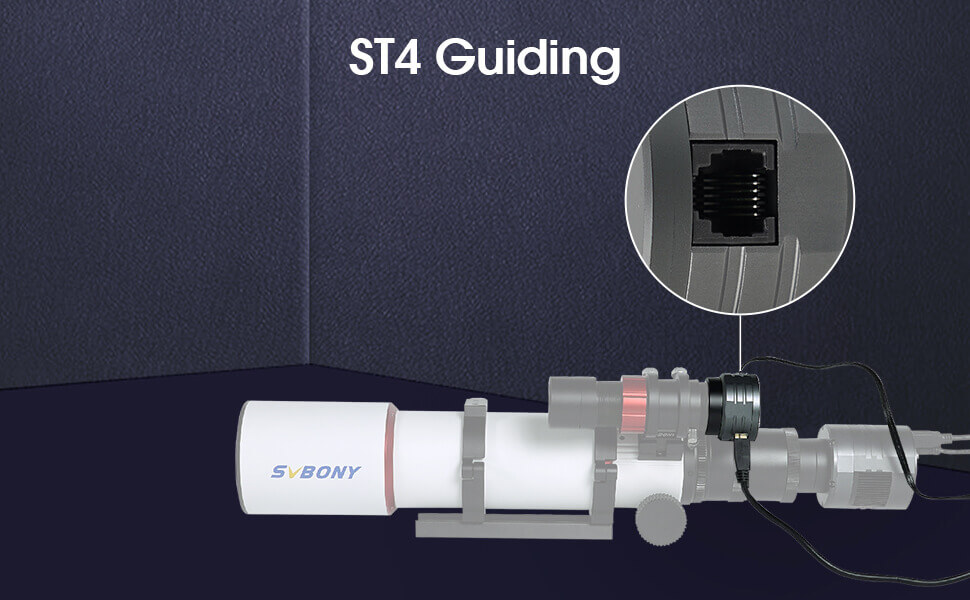

| Guide satellite interface | ST4 |
| USB interface | USB3.0 |

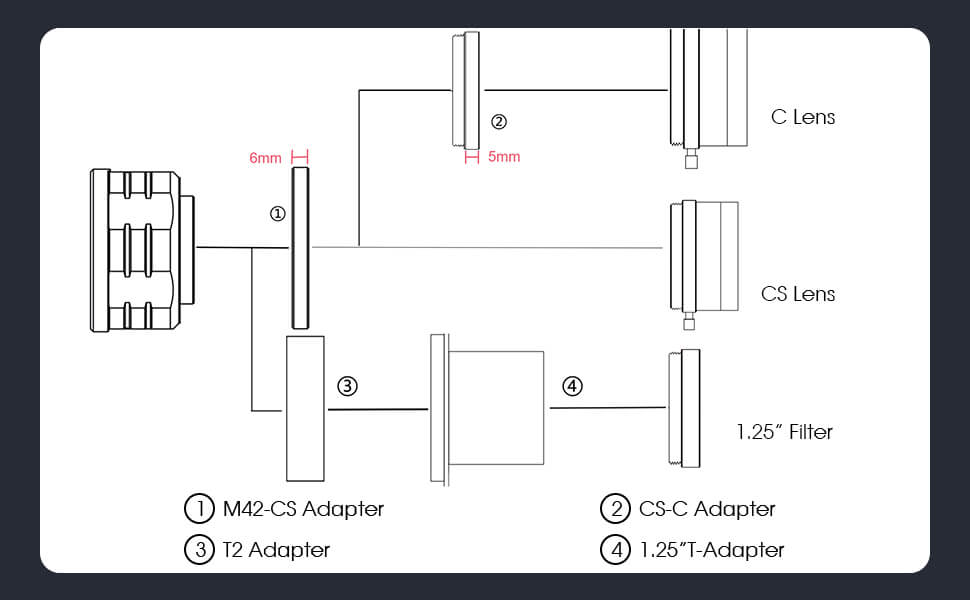

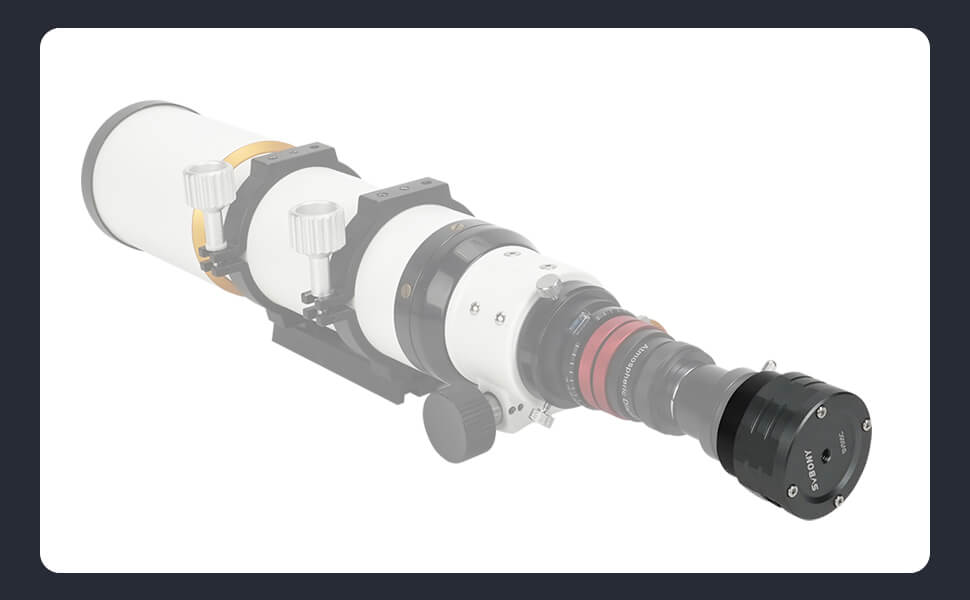

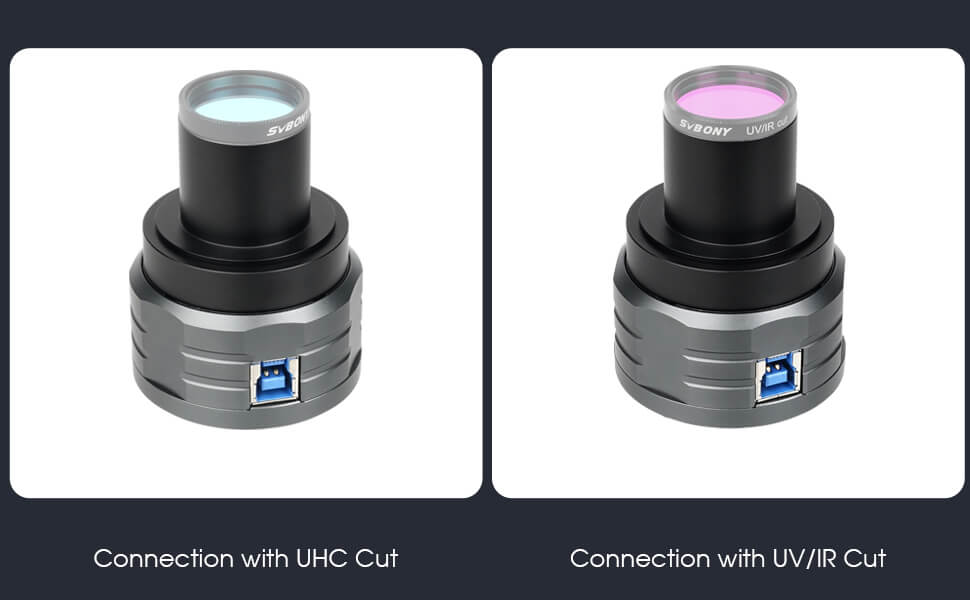

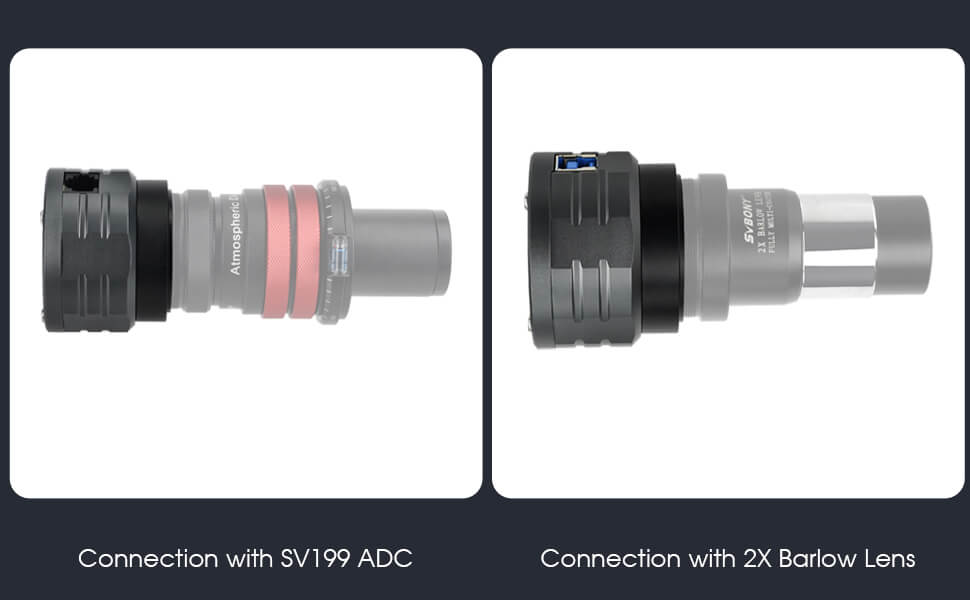

| Camera interface | 1.25″/2″/ M42X0.75 |

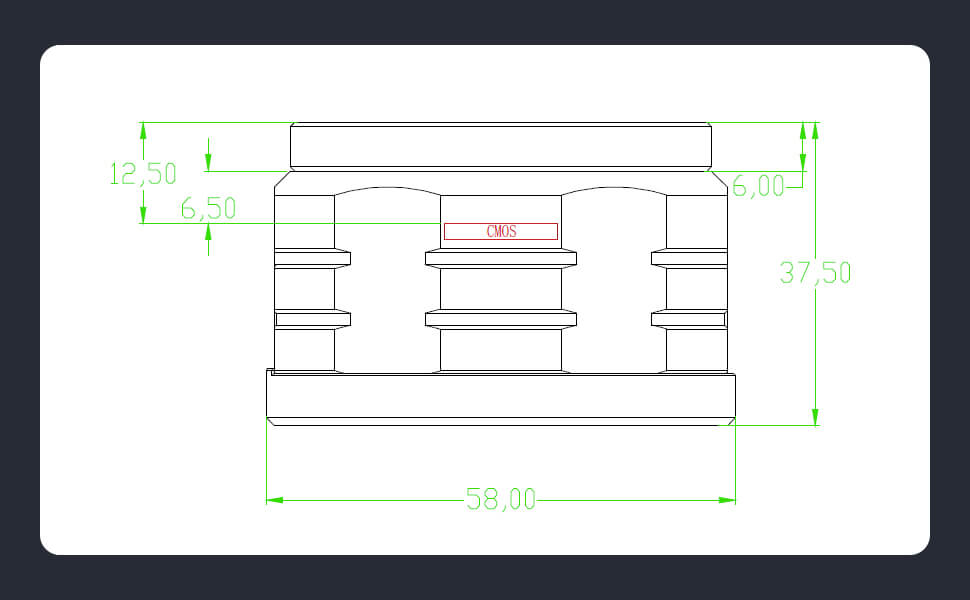

| Back intercept | 6.5mm/12.5mm |

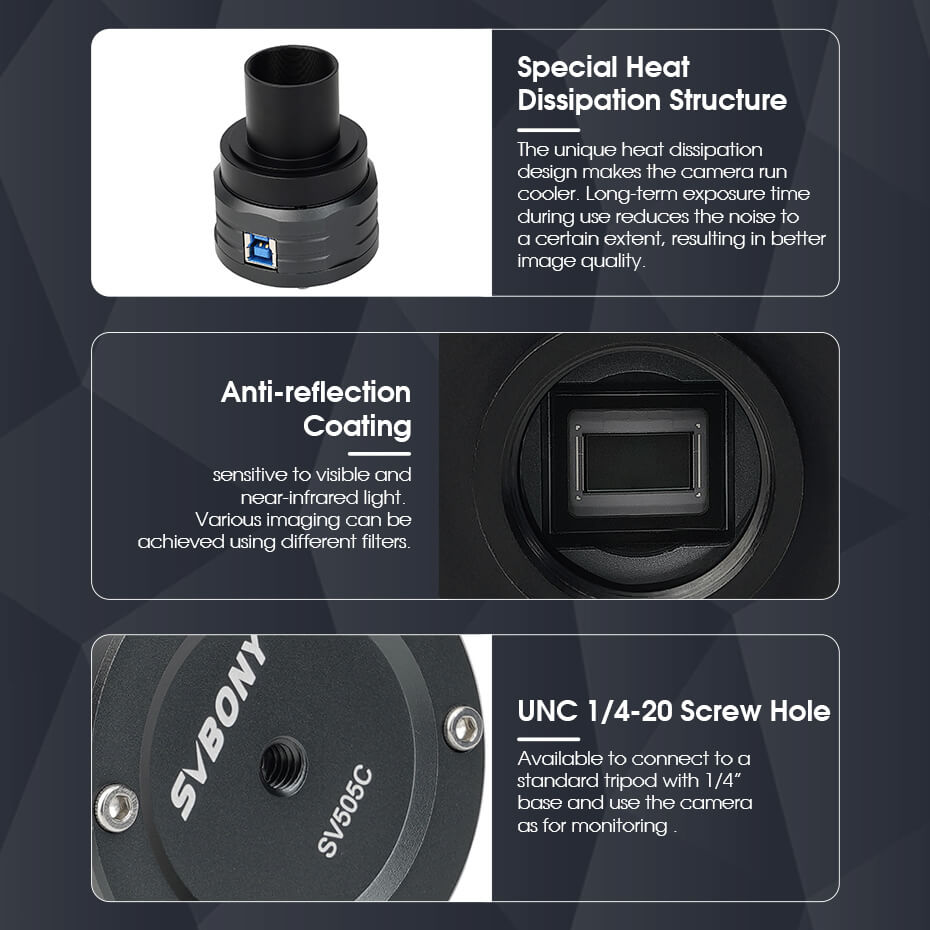

| Protective window glass | AR antireflection film |
Svbony SV505C works with Windows , Linux OS Raspberry Pi，Mac os, Chrome os.
>Windows system with Sharpcap software 3.2.6433 and latest version
https://www.sharpcap.co.uk/sharpcap/downloads
>Linux system with AstroDMx capture for Linux & Raspberry Pi, Version 0.78.3 and Latest Version
https://www.astrodmx-capture.org.uk/astrodmx-capture-downloads/
>PHD2 Software for Guiding, Version v2.6.9dev1 and Latest Version
https://openphdguiding.org/downloads/

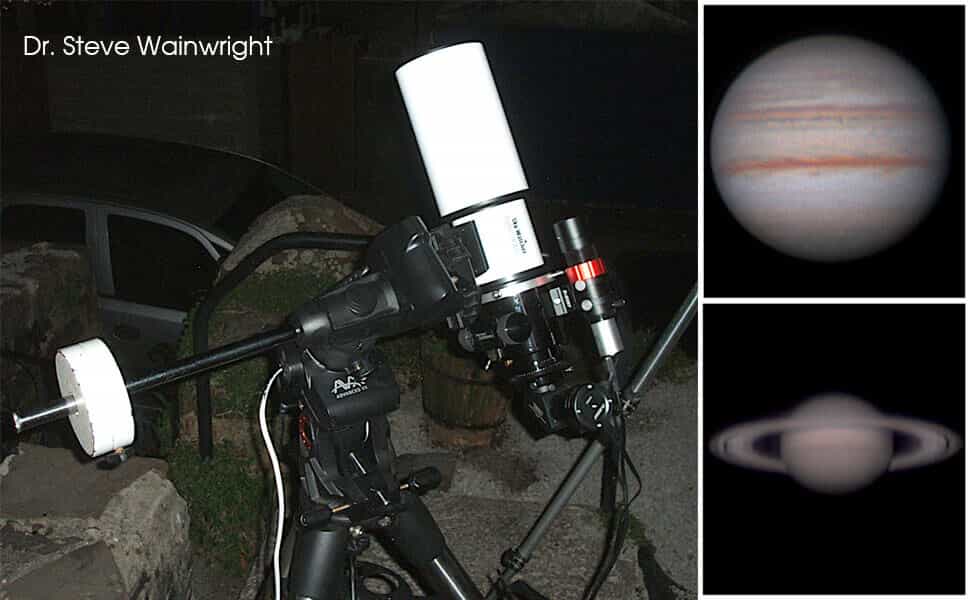

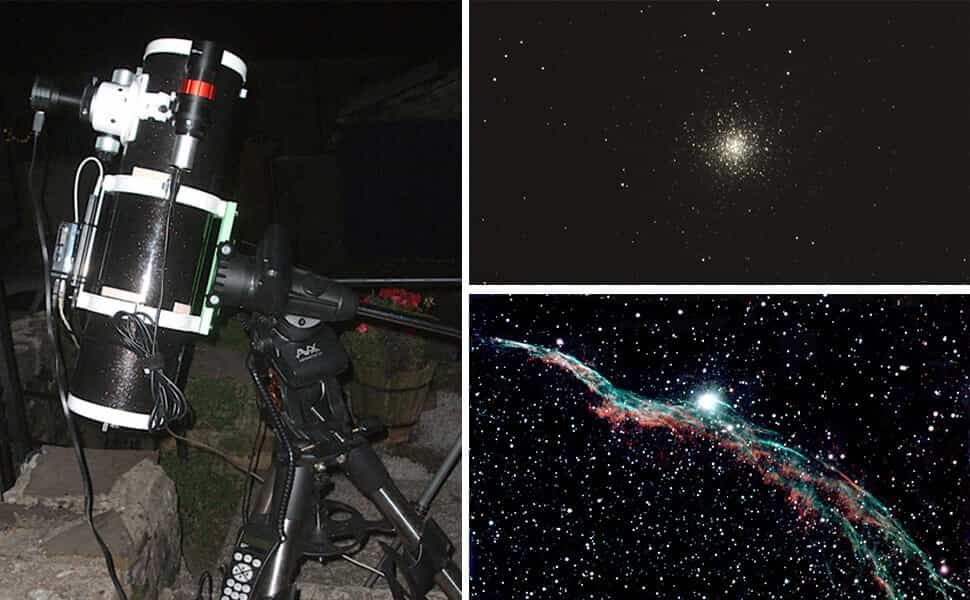

The Real Shot Image by SV505C Camera

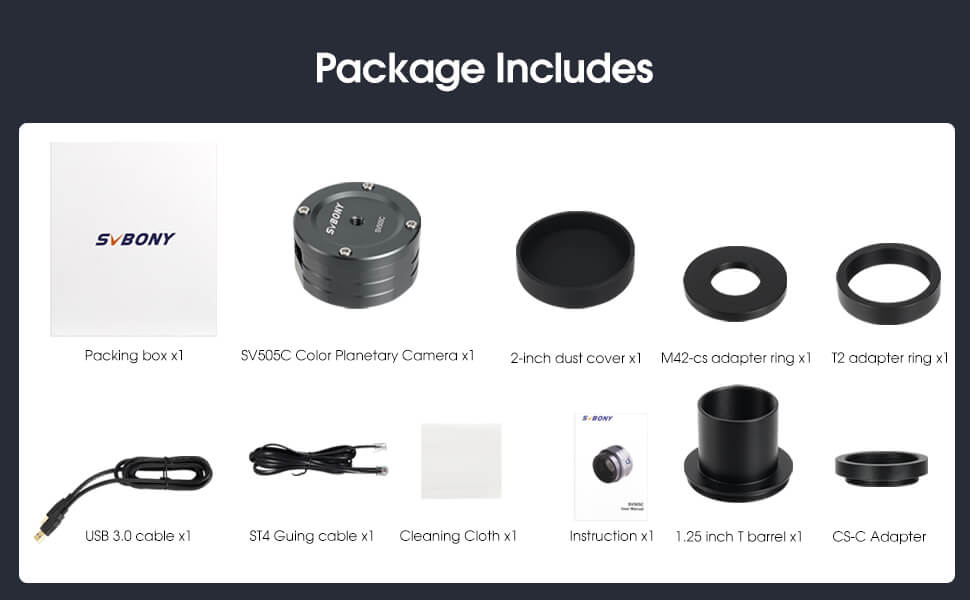

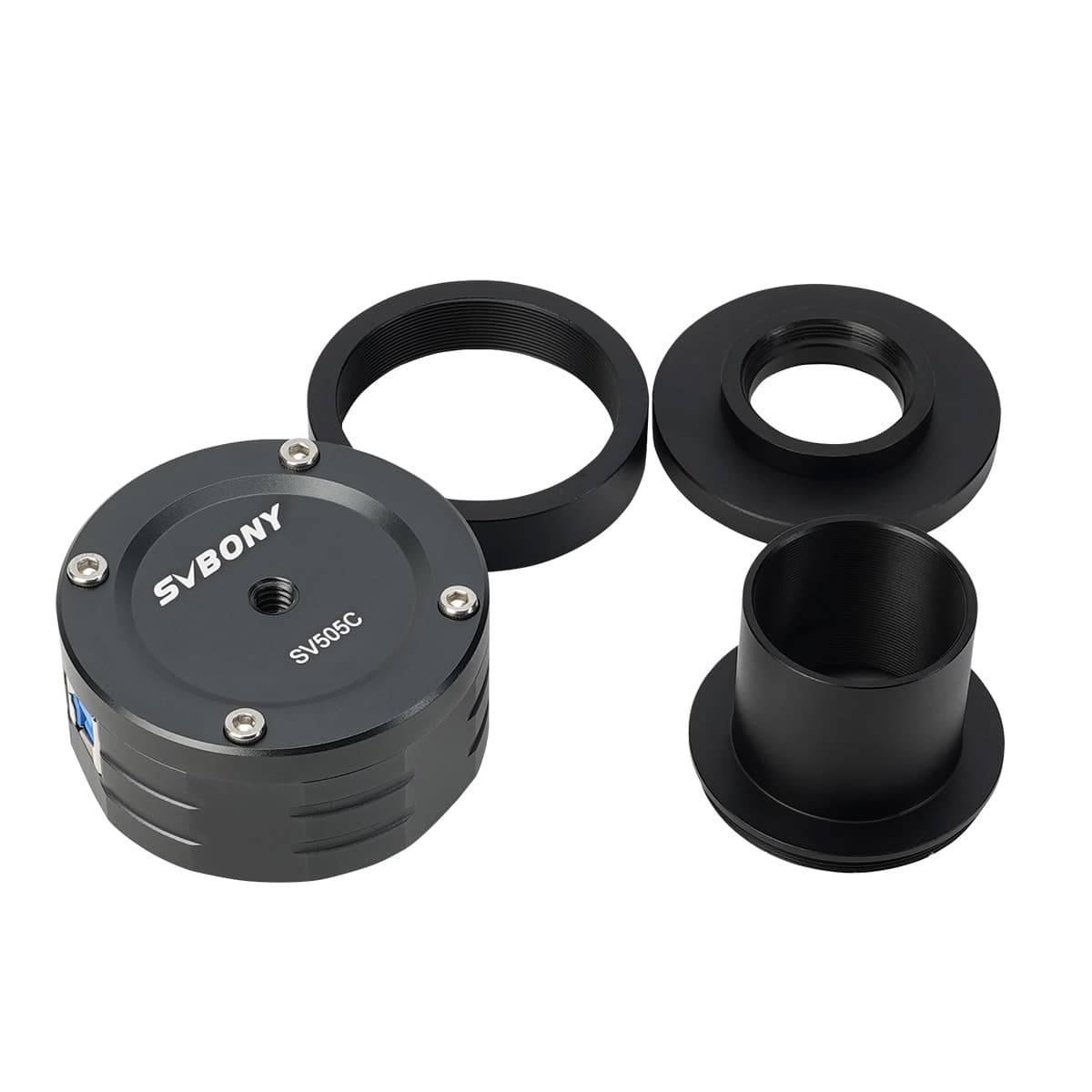

Package list:
Sv505c color Planetary Camera x1
USB3.0 data line x1
ST4 guide star line x1
M42-cs adapter ring x1
CS-C adapter ring x1
T2 adapter ring x1
1.25 inch t barrel x1
Instruction x1
2-inch dust cover x1
Mirror wiping cloth x1
Packing box x1
