SV605MC Cooled Monochrome Camera - SHO SII Ha OIII Filters for Photography
1 | ReviewsKey Features
- Low Read-Out Noise for Clarity
- High-Speed 14-Bit Digital Output
- Versatile Imaging for Planets and Moon
- High-Performance and Easy Integration
- Perfect for Deep-Sky Photography

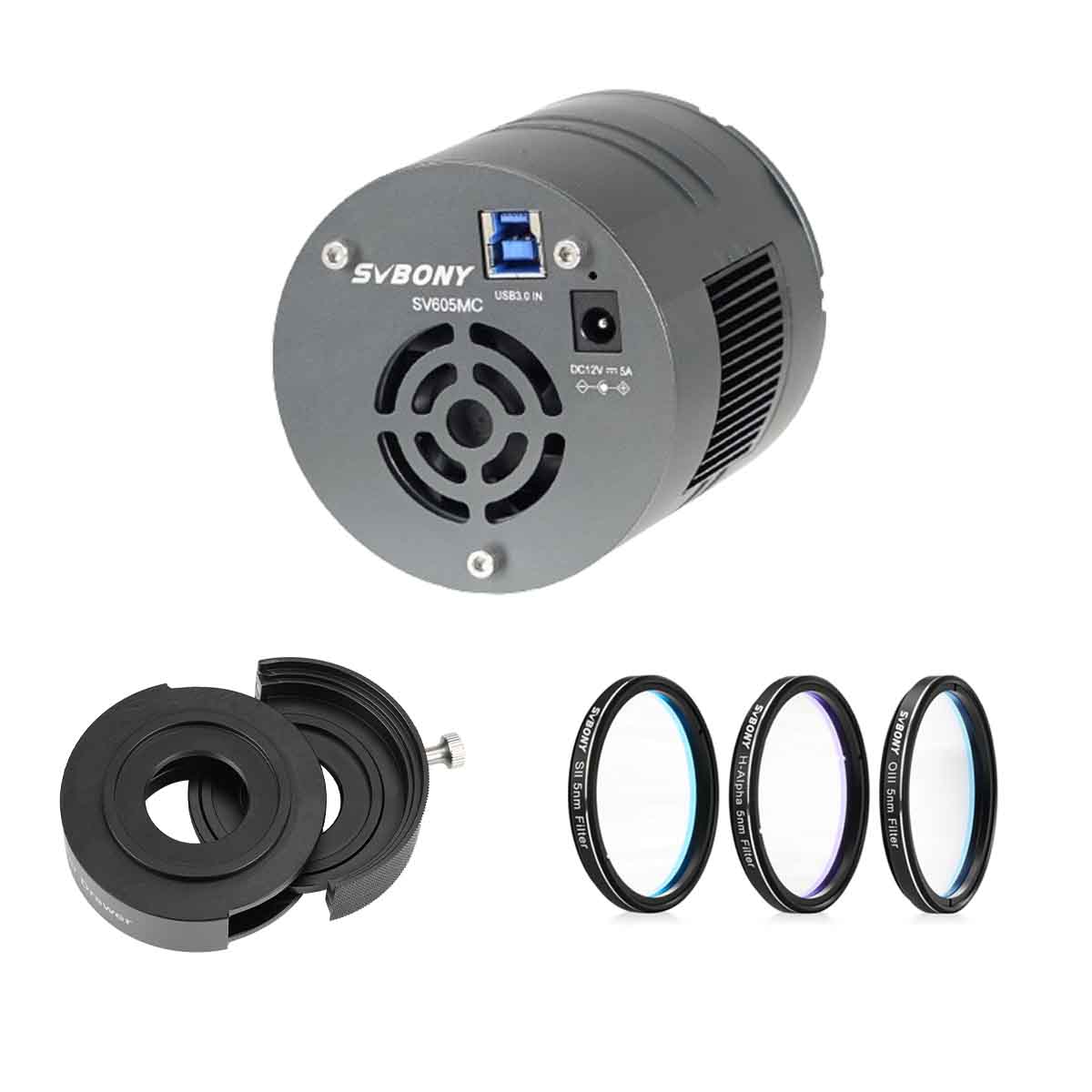

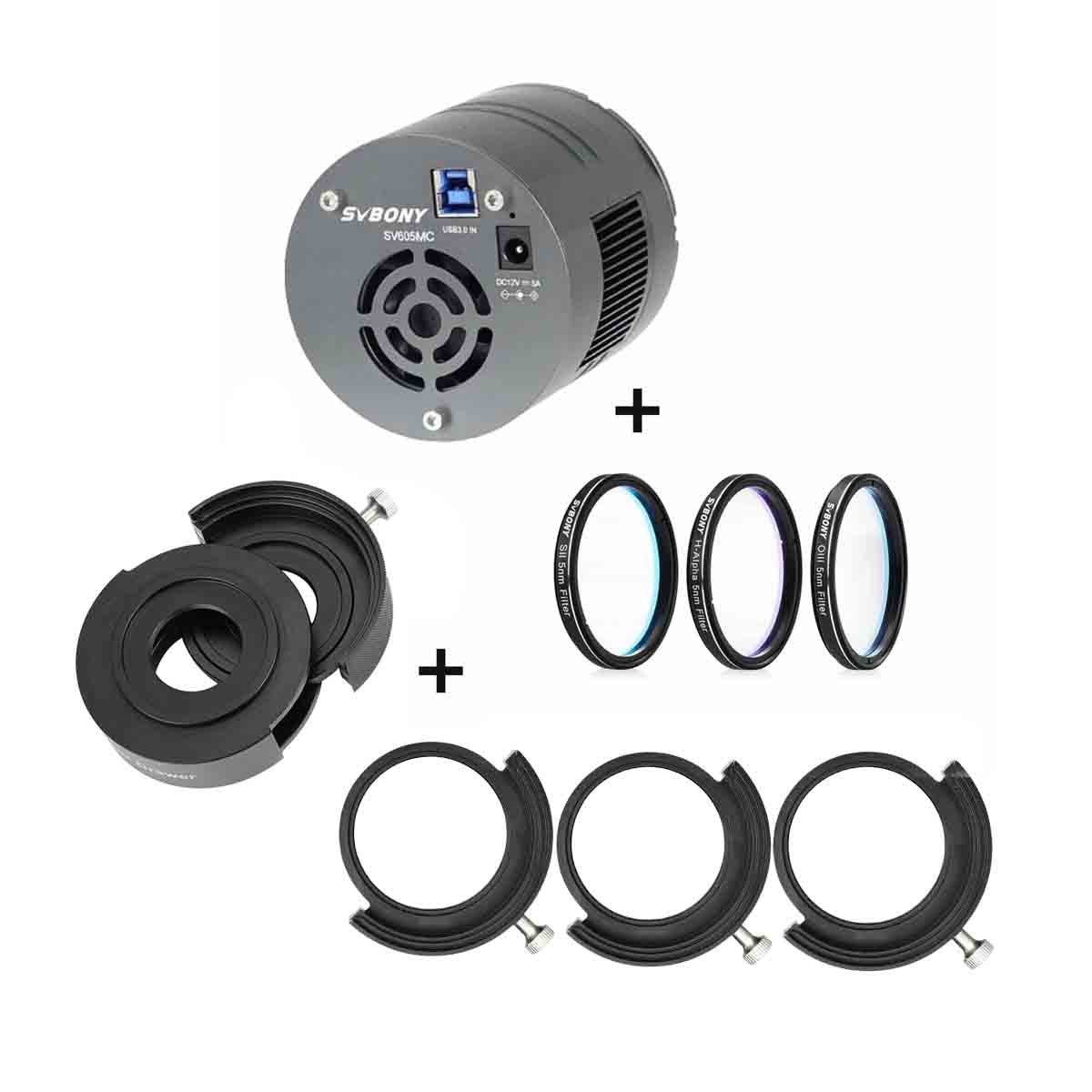

SV605MC IMX533 Monochrome Cooled Camera -SV227 SHO Filters for Deep Space Astrophotography
SV605MC IMX533 Monochrome Cooled Camera -SV227 SHO Filters for Deep Space Astrophotography
Customer Reviews
Stefano Zanasco
Oct 29, 2024
I've coupled my new SV605MC camera to an old Nikkor 180 F/2.8 ED telephoto lens. The performances on deep sky objects are very good. Shooting from the city center where I live, which is very light-polluted, and using an SV227 H-alpha filter, the NGC7000 "North America Nebula" is perfectly pictured. The additional benefit of using an SV227 narrowband filter, is to suppress some residual chromatic aberration of my telephoto lens, other than erasing the light pollution. This results in very sharp and detailed images - even if I'm using a relatively short focal length (180 mm).
| Brand | SVBONY |
| Model | SV605MC |
| Sensor Size | 15.469mm(H) x16.375mm(V) |
| Diagonal | 15.968mm |
| Image Area | 11.31mm x 11.31mm |
| Maximum Resolution | 3008*3008 |
| Effective Pixels | 9MP |
| Maximum Frame Rate | 20FPS |
| Pixel Size | 3.76μm(H) x 3.76μm(V) |
| Shutter Type | Rolling Shutter |
| Exposure Time | 32ms-2000S |
| Read Noise | 1.0-3.3e- |
| ROI | YES |
| QE | 0.91 |
| Full Well Charge | 50Ke- |
| ADC | 14bit |
| Output Image Format | Mono8/Mono16 |
| Pixel Binning | BIN1,BIN2,BIN3,BIN4 |
Feature

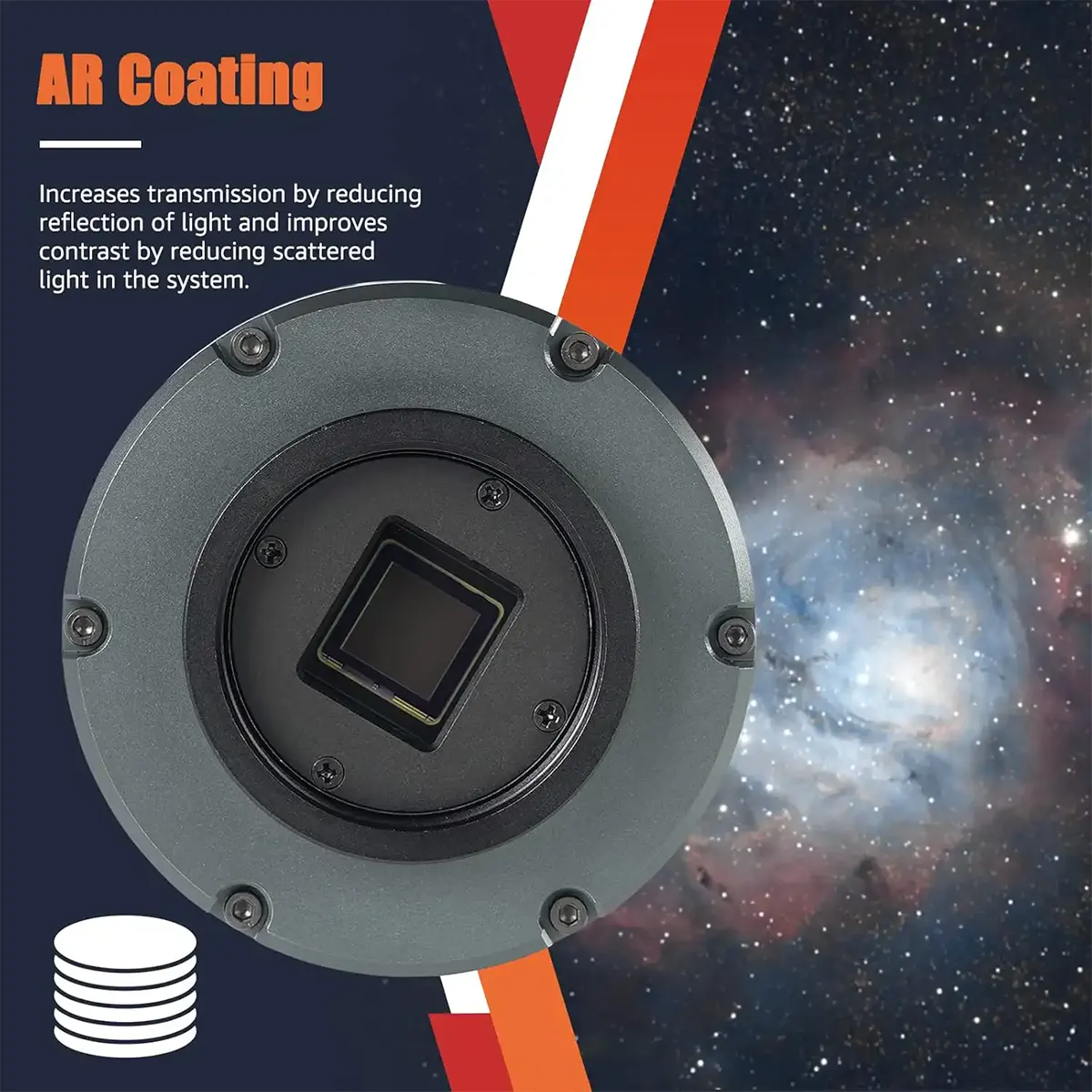

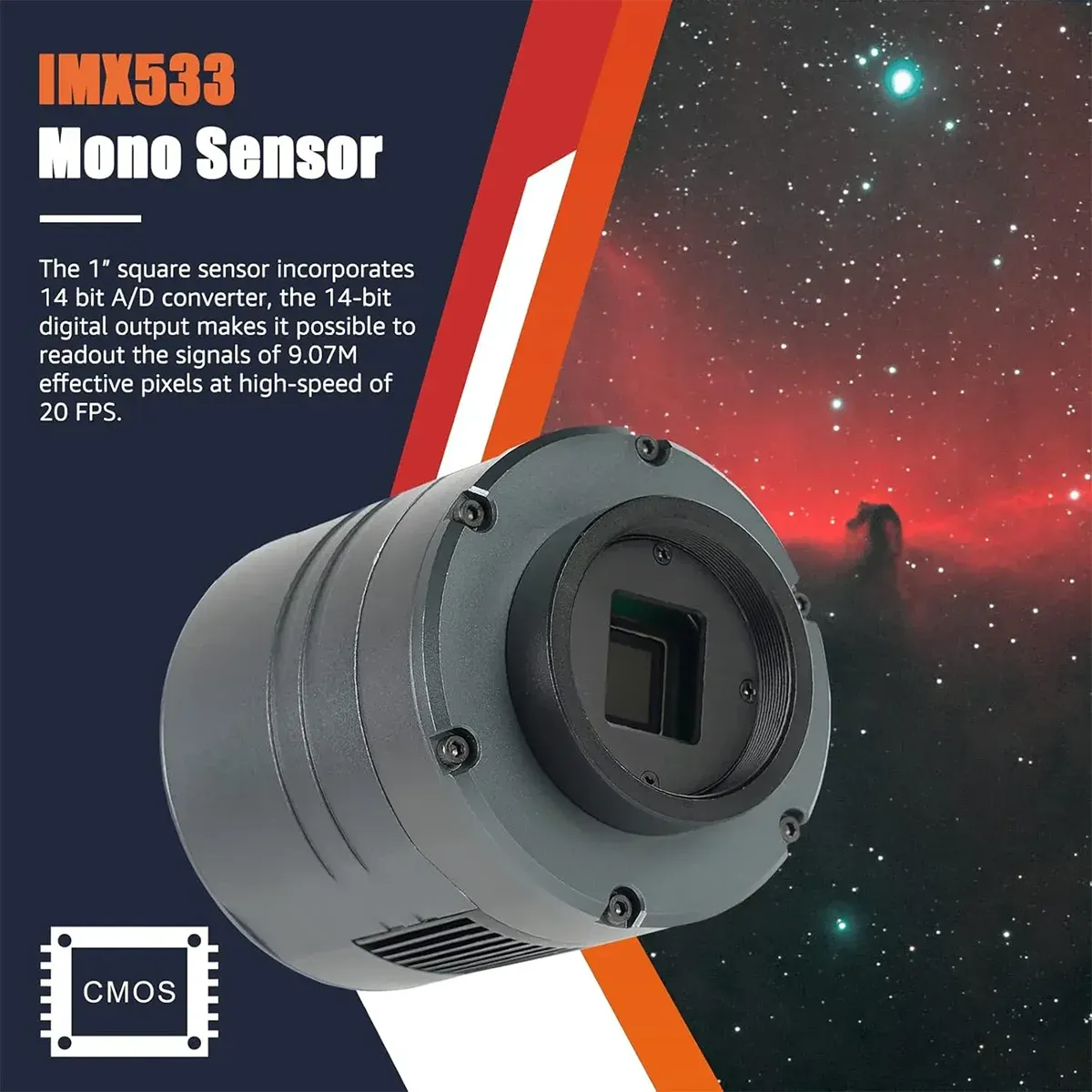

1. IMX533 Sensor With AR Coating
2. Independent Cavity

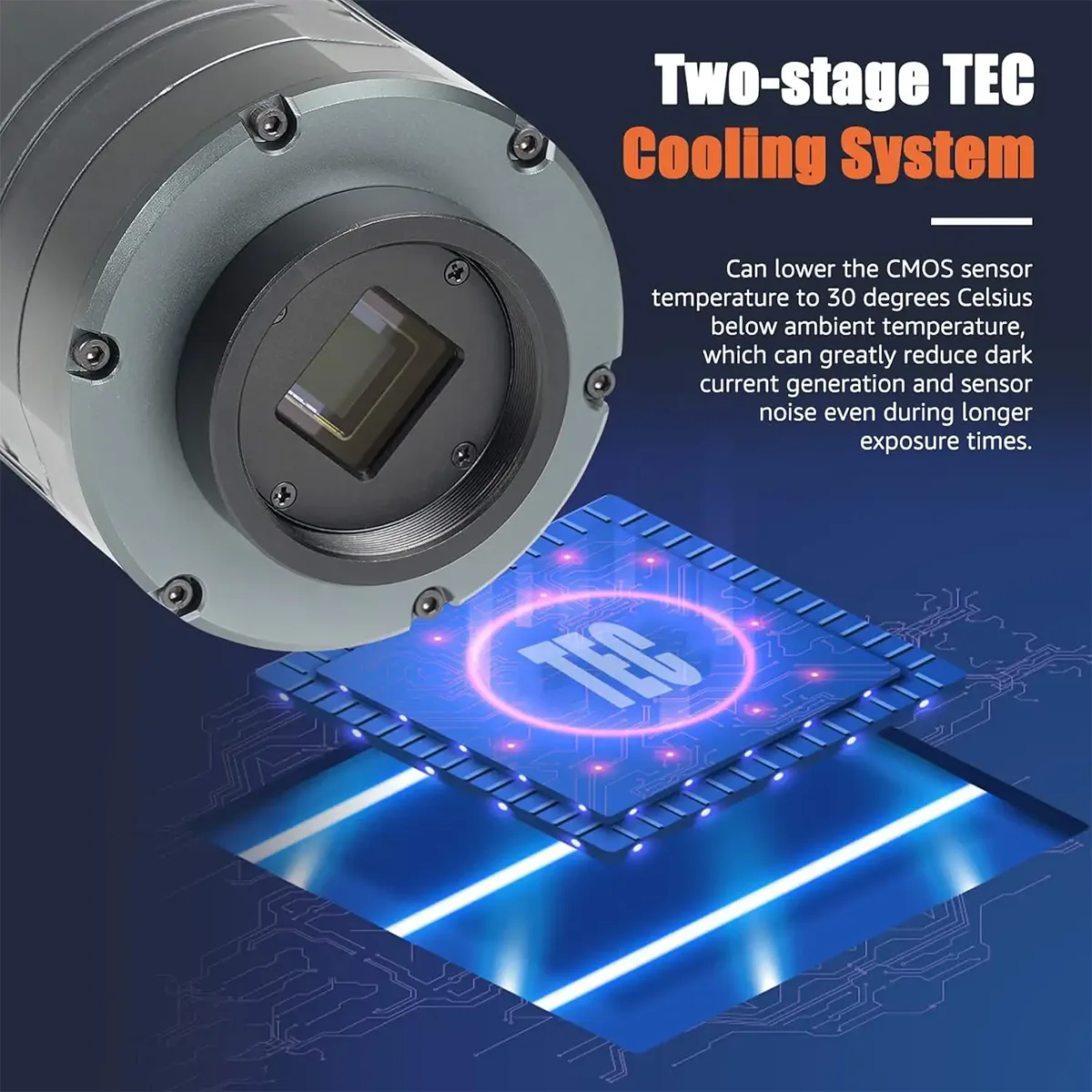

3. 2 Stage TEC Cooling

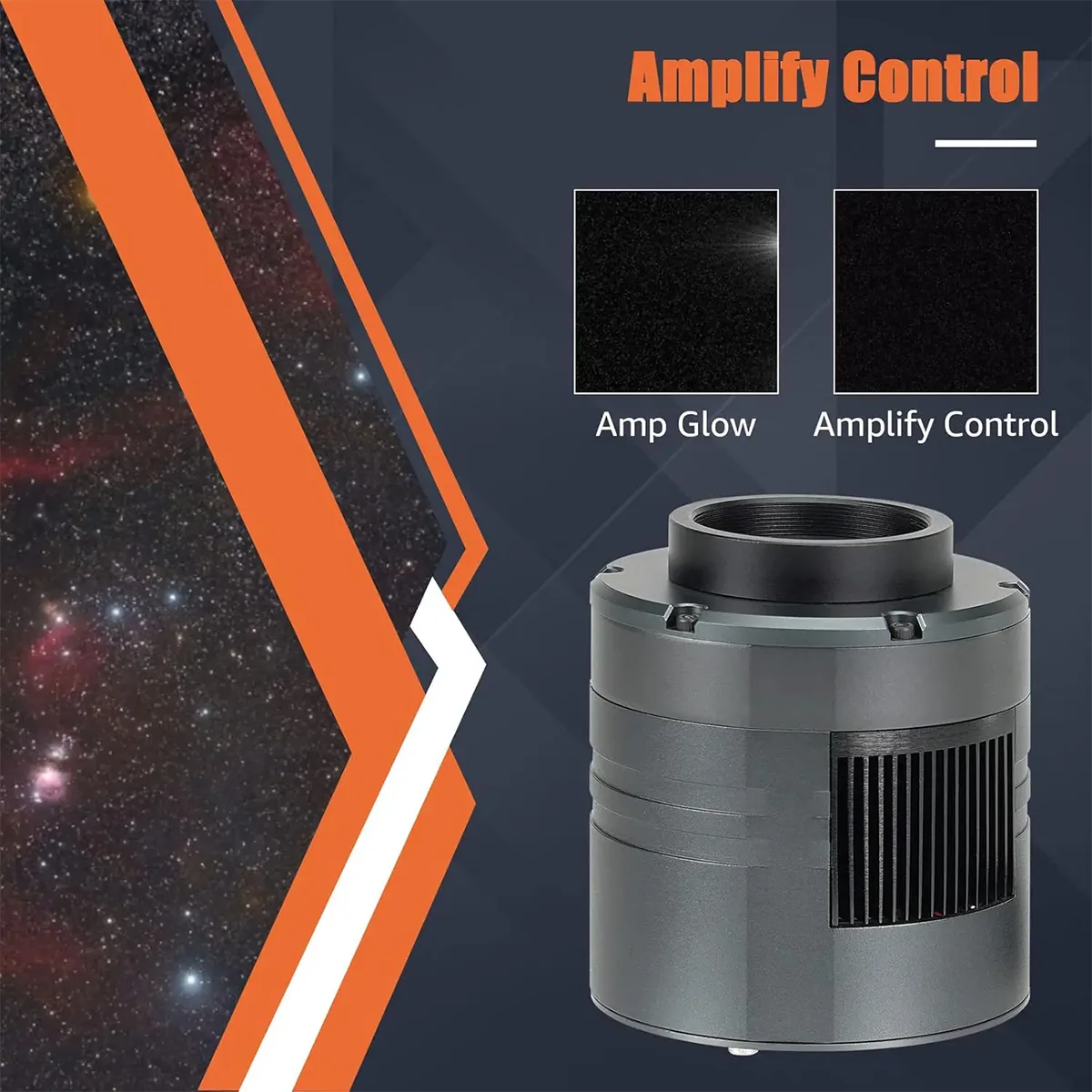

4. Amplify Control
5. Staivis Back-Illuminated Technology
6. USB 3.0/2.0 Cable
